Sharp ES-NFB914AWB-EE User manual

ИНСТРУКЦИЯ
Sharp ES-NFB914AWB-EE

Home Appliances
User Manual
a
ES-NFB814AAC-EN
ES-NFB814AWC-EN

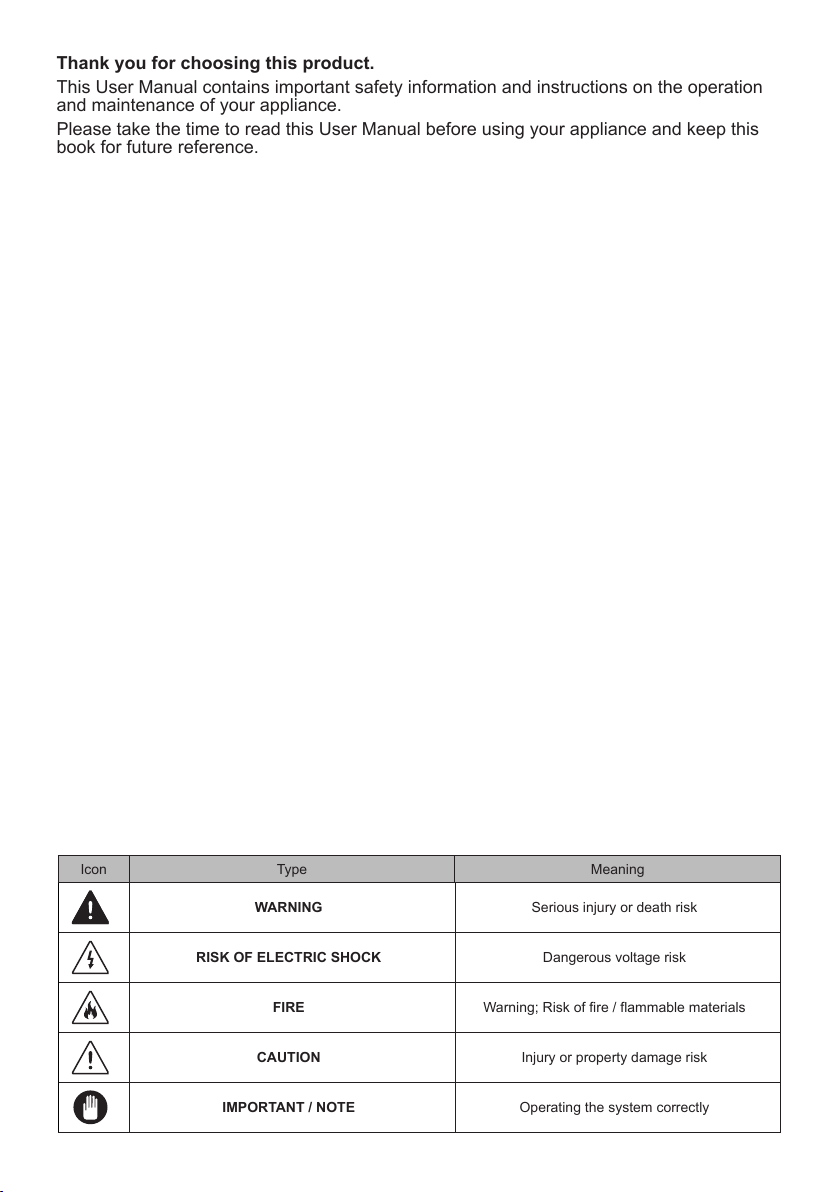

Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of fire / flammable materials
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly
Thank you for choosing this product.
This User Manual contains important safety information and instructions on the operation
and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this
book for future reference.

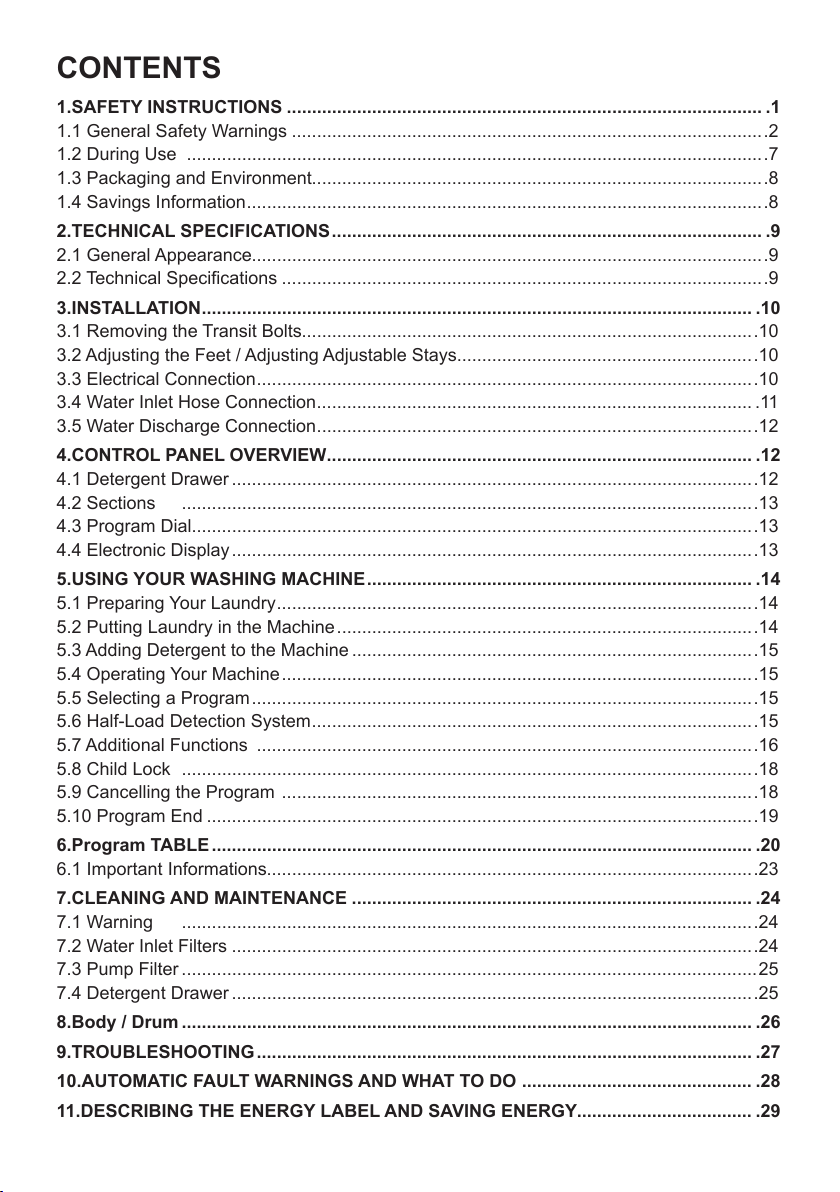

CONTENTS
1.SAFETY INSTRUCTIONS ............................................................................................... .1
1.1 General Safety Warnings ...............................................................................................2
1.2 During Use ....................................................................................................................7
1.3 Packaging and Environment...........................................................................................8

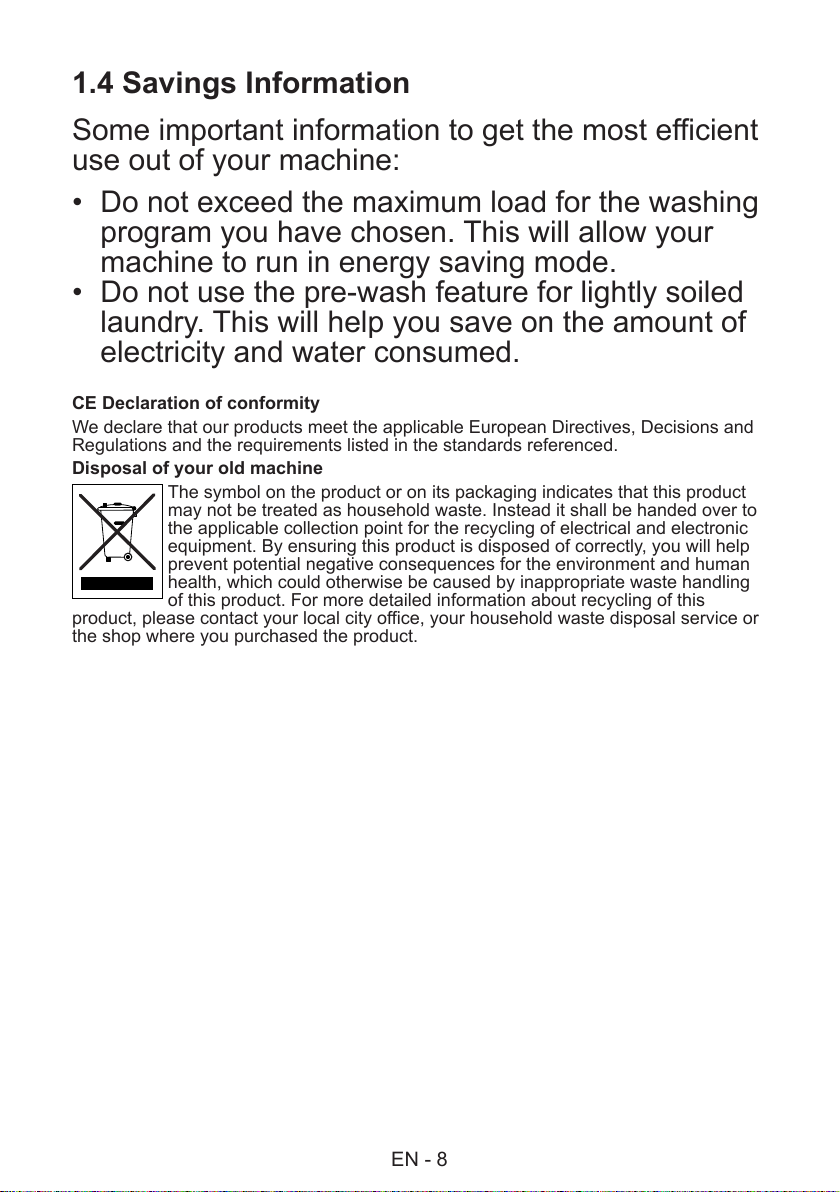

1.4 Savings Information........................................................................................................8

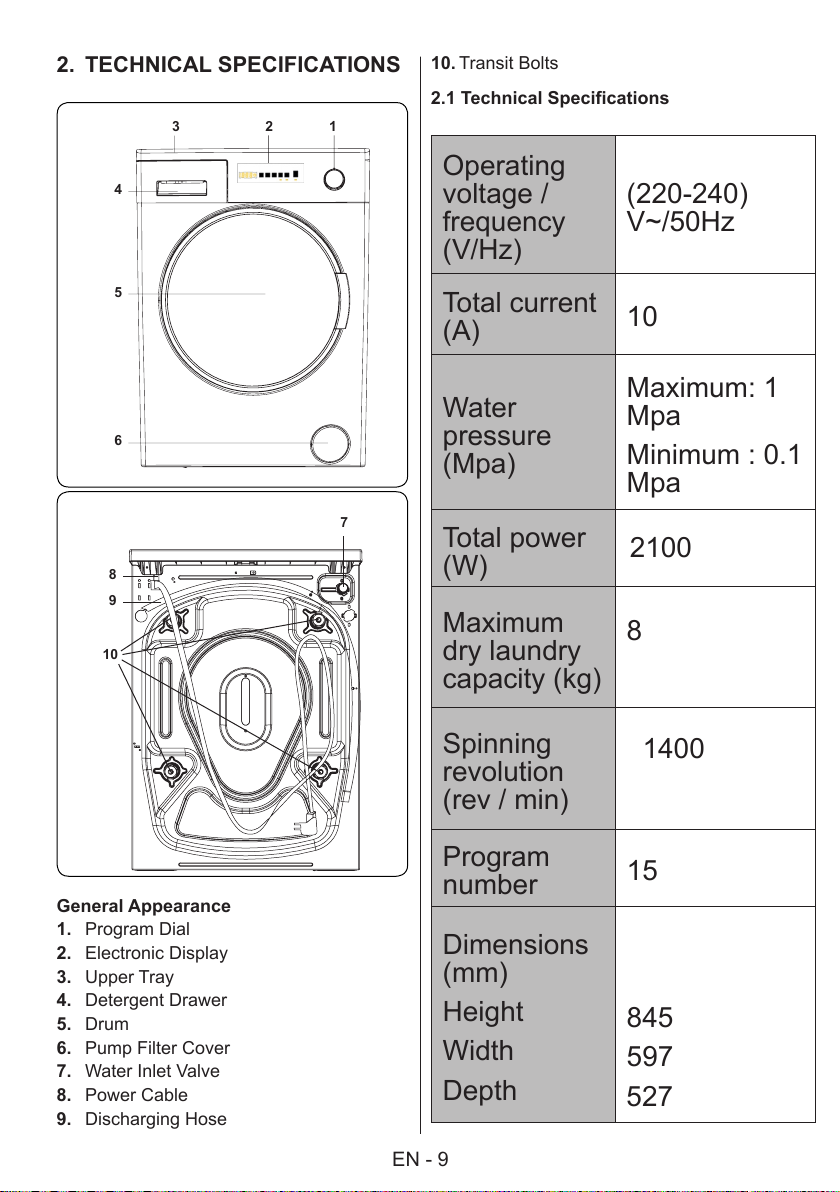

2.TECHNICAL SPECIFICATIONS...................................................................................... .9
2.1 General Appearance.......................................................................................................9
2.2 Technical Specifications .................................................................................................9
3.INSTALLATION.............................................................................................................. .10

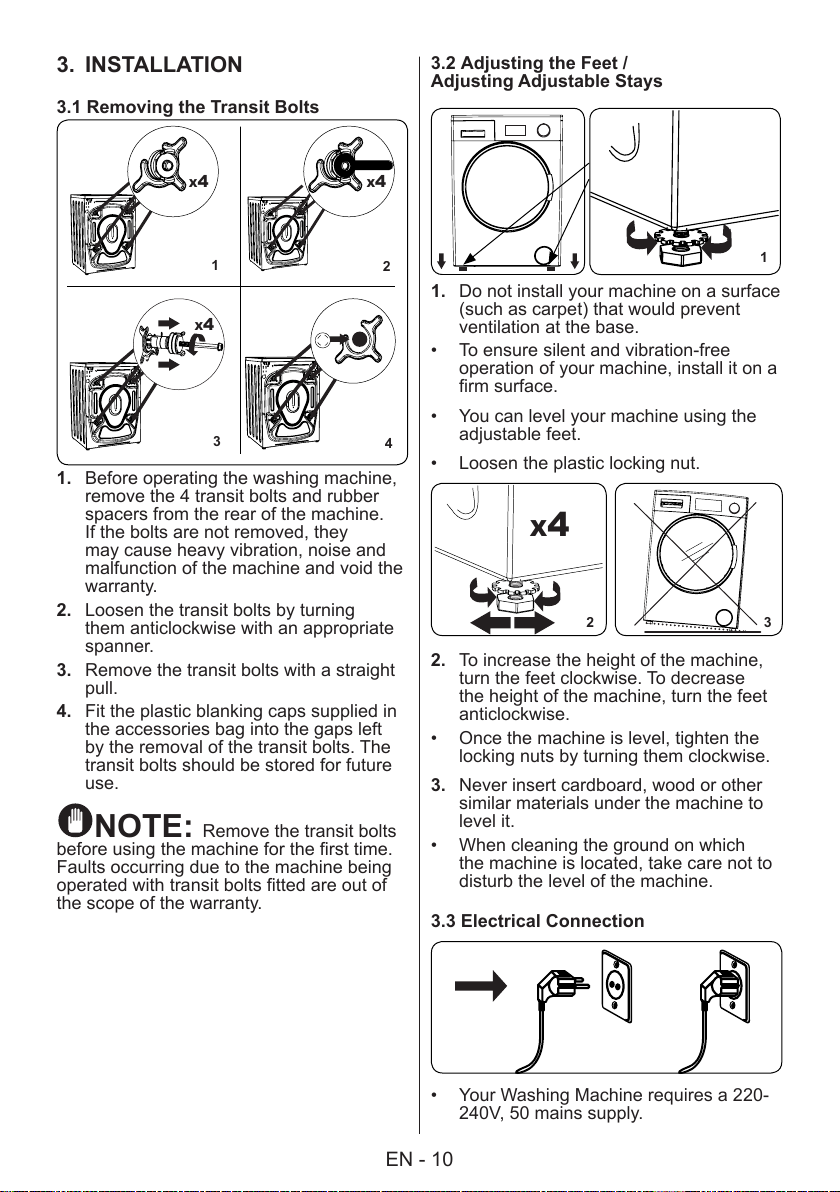

3.1 Removing the Transit Bolts...........................................................................................10
3.2 Adjusting the Feet / Adjusting Adjustable Stays............................................................10
3.3 Electrical Connection....................................................................................................10

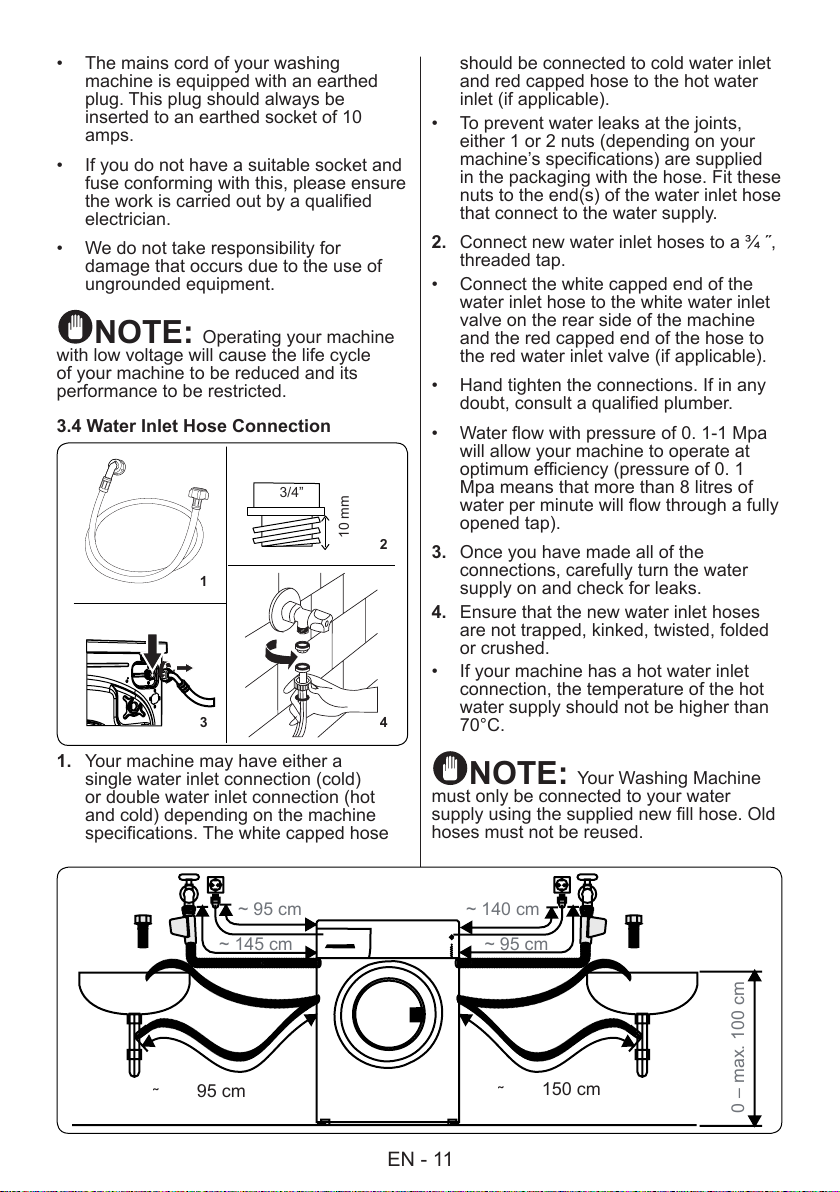

3.4 Water Inlet Hose Connection....................................................................................... .11

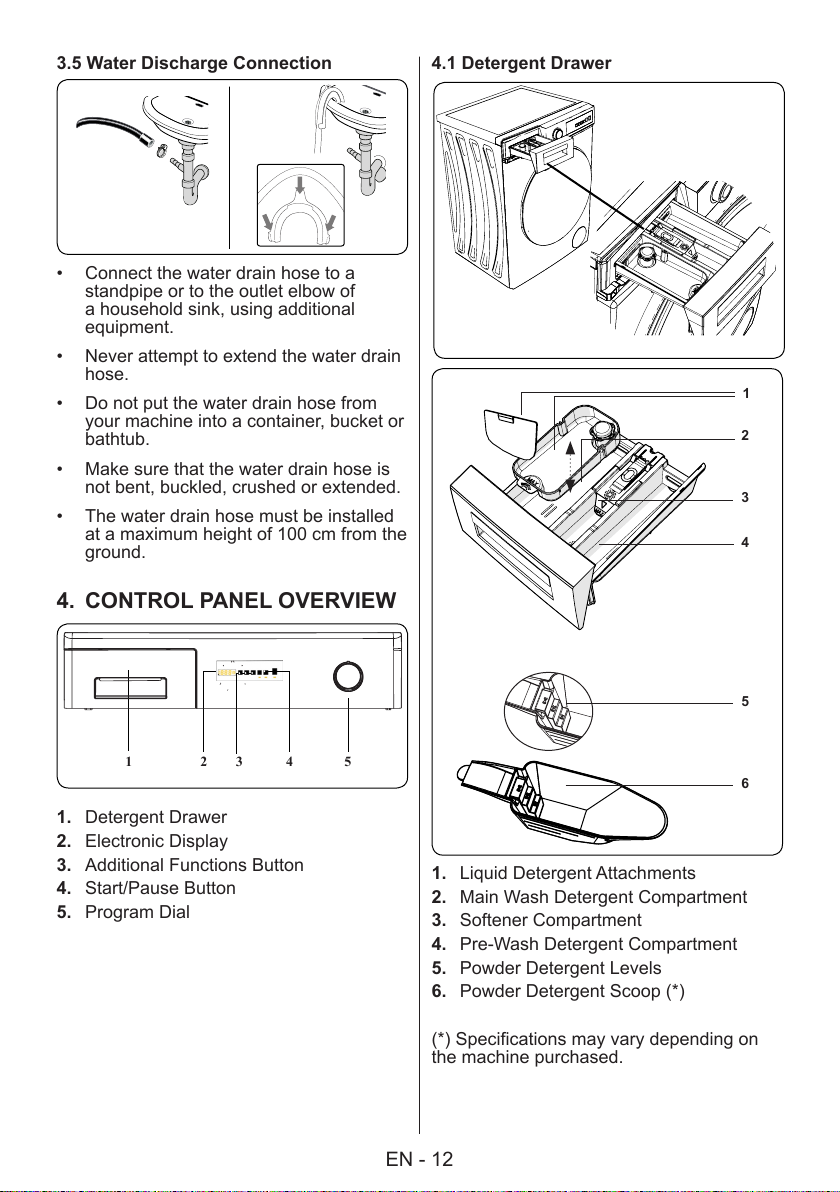

3.5 Water Discharge Connection........................................................................................12
4.CONTROL PANEL OVERVIEW..................................................................................... .12
4.1 Detergent Drawer .........................................................................................................12

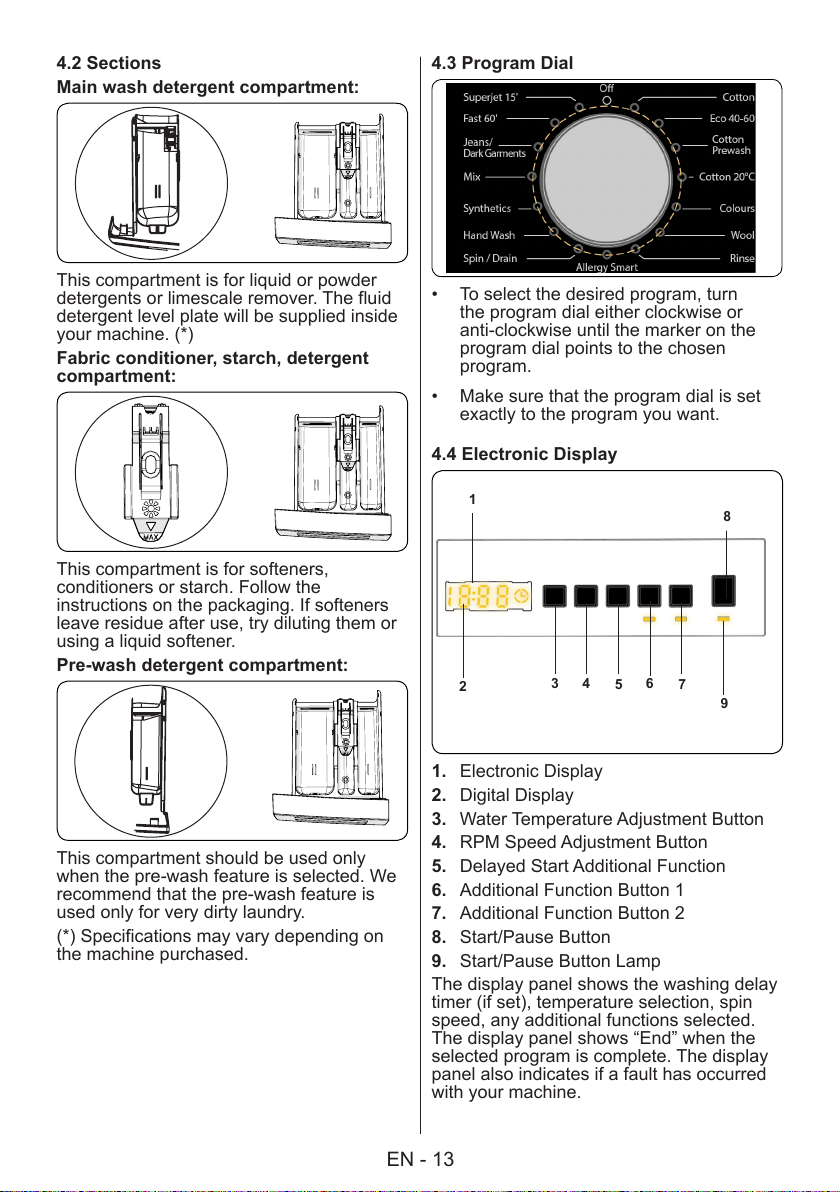

4.2 Sections ...................................................................................................................13
4.3 Program Dial.................................................................................................................13
4.4 Electronic Display.........................................................................................................13
5.USING YOUR WASHING MACHINE............................................................................. .14
5.1 Preparing Your Laundry................................................................................................14
5.2 Putting Laundry in the Machine....................................................................................14
5.3 Adding Detergent to the Machine .................................................................................15
5.4 Operating Your Machine...............................................................................................15
5.5 Selecting a Program.....................................................................................................15
5.6 Half-Load Detection System.........................................................................................15
5.7 Additional Functions ....................................................................................................16
5.8 Child Lock ...................................................................................................................18
5.9 Cancelling the Program ...............................................................................................18
5.10 Program End ..............................................................................................................19
6.Program TABLE ............................................................................................................ .20
6.1 Important Informations..................................................................................................23
7.CLEANING AND MAINTENANCE ................................................................................ .24
7.1 Warning ...................................................................................................................24
7.2 Water Inlet Filters .........................................................................................................24
7.3 Pump Filter ...................................................................................................................25
7.4 Detergent Drawer .........................................................................................................25
8.Body / Drum .................................................................................................................. .26
9.TROUBLESHOOTING................................................................................................... .27
10.AUTOMATIC FAULT WARNINGS AND WHAT TO DO .............................................. .28
11.DESCRIBING THE ENERGY LABEL AND SAVING ENERGY................................... .29

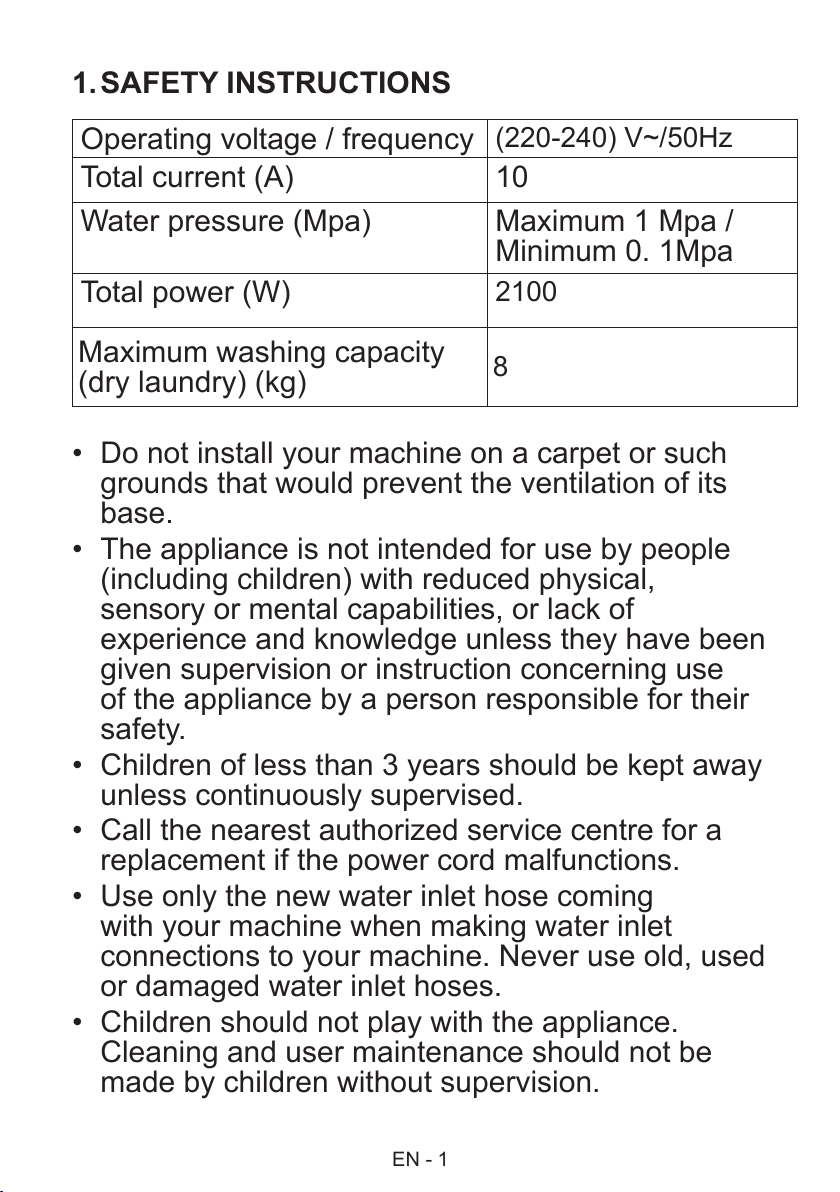

1.SAFETY INSTRUCTIONS
Operating voltage / frequency (220-240) V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum 1 Mpa /
Minimum 0. 1Mpa
Total power (W) 2100
Maximum washing capacity
(dry laundry) (kg) 8
• Do not install your machine on a carpet or such
grounds that would prevent the ventilation of its
base.
• The appliance is not intended for use by people
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge unless they have been
given supervision or instruction concerning use
of the appliance by a person responsible for their
safety.
• Children of less than 3 years should be kept away
unless continuously supervised.
• Call the nearest authorized service centre for a
replacement if the power cord malfunctions.
• Use only the new water inlet hose coming
with your machine when making water inlet
connections to your machine. Never use old, used
or damaged water inlet hoses.
• Children should not play with the appliance.
Cleaning and user maintenance should not be
made by children without supervision.
EN - 1

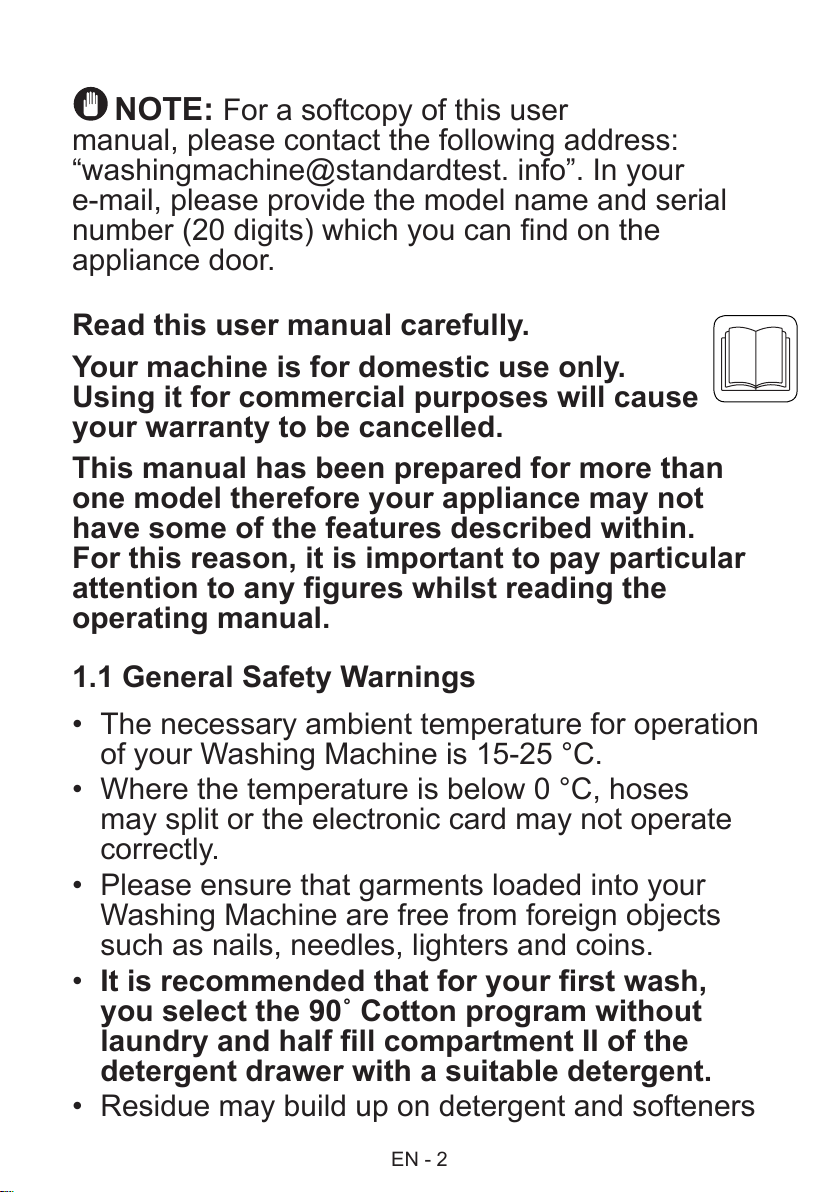

NOTE: For a softcopy of this user
manual, please contact the following address:
“washingmachine@standardtest. info”. In your
e-mail, please provide the model name and serial
number (20 digits) which you can find on the
appliance door.
Read this user manual carefully.
Your machine is for domestic use only.
Using it for commercial purposes will cause
your warranty to be cancelled.
This manual has been prepared for more than
one model therefore your appliance may not
have some of the features described within.
For this reason, it is important to pay particular
attention to any figures whilst reading the
operating manual.
1.1 General Safety Warnings
• Thenecessaryambienttemperatureforoperation
ofyourWashingMachineis15-25°C.
• Wherethetemperatureisbelow0°C,hoses
maysplitortheelectroniccardmaynotoperate
correctly.
• Pleaseensurethatgarmentsloadedintoyour
WashingMachinearefreefromforeignobjects
suchasnails,needles,lightersandcoins.
• It is recommended that for your first wash,
you select the 90˚ Cotton program without
laundry and half fill compartment II of the
detergent drawer with a suitable detergent.
• Residuemaybuildupondetergentandsofteners
EN - 2

exposedtoairforalongperiodoftime.Only
putsoftenerordetergentinthedraweratthe
beginningofeachwash.
• UnplugyourWashingMachineandswitchoff
thewatersupplyiftheWashingMachineisleft
unusedforalongtime.Wealsorecommendthat
youleavethedooropentopreventbuildupof
humidityinsidetheWashingMachine.
• SomewatermaybeleftinyourWashingMachine
asaresultofqualitychecksduringproduction.
ThiswillnotaffecttheoperationofyourWashing
Machine.
• Thepackagingofthemachinecouldbe
hazardoustochildren.Donotallowchildrento
playwiththepackagingorsmallpartsfromthe
WashingMachine.
• Keepthepackagingmaterialsinaplacewhere
childrencannotreachthem,ordisposeofthem
appropriately.
• Usepre-washprogramsonlyforverydirty
laundry.
Neveropenthedetergentdrawerwhilethe
machineisrunning.
• Intheeventofabreakdown,unplugthemachine
fromthemainssupplyandturnthewatersupply
off.Donotattempttocarryoutanyrepairs.
Alwayscontactanauthorisedserviceagent.
• Donotexceedthemaximumloadforthewashing
program you have chosen.
NeverforcethedooropenwhenyourWashing
Machineisrunning.
• Washinglaundrycontainingflourmaydamage
EN - 3

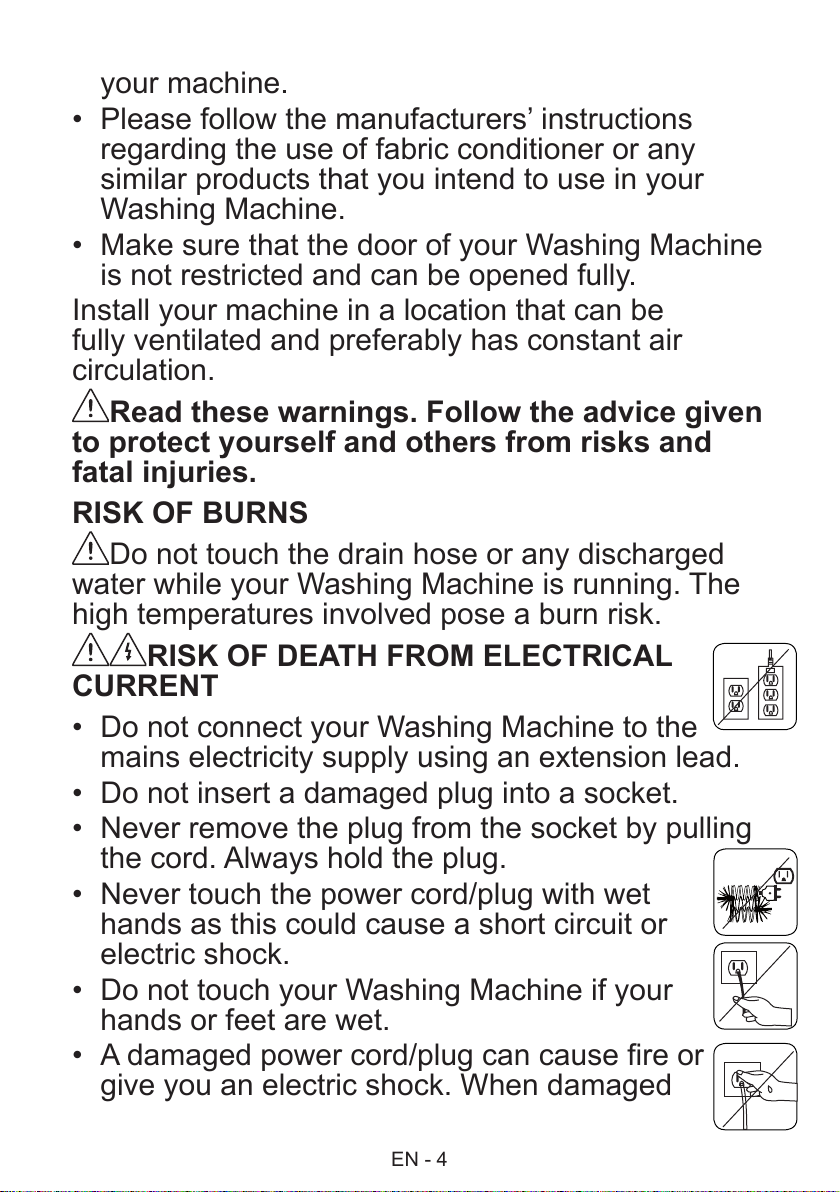

yourmachine.
• Pleasefollowthemanufacturers’instructions
regardingtheuseoffabricconditionerorany
similarproductsthatyouintendtouseinyour
WashingMachine.
• Make sure that the door of your Washing Machine
is not restricted and can be opened fully.
Install your machine in a location that can be
fully ventilated and preferably has constant air
circulation.
Read these warnings. Follow the advice given
to protect yourself and others from risks and
fatal injuries.
RISK OF BURNS
Do not touch the drain hose or any discharged
water while your Washing Machine is running. The
high temperatures involved pose a burn risk.
RISK OF DEATH FROM ELECTRICAL
CURRENT
• DonotconnectyourWashingMachinetothe
mainselectricitysupplyusinganextensionlead.
• Donotinsertadamagedplugintoasocket.
• Neverremovetheplugfromthesocketbypulling
the cord. Always hold the plug.
• Nevertouchthepowercord/plugwithwet
handsasthiscouldcauseashortcircuitor
electricshock.
• DonottouchyourWashingMachineifyour
hands or feet are wet.
• Adamagedpowercord/plugcancausefireor
giveyouanelectricshock.Whendamaged
EN - 4

itmustbereplaced,thisshouldonlybedoneby
qualifiedpersonnel.
Risk of flooding
• Checkthespeedofwaterflowbeforeplacingthe
drainhoseinasink.
• Take necessary measures to prevent the hose
fromslipping.
• Waterflowmaydislodgethehoseifitisnot
properlysecured.Makesurethepluginyoursink
does not block the plug hole.
Danger of Fire
• Donotstoreinflammableliquidsnearyour
machine.
• Thesulphurcontentofpaintremoversmaycause
corrosion.Neverusepaintremovingmaterialsin
yourmachine.
• Neveruseproductsthatcontainsolventsinyour
machine.
• Pleaseensurethatgarmentsloadedintoyour
WashingMachinearefreefromforeignobjects
suchasnails,needles,lightersandcoins.
Risk of fire and explosion
Risk of falling and injury
• DonotclimbonyourWashingMachine.
• Makesurehosesandcablesdonotcauseatrip
hazard.
• DonotturnyourWashingMachineupsidedown
oronitsside.
• DonotliftyourWashingMachineusingthedoor
or detergent drawer.
EN - 5

The machine must be carried by at least 2
people.
Child safety
• Donotleavechildrenunattendednearthe
machine.Childrenmightlockthemselvesinthe
machineresultinginriskofdeath.
• Donotallowchildrentotouchtheglassdoor
duringoperation.Thesurfacebecomesextremely
hotandmaycausedamagetoskin.
• Keeppackagingmaterialawayfromchildren.
• Poisoningandirritationmayoccurifdetergent
andcleaningmaterialsareconsumedor
comeintocontactwiththeskinandeyes.Keep
cleaningmaterialsoutofthereachofchildren.
1.2 During Use
• Keeppetsawayfromyourmachine.
• Pleasecheckthepackagingofyourmachine
beforeinstallationandtheoutersurfaceofthe
machineoncethepackaginghasbeenremoved.
Donotoperatethemachineifitappearsdamaged
orifthepackaginghasbeenopened.
• Yourmachinemustonlybeinstalledbyan
authorisedserviceagent.Installationbyanyone
otherthananauthorisedagentmaycauseyour
warrantytobevoid.
• This appliance can be used by children aged
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the

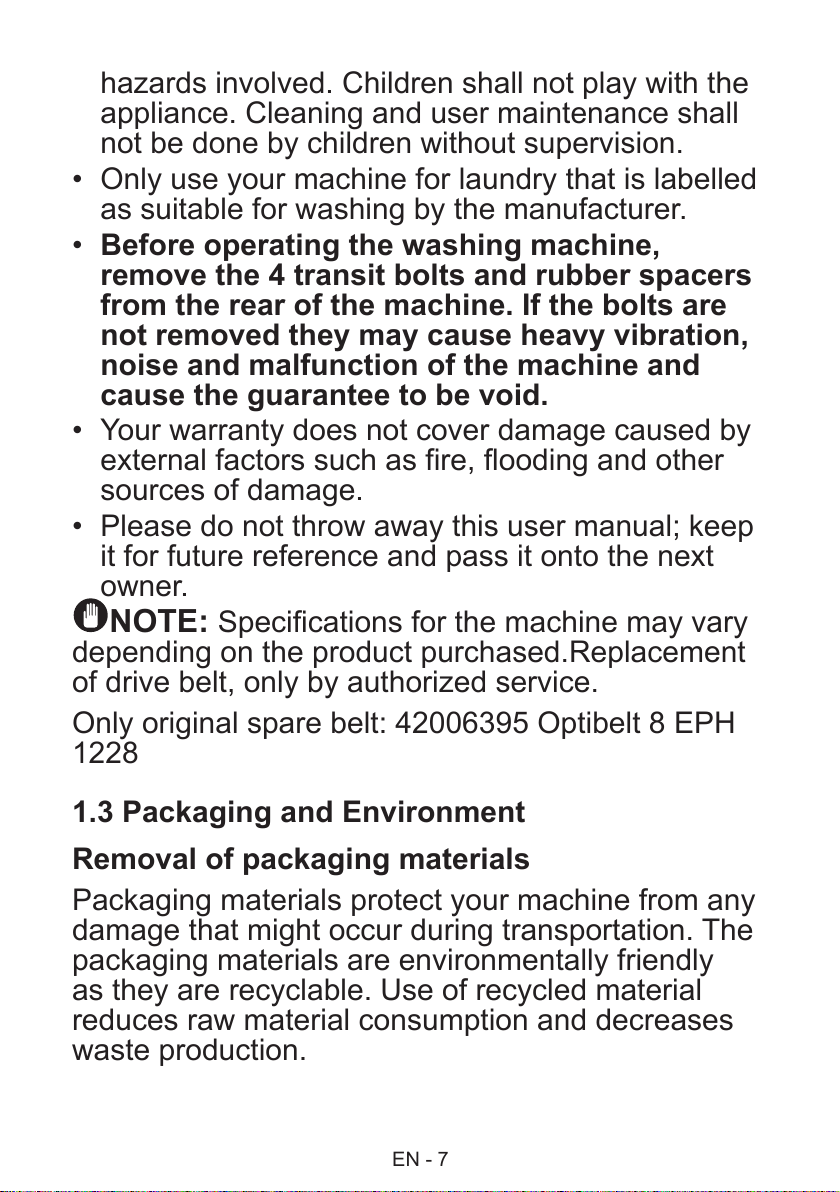

EN - 6

hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be done by children without supervision.
• Onlyuseyourmachineforlaundrythatislabelled
assuitableforwashingbythemanufacturer.
• Before operating the washing machine,
remove the 4 transit bolts and rubber spacers
from the rear of the machine. If the bolts are
not removed they may cause heavy vibration,
noise and malfunction of the machine and
cause the guarantee to be void.
• Your warranty does not cover damage caused by
externalfactorssuchasfire,floodingandother
sources of damage.
• Pleasedonotthrowawaythisusermanual;keep
itforfuturereferenceandpassitontothenext
owner.
NOTE: Specificationsforthemachinemayvary
dependingontheproductpurchased.Replacement
of drive belt, only by authorized service.
Only original spare belt: 42006395 Optibelt 8 EPH
1228
1.3 Packaging and Environment
Removal of packaging materials
Packagingmaterialsprotectyourmachinefromany
damagethatmightoccurduringtransportation.The
packagingmaterialsareenvironmentallyfriendly
astheyarerecyclable.Useofrecycledmaterial
reducesrawmaterialconsumptionanddecreases
wasteproduction.
EN - 7

1.4 Savings Information
Someimportantinformationtogetthemostefficient
useoutofyourmachine:
• Donotexceedthemaximumloadforthewashing
programyouhavechosen.Thiswillallowyour
machinetoruninenergysavingmode.
• Donotusethepre-washfeatureforlightlysoiled
laundry.Thiswillhelpyousaveontheamountof
electricityandwaterconsumed.
CE Declaration of conformity
WedeclarethatourproductsmeettheapplicableEuropeanDirectives,Decisionsand
Regulationsandtherequirementslistedinthestandardsreferenced.
Disposal of your old machine
Thesymbolontheproductoronitspackagingindicatesthatthisproduct
maynotbetreatedashouseholdwaste.Insteaditshallbehandedoverto
theapplicablecollectionpointfortherecyclingofelectricalandelectronic
equipment.Byensuringthisproductisdisposedofcorrectly,youwillhelp
preventpotentialnegativeconsequencesfortheenvironmentandhuman
health,whichcouldotherwisebecausedbyinappropriatewastehandling
ofthisproduct.Formoredetailedinformationaboutrecyclingofthis
product,pleasecontactyourlocalcityoffice,yourhouseholdwastedisposalserviceor
the shop where you purchased the product.
EN - 8

EN - 9
2. TECHNICAL SPECIFICATIONS
123
4
5
6
7
8
9
10
General Appearance
1. ProgramDial
2. ElectronicDisplay
3. Upper Tray
4. Detergent Drawer
5. Drum
6. PumpFilterCover
7. Water Inlet Valve
8. Power Cable
9. DischargingHose
10. TransitBolts
2.1 Technical Specifications
Operating
voltage /
frequency
(V/Hz)
(220-240)
V~/50Hz
Total current
(A) 10
Water
pressure
(Mpa)
Maximum:1
Mpa
Minimum:0.1
Mpa
Total power
(W)
Maximum
dry laundry
capacity(kg)
8
Spinning
revolution
(rev/min)
Program
number 15
Dimensions
(mm)
Height
Width
Depth
845
597
2100
527
1400

EN - 10
3. INSTALLATION
3.1 Removing the Transit Bolts
X X4 4
X4
1
3
2
4
1. Beforeoperatingthewashingmachine,
removethe4transitboltsandrubber
spacersfromtherearofthemachine.
If the bolts are not removed, they
maycauseheavyvibration,noiseand
malfunctionofthemachineandvoidthe
warranty.
2. Loosenthetransitboltsbyturning
themanticlockwisewithanappropriate
spanner.
3. Removethetransitboltswithastraight
pull.
4. Fittheplasticblankingcapssuppliedin
theaccessoriesbagintothegapsleft
bytheremovalofthetransitbolts.The
transitboltsshouldbestoredforfuture
use.
NOTE: Removethetransitbolts
beforeusingthemachineforthefirsttime.
Faultsoccurringduetothemachinebeing
operatedwithtransitboltsfittedareoutof
the scope of the warranty.
3.2 Adjusting the Feet /
Adjusting Adjustable Stays
1
1. Donotinstallyourmachineonasurface
(such as carpet) that would prevent
ventilationatthebase.
• Toensuresilentandvibration-free
operationofyourmachine,installitona
firmsurface.
• Youcanlevelyourmachineusingthe
adjustable feet.
• Loosentheplasticlockingnut.
X4
2 3
2. Toincreasetheheightofthemachine,
turnthefeetclockwise.Todecrease
theheightofthemachine,turnthefeet
anticlockwise.
• Oncethemachineislevel,tightenthe
lockingnutsbyturningthemclockwise.
3. Neverinsertcardboard,woodorother
similarmaterialsunderthemachineto
levelit.
• Whencleaningthegroundonwhich
themachineislocated,takecarenotto
disturbthelevelofthemachine.
3.3 Electrical Connection
• YourWashingMachinerequiresa220-
240V, 50 mainssupply.

EN - 11
• Themainscordofyourwashing
machineisequippedwithanearthed
plug.Thisplugshouldalwaysbe
insertedtoanearthedsocketof10
amps.
• Ifyoudonothaveasuitablesocketand
fuseconformingwiththis,pleaseensure
theworkiscarriedoutbyaqualified
electrician.
• Wedonottakeresponsibilityfor
damage that occurs due to the use of
ungroundedequipment.
NOTE: Operatingyourmachine
withlowvoltagewillcausethelifecycle
ofyourmachinetobereducedandits
performancetoberestricted.
3.4 Water Inlet Hose Connection
3/4”
10 mm
1
3
2
4
1. Yourmachinemayhaveeithera
singlewaterinletconnection(cold)
ordoublewaterinletconnection(hot
andcold)dependingonthemachine
specifications.Thewhitecappedhose
shouldbeconnectedtocoldwaterinlet
and red capped hose to the hot water
inlet(ifapplicable).
• Topreventwaterleaksatthejoints,
either1or2nuts(dependingonyour
machine’sspecifications)aresupplied
inthepackagingwiththehose.Fitthese
nutstotheend(s)ofthewaterinlethose
that connect to the water supply.
2. Connectnewwaterinlethosestoa¾˝,
threaded tap.
• Connectthewhitecappedendofthe
waterinlethosetothewhitewaterinlet
valveontherearsideofthemachine
and the red capped end of the hose to
theredwaterinletvalve(ifapplicable).
• Handtightentheconnections.Ifinany
doubt,consultaqualifiedplumber.
• Waterflowwithpressureof0.1-1Mpa
willallowyourmachinetooperateat
optimumefficiency(pressureof0.1
Mpameansthatmorethan8litresof
waterperminutewillflowthroughafully
opened tap).
3. Once you have made all of the
connections,carefullyturnthewater
supply on and check for leaks.
4. Ensurethatthenewwaterinlethoses
arenottrapped,kinked,twisted,folded
or crushed.
• Ifyourmachinehasahotwaterinlet
connection,thetemperatureofthehot
watersupplyshouldnotbehigherthan
70°C.
NOTE: YourWashingMachine
must only be connected to your water
supplyusingthesuppliednewfillhose.Old
hoses must not be reused.
~ 95 cm ~ 140 cm
~ 145 cm ~ 95 cm
0 – max. 100 cm
˜˜
95 cm 150 cm

EN - 12
3.5 Water Discharge Connection
• Connectthewaterdrainhosetoa
standpipeortotheoutletelbowof
ahouseholdsink,usingadditional
equipment.
• Neverattempttoextendthewaterdrain
hose.
• Donotputthewaterdrainhosefrom
yourmachineintoacontainer,bucketor
bathtub.
• Makesurethatthewaterdrainhoseis
not bent, buckled, crushed or extended.
• Thewaterdrainhosemustbeinstalled
atamaximumheightof100cmfromthe
ground.
4. CONTROL PANEL OVERVIEW
51 2 3 4
1. Detergent Drawer
2. ElectronicDisplay
3. AdditionalFunctionsButton
4. Start/Pause Button
5. ProgramDial
4.1 Detergent Drawer
1
2
3
4
5
6
1. LiquidDetergentAttachments
2. MainWashDetergentCompartment
3. Softener Compartment
4. Pre-Wash Detergent Compartment
5. Powder Detergent Levels
6. Powder Detergent Scoop (*)
(*)Specificationsmayvarydependingon
themachinepurchased.

EN - 13
4.2 Sections
Main wash detergent compartment:
Thiscompartmentisforliquidorpowder
detergentsorlimescaleremover.Thefluid
detergentlevelplatewillbesuppliedinside
yourmachine.(*)
Fabric conditioner, starch, detergent
compartment:
Thiscompartmentisforsofteners,
conditionersorstarch.Followthe
instructionsonthepackaging.Ifsofteners
leaveresidueafteruse,trydilutingthemor
usingaliquidsoftener.
Pre-wash detergent compartment:
Thiscompartmentshouldbeusedonly
whenthepre-washfeatureisselected.We
recommendthatthepre-washfeatureis
usedonlyforverydirtylaundry.
(*)Specificationsmayvarydependingon
themachinepurchased.
4.3 Program Dial
• Toselectthedesiredprogram,turn
theprogramdialeitherclockwiseor
anti-clockwiseuntilthemarkeronthe
programdialpointstothechosen
program.
• Makesurethattheprogramdialisset
exactly to the program you want.
4.4 Electronic Display
1
8
23 4 6
5 7
9
1. ElectronicDisplay
2. DigitalDisplay
3. Water Temperature Adjustment Button
4. RPM Speed Adjustment Button
5. DelayedStartAdditionalFunction
6. AdditionalFunctionButton1
7. AdditionalFunctionButton2
8. Start/Pause Button
9. Start/Pause Button Lamp
Thedisplaypanelshowsthewashingdelay
timer(ifset),temperatureselection,spin
speed,anyadditionalfunctionsselected.
The display panel shows “End” when the
selected program is complete. The display
panel also indicates if a fault has occurred
with your machine.
