CMT03E Product Technical Instruction
（English）
Product Name：Center-MotorAA
Product Model:CMT03E(stand configuration)

~- 2 - ~
Important Notice
•Please read the user manual and attached assembly manual. If you are not clear
about any information in the manual, do not assembly and get help from Shengyi
motor.
• Any questions you can’t find the answer in the manual, please get contact with your
dealer.
• Do not disassemble or modify the production in unmentioned way by the manual.
• Dealers must comply with their national, regional relevant laws and regulations.
The assembling procedure should fully follow the instruction given by the manual and
it should be used in right ways.
• The consumer might get hurt from the unexpected falling due to the loosing
bolts/nuts, incorrect assembly method or improper adjustment.
• Make sure the consumers know and understand the following notes.
• Before cycling, please check if the wheel is fixed tightly and rotated smoothly, please
focus on riding instead of the display to avoid of the distraction fall.
• Please be familiar with the how the bike works out during starting before riding the
motor-assisted bicycle. Accidentally start electric bike may cause an accident. Make
sure you turn on the headlights if cycling at night time.
• Unplug the battery (cutoff the electricity) before connect any cables or assembly any
parts.
•Please follow the instructions for use of this product. Do not use this product for
people, children with no operational experience, physical, sensory or mental illness,
and do not allow children to play near this product.
• Regarding assembly, adjustment and software updates please never attempt to
modify the software system by yourself, it’s easily lead to system failure), please
consult your dealer. If any fault or problem occurs, please also consult your nearest
dealer.
• This product is waterproof designed which can driving in rainy weather, but do not be
soaked in water. Do not use high-pressure water for cleaning. Water immersion will

~- 3 - ~
result in failure or rusted.
• Using this product carefully, do not apply strong impact.
• If you have any questions about the maintenance or how to use the product which
unmentioned by the manual, please contact the retailer or dealer.
• Appropriate consuming of the production will only causing the product aging.

~- 4 - ~
Content
1.Center motor
2.Accessory
3.Assemble way
4. Notes and failure analysis
5. Packing list
6. Package

~- 5 - ~
1.Center motor
★It can meets the installation of bicycles and easy to install;
★It has a highly modular design for easy motor maintenance;
★Integration design makes it easy for customers to customize；
★With dual clutch；
★Controlled by torque, inside controller, speed limit 25KM/h;
★The starting torque is large, the maximum torque of the motor is ≥80N.m, which is
more conducive to climbing；
★High efficiency, low power consumption and long cruising range
1.1 Material and waterproofing grade
Housing material and surface treatment
Internal aluminum casing: The surface of the die-cast aluminum is
electrophoretic coated with a matt black or silver paint;
External plastic case: the surface of the plastic case is painted with matt black or
silver paint
Protection Grade：IP54；
Environmental ：Temp：-20℃～55℃Barometric pressure：altitude≤1000m
Relative humidity ：25℃≤90%
1.2 Main technical parameters
Rated Voltage：36V
No load
Rated Point
Max Output
Speed RPM
88±10
83±10
68±10
Current A
≤1.5
≤8
15
Torque Nm
≥30
≥65
Output power W
250
460
Efficiency %
≥78
Working state
S1 working system
S1 working system

~- 6 - ~
2.Acessory
2.1 Display
2.1.1 Display Name
Center Intelligent LCD display，Model :APT12LCD760S。

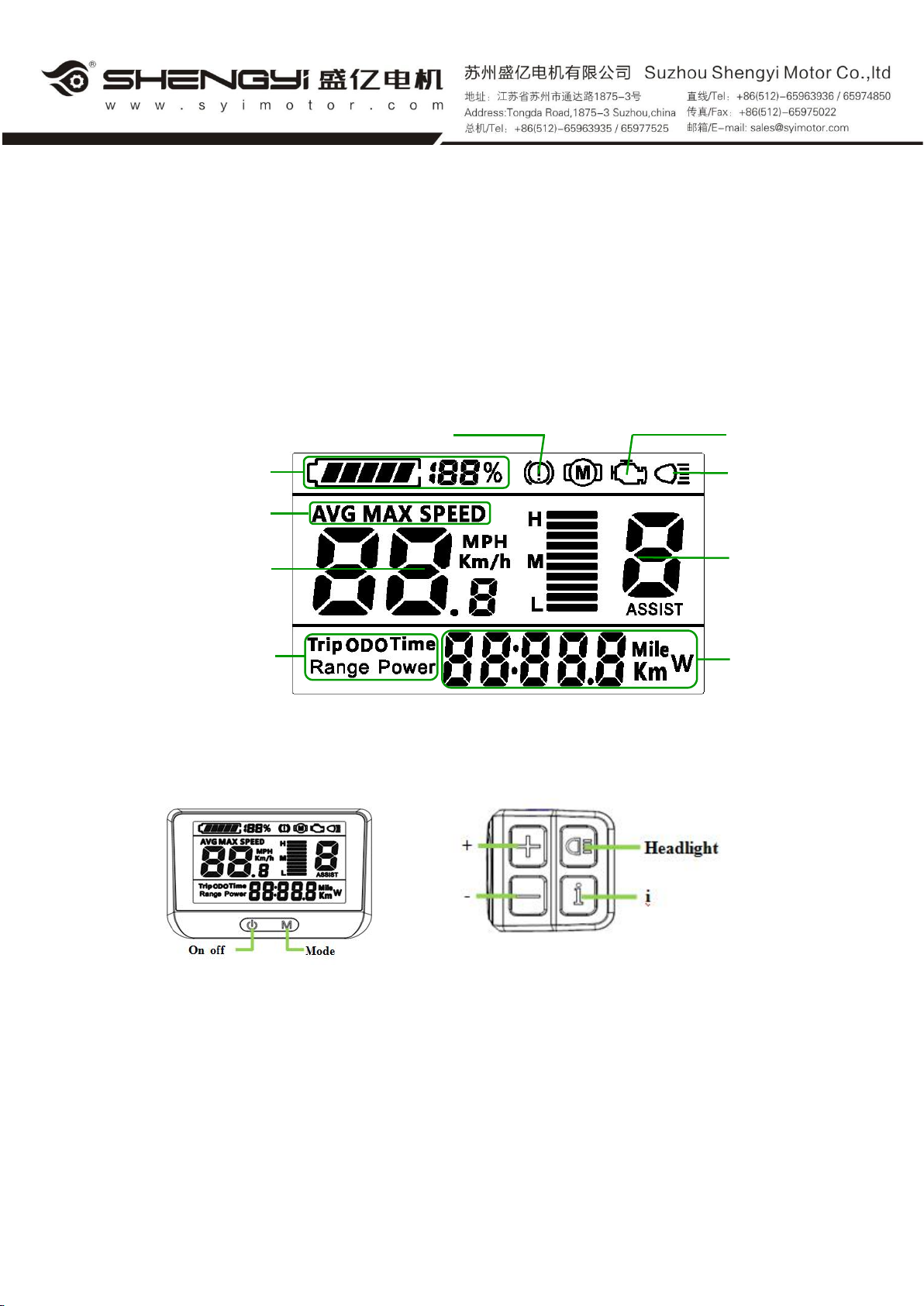

▪LCD display instructions and button function description
LCD whole drawing：
Speed mode
Headlight indicator
Battery indicator
Gear indicator
Mileage mode
Mileage indicator
Speed display
Failure reminder
Braking reminder
Button Function:
2.1.2 Parameter setting
Pls check "Display 760S-J Protocol-4 Button Product Specification"
2.2 Speed sensor
2.2.1 Product Model
Model : SPL-10

~- 7 - ~
2.2.2 Apperance
（M5 PH screw）
（speed sensor ） （cover） （Induction magnet）
2.2.3 Product Installation Drawing
（Locking torque：<1Nm）
2.2.4 Specification
Parameter
value
Rated Voltage
DC5V
Rated Current
5mA
Pulse/circle
1
Install distance
3-10mm
Working Temp
-30~70℃
Waterproof Grade
IPX7
Certification
CE ROHS

~- 8 - ~
2.3 Chain Wheel
2.3.1 Chain Wheel appearance：（as picture）
2.3.2 Chain Wheel Model：42T single chain cover
2.3.3 Chain wheel basic parameter
Teeths ：42 T
Shape：Concave with circular pattern
Color：black
2.4 Crank
2.4.1 Crank Appearance ：（as picture）
2.4.2 Crank Model：TS1-170AA
2.4.3 Crank basic parameter ：
Length ：170mm
Quality：6061
Color：black
*Note: The direction of the left and right crank threads is different, and there is an
"L" mark on the left crank, an "R" mark on the right crank

~- 9 - ~
2.5 Other accessory
Connection Plate Hex Torx sunk socket Hex Torx sunk screw
M6X65 M6X18
Left plastic housing Right plastic housing Hex Torx pan screw
M4X8
Chain Wheel nut M26（reverse tooth）Crank screw M8X20 External speed senor connection cable
Front light connection cable Display connection cable Rear light connection cable
Power connection cable

~- 10 - ~
3.Assemble way
3.1System schematic diagram and connection diagram

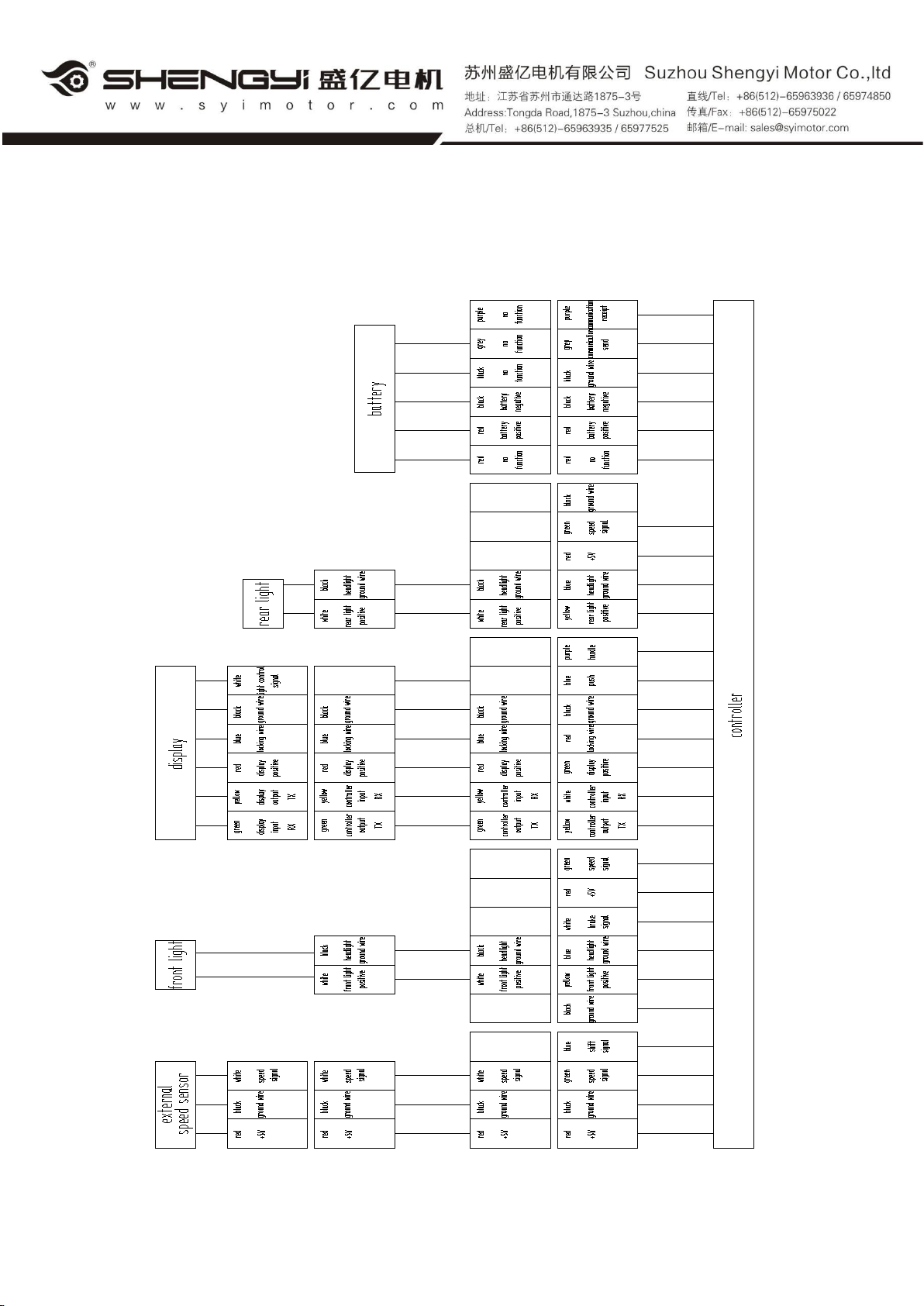

3.1.1System schematic diagram

~- 11 - ~

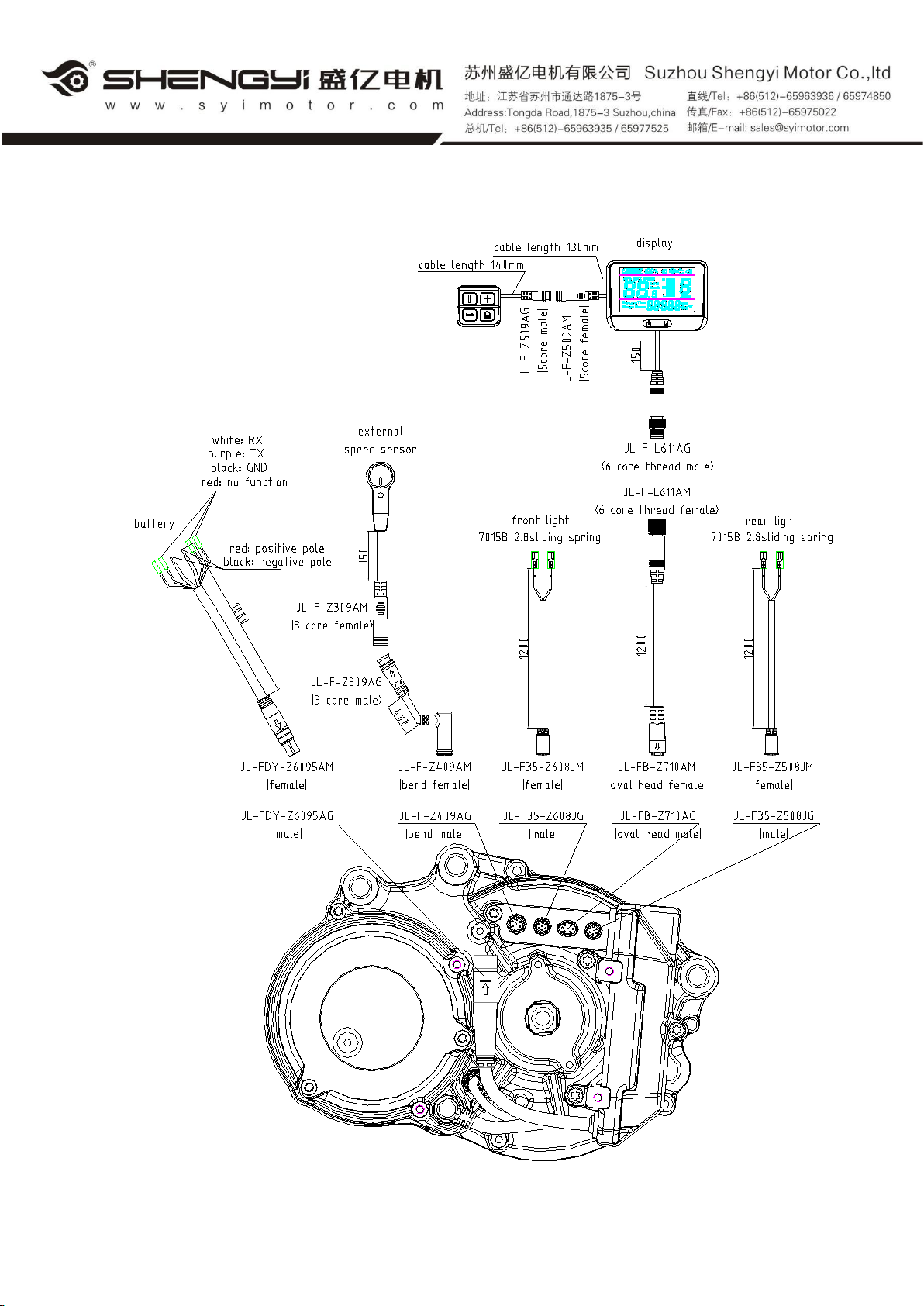

3.1.2 System Connection Diagram
(front of the bike) （back of the bike）

~- 12 - ~
3.2 Assemble Diagram
3.2.1 Threading
Insert the external speed sensor connection cable , front light connection cable ,
display connection cable , rear light connection cable , power connection cable
into the bike according to the requirements ;
Insert all above cables into the motor according to ‘’ 3.1.2 system
Connection diagram’’
Finish the cable length and position;
3.2.2 Install the motor
Insert 3pcs Hex Torx sunk sockets M6X65 and 3pcs Hex Torx sunk screws M6*18
into 3 holes of the frame connecting plate as shown in the picture, and lock
them(locking torque: 8-10Nm);
3.2.3 Install left and right plastic housing
Clamp the left and right plastic housings onto the motor; Lock 8pcs M4X8 Hex
Torx pan screws as shown in the picture(locking torque: <1Nm);

~- 13 - ~

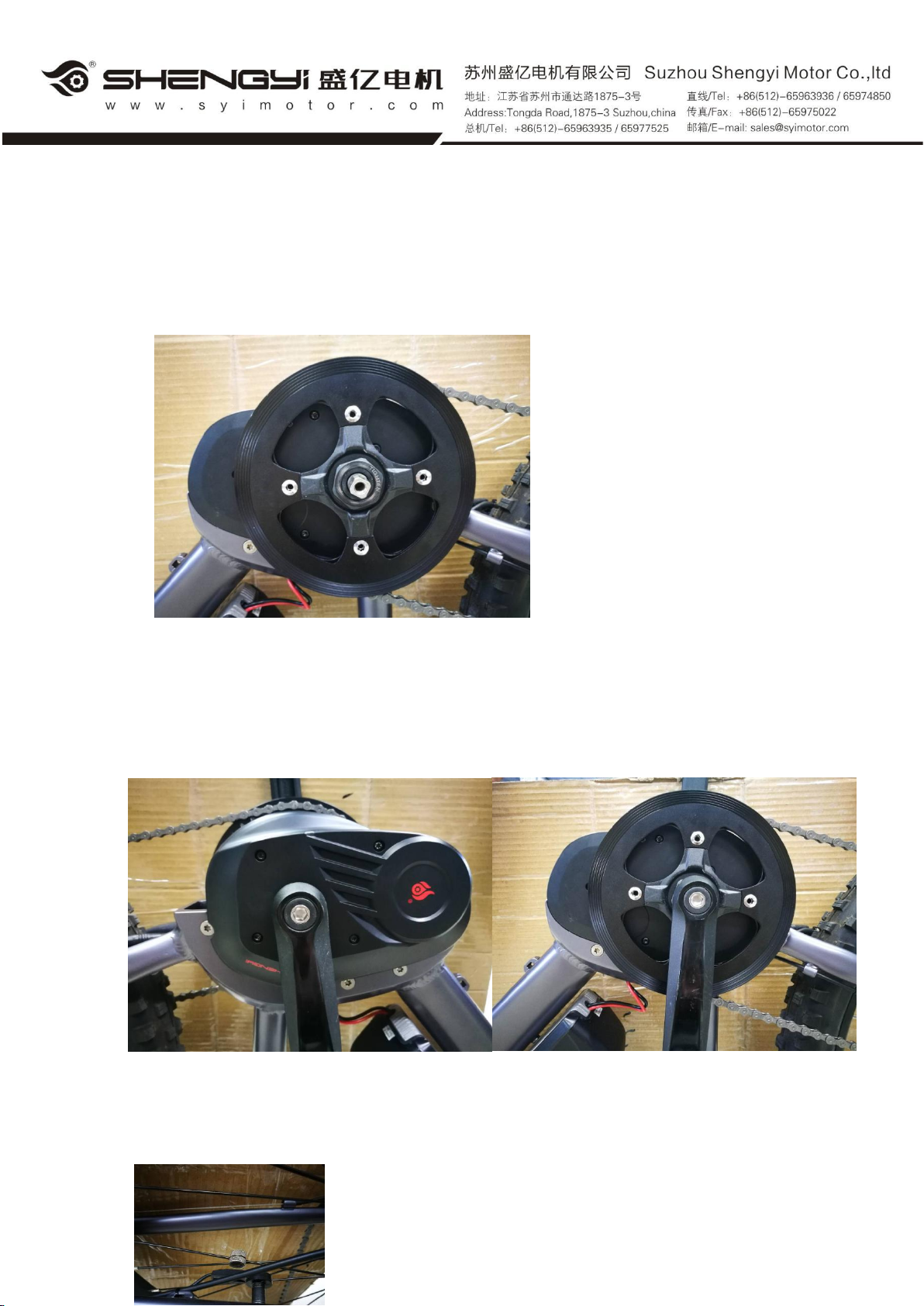

3.2.4 Install chain wheel ,locking the chain wheel screws
Put the chain wheel on the motor in the direction of the spline slot; Screw the
chain wheel nut (reverse-tooth) in the opposite direction(locking torque:
20-24Nm);
3.2.5 Install left and right cranks ,locking the cranks screws
Put the crank on the middle shaft (the angle between the left and right cranks is 180°);
Lock the crank screw as shown in the picture(locking torque: 30-35Nm) ;
3.2.6 Install external speed sensor and magnets
Check the installation requirements’’2.2.3 production installation diagram ‘’

~- 14 - ~
4. Notes and failure analysis
4.1 Notes
It should be store in a ventilated and dry warehouse, should not be stored in
damp, acid and alkali, and should not put with magnetic goods;
Each connector is inserted into the corresponding position by the arrow;
The display LCD avoid colliding from sharp objects ;
It is recommend that the product should not be overload for long time and
overloaded ;
Products should avoid wading or immersion.
4.2 General failure analysis
No
Fault
Possible fault cases
Fault Resolution
1
Motor can not install
on frame
Frame connecting plate
welding deformation
Reduce the welding
deformation
2
Not displayed
Plug-in is not connected
Check all plug-in and connect
Use non-standard display
Use standard one
Battery exhausted
Charge as requirements
3
Mileage not showed
The plug-in of external speed
sensor is not connected
Check plug-in and connect
Magnet is not installed in
place
Check the magnet place and
set
4
Mileage showed abnormal
Magnet position distance
unreasonable
Adjust the distance
Strong environment
interference
Change the environment
5
front/back light not lit
Light control module not
installed
Install the light control module
Plug-in not connected
Check plug-in and connect
Rated voltage of front/back
light not match
Change the rated voltage
6
Brake power failure not
respond
Plug-in not connected
Check plug-in and connect
7
Speed less than 25km/h
Chain speed ratio
unreasonable
Adjust the chain speed ratio
Motor and battery voltage not
match
Choose the reasonable
voltage

~- 15 - ~
4.3 Other failure analysis and error codes
See fault analysis
5. Packing list
1.Center motor 1 PC
2.Display 1 PC
3.Speed sensor (with magnet ) 1 PC
4.Chain wheel 1 SET
5.Left crank 1PCS
6.Right crank 1PCS
7.Left plastic housing 1PCS
8.Right plastic housing 1PCS
9.Chain wheel nuts M26（reverse tooth）1PCS
10.Crank screw M8X20(use for installing crank) 2PCS
11.Hex Torx pan screw M4X8（use for installing left and right plastic housing）
8PCS
12.Hex Torx sunk socket M6X65（use for connecting motor and connection plate）
3PCS
10.Hex Torx sunk screw M6X18（use for connecting motor and connection plate）
3PCS
11. External speed sensor connection cable 1PC
12. Front light connection cable 1PC
13. Display connection cable 1PC
14. Rear light connection cable 1PC
15. Power connection cable 1PC
6.Package
Put the motor in a plastic film bag and 3 sets into one carton;
The accessory should packaged separately from the motor; (check the quantity);
*Other: The connecting plate shipped in advance, which is convenient for welding the
frame in advance, which is conducive to production arrangements.
