SHENZHEN SPEEDWOLF TECHNOLOGY VAJRA80 User manual

VAJRA80 user's manual
SHENZHEN SPEEDWOLF TECHNOLOGY CO.LTD
WWW.SPEEDWOLF.NET

VAJRA80 Drone User's manual
2/ 54
Contents
I. Disclaimer ........................................................................................................................................................................................ 3
II. VAJRA80 drone.............................................................................................................................................................................. 4
III. The Remote controller................................................................................................................................................................ 6
IV. Flight Mode ...................................................................................................................................................................................... 7
V. Installation of the blade holder.............................................................................................................................................. 8
VI. The Installation of the propeller .......................................................................................................................................... 10
VII. Install prop-guard........................................................................................................................................................................ 11
VIII. Charger and battery.................................................................................................................................................................. 13
IX. Battery Indicator and Maintenance and use of the battery.................................................................................... 14
X. The aircraft interface ................................................................................................................................................................. 16
XI. Landing and Lock VAJRA80 ................................................................................................................................................... 17
XII. Unlock VAJRA80.......................................................................................................................................................................... 18
XIII. VAJRA80 operating steps ...................................................................................................................................................... 19
XIV. LED status Light.......................................................................................................................................................................... 20
XV. 1080P sport waterproof camera.......................................................................................................................................... 21
XVI. Install HD camera ...................................................................................................................................................................... 29
XVII. Gimbal............................................................................................................................................................................................ 30
XVIII. Install Gimbal............................................................................................................................................................................ 32
XIX. Reset/Calibration Gimbal ..................................................................................................................................................... 36
XX. WIFI Setting ............................................................................................................................................................................... 37
XXI. Install FPO................................................................................................................................................................................... 41
XXII. Install fish finder and Dispenser........................................................................................................................................ 42
XXIII. Calibration Accel..................................................................................................................................................................... 43

VAJRA80 Drone User's manual
3/ 54
I. Disclaimer
Dear users,
Thank you so much for choosing our VAJRA80.Our company do not assume all the loss from
the situations as below, so please carefully read the disclaimer before the flight to avoid
bring you some troubles.
1. All the loss resulting from using the aircraft in no-fly zone or danger area.
2. All the loss resulting from misoperation , misjudgment or beyond visible range during flight, etc.
3. All the loss resulting from appearing operational errors on purpose.
4. All the loss resulting from unauthorized disassembling, modification or installation has been performed.
5. All the loss resulting from appearing some situation that are not suitable for using this products, such as
distraction, a cluttered mind and fuzzy thinking, etc.
6. All the loss resulting from the enforced use while the aircraft is in some special conditions (inflowing any
fluid, the machine with serious damage, after power warning, etc ).
7. All the loss resulting from the accident caused by being close to the crowd or navigational hazard.
8. All the loss resulting from the crash caused by the wrong operation that does not follow the instructions
or the critical low-battery error due to excessive battery discharge in a single flight time.
9. All the loss resulting from some reason being not suitable for flight, such as bad weather conditions
(thunderstorm day, greasy weather, heavy wind, etc) or the environment with strong electromagnetic
interference.
10.All the loss resulting from the incorrect use for the battery or the charger is not provided by our company.
11.All the loss resulting from beyond our scope of responsibility.
12.This statement shall be explained by Shenzhen Speedwolf Technology Co.,Ltd.
This product is only suitable for adults over the age of 18.
Regard as accepting this statement for any users who areusing
these products.
RERURN CONTENTS

VAJRA80 Drone User's manual
4/ 54
II. VAJRA80 drone

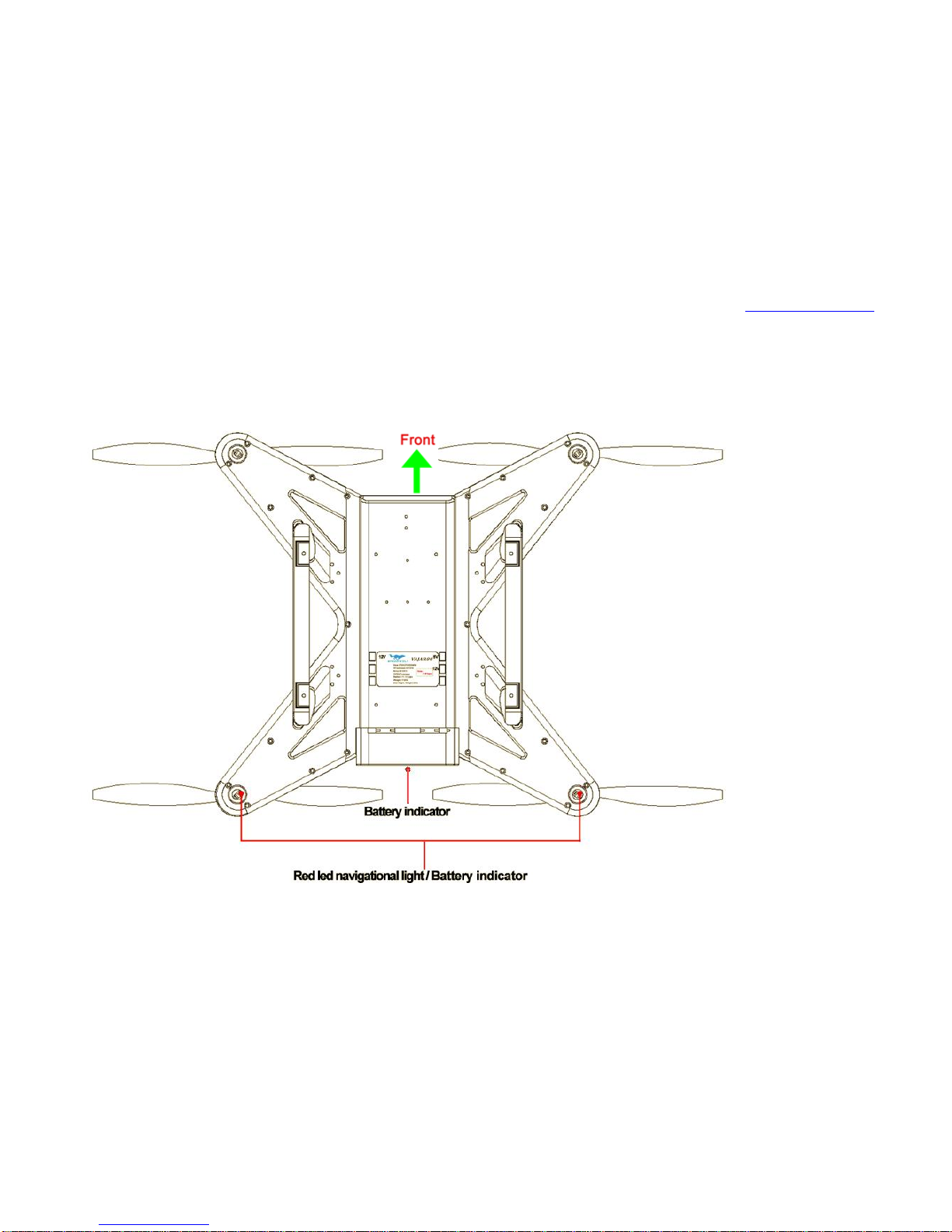

Image 1 VAJRA80-Top
RERURN CONTENTS

VAJRA80 Drone User's manual
5/ 54
Image 2 VAJRA80-Back
RERURN CONTENTS

VAJRA80 Drone User's manual
6/ 54
III. The Remote controller
Image 3 Remote controller
RERURN CONTENTS

VAJRA80 Drone User's manual
7/ 54
IV. Flight Mode
1.Manual: Must be locked & unlocked in this mode. and In this mode, GPS will have no functions during flight.
2.GPS: the aircraft must be detected the GPS signal and keep in a good condition at the same time in this mode. Users will be easier
to control the plane with the GPS signal, and you can accomplish a lot of stable operations by coordinating the rocker of direction
and throttle, such as spot hover, take off and landing, etc.
3.Auto Land: automatic landing mode, assisting users in reducing the risk due to the improper operation during landing. But it’s only
a helping role, users have to make timely adjustments in the process of landing.
RERURN CONTENTS

VAJRA80 Drone User's manual
8/ 54
V. Installation of the blade holder
1.Installation of the blade holder and propeller. (Video:http://youtu.be/gjYXGi4P2rU )
Image4 Installation of the blade holder1
2.The VAJARA80 motor rotation have two ways: clockwise rotation and contra rotation. (Drone can not damage because screws out
the motor. The screws will more and more screws up when flying.) The tool bags have sign match to the drone, As shown below
RERURN CONTENTS

VAJRA80 Drone User's manual
9/ 54
Image5 Installation of the blade holder2
3.How to find out the clockwise rotation and contra rotation: Please note red blade holder needs to install into the red motor,the black
blade needs install into the black motor.
RERURN CONTENTS

VAJRA80 Drone User's manual
10 / 54
VI. The Installation of the propeller
(Video:http://youtu.be/nGZ9IPLyuyc)
Image 6 The Installation of the propeller
The methods of recognizing the propeller
1. There is identification 11X4.7R or 11X4.7 on propeller, please install the propeller following the picture above.
2. There is indicating arrow for the installation of propeller on each wing, please install the corresponding propeller following the
picture above.
RERURN CONTENTS

VAJRA80 Drone User's manual
11 / 54
VII. Install prop-guard
(Video: https://youtu.be/-R_n9mQdUQA)
Image 7 Prop-guard
RERURN CONTENTS

VAJRA80 Drone User's manual
12 / 54
Image 8 Install prop-guard
RERURN CONTENTS

VAJRA80 Drone User's manual
13 / 54
VIII. Charger and battery
1. Charger
(1)Please pay close attention to the battery terminal and the charger socket before charging, and then gently insert the battery
terminal; forcing the battery terminal to be inverted insertion is strictly prohibited to avoid damaging the charger.
(2) Please far away from children and carry out under the observation during charging; cut off the power quickly and use right way to
deal with the problem, if an exception happens when charging(the battery with smoking, expand, peculiar smell, etc).
(3) Forbid to use damage battery and charger to charge.
(4) First the charger indicator light shows red, while it will turn to green when charging is complete.
(5)please do not use the battery with swell, damage or deformation, and timely get in touch with the supplier.
2.Battery
(1)No unauthorized disassembling or restructuring battery.
(2) No the battery short-circuits.
(3) No charging near the fire or in the sunlight.
(4) Do not put battery into any liquid.
(5) Do not insert the nail, knock with hammer or tread.
(6)Do not shock or throw.
(7)Do not use under the serious damage or deformation.
(8)Do not solder directly to the battery.
(9)No over-charge &discharge.
(10)Do not reverse charge or reverse connection.
(11)Do not connect to the socket or car cigarette socket for charging.
(12)Do not use the unspecified device.
(13) Do not directly touch a leakage of battery.
(14)Far away from where the children can easy reach.
(15) Do not put the batter in microwave or high pressure vessel.
(16)Do not use a leakage of battery near the fire.
(17)Do not use
RERURN CONTENTS

VAJRA80 Drone User's manual
14 / 54
IX. Battery Indicator and Maintenance and use of the battery
1. Battery Indicator
There is two ways the show Battery Indicator: The door of battery, The bottom of motor,As shown below:
Image 9 Battery indicator
RERURN CONTENTS

VAJRA80 Drone User's manual
15 / 54
(1)The door of battery shown as below picture:
Image10 Battery indicator
(2)The red light in the bottom of motor, the red light will slowly flash every 2 second when the electric quantity reduces to 50%. The
red light will flash fast when the electric quantity reduces to 20%.
2.Maintenance and use of the battery
(1)Do not save the battery fully charged, otherwise it will cause damage to the battery pack battery drum; they also do not want to s
ave battery power loss, which will also lead battery scrap; measuring method for the battery into the VAJRA80, view the rear battery
compartment cover battery indicator full grid represents full power; if the buzzer alarm, flashing alarm borders, then the battery pow
er loss. Recommendations to save battery power for 3-4 grid. If more than 4 cell battery, can be mounted to VAJRA80, using about
1-2 minutes.
(2)If unused for a long time, please check the power each month in accordance with the first point.
(3) Although supporting the charger stops charging after full functionality, but we recommend charging the battery can be guarded,
disconnect the power supply as soon as possible after fully charged.
(4) Battery when in use, try not to run out of the battery, when the power drops to 50%, which is the tail of the motor when the LED
flashes slowly, if not necessary, as soon as VAJRA80 land and replace the battery, which can significantly extend battery life; if
electricity is downloaded to 20%, LED lights flash, please be sure to drop VAJRA80 and replace the battery.
RERURN CONTENTS

VAJRA80 Drone User's manual
16 / 54
X. The aircraft interface
There are six plug interfaces at the bottom of the aircraft fuselage as shown below.
Image11 Interface
Two 12V for gimbal and 5.8G vedio receiver to use; 5V for camera that is provided by our company; Gimbal for itself; Camera for the
built-in camera (PS: This interface does not serve any function at all, if have no the built-in camera.).This type of plug can prevent
inserting in the opposite direction, but users must confirm the orientation at first. Our company only provides the product with the
supporting external device, we shall not bear any responsibilities, if you do not insert in the corresponding socket, or use other
external devices that is not provided by us.
Power supply for gimbal or
5.8G vedio receiver
Gimbal date interface
Power supply for gimbal
or 5.8G vedio receiver
Power supply for camera
Date put out from built-in
camera to 5.8G vedio receiver
(if camera built-in)
The reserved expansion
interface
RERURN CONTENTS

VAJRA80 Drone User's manual
17 / 54
XI. Landing and Lock VAJRA80
1. Landing
Three kinds of flight mode can be carried out on the aircraft landing, the specific operation of landing as below.
(1) Manual: slowly lower the throttle; adjust the location where is suitable for landing; then quickly lock VAJRA80 when landing to the
ground.
(2) GPS: adjust the aircraft to a suitable location, and then keep hovering; slowly landing after lower the throttle; make the throttle in
lowest position after landing, and then quickly switch to manual mode, finally lock VAJRA80. ( users can adjust the position of
landing through controlling the direction of rocker during hovering)
(3) Auto Land: switch to this mode after adjusting the aircraft to a suitable location, and then the aircraft will autoland. Do not need
manual intervention, if the landing site is smooth; if not, you can adjust the position of landing through controlling the direction of
rocker in the whole process of landing. The propeller will continue to low-speed rotation after landing, quickly switch to manual
mode and then lock VAJRA80.
2. Lock VAJRA80
Operate the rocker of throttle and direction to position as shown below (pulling the rocker outward, to the down ), and locked
VAJRA80 after keeping 6 seconds. (about the indicator light after being locked: if no GPS signal, green, yellow and red light
alternating flashing ; if there is GPS signal, yellow and green alternating flashing)
Image12 Lock VAJRA80
RERURN CONTENTS

VAJRA80 Drone User's manual
18 / 54
XII. Unlock VAJRA80
(Video: http://youtu.be/yYRGMUWCOlw)
Operate the rocker of throttle and direction to position as shown below (pulling the rocker inward, to the down ), and locked VAJRA80
after keeping 6 seconds. (about the indicator light after being locked: if no GPS signal, yellow and red light alternating flashing; if
there is GPS signal, yellow is always flashing)
Image 13 Unlock VAJRA80
RERURN CONTENTS

VAJRA80 Drone User's manual
19 / 54
XIII. VAJRA80 operating steps
Step1: Trying to put aircraft on the open ground (Good GPS signal depends on it’s surroundings), and ensure the nose forward.
Step2: Initialization: (Note: Turn off the remote controller before connect the battery)Red light on the tail start 5s flashing after
connect battery, meanwhile observing the battery indicator, and do not move the aircraft during initializing.
Step3:GPS searching: after system initialization is complete, green, yellow and red light alternate flashing, then start searching
GPS signal; if there is GPS signal, yellow and green alternate flashing)
Step4:Unlock VAJRA80:Turn on the Remote controller,Pulling the rocker of throttle and direction inward, to the down, and
locked VAJRA80 after keeping 6 seconds. If no GPS signal, yellow and red light alternating flashing ; if there is GPS signal, yellow is
always flashing)
Step5:Take off: Directly push up the throttle to take off; in the case of GPS in good condition, will be able to unlock flight mode into
GPS mode off (if it is GPS mode, you need to push the throttle to about 50% before starting to take off, and always pay attention to
the aircraft state)
Step6: Hover: if need this function, as long as switch the flight mode to GPS, and keeping the throttle and direction in the middle.
Besides, users can change the position during hovering by adjusting the rocker of throttle and direction.
(Video: http://youtu.be/P-nD-gYk8sY)
Step6:A key to return to home: the aircraft will automatically enter into the state of returning after turning off power switch of
controller, and rise to the height of16m. Then return to HOME point, turn into automatic landing after 3 seconds, steadily down to the
HOME point without opening the controller or other interference.(Video: http://youtu.be/r25Q2I1MfyI)
Step7:Fail-Safe protection: the aircraft will turn into the state of Fail-Safe when it cannot receive any signals from controller, and
then automatically return until getting the signal again. If cannot get signal all the time, it will complete automatic landing.
Step8: Landing: put flight mode into AUTO Land or lower throttle.(Video: http://youtu.be/t3HnbLi13o0)
Step9: Lock: Pulling the rocker of throttle and direction outward, to the down, and locked VAJRA80 after keeping 6 seconds. If
no GPS signal, green, yellow and red light alternate flashing ; if there is GPS signal, yellow and green alternate flashing)
RERURN CONTENTS

VAJRA80 Drone User's manual
20 / 54
XIV. LED status Light
(Video: http://youtu.be/PUtmik3aMWE)
Instruction light :There are two mold light flash:. No-GPS and GPS Mold
1.Initialization:the tail of red light start flashing after connecting battery about 5s. then red flashing about 3s
2. After Initialization
(1)No-GPS signal:
Disarmed: Green, Yellow and Red light changing flash.
Arming: Lights out or One of three lights holds on for 3 second.
Armed: Yellow and red light changing flash
(2)GPS signal
Disarmed:Green and Yellow changing flash.
Arming: Lights out or One of two lights holds on for 3 second.
Armed: Yellow flash
RERURN CONTENTS
