1
User’s Manual
Welcome to use our GPS navigator
●We reserve the final explanation right on this User’s Manual.
●Specifications are subject to change without notice. Sorry for any inconvenience caused!
●Please make a copy of the important data. We assume no responsibility for the data loss.
●This manual has been carefully checked. Please contact our service center when any typing mistake is
found.
●Please read the operating instruction carefully and use the accessories only provided by the original
factory to avoid any unexpected damage. No warranty will be executed if you are not following the
instruction or connecting with the incompatible accessories, we assume no responsibility for any loss and
damage caused hereby.
●The electronic navigation data may be not in conformity with the actual transporting marks due to the
traffic construction development. Please be sure to comply with the real road condition and follow the
traffic rules. Operating and viewing the GPS during driving may cause severe traffic accident. Our
company will not be responsible for any loss caused by the unexpected accident.
●Users can update and upgrade software from website at his/her option.
●Any discrepancy between the pictures with real products hereinafter, the real one prevails.
Chapter One Product introduction
1. 1 Introduction
Welcome to use the GPS navigator, which is mainly used for navigating and also has the optional function
of video playing, audio playing, FM, photo viewing, and E-Book etc.
◆High performance, low-power consumption MediaTek MT3351 CPU；
◆Comfortable user interface: simple, easy to operate;
Power manag◆ement: keep the product to work longer and more steadily;
Data transmitting: communicate with computer through USB cable;◆
Excellent◆in receiving signal: accurate position fixing provides you the satisfied navigating service;
◆Entertainment: MP3 and MP4 function can relieve your fatigue;
You can use it when driving, walking, riding, or waiting for a meeting; the perfect “GPS + entertainment”
function can make your life and work more splendid.

2
1.2 Package
The packing box contains the following accessories, please confirm:
1. GPS navigator
2. Travel Charger
3. Car charger
4. MINI USB cable
5. Earphone
6. User’s manual
7. Protecting cover
8. Car bracket
For the items listed above, please confirm the actual products. If any damage,
Please contact with the distributor or the agent as soon as possible.
Instruction
Please read this user’s manual carefully to be familiar with all the operation details and to make the
GPS navigator performs well:
【Remark】：The instruction relates to the theme；
【Relative information】：The extending information relates to the theme；
【Note】：The notes and warnings relate to the theme. Please value and follow these notes, otherwise it
will possibly bring damage to you and others.
This user manual only adapts to our GPS navigator products.
Chapter Two Features and specifications
2.1 Main features
◆Operating system: Microsoft Windows CE 5.0；
◆4.3〞TFT LCD display with resolution of 480*272 pixels；
◆Hi-Fi stereo earphone and built-in Hi-Fi speaker, volume adjustable；
◆Button and touch-screen operation；
◆Built-in sensitive GPS antenna；
◆The navigating software could run the SD card directly；
◆Video format supported: ASF,AVI,WMV,3GP,MP4,FLV；
◆Photo format supported: BMP, JPG, PNG；
◆E-book format supported : TXT；
◆MINI USB port；
◆Built-in rechargeable Li-battery which can be powered by travel and car charger.

3
2.2 Specification
CPU MediaTek MT3351
flash memory 64/128 MBytes
EMS memory 64 MBytes
LCD display 4.3” or 5” TFT LCD display,
Resolution :480RGB(H)x272(V)
Touch-screen High-accuracy, endurable touch-screen
USB USB Client 2.0, MINI USB port
SD SD / MMC slot，the maximum capacity of SD
Card supported reaches to 8GB
Audio A: Built-in high fidelity speaker
B: High fidelity stereo earphone
GPS Cold start：<42s
Hot start：<3s(in the open area)
Warm start：<36s
Battery Built-in rechargeable Li-battery
Battery Charging port DC 5V port
AC Charger 100/230V charger, 5V／1.5A
Car Charger DC9-24V, 5V／1.5A
Status of the LCD light When charging, the red light is on; when charge
finished, the blue light is on.
Operating System Microsoft Windows CE 5.0
Navigation Software SD card
Video Player ASF,AVI,WMV,3GP,MP4,FLV；
Audio Player MP3 and WMA
Photo viewer E-Album, JPG,, BMP, PNG
EBook Viewer TXT
System setting [FM Transmitter] [Screen adjustment] [Default set][Volume]
[Power] [Backlight] [Time and Date] [Language] [Sys Info]
Temperature Operating Temperature ：0 to 60℃℃
Storage Temperature ：-20 to 60℃℃
Working humidity
range 45% to 80%RH
Storage humidity range 30% to 90%RH
Atmospheric pressure 86KPa to 106KPa
This chapter will give an introduction of the apparent components and basic function
of the GPS Navigator and it will help you to be familiar with the basic operation quickly.
2.3 Product appearance

4
Chapter Three Manual Instruction
3.1 Power supply and charge
If this navigator is first used, please use AV adaptor to fully charge it.
3.1.1 Power supply
There are three types of supplying power: battery, adaptor, USB cable.
GPS navigator uses the Li-battery to supply power when it is not connected with adaptor. The mark
[]on the up right of interface indicate the current electric volume.
GPS navigator uses the external power when it is connected with the adaptor.
GPS navigator uses the USB cable to supply power when the GPS connects to the PC.
【Remark】This machine adopt built-in, unchangeable Lithium battery. At normal condition (if the back
light is not so bright), the actual supply hour can be different because of the different way using the
navigator. Some function (audio playing, video playing, bright back light) will consume a large power,
which will reduce the using hour.
【Note】This machine adopts built-in, unchangeable Lithium battery. In order to avoid fire and burning,
please do not poke, bump or take it apart or throw it into fire or water.
3.1.2 Use the travel charger to supply power
When the GPS navigator is first used, please use the AC adaptor to charge it.
1. Connect the DC part of the adaptor with the power interface at the left side of the unit (The
power interface is same as USB interface )；
2. The other part connect to the power socket, it supplies power while charging.
【Remark】Red LED indicates it’s being charged. Please wait until it is fully charged and don’t pull out the adaptor while
charging. When it is fully-charged, the LED will turn to Blue. If low battery or no battery, please charge it immediately.
3.1.2 Use the car charger to supply power
1. Connect the DC part of the adaptor with the power interface；
2. The other part connect to the power socket, it supplies
power while charging.
【Note】Please insert the car adaptor after running the car so as not to damage the machine by electricity
collision.
3.2 Power on/off
Power on/off is controlled.
3.2.1 Power on:
Please check：The battery is enough, or it is connected to external power source;
Please press the button on the top of the unit to boot.
【Note】If bring the unit form one place to another place, please boot until it adapts to the environment.
Big humidity fluctuation will make the mainframe short circuited.

5
3.2.2 Power off
Press the button on the top of the unit to turn off, the unit will enter the power saving mode and
maintain the last operation status when boot next time.
3.3 Reset system
If the system cannot work, you can reset the system by the following way:
Click the reset key on the right part of the machine to reset the system by using the stylus.
【relative information】：it can be no response in the following condition:
1. The shift between pictures is delayed or stopped.
2. The program select function cannot work normally, such as long time to carry out or cannot be
activated.
3. The power button can not work
【Note】The unsaved data will be lost as you reset the system when the system has no response. Please
copy the data every other time.
3.4 Use bracket to fix navigator
When use GPS in the car, you should fix the device
to the part of window besides the panel by using the bracket.
【Note】When use the bracket, please take care of the position. Please
don’t fix the navigator to the position where the driver’s sight is being
influenced. Please do not lay it aside freely; do not fix it to the air bag, do
not lay it on the expand range of the air bag.
3.5 Stylus
The stylus is the tool for you to use your navigator. Please keep it carefully.
1、Single click ：
Singly click the screen with the stylus point.
2、Double click：
Double click the screen with the stylus point.
3、Drawing：
Click one point and hold to move on the screen.
【Note】Any broken stylus, ball pen or any acute and harsh object will destroy the LCD if you use it to
operate the device.
3.6 SD/MMC card
The attached SD/MMC card contains the navigation software, map data and media file. Please insert
the card correctly when use it.
【Note】Please do not take out the SD/MMC card when the system is navigating or playing.
【Note】
1. Don’t stress or curve the SD/MMC card, avoid loss and bulge.
2. Avoid high temperature or high humidity when use and store the card, don’t expose the card directly to
sun light, let the card far away from liquid and corrosive material.
3. Please pay attention to the heading when insert the SD/MMC card. If you insert the card improperly,
you will damage the card.

6
3.7 Connect with computer
The device can be connected with the computer through the MINI USB on its left part. You can copy
the document between navigator and computer or copy the data from GPS navigator to computer so as to
recover the data in GPS when you are in need of them.
1. Please confirm the GPS navigator is power on;
2 Connect the MINI end [ ] of USB cable with the
USB port on the left part of GPS device and the normal end
[ ] with the Host port on computer.
3Please pull out the MINI USB cable after you finished
your operation, the GPS navigator will return to the
pre-operation interface.
【Note】Data security: Please copy the data to the outer storage device every time before you update your
system data. Our company takes no responsibility to any loss of data.
【Remark】The GPS navigator will stop the operation when it is connected with computer.
【Note】In the process of communication, the following operations will break off the connection with
computer, the unfinished data will be lost.
1. Pull out the MINI USB cable;
2. Power off
3Reset the system by using reset button or electric switch
Chapter Four Primary function
4.1 The main interface and the function
4.1.1. Main menu：
Click the top left corner of the interface Desktop display the date , show in Figure4-2
4-1 4-2
Double-click the date icon enter the date setting interface，Click the top left corner of the interface change the
show in Figure 4-3 desktop display background，show in Figure 4-4
4-3 4-4

7
Click the left button quick access to navigation map Click the left button open audio player quick
Click the left button rapid deployment desktop application
4.1.2 Function introduction
Navigation Provide navigation service
Video player
Support ASF, AVI, WMV, 3GP, MP4 and FLV format. Support progress adjust, pause and
full screen play
Photo viewer

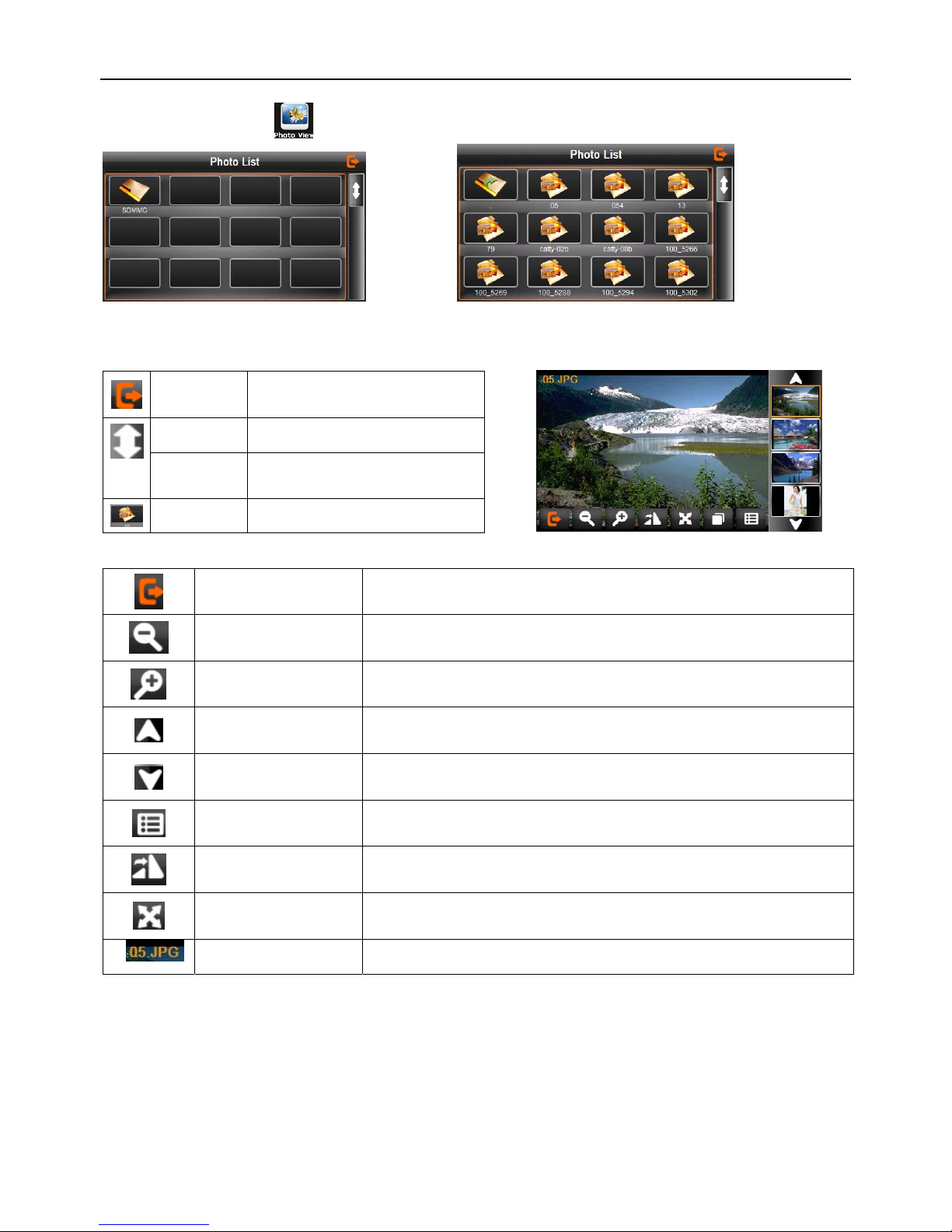

Support JPG、BMP and PNG format. Support photo rotate, enlarge/shrink pictures,
automatic play and so on
E-book Text format: txt. Support page selection
Audio player
Audio playing format: WMA, MP3.
Support random playing, sequential playing, repeat playing, pause, previous/next, volume
Game Support game

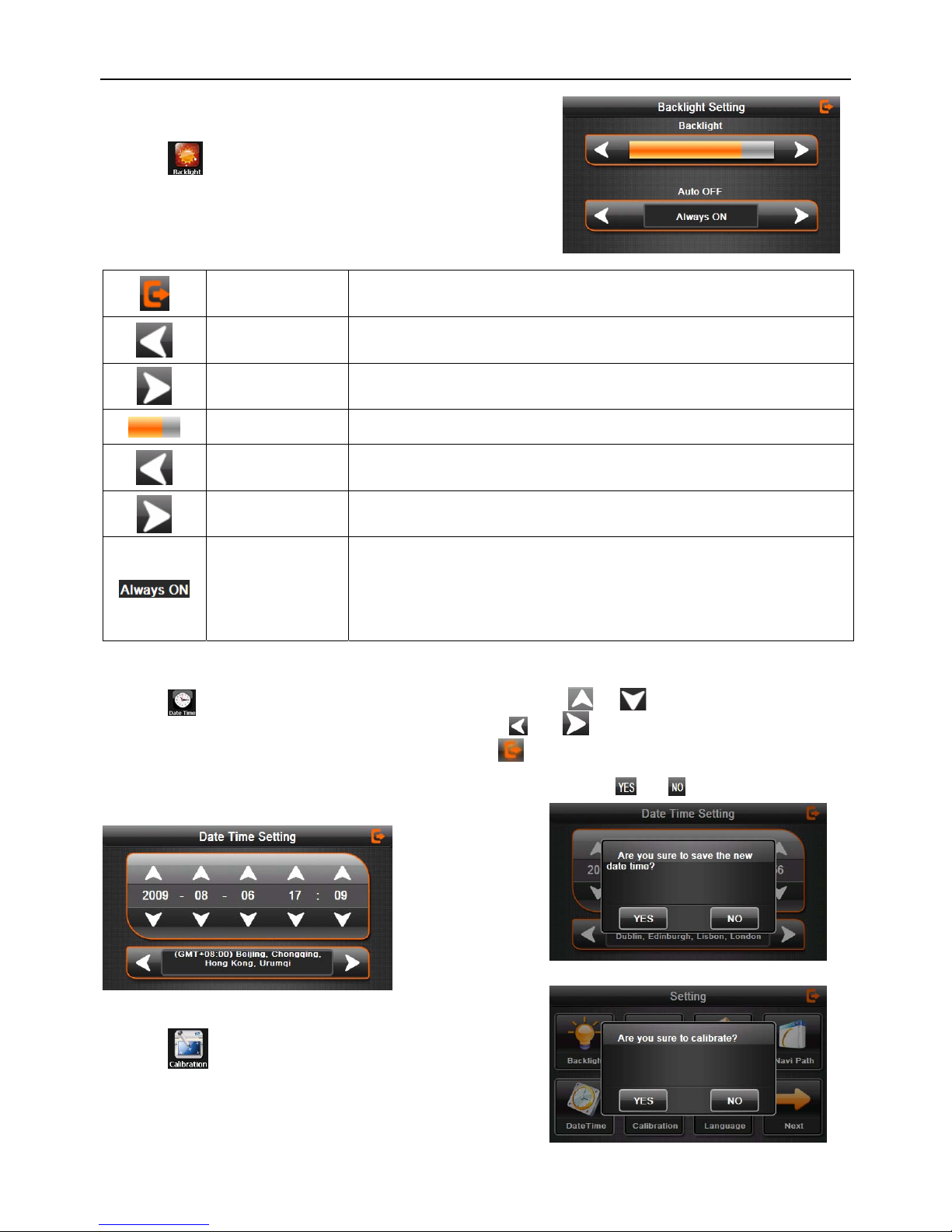

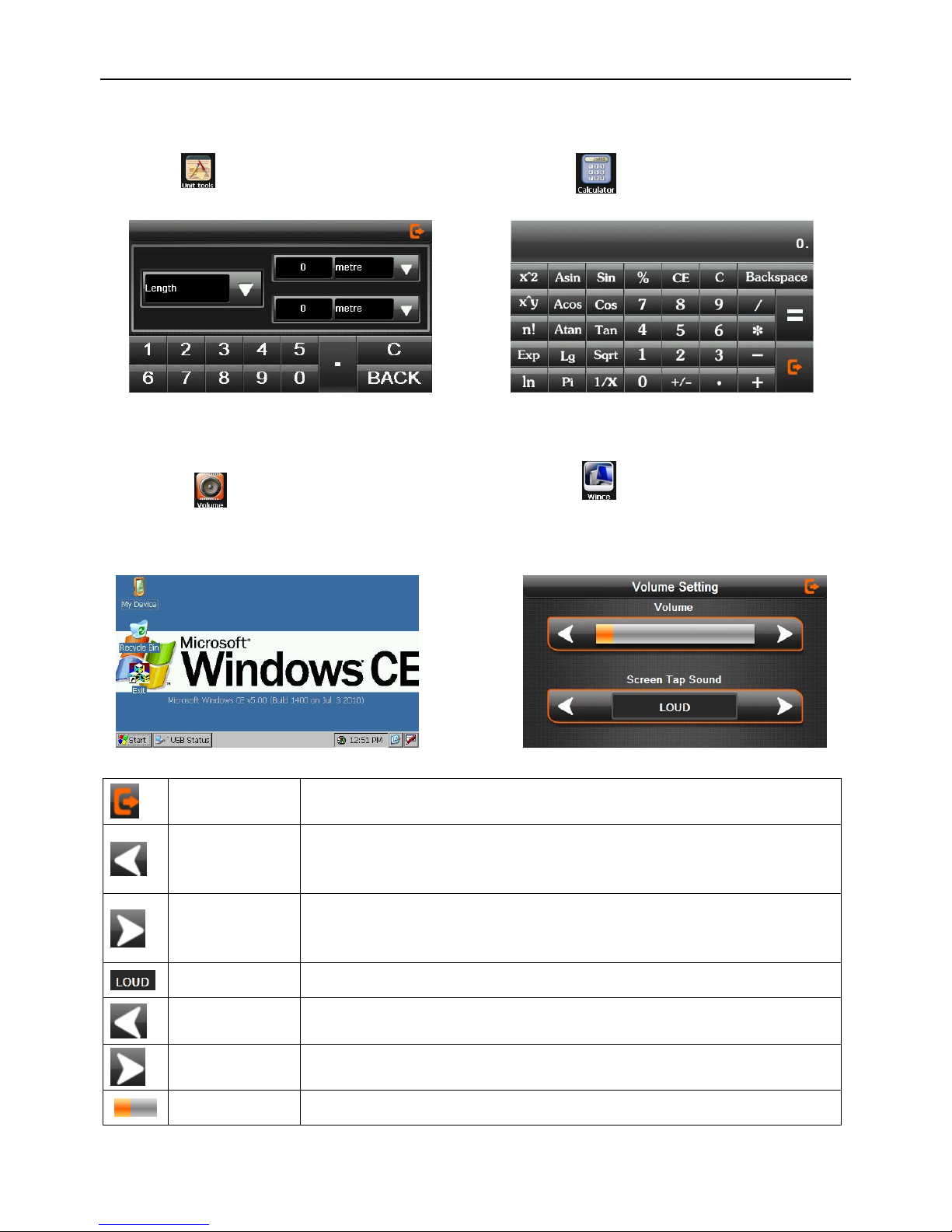

Setting Brightness, Volume, Languages, Power, Time, System, Default, GPS Info, Navipath.
This chapter will introduce the navigation function and notes.
4.2 Navigation functions and features
According to your choice of navigation system, the GPS navigator can make position by GPS
satellite signal receiver and display on the navigation map. The system can calculate a best route after
setting the destination, which can help users to arrive the destination safely and rapidly.
The system can let you enjoy the individual charm and enjoy your trip by many different ways such
as vision map, vivid animation, voice indication, and words indication.
The specific navigation functions are depended on your choice of navigating software. Please refer
to the Navigation Software Instruction.
Notes
1. Map information
It is probably that the electronic navigation data is not consistent with the real traffic instructions because
of the traffic construction development. Please do comply with the highway condition and the actual
traffic rules.
2. Navigation
The navigator offers the route for the reference; determine the route by yourself, the driver may be
more familiar with the route than GPS navigator.

8
3. Receiving signal
Many factors such as high, dense buildings (in the
tunnel, between the high building, underground parking,
under the trestle), various weather condition, and closure
of the satellite will affect the ability to receive signal so
as to result in inaccurate position, inefficiency of
navigation operation and system function。
4.3 Video operation Interface
This chapter introduced how to use the GPS video player.
4.3.1 Functions and features
1. Support ASF, AVI, WMV, 3GP, MP4 and FLV
2. Support full-screen playing, progress choosing and file selection;
Before using the Video player, please copy your video file（ASF, AVI, WMV, 3GP, MP4 and FLV）to any folder
4.3.2 Operation：
Single click the Video button to enter the video file list as the picture 4-5
4-5 4-6
Choose the video to enter the playing
interface as 4-7
4-7
Close Single click to close current file.
Last Show last page
next Show next page
Video folder name Video folder name
Video name Show video name

9
Close Click to close the video list;
Play It shows stop playing. Single click will continue to play.
Next Play next video.
File list Single click and shift to video file list, and then choose your favorite video.
Vo l u m e Single click volume. It shows volume is decreased when it shift toward left. While volume is increase
when it is shifted toward right.
Playing progress Adjust the progress by slide the progress-displaying bar; go left for backwards, go right for forwards;
Brightness adjust Adjust brightness with stylus while moving toward left and right. Turn right means turn brighter.
Play interface Full screen play. Double click to return normal play status.
Video name Show current Video name
Time Show the time consumed / The total time of the video
4.4 Audio player operation interface
This chapter introduces how to use the GPS video player to play your favorite music, and let it be your
personal MP3.
4.4.1 Functions and features
The audio player supports MP3 and WAV format, you could set the playing sequence as you wish.
Before using the audio player, please copy the files to any folder.
4.4.2 Operation method
1．Single click the button toenterMusic file list as 4-8
4-8 4-9

10
Function instruction Choose the song to enter the playing interface as 4-10
4-10
Previous song Play the previous song；
Play/pause To play and pause, single click to pause, click again to play continuously;
Stop Single click to stop playing；
Next song Play the next song；
Vo l u m e Adjust volume. It shows volume is decreased when it shift toward left. While
volume is increase when it is shifted toward right.
Close Single click to close the audio player；
Setting the playing mode Support sequencial playing, loop playing, repeat playing and random playing.
Open the play list Single click to display the play list, and choose your favorite as picture 4-22 shows；
Playing progress
Adjust the progress by slide the progress-displaying bar; go left for backwards, go
right for forwards;
Song title Show the song title
Time consumption Show the time progress；
Total time Show the total time for playing the song;
Homepage
4.5 Photo viewer operation interface
This chapter introduces how to use the photo viewer to browse pictures.
4.5.1 Function features:
1．Supports JPG、BMP and PNG
2．Support picture rotate, picture enlarge/shrink and automatic play.
Before using the photo viewer, please copy your photos to any folder.
Close Close current file
Last Show last page
next Show next page；
Song name Show song name

11
4.5.2 Operation method
Single click the button to open the photo list as picture 4-11
4-11 4-12
Choose the picture to enter play interface as 4-12
4-13
Close Click to close the viewer
Shrink Shrink current picture in proportion
Enlarge Enlarge current picture in proportion
Previous Show the previous picture
Next Show the next picture
File list Single click and shift to video file list, and then choose your favorite picture
Rotate Click to rotate the picture by 90 degree
Automatic Play Play all the pictures circularly on full screen from the current picture
Photo name and format Show the photo name and format
4.6 E-book reader interface and operation
This chapter introduces how to use GPS to read e-book.
Close Click to close the photo list;
Last page Show the last page
Next page Show the next page
File Single click to enter the photo file；

12
4.6.1Function
1. Support TXT
2. Support turning over page, page browse, and file choosing.
Before using e-book function, please copy your TXT file and save it to any folder.
4.6.2Operation
single click button to enter Ebook list as 4-14
4-14 4-15
Choose file name to enter e-book reader as 4-16
Close Click to close current file
Last page Show the last page;
Next page Show the next page;
Name of file Show name of file
4-16
Close Single click and close e-book reader
Last page Read last page
Next page Read next page
File Single click to enter Ebook list to choose favorite book
Font set As 4-17
Color set As 4-18
Add book mark It needs open e-book and choose TXT.
Open book mark list As 4-19

13
4-17 Font set interface
4-18
4-19
4.7 Game interface and operation
Single click o choose different games as4-20：
4-20
Set font as bold
Set font as normal
Decrease font size
Font size indicator
Increase font size
Set color RGB
Choose background color, font color or set background color
Choose background color, font color or set background color with
reverse order or sequential order
Color review
Return to e-book homepage
Single click and choose book mark
Return e-book interface
Rolling book mark list
Return e-book homepage.
Showing current reading ratio

14
4.8UnitConversion 4.9Calculator
Single click into Unit conversion interface as Single click into the calculator
shown 4-21： interface as shown 4-22：
4-21 4-22
4.10Wince 4.11Volume adjust
Single click into the computer interface Single click into the vlume adjust interface as
shown4-23：as shown 4-24：“Volume adjustment” includes:
1. Speaker volume adjustment
2. “Screen click tone” setting。
4-24
4-25
Close Exit “volume setting” interface;
Vo l u m e -
Single click to decrease the volume gradually; there are 10 ranks for volume from mute to
maximum. Single click will decrease one rank.
Vo l u m e +
Single click to increase the volume gradually; there are 10 ranks for volume from mute to
maximum. Single click will increase one rank.
Click the screen tone By clicking the left/right shift button to set the on/off key tone,with loud,soft,and off the three states;
Turn left Turn on/ off screen click tone;
Turn right Turn on/ off the screen click tone;
Present volume Yellow blanks shows the present volume level;

15
4.12 Backlight setting
Single click to enter backlight setting interface as 4-25；
4-25
Close Exit “backlight setting” interface;
Brightness decrease Click to decrease backlight gradually to the lowest level;
Brightness increase Click to increase backlight gradually to the highest level
Present Brightness Red blank shows the present brightness
Shift left Single click and it will shift left, and it will show last column. This display is in circle.
Shift right Single click and it will shift right and it will show last column. This display is in circle.
Time interval
System backlight will be closed automatically when no operation for a period time to save
power. There are several time interval choice for you: never, 3 min, 2min, 1min, 30second
later, 10second later.
4.13 Date and time setting
Single click into the date time interface as shown 1. Single click button or to set time and date.
Dateandtimeinclude: 2. Single or to choose time area。
1. Systemtimeset; Click to exit current interface after setting，and then it
2. Systemdateset; willshowas4-44.Choose or to exit current interface.
3 ytem time zone set.
4-26 4-27
4.14 Screen Calibration
Click the to enter the screen calibration as 4-28。
4-28

16
Click it will move from in the sequence of the center, left up,
left down, right down and right up till the calibration succeed, then
click any where on the screen to save the calibration and exit to the
main interface automatically. If not save the information, please wait
30 seconds and it will exit from current interface automatically.
4-29
4.15 FM Transmitter
Single click to enter the FM setting as 4-30
FM Transmitter will send out the audio signal to the radio devices.
Take 86.7MHZ frequency for example, both the GPS transmitting
frequency and the received frequency of the radio should be
86.7MHZ, then all the sounds of the GPS will be input through the
amplifier system of the radio。
4.16 System information
Click the to enter the System information as4-31：
System information includes: 4-31
1. Firmware version；
2. APP version; 4.17Languagesetting
Single click into the language settings interfaceas shown4-32,
Language setting including:Syetem prompt language selection；
Single click language column to do language choose。
4-32
4.18Navigationpath 4.19Default
set
Click the set the interface into navigation path , Single click to enter the default setting as 4-34：
set the default navigation paths as shown in Figure 4-33：Single click to restore the default settings，single
click toexitthedefaultsettings。
4-33 4-34
4.20 GPS Information
click the button and enter GPS information interface as 4-35；
4-35
System ID。
Exit system information
Show ROM version
Show the APP version;
Show the system ID.

17

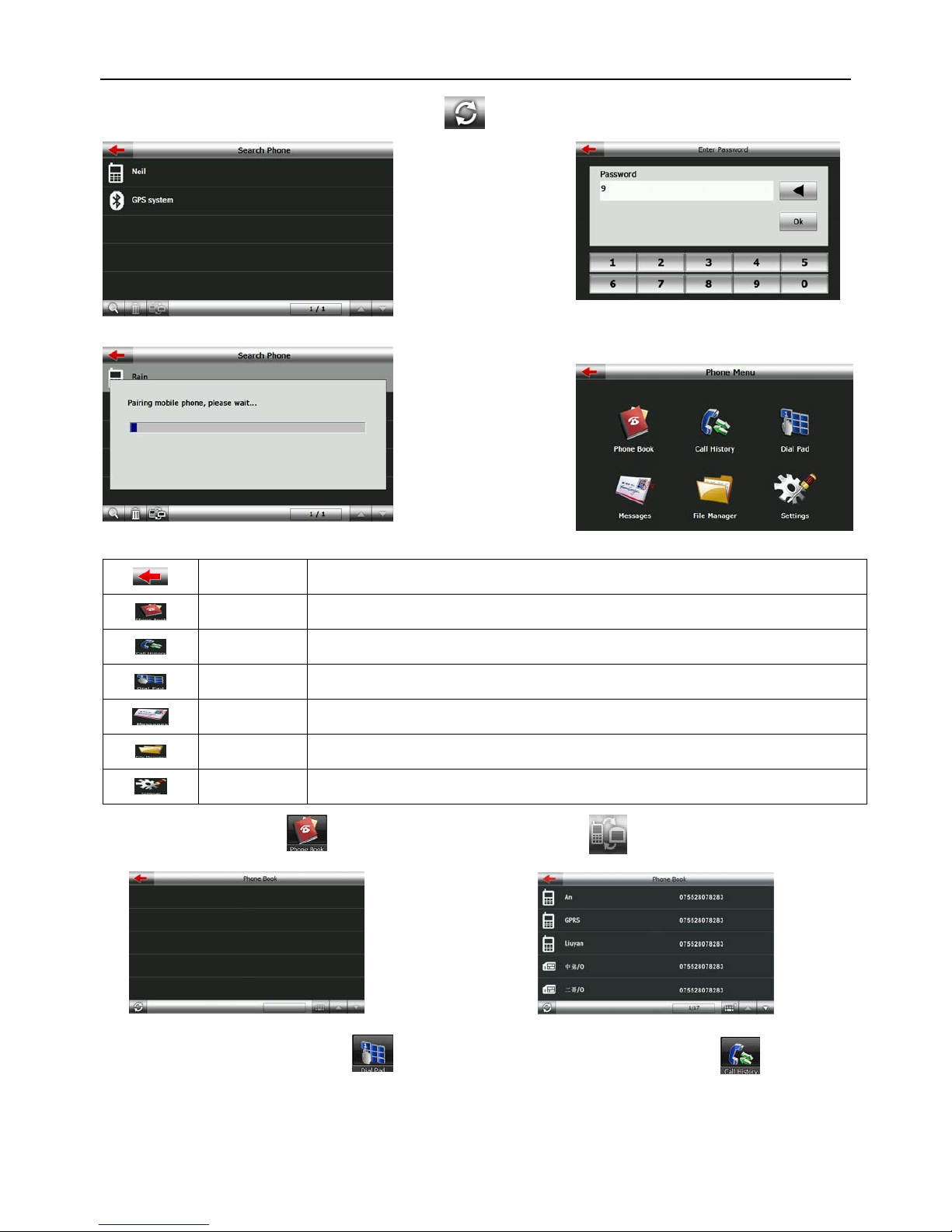

Single click the device you want to connect and click to pair as the following pictures:
4-39 4-40
After successful pairing and connecting,
it will show the following picture:
4-41 4-42
Close Single click to close current interface
Phone book Display contact list of paired cell phone
Call history Display call history
Dial pad Dial phone number
Message Download SMS of paired phone
File manager Download files of paired phone
Setting Cell phone searching, profile management
4.22.4 Click the button to open the phone Single click and enter phone book as 4-44
book interface as 4-43
4-43 4-44

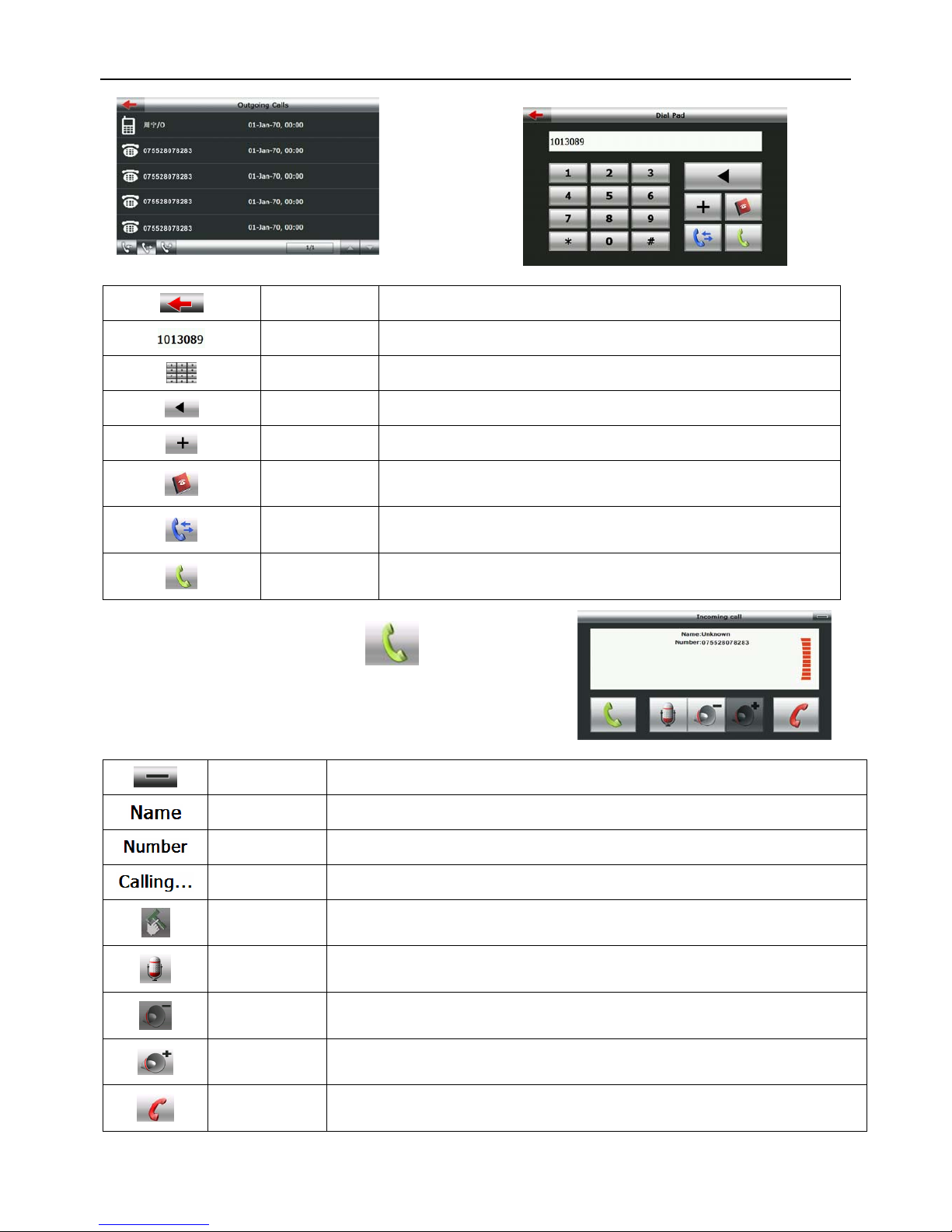

4.22.5 Single click the button toopen 4.22.6Single click the button to
open dial pad as call history as 4-45

18
4-44 4-45
Close Single click to close the current interface
Number display Display current number input
key It made up of 10 numbers from 0 to 9 and “*”“#”.
Backspace Single click will delete the last number
“+”input“+”
Phone book Single click to select phone number from phone book
Phone record Single click to select phone number from call history
Dial phone Single click to make call
4.22.7 Single click the button and
then it will be in dialing as 4-47
4-47
Return Keep call state and return to main interface
Name Show the name you’re dialing
Number display Show the number you’re dialing
Calling Show current call state
Dial Including extension, sound shift, call shift, conference call and so on.
Mute Mute the microphone while keeping the call
Volume - Single click to decrease the volume gradually;
Volume + Single click to increase the volume gradually;
Hang up Single click and hang up

19
4.22.8 If there is an incoming call, it will show the caller
ID and its number as 4-48
4-48
Return Keep call state and return to main interface
Caller ID Show caller ID
Number display Show the incoming call number
Answer call Single click to answer the call
Mute Mute the microphone while keeping the call
Volume - Single click to decrease the volume gradually;
Volume + Single click to increase the volume gradually;
Reject Single click to reject the call
4.22.9 Single click and it will display connected. 4.22.10 Single click the button as 4-50
You can talk with each other as 4-49
4-49 4-50
4.22.11 Single message button to download SMS f
paired phone as 4-51
4-51

20
Single click the button to enter the following
interface as 4-52
4-52
4.22.12 Single click “File Manager” on the main interface
to download files from paired cell phone as 4-53
4-53
Dial extension number
Single click to shift the voice to cell phone
Not available currently
Not available currently
