Sherpa Power Barrow
Safety & Operating Instructions
Model: SPB-500
Read and understand this manual and all instructions before operating this wheelbarrow!

SPB-500 Safety & Operating Instructions
Sherpa Tools | SPB-500 | 2018 0
Max. speed: 3.5km/h
Max. load: 120kg
Motor: Carbon brush motor 230W / 50 min-1
Brake: D180mm Adjustable disk brake
Structure: Low carbon steel
Surface coating: Powder coating
Dimensions: Length 138cm, Width 80cm, Height 97cm
Tire: 4.80/4.00-8(∮400mm)..4.10/3.50-4
Battery: DC 24V, 10A Module
Overload protection: Yes
Charger: 230V/50Hz DC24V/1A
Max. slope: 12 degrees
Weight: 41.5Kg (Inc. battery)
Volume: 116L or 6 cu.Ft
Working temperature: between -10oand 40o
Altitude: up to 2000m
Relative humidity: between 30% and 95%
Be careful when using this barrow.
Read this manual carefully before using this barrow.
DO NOT use this barrow at a slope greater than 12 degrees.
DO NOT load this barrow over 120kg.
Product Specifications
Operating Conditions
Warning Signs

SPB-500 Safety & Operating Instructions
Sherpa Tools | SPB-500 | 2018 1
Before assembling theSPB-500 Electric Wheelbarrow, check that you have all the following
module and parts available:
1. Tray x 1
2. Tray rack x 1
3. Base module (front wheel, handle, brake, and speed controller) x 1
4. Rear wheel x 2
5. Battery x 1
6. Charger x 1
7. Fasteners pack x 1
Components List
Fasteners pack
7

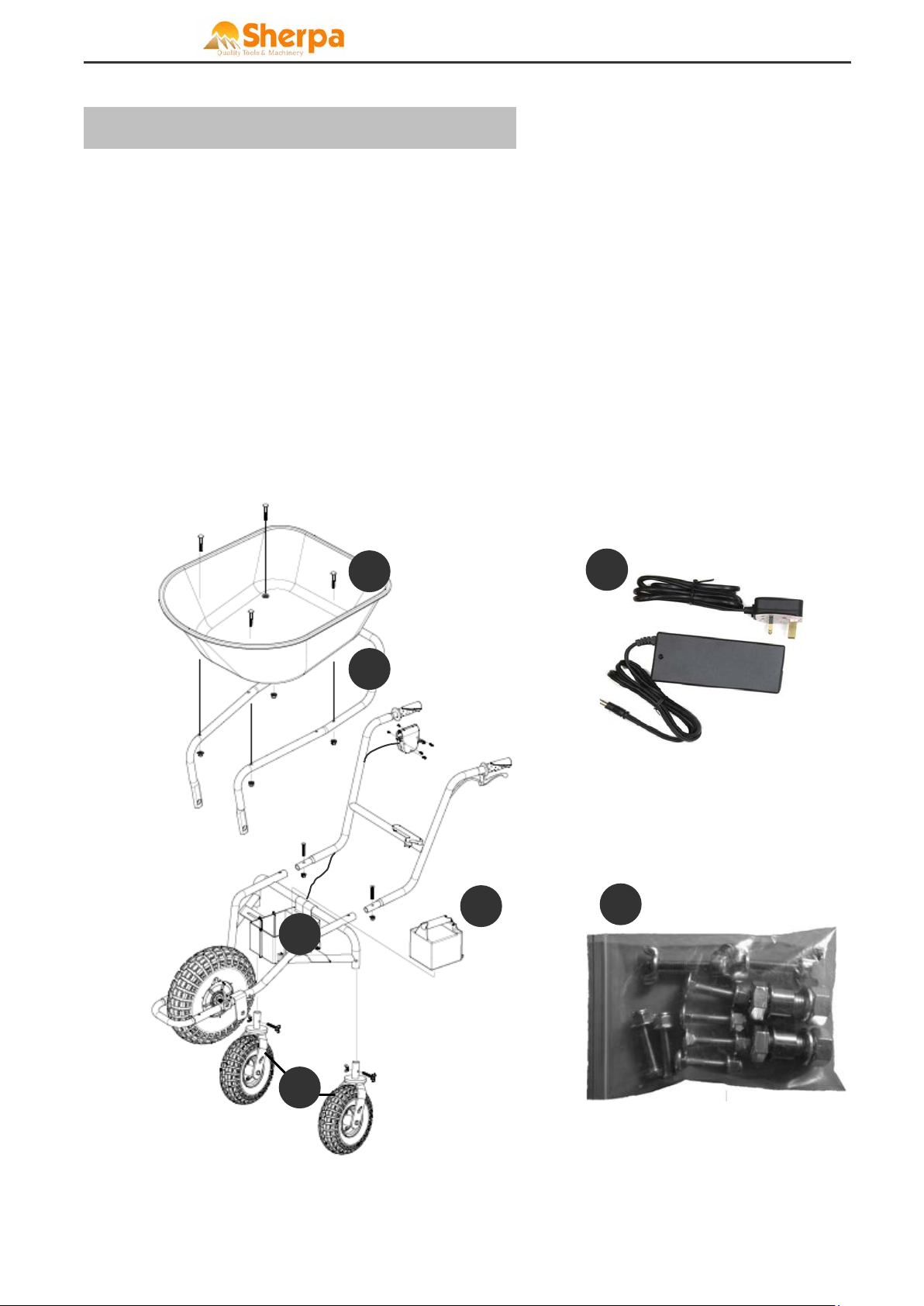

Exploded View
1
2
3
4
5
Battery
6

SPB-500 Safety & Operating Instructions
Sherpa Tools | SPB-500 | 2018 2

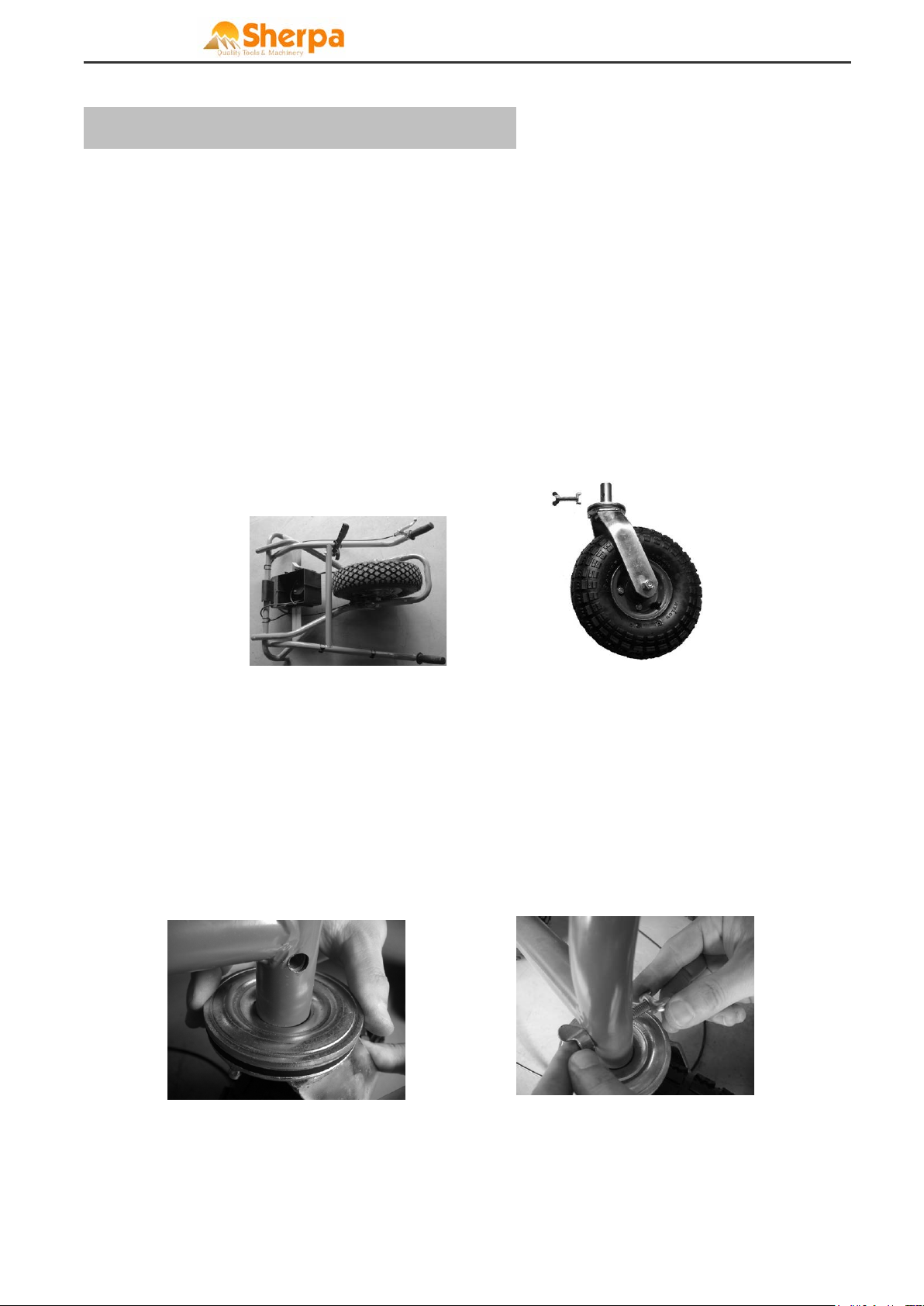

Please read and follow the following instructions carefully. This procedure will guide you
through the correct steps to assemble your wheel barrow and ensure safe use.
Step 0: The first charge of the battery will take between 8 to 24 hours, we recommend that
you start charging before assembling the wheelbarrow. Please refer to the section
“Charging and Caring for the Battery” on page 9for instructions.

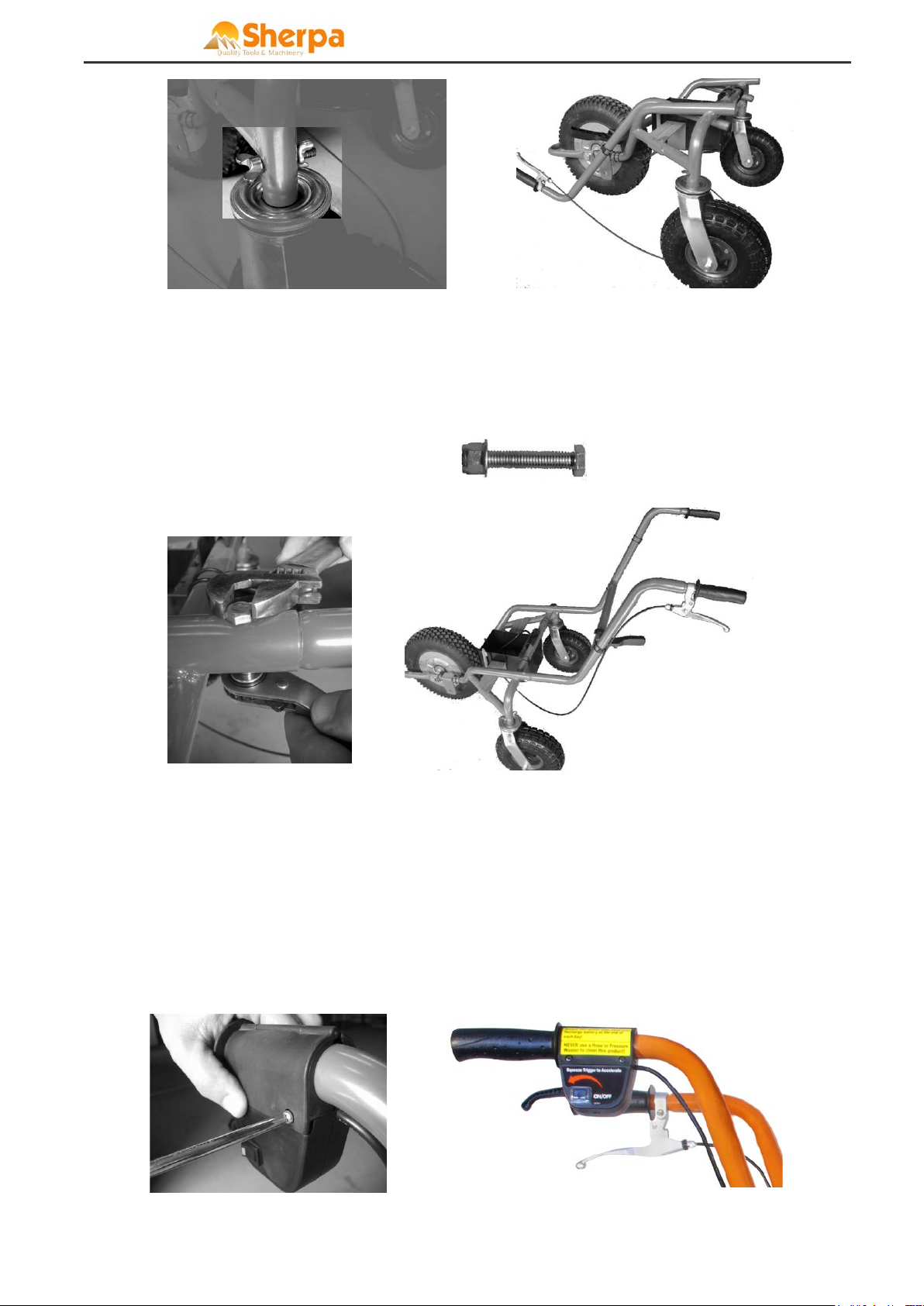

Step 1: Rest the base module with handle on the ground (Figure 1).Get 2 sets of rear wheels
and 2 sets of wing bolts and nuts ready (Figure 2).
Wing bolt: M8*P1.25*45mm x 2
Wing nut: M8*P1.25mm x 2
Step 2: Insert one of the wheels into one side of the base unit tube.Align the holes (Figure 3)
so that the wing bolt can be put through (Figure 4). Fasten the bolt and nut and make
sure they are tight enough (Figure 5). Your half-assembled wheelbarrow should now
look like Figure 6.
Assembling the SPB-500 Wheelbarrow
Figure 1
Figure 2
Figure 3 Figure 4

SPB-500 Safety & Operating Instructions
Sherpa Tools | SPB-500 | 2018 3
Step 3: Now turn the handle into the correct orientation. Insert the tubes on both sides. Use
hex bolts and nuts (Figure 7) for fastening (Figure 8). Your wheelbarrow should now
look like Figure 9. Wrench size.
Bolt: M8*P1.25*45mm x 2
Nut: M8*P1.25*t11mm x 2
Step 4: Take out the speed controller that has been pre-connected to the front wheel from the
battery container. You may find that the brake has been installed on one side of the
handles. Fasten the speed controller to the other handle (Figure 10).
NOTE: Ensure the speed controller unit is pushed against the handle grip
(Figure10.1).Any gap between the speed controller and grip may lead to a reduction
in speed control, slower operating speeds or failure to operate.
Figure 5 Figure 6
Figure 7
Figure 8 Figure 9
Figure 10 Figure 10.1

SPB-500 Safety & Operating Instructions
Sherpa Tools | SPB-500 | 2018 4
Step 5: Fix the dangling wire of the speed controller on the handle tube with the tightening
bend that has been pre-assembled to the tube.
Step 6: At this point, you should make sure the wires are correctly tightened at the 5 locations
circled in Figure 12. It is also very important to make sure the wires are going from
outside of the tube frame to avoid any possible damage of wires by the tray.

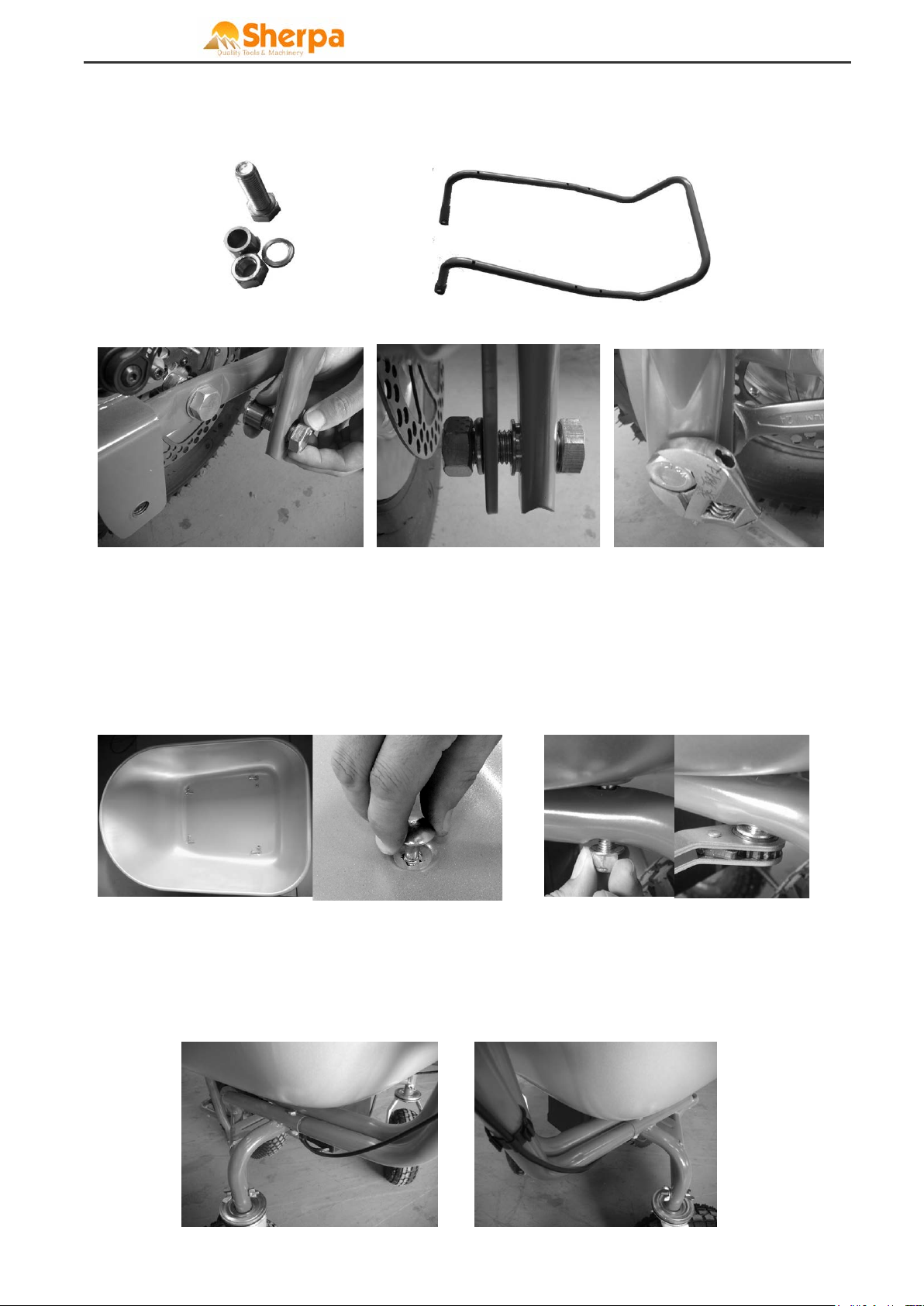

Step 7: Get the tray rack and 2 sets of hex nuts, bolts, and washers ready (Figure 13 &
14).Insert the bolt and washer into the rack like Figure 15-1. Put on the other washer
and nut like Figure 15-2. Make sure they are fastened tightly enough (Figure 15-3).
Bolt: M16*P2.0*45mm x 2 Inner washer:D21.9*d16*15mm x 2
Nut: M16*P2.0*t12.7mm x 2Spring washer:D26*d16.5*t3.0mm x 2
Figure 11
Wiring from outer
side of the tube
Figure 12

SPB-500 Safety & Operating Instructions
Sherpa Tools | SPB-500 | 2018 5
Step 8: Obtain the tray and 4 sets of bolts and nuts (Figure 16-1), fasten it to the tray rack
like it is shown in Figure 16-2.
Bolt: M8*P1.25*L45mm x 4
Nut: M8*P1.25*t11mm x 4
IMPORTANT: At this point, it is very important to make sure that the wires run down the tube
DO NOT interfere with the tray or get between the tubes. If you do, please redo the wiring as
shown in Figure 17-1 and 17-2.
Figure 14
Figure 15-1 Figure 15-2 Figure 15-3
Figure 16-1 Figure 16-2
Figure 17-1 Figure 17-2
Figure 13

SPB-500 Safety & Operating Instructions
Sherpa Tools | SPB-500 | 2018 6
Congratulations! Now your SPB-500 has been completely assembled!

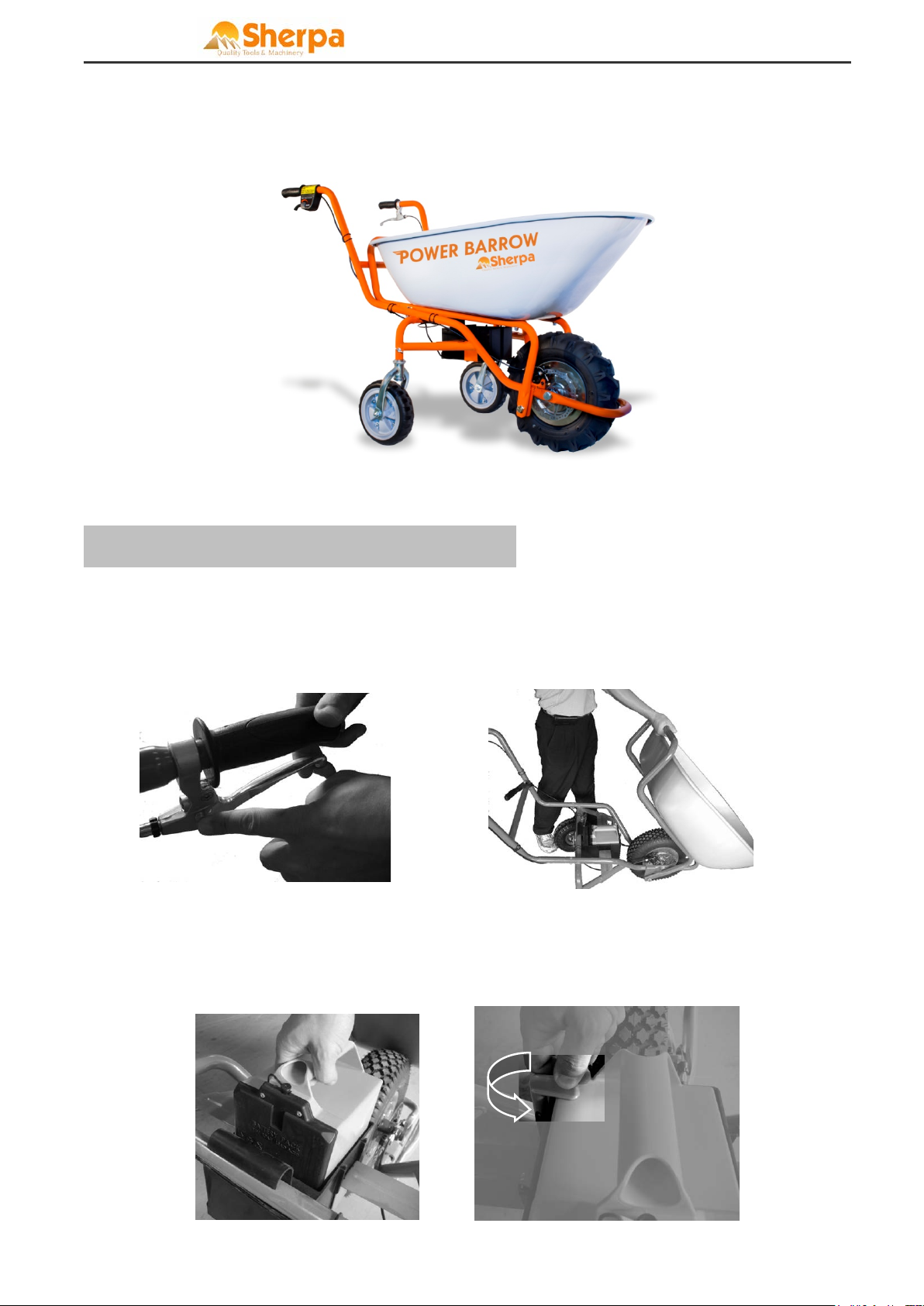

Step 1: Depress the brake stopper on the hand brake to stop the wheelbarrow without having
to hold it (Figure 18). Stand at the side and lift the tray up (Figure 19). Please make
sure there is no person in front of the barrow.
Step 2: Install the battery into the battery holder (Figure 20-1). Remember to secure it by
rotating the stopper (Figure 20-2).
Installing the Battery
Figure 18 Figure 19
Figure 20-1 Figure 20-2

SPB-500 Safety & Operating Instructions
Sherpa Tools | SPB-500 | 2018 7
Step 3: Simply lift the brake slightly to de-activate the brake stopper (Figure 21).
Starting the Wheelbarrow
Switch on the power by pressing the power button.Ared LED light lights up and indicates that
you are ready to go (Figure 22). Activate the speed control by lifting the bar (Figure 23). The
speed control is a variable type, which means the higher you lift the bar, the faster it will travel.
Remember to switch off the power after each use. An explanation of label on the switch is
explained in Figure 24.
Figure 21
Operating the Wheelbarrow
Figure 22 Figure 23
Figure 24
Indication of
speed control

SPB-500 Safety & Operating Instructions
Sherpa Tools | SPB-500 | 2018 8
Stopping the Wheelbarrow
Simply lift the brake handle to brake the wheelbarrow (Figure 21). Please refer to the “Install
the Battery” section on how to stop the wheelbarrow using the stopper when you are on a
slope or any other situations where you need to stop the wheelbarrow and be away.
Lifting the tray
Please refer to the “Install the Battery” section on how to life the tray correctly when installing
the battery or unloading the tray.
Securing the tray
Use the hook pre-installed on the handle to secure the tray during transportation, loaded or
unloaded (Figure 25). This prevents the tray lifting due to poor road conditions.
Figure 25

Wear shoes with non-slip treads when using the wheelbarrow. If you have
safety shoes, wear them. Do not use the wheelbarrow while barefoot or
wearing open sandals.
When the wheelbarrow is left unattended, apply the brake stopper as shown
in Figure 18 to make sure the barrow stays in place.
When the motor is overloaded, the current will be cut off and you will hear a
buzzer. When this happens, wait for 5 seconds and the circuit will go back to
normal.
This product is intended for household use and is not intended for
commercial or industrial uses.

Please follow this manual exactly to avoid any misuse.

SPB-500 Safety & Operating Instructions
Sherpa Tools | SPB-500 | 2018 9
The SPB-500 comes with a sealed, lead acid battery installed. The battery is 24 volts and
rated at 10 amp-hours. The battery is completely maintenance free.
You should charge the battery before first use and after every use. The battery should also be
charged out of the wheelbarrow to ensure safety.
First Charge
The battery has been charged at the factory; however you still need to recharge it fully before
using the wheelbarrow. This normally takes 8 to 24 hours.
The charging port is located on the top of the battery next to the battery LED.
Recharging after each use
The battery should always be FULLY recharged immediately after each use. This is essential
in extending the useful life of the battery.
Storage
When storing the battery for a long period of time, you are also recommended to leave it on
charge. The charger will maintain a trickle charge to keep the battery ready for use. The
storage temperature should be between 1oand 40o.
Instructions for Auto-Switching Charger
Charging procedure:
1. Connect the charger to battery
2. Plug in the charger to power source.
3. The charger now starts charging. The charger LED is RED during the charging stage.
4. When the charger LED turns GREEN, charging is completed. The charger can be left
plugged in to maintain charge.
Charging and Caring for the Battery
There is also an RED LED on the BATTERY. This RED LED only indicates that the
battery is receiving power from the charger during charging. It is NOT used to indicate
when charging is completed and IT WILL NOT TURN GREEN. If the LED does not
light up, DO NOT charge the battery further. Call our customer service immediately.

SPB-500 Safety & Operating Instructions
Sherpa Tools | SPB-500 | 2018
10
Lubricating the wheels
We recommend you to lubricate the wheels every 100 hours of
use. This is to ensure smooth operation of the Wheelbarrow.
Locate the grease nipples on the wheel, use a grease gun to
inject grease into the wheel bearing (Figure 27). Any good quality
Multi-purpose grease will suffice.

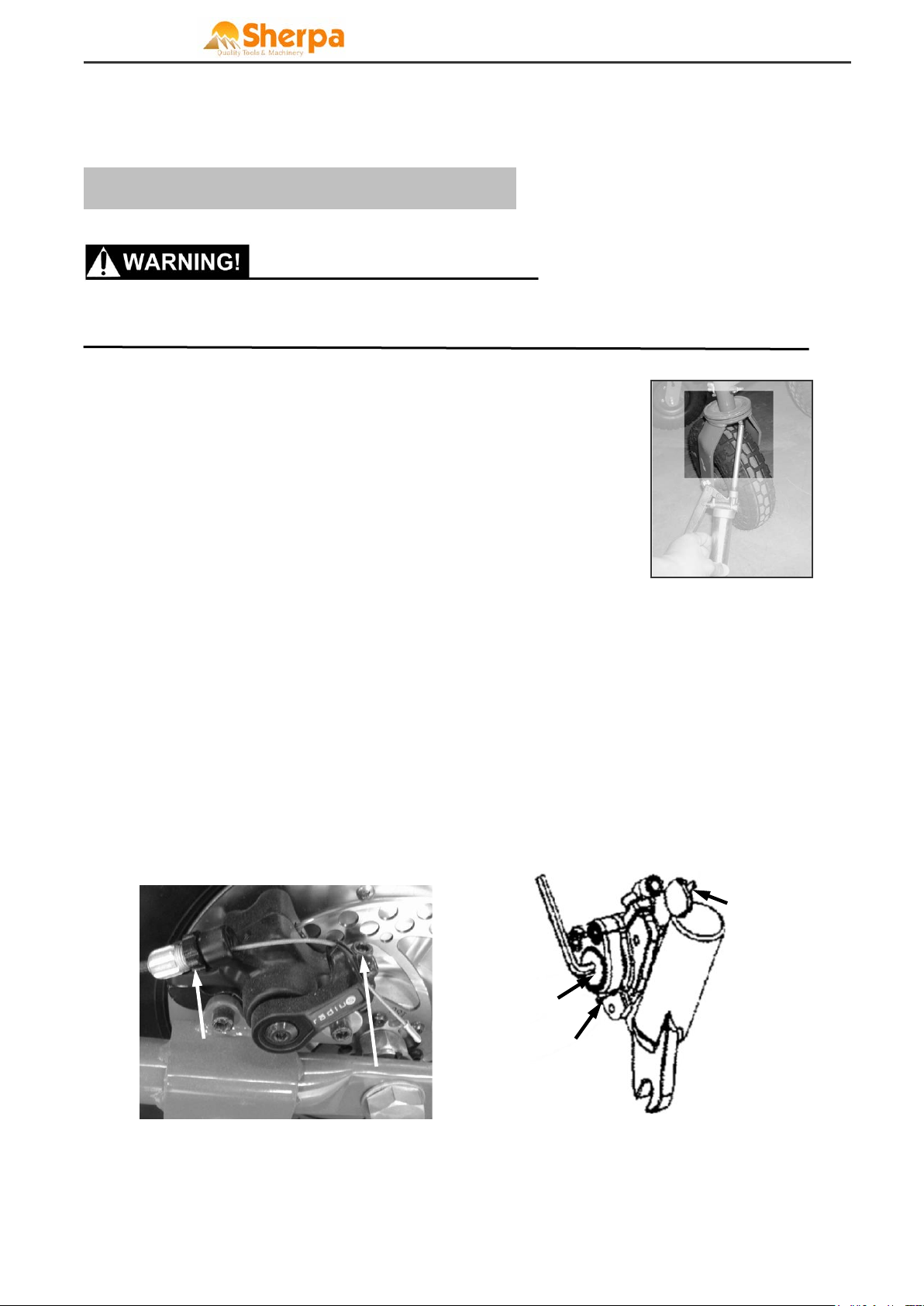

Adjusting the worn brake pad

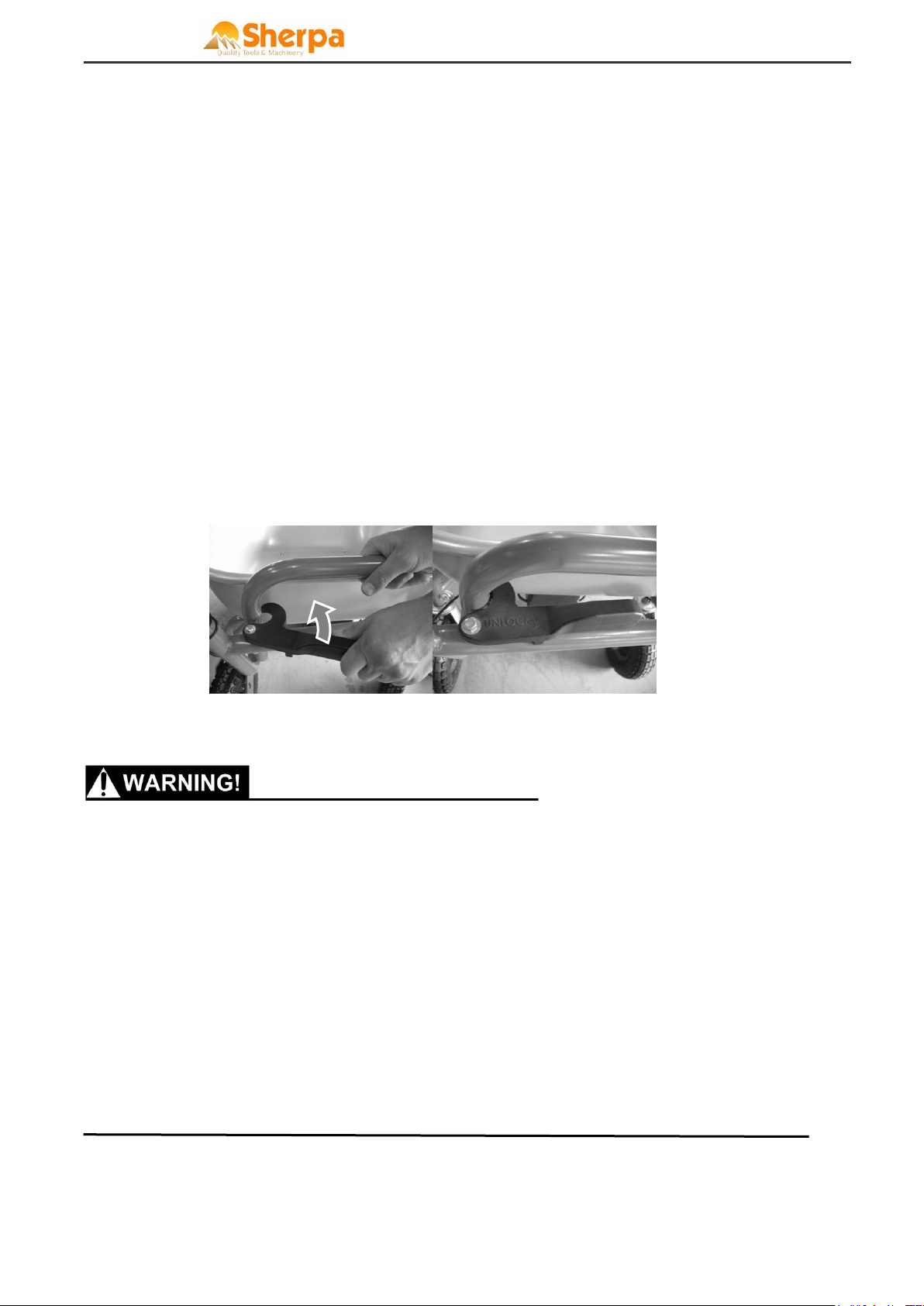

Brake gap has to be adjusted when the brake force is weakened. Loosen B (internal hex
screw) and turn E (adjustment screw) by turning in clockwise direction. Leave a gap of
approximately 0.2mm between the disc and the brake pads. Tighten B after completing the
adjustment.
The brake pads must be changed when the wear is visible. Loosen B and exit E (adjustment
screw) in an anti-clockwise direction. Replace C (inner pad) first and D (outer pad second).
Maintaining the Wheelbarrow
Figure 27
D
E
C
Figure 29 Figure 28
A
B
Battery MUST BE REMOVED before any maintenance can be carried out!

SPB-500 Safety & Operating Instructions
Sherpa Tools | SPB-500 | 2018
11
2-Year Limited Warranty
SPB-500has a two (2) year warranty from the date of purchase. This also covers
wearing parts against defects in materials or workmanship when put to domestic
use.
The battery has a one (1) year limited warranty only.
Wearing parts include:
1. Tire/tube
2. Cables
3. Battery
4. Fuse
5. Break pad

SPB-500 Safety & Operating Instructions
Sherpa Tools | SPB-500 | 2018
12
Sherpa SPB-500 Wheelbarrow
is in compliance with the specification of the machine directive and subsequent modifications,
98/37/EC
Sherpa Tools
Magic House
Station Road
North Hykeham
Lincoln
LN6 9AL
TEL: [phone]
www.sherpatools.co.uk
