SERVICE MANUAL
CAUTION : Before servicing this chassis, read the "PRODUCT SAFETY SERVICE FOR VIDEO PRODUCTS" section
on page 2 of this manual.
CONTENTS
SERVICE PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . 2,3
ELECTRICAL TROUBLE SHOOTING GUIDE. . . . . . . . . . 5,15
PRINTED CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16,21
BLOCK DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
REPLACEMENT PARTS LIST . . . . . . . . . . . . . . . . . . . . . . 22,27
DVD and CD
PLAYER
MODEL
DVD-2610

CAUTION: DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY AND
NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT
MANUFACTURER'S APPROVAL. UNAUTHORIZED MODIFICATIONS WILL NOT
ONLY VOID THE WARRANTY, BUT MAY LEAD TO YOUR BEING LIABLE FOR
ANY RESULTING PROPERTY DAMAGE OR USER INJURY.
SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU ARE
THOROUGHLY FAMILIAR WITH ALL OF THE FOLLOWING SAFETY CHECKS
AND SERVICING GUIDELINES. TO DO OTHERWISE, INCREASES THE RISK OF
POTENTIAL HAZARDS AND INJURY TO THE USER.
WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR PROTECTION
FROM A.C. LINE SHOCK.
SAFETY CHECKS
AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN CORRECTED, A CHECK
SHOULD BE MADE OF THE FOLLOWING.
SUBJECT: FIRE & SHOCK HAZARD
1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN SUCH A WAY AS
TO AVOID POSSIBILITY OF ADJACENT COMPONENT SHORTS. THIS IS
ESPECIALLY IMPORTANT ON THOSE MODULES WITCH ARE
TRANSPORTED TO AND FROM THE REPAIR SHOP.
2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE DEVICES SUCH AS
INSULATORS, BARRIERS, COVERS, SHIELDS, STRAIN RELIEFS, POWER
SUPPLY CORDS, AND OTHER HARDWARE HAVE BEEN REINSTALLED PER
ORIGINAL DESIGN. BE SURE THAT THE SAFETY PURPOSE OF THE
POLARIZED LINE PLUG HAS NOT BEEN DEFEATED.
3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE COLD
SOLDER JOINTS, SOLDER SPLASHES OR SHARP SOLDER POINTS. BE
CERTAIN TO REMOVE ALL LOOSE FOREIGN PARTICLES.
4. CHECK FOR PHYSICAL EVIDENCE DF DAMAGE OR DETERIORATION TO
PARTS AND COMPONENTS, FOR FRAYED LEADS AND DAMAGED
INSULATION (INCLUDING A.C. CORD), AND REPLACE IF NECESSARY
FOLLOW ORIGINAL LAYOUT, LEAD LENGTH AND DRESS.
5. NO LEAD OR COMPONENT SHOULD TOUCH A RECEIVING TUBE OR A
RESISTOR RATED AT 1 WATT OR MORE. LEAD TENSION AROUND
PROTRUDING METAL SURFACES MUST BE AVOIDED.
6. ALL CRITICAL COMPONENTS SUCH AS FUSES. FLAMEPROOF RESISTORS,
CAPACITORS, ETC. MUST BE REPLACED WITH EXACT FACTORY TYPES,
DO NOT USE REPLACEMENT COMPONENTS OTHER THAN THOSE
SPECIFIED OR MAKE UNRECOMMENDED CIRCUIT MODIFICATIONS.
7. AFTER RE-ASSEMBLY OF THE SET, ALWAYS PERFORM AN A.C. LEAKAGE
TEST ON ALL EXPOSED METALLIC PARTS OF THE CABINET, (THE
CHANNEL SELECTOR KNOB, ANTENNA TERMINALS. HANDLE AND
SCREWS) TO BE SURE THE SET IS SAFE TO OPERATE WITHOUT DANGER
OF ELECTRICAL SHOCK. DO NOT USE A LINE ISOLATION TRANSFORMER
DURING THIS TEST, MAKE SURE TO USE AN A.C. VOLTMETER. HAVING
5000 OHMS PER VOLT OR MORE SENSITIVITY, IN THE FOLLOWING
MANNER; CONNECT A 1500 OHMS 10 WATT RESISTOR, PARALLELED BY
A.15 MFD. 150V A.C. TYPE CAPACITOR BETWEEN A KNOWN GOOD EARTH
GROUND (WATER PIPE, CONDUIT, ETC.) AND THE EXPOSED METALLIC
PARTS, ONE AT A TIME. MEASURE THE A.C. VOLTAGE ACROSS THE
COMBINATION OF 1500 OHM RESISTOR AND 15 MFD CAPACITOR.
REVERSE THE A.C. PLUG AND REPEAT A.C. ANY VOLTAGE
MEASUREMENTS FOR EACH EXPOSED METALLIC PART. VOLTAGE
MEASURED MUST NOT EXCEED 75 VOLTS R.M.S. THIS CORRESPONDS
TO 0.5 MILLIAMP A.C. ANY VALUE EXCEEDING THIS LIMIT CONSTITUTES A
POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED IMMEDIATELY.
SUBJECT GRAPHIC SYMBOLS
THE LIGHTNING FLASH WITH APROWHEAD SYMBOL. WITHIN AN
EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE SERVICE
PERSONNEL TO THE PRESENCE OF UNINSULATED "DANGEROUS
VOLTAGE" THAT MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS
INTENDED TO ALERT THE SERVICE PERSONNEL TO THE
PRESENCE OF IMPORTANT SAFETY INFORMATION IN SERVICE
LITERATURE.
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
SUBJECT: X-RADIATION
1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PERSONNEL
COVER THE SUBJECT OF
2. ONLY FACTORY SPECIFIED C.R.T ANODE CONNECTORS MUST BE USED.
DEGAUSSING SHIELDS ALSO SERVE AS AN X-RAY SHIELD IN COLOR SETS,
ALWAYS RE-INSTALL THEM.
3. IT IS ESSENTIAL THAT SERVICE PERSONNEL HAVE AVAILABLE AN
ACCURATE AND RELIABLE HIGH VOLTAGE METER. THE CALIBRATION OF
THE METER SHOULD BE CHECKED PERIODICALLY AGAINST A
REFERENCE STANDARD, SUCH AS THE ONE AVAILABLE AT YOUR
DISTRIBUTOR.
4. WHEN THE HIGH VOLTAGE CIRCUITRY IS OPERATING PROPERLY, THERE IS
NO POSSIBILITY OF AN
5. WHEN TROUBLESHOOTING AND MAKING TEST MEASUREMENTS IN A
PRODUCT WITH A PROBLEM OF EXCESSIVE HIGH VOLTAGE AVOID BEING
UNNECESSARILY CLOSE TO THE PICTURE TUBE AND THE HIGH VOLTAGE
SUPPLY DO NOT OPERATE THE PRODUCT LONGER THAN IT IS NECESSARY
TO LOCATE THE CAUSE OF EXCESSIVE VOLTAGE.
6. REFER TO HV. B+ AND SHUTDOWN ADJUSTMENT PROCEDURES
DESCRIBED IN THE APPROPRIATE SCHEMATIC AND DIAGRAMS(WHERE
USED).
SUBJECT: IMPLOSION
1. ALL DIRECT VIEWED PICTURE TUBES ARE EQUIPPED WITH AN INTEGRAL
IMPLOSION PROTECTION SYSTEM, BUT CARE SHOULD BE TAKEN TO
AVOID DAMAGE DURING INSTALLATION, AVOID SCRATCHING THE TUBE. IF
SCRATCHED REPLACE IT.
2. USE ONLY RECOMMENDED FACTORY REPLACEMENT TUBES.
SUBJECT: TIPS ON PROPER INSTALLATION
1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS. CUBBYHOLE OR
CLOSELY FITTING SHELF SPACE, OVER OR CLOSE TO HEAT DUCT, OR IN
THE PATH OF HEATED AIR FLOW.
2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS: OUTDOOR PATIO
INSTALLATIONS WHERE DEW IS A FACTOR, NEAR STEAM RADIATORS
WHERE STEAM LEAKAGE IS A FACTOR, ETC.
3. AVOID PLACEMENT WHERE DRAPERIES MAY OBSTRUCT REAR VENTING.
THE CUSTOMER SHOULD ALSO AVOID THE USE OF DECORATIVE
SCARVES OR OTHER COVERINGS WHICH MIGHT OBSTRUCT VENTILATION.
4. WALL AND SHELF MOUNTED INSTALLATIONS USING A COMMERCIAL
MOUNTING KIT, MUST FOLLOW THE FACTORY APPROVED MOUNTING
INSTRUCTIONS. A PRODUCT MOUNTED TO A SHELF OR PLATFORM MUST
RETAIN ITS ORIGINAL FEET (OR THE EQUIVALENT THICKNESS IN SPACERS)
TO PROVIDE ADEQUATE AIR FLOW ACROSS THE BOTTOM. BOLTS OR
SCREWS USED FOR FASTENERS MUST NOT TOUCH ANY PARTS OR
WIRING. PERFORM LEAKAGE TEST ON CUSTOMIZED INSTALLATIONS.
5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A PRODUCT ON
SLOPING SHELF OR A TILTED POSITION, UNLESS THE PRODUCT IS
PROPERLY SECURED.
6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE ON ITS
MOUNTING TO THE CART CAUTION THE CUSTOMER ON THE HAZARDS OF
TRYING TO ROLL A CART WITH SMALL CASTERS ACROSS THRESHOLDS
OR DEEP PILE CARPETS.
7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR STAND WHICH
HAS NOT BEEN LISTED BY UNDERWRITERS LABORATORIES, INC. FOR USE
WITH THEIR SPECIFIC MODEL OF TELEVISION RECEIVER OR
GENERICALLY APPROVED FOR USE WITH TV'S OF THE SAME OR LARGER
SCREEN SIZE.
8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION CORDS. EXPLAIN
THAT A FOREST OF EXTENSIONS SPROUTING FROM A SINGLE OUTLET
CAN LEAD TO DISASTROUS CONSEQUENCES TO HOME AND FAMILY.
X-RADIATION. THE ONLY POTENTIAL SOURCE OF
X-RAYS IN CURRENT T.V. RECEIVERS IS THE PICTURE TUBE. HOWEVER,
THIS TUBE DOES NOT EMIT X-RYS WHEN THE HIGH VOLTAGE IS AT THE
FACTORY SPECIFIED LEVEL. THE PROPER VALUE IS GIVEN IN THE
APPLICABLE SCHEMATIC. OPERATION AT HIGHER VOLTAGES MAY CAUSE A
FAILURE OF THE PICTURE TUBE OR HIGH VOLTAGE SUPPLY AND, UNDER
CERTAIN CIRCUMSTANCES, MAY PRODUCE RADIATION IN EXCESS OF
DESIRABLE LEVELS.
X-RADIATION PROBLEM. EVERY TIME A COLOR
CHASSIS IS SERVICED, THE BRIGHTNESS SHOULD BE RUN UP AND DOWN
WHILE MONITORING THE HIGH VOLTAGE WITH A METER TO BE CERTAIN
THAT THE HIGH VOLTAGE DOES NOT EXCEED THE SPECIFIED VALUE AND
THAT IT IS REGULATING CORRECTLY. WE SUGGEST THAT YOU AND YOUR
SERVICE ORGANIZATION REVIEW TEST PROCEDURES SO THAT VOLTAGE
REGULATION IS ALWAYS CHECKED AS A STANDARD SERVICING
PROCEDURE AND THAT THE HIGH VOLTAGE READING BE RECORDED ON
EACH CUSTOMER'S INVOICE.
PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS
GOOD EARTH GROUND
SUCH AS THE WATER
PIPE, CONDUIT, ETC.
2

CAUTION : Before servicing the DVD covered by this
service data and its supplements and ADDENDUMS, read
and follow the SAFETY PRECAUTIONS NOTE : if
unforeseen circumstances create conflict between the
following servicing precautions and any of the safety
precautions in this publications, always follow the safety
precautions.
Remember Safety First:
General Servicing Precautions
1. Always unplug the DVD AC power cord from the AC
power source before:
(1) Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2) Disconnection or reconnecting any internal electrical
plug or other electrical connection.
(3) Connecting a test substitute in parallel with an
electrolytic capacitor
Caution : A wrong part substitution or incorrect
polarity installation of electrolytic capacitors may
result in an explosion hazard.
2. Do not spray chemicals on or near this DVD or any of its
assemblies.
3. Unless specified otherwise in this service data, clean
electrical contacts by applying an appropriate contact
cleaning solution to the contacts with a pipe cleaner,
cotton-tipped swab, or comparable soft applicator.
Unless specified otherwise in this service data,
lubrication of contacts is not required.
4. Do not defeat any plug/socket B+ voltage interlocks with
witch instruments covered by this service manual might
be equipped.
5. Do not apply AC power to this DVD and/or any of its
electrical assemblies unless all solid-state device heat
sinks are correctly installed.
6. Always connect test instrument ground lead to the
appropriate ground before connection the test
instrument positive lead. Always remove the test
instrument ground lead last.
Insulation Checking Procedure
Disconnect the attachment plug trom the AC outlet and turn
the power on. Connect an insulation resistance meter(500V)
to the blades of the attachment plug. The insulation
resistance between each blade of the attachment plug and
accessible conductive parts (Note 1) should be more than
1M ohm.
Note 1 : Accessible Conductive Parts including Metal
panels, input terminals, Earphone jacks, etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some field
effect transistors and semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor
component or semiconductor-equipped assembly, drain
off any electrostatic charge on your body by touching a
known earth ground. Alternatively, obtain and wear a
commercially available discharging wrist strap device,
which should be removed for potential shock reasons
prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface
such as aluminum toil, to prevent electrostatic charge
buildup or exposure of the assembly.
3. Use only a GROUNDED-tip soldering iron to solder or
unsolder ES devices.
4. Use only an anti-static solder removal device. Some
solder removal devices not classified a "anti-static" can
generate electrical charges sufficient to damage ES
devices.
5. Do not use freon-propelled chemicals. These can
generate electrical charge sufficient to damage ES
devices.
6. Do not remove a replacement ES device from its
protective package until immediately before you are
ready to install it. (Most replacement ES devices are
packaged with leads electrically shorted together by
conductive foam, aluminum foil, or comparable
conductive material.)
7. Immediately before removing the protective material
from the leads of a replacement ES device, touch the
protective material to the chassis or circuit assembly
into which the device will be installed.
Caution : Be sure no power is applied to the chassis or
circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Normally harmless motion
such as the brushing together of your clothes fabric or the
lifting of your foot from a carpeted floor can generate
static electricity sufficient to damage an ES device.)
SERVICING PRECAUTIONS
3

3.5VA 3.5V -24V GND GND GND 3.9V VCC 8V 12V VCC POWER 5V
SERVO
&TRAY
DRIVER
BA5954
&CD6208
VO
RFAMP
MT1336E
SERVO&DVDPROCESSOR
MPEG-2DECODER
&VIDEOENCODER
MT1379
HCU04
64MSDRAM
or16M*2SDRAM
AUDIODAC
CS4360
8MROM
29LV008
27MHz
XS005
TOPOWERASS'Y
XS14
EEPROM
24LLC02
27MHz
GND LD-DVD NC AVCC MD LD-CD VRDVD VRCD NC E L-VCC VC GND F B A RF CD/DVD D C T- T+ F+ F-
TRIN
GND
TROUT
UNLD
LOAD
RMC
VFDDATA
STB
VFDCLK
GND
3.5VA
3.5V
-24V
VCC
5V
NC
NC
SP-
SP+
LIMIT
GND
SL+
SL-
TOKEYASS'Y
TOPICKUP
MECHANISM
CHANISSIS
XS003
XS004
XS002
TC4W53
BusofData ControlSignals
TOPICKUP
MECHANISM
CHANISSIS
TOPROGRESSIVESCAN
OUTPUTASS'Y
XS007
5V RXD TXD GND
FOR
UPGRADE
HCU04
PQ05RD11
4558*4
5V
AUDIO
OUTPUT
VIDEO
OUTPUT
OPTICAL
&COAXIAL
OUTPUT
PROGRESSIVESCAN
OVERALLBLOCKDIAGRAM
XS1
VGA
GND
PS
G
SCART
S-C
V
S-Y
8287
CVBS
C
GND

Connection of the unit is correct
Is fluoresce display correct?
Is open/close normal?
Can disc be read?
Is video normal?
Is audio is normal?
Normal operation.
Refer to power guide
Refer to display guide
Refer to open/close guide
Refer to read disc guide
Refer to video guide
Refer to audio guide
Yes
Setting of the unit is correct
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
No
Electrical Trouble Shooting Guide
Is power normal?

Scart
Replace N301.
Check if transformer is damaged.
Check secondary commute circuit.
Check secondary feedback circuit.
Check if secondary short.
Check V304.
Is XP303 normal?
Normal
Yes
Yes
Yes
Yes
No
No
No
No
No
Yes
A Power Circuit abnormal
Is C320 AC 220V?
Is C307 DC 310V?
F301 is open.
XP302 or XP303 is open.
Power cord isn't inserted firmly
or power cord is open.
Check commute circuit.
Check L301 and L302.
Is the voltage between 7,5 pin of N301 15V?
Are transfoemer secondary 7V,5V,12V output?
Check regulated circuit.
Check N302 and perpheral components.

Scart
Is display normal?
Normal
Does the screen appear?
No
No
Yes
Yes
B Display abnormal
Check if voltage of screen F1 and F2 is 3.3V.
Check if voltage of 32 pin of PT6320 is -24V.
Check grounded negative voltage of screen F1 and F2.
Replace PT6320.
Check if connection cord between screen
and decoder ass'y is broken.
Check if PT6320 pin is connected.
check if pin of screen is connected.

Scart
Replace key ass'y.
Does drive motor have voltage?
Replace connection cord.
Replace motor.
END
Is"open"showed on the screen?
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
C Open/close abnormal
Is there voltage difference in XP003
UNLOAD pin and LOAD pin? Check if RMC pin of XS004 have waveform.
Does XS004 power have voltage?

D Read disc abnormal
Disc in
Fouse on?
Is laser normal?
Does the disc turn?
Can TOC be read?
Normal
Refer to fouse guide.
Refer to TOC guide.
Refer to fouse guide.
refer to laser guide.
No
No
No
No
Yes
Yes
Yes
Yes

E Video abnormal
No picture,no sound.
No picture,have sound.
Have picture,no color or lolor
disappeared during playback.
Have picture,but picture
disappearedduring playback.
END
Check jack of output board or replace
decoder ass'y.
Replace decoder ass'y.
Yes
No
Yes
No
Yes
No
Yes
No
Scart
Check decoder ass'y and replace G1(27MHz).
Check decoder ass'y and replace G1(27MHz).

F Audio abnormal
Have picture,no sound
Normal
Yes
No
Yes
No
No
Yes
Replace transistoe.
Check if voltage of R,L pin or
AKM4384 is normal?
Is N1 signal output? Check NJM4558 and peripheral components.
Check AKM4384 and peripheral components.
Is transistor VD2 and VD3 for
mute usage broken down?

G Focus abnormal
No focus
Check connection cord.
Replace pickup.
No
No
No
Yes
Yes
Yes
Does normal voltage at FCS+
and FCS- of XS14?
Does normal voltage at 14,7
pin of D001?
Check connection between 14,7 pin of
BA5954 and FCS+,FCS- of XS14.
Check if G1 normal operation.
Check BA5954 and peripheral components.
Does data output at 59 pin of D003?
Check connection between D2890
and BA5954.
Check D2890 and peripheral components.
Normal

No
Yes
H Laser abnormal
No laser
Normal
Yes
Yes
No
No
Is LD pin of XS14(19,23) 4.5V?
Check connection between pickup
and decoder ass'y.
Replace pickup.
Does voltage at 125,126 pin of D003?
Check connection between 125,126 pin of
D2890 and LD pin of XS14.
Check D2890 and peripheral components.
Does noraml voltage at 1,2,5,67,69,
109,114,120 pin of D003? Check D2890 and peripheral components.

I Turn abnormal
Disc doesn't turn
Normal
Yes
No
Yes
No
No
Yes
No
Yes
Check if voltge of SP+ of SP- of XS002
are different. Check connection of mechanism.
Check if voltage of 11 and 12 pin of
D001 are different.
Check connections between BA5954 and XS002
Check BA5954 and peripheral components.
Check if voltage of 16 pin of D003 is noraml.
Check connections between 16 pin of D2890
and 4,27 pin of BA5954.
Check D2890 and peripheral components.
Check if data signal of 5,23
pin of D001 is normal.
Check connections between D001 pins 5,23
and d004 pin 18,19.
Check d004 and peripheral components.

J TOC abnormal
TOC doesn't read
Limited switch is closed.
Is laser on?
Is FOK noraml
Have sound,no picture.?
Have picture,no sound.
Normal
No
No
Yes
Yes
Yes
No
No
Yes
Yes
No
Refer to laser guide.
Check slide motor and connections
to decoder ass'y
Does normal A.B.C.D signal
at 97-100 pin of D003?
check connections between 97-100 pin of D003
and 5,6,9,10 pin of XS14.
Check connections between XS14 and pickup.
Replace pickup.
Does normal RFIN at 215 pin of D004? Check connections between D004 and D003.
Check D003 and peripheral components.
Check D2871 and peripheral components.
Check D2871 and peripheral components.
Check AKM4384 and peripheral components.

DVD2610KEYCIRCUITDIAGRAM
S1
S2
RMC
DATA
STB
CLK
GND
F1
F2
-24V
+5V
CV
CA
5V
S3
S4
R518
1K
R503
4.7
VD504
1N4148
R519
1K
R501
10
VOLUME DOWN
VD506
1N4148
C502
0.1U
OPEN/CLOSE
C501
100U/6.3V
V501 20-0605
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 4 5 6 7 8 9 1 2
F1 F1 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 1G 2G 3G 4G 5G 6G F2 F2
PLAY
VD503
1N4148
R510 10K
R513 10K
R512 10K
VD505
1N4148
R514
100K
R511 10K
R504
180
MENU
U501
1
2
3
RMC
GND
VCC
PAUSE
H502
LED2
VD501
1N4148
N501
PT6311
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15 16 17 18 19 20 21 22 23 24 25 26
27
28
29
30
31
32
33
34
35
36
37
38
39
40 41 42 43 44 45 46 47 48 49 50 51 52
SW1
SW2
SW3
SW4
DOUT
DIN
IC
CLK
STB
KEY1
KEY2
KEY3
KEY4
VDD S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12
S13
S14
S15
S16
S17
S18
VDD
VEE
S19
S20
G8
G7
G6
G5 G4 G3 G2 G1
VDD
LED5 LED4 LED3 LED2 LED1
VSS
OSD
VD502
1N4148 TITLE
R516
10K
R517
1K
R522
10K
H501
LED1
R509
4.7K
R524
47K
XP501 R507
4.7K
V502
8050
R506
4.7K
R502
10
H503
LED3
FUNCTION MEMORY
POWER
C503
100U/6.3V
PREV
R505
1k
R508
4.7K
NEXT
VOLUME UP
H504
LED4
C504
0.1U
R524
4.7K
STOP

DVD2610 MIC CIRCUIT DIAGRAM
12v
@
R413
2k
R410
120k
+
C429
4.7/50
N402 PT2399
1 2 3 4 5 6 7 89
10 11 12 13 14 15 16 vcc
ref
agnd dgnd
clk-o
vco
cci
ccoop1out
op1in op2in op2out lpf2in lpf2out lpf1out lpf1in
RP403
1 3
2RP404
1 3
2
X401
C407
20p
+
C404
1/50
C421
0.1
2
1 3
+
C412
4.7/50
C422
0.1
1 3 2 4
C419
0.1
C423
510p
+
C409
10u/16V
V401
8050
3
2
1
C424
510p
VD401
5.6v
C420
5n6
+
C427
22u/16v
+
C428
10u/16v
N401A
1/2 4558
3
2
1
4
+
-
o1
vdd
N403B
1/2 4558
5
6
7
+
-
out2
vcc
C426
3n9
C416
0.1
R407
10k
C406
20p
+
C414
100u/16v
R421
10k
+
C417
47u/16v
R427
4.7k
R428
10k
R423
10k
R439
2k
R426
100k
R417
10k
R420
15k R418
6.8k
C418
0.1
R416
4.7k
R419
10k
R438
100
R425
10k
R401
100k
R424
30k
R409
12k
V402
9014
3
2
1
RP401
R404
100k
C425
5n6
+
C430
10u/16v
C411
0.1
R415
10k
+
C410
100u/16v
+
C413
4.7/50
+
C408
47/16
+
C403
4.7/50
+
C415
100u/16v
+
C405
47u/16v
XP401
1
2
3
4
5
R412
3k
R414
2k
R408
10k
R411
100
R402
15k
R403
1k
R405
100k

AD2620POWERCIRCUITDIAGRAM
LV-ET28A
XP303
V304
PC817
XP302
N303
PQ1CG3032RZ
NC
F+
GND
-22V
9V
7V
+16V
-22V
GND
GND
22V
-16V
GND
GND
5V
12V
GND
GND
POWER ON
5V
F-
CON12V
T301
BCK-A2620
17
16
11
13
11
9
7
8
5
1
15
11
14
11
12
10
C325
2200uF/16V
C310
330P
C301
0.22U/280V
C302
120P
4
3
1
2
C316
2200uF/16V
C307
4700P/4000V
R319
680
C318
220U
VD310
SF16
R309
47K/3W
L301
V302
8550d
3
2
1
N304
FCH08A10
R320
4.7K
AC110~220V\50/60Hz
VD314
SF36
-+
VD315
KBU8K(806)
V301
STP7NC70ZFP
2
13
C304
470P/250V
C324
470uF/10V
L306
3.3uH
R301
39K
C303
470P/250V
L305
100U
R306
22
N301
NCP1203
1 Adj 2 FB 3 CS 4 Gnd
HV 8
OUT 7
Vcc 6
Drv 5
VD307
21DQ10
VD305
1N4148
F302
T3.15A 250V
C326
22U/50V
R305
10K
L304
220uH
VD306
1N4148
L302
ZBF253L
N302
MC7812CT
1
2
3
IN
GND
OUT
VD311
1N4148
R303
100K
R304
100
C306
103/1KV
R307
22
L303
ZBF253L
L307
4.7uH
C319
470U
R314
4.7K
R312
10
R315
680
R308
1k
C311
47P/1KV
VD303 31DQ06
N305
UTC431
C308
4.7n
VD301
NC
R302
22K
C322
100uF/16V
C305
120U/400V C327
470uF/16V
C315
22U/50V
VD312
SF16
VD302
1N4007
1
4
2
5
3
C313
104
R318
1K
C323
10uF/16V
R317
3K
L308
20uH
V303
9014
3
2
1
N306
FCH08A10
VD304
HER208
C317
22U/50V
VD313
SF36
R310
0.15/2W
R323
4.7K
C320
470uF/10V
R313
27K
C321
470uF/35V
R321
1K
R316
100
C314
470uF/35V

DVD2610AMPCIRCUITDIAGRAM
V103
5401 V104
5551
V105
5551
V101
5551 V102
5551
V106
5551
TDA7294
10
915 8 6
14
2
137
4
1
XS2
GND
L
SR
R
C
SL
SW
GND
GND
GND
GND
GND
GND
VC
XS3
+16V
GND
+22V
-16V
GND
-22V
GND
XS1
GND
R
GND
GND
L
GND
GND
GND
SL
C
SR
SW
CH5
IN
CH5
NF
CH4
IN
CH4
NF
CH4
OUT CH5
OUT
1
+VCC -VCC
+PRE
VCC SUBGND
CH2
OUT
CH1
OUT CH1
NF
CH1
IN
CH2
IN
BAS CH2
NF
CH3
OUT
CH3
IN
CH3
NF
N2
N1
STK402-920
234 56
-VCC +VCC
789 10 11 12 13 14 1615
(-PRE
VCC)
17 18 19 20 21 22 23 24
-PRE
VCC
R24
56K
R109
47K
R36
30K
R92
2.2/1W
R89
2.2/1W
S1
R61
1K
R12
100K
R22
100K
S2
C36
3p
C12
470p
C86
224
S3
+
C65
47u
R62
10K
+
C23
22u
VD103
6V
R3
10K
L6
5.8uH
R83
10/1W
+
C53
22u
+
C61
22u
C42
470p
R23
1K
VD61
1N4002
C54
220p
L7
100uH
C83
224
L1
5.5uH
R63
1K
R21
10K
R55
1K8
L4
5.5uH
R64
100K
R56
30K
+
C102
2.2u
R90
2.2/1W
R52
100K
+
C64
22u/50V
+
C55
33u
R102
10K
R67
1K/1W
C56
3p
R84
10/1W
+
C51
22u
C6
104
+
C43
22u
R11
10K
C32
470p
C44
220p
R111
47K
R53
1K
C84
224
C68
104
R45
1K8
+
C11
22u
+
C104
10u
L5
5.5uH
R68
220K
R46
30K
R13
1K
R91
2.2/1W
R54
56K
R70
10K
R42
100K
+
C45
33u
+
C13
22u
R112
1K
R69
62K
C46
3p
R14
56K
R85
10/1W
R51
10K
+
C101
100u
R87
2.2/1W
+
C41
22u
+
C62
22u
C14
220p
+
C33
22u
VD101
1N4002
C85
224
R81
10/1W
R43
1K
R65
47K
R15
1K8
C4
474
C81
224
R66
560
+
C15
33u
R103
10K
+
C3
470u
C2
474
R44
56K
+
C63
47u
R25
1K8
R32
100K
R2
10/1W
+
C1
470u
C67
104
+
C25
33u
C8
0.1u
VD104
1N4002
R41
10K
R115
100/0.25W
C24
220p
+
C31
22u
R104
10K
+
C7
100u
R101
10/1W
+
C106
22u
R16
30K
R33
1K
+
C103
470u
C6
0.1u
L2
5.5uH
R114
100K
C16
3P
R106
47K
+
C5
100u
R88
2.2/1W
VD102
1N4002
C26
3P
R34
56K
R105
47K
R1
10/1W
+
C105
22u
R26
30K
R108
47K
C34
220p
R82
10/1W
C52
470p
R31
10K
C22
470p
R107
47K
R35
1K8
R113
300K
C82
224
+
C21
22u
R110
47K
+
C35
33u
R86
10/1W
L3
5.5uH

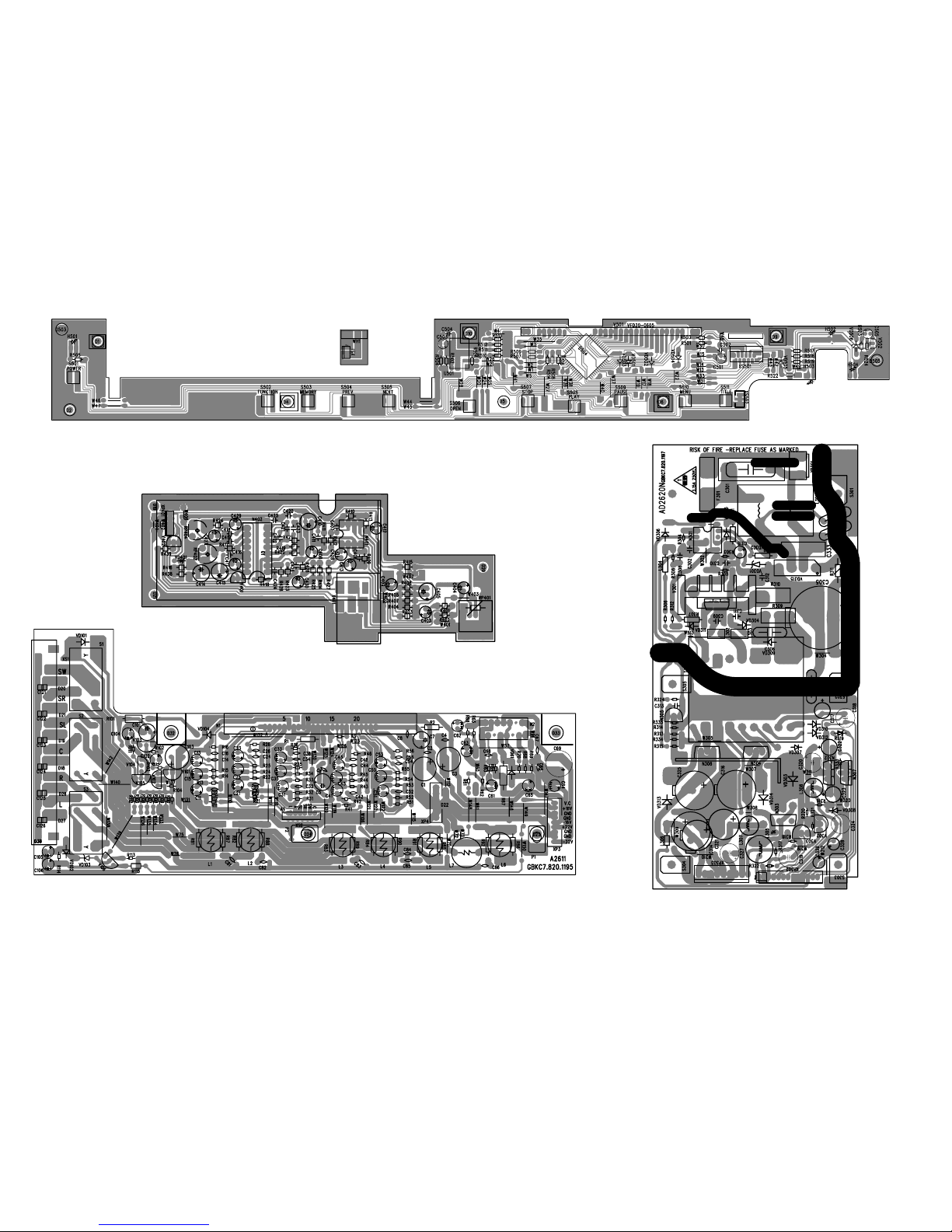

DVD2610KEYBOARDDIAGRAM
DVD2610MICBOARDDIAGRAM
DVD2611AMPBOARDDIAGRAM AD2620POWERBOARDDIAGRAM
