Shinco SDP1910 User manual

SERVICE MANUAL
CAUTION : Before servicing this chassis, read the "PRODUCT SAFETY SERVICE FOR VIDEO PRODUCTS" section
on page 2 of this manual.
CONTENTS
SERVICE PRECAUTIONS......................................................2,3
BLOCK DIAGRAMS...................................................................4
TROUBLE SHOOTING...........................................................5,8
BOARD DIAGRAM...............................................................9,10
DVD and CD
PLAYER
MODEL
SDP1910
REPLACEMENT PARTS LIST............................................11,23

Whenthepowersupplyisbeingturnedon,youmaynotremovethislasercautionslabel.Ifitremoves,radiationoflaser
maybereceived.
LASERBEAMCAUTIONLABEL
PREPARATIONOFSERVICING
PickupHeadconsistsofalaserdiodethatisverysusceptibletoexternalstaticelectrocity.
Althoughitoperatesproperlyafterreplacement,ifitwassubjecttoelectrostaticdischargeduringreplacement,
itslifemightbeshortened.Whenreplacing,useaconductivemat,solderingironwithgroundwire,etc.to
protectthelaserdiodeformdamagebystaticelectricity.
Andalso,theLSIandICaresameasabove.
Solderingiron
withgroundwire
orceramictype
Groundconductive
wriststrapforbody.
Conductivemat
Thegroundresistance
betweenthegroundline
andthegroundislessthan10
1M

SAFTY NOTICE
Plug the AC line cord directly into a 120V AC outlet (do
not use an isolation transformer for this check). Use an
AC voltmeter, having 5000 per volt or more sensitivity.
Connect a 1500 10W resistor,paralleled by a 0.15uF
150V AC capacitor between a knomn good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of
cabinet (antennas, handle bracket, metal cabinet
screwheads, metal overlays, control shafts, etc.).
SAFTY PRECAUTIONS
LEAKAGE CURRENT CHECK
Measure the AC voltage across the 1500 resistor.
The test must be conducted with the AC switch on and
then repeated with the AC switch off. The AC voltage
indicated by the meter may not exceed 0.3V.A reading
exceeding 0.3V indicates that a dangerous potential
exists, the fault must be located and corrected.
Repeat the above test with the DVD VIDEO PLAYER
power plug reversed.
NEVER RETURN A DVD VIDEO PLAYER TO THE
CUSTOMER WITHOUT TAKING NECESSARY
CORRECTIVE ACTION.
READING SHOULD NOT EXCEED 0.3V
DVD VIDEO PLAYER
AC OUTLET
AC VOLTMETER
Test all exposed metal.

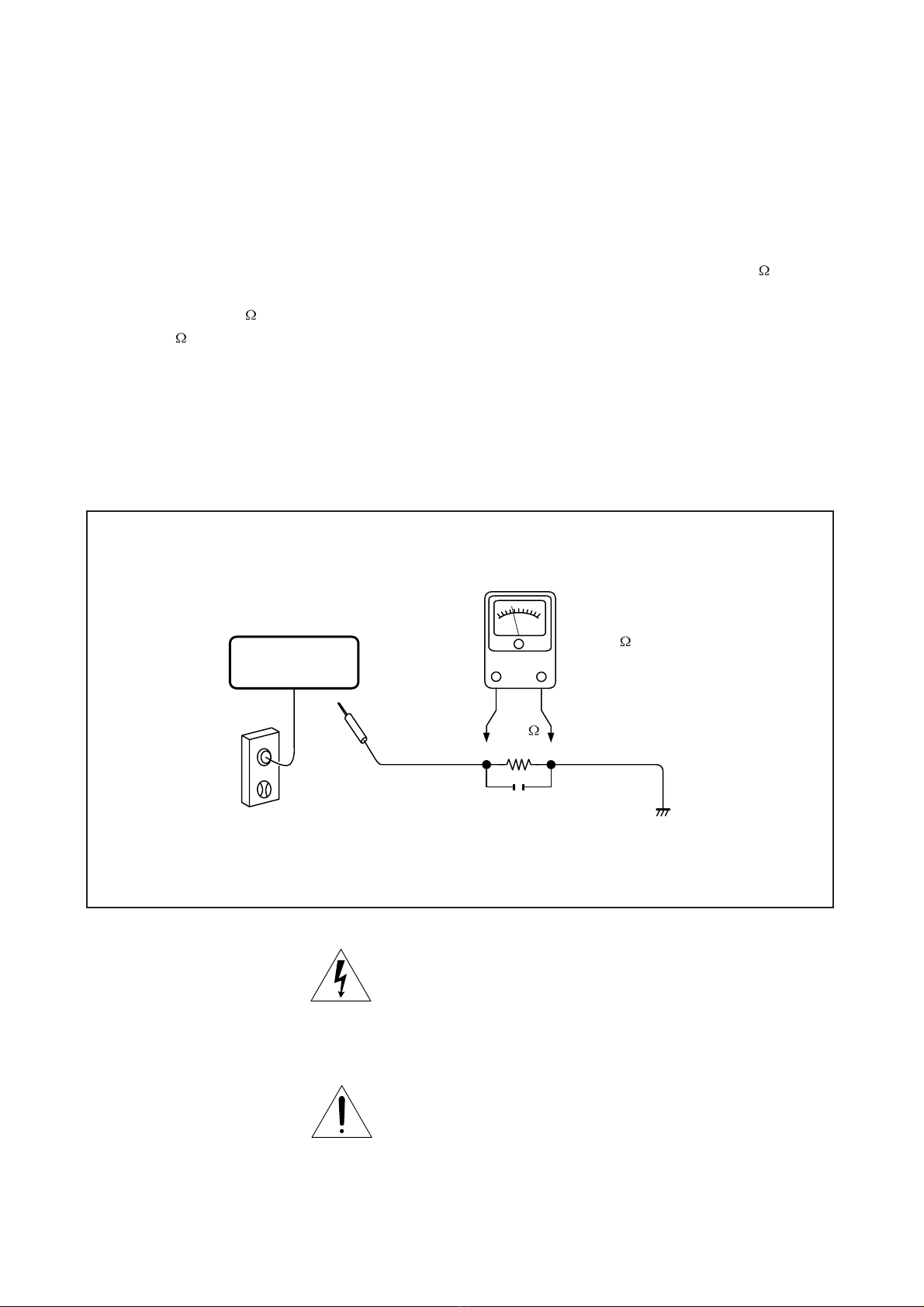

Voltmeter Hook-up for Leakage Current Check
0.15uF 150V AC
1500
10W
(5000 per volt
or more sensitivity)
Good earth ground
such as a water pipe,
conduit, etc.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

RF AMP & SERVO & DVD PROCESSOR
MPEG-2 DECODER & VIDEO ENCODER
D3800

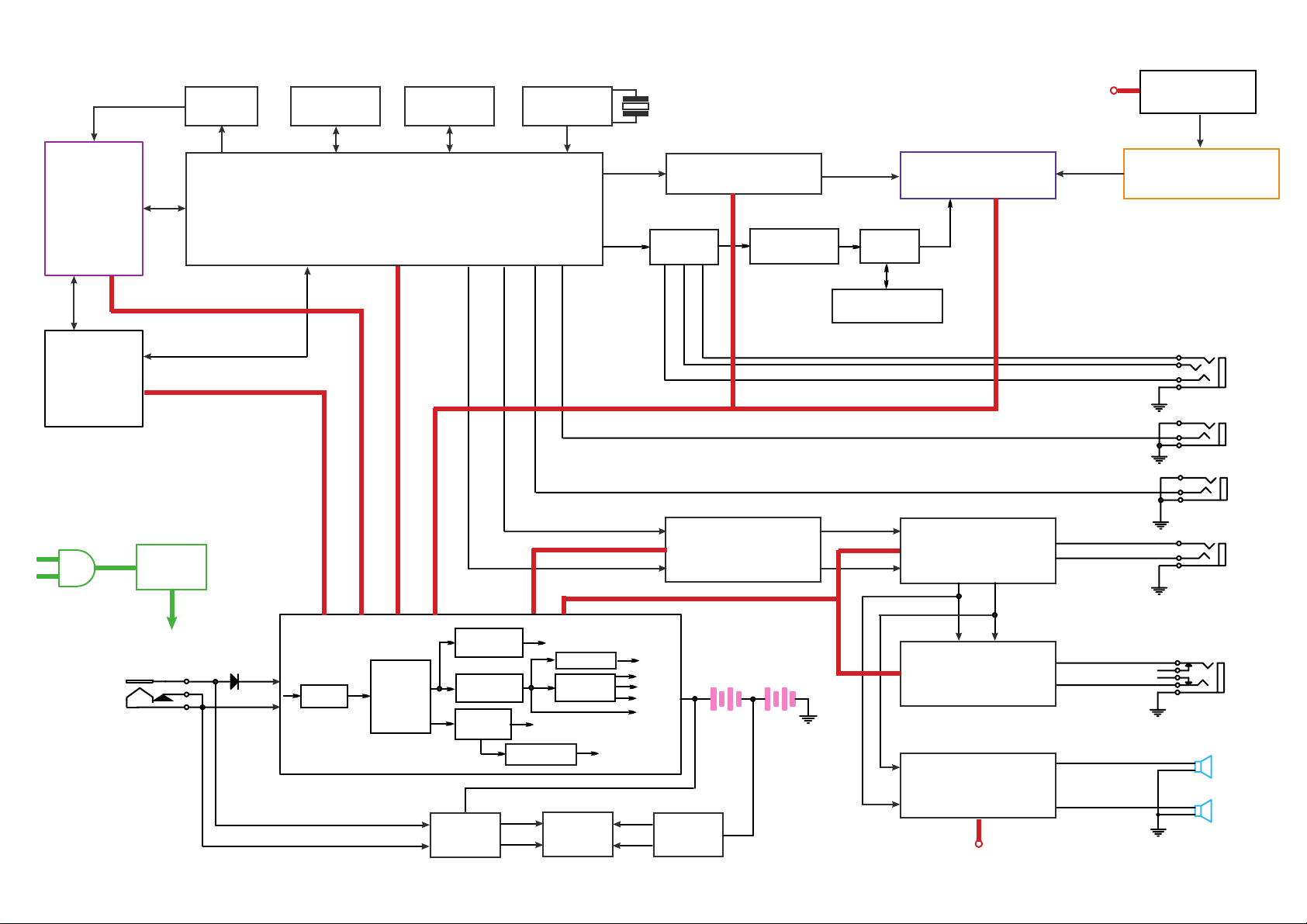

OVERALL BLOCK DIAGRAM
AC
Adapter
DC IN +9V
DC / DC
(BQ2057C) (TPC8207) (VG202C)
110~240V
50/60Hz
BATTERY
DV22
PU mechanism
DRIVER
(BA5954FP)
8M FlashROM
MX29LV008TTC-70
64M SDRAM
NT56V6620C0T-75S
TC4W53 27MHz
AUDIO D/A
(PCM1742)
UPD5100 TFT MONITOR
AUDIO AMP
(NJM4558)
PHONE AMP
(NJM4580)
SPEAKER AMP
(D2822)
HIGH VOLTAGE ASS'Y
74HCU04
27MHz
VIDEO OUT
AUDIO OUT
PHONE OUT
SPEAKER LOUT
SPEAKER ROUT
L
R
L
R
RL
DRIVER +5V
+5V
AUDIO +/-5V
+5V
+3.3V
+1.8V
AUDIO +5V
TFT POWER
+3.3V +5V 7.5V +13V -16V
COAXIAL OUT
DC 9V
DC 9V
R1224 IRF7304 PQ05DZ11
BA033
TPS5100
TFT VDD
-16V
7.5V
5V
MPEG3.3V
MPEG1.8V
G1117-1.8
PQ1R33 3.3V
OSCILLATOR
OZ960
PQ05DZ11 MPEG 5V
13V
BA7660FS TVP5146PFP MX284
16M SDRAM*2
R/G/B
R/G/B OUT

1. Troubleshooting
1. No power when turned on.
2. The initial screen is not displayed on the LCD.
3. The DVD drive does not work.
4. The operation of the DVD player stops at initializing display.
5. Image output stops during the operation.
6. No sound or abnormal sound comes out form the speakers in the DVD player.
7. No image or sound comes out form the external output.
8. No sound comes out form the headphones.
9. No image or sound is output by external input.
10. The DVD drive does not operate with the battery.
1.1 No power when turned on.
When the power is turned on, and if the LED on the front panel does not light green, check
the following items and repair the defective parts.
(1) Check the power supply cable
If the cable is not the supplied one, replace it with the supplied cable and turn on the
power again.
If the power supply cable is good, the AC adapter may be defective.
If the LED does not light after replacing, check the following items.
(2) Check the AC adapter
If the AC adapter is not the supplied one, replace it with the supplied AC adapter and
turn on the power.
If the AC adapter is good, the power supply boards may be defective.
If the LED does not light after replacing, check the following items.
(3) Check the Power and Play buttons
Press the POWER button or the PLAY button on the DVD player. If the power does
not turn on, check the following:
zCheck the connector of the switch unit in the DVD player.
(If the connection is loose, repair the connection.)
zReplace the switch unit and turn on the power again.
If the LED does not light after replacing, check the following items.
(4) Replace the main board

1.2 The initial screen is not displayed on the LCD.
If the initial screen is not displayed on the LCD, check the following items.
(1) Check the LED on the front
If the LED does not light, proceed to 1.1.
(2) Check the backlight
If the backlight does not light up, separate. The DVD player into top assembly and
bottom assembly, and check the connector harness, and check the connectors for
defects.
If the connector harness is broken:
Replace the broken harness.
If the connector harness is not broken:
Remove the LCD cover and plate of the LCD unit and check the following:
zCheck the connector of the FL harness, repair connectors.
zIf the connectors are good, replace the FL inverter or the LCD.
(3) Check the lighting of LCD
If the LCD does not light, separate the DVD player into the top assembly and bottom
assembly, and check the LCD harness, and check the connectors on the main board.
If the connector is broken:
Replace the LCD harness or the main board.
If the connector is not broken:
Remove the LCD cover and plate of the LCD unit, and check the connection to the
harness of the LCD unit.
zIf a bad connection is found.
Connect the LCD harness to the LCD unit.
zOther than the above
Replace the LCD unit or the main board.

1.3 The DVD drive does not work.
When the DVD drive does not work after the power is turned on, check the following items
and repair or replace the defective parts.
(1) Press the DISC cover switch at the center of the DVD player and turn on the
power. Then check whether or not the optical pick-up lens of the DVD drive
lights.
CAUTION: Visible laser radiation when open and interlock defeated. Do not stare into
Laser beam.
The optical pick-up lens lights dim:
It is caused by deterioration of the optical pick-up lens. Replace the DVD drive.
The optical pick-up lens does not light:
Check the connectors of the DVD-FFC. Also check the connection to the main
board and to the DVD drive.
zLoose connection is found.
Repair the connection, and then check the operation of the DVD drive again.
zThe DVD-FFC is broken.
Replace the DVD-FFC.
zOther than the above.
Replace the DVD drive or the main board.
(2) Insert a DVD disk and turn on the power
The DVD drive does not work:
The motor of the DVD drive or the main board is defective. Replace the DVD drive
or the main board.
The DVD drive works but the initializing operation of the optical pick-up lens
does not start (the optical pick-up lens operates twice), or abnormal noise
sound:
The DVD drive is defective. Replace the DVD drive.
1.4 The operation of the DVD player stops at initializing display.
If the DVD player does not work after the initializing screen is displayed, check the
indication on the screen. Then repair the defect according to it.
(1) Insert a DVD disk and close the DISC cover, and turn on the power. Then check
the LCD screen or use an external display.
zThe message “loading” is not displayed or the operation stops at the
message “Loading”.
Since the DVD drive or the main board is defective, check in the following order:
1) DVD drive
2) Main board
zThe message “CHECK DISK” is displayed.
Check the DVD disk for fingerprints, dirt, etc.
If the DVD disk is OK, then check the following items:
1) Check the DVD-FFC
If a loose connection, repair the connection.
If it is damaged, replace it with new one.
2) Other than above
For other cases, replace the unit in the following order:
zDVD drive (defective optical pick-up)
zMain board

1.5 Image output stops during the operation.
If the image output form the media in the DVD player stops during the operation, replace
the DVD drive.
1.6 No sound or abnormal sound comes out from the speakers in the DVD player.
If no sound comes out form the speakers in the DVD player, check the following:
(1) Check for moving images on the LCD screen
Check whether or not the move of image stops in halfway. If it stops, replace the DVD
drive.
(2) Check the operation of the DVD driver.
Check whether or not the DVD drive works. If it stops, replace the DVD drive.
(3) Check the connection of the speakers in the LCD unit.
Separate the DVD player into the top assembly and bottom assembly, and then check
the connection of the speaker harnesses to the main board. If a bad connection, repair
the connection.
Other than the above, disassemble the LCD unit and replace the speakers or the main
board.
1.7 No image or sound comes out form the external output
If any image or sound is output form the TV connected by the external cable, replace the
main board or the connector.
NOTE: Before this test, make sure the drive works.
1.8 No sound comes out form the headphones.
If no sound comes out form the headphones, replace the main board or the connector.
1.9 No image or sound is output by the external input.
If any image or sound is output by external input, replace the main board or the connector.
1.10 The DVD drive does not operate with the battery.
(1) Check the operation with a good battery.
Install a good battery and make sure the LED lights up orange while the AC adapter is
connected. When the LED does not light up or blinks, check the connection of the
battery harness inside the DVD player. If the connection is loose, repair connection. If
the harness has been connected firmly, replace the main board.
(2) Other than the above, replace the battery.
NOTE:
zFor this check, use a battery which is not fully charged (because the LED does
not light when the battery is fully charged.)
zBefore this check, make sure other function work correctly.

SDP1910 MAIN BOARD DIAGRAM

SDP1910TFT-284 TFT BOARD DIAGRAM

PART No. PART NAME Q'TY
11079o RB-LI25LITHIUM BATTERY 1
21412 DVD1910 HV PCB ASS'Y 1
21411 DVD1910 FUNCTION PCB ASS'Y 1
21410 DVD1910 MAIN PCB ASS'Y 1
21408 DVD1910TFT-284 TFT PCB ASS'Y 1
S8072 DV22 LOADING ASS'Y 1
S0578e ADPV18A AC POWER ADAPTER 1
S5006 SPEAKER 2
S4353 TS-043 EARPHONE 1
S1187e OWNER MANUAL 1
S06024 DVP700 REMOTE 1
S3459 20 PIN HARNESS (LE200) 2
a7402 LTA090A052F TFT LCD 1
S0535 CAR CIGARETTE ADAPTER 1
S3098 S-VIDEO WIRE 1
S3153 RCA CORD VIDEO 1
S3154 RCA CORD AUDIO 1
S3544 SPEAKER CONNECT WIRE 2
S3551 LOADING EARTHING WIRE 1
S3590 TFT EARTHING WIRE 1
S3545 HV POWER CONNECT WIRE 1
S3681 PS SIGNAL OUTPUT WIRE 1
ELECTRICAL PARTS LIST
SDP1910

REF No. PART No. PART NAME REF No. PART No. PART NAME
R33 P11013 Resistor chip 10K
¡
R34 P11013 Resistor chip 10K
¡
R1 P11013 Resistor chip 10K
¡
R35 P11013 Resistor chip 10K
¡
R2 P11004 Resistor chip 33
¡
R36 P11013 Resistor chip 10K
¡
R3 P11004 Resistor chip 33
¡
R37 P11038 Resistor chip 39K
¡
R4 P11004 Resistor chip 33
¡
R38 P11015 Resistor chip 15K
¡
R5 P11005 Resistor chip 75
¡
R39 P11035 Resistor chip 20K
¡
R6 P11207 Resistor chip 0.5
¡
R40 P11017 Resistor chip 33K
¡
R7 P11207 Resistor chip 0.5
¡
R41 P11017 Resistor chip 33K
¡
R8 P11004 Resistor chip 33
¡
R42 P11013 Resistor chip 10K
¡
R9 P11004 Resistor chip 33
¡
R43 P11207 Resistor chip 0.5
¡
R01 P11013 Resistor chip 10K
¡
R44 P11013 Resistor chip 10K
¡
R02 P11009 Resistor chip 1K
¡
R46 P11000 Resistor chip 0
¡
R03 P11009 Resistor chip 1K
¡
R47 P11035 Resistor chip 20K
¡
R04 P11009 Resistor chip 1K
¡
R48 P11035 Resistor chip 20K
¡
R05 P11131 Resistor chip 4.7M
¡
R49 P11013 Resistor chip 10K
¡
R06 P11009 Resistor chip 1K
¡
R50 P11207 Resistor chip 0.5
¡
R10 P11004 Resistor chip 33
¡
R51 P11000 Resistor chip 0
¡
R11 P11000 Resistor chip 0
¡
R52 P11004 Resistor chip 33
¡
R12 P11000 Resistor chip 0
¡
R53 P11004 Resistor chip 33
¡
R13 P11004 Resistor chip 33
¡
R54 P11004 Resistor chip 33
¡
R14 P11123 Resistor chip 15
¡
R55 P11012 Resistor chip 4.7K
¡
R15 P11134 Resistor chip 68
¡
R56 P11012 Resistor chip 4.7K
¡
R16 P11005 Resistor chip 75
¡
R57 P11023 Resistor chip 1M
¡
R17 P11005 Resistor chip 75
¡
R58 P11003 Resistor chip 10
¡
R18 P11123 Resistor chip 15
¡
R59 P11013 Resistor chip 10K
¡
R19 P11134 Resistor chip 68
¡
R60 P11013 Resistor chip 10K
¡
R20 P11005 Resistor chip 75
¡
R61 P11013 Resistor chip 10K
¡
R21 P11013 Resistor chip 10K
¡
R62 P11004 Resistor chip 33
¡
R22 P11123 Resistor chip 15
¡
R63 P11004 Resistor chip 33
¡
R23 P11003 Resistor chip 10
¡
R64 P11050 Resistor chip 560
¡
R24 P11009 Resistor chip 1K
¡
R65 P11004 Resistor chip 33
¡
R25 P11134 Resistor chip 68
¡
R66 P11019 Resistor chip 100K
¡
R26 P11005 Resistor chip 75
¡
R69 P11013 Resistor chip 10K
¡
R27 P11005 Resistor chip 75
¡
R71 P11005 Resistor chip 75
¡
R28 P11013 Resistor chip 10K
¡
R72 P11005 Resistor chip 75
¡
R29 P11000 Resistor chip 0
¡
R73 P11005 Resistor chip 75
¡
R30 P11004 Resistor chip 33
¡
R74 P11118 Resistor chip 75K
¡
R31 P11013 Resistor chip 10K
¡
R75 P11022 Resistor chip 470K
¡
R32 P11004 Resistor chip 33
¡
R76 P11118 Resistor chip 75K
¡
DVD1910 MAIN PCB ASS'Y
RESISTOR

REF No. PART No. PART NAME REF No. PART No. PART NAME
R77 P11022 Resistor chip 470K
¡
R034 P11041 Resistor chip 82K
¡
R78 P11118 Resistor chip 75K
¡
R035 P11039 Resistor chip 56K
¡
R79 P11022 Resistor chip 470K
¡
R036 P11039 Resistor chip 56K
¡
R80 P11005 Resistor chip 75
¡
R051 P11010 Resistor chip 2K
¡
R82 P11005 Resistor chip 75
¡
R052 P11010 Resistor chip 2K
¡
R84 P11005 Resistor chip 75
¡
R080 P11012 Resistor chip 4.7K
¡
R88 P11000 Resistor chip 0
¡
R081 P11003 Resistor chip 10
¡
R90 P11013 Resistor chip 10K
¡
R087 P11013 Resistor chip 10K
¡
R92 P11004 Resistor chip 33
¡
R088 P11018 Resistor chip 47K
¡
R93 P11122 Resistor chip 750K
¡
R092 P11018 Resistor chip 47K
¡
R97 P11000 Resistor chip 0
¡
R093 P11009 Resistor chip 1K
¡
R98 P11002 Resistor chip 4.7
¡
R100 P11029 Resistor chip 2.2K
¡
R99 P11002 Resistor chip 4.7
¡
R115 P11000 Resistor chip 0
¡
R000 P11254 SL1TE100MF R116 P11000 Resistor chip 0
¡
R002 P11009 Resistor chip 1K
¡
R117 P11000 Resistor chip 0
¡
R003 P11018 Resistor chip 47K
¡
R118 P11000 Resistor chip 0
¡
R004 P11018 Resistor chip 47K
¡
R157 P11000 Resistor chip 0
¡
R005 P11018 Resistor chip 47K
¡
R303 P11005 Resistor chip 75
¡
R006 P11012 Resistor chip 4.7K
¡
R304 P11005 Resistor chip 75
¡
R007 P11009 Resistor chip 1K
¡
R305 P11005 Resistor chip 75
¡
R008 P11069 Resistor chip 13K
¡
R312 P11004 Resistor chip 33
¡
R009 P11003 Resistor chip 10
¡
R319 P11000 Resistor chip 0
¡
R010 P11013 Resistor chip 10K
¡
R325 P11000 Resistor chip 0
¡
R011 P11009 Resistor chip 1K
¡
R327 P11000 Resistor chip 0
¡
R012 P11003 Resistor chip 10
¡
R401 P11006 Resistor chip 100
¡
R013 P11014 Resistor chip 12K
¡
R406 P11000 Resistor chip 0
¡
R014 P11030 Resistor chip 2.7K
¡
R407 P11013 Resistor chip 10K
¡
R015 P11034 Resistor chip 18K
¡
R444 P11017 Resistor chip 33K
¡
R016 P11018 Resistor chip 47K
¡
R454 P11013 Resistor chip 10K
¡
R017 P11012 Resistor chip 4.7K
¡
R459 P11013 Resistor chip 10K
¡
R018 P11030 Resistor chip 2.7K
¡
R484 P11057 Resistor chip 51K
¡
R019 P11011 Resistor chip 3.3K
¡
R485 P11018 Resistor chip 47K
¡
R020 P11034 Resistor chip 18K
¡
R501 P11018 Resistor chip 47K
¡
R021 P11000 Resistor chip 0
¡
R502 P11018 Resistor chip 47K
¡
R022 P11000 Resistor chip 0
¡
R503 P11000 Resistor chip 0
¡
R029 P11009 Resistor chip 1K
¡
R506 P11000 Resistor chip 0
¡
R030 P11042 Resistor chip 120K
¡
R507 P11042 Resistor chip 120K
¡
R031 P11019 Resistor chip 100K
¡
R508 P11042 Resistor chip 120K
¡
R032 P11009 Resistor chip 1K
¡
R509 P11013 Resistor chip 10K
¡
R033 P11013 Resistor chip 10K
¡
R510 P11013 Resistor chip 10K
¡

REF No. PART No. PART NAME REF No. PART No. PART NAME
R511 P11002 Resistor chip 4.7
¡
R586 P11017 Resistor chip 33K
¡
R512 P11002 Resistor chip 4.7
¡
R587 P11009 Resistor chip 1K
¡
R513 P11032 Resistor chip 5.1K
¡
R593 P11002 Resistor chip 4.7
¡
R514 P11031 Resistor chip 3.9K
¡
R594 P11002 Resistor chip 4.7
¡
R515 P11013 Resistor chip 10K
¡
R597 P11013 Resistor chip 10K
¡
R516 P11019 Resistor chip 100K
¡
R598 P11012 Resistor chip 4.7K
¡
R517 P11013 Resistor chip 10K
¡
R599 P11013 Resistor chip 10K
¡
R518 P11006 Resistor chip 100
¡
C7 P11005 Resistor chip 75
¡
R519 P11032 Resistor chip 5.1K
¡
C66 P11005 Resistor chip 75
¡
R520 P11013 Resistor chip 10K
¡
C67 P11005 Resistor chip 75
¡
R521 P11031 Resistor chip 3.9K
¡
C90 P11000 Resistor chip 0
¡
R522 P11019 Resistor chip 100K
¡
L14 P11004 Resistor chip 33
¡
R523 P11013 Resistor chip 10K
¡
RN1 P11359 Row of resistor 33
¡
R526 P11009 Resistor chip 1K
¡
RN2 P11359 Row of resistor 33
¡
R527 P11009 Resistor chip 1K
¡
RN3 P11359 Row of resistor 33
¡
R529 P11006 Resistor chip 100
¡
RN4 P11359 Row of resistor 33
¡
R530 P11006 Resistor chip 100
¡
RN5 P11206 Row of resistor 22
¡
R535 P11034 Resistor chip 18K
¡
RN6 P11359 Row of resistor 33
¡
R540 P11013 Resistor chip 10K
¡
RN7 P11359 Row of resistor 33
¡
R541 P11013 Resistor chip 10K
¡
R542 P11013 Resistor chip 10K
¡
C1 P31100 Ceramic CAP 10uF/16V
R543 P11019 Resistor chip 100K
¡
C2 P31100 Ceramic CAP 10uF/16V
R544 P11055 Resistor chip 8.2K
¡
C3 P30014 Electrolytic CAP 100uF/16V
R545 P11019 Resistor chip 100K
¡
C4 P31100 Ceramic CAP 10uF/16V
R546 P11013 Resistor chip 10K
¡
C5 P31094 EEVMC0J101P
R547 P11055 Resistor chip 8.2K
¡
C6 P31095 EEVMC0J470R
R548 P11002 Resistor chip 4.7
¡
C8 P31100 Ceramic CAP 10uF/16V
R549 P11006 Resistor chip 100
¡
C9 P31100 Ceramic CAP 10uF/16V
R554 P11009 Resistor chip 1K
¡
C01 P20044 Capacitor chip 0.22uF
R556 P11009 Resistor chip 1K
¡
C02 P20015 Capacitor chip 0.1uF
R557 P11009 Resistor chip 1K
¡
C03 P20044 Capacitor chip 0.22uF
R558 P11013 Resistor chip 10K
¡
C04 P20044 Capacitor chip 0.22uF
R559 P11012 Resistor chip 4.7K
¡
C10 P31094 EEVMC0J101P
R560 P11008 Resistor chip 470
¡
C11 P31095 EEVMC0J470R
R567 P11000 Resistor chip 0
¡
C12 P31094 EEVMC0J101P
R568 P11019 Resistor chip 100K
¡
C13 P31100 Ceramic CAP 10uF/16V
R570 P11071 Resistor chip 220
¡
C14 P31100 Ceramic CAP 10uF/16V
R580 P11013 Resistor chip 10K
¡
C15 P31095 EEVMC0J470R
R584 P11009 Resistor chip 1K
¡
C16 P31100 Ceramic CAP 10uF/16V
R585 P11051 Resistor chip 1.5K
¡
C17 P31100 Ceramic CAP 10uF/16V
CAPACITOR

REF No. PART No. PART NAME REF No. PART No. PART NAME
C18 P31100 Ceramic CAP 10uF/16V C59 P31100 Ceramic CAP 10uF/16V
C19 P31100 Ceramic CAP 10uF/16V C60 P31100 Ceramic CAP 10uF/16V
C20 P31100 Ceramic CAP 10uF/16V C61 P20051 Capacitor chip 5.1pF
C20 P31094 EEVMC0J101P C62 P20002 Capacitor chip 22pF
C21 P30014 Electrolytic CAP 100uF/16V C63 P20009 Capacitor chip 1000pF
C22 P31100 Ceramic CAP 10uF/16V C64 P31100 Ceramic CAP 10uF/16V
C23 P20015 Capacitor chip 0.1uF C65 P31100 Ceramic CAP 10uF/16V
C24 P20015 Capacitor chip 0.1uF C68 P20002 Capacitor chip 22pF
C25 P20026 Capacitor chip 33pF C69 P20002 Capacitor chip 22pF
C26 P31100 Ceramic CAP 10uF/16V C70 P20002 Capacitor chip 22pF
C27 P20026 Capacitor chip 33pF C74 P31100 Ceramic CAP 10uF/16V
C28 P20015 Capacitor chip 0.1uF C75 P20051 Capacitor chip 5.1pF
C30 P31100 Ceramic CAP 10uF/16V C76 P31100 Ceramic CAP 10uF/16V
C31 P31100 Ceramic CAP 10uF/16V C77 P31098 EEVMC0G221P
C32 P31100 Ceramic CAP 10uF/16V C78 P31098 EEVMC0G221P
C33 P31100 Ceramic CAP 10uF/16V C79 P31096 EEVMC0G470R
C34 P31100 Ceramic CAP 10uF/16V C80 P31096 EEVMC0G470R
C35 P30014 Electrolytic CAP 100uF/16V C81 P31098 EEVMC0G221P
C36 P20015 Capacitor chip 0.1uF C82 P31096 EEVMC0G470R
C37 P31100 Ceramic CAP 10uF/16V C86 P31100 Ceramic CAP 10uF/16V
C38 P20052 Capacitor chip 20pF C87 P20015 Capacitor chip 0.1uF
C39 P20052 Capacitor chip 20pF C88 P20015 Capacitor chip 0.1uF
C40 P20015 Capacitor chip 0.1uF C89 P20015 Capacitor chip 0.1uF
C41 P31100 Ceramic CAP 10uF/16V C91 P31100 Ceramic CAP 10uF/16V
C42 P20015 Capacitor chip 0.1uF C93 P31100 Ceramic CAP 10uF/16V
C43 P20015 Capacitor chip 0.1uF C95 P31100 Ceramic CAP 10uF/16V
C44 P20035 Capacitor chip 1uF C96 P31100 Ceramic CAP 10uF/16V
C45 P20035 Capacitor chip 1uF C97 P20059 Capacitor chip 4700pF
C46 P20035 Capacitor chip 1uF C98 P20015 Capacitor chip 0.1uF
C47 P20035 Capacitor chip 1uF C99 P20009 Capacitor chip 1000pF
C49 P20029 Capacitor chip 330pF C002 P30014 Electrolytic CAP 100uF/16V
C50 P20015 Capacitor chip 0.1uF C003 P30014 Electrolytic CAP 100uF/16V
C51 P20029 Capacitor chip 330pF C004 P20035 Capacitor chip 1uF
C52 P31100 Ceramic CAP 10uF/16V C005 P20015 Capacitor chip 0.1uF
C53 P20027 Capacitor chip 150pF C007 P31094 EEVMC0J101P
C54 P20027 Capacitor chip 150pF C008 P20015 Capacitor chip 0.1uF
C55 P30014 Electrolytic CAP 100uF/16V C010 P20015 Capacitor chip 0.1uF
C57 P20010 Capacitor chip 1500pF C012 P20009 Capacitor chip 1000pF
C58 P20015 Capacitor chip 0.1uF C015 P20035 Capacitor chip 1uF

REF No. PART No. PART NAME REF No. PART No. PART NAME
C016 P20015 Capacitor chip 0.1uF C117 P20006 Capacitor chip 100pF
C018 P20009 Capacitor chip 1000pF C118 P31100 Ceramic CAP 10uF/16V
C019 P20015 Capacitor chip 0.1uF C119 P31100 Ceramic CAP 10uF/16V
C021 P30014 Electrolytic CAP 100uF/16V C121 P30014 Electrolytic CAP 100uF/16V
C023 P20015 Capacitor chip 0.1uF C125 P31100 Ceramic CAP 10uF/16V
C024 P20015 Capacitor chip 0.1uF C126 P31100 Ceramic CAP 10uF/16V
C027 P20015 Capacitor chip 0.1uF C140 P20015 Capacitor chip 0.1uF
C031 P20015 Capacitor chip 0.1uF C141 P20052 Capacitor chip 20pF
C032 P20009 Capacitor chip 1000pF C143 P31100 Ceramic CAP 10uF/16V
C034 P20015 Capacitor chip 0.1uF C144 P20029 Capacitor chip 330pF
C046 P20035 Capacitor chip 1uF C145 P20040 Capacitor chip 680pF
C047 P31100 Ceramic CAP 10uF/16V C146 P20029 Capacitor chip 330pF
C049 P31094 EEVMC0J101P C147 P20029 Capacitor chip 330pF
C050 P31100 Ceramic CAP 10uF/16V C148 P20040 Capacitor chip 680pF
C051 P20015 Capacitor chip 0.1uF C149 P20029 Capacitor chip 330pF
C052 P30014 Electrolytic CAP 100uF/16V C150 P20029 Capacitor chip 330pF
C076 P20015 Capacitor chip 0.1uF C151 P20040 Capacitor chip 680pF
C077 P30014 Electrolytic CAP 100uF/16V C152 P20029 Capacitor chip 330pF
C078 P31100 Ceramic CAP 10uF/16V C153 P31100 Ceramic CAP 10uF/16V
C085 P30014 Electrolytic CAP 100uF/16V C154 P31100 Ceramic CAP 10uF/16V
C088 P20015 Capacitor chip 0.1uF C200 P20022 GRM235Y5V226Z10PE
C091 P31100 Ceramic CAP 10uF/16V C301 P31100 Ceramic CAP 10uF/16V
C099 P20015 Capacitor chip 0.1uF C305 P20020 Capacitor chip 120pF
C100 P20015 Capacitor chip 0.1uF C307 P20020 Capacitor chip 120pF
C101 P20015 Capacitor chip 0.1uF C310 P20020 Capacitor chip 120pF
C102 P20049 Capacitor chip 33000pF C311 P20002 Capacitor chip 22pF
C103 P20015 Capacitor chip 0.1uF C314 P31096 EEVMC0G470R
C104 P20015 Capacitor chip 0.1uF C317 P31098 EEVMC0G221P
C105 P20015 Capacitor chip 0.1uF C318 P31096 EEVMC0G470R
C106 P20035 Capacitor chip 1uF C319 P31096 EEVMC0G470R
C107 P20015 Capacitor chip 0.1uF C320 P31098 EEVMC0G221P
C108 P20035 Capacitor chip 1uF C321 P31098 EEVMC0G221P
C109 P20014 Capacitor chip 47000pF C414 P31100 Ceramic CAP 10uF/16V
C110 P20014 Capacitor chip 47000pF C416 P31100 Ceramic CAP 10uF/16V
C111 P20017 Capacitor chip 0.47uF C457 P20061 Capacitor chip 0.015uF
C112 P31100 Ceramic CAP 10uF/16V C475 P20015 Capacitor chip 0.1uF
C113 P31100 Ceramic CAP 10uF/16V C504 P31094 EEVMC0J101P
C114 P31100 Ceramic CAP 10uF/16V C508 P31096 EEVMC0G470R
C116 P31100 Ceramic CAP 10uF/16V C509 P31096 EEVMC0G470R

REF No. PART No. PART NAME REF No. PART No. PART NAME
C510 P31095 EEVMC0J470R CB6 P20015 Capacitor chip 0.1uF
C512 P31093 EEVMC1C100R CB7 P20015 Capacitor chip 0.1uF
C513 P31093 EEVMC1C100R CB8 P20015 Capacitor chip 0.1uF
C514 P31096 EEVMC0G470R CB9 P20015 Capacitor chip 0.1uF
C515 P31096 EEVMC0G470R CB04 P20015 Capacitor chip 0.1uF
C516 P20030 Capacitor chip 2700pF CB05 P20015 Capacitor chip 0.1uF
C517 P20030 Capacitor chip 2700pF CB10 P20015 Capacitor chip 0.1uF
C518 P20048 Capacitor chip 300pF CB11 P20015 Capacitor chip 0.1uF
C519 P20048 Capacitor chip 300pF CB12 P20015 Capacitor chip 0.1uF
C523 P20015 Capacitor chip 0.1uF CB13 P20015 Capacitor chip 0.1uF
C528 P20015 Capacitor chip 0.1uF CB18 P20015 Capacitor chip 0.1uF
C529 P20015 Capacitor chip 0.1uF CB19 P20015 Capacitor chip 0.1uF
C530 P20015 Capacitor chip 0.1uF CB30 P20015 Capacitor chip 0.1uF
C531 P31091 EEVMC1C470P CB37 P20015 Capacitor chip 0.1uF
C532 P20043 Capacitor chip 3300pF CB39 P20015 Capacitor chip 0.1uF
C533 P20043 Capacitor chip 3300pF CB40 P20015 Capacitor chip 0.1uF
C536 P31094 EEVMC0J101P CB43 P20015 Capacitor chip 0.1uF
C537 P20015 Capacitor chip 0.1uF CB44 P20015 Capacitor chip 0.1uF
C538 P31094 EEVMC0J101P CB47 P20035 Capacitor chip 1uF
C539 P20015 Capacitor chip 0.1uF CB48 P20015 Capacitor chip 0.1uF
C542 P31098 EEVMC0G221P CB49 P20015 Capacitor chip 0.1uF
C544 P20064 Capacitor chip 51pF CB50 P20015 Capacitor chip 0.1uF
C545 P20064 Capacitor chip 51pF CB51 P20015 Capacitor chip 0.1uF
C546 P20015 Capacitor chip 0.1uF CB56 P20015 Capacitor chip 0.1uF
C554 P31096 EEVMC0G470R CB57 P20015 Capacitor chip 0.1uF
C555 P31096 EEVMC0G470R CB59 P20015 Capacitor chip 0.1uF
C556 P31098 EEVMC0G221P CB60 P20015 Capacitor chip 0.1uF
C560 P20015 Capacitor chip 0.1uF CB61 P20015 Capacitor chip 0.1uF
C573 P31094 EEVMC0J101P CB62 P20015 Capacitor chip 0.1uF
C574 P20015 Capacitor chip 0.1uF CB65 P20015 Capacitor chip 0.1uF
C576 P20015 Capacitor chip 0.1uF CB66 P20015 Capacitor chip 0.1uF
C579 P20015 Capacitor chip 0.1uF CB67 P20015 Capacitor chip 0.1uF
C641 P20035 Capacitor chip 1uF CB68 P20015 Capacitor chip 0.1uF
C642 P20035 Capacitor chip 1uF CB69 P20015 Capacitor chip 0.1uF
C731 P20057 Adjustable capacitor CB71 P20015 Capacitor chip 0.1uF
CB1 P20015 Capacitor chip 0.1uF CB72 P20015 Capacitor chip 0.1uF
CB2 P20015 Capacitor chip 0.1uF CB74 P20015 Capacitor chip 0.1uF
CB3 P20015 Capacitor chip 0.1uF CB75 P20015 Capacitor chip 0.1uF
CB4 P20015 Capacitor chip 0.1uF CB76 P20015 Capacitor chip 0.1uF
CB5 P20015 Capacitor chip 0.1uF CB77 P20015 Capacitor chip 0.1uF

REF No. PART No. PART NAME REF No. PART No. PART NAME
CB78 P20015 Capacitor chip 0.1uF CB133 P20015 Capacitor chip 0.1uF
CB79 P20015 Capacitor chip 0.1uF CB134 P20015 Capacitor chip 0.1uF
CB81 P20015 Capacitor chip 0.1uF CB135 P20015 Capacitor chip 0.1uF
CB83 P20015 Capacitor chip 0.1uF CB136 P20015 Capacitor chip 0.1uF
CB84 P20015 Capacitor chip 0.1uF CB137 P20015 Capacitor chip 0.1uF
CB85 P20015 Capacitor chip 0.1uF CB138 P20015 Capacitor chip 0.1uF
CB88 P20015 Capacitor chip 0.1uF CB139 P20015 Capacitor chip 0.1uF
CB89 P20015 Capacitor chip 0.1uF CB140 P20015 Capacitor chip 0.1uF
CB90 P20015 Capacitor chip 0.1uF CB141 P20015 Capacitor chip 0.1uF
CB91 P20009 Capacitor chip 1000pF CB142 P20015 Capacitor chip 0.1uF
CB92 P20015 Capacitor chip 0.1uF CB143 P20015 Capacitor chip 0.1uF
CB94 P20015 Capacitor chip 0.1uF CB144 P20015 Capacitor chip 0.1uF
CB95 P20015 Capacitor chip 0.1uF CB145 P20015 Capacitor chip 0.1uF
CB96 P20015 Capacitor chip 0.1uF CB146 P20015 Capacitor chip 0.1uF
CB97 P20015 Capacitor chip 0.1uF CB147 P20015 Capacitor chip 0.1uF
CB99 P20015 Capacitor chip 0.1uF
CB100 P20015 Capacitor chip 0.1uF EM1 P60006 FK2125T186AL
CB103 P20015 Capacitor chip 0.1uF EM2 P60006 FK2125T186AL
CB108 P20015 Capacitor chip 0.1uF EM3 P60006 FK2125T186AL
CB109 P20015 Capacitor chip 0.1uF EM301 P60006 FK2125T186AL
CB110 P20015 Capacitor chip 0.1uF EM302 P60006 FK2125T186AL
CB111 P20015 Capacitor chip 0.1uF EM303 P60006 FK2125T186AL
CB112 P20015 Capacitor chip 0.1uF EM503 P60006 FK2125T186AL
CB113 P20015 Capacitor chip 0.1uF EM504 P60006 FK2125T186AL
CB114 P20015 Capacitor chip 0.1uF EM506 P60006 FK2125T186AL
CB115 P20015 Capacitor chip 0.1uF EM507 P60006 FK2125T186AL
CB116 P20015 Capacitor chip 0.1uF L1 P6659 Impedance at 100MHz:600
¡
CB117 P20015 Capacitor chip 0.1uF L2 P6659 Impedance at 100MHz:600
¡
CB118 P20015 Capacitor chip 0.1uF L3 P6659 Impedance at 100MHz:600
¡
CB120 P20015 Capacitor chip 0.1uF L4 P6659 Impedance at 100MHz:600
¡
CB121 P20015 Capacitor chip 0.1uF L5 P6659 Impedance at 100MHz:600
¡
CB122 P20015 Capacitor chip 0.1uF L6 P6659 Impedance at 100MHz:600
¡
CB123 P20015 Capacitor chip 0.1uF L7 P6659 Impedance at 100MHz:600
¡
CB124 P20015 Capacitor chip 0.1uF L8 P6808 1uH
CB126 P20015 Capacitor chip 0.1uF L9 P6808 1uH
CB127 P20015 Capacitor chip 0.1uF L10 P6808 1uH
CB128 P20015 Capacitor chip 0.1uF L02 P6659 Impedance at 100MHz:600
¡
CB129 P20015 Capacitor chip 0.1uF L11 P6681 100uH
CB131 P20015 Capacitor chip 0.1uF L12 P6659 Impedance at 100MHz:600
¡
CB132 P20015 Capacitor chip 0.1uF L13 P6659 Impedance at 100MHz:600
¡
INDUCTOR

REF No. PART No. PART NAME REF No. PART No. PART NAME
L15 P6659 Impedance at 100MHz:600
¡
VD3 P1200 1SS355TE Switch Diode
L16 P6659 Impedance at 100MHz:600
¡
VD4 P5722a B240A
L18 P6659 Impedance at 100MHz:600
¡
VD6 P1219 1N5402T
L19 P6659 Impedance at 100MHz:600
¡
VD7 P5766 STZ6.2NT146
L20 P6659 Impedance at 100MHz:600
¡
VD8 P5766 STZ6.2NT146
L21 P6659 Impedance at 100MHz:600
¡
VD9 P5766 STZ6.2NT146
L22 P6659 Impedance at 100MHz:600
¡
VD01 a1610 LED
L23 P6659 Impedance at 100MHz:600
¡
VD10 P5067 KTA1298
L24 P6659 Impedance at 100MHz:600
¡
VD11 P5067 KTA1298
L26 P6659 Impedance at 100MHz:600
¡
VD12 P1200 1SS355TE Switch Diode
L27 P6659 Impedance at 100MHz:600
¡
VD13 P1200 1SS355TE Switch Diode
L28 P6659 Impedance at 100MHz:600
¡
VD14 P1200 1SS355TE Switch Diode
L29 P6659 Impedance at 100MHz:600
¡
VD15 P5073a 2SD601AR
L30 P6659 Impedance at 100MHz:600
¡
VD18 P5706 DTC144EUAT106
L31 P6659 Impedance at 100MHz:600
¡
VD001 P5770 UPA1716G-E2
L32 P6659 Impedance at 100MHz:600
¡
VD003 P5722a B240A
L33 P6659 Impedance at 100MHz:600
¡
VD004 P5722a B240A
L38 P6659 Impedance at 100MHz:600
¡
VD009 P5771 UDZS7E-1715B
L39 P60034 2.7uH VD010 P1200 1SS355TE Switch Diode
L40 P60034 2.7uH VD011 P1200 1SS355TE Switch Diode
L41 P60034 2.7uH VD012 P1200 1SS355TE Switch Diode
L42 P60034 2.7uH VD013 P5772 UDZS7E-174.7B
L43 P60034 2.7uH VD014 P5073a 2SD601AR
L44 P60034 2.7uH VD015 P5073a 2SD601AR
L001 P60003 33uH VD016 P1200 1SS355TE Switch Diode
L002 P60003 33uH VD017 P5722a B240A
L005 P60003 33uH VD018 P5722a B240A
L008 P6681 100uH VD024 P5706 DTC144EUAT106
L014 P6659 Impedance at 100MHz:600
¡
VD028 P5752 2SJ401
L015 P6659 Impedance at 100MHz:600
¡
VD029 P5073a 2SD601AR
L016 P6659 Impedance at 100MHz:600
¡
VD045 P5067 KTA1298
L301 P6808 1uH VD407 P5067 KTA1298
L302 P6808 1uH VD501 P5766 STZ6.2NT146
L303 P6808 1uH VD502 P5766 STZ6.2NT146
L305 P6681 100uH VD503 P5706 DTC144EUAT106
L501 P6659 Impedance at 100MHz:600
¡
VD504 P5769 2SB1561T100Q
L502 P6681 100uH VD509 P5073a 2SD601AR
VD510 P5073a 2SD601AR
VD1 P5722a B240A VD520 P5073a 2SD601AR
VD2 P5722a B240A VD521 P1200 1SS355TE Switch Diode
TRANSISTOR

REF No. PART No. PART NAME REF No. PART No. PART NAME
VD522 P1200 1SS355TE Switch Diode N406 a6733 HS0038B
VD523 P1200 1SS355TE Switch Diode N501 P4530 NJM4558
VD524 P5067 KTA1298 N502 P4513 NJM4580
VD525 P1200 1SS355TE Switch Diode N503 P4535 CD2822CB
VD535 P5766 STZ6.2NT146 N508 P4530 NJM4558
VD538 P5766 STZ6.2NT146 N701 P90337 TVP5146PFP
VD540 P5714 FMC3AT148 D1 P4581 TC4W53FU
VD547 P5067 KTA1298 D2 P90346a D3800
VD548 P5766 STZ6.2NT146 D3 P90386 LM1117ST18T3
D4 P90386 LM1117ST18T3
F001 P60047 FUSE 452003 D02 P90129 PCM1742E/2K
F002 P60045 FUSE 451005 D001 P4620a BR24C02F-WE2
D002 P4516 74HCU04
FM001 a6916 LV-R0489 FILTER D003 P90007 BA5954FP
D004 P90074 NT56V6620COT-75S
G1 a6476 14.31818MHz D005 P90157a MX29LV008TTC-70
G2 a6603a 27.000MHz
XS2 P60081 53261-0890 8P SOCKET
VR2 a0654 WHE10xB-2-20K XS3 P7047 52746-1490
VR001 P0619a TMC3K-B5K-TR XS4 P60038 GF055-SS-LSS 24P SOCKET
XS5 P6975 MOLEX-53261-0290
SW1 P6983 SW1AF-360-T10 XS7 P6975 MOLEX-53261-0290
SW001 P60078 SSSS710603 XS9 P60083 SM20B-SURS-TF SOCKET
SW002 P6983 SW1AF-360-T10 XS10 P60083 SM20B-SURS-TF SOCKET
SW004 a6846 2W4D-3.5 XS001 a7345 Battery connector (male)
JS2 a6674 HSJ1456-010335
N1 P90277 TPS60400DBVR JS3 a7302a HSJ1594-010060 SOCKET
N2 P5714 FMC3AT148 JS001 a6663a HEC3600-010110 SOCKET
N3 P5770 UPA1716G-E2 JS421 a7221 GP1FD310TP
N5 P90072 BA033FP JS503 a6704 HSJ1494-01-010 SOCKET
N8 P90110 BA7660FS-E2 JS504 a6662 HSJ1715-01-110
N001 P90211 RN1224N332F
N003 P5759 IRF7304
N004 P90211 RN1224N332F R1 P11140 Resistor chip 22
¡
N005 P90072 BA033FP R2 P11000 Resistor chip 0
¡
N006 P90092 UPC29M05T-E1 R3 P11140 Resistor chip 22
¡
N013 P90090 PQ05DZ11 R4 P11023 Resistor chip 1M
¡
N015 P90090 PQ05DZ11 R5 P11140 Resistor chip 22
¡
N020 P90103 BQ2057CTSTR R6 P11140 Resistor chip 22
¡
N302 P90110 BA7660FS-E2 R7 P11140 Resistor chip 22
¡
FUSE
FILTER
CRYSTAL OSCILLATOR
SOCKET
IC
SWITCH
DVD1910TFT-284 TFT PCB ASS'Y
RESISTOR
POTENTIOMETERS
