SERVICE MANUAL
CAUTION : Before servicing this chassis, read the "PRODUCT SAFETY SERVICE FOR VIDEO PRODUCTS" section
on page 2 of this manual.
CONTENTS
SERVICE PRECAUTIONS......................................................2,3
BLOCK DIAGRAMS...................................................................4
TROUBLE SHOOTING...........................................................5,8
BOARD DIAGRAM...............................................................9,10
DVD and CD
PLAYER
MODEL
DVD5860
REPLACEMENT PARTS LIST............................................11,21

Whenthepowersupplyisbeingturnedon,youmaynotremovethislasercautionslabel.Ifitremoves,radiationoflaser
maybereceived.
LASERBEAMCAUTIONLABEL
PREPARATIONOFSERVICING
PickupHeadconsistsofalaserdiodethatisverysusceptibletoexternalstaticelectrocity.
Althoughitoperatesproperlyafterreplacement,ifitwassubjecttoelectrostaticdischargeduringreplacement,
itslifemightbeshortened.Whenreplacing,useaconductivemat,solderingironwithgroundwire,etc.to
protectthelaserdiodeformdamagebystaticelectricity.
Andalso,theLSIandICaresameasabove.
Solderingiron
withgroundwire
orceramictype
Groundconductive
wriststrapforbody.
Conductivemat
Thegroundresistance
betweenthegroundline
andthegroundislessthan10
1M

SAFTY NOTICE
Plug the AC line cord directly into a 120V AC outlet (do
not use an isolation transformer for this check). Use an
AC voltmeter, having 5000 per volt or more sensitivity.
Connect a 1500 10W resistor,paralleled by a 0.15uF
150V AC capacitor between a knomn good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of
cabinet (antennas, handle bracket, metal cabinet
screwheads, metal overlays, control shafts, etc.).
SAFTY PRECAUTIONS
LEAKAGE CURRENT CHECK
Measure the AC voltage across the 1500 resistor.
The test must be conducted with the AC switch on and
then repeated with the AC switch off. The AC voltage
indicated by the meter may not exceed 0.3V.A reading
exceeding 0.3V indicates that a dangerous potential
exists, the fault must be located and corrected.
Repeat the above test with the DVD VIDEO PLAYER
power plug reversed.
NEVER RETURN A DVD VIDEO PLAYER TO THE
CUSTOMER WITHOUT TAKING NECESSARY
CORRECTIVE ACTION.
READING SHOULD NOT EXCEED 0.3V
DVD VIDEO PLAYER
AC OUTLET
AC VOLTMETER
Test all exposed metal.
Voltmeter Hook-up for Leakage Current Check
0.15uF 150V AC
1500
10W
(5000 per volt
or more sensitivity)
Good earth ground
such as a water pipe,
conduit, etc.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

SERVO & DVD PROCESSOR
MPEG-2 DECODER
& VIDEO ENCODER
D2881

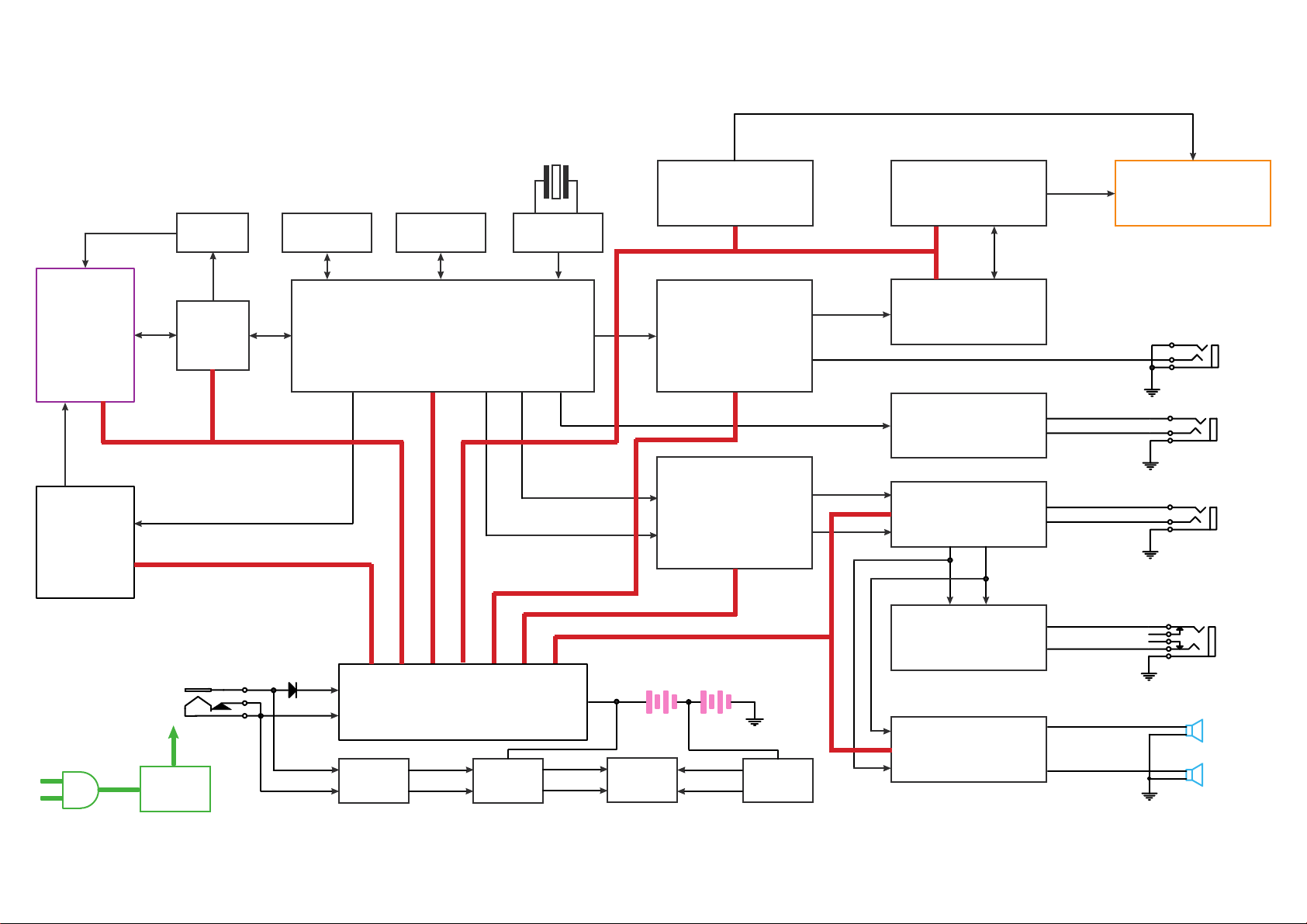

OVERALL BLOCK DIAGRAM
AC
Adapter
DC IN +12V
DC / DC
(R1224)
DC / DC
(R1224) (NJM2360) (TPS5100)
(BQ2057C) (TPC8207) (VG202C)
110~240V
50/60Hz
BATTERY
KHM252
PU mechanism
DRIVER
(BA5954FP)
RF AMP
D2891
8M FlashROM
MX29LV008TTC-70
64M SDRAM
NT56V6620C0T-75S
TC4W53
27MHz
VIDEO DRIVER
(BA7660FS)
AUDIO D/A
(PCM1742)
TRANSFORMER TFT CONT
(MN5814)
VIDEO PROCESSOR
(AN2546FH)
74HCU04
AUDIO AMP
(JRC4558)
PHONE AMP
(JRC4580)
SPEAKER AMP
(D2822)
TFT MONITOR
74HCU04
27MHz
VIDEO OUT
COAXIAL
&OPTICAL OUT
AUDIO OUT
PHONE OUT
SPEAKER LOUT
SPEAKER ROUT
L
R
L
R
RL
DRIVER +5V
+5V
AUDIO +/-5V
+3.3V
VIDEO +5V
AUDIO +5V
TFT POWER
+5V +7.5V -16V +13V

1. Troubleshooting
1. No power when turned on.
2. The initial screen is not displayed on the LCD.
3. The DVD drive does not work.
4. The operation of the DVD player stops at initializing display.
5. Image output stops during the operation.
6. No sound or abnormal sound comes out form the speakers in the DVD player.
7. No image or sound comes out form the external output.
8. No sound comes out form the headphones.
9. No image or sound is output by external input.
10. The DVD drive does not operate with the battery.
1.1 No power when turned on.
When the power is turned on, and if the LED on the front panel does not light green, check
the following items and repair the defective parts.
(1) Check the power supply cable
If the cable is not the supplied one, replace it with the supplied cable and turn on the
power again.
If the power supply cable is good, the AC adapter may be defective.
If the LED does not light after replacing, check the following items.
(2) Check the AC adapter
If the AC adapter is not the supplied one, replace it with the supplied AC adapter and
turn on the power.
If the AC adapter is good, the power supply boards may be defective.
If the LED does not light after replacing, check the following items.
(3) Check the Power and Play buttons
Press the POWER button or the PLAY button on the DVD player. If the power does
not turn on, check the following:
zCheck the connector of the switch unit in the DVD player.
(If the connection is loose, repair the connection.)
zReplace the switch unit and turn on the power again.
If the LED does not light after replacing, check the following items.
(4) Replace the main board

1.2 The initial screen is not displayed on the LCD.
If the initial screen is not displayed on the LCD, check the following items.
(1) Check the LED on the front
If the LED does not light, proceed to 1.1.
(2) Check the backlight
If the backlight does not light up, separate. The DVD player into top assembly and
bottom assembly, and check the connector harness, and check the connectors for
defects.
If the connector harness is broken:
Replace the broken harness.
If the connector harness is not broken:
Remove the LCD cover and plate of the LCD unit and check the following:
zCheck the connector of the FL harness, repair connectors.
zIf the connectors are good, replace the FL inverter or the LCD.
(3) Check the lighting of LCD
If the LCD does not light, separate the DVD player into the top assembly and bottom
assembly, and check the LCD harness, and check the connectors on the main board.
If the connector is broken:
Replace the LCD harness or the main board.
If the connector is not broken:
Remove the LCD cover and plate of the LCD unit, and check the connection to the
harness of the LCD unit.
zIf a bad connection is found.
Connect the LCD harness to the LCD unit.
zOther than the above
Replace the LCD unit or the main board.

1.3 The DVD drive does not work.
When the DVD drive does not work after the power is turned on, check the following items
and repair or replace the defective parts.
(1) Press the DISC cover switch at the center of the DVD player and turn on the
power. Then check whether or not the optical pick-up lens of the DVD drive
lights.
CAUTION: Visible laser radiation when open and interlock defeated. Do not stare into
Laser beam.
The optical pick-up lens lights dim:
It is caused by deterioration of the optical pick-up lens. Replace the DVD drive.
The optical pick-up lens does not light:
Check the connectors of the DVD-FFC. Also check the connection to the main
board and to the DVD drive.
zLoose connection is found.
Repair the connection, and then check the operation of the DVD drive again.
zThe DVD-FFC is broken.
Replace the DVD-FFC.
zOther than the above.
Replace the DVD drive or the main board.
(2) Insert a DVD disk and turn on the power
The DVD drive does not work:
The motor of the DVD drive or the main board is defective. Replace the DVD drive
or the main board.
The DVD drive works but the initializing operation of the optical pick-up lens
does not start (the optical pick-up lens operates twice), or abnormal noise
sound:
The DVD drive is defective. Replace the DVD drive.
1.4 The operation of the DVD player stops at initializing display.
If the DVD player does not work after the initializing screen is displayed, check the
indication on the screen. Then repair the defect according to it.
(1) Insert a DVD disk and close the DISC cover, and turn on the power. Then check
the LCD screen or use an external display.
zThe message “loading” is not displayed or the operation stops at the
message “Loading”.
Since the DVD drive or the main board is defective, check in the following order:
1) DVD drive
2) Main board
zThe message “CHECK DISK” is displayed.
Check the DVD disk for fingerprints, dirt, etc.
If the DVD disk is OK, then check the following items:
1) Check the DVD-FFC
If a loose connection, repair the connection.
If it is damaged, replace it with new one.
2) Other than above
For other cases, replace the unit in the following order:
zDVD drive (defective optical pick-up)
zMain board

1.5 Image output stops during the operation.
If the image output form the media in the DVD player stops during the operation, replace
the DVD drive.
1.6 No sound or abnormal sound comes out from the speakers in the DVD player.
If no sound comes out form the speakers in the DVD player, check the following:
(1) Check for moving images on the LCD screen
Check whether or not the move of image stops in halfway. If it stops, replace the DVD
drive.
(2) Check the operation of the DVD driver.
Check whether or not the DVD drive works. If it stops, replace the DVD drive.
(3) Check the connection of the speakers in the LCD unit.
Separate the DVD player into the top assembly and bottom assembly, and then check
the connection of the speaker harnesses to the main board. If a bad connection, repair
the connection.
Other than the above, disassemble the LCD unit and replace the speakers or the main
board.
1.7 No image or sound comes out form the external output
If any image or sound is output form the TV connected by the external cable, replace the
main board or the connector.
NOTE: Before this test, make sure the drive works.
1.8 No sound comes out form the headphones.
If no sound comes out form the headphones, replace the main board or the connector.
1.9 No image or sound is output by the external input.
If any image or sound is output by external input, replace the main board or the connector.
1.10 The DVD drive does not operate with the battery.
(1) Check the operation with a good battery.
Install a good battery and make sure the LED lights up orange while the AC adapter is
connected. When the LED does not light up or blinks, check the connection of the
battery harness inside the DVD player. If the connection is loose, repair connection. If
the harness has been connected firmly, replace the main board.
(2) Other than the above, replace the battery.
NOTE:
zFor this check, use a battery which is not fully charged (because the LED does
not light when the battery is fully charged.)
zBefore this check, make sure other function work correctly.

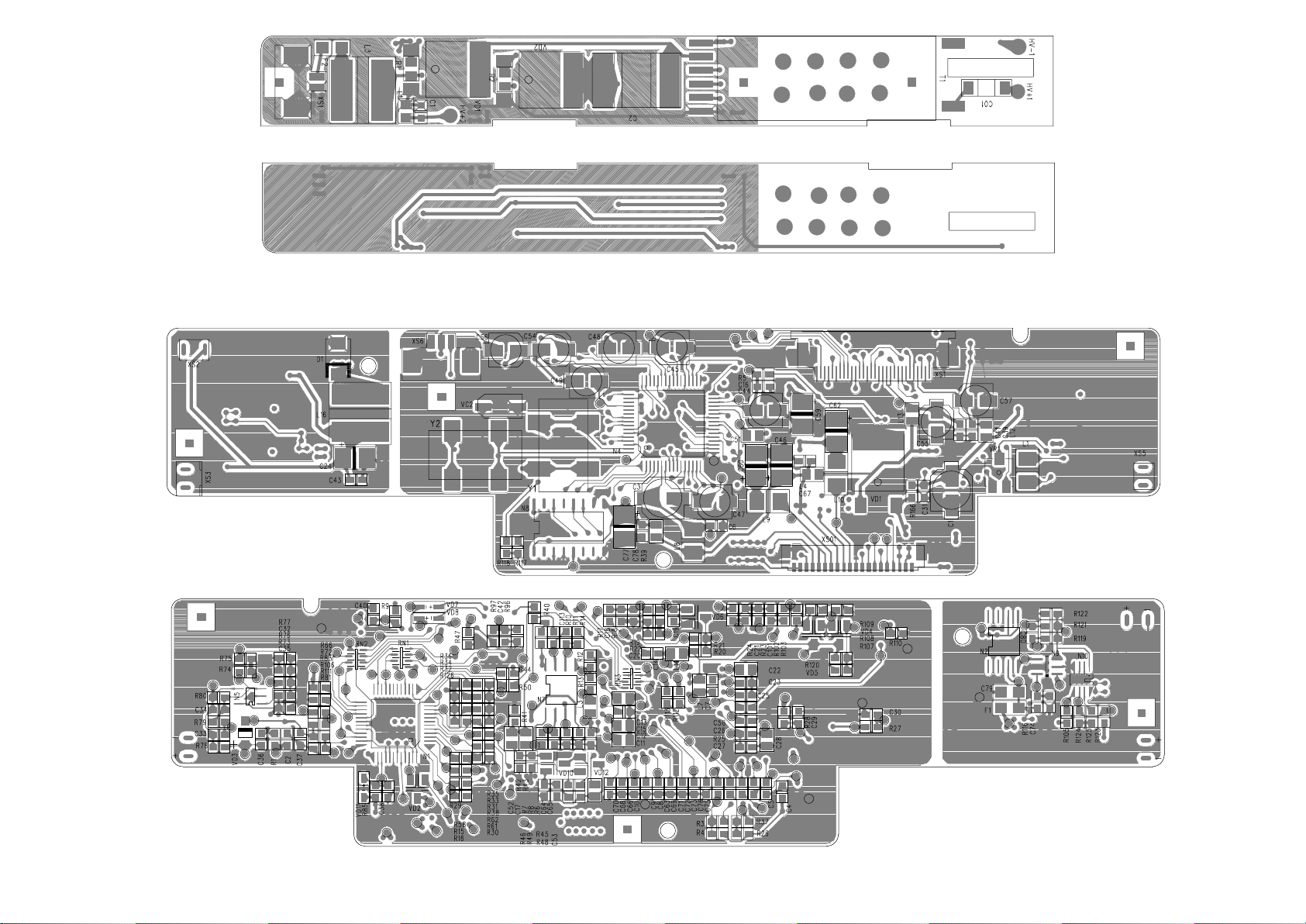

DVD5860 TFT BOARD DIAGRAM
DVD5860 HV BOARD DIAGRAM

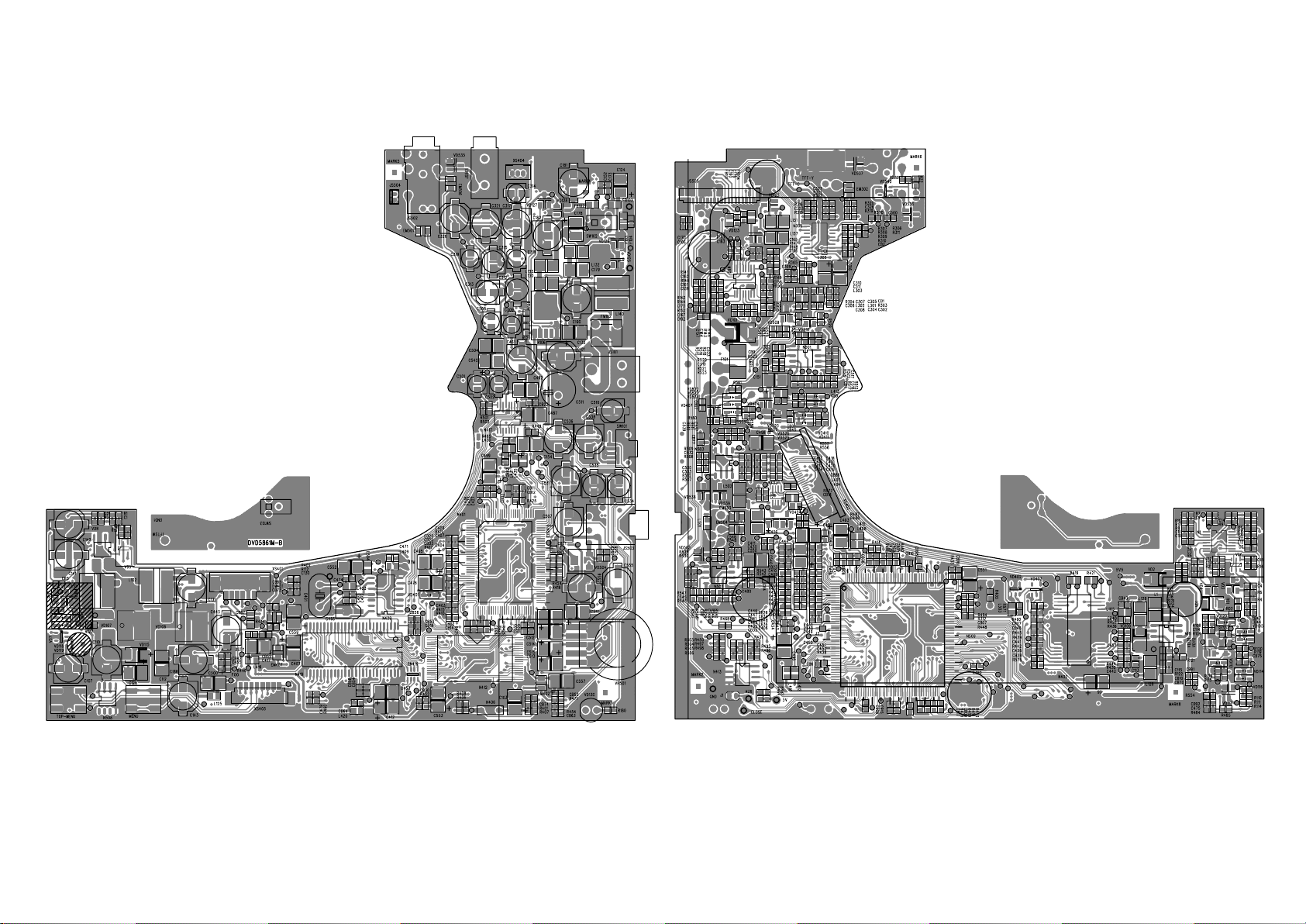

DVD5860 MAIN BOARD DIAGRAM

PART No. PART NAME Q'TY
21116 LI-IONCHP-2 ASS'Y 1
21154 DVD5860 HV ASS'Y 1
21184 DVD5860 KEY A ASS'Y 1
21209 DVD5860 TFT ASS'Y 1
21220 CDQ-5A ASS'Y 1
21244 DVD5861 MAIN B ASS'Y 1
S7401 DVD5860 KEY B ASS'Y 1
S2706a ICR18650 (2200) 2
S8064 KHM252 LOADING ASS'Y 1
S0535 CAR CIGARETTE ADAPTER 1
S3421 20 PIN HARNESS 1
S1594C DVD5860 OWNER MANUAL 1
S0578e ADPV18A(VDE) AC POWER ADAPTER 1
S5078 MS-2318 SPEAKER 2
a7275 LTS500Q1-GF3-O TFT LCD 1
S3153 RCA CORD VIDEO 1
S3154 RCA CORD AUDIO 1
S3420 TFT SIGNAL WIRE 1
S3568 DVD5860 HV CONNECT WIRE 1
S3589 SPEAHER WIRE 2
S3501 FFC 0.5-24-130 1
S3590 TFT EARTHING WIRE 1
S3591 BATTERY CONNECT WIRE A 1
S3591a BATTERY CONNECT WIRE B 1
S3628 BATTERY OUTPUT WIRE 1
S06024 RC-1730 REMOTE 1
ELECTRICAL PARTS LIST
DVD5860

REF No. PART No. PART NAME REF No. PART No. PART NAME
R127 P11018 Resistor chip 47K
Ω
R129 P11000 Resistor chip 0
Ω
R1 P11038 Resistor chip 39K
Ω
R130 P11013 Resistor chip 10K
Ω
R2 P11040 Resistor chip 68K
Ω
R140 P11020 Resistor chip 150K
Ω
R3 P11029 Resistor chip 2.2K
Ω
R141 P11012 Resistor chip 4.7K
Ω
R4 P11029 Resistor chip 2.2K
Ω
R142 P11036 Resistor chip 22K
Ω
R5 P11029 Resistor chip 2.2K
Ω
R143 P11006 Resistor chip 100
Ω
R6 P11029 Resistor chip 2.2K
Ω
R144 P11058 Resistor chip 200K
Ω
R7 P11013 Resistor chip 10K
Ω
R145 P11008 Resistor chip 470
Ω
R8 P11038 Resistor chip 39K
Ω
R146 P11008 Resistor chip 470
Ω
R9 P11038 Resistor chip 39K
Ω
R147 P11040 Resistor chip 68K
Ω
R01 P11013 Resistor chip 10K
Ω
R148 P11040 Resistor chip 68K
Ω
R02 P11013 Resistor chip 10K
Ω
R149 P11040 Resistor chip 68K
Ω
R10 P11038 Resistor chip 39K
Ω
R150 P11040 Resistor chip 68K
Ω
R11 P11038 Resistor chip 39K
Ω
R151 P11142 Resistor chip 6.2K
Ω
R12 P11006 Resistor chip 100
Ω
R152 P11019 Resistor chip 100K
Ω
R13 P11006 Resistor chip 100
Ω
R153 P11034 Resistor chip 18K
Ω
R14 P11039 Resistor chip 56K
Ω
R180 P11010 Resistor chip 2K
Ω
R15 P11039 Resistor chip 56K
Ω
R303 P11048 Resistor chip 120
Ω
R16 P11034 Resistor chip 18K
Ω
R304 P11048 Resistor chip 120
Ω
R17 P11201 Resistor chip 68K
Ω
R305 P11048 Resistor chip 120
Ω
R18 P11204 Resistor chip 20K
Ω
R306 P11118 Resistor chip 75K
Ω
R19 P11208 Resistor chip 39K
Ω
R307 P11053 Resistor chip 5.6K
Ω
R22 P11013 Resistor chip 10K
Ω
R308 P11017 Resistor chip 33K
Ω
R108 P11009 Resistor chip 1K
Ω
R309 P11053 Resistor chip 5.6K
Ω
R110 P11055 Resistor chip 8.2K
Ω
R310 P11017 Resistor chip 33K
Ω
R111 P11012 Resistor chip 4.7K
Ω
R311 P11022 Resistor chip 470K
Ω
R112 P11013 Resistor chip 10K
Ω
R312 P11004 Resistor chip 33
Ω
R114 P11012 Resistor chip 4.7K
Ω
R315 P11003 Resistor chip 10
Ω
R115 P11009 Resistor chip 1K
Ω
R319 P11003 Resistor chip 10
Ω
R116 P11000 Resistor chip 0
Ω
R322 P11003 Resistor chip 10
Ω
R117 P11013 Resistor chip 10K
Ω
R401 P11003 Resistor chip 10
Ω
R118 P11009 Resistor chip 1K
Ω
R402 P11013 Resistor chip 10K
Ω
R119 P11012 Resistor chip 4.7K
Ω
R405 P11023 Resistor chip 1M
Ω
R120 P11009 Resistor chip 1K
Ω
R406 P11003 Resistor chip 10
Ω
R121 P11052 Resistor chip 3K
Ω
R407 P11013 Resistor chip 10K
Ω
R122 P11009 Resistor chip 1K
Ω
R413 P11002 Resistor chip 4.7
Ω
R123 P11207 Resistor chip 0.5
Ω
R414 P11019 Resistor chip 100K
Ω
R124 P11207 Resistor chip 0.5
Ω
R415 P11000 Resistor chip 0
Ω
R126 P11012 Resistor chip 4.7K
Ω
R417 P11034 Resistor chip 18K
Ω
DVD5860 MAIN PCB ASS'Y
RESISTOR

REF No. PART No. PART NAME REF No. PART No. PART NAME
R419 P11207 Resistor chip 0.5
Ω
R488 P11003 Resistor chip 10
Ω
R421 P11207 Resistor chip 0.5
Ω
R489 P11004 Resistor chip 33
Ω
R425 P11015 Resistor chip 15K
Ω
R490 P11004 Resistor chip 33
Ω
R426 P11000 Resistor chip 0
Ω
R491 P11004 Resistor chip 33
Ω
R428 P11013 Resistor chip 10K
Ω
R492 P11013 Resistor chip 10K
Ω
R429 P11035 Resistor chip 20K
Ω
R494 P11004 Resistor chip 33
Ω
R430 P11035 Resistor chip 20K
Ω
R496 P11004 Resistor chip 33
Ω
R432 P11002 Resistor chip 4.7
Ω
R498 P11004 Resistor chip 33
Ω
R433 P11055 Resistor chip 8.2K
Ω
R501 P11018 Resistor chip 47K
Ω
R434 P11132 Resistor chip 1
Ω
R502 P11018 Resistor chip 47K
Ω
R435 P11029 Resistor chip 2.2K
Ω
R503 P11000 Resistor chip 0
Ω
R436 P11035 Resistor chip 20K
Ω
R506 P11000 Resistor chip 0
Ω
R438 P11122 Resistor chip 750K
Ω
R507 P11020 Resistor chip 150K
Ω
R440 P11035 Resistor chip 20K
Ω
R508 P11020 Resistor chip 150K
Ω
R442 P11038 Resistor chip 39K
Ω
R509 P11013 Resistor chip 10K
Ω
R443 P11000 Resistor chip 0
Ω
R510 P11013 Resistor chip 10K
Ω
R444 P11013 Resistor chip 10K
Ω
R511 P11002 Resistor chip 4.7
Ω
R445 P11015 Resistor chip 15K
Ω
R512 P11002 Resistor chip 4.7
Ω
R449 P11013 Resistor chip 10K
Ω
R513 P11032 Resistor chip 5.1K
Ω
R450 P11013 Resistor chip 10K
Ω
R514 P11031 Resistor chip 3.9K
Ω
R451 P11013 Resistor chip 10K
Ω
R515 P11013 Resistor chip 10K
Ω
R452 P11002 Resistor chip 4.7
Ω
R516 P11019 Resistor chip 100K
Ω
R453 P11002 Resistor chip 4.7
Ω
R517 P11013 Resistor chip 10K
Ω
R454 P11013 Resistor chip 10K
Ω
R518 P11006 Resistor chip 100
Ω
R455 P11019 Resistor chip 100K
Ω
R519 P11032 Resistor chip 5.1K
Ω
R456 P11009 Resistor chip 1K
Ω
R520 P11013 Resistor chip 10K
Ω
R457 P11023 Resistor chip 1M
Ω
R521 P11031 Resistor chip 3.9K
Ω
R458 P11013 Resistor chip 10K
Ω
R522 P11019 Resistor chip 100K
Ω
R459 P11009 Resistor chip 1K
Ω
R523 P11013 Resistor chip 10K
Ω
R460 P11004 Resistor chip 33
Ω
R524 P11002 Resistor chip 4.7
Ω
R462 P11038 Resistor chip 39K
Ω
R525 P11006 Resistor chip 100
Ω
R463 P11012 Resistor chip 4.7K
Ω
R526 P11009 Resistor chip 1K
Ω
R464 P11012 Resistor chip 4.7K
Ω
R527 P11009 Resistor chip 1K
Ω
R465 P11004 Resistor chip 33
Ω
R529 P11071 Resistor chip 220
Ω
R468 P11004 Resistor chip 33
Ω
R530 P11071 Resistor chip 220
Ω
R471 P11013 Resistor chip 10K
Ω
R535 P11018 Resistor chip 47K
Ω
R476 P11004 Resistor chip 33
Ω
R536 P11000 Resistor chip 0
Ω
R484 P11057 Resistor chip 51K
Ω
R540 P11013 Resistor chip 10K
Ω
R485 P11018 Resistor chip 47K
Ω
R541 P11013 Resistor chip 10K
Ω
R487 P11003 Resistor chip 10
Ω
R542 P11013 Resistor chip 10K
Ω

REF No. PART No. PART NAME REF No. PART No. PART NAME
R543 P11019 Resistor chip 100K
Ω
C110 P31088 Electrolytic CAP 220uF/6V
R544 P11055 Resistor chip 8.2K
Ω
C112 P31002 Electrolytic CAP 10uF/16V(Ta)
R545 P11019 Resistor chip 100K
Ω
C113 P20015 Capacitor chip 0.1uF
R546 P11013 Resistor chip 10K
Ω
C115 P20027 Capacitor chip 150pF
R547 P11055 Resistor chip 8.2K
Ω
C124 P31002 Electrolytic CAP 10uF/16V(Ta)
R548 P11002 Resistor chip 4.7
Ω
C128 P31002 Electrolytic CAP 10uF/16V(Ta)
R554 P11009 Resistor chip 1K
Ω
C130 P20015 Capacitor chip 0.1uF
R555 P11009 Resistor chip 1K
Ω
C131 P31088 Electrolytic CAP 220uF/6V
R556 P11009 Resistor chip 1K
Ω
C132 P31002 Electrolytic CAP 10uF/16V(Ta)
R557 P11012 Resistor chip 4.7K
Ω
C139 P20015 Capacitor chip 0.1uF
R558 P11018 Resistor chip 47K
Ω
C141 P30014 Electrolytic CAP 100uF/16V
R559 P11013 Resistor chip 10K
Ω
C142 P30014 Electrolytic CAP 100uF/16V
R560 P11008 Resistor chip 470
Ω
C143 P30014 Electrolytic CAP 100uF/16V
R567 P11000 Resistor chip 0
Ω
C149 P20053 Capacitor chip 68pF
R568 P11019 Resistor chip 100K
Ω
C151 P31002 Electrolytic CAP 10uF/16V(Ta)
R570 P11071 Resistor chip 220
Ω
C152 P20015 Capacitor chip 0.1uF
R571 P11013 Resistor chip 10K
Ω
C154 P31002 Electrolytic CAP 10uF/16V(Ta)
R575 P11013 Resistor chip 10K
Ω
C157 P20015 Capacitor chip 0.1uF
R577 P11009 Resistor chip 1K
Ω
C158 P20053 Capacitor chip 68pF
R580 P11013 Resistor chip 10K
Ω
C160 P20015 Capacitor chip 0.1uF
L413 P11002 Resistor chip 4.7
Ω
C161 P20015 Capacitor chip 0.1uF
RN419 P11206 Row of resistor 22
Ω
C162 P20015 Capacitor chip 0.1uF
C163 P20015 Capacitor chip 0.1uF
C3 P20012 Capacitor chip 0.01uF C164 P20053 Capacitor chip 68pF
C4 P20012 Capacitor chip 0.01uF C165 P20016 Capacitor chip 0.33uF
C5 P20035 Capacitor chip 1uF C166 P20015 Capacitor chip 0.1uF
C6 P31002 Electrolytic CAP 10uF/16V(Ta) C167 P20015 Capacitor chip 0.1uF
C7 P20015 Capacitor chip 0.1uF C168 P20016 Capacitor chip 0.33uF
C9 P20033 Capacitor chip 200pF C169 P20015 Capacitor chip 0.1uF
C10 P20015 Capacitor chip 0.1uF C170 P20015 Capacitor chip 0.1uF
C11 P20035 Capacitor chip 1uF C173 P20015 Capacitor chip 0.1uF
C12 P20035 Capacitor chip 1uF C174 P20027 Capacitor chip 150pF
C14 P20015 Capacitor chip 0.1uF C175 P20015 Capacitor chip 0.1uF
C15 P20009 Capacitor chip 1000pF C176 P20015 Capacitor chip 0.1uF
C16 P20009 Capacitor chip 1000pF C178 P31002 Electrolytic CAP 10uF/16V(Ta)
C101 P30014 Electrolytic CAP 100uF/16V C179 P31002 Electrolytic CAP 10uF/16V(Ta)
C102 P20015 Capacitor chip 0.1uF C181 P30014 Electrolytic CAP 100uF/16V
C103 P31002 Electrolytic CAP 10uF/16V(Ta) C182 P30014 Electrolytic CAP 100uF/16V
C106 P20015 Capacitor chip 0.1uF C188 P30014 Electrolytic CAP 100uF/16V
C107 P30014 Electrolytic CAP 100uF/16V C190 P30014 Electrolytic CAP 100uF/16V
CAPACITOR

REF No. PART No. PART NAME REF No. PART No. PART NAME
C302 P20002 Capacitor chip 22pF C443 P31088 Electrolytic CAP 220uF/6V
C304 P20002 Capacitor chip 22pF C444 P31002 Electrolytic CAP 10uF/16V(Ta)
C307 P20002 Capacitor chip 22pF C445 P20012 Capacitor chip 0.01uF
C308 P20002 Capacitor chip 22pF C446 P20035 Capacitor chip 1uF
C310 P20007 Capacitor chip 180pF C447 P20006 Capacitor chip 100pF
C311 P20002 Capacitor chip 22pF C448 P20012 Capacitor chip 0.01uF
C312 P31009 Electrolytic CAP 100uF/4V C449 P20012 Capacitor chip 0.01uF
C313 P31009 Electrolytic CAP 100uF/4V C450 P20012 Capacitor chip 0.01uF
C314 P30006 Electrolytic CAP 47uF/4V C451 P20012 Capacitor chip 0.01uF
C315 P31009 Electrolytic CAP 100uF/4V C452 P20006 Capacitor chip 100pF
C316 P31002 Electrolytic CAP 10uF/16V(Ta) C453 P31002 Electrolytic CAP 10uF/16V(Ta)
C317 P30004 Electrolytic CAP 220uF/4V C455 P20029 Capacitor chip 330pF
C318 P30006 Electrolytic CAP 47uF/4V C456 P20029 Capacitor chip 330pF
C319 P30006 Electrolytic CAP 47uF/4V C457 P20061 Capacitor chip 0.015uF
C320 P30004 Electrolytic CAP 220uF/4V C461 P30014 Electrolytic CAP 100uF/16V
C321 P30004 Electrolytic CAP 220uF/4V C466 P20057 Adjustable capacitor
C401 P31002 Electrolytic CAP 10uF/16V(Ta) C467 P31002 Electrolytic CAP 10uF/16V(Ta)
C403 P20061 Capacitor chip 0.015uF C471 P20051 Capacitor chip 5.1pF
C405 P20034 Capacitor chip 390pF C472 P20009 Capacitor chip 1000pF
C406 P20034 Capacitor chip 390pF C473 P20051 Capacitor chip 5.1pF
C408 P20049 Capacitor chip 33000pF C474 P20003 Capacitor chip 27pF
C411 P31002 Electrolytic CAP 10uF/16V(Ta) C475 P20015 Capacitor chip 0.1uF
C412 P31002 Electrolytic CAP 10uF/16V(Ta) C476 P31002 Electrolytic CAP 10uF/16V(Ta)
C413 P20018 Capacitor chip 10pF C479 P20051 Capacitor chip 5.1pF
C414 P20018 Capacitor chip 10pF C480 P20015 Capacitor chip 0.1uF
C415 P20018 Capacitor chip 10pF C487 P31002 Electrolytic CAP 10uF/16V(Ta)
C416 P20018 Capacitor chip 10pF C492 P31002 Electrolytic CAP 10uF/16V(Ta)
C417 P31002 Electrolytic CAP 10uF/16V(Ta) C493 P31002 Electrolytic CAP 10uF/16V(Ta)
C418 P20035 Capacitor chip 1uF C495 P31002 Electrolytic CAP 10uF/16V(Ta)
C419 P20035 Capacitor chip 1uF C496 P31002 Electrolytic CAP 10uF/16V(Ta)
C420 P20035 Capacitor chip 1uF C498 P31002 Electrolytic CAP 10uF/16V(Ta)
C421 P20035 Capacitor chip 1uF C499 P31002 Electrolytic CAP 10uF/16V(Ta)
C426 P20009 Capacitor chip 1000pF C500 P31002 Electrolytic CAP 10uF/16V(Ta)
C427 P20061 Capacitor chip 0.015uF C501 P30006 Electrolytic CAP 47uF/4V
C433 P20061 Capacitor chip 0.015uF C502 P30006 Electrolytic CAP 47uF/4V
C436 P20061 Capacitor chip 0.015uF C504 P31002 Electrolytic CAP 10uF/16V(Ta)
C437 P20009 Capacitor chip 1000pF C507 P30014 Electrolytic CAP 100uF/16V
C439 P20009 Capacitor chip 1000pF C508 P30006 Electrolytic CAP 47uF/4V
C441 P20027 Capacitor chip 150pF C509 P30006 Electrolytic CAP 47uF/4V
C442 P20027 Capacitor chip 150pF C510 P30002 Electrolytic CAP 47uF/6V

REF No. PART No. PART NAME REF No. PART No. PART NAME
C511 a3690 Electrolytic CAP 220uF/10V CB3 P20015 Capacitor chip 0.1uF
C512 P31002 Electrolytic CAP 10uF/16V(Ta) CB4 P20015 Capacitor chip 0.1uF
C513 P31002 Electrolytic CAP 10uF/16V(Ta) CB5 P20015 Capacitor chip 0.1uF
C514 P31002 Electrolytic CAP 10uF/16V(Ta) CB6 P20015 Capacitor chip 0.1uF
C515 P31002 Electrolytic CAP 10uF/16V(Ta) CB7 P20015 Capacitor chip 0.1uF
C516 P20030 Capacitor chip 2700pF CB8 P20015 Capacitor chip 0.1uF
C517 P20030 Capacitor chip 2700pF CB9 P20015 Capacitor chip 0.1uF
C518 P20048 Capacitor chip 300pF CB01 P20015 Capacitor chip 0.1uF
C519 P20048 Capacitor chip 300pF CB02 P20015 Capacitor chip 0.1uF
C523 P20015 Capacitor chip 0.1uF CB03 P20015 Capacitor chip 0.1uF
C528 P20015 Capacitor chip 0.1uF CB04 P20015 Capacitor chip 0.1uF
C529 P20015 Capacitor chip 0.1uF CB05 P20015 Capacitor chip 0.1uF
C530 P20015 Capacitor chip 0.1uF CB06 P20015 Capacitor chip 0.1uF
C531 P30014 Electrolytic CAP 100uF/16V CB07 P20015 Capacitor chip 0.1uF
C532 P20043 Capacitor chip 3300pF CB08 P20015 Capacitor chip 0.1uF
C533 P20043 Capacitor chip 3300pF CB09 P20015 Capacitor chip 0.1uF
C534 P30002 Electrolytic CAP 47uF/6V CB10 P20015 Capacitor chip 0.1uF
C535 P30002 Electrolytic CAP 47uF/6V CB11 P20015 Capacitor chip 0.1uF
C536 P30014 Electrolytic CAP 100uF/16V CB12 P20015 Capacitor chip 0.1uF
C537 P20015 Capacitor chip 0.1uF CB13 P20015 Capacitor chip 0.1uF
C538 P30014 Electrolytic CAP 100uF/16V CB14 P20015 Capacitor chip 0.1uF
C539 P20015 Capacitor chip 0.1uF CB15 P20015 Capacitor chip 0.1uF
C540 P31002 Electrolytic CAP 10uF/16V(Ta) CB16 P20015 Capacitor chip 0.1uF
C541 P31002 Electrolytic CAP 10uF/16V(Ta) CB17 P20015 Capacitor chip 0.1uF
C542 P31002 Electrolytic CAP 10uF/16V(Ta) CB18 P20015 Capacitor chip 0.1uF
C544 P20064 Capacitor chip 51pF CB20 P20015 Capacitor chip 0.1uF
C545 P20064 Capacitor chip 51pF CB21 P20038 Capacitor chip 470pF
C546 P20015 Capacitor chip 0.1uF CB22 P20015 Capacitor chip 0.1uF
C550 P20059 Capacitor chip 4700pF CB23 P20015 Capacitor chip 0.1uF
C551 P31002 Electrolytic CAP 10uF/16V(Ta) CB24 P20015 Capacitor chip 0.1uF
C552 P31002 Electrolytic CAP 10uF/16V(Ta) CB25 P20015 Capacitor chip 0.1uF
C553 P31002 Electrolytic CAP 10uF/16V(Ta) CB26 P20015 Capacitor chip 0.1uF
C555 P30004 Electrolytic CAP 220uF/4V CB27 P20015 Capacitor chip 0.1uF
C556 P30004 Electrolytic CAP 220uF/4V CB28 P20015 Capacitor chip 0.1uF
C557 P31002 Electrolytic CAP 10uF/16V(Ta) CB29 P20015 Capacitor chip 0.1uF
C559 P31002 Electrolytic CAP 10uF/16V(Ta) CB30 P20015 Capacitor chip 0.1uF
C560 P20015 Capacitor chip 0.1uF CB32 P20015 Capacitor chip 0.1uF
R408 P20006 Capacitor chip 100pF CB33 P20015 Capacitor chip 0.1uF
CB1 P20015 Capacitor chip 0.1uF CB34 P20015 Capacitor chip 0.1uF
CB2 P20015 Capacitor chip 0.1uF CB35 P20015 Capacitor chip 0.1uF

REF No. PART No. PART NAME REF No. PART No. PART NAME
CB36 P20015 Capacitor chip 0.1uF EM407 P60006 FK2125T186AL
CB38 P20015 Capacitor chip 0.1uF EM503 P60006 FK2125T186AL
CB39 P20015 Capacitor chip 0.1uF EM504 P60006 FK2125T186AL
CB40 P20015 Capacitor chip 0.1uF EM506 P60006 FK2125T186AL
CB41 P20015 Capacitor chip 0.1uF EM507 P60006 FK2125T186AL
CB42 P20015 Capacitor chip 0.1uF FB101 P6659 Impedance at 100MHz:600
Ω
CB43 P20015 Capacitor chip 0.1uF FB102 P6659 Impedance at 100MHz:600
Ω
CB44 P20015 Capacitor chip 0.1uF FB103 P6659 Impedance at 100MHz:600
Ω
CB45 P20015 Capacitor chip 0.1uF FB104 P6659 Impedance at 100MHz:600
Ω
CB46 P20015 Capacitor chip 0.1uF L101 P60003 33uH
CB47 P20015 Capacitor chip 0.1uF L102 P60003 33uH
CB48 P20015 Capacitor chip 0.1uF L105 P6659 Impedance at 100MHz:600
Ω
CB52 P20015 Capacitor chip 0.1uF L125 P6659 Impedance at 100MHz:600
Ω
CB53 P20015 Capacitor chip 0.1uF L128 P6681 100uH
CB54 P20015 Capacitor chip 0.1uF L129 P6681 100uH
CB55 P20015 Capacitor chip 0.1uF L130 P6681 100uH
CB56 P20015 Capacitor chip 0.1uF L131 P60039 470uH
CB58 P20015 Capacitor chip 0.1uF L132 P60039 470uH
CB63 P20015 Capacitor chip 0.1uF L133 P6679 10uH
CB64 P20015 Capacitor chip 0.1uF L137 P6681 100uH
CB65 P20015 Capacitor chip 0.1uF L140 P60003 33uH
CB70 P20015 Capacitor chip 0.1uF L301 P6808 1.0uH
CB71 P20015 Capacitor chip 0.1uF L302 P6808 1.0uH
CB73 P20015 Capacitor chip 0.1uF L303 P6808 1.0uH
CB74 P20015 Capacitor chip 0.1uF L305 P6681 100uH
CB76 P20015 Capacitor chip 0.1uF L403 P6817 Impedance at 100MHz:60
Ω
CB77 P20015 Capacitor chip 0.1uF L404 P6659 Impedance at 100MHz:600
Ω
CB82 P20015 Capacitor chip 0.1uF L407 P6659 Impedance at 100MHz:600
Ω
CB86 P20015 Capacitor chip 0.1uF L409 P6817 Impedance at 100MHz:60
Ω
CB87 P20015 Capacitor chip 0.1uF L415 P6659 Impedance at 100MHz:600
Ω
CB91 P20015 Capacitor chip 0.1uF L416 P6659 Impedance at 100MHz:600
Ω
CB92 P20015 Capacitor chip 0.1uF L419 P6659 Impedance at 100MHz:600
Ω
CB95 P20015 Capacitor chip 0.1uF L420 P6659 Impedance at 100MHz:600
Ω
CB96 P20015 Capacitor chip 0.1uF L430 P6659 Impedance at 100MHz:600
Ω
CB97 P20015 Capacitor chip 0.1uF L435 P6659 Impedance at 100MHz:600
Ω
CB98 P20015 Capacitor chip 0.1uF L501 P6659 Impedance at 100MHz:600
Ω
L502 P6681 100uH
EM302 P60006 FK2125T186AL L503 P6659 Impedance at 100MHz:600
Ω
EM401 P60006 FK2125T186AL L504 P6659 Impedance at 100MHz:600
Ω
EM402 P60006 FK2125T186AL
INDUCTOR
TRANSISTOR

REF No. PART No. PART NAME REF No. PART No. PART NAME
VD1 P5722 RB060L-40 VD509 P5073a 2SD601AR
VD2 P5722 RB060L-40 VD510 P5073a 2SD601AR
VD3 P5073a 2SD601AR VD520 P5073a 2SD601AR
VD4 P5073a 2SD601AR VD521 P1200 1SS355TE Switch Diode
VD5 P5702 XN4601 VD522 P1200 1SS355TE Switch Diode
VD6 P5702 XN4601 VD523 P1200 1SS355TE Switch Diode
VD7 P5714 FMC3AT148 VD524 P5067 KTA1298
VD8 P5759 IRF7304 VD525 P1200 1SS355TE Switch Diode
VD101 P1219 1N5402T VD526 P1200 1SS355TE Switch Diode
VD104 P5709 DTC124EUAT106 VD535 P5766 STZ6.2NT146
VD105 P5771 UDZS7E-1715B VD536 P5766 STZ6.2NT146
VD106 P90092 UPC29M05T-E1 VD537 P5766 STZ6.2NT146
VD107 P90072 BA033FP VD538 P5766 STZ6.2NT146
VD108 P1200 1SS355TE Switch Diode VD539 P5766 STZ6.2NT146
VD109 P5722 RB060L-40 VD540 P5714 FMC3AT148
VD112 P5073a 2SD601AR
VD113 P1200 1SS355TE Switch Diode N1 P4592 TL1453CPW
VD114 P5772 UDZS7E-174.7B N106 P90090 PQ05DZ11
VD115 P1219 1N5402T N111 P90182 NJM2360AM
VD116 P1200 1SS355TE Switch Diode N112 P90015 TPS5100IPWR
VD117 P5073a 2SD601AR N302 P90110 BA7660FS
VD118 P0998 Resistor chip 0
Ω
N401 P90205 D2891
VD119 P5773 UDZS7E-177.5B N402 P90007 BA5954FP
VD120 P1200 1SS355TE Switch Diode N403 P4581 TC4W53FU
VD121 P5067 KTA1298 N406 a6733 HS0038B
VD122 P5700 2SB709AR N409 P4516 74HCU04
VD123 P1556 MA152 N412 P90157a MX29LV008TTC-70
VD125 P5073a 2SD601AR N413 P4620a BR24C02F-WE2
VD126 P1556 MA152 N417 P90129 PCM1742
VD127 P5073a 2SD601AR N419 P90074 NT56V6620COT-75S
VD128 P1556 MA152 N501 P4530b BA4558
VD130 a1533 FR2x4 LED N502 P4513 NJM4580
VD401 P1200 1SS355TE Switch Diode N503 P4535 CD2822CB
VD402 P5714 FMC3AT148 N508 P4530b BA4558
VD403 P5714 FMC3AT148 N509 P90204b D2881
VD404 P5067 KTA1298
VD406 P5067 KTA1298 F101 P60047 FUSE 452003
VD407 P5067 KTA1298
VD410 P1200 1SS355TE Switch Diode FM102 a6916 LV-R0489 FILTER
VD411 P1200 1SS355TE Switch Diode
FUSE
FILTER
CRYSTAL OSCILLATOR
IC

REF No. PART No. PART NAME REF No. PART No. PART NAME
G401 a6603 27.000MHz R1 P11022 Resistor chip 470K
Ω
R3 P11053 Resistor chip 5.6K
Ω
VR501 a0654 WHE10xB-2-20K R4 P11053 Resistor chip 5.6K
Ω
R5 P11003 Resistor chip 10
Ω
SW101 P60078 SSSS710603 R6 P11022 Resistor chip 470K
Ω
SW102 a6683 ESE11SV1 R7 P11013 Resistor chip 10K
Ω
SW103 a6683 ESE11SV1 R8 P11013 Resistor chip 10K
Ω
R9 P11000 Resistor chip 0
Ω
JS101 a6663 HEC3600-010110 SOCKET R10 P11015 Resistor chip 15K
Ω
JS501 a6674 HSJ1456-010335 SOCKET R11 P11035 Resistor chip 20K
Ω
JS502 a7221 GPIFD310TP R12 P11018 Resistor chip 47K
Ω
JS503 a6704 HSJ1494-01-010 SOCKET R13 P11074 Resistor chip 180K
Ω
JS504 a7045 53047-0210 R14 P11013 Resistor chip 10K
Ω
JS505 P60083 SM20B-SURS-TF SOCKET R15 P11013 Resistor chip 10K
Ω
XS401 P60061 53261-0690 6P SOCKET R16 P11015 Resistor chip 15K
Ω
XS402 P6971 FPL0.5B-SMT-24 R17 P11041 Resistor chip 82K
Ω
XS403 P60081 53261-0890 8P SOCKET R18 P11058 Resistor chip 200K
Ω
XS404 a6901 53047-0310 3P SOCKET R19 P11041 Resistor chip 82K
Ω
MENU P6712 EVQQWS03W R20 P11013 Resistor chip 10K
Ω
TOPMENU P6712 EVQQWS03W R21 P11006 Resistor chip 100
Ω
R22 P11023 Resistor chip 1M
Ω
R23 P11013 Resistor chip 10K
Ω
R1 P11025 Resistor chip 680
Ω
R24 P11011 Resistor chip 3.3K
Ω
R2 P11025 Resistor chip 680
Ω
R25 P11032 Resistor chip 5.1K
Ω
F2 a7276 K12 R26 P11053 Resistor chip 5.6K
Ω
R29 P11000 Resistor chip 0
Ω
C1 P20015 Capacitor chip 0.1uF R30 P11000 Resistor chip 0
Ω
C2 P2499 MMX-E-2A-184K R33 P11000 Resistor chip 0
Ω
C01 P20031a GHM1038SL120J3K R37 P11053 Resistor chip 5.6K
Ω
R39 P11050 Resistor chip 560
Ω
L1 P6659 Impedance at 100MHz:600
Ω
R40 P11000 Resistor chip 0
Ω
L3 P6698 33uH R44 P11000 Resistor chip 0
Ω
R47 P11000 Resistor chip 0
Ω
VD1 P5715 2SD1758TLQ R50 P11006 Resistor chip 100
Ω
VD2 P5715 2SD1758TLQ R58 P11013 Resistor chip 10K
Ω
R61 P11013 Resistor chip 10K
Ω
T1 P7017 TRANSFORMER R62 P11006 Resistor chip 100
Ω
XS1 P6975 MOLEX-53261-0290 SOCKET R66 P11000 Resistor chip 0
Ω
R72 P11000 Resistor chip 0
Ω
R73 P11012 Resistor chip 4.7K
Ω
DVD5860 TFT ASS'Y
RESISTOR
CAPACITOR
INDUCTOR
TRANSISTOR
OTHER
DVD5860 HV ASS'Y
RESISTOR
POTENTIOMETERS
SWITCH
SOCKET

REF No. PART No. PART NAME REF No. PART No. PART NAME
R74 P11017 Resistor chip 33K
Ω
C3 P30002 Electrolytic CAP 47uF/6V
R75 P11018 Resistor chip 47K
Ω
C4 P20084 Capacitor chip 0.15uF
R76 P11040 Resistor chip 68K
Ω
C6 P20015 Capacitor chip 0.1uF
R77 P11029 Resistor chip 2.2K
Ω
C8 P20035 Capacitor chip 1uF
R78 P11013 Resistor chip 10K
Ω
C9 P20035 Capacitor chip 1uF
R79 P11036 Resistor chip 22K
Ω
C10 P20035 Capacitor chip 1uF
R80 P11023 Resistor chip 1M
Ω
C11 P20085 Capacitor chip 2.2uF
R81 P11000 Resistor chip 0
Ω
C12 P20085 Capacitor chip 2.2uF
R83 P11000 Resistor chip 0
Ω
C13 P20085 Capacitor chip 2.2uF
R85 P11037 Resistor chip 27K
Ω
C14 P20015 Capacitor chip 0.1uF
R96 P11013 Resistor chip 10K
Ω
C15 P20012 Capacitor chip 0.01uF
R97 P11013 Resistor chip 10K
Ω
C16 P20015 Capacitor chip 0.1uF
R102 P11024 Resistor chip 330
Ω
C17 P20085 Capacitor chip 2.2uF
R103 P11040 Resistor chip 68K
Ω
C18 P20040 Capacitor chip 680pF
R105 P11009 Resistor chip 1K
Ω
C19 P20040 Capacitor chip 680pF
R107 P11017 Resistor chip 33K
Ω
C20 P20013 Capacitor chip 0.022uF
R108 P11015 Resistor chip 15K
Ω
C21 P20013 Capacitor chip 0.022uF
R109 P11059 Resistor chip 330K
Ω
C22 P20085 Capacitor chip 2.2uF
R110 P11005 Resistor chip 75
Ω
C23 P20015 Capacitor chip 0.1uF
R112 P11004 Resistor chip 33
Ω
C24 P20022 Capacitor chip 22uF
R113 P11004 Resistor chip 33
Ω
C25 P20015 Capacitor chip 0.1uF
R116 P11003 Resistor chip 10
Ω
C26 P20015 Capacitor chip 0.1uF
R118 P11006 Resistor chip 100
Ω
C27 P20091 Capacitor chip 0.02uF
R119 P11200 Resistor chip 100K
Ω
C28 P20085 Capacitor chip 2.2uF
R120 P11006 Resistor chip 100
Ω
C29 P20090 Capacitor chip 1pF
R121 P11030 Resistor chip 2.7K
Ω
C30 P20090 Capacitor chip 1pF
R122 P11346 Resistor chip 27K
Ω
C31 P20015 Capacitor chip 0.1uF
R123 P11217 Resistor chip 51K
Ω
C32 P20015 Capacitor chip 0.1uF
R126 P11000 Resistor chip 0
Ω
C33 P20015 Capacitor chip 0.1uF
R166 P11003 Resistor chip 10
Ω
C34 P20046 Capacitor chip 560pF
F1 P0998 Resistor chip 0
Ω
C35 P20015 Capacitor chip 0.1uF
RN1 P1006 Row of resistor 100
Ω
C36 P20042 Capacitor chip 2200pF
RN2 P1006 Row of resistor 100
Ω
C37 P20009 Capacitor chip 1000pF
RN3 P1006 Row of resistor 100
Ω
C38 P20015 Capacitor chip 0.1uF
C66 P11000 Resistor chip 0
Ω
C39 P20015 Capacitor chip 0.1uF
C68 P11000 Resistor chip 0
Ω
C41 P20015 Capacitor chip 0.1uF
C70 P11000 Resistor chip 0
Ω
C42 P20012 Capacitor chip 0.01uF
C43 P20015 Capacitor chip 0.1uF
C1 P30002 Electrolytic CAP 47uF/6V C44 P30010 Electrolytic CAP 10uF/16V(Al)
C2 P20019 Capacitor chip 39pF C45 P30010 Electrolytic CAP 10uF/16V(Al)
CAPACITOR
