Shini STM-PW series User manual

Date : June. 2009
Version : V2.3 (English)
STM-PW series
Hi-Temp. Water Heaters

------------------------------------------------------
Technical Specifications -------------------------------------------------
---------------------------------------------------
General Description --------------------------------------------------------------
Working Principle ------------------------------------------------------------------
Safety Regulations --------------------------------------------------------
Signs and Labels ------------------------------------------------------------------
Operation Regulations ------------------------------------------------------------
Installation ------------------------------------------------------------------
Installation Space -------------------------------------------------------------------
Mould and Water Couplings -----------------------------------------------------
Power Supply -----------------------------------------------------------------------
Operation Guide ----------------------------------------------------------
Check Before Starting -------------------------------------------------------------
Start the Machine ------------------------------------------------------------------
Stop the Machine ------------------------------------------------------------------
Temperature Controller ------------------------------------------------------------
Service & Maintenance ------------------------------------------------
Open the Covers -----------------------------------------------------------------
Y Type Strainer --------------------------------------------------------------------
Solenoid ------------------------------------------------------------------------------
Contents
Contents

Contents
7.5 The Useful Life of The Key Parts of The Product

1-1
1. General Description
1. General Description
Please read through this operation manual before using and
installation to avoid damage of the machine and personal injuries.
STM- PW series high temperature water heaters are used to heat up the
mould and maintain temperature, although they can be used in other similar
applications. High temperature water from the mould is returned to the
cooling tank and cooled by either indirect cooling ( For high temperature
models ) or direct cooling ( for standard models ). It is then pressurised by
the high - pressure pump, sent to the heating tank and finally to the mould
with a constant temperature. The OMRON temperature controller can
o
maintain an accuracy of 1 C.
STM-910-PW

1-2
1. General Description
Main Features:
1) P .I.D. multi - stage temperature control system can maintain a mould
temperature with accuracy of
2) Adopt high eciency high temperature pump with great pressure
and stable performance.
3) Multiple safety devices can automatically detect abnormal performance
and indicate this via visible alarm.
4) Compact design, easy to operate and maintain.
5) Inner parts made from stainless steel to ensure corrosion - free operation.
6) With stable performance and accuracy within 1 , the heating
temperature can reach 120 , while for STM - PW, it can reach 160 .
7) STM - PW adopts indirect cooling method to maintain accurate temperature
and quick heat transfer by means of steady cooling water ow.
8) Upon request, it can be built to comply with worldwide electrical safety
standards ( For example : CE, UL, CSA, JIS etc. ).
o
1 C .
All service work should be carried out by a person with technical training or
corresponding professional experience. The manual contains instructions for
both handling and servicing. Chapter 7, which contains service instructions
intended for service engineers. Other chapters contain instructions for the
daily operator.
Any modications of the machine must be approved by SHINI in order to
avoid personal injury and damage to machine. We shall not be liable for any
damage caused by unauthorized change of the machine.
Our company provides excellent after-sales service. Should you have any
problem during using the machine, please contact the company or the local
vendor.
Headquarter and T aipei factory
Tel: [phone]
Shini USA Service Information
Tel: [phone]

2-1
2.1 STM-607-PW
765
515
2. Technical Specifications
2. Technical Specifications
2.1.1 Specifications
Pum Performance curvep
Pipe heater: 6 kW
Pump power: 0.55/0.63 kW
Max. pump flow: 27 L/min
Max. pump pressure: 3.8 Bar
Cooling method: direct
Mould coupling : 3/8 (Optional) "(2 2)
Max. temperature: 160
Flow rate (L/min)
2.1.2 Outer dimensions
pressure (Bar)

2-2
(Optional)
STM-910-PW
Outer demensions
765
2. Technical Specifications
Pum Performance curvep
10 30 40 50 60 70
Flow rate (L/min)
pressure (Bar)

2-3
(Optional)
STM-1220-PW
Specifications
Outer demensions
2. Technical Specifications
Pum Performance curvep
8
6
4
2
20 60 80 100 120 140
Flow rate (L/min)
pressure (Bar)
10

2-4
Specification List
2. Technical Specifications
Note 1)"PW" stands for high temp. water heaters, "*" stands for options.
2) To ensure stable water temperature, cooling water pressure should
22
not be less than 2 kg / cm but also no more than 5 kg / cm .
3) Pump testing standard Power of 50 / 60Hz purified water at 20 .
( There is 10% tolerance for either max. flowrate or max.pressure ).
4) Power supply: 3 , 230/400/460/575V, 50/60Hz.
model Max. temp.
STM-607-PW
STM-910-PW
STM-1220-PW
160
Heater
(kw)
6
9
Pump (kw)
(50/60Hz)
0.55 / 0.63
0.75 / 0.92
Max. pump
flow (L/min)
(50/60Hz)
27 / 30
42 / 50
Max. pump
pressure (bar)
(50/60Hz)
3.8 / 5.0
5.0 / 6.4
6.2 / 7.2
Heating chamber
number
1
1
1
Heating / cooling
tank (L)
3.4 / 2.0
Cooling
method
Indirect
Mould
coupling*
(inch)
3/8" (2 2)
765x320x765
765x320x765
795x340x820
1" (1 2)12 1.5 / 1.9 74 / 84
3.4 / 2.0
3.4 / 4.6
Dimensions (mm)
(HWD)
Weight
(kg)
80
85
95

3-1
General Description
3. Main Functions
SHINI Hi-temp. Water Heaters are mainly used to heat up the mould and
keep its temp. at a certain level, and they are also found applications in
other similar fields. Water returned from the mould will be cooled by
indirect cooling and then it is sent to pipe heaters to
be heated to keep a constant temp. of process water. Owning to
aximum 160
by a high pressure
ptimizing design, m
1.
o of process water could be supplied.
OMRON temperature controller is installed to ensure water temp. within
the accuracy of
Uni-directional cut-off valve
Pressure
switch 1
Filter Cooled water inlet
Cooling electromagnetic
valve
Ball valve
Liquid level switch
Cooler
Safety valve
Water replenishing
electromagnetic valve
Mould return
Pumping Temperature
sensor Pressure gauge To mould
Mould
Ball valve
Heater Cooled water outlet
Pressure
switch 2

3-2
3. Main Functions
High-temperature water returning from mould returns to cooler through pipes,
which is conveyed to heater after being pressured through pumping and it is
transmitted to mould after being heated in electric thermal pipe, so on and so
forth. In this process, when liquid level switch detects that liquid level falls
down to set value, the water replenishing electromagnetic valve is started,
which replenishes water to ensure normal operation of the system; If the
water temperature is too high, the system will start up cooling electromagnetic
valve and cooled water will enter the system to cool water at high temperature
indirectly and reduce its temperature, by which the purpose of maintaining
constant temperature is achieved. If water is still at high temperature and
maintains at the level of the set EGO temperature, system will start up high
temperature alarm and stops working; When system pressure arrives at set
value of safety valve, safety valve is started and starts releasing pressure; If
system pressure keeps rising, which is higher than the set value of pressure
switch 2, system will start up water replenishing electromagnetic valve to
release valve; if the pressure of cooled water fails to reach the preset
requirements, pressure switch 1 will emit signal, system starts up
low-pressure alarm and stops working.

4-1
4. Safety Regulations
4. Safety Regulations
Danger!
The unit is designed endure high temp. And high pressure. For safe
operation, do not remove the covers or switches.
Attention!
The unit should be operated by qualified personnel only.
During operation, avoid wearing gloves or clothes that may cause
danger.
Turn off main switch when power supply is off.
Stop the unit when there may be power supply problems caused by
static electricity.
Put on safety gloves and shoes during installation or relocation.
Components from our company can only be used for replacement.
Warning!
Do not touch the switch with wet object or hands.
Do not use the machine before fully aware of its performance.
Be careful not to touch or hit the switch or sensor.
Please keep enough operation space, and keep away obstacles.
To avoid producing statics, clean the floor from oil or water to keep
a dry environment.
Protect the machine against severe vibration or collision.
Do not remove safety signs or make it dirty.
Drunken, medicine-taking, or men without proper judgement should
not operate the machine.
Attention
No need for regular inspection because all the electrical parts in
the control unit are fixed tightly

4-2
N6148015
4. Safety Regulations

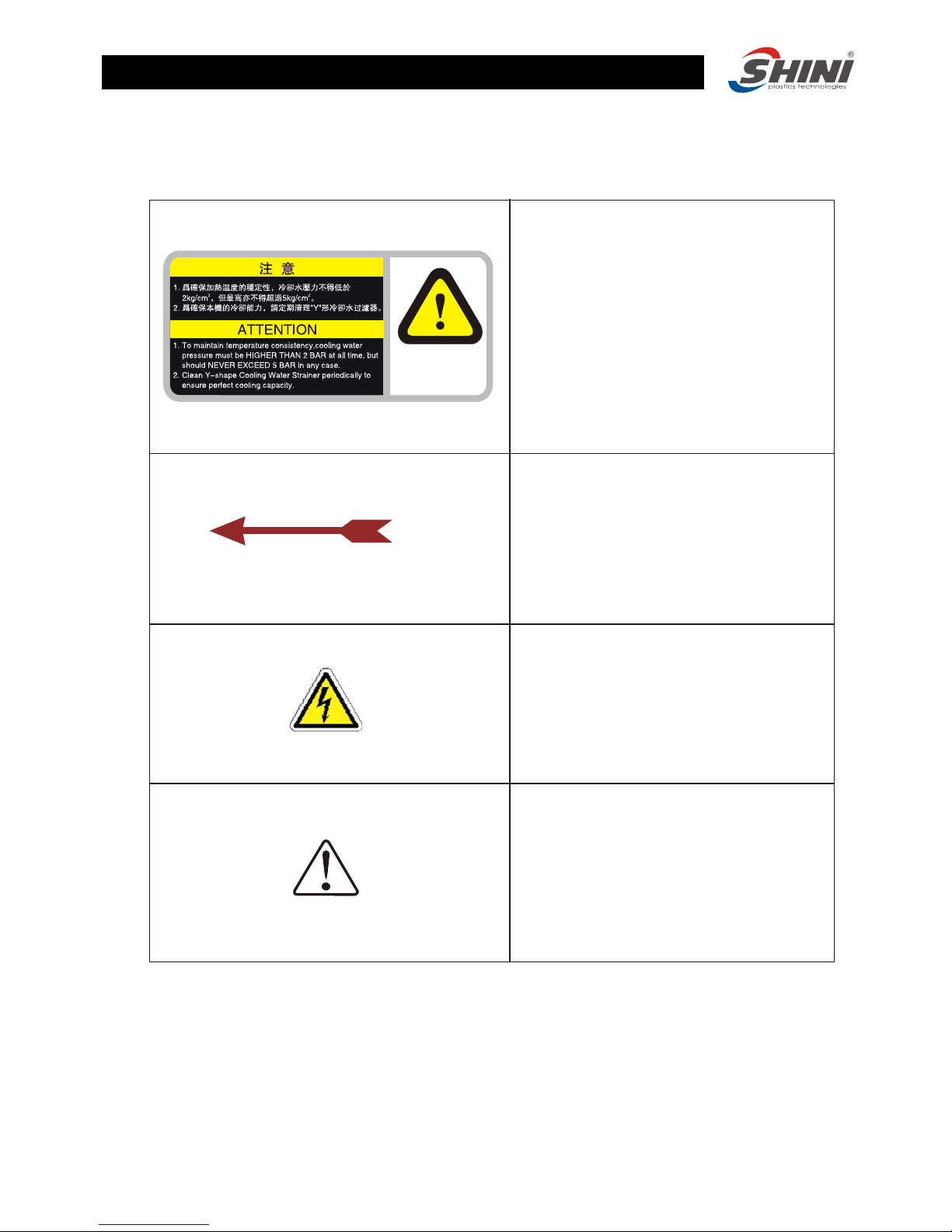

4.1 Signs and Labels
In order to keep a stable temperature,
cooling water pressure should not be
2
less than 2kg/cm, but also no more
2
than 5kg/cm. Clean the Y type
strainer to ensure cooling capacity of
the machine.
(Attached to pump cover)
This is to indicate motor rotating
direction. When phase reversal
happens, the alarm sounds and
indicator on control panel will indicate.
Please exchange the place of two of the
electrical wires to solve this problem.
High voltage! Electrical shock may
happen. Carefulness is required from
the operator.
Attentions!
This is general warnings which
operators should pay attention to.

4.2 Operation Regulations
1) Before operation, make sure that cooling water is clean soft water without
pollutants.
Low quality water brings limescales, which may cause problems.
2) If problems of drainage or bad temperature control are noted, please clean
solenoid valve and cooling water inlet and outlet.
3) Do not move the unit when it is in operation.
4) When in need of repairing, wait until oil temperature falls below 30 .
5) Motor overload may be caused by phase shortage, pipe obstruction,
broken bearing , etc. Motor overload relay will trip off to stop the machine
when this happens. Fixing the problems, press RESET on overload relay
to clear the alarm.
6) Before turn off the pump, wait until oil temperature falls blow 50 . Or the
life of the unit would be affected.
7) If the setting temperature is below 100 , then the pressure switch setting
value should be 1.5-2 bar; If the setting temperature sets between 100
and 200 , then the recommendable pressure switch setting value should
be 2.8 bar. If the cooling water pressure is too low, then the pressure
switch setting value can be adjusted properly to ensure normal running.
However, it may affect the limitation of setting temperature or cause
unstable temperature control.
8) Please connect the coolng water outlet with high temperature resistant
pipe when temperature is above 100 .
Please abide by the safety guide when you operate the machine so as to
prevent damage of the machine and personal injuries.
All electrical components should be installed by qualified electricians.
Turn off main switch and control switch during repair and maintenance.
Warning High voltage
This mark is attached on the cover of the control box.
Warning Be careful
Be more careful when this mark appears.
4-3
4. Safety Regulations

Transportation and storage of the machine
Transportation
1) STM-PW series standard oil heaters are packed in crates or plywood cases
with wooden pallet at the bottom, suitable for quick positioning by fork lift.
2) After unpacked, castors equipped on the machine can be used for ease
of movement.
3) Do not rotate the machine and avoid collision with other objects during
transportation to prevent improper functioning.
4)The structure of the machine is well-balanced, although it should also be
handled with care when lifting the machine for fear of falling down.
5) The machine and its attached parts can be kept at a temperature from
-25 to +55 for long distance transportation and for a short distance,
it can be transported with temperature under +70 .
Storage
1) STM-PW series standard oil heaters should be stored indoors with
OO
temperature kept from 5 C to 40 C and humidity below 80%.
2) Disconnect all power supply and turn off main switch and control switch.
3) Keep the whole machine, especially the electrical components away from
water to avoid potential troubles caused by the water.
4) Plastic film should be used to protect the machine from dust and rains.
Working environment
The machine should be operated:
1) Indoors in a dry environment with max. temperature +45 and humidity no
more than 80%.
Do not use the machine:
1) If it is with a damaged cord.
2) On a wet floor or when it is exposed to rain to avoid electrical shock.
3) If it has been dropped or damaged until it is checked or fixed by a
qualified serviceman.
4. Safety Regulations
4-4

4. Safety Regulations
4-5
Please abide by the safety guide when you operate the machine so
as to prevent damage of the machine and personal injuries.
All electrical components should be installed by qualified
electricians.
Turn off main switch and control switch during repair and
maintenance.
Warning High voltage
This mark is attached on the cover of the control box.
Warning Be careful
Be more careful when this mark appears.
Rejected parts disposal
When the equipment has run out its life time and can not be used any more,
unplug the power supply and dispose of it properly according to local code.
In case of fire, Co dry powder fire extinguisher should be applied.
2
Fire hazard
4) This equipment works normally in the environment with altitude within 3000m.
5) At least a clearance of 1m surrounding the equipment is required during
operation. Keep this equipment away from flammable sources at least two
meters.
6) Avoid vibration, magnetic disturbance at the operation area.
Warning
High temperature, take care of hands! This label is attached on the
surface of heating parts.

5-1
5. Installation
5.1 Installation Space
During installation of the machine, keep at least 500mm installation space
around the machine as shown by the picture. Do not install the machine in
a position crowded with other objects. This would cause inconvenience to
operation, maintenance and repair.
Do not sit on the machine.
Keep away flammable and explosive goods.

5-2
5. Installation
5.2 Mould and Water Couplings
Cooling wate inletCooling water outlet
Connect cooling water inlet with water
supply and cooling water outlet with a
drainage pipe. After that, turn on water
supply.
Unused mould couplings can be
connected with each other by a
teflon pipe, as shown in.
(Figure. 5.2-2)
2)
3
Figure. 5.2-1
Figure. 5.2-2
Figure. 5.2-3
1) It is necessary, while connecting
from the access to mould, to use
two spanners to fix the switching
connection and ball valve before
screw tightly the horn nut of the
connection pipe, otherwise water
might leaks from the machine.
(Figure.5.2-1)
Note! Cooling water inlet and outlet
as shown by the Figure. 5.2-3.
Please do not connect reversely.
Please connect the coolng water
outlet with high temperature
resistant pipe when temperature is
above 100 .

5-3
5. Installation
5.3 Power Supply
Make sure that power supply is the same as required before installation.
Mould heaters are generally set to be used with 3 400V power supply
or other specifications according to customers' requirement.
