Shinybow USA SB-3770 User manual

Supplied Accessories
Check that you have the following components
in your converter pack ;
(1) 1 Instruction Manual
(2) 1 SB-3770 Amplifier console
(3) 1 AC Adaptor : 12VDC,@500mA
Safeguards and Precautions
A. Keep this unit away from fire, extremely hot areas, water or moisture of any Kind.
B. Do not place this unit on any support that is not firm, level and strong.
C. Do not service the unit yourself. Opening the unit's housing will void the warranty.
D. Servicing must be by Shinybow or by an authorized technician.
C. Illegal duplication of copyrighted material is strictly prohibited by Federal Laws.
Introduction
Before you make any connections
Make sure all Video devices to be connected to the HDTV Distribution Amplifier are functioning
according to their respective operation manuals before connecting them. Always connect the A/V
devices to the HDTV Distribution Amplifier one at a time and make sure each works just as it did
before it was connected.

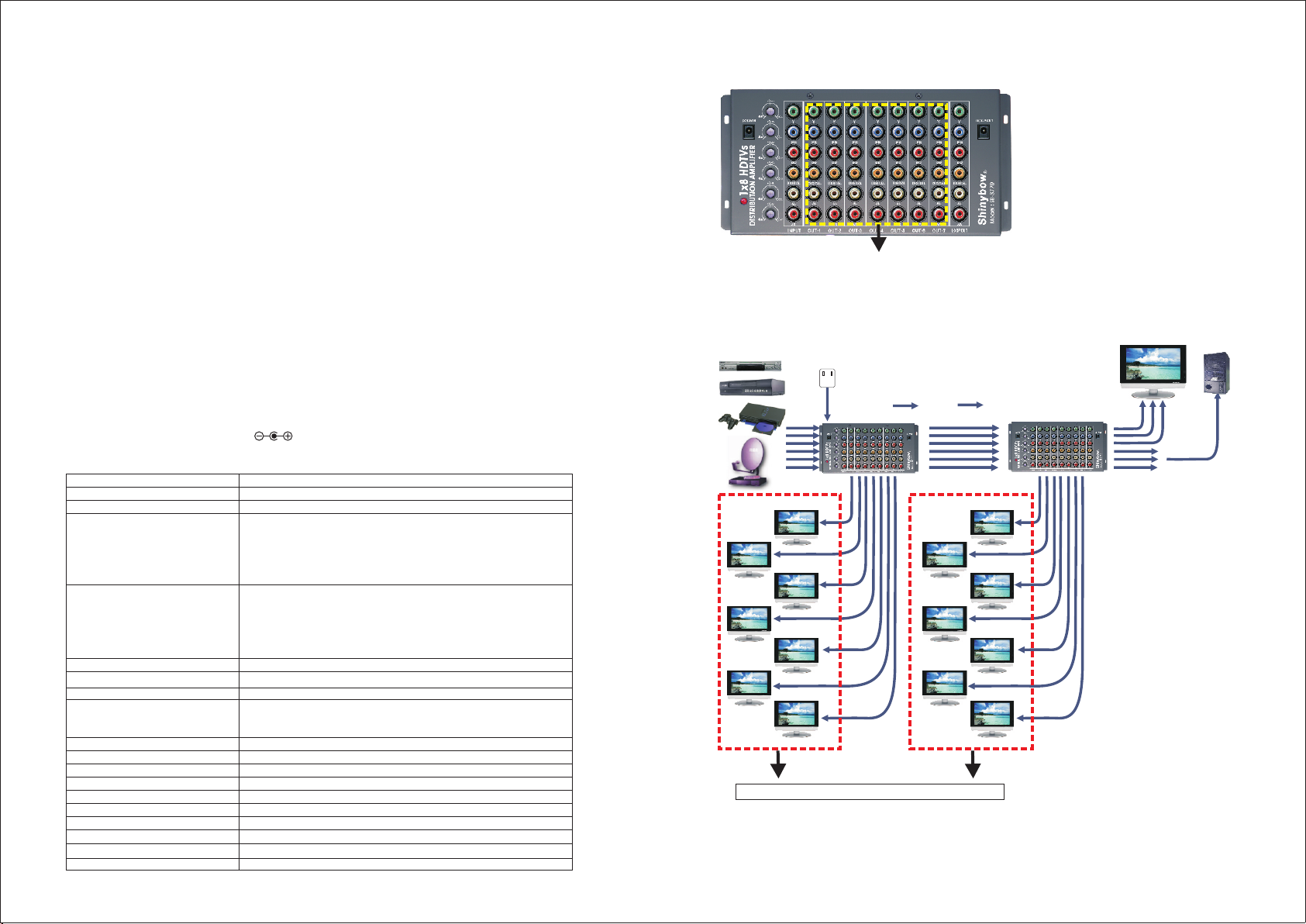

Typical Hookup and Operation
Congra tu lations on your purc hase of one of th e most innovati ve HDTV Distri bution
Amplifier as Component Video(Y PbPr/Y CbCr/R GB) Signals distri bution pro duct on
the mark et Today. SB-3 770 is a HDTV Component Video Distri buti on Amplifi er and
have 8 outputs with a Loop output fu ncti on, Outp ut 1 To Outp ut 7 Be VR adjust value
fro m +0db To +6db ra nge. This amplifi er can Connecti on more th an 10 units and fo r
more th en 71 TV Monito rs . This product provide multi ple Component Video outp uts
that are identi cal to th e sourc e signal. He is useful fo r distri buting signals fro m High
quality component Devices, Camcord ers , Game consoles, Video CDs, DVDs,
Sate llite Receivers , STD Set Top Boxes, etc .
SPECIFICATION:
Congratulations! The Distribution Amplifier is now ready for use.
Switch on your player and TV and enjoy high quality color.
Installing;
Input
1 x Audio-
* Component Video : YPbPr, YCbCr, RGB
* Digital Audio (COAX) or Composite Video (CV),
* Stereo Audio - (Standard Left/HD, Right/VD pairs)
1 x Video-
Signal Bandwidth 110MHz. Liner-phase pass
Band unity-gain. 1Vpp,Terminated to 75 ohms.
Output
* Component Video : YPbPr, YCbCr, RGB
* Digital Audio (COAX) or Composite Video (CV),
* Stereo Audio - (Standard Left/HD, Right/VD pairs)
Signal Bandwidth 110MHz. Liner-phase pass
Band unity-gain. 1Vpp,Terminated to 75 ohms.
8 x Audio-
8 x Video-
SB-3770
Model Number
Input/output
1 in x 8 out Distribution Amplifier with Loop output function
Component Video/Digital Audio/Stereo Audio
Type of Signals
1st 2nd 3rd
Component
Audio/Video Sources
Power
12VDC
HDTV Digital Audio
Be Connection More Then 10 Units with 71 HDTVs
HDTV-1
HDTV-3
HDTV-5
HDTV-7
Front View :
- Power Input : DC12V.
- VR Range from +0db~+6db
use in output 1 ~ output 7
- Component Video(YPbPr)
or Composite Vi deo
- Digital (PCM/Digital Audio)
or Composite Vi deo
- Stereo Audio (AR/AL)
- Loop Output function
Applications: VCRs, Video Cds, DVDs, STBs, Game consoles, Satellite Receiver
Loop Output Connectio n To Another Unit In put
10th units
~
HDTV-2
HDTV-4
HDTV-6
HDTV-1
HDTV-3
HDTV-5
HDTV-7
HDTV-2
HDTV-4
HDTV-6
Power Consumed
350mA Maximum
Power Source
DC 12 Volts, @500mA or up
Size (L,W,H)
17.32 in x 7.9 in x 1.7in (440x200x44mm)
Net Weight (Unit only)
5.00 lbs. (2.30kg) Approx.
In/Out Terminal
Color-coded RCA female connectors.
Video Bandwidth
>700MHz, G=+2,
Small Si gnal Ba ndwi dth(-3db)
1Ghz, G=+1, 700MHz, G=+2,
Setting time
10ns to 0.1%, 2V Step, G=+2
Low Distortion (SFDR)
-66 dBc @ 20MHz, Second Harmonic
0.01%, RL=150
+0dB to+6dB
Booster
Differential Gain Error
-75 dBc @ 20MHz, Third Harmonic
Third Order Intercept(3IP)
26 dBm @ 70MHz, G=+10
W
0.01%, RL=150
Differential Phase Error
W
+0dB to +6db, VR port of output 1~output 7
VR Booster Range
Loop Output port output 8, Extension amplifier about 10 units.
Loop output
Output 1 ~ output 7 be booster +0db~+6db
Output 1 ~ output 7 be booster +0db~+6db
