Shinybow USA SB-3716 User manual

Supplied Accessories
Check that you have the following components in your converter pack ;
(1) 1 Instruction Manual
(2) 1 SB-3716 Distribution Amplifier
(3) 1 2R/S-2R/S Cable (RCA/Mini-4p Connector)
(4) 1 AC Adaptor : 12VDC, 300mA ~ 660mA
Congratulations! The switcher is now ready for use.
Switch on your player and TV and enjoy high quality picture.
Specifications
Safeguards and Precautions
a. Keep this unit away from fire, extremely hot areas, water or moisture of any Kind.
b. Do not place this unit on any support that is not firm, level and strong.
c. Do not service the unit yourself.Opening the unit's housing will void the warranty.
d. Servicing must be by Shinybow or by an authorized technician.
e.Illegal duplication of copyrighted material is strictly prohibited by Federal Laws.
Introduction
Getting Started
Before you connect any Video devices to the S-Video/Audio Distribution
Amplifier, make sure that all of your Audio/Video equipment is functioning
according to their respective operation manuals. Always connect the S-Video,
Video/Stereo Audio devices to the S-Video/Audio Distribution Amplifier one at
a time and make sure each works just as it did before it was connected.

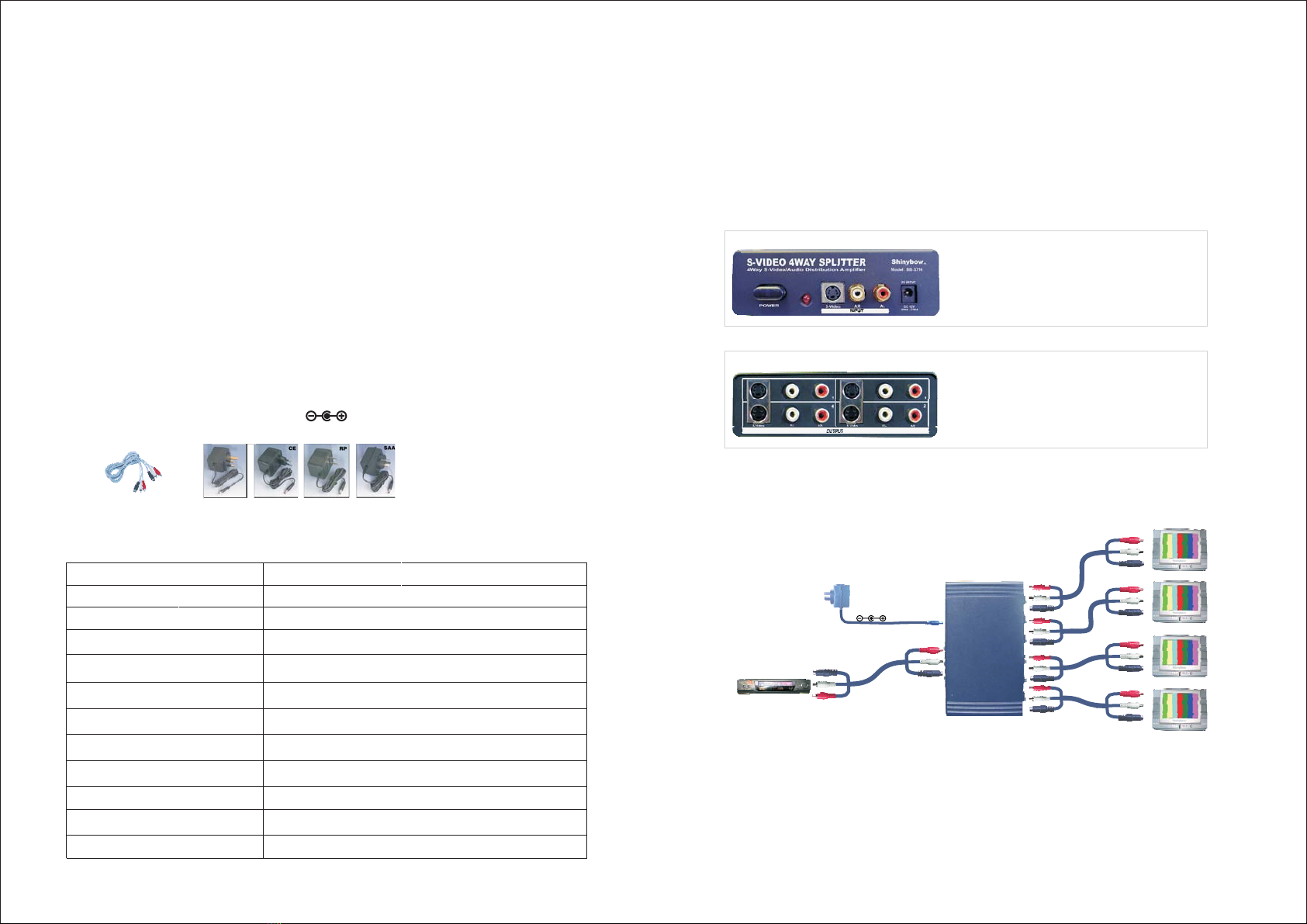

Typical Hookup and Operation
Front PanelFront Panel
Rear PanelRear Panel
Front View:
Power SW : ON/OFF
Input : S-Video Video/Audio (R/L)
DC Input : DC12V, 300~660mA
Rear View:
Output:4xS-Video
Stereo Audio (R/L).
Europe CE Middle Asia Australia SAA
UK BS/CE
UK
AV Connecting Cable :
2RS-2RS plug, L=2M
AC/DC Adaptor : CE/UL/SAA/BS
SB-3716
Video Input
S-VIDEO (Y/C), 75 on Min-Din-9p Connectors
W
Audio Input
Stereo R/L, 50 , on RCA Connectors
W
Video Outputs 4x
Audio Outputs 4x
Video Bandwidth >50MHz
Video Distortion <1.2db (+/- 3db)
Audio input impedance 10K Ohms
Channel Isolation >50db
S/N Ratio >50db
Power Consumed 300mA ~ 660mA
Power Source 12 Volts DC
Congratulations on your purchase of one of the most innovative Composite/Stereo
Audio signal distribution products on the market today. This product provides multiple
S-Video(Y/C) and stereo audio outputs that are identical to the source. Thus it is useful
for distributing signals from VCRs, Camcorders, Video Game Consoles, Video CD
players, DVD players, Satellite Receivers, CATV Set Top Boxes, etc...
Model Number
4x S-VIDEO DISTRIBUTION AMPLIFIER4x S-VIDEO DISTRIBUTION AMPLIFIER
S-Video System : S-Video(Y/C), Stereo AudioS-Video System :S-Video(Y/C), Stereo Audio
DC INPUT AVAILABLE:
DC 12V , 300mA ~ 660mA
Item : SB-3716
VIDEO PLAYER
DC Input
TV-1
INSTALLING:
APPLICATION :
1. VCR
2. VIDEO CD
3. DVD PLAYER
APPLICATION :
1. VCR
2. VIDEO CD
3. DVD PLAYER
TV-2
TV-3
TV-4
SB-3716
S-VIDEO (Y/C), 75 on Min-Din-9p Connectors
W
Stereo R/L, 50 , on RCA Connectors
W
