Shinybow USA SB-5688CK User manual

SB-5688CK
8x HDMI Inputs / 8x HDMI & 8x HDBaseT™Outputs - UHD 4K2K Matrix
Routing Switch w/ EDID Management/Learning
INSTRUCTION MANUAL

SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment.
Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and
excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC
voltage is not covered by any warranty.
10. Turn power off and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use
the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal
ow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to
qualied service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports rst, then remove the power cable; nally, disconnect the interconnecting cables to
other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.
19. Service Information Equipment should be serviced by qualied service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain
D. The equipment does not appear to operate normally, or exhibits a marked change in performance
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL

CONTENTS
PACKAGE CONTENTS .................................................. 1
INTRODUCTION ..............................................................2
FEATURES.......................................................................2
SPECIFICATIONS............................................................3
FRONT PANEL................................................................. 4
REAR PANEL ................................................................. 8
REMOTE CONTROL ...................................................... 12
ROOM REMOTE CONTROLS ...................................... 14
EDID FUNCTIONS ......................................................... 15
APPLICATIONS ........................................................... 20
IR EXTENDER ............................................................... 23
ETHERNET / RS-232 SERIAL PROTOCOLS ............... 25
HDBASET™OPTIONS .................................................. 26
PACKAGE CONTENTS
Check that you have the following components;
• SB-5688CK Matrix Switcher
• RS-232 V2.0 / Ethernet V2.0 Protocol Instructions
• Master wireless IR Remote Control (SW-5688CK)
• (8) Individual wireless IR Control (SW-5688CK-IR01~IR08)
• 19 inch Ear mount bracket (Part # 2U-440L)
• SB-100 IR Extender distance ~982 feet (300M) Receiver set
• CD Contents: Manual, Windows GUI, ISP V1.0 Windows driver
• RS-232 Cable 6.5 feet (2M)
• ISO Screws
• Users Guide
• Worldwide Universal Power Supply Input : 100~240 VAC, AC
50/60Hz
-- SB-6335R HDBaseT™Receivers sold separately –
1
HDMI over HDBaseT™Matrix Switcher Series
Thank you for purchasing the SB-5688CK HDMI-HDBaseT™ Matrix Switcher. You will nd this unit easy to install and highly
reliable but it is essential that you read this manual thoroughly before attempting to use the 8x8 HDMI-HDBaseT™Matrix switcher.
TABLE OF CONTENTS
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture
or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the
PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for sufcient
space for air to circulate around the unit.
DISCLAIMERS
The information in this manual has been carefully checked and is believed
to be accurate. We assume no responsibility for any infringements of
patents or other rights of third parties which may result from its use.
We assume no responsibility for any inaccuracies that may be contained
in this document. We make no commitment to update or to keep current
the information contained in this document.
We reserve the right to make improvements to this document and/or
product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means — electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise — without express
written permission and consent
© Copyright 2015. All Rights Reserved.
Version 2.4 JAN 2016
5688CK-20150824-005
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

INTRODUCTION
The SB-5688CK is a professional 8x8 matrix routing switch. Supporting (8) HDMI Inputs and (8) HDMI and (8) HDBaseT™Outputs. The
SB-5688CK is based on HDBaseT™standards and supports full HDMI video resolutions with embedded EDID, Audio, RS-232, Ethernet
and bi-directional IR, all over a single CATx cable. This unit has a wide frequency range of 25MHz ~ 340 MHz so there is no signal
degradation. High Denition Digital signals can be selected and distributed to any of the (8) Inputs to any of the (16) outputs simultaneously
(channel outputs mirrored). The switcher is certied as being fully CEC and HDCP 1.3 and supports HDMI 1.4a, 4K2K@30Hz, DVI 1.0,
3D formats. Supports UXGA/WUXGA/DVI 1920x1200 resolutions to any HD display. The SB-5688CK has 1x HDMI port per Input and
8x HDMI and 8x HDBaseT™ports per Ouput, effectively making this an (8) in by (16) out switcher (same signal on both HDMI and
HDBaseT™outputs). Using the IR remote and the switcher’s HDBaseT™extender transmitter (Tx) allows you to connect a source in a
remote location. Likewise, the HDBaseT™Output and our HDBaseT™receivers allow you to connect a displays in remote locations. The
EDID management can be selected between (7) different modes. Control is provided via front panel push buttons, IR remote, RS-232 or
TCP/IP (not a web-browser). A RS-232 Windows GUI interface is provided for matrix routing control (Windows only).
FEATURES
Based on HDBaseT™, bi-directional IR, RS-232, Multi Format Audio and Ethernet control. Full Resolution HD Video, all HDBaseT™signals
over single CATx cable.
• (8) HDMI digital video and digital multi-channel audio player source devices matrix switched to (8) HDMI and (8) HDBaseT™
Transmitter outputs to (8) destinations
• HDBaseT™, IR, RS-232, Multi-channel digital audio format applications and HD video signals over single CATx (6/6a/7) category
cable
• HDMI digital video w/ embedded HDCP, DVI 1.0 formats and CEC/HDCP 1.3 compliant
• Worldwide EDID control modes for full HDMI 4K2K@24/30Hz HD video resolutions
• Supports HDMI 4K2K@24/30Hz, 1.4a 3D formats
• Wide range of HD resolutions from PC, XGA to WUXGA 1920x1200 and HDTV/DTV, HDMI resolutions for 480i/480p, 576i/576p,
720p, 1080i/p & 4K2K (24/30Hz)
• Compatible with all HDMI source devices, PC monitors, Plasma HD displays, HDTVs and audio receivers or audio ampliers
• Digital video TMDS formats resolutions up to 4K2K with Deep color 36-bit
• Digital multi-channel Audio Support : Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX,
PCM, PCM2, LPCM2
• Audio Input: Supports HDMI multi-channel digital audio
• Audio Output: Supports HDMI multi-channel digital audio
• Various User Interface Controls:
• Windows based GUI control via RS-232 Interface control driver for 2000/XP/WIN7-32/WIN7-64/WIN8
• Front panel push button
• IR wireless remote controller
• Ethernet switch control
• Third party RS-232 controller (via simple ASCII)
• Supports (7) Worldwide Control Function Keys: Full function front panel controls: ALL, OFF, EDID, LOCK, RECALL, MEMORY &
ENTER
• Supports EDID Modes:
• a. Embedded EDID Modes: FSS, H24-3D, H24-3D-M, H36-3D, H36-3D-M, 4K2K-3D & DVI-D 1920x1200-60Hz
• b. External Modes: Learning mode
• Automatic scanning input & output status via LCM screen on the front panel
• Supports IR remotes and IR extenders for a distance of up to ~ 984 feet (300M) maximum
• Supports universal power adaptor AC100V~AC240V, 50/60Hz
The switcher will remember that last state during a power cycle. When power is removed and resorted, the last conguration will be invoked.
2
INTRODUCTION & FEATURES

3
SPECIFICATIONS
• Type of HDMI Switcher: (8) Inputs to (8) Outputs HDMI over HDBaseT™Matrix Switch with single CATx
• HDMI Support: HDMI 4K2K@30Hz, 1080p@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats
• HDBaseT™Support: Bi-directional IR, RS-232, Multi Format Audio, Ethernet over one CATx cable
• HDCP/CEC Support: HDCP 1.3 Compliant, CEC Compliant
• Video Bandwidth: Double Data Rates: 340 MHz, Total 6.75Gbps bandwidth
• Digital Video Support: HD: 480i/480p/720p/1080i/p and 4K2K up to 36bit deep color
• Inputs: 8x HDMI (HDMI or DVI digital source)
• Outputs:
• HDMI: 8x HDMI (to Destination)
• HDBaseT™: 8x HDBaseT™Transmitter via category cable & RJ-45 connector
• HDBaseT™Control Inputs:
• 8x IR in (Sends IR signals to (8) Rooms via HDBaseT™Transmitter)
• HDBaseT™Control Outputs:
• 8x IR out (Link to Receive IR signals from (8) Rooms via a HDBaseT™Extender)
• 1x All Tx LAN (All HDBaseT™Transmitter Ethernet links to a HDBaseT™Receiver)
• HDBaseT™Control I/O:
• 8x RS-232 I/O (Control (8) Rooms RS-232 via HDBaseT™extender Tx)
• 8x IR In to 8x IR Out following the IR Matrix Switcher status
• Switcher Controls:
• 1x Select & Function buttons on front panel (Data status via LCM panel show out)
• 1x IR Remote Controller (switch control)
• 8x IR Room Remote Controller (switch control)
• 1x IR External port (switch control via 3.5mm OD Jack)
• 1x RS-232 series interface (switch control)
• 1x Ethernet series interface (switch control)
• Source Status: Input status LEDs indicates presence of a live signal
• (23) Function Control Keys: 1. ALL, 2. OFF, 3. RECALL, 4. ENTER, 5. MEMORY, 6. LOCK, 7. EDID, 8. Destination button 1 thru
8, 9. Source button 1 thru 8
• (7) EDID Management:
• Select Embedded EDID Modes: Mode1: FSS, Mode2: H24-3D, Mode3: H24-3D-M, Mode4: H36-3D, Mode5: H36-3D-M,
Mode6: 4K2K-3D, PCM-2CH, Mode7: DVI-D 1920x1200
• Select LEARNING Mode: Learning Destination EDID to Link Source
• Infrared Frequency: 38 Khz
• IR Extend Distance: ~984 feet/300M max
• HDBaseT™ Extender Distance: ~328 feet/100M max
• HDMI I/O Connector: HDMI Type A - SMD 19-pin female type
• Temperature: Operating Temperature 32°F-100°F (0°C-32°C)
• Dimensions (LxWxH): 19 x 9.85 x 3.46 in (482x250x88 mm)
• Rack Mount: 2RU High 19in Rack Mount #2U-440L (with rack mount)
• Power Supply: AC 100~240 VAC 50/60Hz. (120V/1A/120W; 220V/0.54A/120W)
• Safety Approvals: CE, FCC, REACH and WEEE
• Product Weight: 3.75 Kg/6.25 lb
As product improvements are continuous, specications are subject to change without notice.
SPECIFICATIONS

4
FRONT PANEL
1. POWER ON SWITCH: The power switch turns the unit on and off. The LCM will illuminate blue to indicate the switcher is ON and receiving
power. The switcher will remember the last setting during a power cycle. When power is removed and resorted, the last conguration will
be evoked.
2. STATUS DISPLAY: Front panel status display shows current matrix routing conguration. This same display also shows particular
conguration settings depending on your current function. In run mode (as shown above), the display shows each Output (destination)
channel shows which Input (source) is assigned.
3. IR SENSOR: The IR sensor receives IR commands from the supplied remote controller or third party IR emitter.
4. INPUT STATUS DISPLAY: Input sources 1 to 8 LED illuminates blue to indicate that a video source is present on that input.
5. SOURCE SELECT BUTTONS: Separate inputs 1 thru 8 select buttons are provided each source selection.
6. EDID MODE SELECT BUTTONS: Used to select EDID mode using Source button #1 or #2.
7. DESTINATION SELECT BUTTONS: Separate outputs (1 thru 8) select buttons are provided for each destination assignment. Routing can be
Source to Destination or (1) source to multiple destinations.
Example: Press Destination (1,3,5) then press Source (2) will route Input (2) to Output (1,3,5) respectfully.
8. 19 INCH EAR MOUNT PAIR: Converts desktop to 19 inch rack mount. Bracket (part # 2U-440L) INCLUDED. Image shows rack mount
bracket attached.
FRONT PANEL

5
FRONT PANEL-EDID
12. FUNCTION KEY - EDID (1):
Used to display change current EDID mode.
- Press EDID to select new EDID mode or select.
- Press SOURCE row #1 or #2 to select EDID modes.
- Press ENTER to ready memory location.
- Or press EDID again to cancel operation.
Operation completes.
Note : Operation will abort if no keys are pressed within 5 seconds.
FUNCTION KEY - EDID (2):
Select external LEARNING mode
- Press EDID to select new EDID mode or select.
- Press DESTINATION again, press the same Destination #1 THRU #8 to learn the
HDBaseT™out port EDID. The EDID for HDBaseT™(CATx) has been learned.
- Press ENTER to ready memory location.
- Or press EDID again to cancel operation.
Operation completes.
Note : Operation will abort if no keys are pressed within 5 seconds.
FRONT PANEL-EDID

6
FRONT PANEL-ALL-OFF-LOCK-ENTER
13. FUNCTION KEY - ALL:
Disables (mutes) video on all destinations OR assign the same source to all destinations.
Option 1
- Press ALL followed by OFF button. The display will show ”0” to indicate none of the
destinations are assigned a video source.
Option 2
- Press ALL followed by Source 1 THRU 8. The display will show the source selected.
- Press ENTER. The pre-set source selection will be assigned all destinations.
14. FUNCTION KEY - OFF:
Disables (mute) video on the selected destinations.
- Press OFF button followed by any Destination channel.
- Press 1 THRU 8 output destination. The display will show “0“ for the selected channel,
indicating no video selected.
15. FUNCTION KEY - LOCK:
- Press and hold LOCK button for two seconds lockout the front panel.
- Press and hold LOCK button for two seconds to enable the front panel.
16. FUNCTION KEY - ENTER: Press ENTER to conrm entries.
FRONT PANEL-ALL-OFF-LOCK-ENTER

7
FRONT PANEL-RECALL-MEMORY
17. FUNCTION KEY - RECALL:
The system will show previously stored presets, up to a total of 16. Presets are stored in
local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset
location.
- Press RECALL button.
- Press 1 THRU 8 on either Source or Destination row.
- Press ENTER. The pre-set conguration will execute.
Operation completes.
Note: Operation will abort if no keys are pressed within 5 seconds.
- Or press RECALL again to cancel operation.
18. FUNCTION KEY - MEMORY:
The system will show stored presets, up to a total of 16. Presets are stored in local memory
using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset location.
- Congure desired matrices.
- Press MEMORY button.
- Press 1 THRU 8 on either Source or Destination row.
- Press ENTER to ready memory location.
- Or press MEMORY again to cancel operation.
Operation completes.
Note : Operation will abort if no keys are pressed within 5 seconds.
- Or press MEMORY again to cancel operation.
FRONT PANEL-RECALL-MEMORY

1. DC POWER INLET: The switcher is tted with a AC power plug
input connector. Ensure that the plug used is of an approved type
and is of sufcient current carrying connector capacity with the
correct voltage and connector polarity. 100~240Volt AC, 50/60Hz
power supply.
2. IR EXTENDER CONTROL: Supports (1) IR extender. Extends
maximum distance of ~984 ft/300M. When you plug the external
IR extender into the switcher, the front panel IR receiver remains
active.
3. RS-232 CONNECTION: RS-232 control port allows for interfacing
to a PC, such as a computer or touch panel control, to the switcher
via the DB-9pin female connector for serial RS-232 control.
4. ETHERNET CONNECTION: ETHERNET control port allows for
TCP/IP interfacing to a PC, such as a computer or touch panel
control (not a web-browser), to the switcher via the RJ-45 female
connector to control switcher.
POWER SOCKET: Connector Type : IEC 60320 C13
IR EXTENDER JACK: Female Jack - inner OD Ø 3.5mm
REMOTE PORT: D-SUB-9pin female connector
REMOTE PORT: Control the switcher RJ-45 female
connector
Ethernet Port:
Note: The Ethernet port and RS-232 port cannot
be used simultaneously. Any connection to the
Ethernet port will disable serial commands sent
to the RS-232 port.
8
BACK PANEL-SWITCH CONTROLS
BACK PANEL-SWITCH CONTROLS

5. INPUTS- 1,2,3,4,5,6,7, & 8 HDMI: Connects HDMI signal source
to the Input. This HDMI port supports HDMI with embedded audio
and DVI with AUX audio sources.
If you remove the HDMI screw posts, you must use the provided
ISO screws to keep the internal HDMI jack secure. Removing
the HDMI screws without installing the ISO screws will void your
warranty.
6. OUTPUTS- 1,2,3,4,5,6,7 & 8 HDMI: Connects HDMI signal source
to the Output. This HDMI port supports HDMI with embedded
audio and DVI with AUX audio.
If you remove the HDMI screw posts, you must use the provided
ISO screws to keep the internal HDMI jack secure. Removing
the HDMI screws without installing the ISO screws will void your
warranty.
HDMI CONNECTOR: HDMI Type A SMD 19pin female
socket connector.
Note: With the proper adapters, the switcher can
be used with DVI digital video signals, as it is
HDCP compliant. DVI Audio is supported.
HDMI CONNECTOR: HDMI Type A SMD 19pin female
socket connector.
Note: With the proper adapters, the switcher can
be used with DVI digital video signals, as it is
HDCP compliant. DVI Audio is supported.
9
BACK PANEL-HDMI INPUT / OUTPUT
BACK PANEL-HDMI INPUT / OUTPUT

9. HDBaseT™RS-232 - 1,2,3,4,5,6,7 & 8 CONNECTION: (8) RS-232
control ports allow for interfacing to a PC. Controls I/O via the
HDBaseT™Transmitters up to (8) rooms each via the Terminal
Block-3pin female socket for serial RS-232 control.
10. HDBASET™LAN CONNECTION: All Tx LAN: Provides Ethernet
(LAN) connection from the switcher to All HDBaseT™Transmitters
(ie. SB-6320T).
11. HDBASET™IR INPUT - 1,2,3,4,5,6,7 & 8 REMOTE IR SIGNAL
TO ROOM: Sends (8) IR signals to (8) rooms via the switchers
HDBaseT™Transmitters. When you plug the switchers HDBaseT™
IR Transmitters into the external port, the rooms IR HDBaseT™
receivers remain active.
****Certain matrix chassis have an “ALL IN” jack. The “ALL IN”
jack has been removed and replaced with a blank ller cover.
12. IR OUTPUT - 1,2,3,4,5,6,7 & 8 IR SIGNAL TO SOURCE DEVICE:
Sends (8) IR signals to each source device. The IR source channel
is specic to each source device.
For example; IR #1 should connect to HDMI Source #1 and so on.
****Certain matrix chassis are labeled “IR From ROOM” and have
an additional connection labeled “ALL OUT”. Regardless, the
function of these jacks only supports IR follow Source Control.
The “ALL OUT” jack has been removed and replaced with a blank
ller cover.
REMOTE PORT : Terminal Block-3pin female socket
ALL HDBASET™TX LAN PORT CONNECTOR: HDBaseT™
Phone-Jack 8P8C, RJ-45 female socket.
LAN Controls: Note: From switcher to HDBaseT™
Transmitter.
IR EXTENDER JACK: Female Jack - inner OD Ø 3.5 mm
IR EXTENDER JACK: Female Jack - inner OD Ø 3.5 mm
10
BACK PANEL-HDBASET™CONTROLS
BACK PANEL-HDBASET™CONTROLS

BACK PANEL-HDBASET™I/O
Category cable lengths via Switcher and HDBaseT™Receiver.
CABLE TYPE
RESOLUTION
PIXEL CLOCK RATE
(MHZ)
CAT5e
(70M)
CAT6
(100M)
CAT6
(100M)
1024x768@60Hz 65.00 MHZ Yes Yes Yes
1280x720p@60Hz 73.84 MHZ Yes Yes Yes
1920x1080i@60Hz 74.25 MHZ NA NA NA
1280x1024@60Hz 108.00 MHZ Yes Yes Yes
1920x1080p@60Hz 148.50 MHZ Yes Yes Yes
1920x1200@60Hz 152.90 MHz Yes Yes Yes
1600x1200@60Hz 162.00 MHZ Yes Yes Yes
BD player : 1080p 174.00 MHz Yes NA Yes
HDBASET™ TRANSMITTER CONNECTOR:
8x RJ-45 Jack 8P8C female socket.
Link LED :
solid = valid link
Flash = attempting to link
Off = no link established
11
BACK PANEL-HDBASET™I/O
13. OUTPUT - 1,2,3,4,5,6,7 & 8 HDBaseT™(Transmitter): Sends
(8) HDMI and control signals via the switchers (8) HDBaseT™
Transmitters to link (8) external HDBaseT™Receivers. The
switcher uses a CATx (6/6a/7) category cable from the (8)
HDBaseT™Transmitters #1~8 Outputs RJ-45 jacks. Controls
RS-232, Ethernet, IR input/output signals between switcher and
receiver.
This unit IS NOT compatible with EZ-45 connectors.

12
Before making any connections to the switcher, observe the following:
• Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%).
• Ensure that the power switch is OFF.
• Ensure that all system grounds (earth) are connected to a common point.
• Avoid powering equipment within a system from multiple power sources that may be separated by large distances.
• Connect all audio video sources and destination equipment.
• Power up all source and destination audio-visual sources.
• For each destination output, select the appropriate input source by using the front panel input 1~8 select buttons. The supplied IR remote
control or through the RS-232 serial communications port.
• Upon power up the switcher will return to its last used setting before powering down.

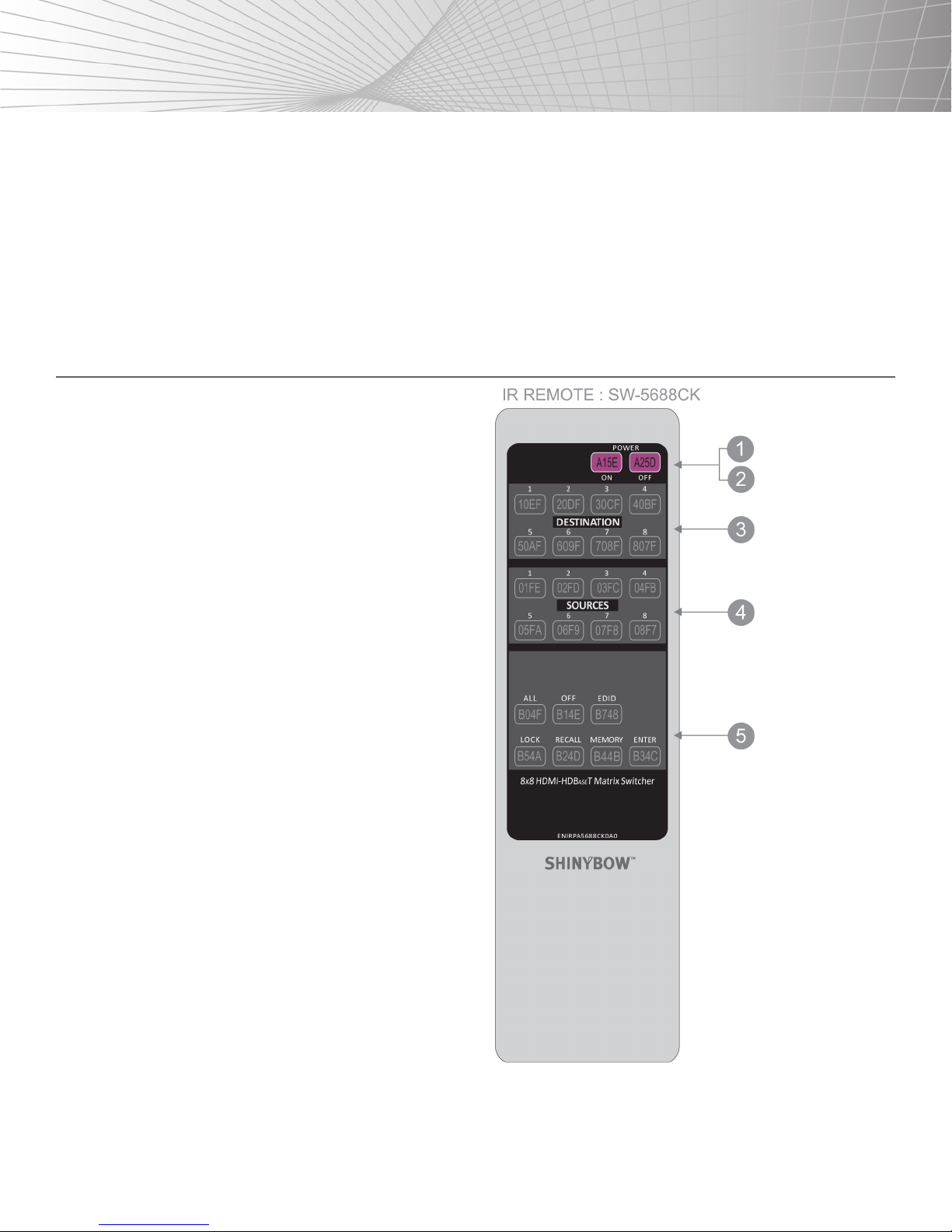

REMOTE CONTROL
IR REMOTE CONTROL KEY :
1. & 2. SWITCH POWER ON or OFF:
Controller with a separate power ON and OFF
3. DESTINATION : 1 THRU 8 OUTPUT SELECTION:
Press the destination button to select the output display channel.
4. SOURCE : 1 THRU 8 INPUT SOURCE SELECTION:
Press input 1~8 sources with selection button.
5. FUNCTION KEY: Function selection buttons.
ALL OFF EDID RECALL
MEMORY ENTER LOCK
REMOTE CONTROL

13
IR REMOTE CUSTOM AND DATA CODES (NEC Standard)
HOW TO SETUP IR CODES : CUSTOM CODE : 4CB3
POWER ON : 4CB3 A15E MEMORY : 4CB3 B44B
POWER OFF : 4CB3 A25D LOCK : 4CB3 B54A
ALL : 4CB3 B04F EDID : 4CB3 B748
OFF : 4CB3 B14E ENTER : 4CB3 B34C
RECALL : 4CB3 B24D
PRESS DESTINATION - # then PRESS SOURCE - #
DESTINATION #1 : 4CB3 10EF SOURCE #1 : 4CB3 01FE
DESTINATION #2 : 4CB3 20DF SOURCE #2 : 4CB3 02FD
DESTINATION #3 : 4CB3 30CF SOURCE #3 : 4CB3 03FC
DESTINATION #4 : 4CB3 40BF SOURCE #4 : 4CB3 04FB
DESTINATION #5 : 4CB3 50AF SOURCE #5 : 4CB3 05FA
DESTINATION #6 : 4CB3 609F SOURCE #6 : 4CB3 06F9
DESTINATION #7 : 4CB3 708F SOURCE #7 : 4CB3 07F8
DESTINATION #8 : 4CB3 807F SOURCE #8 : 4CB3 08F7
For example;
Select Destination # 1 to show Source (#1~8).
The IR Data Code list :
Destination # 1, Source #1 4CB3 10EF 4CB3 01FE 01FE
Destination # 1, Source #2 4CB3 10EF 4CB3 01FE 02FD
Destination # 1, Source #3 4CB3 10EF 4CB3 01FE 03FC
Destination # 1, Source #4 4CB3 10EF 4CB3 01FE 04FB
Destination # 1, Source #5 4CB3 10EF 4CB3 01FE 05FA
Destination # 1, Source #6 4CB3 10EF 4CB3 01FE 06F9
Destination # 1, Source #7 4CB3 10EF 4CB3 01FE 07F8
Destination # 1, Source #8 4CB3 10EF 4CB3 01FE 08F7
REMOTE PROTOCOL COMMANDS

14
ROOM REMOTE CONTROL #1 ~ #8 CUSTOM CODE AND DATA CODES
IR CUSTOM AND DATA CODES (NEC Standard)
PRESS Number To Select SOURCE
CUSTOM CODE : 4CB3
IR-01 DATA CODE: IR-02 DATA CODE: IR-03 DATA CODE:
SOURCE #1 : 4CB3 11EE SOURCE #1 : 4CB3 21DE SOURCE #1 : 4CB3 31CE
SOURCE #2 : 4CB3 12ED SOURCE #2 : 4CB3 22DD SOURCE #2 : 4CB3 32CD
SOURCE #3 : 4CB3 13EC SOURCE #3 : 4CB3 23DC SOURCE #3 : 4CB3 33CC
SOURCE #4 : 4CB3 14EB SOURCE #4 : 4CB3 24DB SOURCE #4 : 4CB3 34CB
SOURCE #5 : 4CB3 15EA SOURCE #5 : 4CB3 25DA SOURCE #5 : 4CB3 35CA
SOURCE #6 : 4CB3 16E9 SOURCE #6 : 4CB3 26D9 SOURCE #6 : 4CB3 36C9
SOURCE #7 : 4CB3 17E8 SOURCE #7 : 4CB3 27D8 SOURCE #7 : 4CB3 37C8
SOURCE #8 : 4CB3 18E7 SOURCE #8 : 4CB3 28D7 SOURCE #8 : 4CB3 38C7
IR-04 DATA CODE: IR-05 DATA CODE: IR-06 DATA CODE:
SOURCE #1 : 4CB3 41BE SOURCE #1 : 4CB3 51AE SOURCE #1 : 4CB3 619E
SOURCE #2 : 4CB3 42BD SOURCE #2 : 4CB3 52AD SOURCE #2 : 4CB3 629D
SOURCE #3 : 4CB3 43BC SOURCE #3 : 4CB3 53AC SOURCE #3 : 4CB3 639C
SOURCE #4 : 4CB3 44BB SOURCE #4 : 4CB3 54AB SOURCE #4 : 4CB3 649B
SOURCE #5 : 4CB3 45BA SOURCE #5 : 4CB3 55AA SOURCE #5 : 4CB3 659A
SOURCE #6 : 4CB3 46B9 SOURCE #6 : 4CB3 56A9 SOURCE #6 : 4CB3 6699
SOURCE #7 : 4CB3 47B8 SOURCE #7 : 4CB3 57A8 SOURCE #7 : 4CB3 6798
SOURCE #8 : 4CB3 48B7 SOURCE #8 : 4CB3 58A7 SOURCE #8 : 4CB3 6897
IR-07 DATA CODE: IR-08 DATA CODE:
SOURCE #1 : 4CB3 718E SOURCE #1 : 4CB3 817E
SOURCE #2 : 4CB3 728D SOURCE #2 : 4CB3 827D
SOURCE #3 : 4CB3 738C SOURCE #3 : 4CB3 837C
SOURCE #4 : 4CB3 748B SOURCE #4 : 4CB3 847B
SOURCE #5 : 4CB3 758A SOURCE #5 : 4CB3 857A
SOURCE #6 : 4CB3 7689 SOURCE #6 : 4CB3 8679
SOURCE #7 : 4CB3 7788 SOURCE #7 : 4CB3 8778
SOURCE #8 : 4CB3 7887 SOURCE #8 : 4CB3 8877
ROOM REMOTE CONTROLS

EDID FUNCTION FOR HDMI MATRIX SWITCHER
EDID Setup To Change the EDID Setup
Step 1. Press the EDID button The display will show the currently selected EDID mode
Step 2. Press SOURCE #1 or #2 button row The button will ash blue and the display will show the current Embedded EDID Status.
Step 3. Press the ENTER button To set EDID mode. The switcher will return to operation mode.
Operation will abort if no keys are pressed within 5 seconds.
RESET EDID Return To Factory default
How to RESET EDID mode
Press EDID > RECALL > ENTER
RESET to the FACTORY DEFAULT (1080p-2CH).
Press EDID button : The LCM will show the current EDID status.
Press RECALL button : The LCM will show the RESET EDID.
Press ENTER to conrm entries.
The EDID will return to FSS®mode and resolution 1080p-2CH.
Embedded EDID Modes Total 8 EDID Modes
Embedded EDID setup
Press EDID > SOURCE > ENTER
SOURCE #1 or SOURCE #2
To select Embedded EDID mode or LEARNING mode.
Press EDID button: The LCM will show the current EDID status.
Repeatedly depressing the SOURCE 1 button will cycle up thru the options.
Repeatedly depressing the SOURCE 2 button will cycle down thru the options.
Select Embedded EDID :
Mode 1 : FSS®
Mode 2 : H24-3D
Mode 3 : H24-3D-M
Mode 4 : H36-3D
How To Setup FSS®Function Fast Speed Start®
Step 1. Press the DESTINATIONS #1 ~ 8
button row
Then Press the SOURCE #1~8 button row
To setup and Install all devices.
Step 2. Press EDID button Select a optimum status of Embedded EDID mode.
Step 3. Press ENTER button To conform entries.
Step 4. Press EDID button To select the EDID FSS®mode.
Step 5. Press ENTER button To conform entries.
Mode 5 : H36-3D-M
Mode 6 : 4K2K-3D, PCM-2CH
Mode 7 : DVI-D 1920x1200-60Hz
15
EDID FUNCTION

EDID FUNCTION FOR HDMI MATRIX SWITCHER
EDID Function For HDMI Matrix Switcher
Mode 1. FSS®(Fast Speed Start) Fast Speed Start®mode shortens the startup time of the switcher. Selecting this
mode does not force the EDID setup to be cancelled. Users may rst select one
EDID mode from mode 2 to 3, and then select mode 1 for Fast Speed Start®.
Mode 2. H24-3D (1080p-24 bits) Audio Support: PCM 2CH
Mode 3. H24-3D-M (1080p-24 bits) Audio Support: MAT(MLP) 7.1CH, PCM-2CH, One Bit Audio 2CH, AC-3 5.1CH, DTS
5.1CH, PCM 7.1CH, Dolby Digital + 7.1CH, DTS-HD 7.1CH
Mode 4. H36-3D (1080p-36 bits) Audio Support: PCM 2CH
Mode 5. H36-3D-M (1080p-36 bits) Audio Support : MAT(MLP) 7.1CH, PCM 2CH, One Bit Audio 2CH, AC-3 5.1CH,
DTS 5.1CH, PCM 7.1CH, Dolby Digital + 7.1CH, DTS-HD 7.1CH
Mode 6. 4K2K (24/30Hz) HDMI Support : 4K2K-3D, PCM 2CH (3860x2160-24/30Hz)
Audio Support: PCM 2CH
Mode 7. 1920x1200-60Hz (DVI-D) DVI Support : DVI-D 1920x1200 60Hz
16
EDID FUNCTION

Learning EDID Single To Single Example : Learn Destination #8 EDID To Source #5.
Step 1. Press EDID button The button will ash blue and the display will show the current Embedded EDID Status.
Step 2. Press the DESTINATION #8 button row Copy the Destination #8 Display EDID.
Step 3. Press the SOURCE #5 button row Learning the Destination #8 EDID to Source # 5.
Step 4. Press ENTER button To conrm entries.
Learning EDID Single To Multiple Learning Destination EDID Link To The Majority Sources
Step 1. Press EDID button The button will ash blue and the display will show the current Embedded EDID Status.
Step 2. Press the Destinations #1 ~ 8 button row Copy any (1~8) Destinations EDID.
Step 3. Press the Source #1, #6~#8 button row Learning the Destination EDID link to Source #1, #6 ~ #8 .
Step 4. Press ENTER button To conrm entries.
Learning EDID Single To ALL Learning Destination EDID Link To All Sources
Step 1. Press EDID button The button will ash blue and the display will show the current Embedded EDID Status.
Step 2. Press DESTINATION #1 ~ 8 button Learning anyone (1~8) Destination EDID to all sources.
Step 3. Press ALL button Learning selected destination EDID to all sources.
Step 4. Press ENTER button To conrm entries.
EDID Status To View The Current EDID Status
Step 1. Press EDID button The button will ash blue and the display will show the current Embedded EDID Status.
Step 2. Press EDID button To exit.
LEARNINGEDIDDenition Learning EDID From Destination To Source
1. Switcher will LEARN destination EDID and pass the selected source.
2. To set up learning between a single destination and single source: Press EDID button > Press DESTINATION (1 THRU 8) > Press
SOURCE (1 THRU 8) > Press ENTER to conrm. Switcher will learn the destination EDID to source device.
3. To set up learning between a single destination and multiple sources: Press EDID button > Press DESTINATION (1 THRU 8) >
Press the majority SOURCES (1 THRU 8) > Press ENTER. Switcher will learn the single destination EDID to many source devices.
4. How to Learn single destinations with all sources. Press EDID button > Press ALL button > Press ENTER to conrm.
MULTIPLELEARNING#2Denition Multiple Learning EDID From Destination To Source
1. Switcher will multiple LEARN destination EDID and pass the selected source.
2. To set up multiple learning between a single destination and single source: Press EDID button > Press OFF button > Press
DESTINATION (1 THRU 8) > Press ENTER to conrm. Switcher will learn destination EDID to source device.
3. When the Source has “LEARNED” the EDID data from a destination, it will save that EDID information into EPROM and the EDID
data will not change. To change saved HDMI EDID information, you have to select a new LEARNING destination to source or disable
the LEARNING.
17
EDID FUNCTION

LEARNING EDID - #1 Learning EDID From Destination To Source
Learning EDID Setup
Key Press Sequence:
EDID > DESTINATION > SOURCE > ENTER
Press EDID > DESTINATION Button: The LCM will be show LEARNING.
Switcher will LEARN the destination HDMI EDID and pass the selected source.
Learning EDID Setup For HDMI: Key Press Sequence:
EDID > DESTINATION # > SOURCE # > ENTER
The EDID for HDMI has been learned.
Press
EDID > DESTINATION > DESTINATION
> SOURCE > ENTER
Switcher will LEARN destination HDBaseT™CATx EDID and pass the selected
source.
Learning EDID setup for HDBaseT™CATx: Key Press Sequence:
EDID > DESTINATION # > DESTINATION # > SOURCE # > ENTER
Again, Press the same DESTINATION # to learn HDBaseT™CATx EDID The EDID
for HDBaseT™CATx has been learned.
NOTE : The already learned EDID cannot be modied. You can only rebuild a new Learning EDID.
For Example: When the Source has “Learned” the EDID data from a destination, It will save that EDID information into EPROM and
the EDID data cannot change. Please select a new learning destination to sources or change to one of the embedded EDID modes
when you want to remove the learning EDID memory from EPROM.
18
EDID FUNCTION
