Shire 6x3 Apex Bike Store No Floor User manual

Version 01 05/05/2020
These instructions are for your safety. Please read through them thoroughly before use.
PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE
Mass: 56.0 kg

Let’s
get started...
GB
IE
Important information...
Safety 03
Preparation of base 04
Warranty 04
Care, maintenance & Recycling 05
F Pour obtenir un exemplaire des instructions ou une copie dans une autre
langue s'il vous plaît envoyez un e-mail ou écrire à l'adresse ci-dessous.
PL Na kopii instrukcji lub kopii w innym języku prosimy o wysłanie maila
lub pisaćna adres podany poniżej.
RUS
Для получения копии инструкции или копия на другом языке,
пожалуйста, отправьте по электронной почте или написать по
указанному ниже адресу.
TR Başka bir dilde talimatlarıveya bir kopyasınıbir kopyasıiçin bir e-posta
gönderebilir veya aşağıdaki adrese yazınız.
EN For a copy of the instructions or a copy in another language please send
an email or write to the address below.
I Per richiedere una copia del libretto di istruzioni, in italiano, o in un’altra
lingua, per favore, invia una e-mail o scrivi a l’indirizzo sottostante.
02
In more detail...
Parts List 06
Fascia & Nail List 07
Detailed Technical Drawing 08-09
Hardware Chart 10
Before you start 11
Assembly Instructions 12-27

We advise the use of non slip protective gloves throughout
the assembly process.
We advise the use of steel capped protective footwear
throughout the assembly process.
We advise the use of protective headwear and safety
goggles throughout the assembly process.
Where a ladder is in use another person must hold the
ladder.
Do not attempt to work in windy conditions.
We advise the use of a scaffold tower when fitting the roof
for felting or if you cannot reach from the ground.
Do not allow children near the tools and work area.
Follow any safety precautions quoted by the manufacturer
for any equipment you use.
We advise that you use a helper to hold the glass in position
whilst you nail the beading in place.
Check all parts before assembly.
Only use child and animal safe wood preservative.
Do not use creosote.
Allow the wood preservative to fully dry before use.
Regularly check the building for wear and tear.
Getting Started…..
GB
IE
EVERY PRECAUTION IS TAKEN TO ENSURE THAT YOUR BUILDING HAS NO
ELEMENT INCORRECTLY PLACED OR POSSIBLY HAZARDOUS, HOWEVER
PRIOR TO USE PLEASE CHECK ALL SURFACES FOR THE FOLLOWING:
(1) RAISED GRAIN, SPLINTERS: Sand down timber to smooth finish
(2) NAIL/SCREW/PIN HEADS PROUD: Tap home to be flush with surface of
timber.
(3) DAMAGED SCREW HEADS RESULTING IN SHARP SPLINTERS OF
METAL: Replace.
(4) SHARP ENDS OF NAILS/ SCREWS/ PINS PROTRUDING THROUGH THE
PANEL: Remove and Reposition.
(5) ENSURE ALL PARTS ARE SECURED AGAINST REASONABLE FORCE:
Remove and Refit.
(6) ENSURE THERE ARE NO LOOSE PARTS: Remove and Refit/Discard.
Important!
Safety
IMPORTANT ! For your safety please read
carefully the safety warnings
Check that you have noted all the following instructions:
03

Getting Started…..
GB
IE
Base and Warranty
The following are also excluded:
 Damage resulting from poor assembly.
 Poor treatment application.
 Poor care and maintenance.
 Changes to the design.
 Misuse.
 General wear and tear.
Warranty...
10 Year anti-rot warranty subject to the following:
 The building must be raised so it is not in contact with any water
retaining base surface (for example grass).
 This can be achieved using a timber, concrete or slab base.
 When using a concrete or slab base use damp proofing strips
under the bearers.
 The building must have been completely treated and sealed
immediately prior to assembly.
 The building must have been re-treated and re-sealed annually.
NOTE: Wood is a natural product, and therefore the following are
excluded from the warranty:
- Colour change.
- Warping.
- Splitting.
Preparation of base...
We recommend that the base onto which your building will stand should be at least
75mm larger in each direction than the total floor size of the building.
Actual floor area of the building: 1848mm x 1848mm
Total height clearance: 1416mm
Roof size: 1940mm x 931mm
The chosen position in your garden for your building should be excavated to a depth
of 75mm to allow a base of sand, onto which paving slabs can be evenly laid.
You may also use an adjustable timber base or a concrete base. Whatever base you
decide upon IT MUST BE LEVEL AND FIRM.
04

Care, Maintenance and Recycling
1. Pallet and timber widely recycled.
2. Cardboard widely recycled.
3. Plastic strapping subject to local regulations.
4. Plastic sheeting subject to local regulations.
(1) Visually check for weather damage.
(2) Check and replace if necessary any silicone sealant if used on your
building.
(3) Check the roofing material for wear.
(4) The doors and windows may require periodical adjustment.
(5) Ensure your building is well ventilated especially during hot weather.
(6) During extremely hot periods, humidify your building to prevent the timber
from drying out.
The 5 golden rules of care:
The 6 golden rules of maintenance:
1. Timber widely recycled.
2. Metal fixings widely recycled.
3. Glass widely recycled.
4. Roofing felt not currently recycled.
packaging
Building
(1) Ensure your base is level and firm.
(2) Ensure the building is not sitting directly on the ground using damp proof
membrane or the optional timber base.
(3) Ensure every piece of timber and surface, especially that is hidden upon
assembly, is treated with a top quality wood preservative at least twice
(before assembly). Turn the panels upside down whilst painting so the
treatment runs into the seams.
(4) Garden buildings are not waterproof, therefore we recommend you seal
between all the panels with a silicone based sealant.
(5) Regularly check your roofing felt for weather damage and leaks.
Getting Started…..
GB
IE
05
Recycling and disposal:

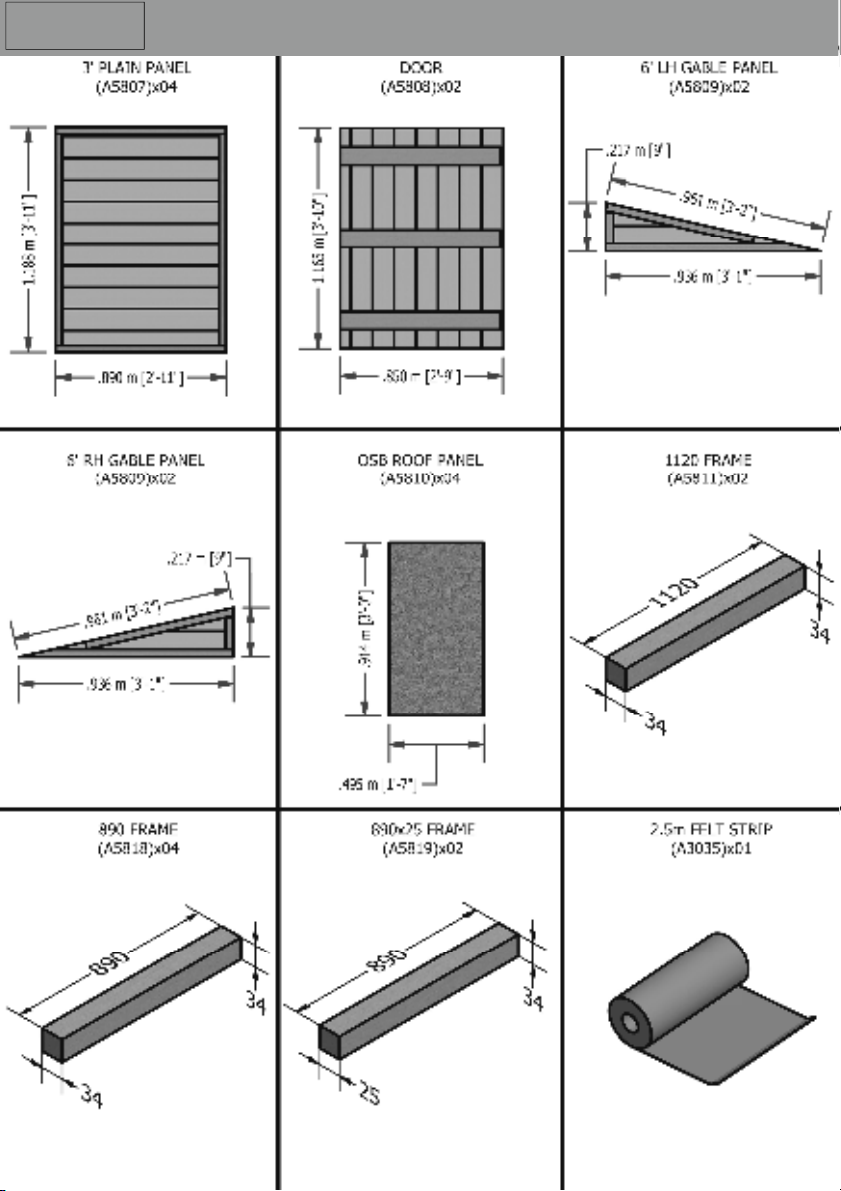

Stacked Parts List
Description
(part No ) - Qty
06

Fascia and Nail Bag Parts List
Description
(part No ) - Qty
07

In more detail…..
GB
IE
08

In more detail…..
GB
IE
09

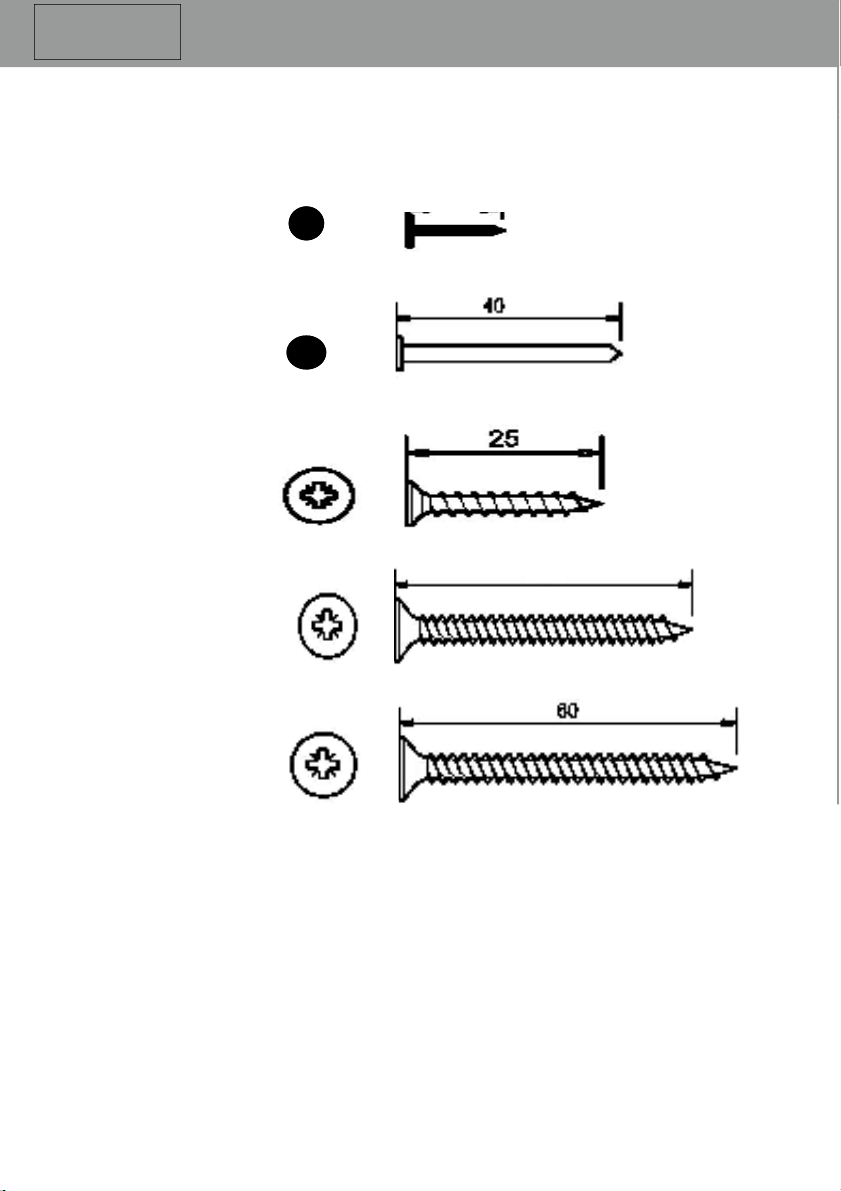

Hardware Chart
Scale 1:1
(A0266) x 44
8mm Felt Nail
(A0025) x 54
40mm Round Head Nail
(A0035) x 26
60mm Posi-Drive Screw
Nail bag contents
Description
(part No ) - Qty
8mm
(A0032) x 51
25mm Posi-Drive Screw
10
40
(A0033) x 12
40mm Posi-Drive Screw

11
Before you start...
Things to check before you start:
Check all parts as listed in the parts lists.
Read the instructions fully before starting work.
Follow all the health and safety guidelines.
Ensure your base is ready – See page 4.
You will need:
Hammer
Spirit level
Ladder
1mm + 5mm drill bit
Drill
Tape measure & Ruler
Sand paper
Gloves
Saw
Pencil
Goggles
A helper for some
tasks
 Screwdriver
 Sharp knife
Masking tape
When you see the drill icon
Only ever drill through the first
piece of framework which will be a
pilot hole for the screw to attach the
second piece of framework
The required drill bit size is
shown with the icon.
5mm
In more detail…..
GB
IE

GB-IE
01
Assembly instructions:
These instructions are for your safety. Please read through them thoroughly before use.
Treat all the parts before assembly – see page 5!
GB-IE The “Panel layout” is showing you how to position the panels.
The Front and Back Panels FIT INSIDE THE SIDE PANELS!
3’ Plain Panel
(A5807)x01
Panel Layout

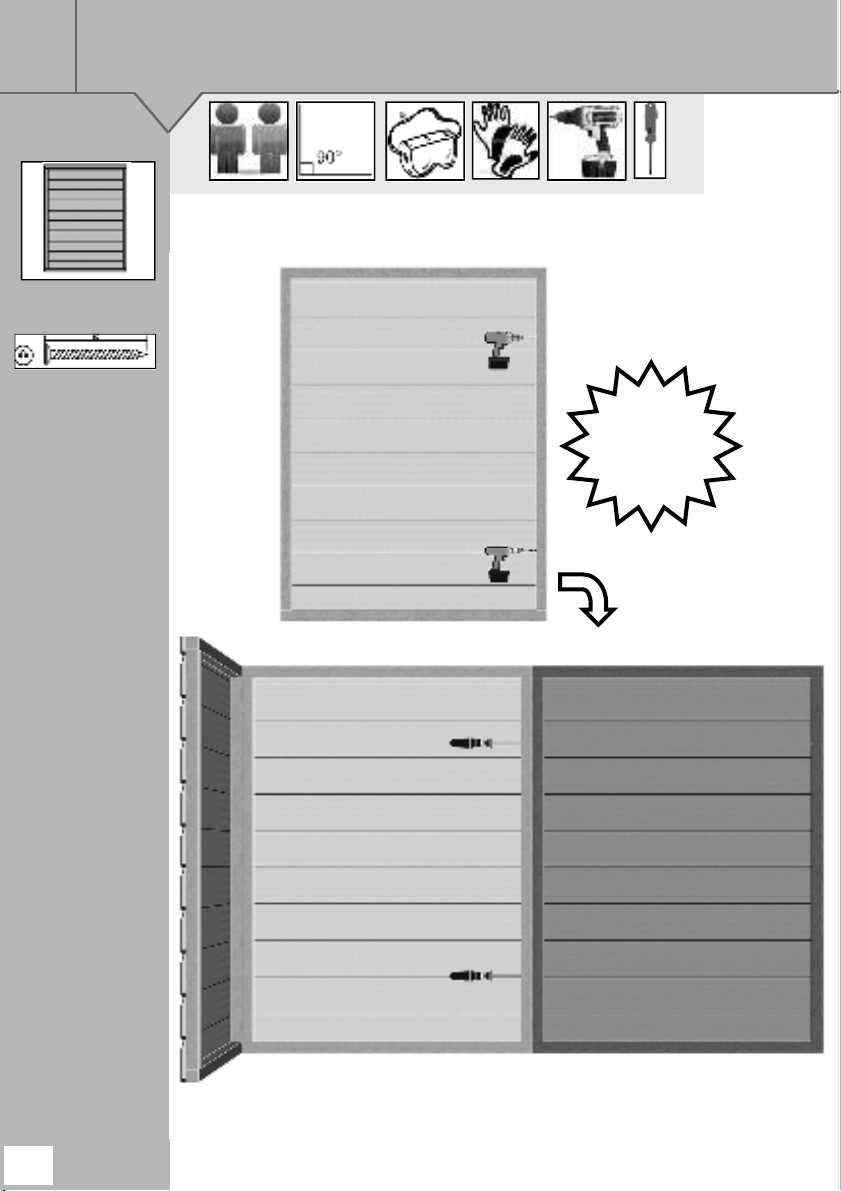

Drill one 3’ Plain Panel (A5807) as above.
12
5mm
NOTE
Some holes
drilled for
later use
A5807A5807
A5807
A5807
A5818 A5818
A5819

GB-IE
Screw another 3’ Plain Panel (A5807) to the panel drilled in Step 1 as below.
Fix together using 2x 60mm Screws (A0035) using pilot holes drilled previously.
02
13
60mm Screws
(A0035)x02
Step 1
(A5807)x01
3’ Plain Panel
(A5807)x01
If using a drill or
electric screwdriver
carefully but firmly
push the opposite end
to the screwdriver bit
into the screw head and keep the
pressure on to prevent the
screwdriver spinning in the screw.

GB-IE
Drill the third 3’ Plain Panel (A5807) as below.
Fix the panel using 2x 60mm Screws (A0035) using the pilot holes drilled in Step 1.
14
03 5 mm
NOTE
Some holes
drilled for
later use
60mm Screws
(A0035)x02
3’ Plain Panel
(A5807)x01

GB-IE
Screw the last 3’ Plain Panel (A5807) as below using the pilot holes drilled in Step 3.
Fix using 2x 60mm Screws (A0035).
04
15
60mm Screws
(A0035)x02
3’ Plain Panel
(A5807)x01

16
GB-IE
Place two 890 Frame (A5818) bars next to each other as below.
Drill and screw one 890x25 Frame (A5819) centrally over the two 890 frame bars.
Fix with 6x 40mm Screws (A0033).
05
GB-IE
Drill and screw the two 1120 Frame (A5811) in between the timber built in Step 5.
Fix with 4x 60mm Screws (A0035) to assembly the front frame.
06
5mm
890x25 Frame
(A5819)x02
890 Frame
(A5818)x04
5mm
1120 Frame
(A5811)x02
Step 5
60mm Screws
(A0035)x04
A5811
A5811
Step 5
Step 5
A5818
A5818
A5819
40
40mm Screws
(A0033)x12
X2

17
GB-IE

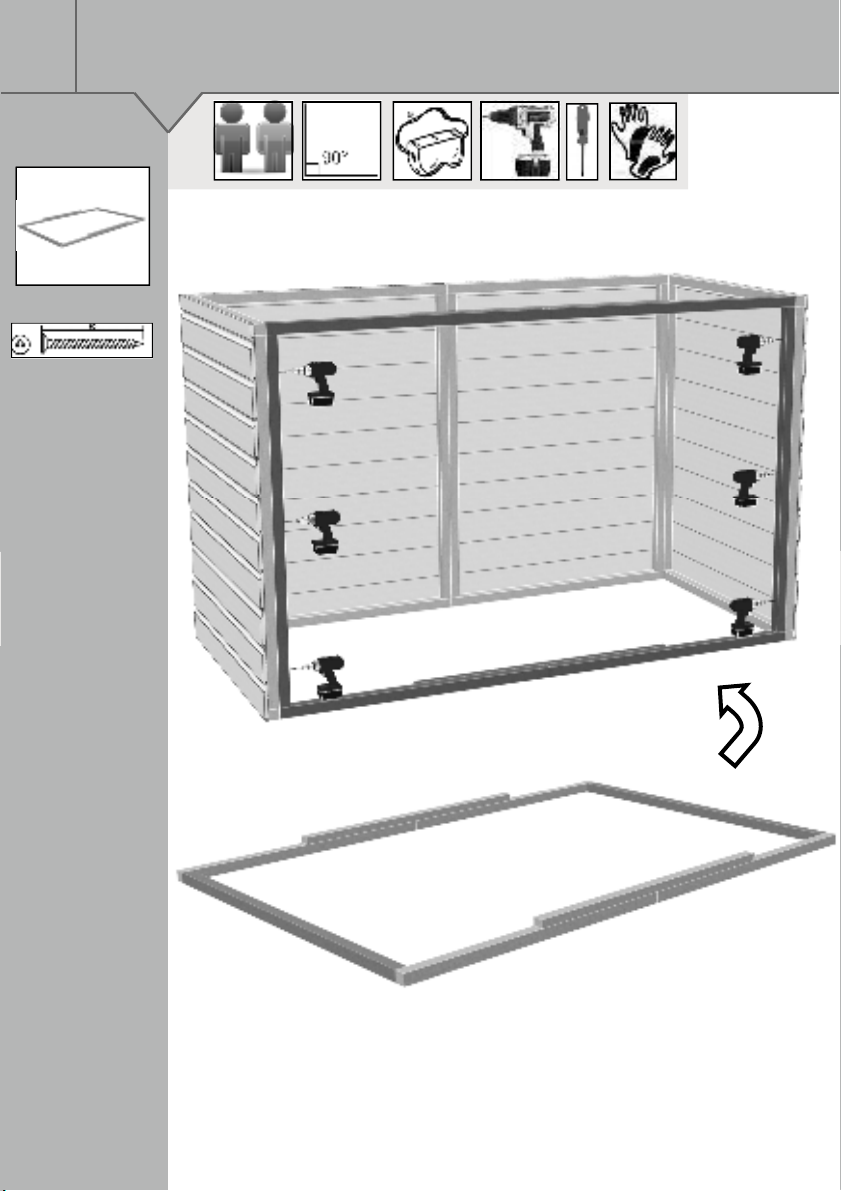

Drill and screw the Frame built in Step 6 in between the wall panels as below.
*Make sure the 25mm bar is facing inwards*
Fix with 6x 60mm Screws (A0035).
07
5mm
Step 6
60mm Screws
(A0035)x06

18
GB-IE
Drill the 6’ RH Gable Panels (A5809) with two holes along the bottom and one in the middle.
Drill the 6’ LH Gable Panels (A5809) with two holes along the bottom.
*One holes needs to be drilled at an angle as drill will not fit between panel*
Fix with 10x 60mm Screws (A0035).
08
X2
X2
6’ LH Gable Panel
(A5809)x02
6’ RH Gable Panel
(A5809)x02
60mm Screws
(A0035)x10
5mm

GB-IE

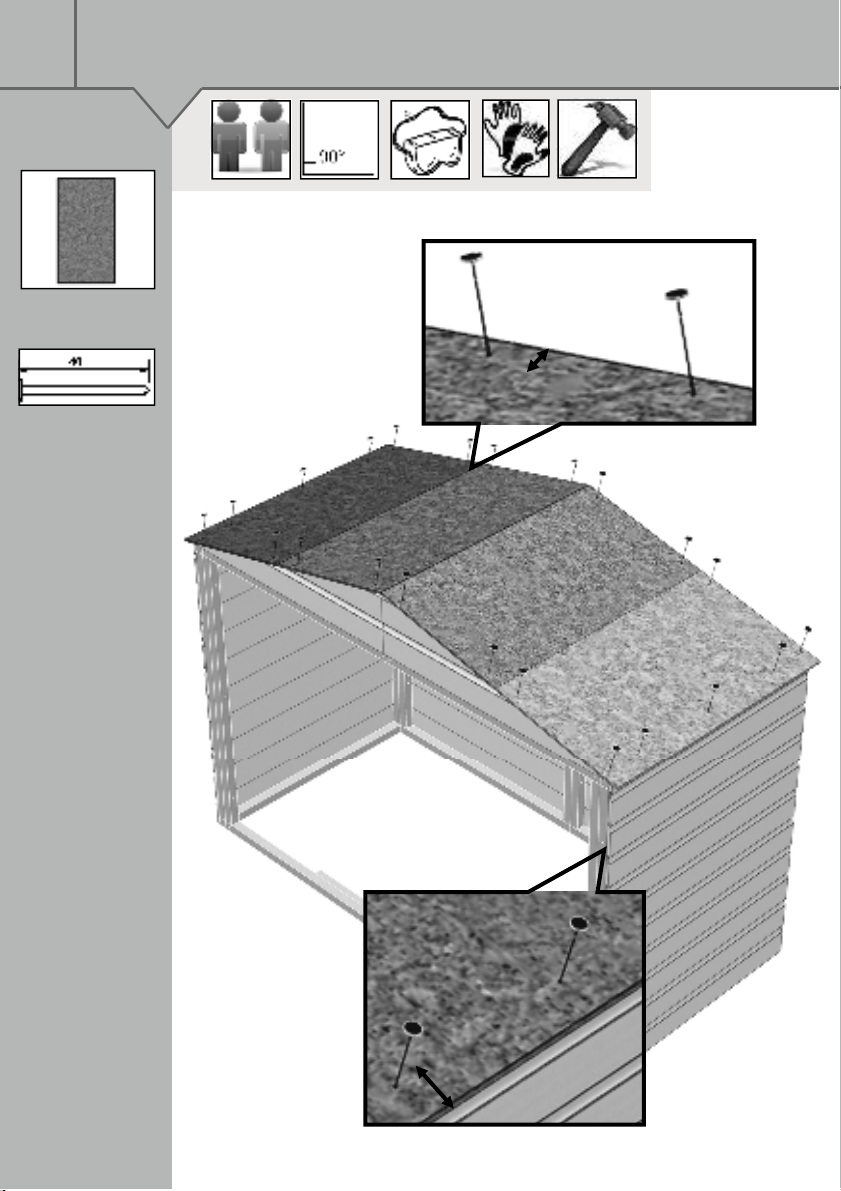

Place the four OSB Roof Panels (A5810) onto your building so that it sits with an even
overhang around the sides. Nail 4x 40mm Nails (A0025) 29mm in from the edge, along the
front and back edges and 3x 40mm Nails (A0025) 60mm in from the edge, along the sides.
MAKE SURE THE NAILS GO INTO THE WALL AND GABLE FRAMEWORK.
09
19
OSB Roof Panel
(A5810)x04
40mm Nails
(A0025)x22
Nail29mminfromedge
Nail60mminfromedge

Nail the two 1188x46x12 Coverstrips (A5820) to the back of the building using 3x 40mm
Nails (A0025) in each. Nail one 1395x46x12 Coverstrip (A5821) to the back, centrally using
4x 40mm Nails (A0025). Nail the two 1188x80x12 Coverstrips (A5823) using 3x 40mm
Nails (A0025) in each to the front of your building.
10
GB-IE
20
A5821
A5820
A5823
1188x46x12 Coverstrip
(A5820)x02
1395x46x12 Coverstrip
(A5821)x01
1188x80x12 Coverstrip
(A5823)x02
40mm Nails
(A0025)x16
A5820
A5823
