Congratulations!
You have bought a great, innovative product from Showtec.
The Showtec Trackpod 90 brings excitement to any venue. Whether you want simple plug-&-play action or a
sophisticated DMX show, this product provides the effect you need.
You can rely on Showtec, for more excellent lighting products.
We design and manufacture professional light equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [email protected]
You can get some of the best quality, best priced products on the market from Showtec.
So next time, turn to Showtec for more great lighting equipment.
Always get the best -- with Showtec !
Thank you!

1
2
2
3
3
4
4
4
4
5
5
5
5
5
6
6
7
8
9
9
9
10
Showtec
Showtec Trackpod 90™Product Guide
Warning..…...................................................................................………………………………………….
Safety-instructions………………………………………………………………………………………….….
Operating Determinations…………………………………………………………………………………….
Rigging………………………………………………………………………………………………………….
Description..…..............................................................................……….…………………………………
Features…….……………………………………………………………………………………….……...….
Overview………………………………………………………………………………………………………..
Backside………………………………………………………………………………………………………..
Installation...............................................................................…...…………………………………….……
Set Up and Operation.....................................................................……..…………………………….……
Panel Functions……..……………………………………………………………………………….……...…
- Mode…...............................................………….........................……………………....…………..
- F / S…..............................................................................….....………….........…………………..
Stand-Alone…………………………..…………………………………………………………….…….…….
Sound-Active……..…………………..…………………………………………………………….……...…..
DMX Operation…………..…………..…………………………………………………………….……...…..
- DMX Modes..…...............................………….........................……………………....…………….
Maintenance...................................................................................………..………….…….………………
Changing the Fuse........................................................................…………………….………….………
Troubleshooting............................................................................………………….………………….…..
Product Specifications.................................................................……………….…….…………………..

2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow
the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
•Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
•Never remove warning or informative labels from the unit.
•Never leave any cables lying around.
•Do not insert objects into air vents.
•Do not open the device and do not modify the device.
•Do not connect this device to a dimmerpack.
•Do not shake the device. Avoid brute force when installing or operating the device.
•Do not switch the device on and off in short intervals, as this would reduce the system’s life.
•Only use device indoor, avoid contact with water or other liquids.
•Only operate the device after having familiarized with its functions.
•Avoid flames and do not put close to flammable liquids or gases.
•Always allow free air space of at least 50 cm around the unit for ventilation.
•Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power-cord by the plug. Never pull out the plug by tugging the power-cord.
•Make sure that the device is not exposed to extreme heat, moisture or dust.
•Make sure that the available voltage is not higher than stated on the rear panel.
•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord
from time to time.
CAUTION!
Keep this device away from rain and moisture!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dan
g
erous electric shock when touchin
g
the wires!

3
•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
•For adult use only. The device must be installed out of the reach of children. Never leave the unit
running unattended.
•For replacement use fuses of same type and rating only.
•Repairs, servicing and electric connection must be carried out by a qualified technician.
•WARRANTY: Till one year after date of purchase.
OPERATING DETERMINATIONS
If this device is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
•If the Trackpod is lowered from the ceiling or high joists, professional trussing systems have to be
used.
•Use a clamp to mount the Trackpod, with the mounting-bracket, to the trussing system.
•The Trackpod must never be fixed swinging freely in the room.
•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
•When rigging, derigging or servicing the Trackpod, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
The Trackpod can be placed on a flat stage floor or mounted to any kind of truss by a clamp.
Improper installation can cause serious damage to people and property !

4
Description of the device
Features
The Trackpod 90 is a LED system from Showtec.
• Sound-controlled via built-in microphone
• 3 Modes: Stand-alone, DMX-controlled or Sound-controlled
NOTE: Knowledge of DMX is required to fully utilize this unit.
Overview
Fig. 1
1) Bracket for Floor mounting
2) 80 LEDs; Total Trackpod 640 LEDS
3) Mountingbracket for Truss mounting
4) Adjustment Screw
Backside
Fig. 2
5) Ventilation
6) DMX signal connector (IN)
7) DMX signal connector (OUT)
8) Mic
9) Audio Level (sensitivity)

5
Installation
Remove all packing materials from the Trackpod 90. Check that all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Panel Functions

6
Stand-alone Operation

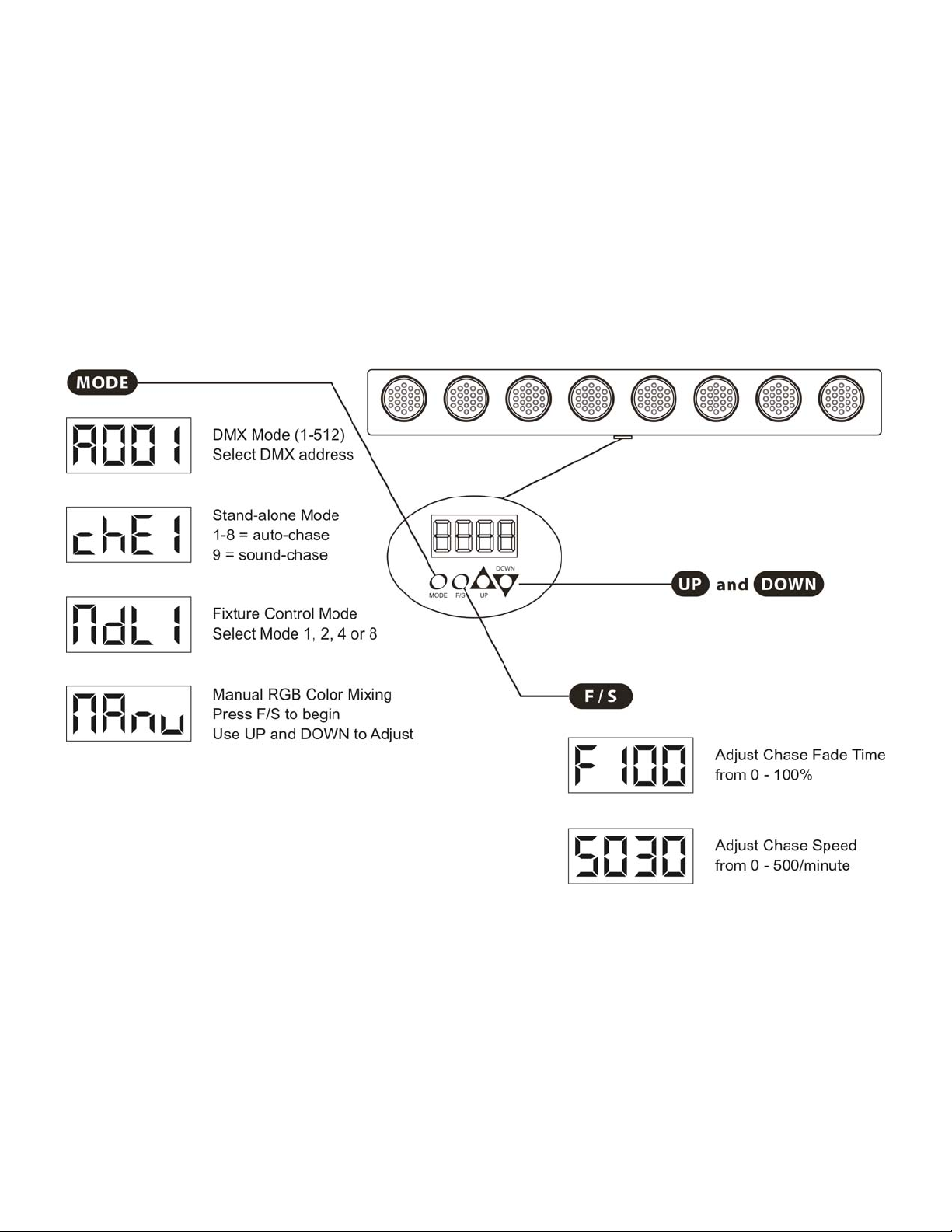

Refer to the four buttons on the front panel of the Trackpod: Mode
F / S
Up
Down

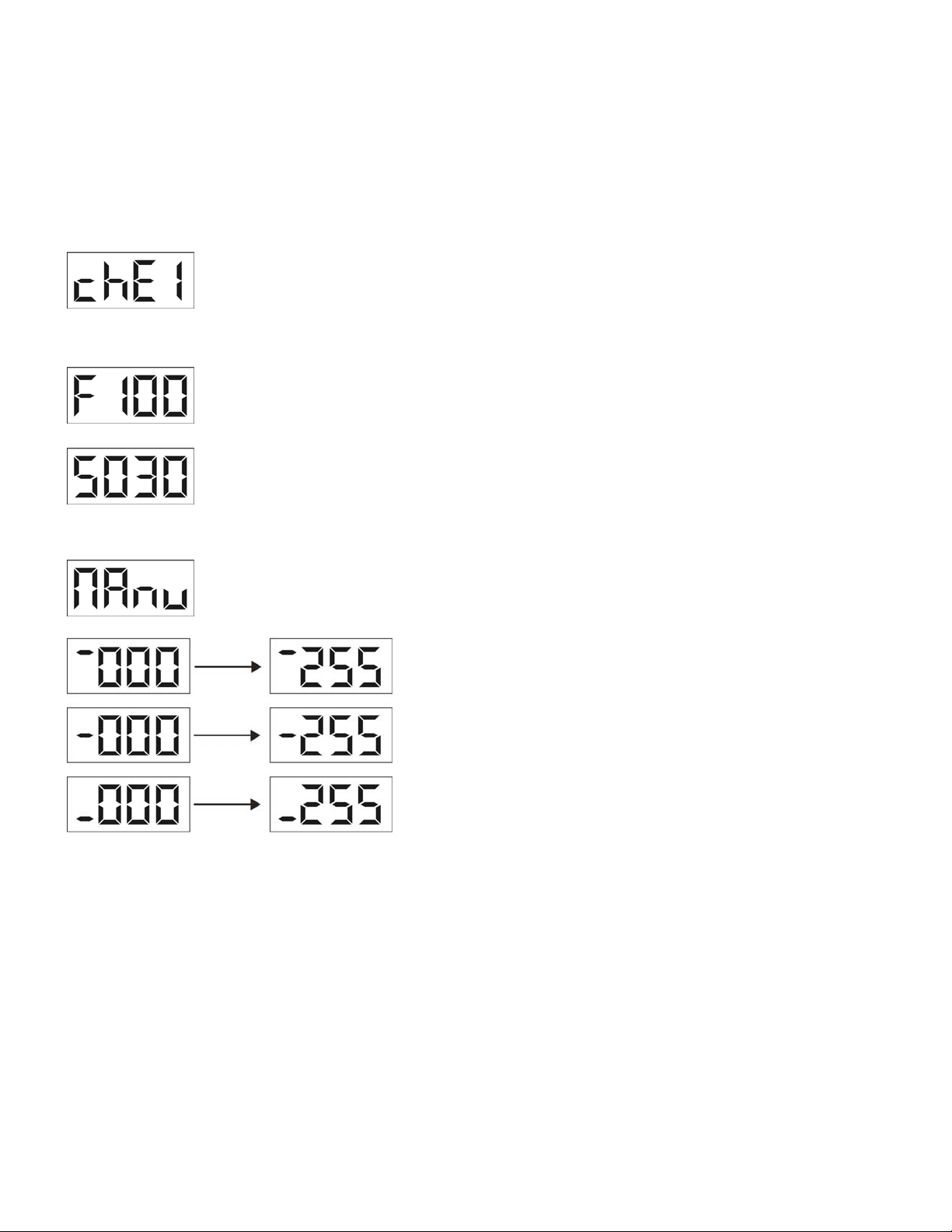

Press the MODE button to view the Chase menu:
Select Chases 1-9 using the UP and DOWN buttons.
Chases 1-8 run according to the Fade and Speed values.
Chase 9 is sound-active.
Press the F/S button to set the Fade and Speed values:
Adjust Chase Fade Time from 0-100%.
Adjust Chase Speed from 1-500 steps per minute.
Press the MODE button to view the Manual Color Mixing menu:
Press F/S to select the color you want to adjust.
Use UP and DOWN to mix the RGB colors and change their values.
Indicates Red with value from Dark (0) to Bright (255).
Indicates Green with value from Dark (0) to Bright (255).
Indicates Blue with value from Dark (0) to Bright (255).
Sound-active Operation
In Stand-alone mode, select Chase 9 and adjust the audio input level using the sensitivity control dial on the
side panel of the Trackpod.
In DMX mode, use Channel 6 to select Sound-active operation and to adjust the audio sensitivity.

7
DMX Operation
Press the MODE button to view the DMX address setting rnenu:
Select the DMX starting address for the Pixel Drive 8 using the
UP and DOWN buttons.
The DMX Channel functions are:
Channel 1: Rainbow
Channel 2: Red (0-255)
Channel 3: Green (0-255)
Channel 4: Blue (0-255)
Channel 5: Strobe (1-20HZ)
Channel 6: Sound-active/ Audio sensitivity
There are 8 modes of self-running programs (0-220) and 1 sound-active program (241-255) in Channel 6.
Chase 1: 1-30
Chase 2: 31-60
Chase 3: 61-90
Chase 4: 91-120
Chase 5: 121-150
Chase 6: 151-180
Chase 7: 181-210
Chase 8: 211-240
Sound-Active: 241-255
The Trackpod’s built-in controller will automatically detect the presence of a DMX signal.
IF a DMX signal is present, the front panel LED display will blink.
In order to receive a DMX signal, the built-in controller must be attached to a DMX controller by a 3-pin DMX
cable and the DMX controller must be turned on.
To mix RGB color using DMX, Channel 1 (Rainbow) must be off (0).
When programming your own DMX sequences, note that Channel 6 must be off (0) to avoid activating
Sound-active mode during playback.
The Trackpod system can operate as a 48-, 24-, 12- or 6- channel DMX fixture. Select DMX Mode 1, 2, 3 or
4 as described on the facing page.

8
DMX Modes
Press the MODE button to view the DMX mode selection menu. Use the UP and DOWN buttons to select
the DMX mode.

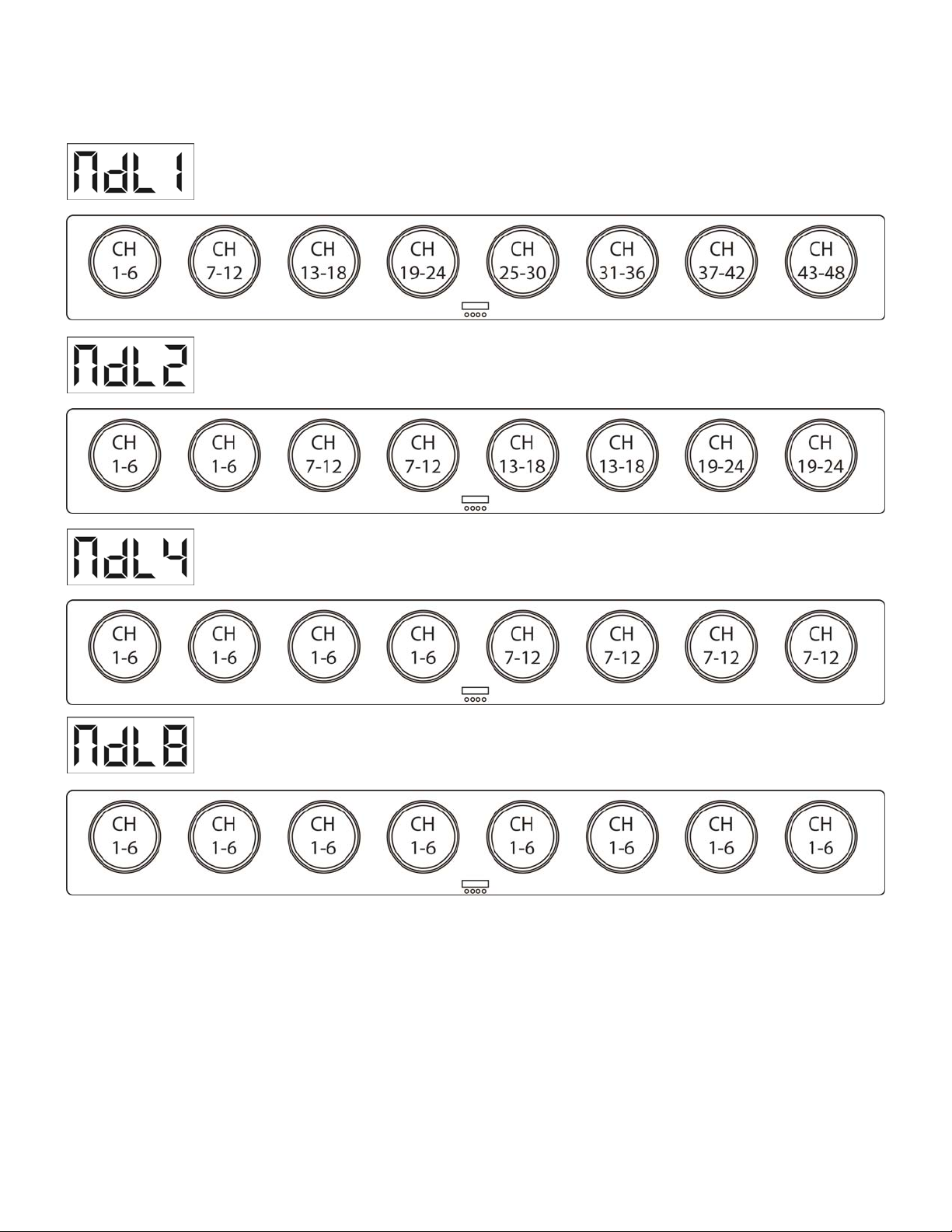

DMX Mode 1 : 48-channel operation {Control each Trackpod LED cluster separately)
DMX Mode 2 : 24-channel operation (Control 4 sets of 2 Trackpod LED clusters)
DMX Mode 4 : 12-channel operation (Control 2 sets of 4 Trackpod LED clusters)
DMX Mode 8 : 6-channel operation (Control 8 Trackpod LED clusters in unison)

9
Maintenance
The Trackpod 90 requires almost no maintenance. However, you should keep the unit clean. Disconnect the
mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid.
Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth.
Make sure connections are thoroughly dry before linking equipment or supplying electric power.
Replacing a Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the fuse
burns out, the product will not function whatsoever. If this happens, follow the directions below to do so.
1. Unplug the unit from electric power source.

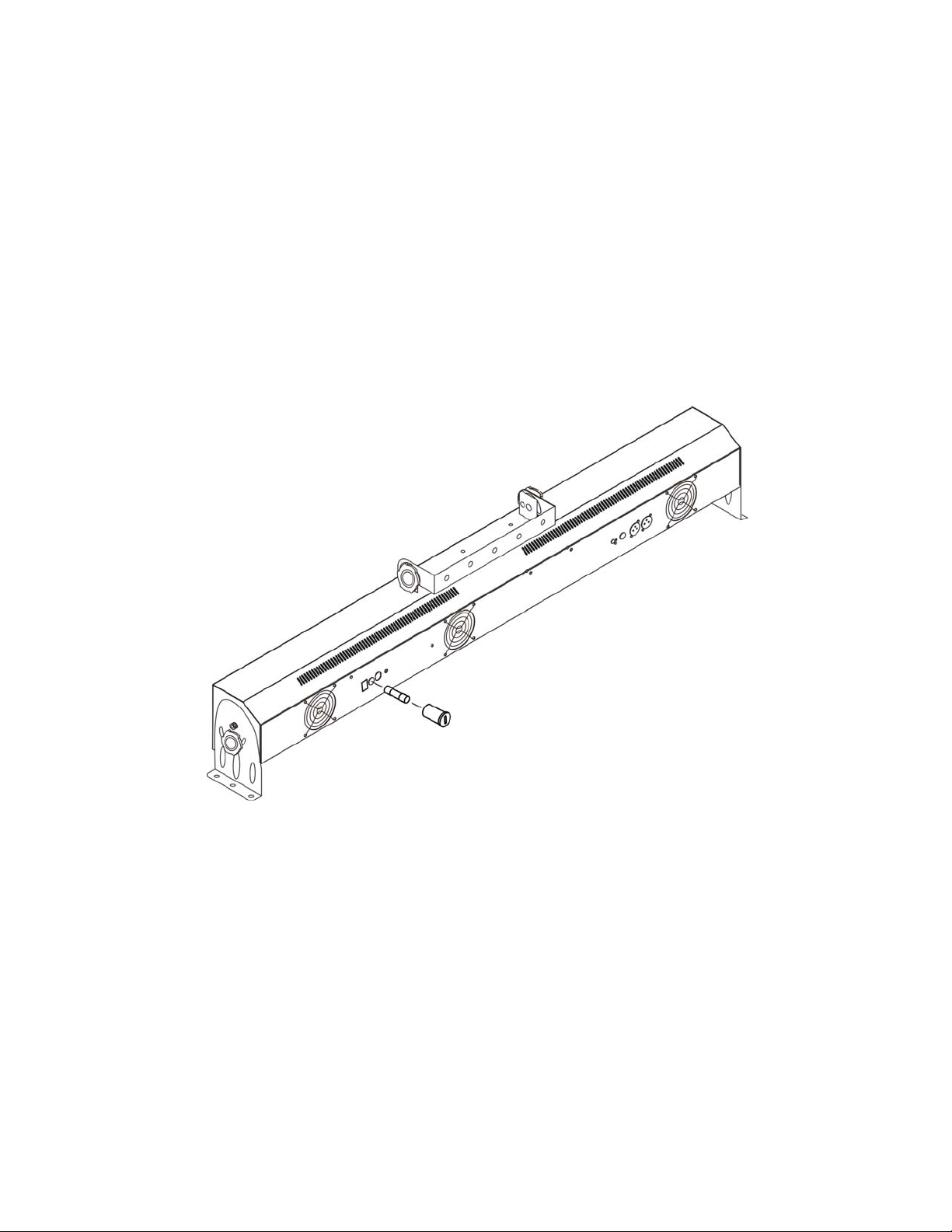

2. Insert a screwdriver into the slot in the fuse cover. Turn the screwdriver to the left, at the same time gently
push a bit (Turn and Push). The fuse will come out. (Fig. 3)
3. Remove the broken fuse. If brown or unclear, it is burned out.
4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover.
Be sure to use a fuse of the same type and specification. See the product specification label for details.
Fig. 3
Troubleshooting
Showtec Trackpod 90
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates
properly, do not carry out following steps.
1. If the device does not operate properly, unplug the device.
2. Check the fuse, power from the wall, all cables etc.
3. If all of the above appears to be O.K., plug the unit in again.
4. If you are unable to determine the cause of the problem, do not open the Trackpod, as this may damage
the unit and the warranty will become void.
5. Return the device to your Showtec dealer.

10
Product Specification
Model: Showtec Trackpod 90
Voltage : AC 230V-50Hz (CE)
Power: 115W
Audio trigger: Built-in Mic
DMX Input : 3-pin XLR Male connector
DMX Output : 3-pin XLR Female connector
Dimensions : 1270 x 240 x 215 mm (LxWxH)
Weight : 10 kg
Design and product specifications are subject to change without prior notice.

2005 Showtec.
