Show Tec Bat 3 Digital User manual

Bat 3 Digital
ORDERCODE 30852

Congratulations!
You have bought a great, innovative product from Showtec.
The Showtec Bat 3 Digital brings excitement to any venue. Whether you want simple plug-&-play action or a
sophisticated DMX show, this product provides the effect you need.
You can rely on Showtec, for more excellent lighting products.
We design and manufacture professional light equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [email protected]
You can get some of the best quality, best priced products on the market from Showtec.
So next time, turn to Showtec for more great lighting equipment.
Always get the best -- with Showtec !
Thank you!

1
2
2
3
4
5
5
6
7
7
7
7
8
9
9
9
9
10
10
11
12
13
14
14
15
15
15
15
15
16
Showtec
Showtec Bat 3 Digital™Product Guide
Warning..…...................................................................................…………………………………………..
Safety-instructions………………………………………………………………………………………….….
Operating Determinations…………………………………………………………………………………….
Rigging………………………………………………………………………………………………………….
Description..…..............................................................................……….…………………………………
Features and Overview ………………………………...….……………….………….………………….….
Backside…………………………………………………...…...….……………….…………………...….….
Installation...............................................................................…...…………………………………….…..
Installing the Lamp ........................................................………………………………………..…………
Set Up and Operation.....................................................................……..……………………………….…
One Bat ............................................................................………………………………………………...
Multiple Bat’s..............................................................................………………………………………….
DMX-Protocol…...................................................…………………………………………………………….
Control Panel….............……....................................……………………………………………………….
Control Mode........................................………………………………………………………………………
DMX addressing...................................………………………………………………………………………
Stand – alone mode...................................………………………………………………………………….
Functions control panel...................................………………………………………………………………
Master/Slave mode...................................…………………………………………………………………..
Channel / Mode setting...............................…………………………………..……………………………..
DMX Channels………………………………………………………………………………………………….…
Gobowheel.…................................................................................………..………….…….………………
Maintenance...................................................................................………..………….…….………………
Changing the Lamp........................................................................…………………….…………………
Replacing the Fuse........................................................................…………………….…………………
Troubleshooting............................................................................………………….………………….…..
No Light, No Movement - All Products............................................………………….…………………..
No Response to DMX ....................................................................………………….…………………..
Product Specifications.................................................................……………….…….…………………..

2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow
the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
•Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
•Never remove warning or informative labels from the unit.
•Never use anything to cover the ground contact.
•Never run the device without lamp!
•Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may
expose and emit a high ultraviolet radiation, which may cause burns.
•Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always
hold the fixture at the transport handles.
•Never look directly into the light source.
•Never leave any cables lying around.
•Do not insert objects into air vents.
•Do not connect this device to a dimmerpack.
•Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.
•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
•Do not shake the device. Avoid brute force when installing or operating the device.
•Only use device indoor, avoid contact with water or other liquids.
•Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
CAUTION!
Keep this device away from rain and moisture!
Un
p
lu
g
mains lead before o
p
enin
g
the housin
g
!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dan
g
erous electric shock when touchin
g
the wires!

3
•Only operate the device after having familiarized with its functions.
•Avoid flames and do not put close to flammable liquids or gases.
•Always replace the lamp, when it is damaged or deformed due to the heat.
•Always keep case closed while operating.
•Always allow free air space of at least 50 cm around the unit for ventilation.
•Always disconnect power from the mains, when device is not used, before cleaning or when
replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the
power-cord.
•Make sure you clean the fan once a month. Otherwise dust will cause the fan to stop and the device
will become damaged due to overheating. Then the warranty will become void.
•Make sure that the device is not exposed to extreme heat, moisture or dust.
•Make sure that the available voltage is not higher than stated on the rear panel.
•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord
from time to time.
•If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to
cracks or deep scratches.
•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
•For adult use only. Lighteffect must be installed out of the reach of children. Never leave the unit
running unattended.
•For replacement use lamps and fuses of same type and rating only.
•Allow time to cool down, before replacing lamp.
•This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
•During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
•Repairs, servicing and electric connection must be carried out by a qualified technician.
•WARRANTY: Till one year after date of purchase.
OPERATING DETERMINATIONS
This device is not designed for permanent operation. Consistent operation breaks will ensure that the device
will serve you for a long time without defects.
The minimum distance between light-output and the illuminated surface must be more than 0.8 meter.
The maximum ambient temperature tamust never be exceeded.
If this device is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.
You endanger your own safety and the safety of others!
CAUTION ! EYEDAMAGES !.
Avoid looking directly into the light source.
(
meant es
p
eciall
y
for e
p
ile
p
tics
)
!

4
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
•If the projector is lowered from the ceiling or high joists, professional trussing systems have to be
used.
•Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.
•The projector must never be fixed swinging freely in the room.
•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
•When rigging, derigging or servicing the projector, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
Improper installation can cause serious damage to people and property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
Cable Pin International
BROWN FASE L
BLUE NEUTRAL N
YELLOW/GREEN EARTH
Make sure that the device is always connected properly to the earth!

5
Description of the device
Features
The Showtec Bat 3 Digital is a light effect with high output and great effects.
• 1 Gobo-wheel with 15 gobos plus open
• DMX-control via standard DMX-controller
• 5 DMX-control channels required
• Strobe-effect with adjustable speed (1 - 8 flashes/sec.)
• Sound-controlled via built-in microphone
• Lamp ELC 24V 250W
• Fuse T3A / 250V
1
Overview
8
Fig. 1
2 3 4 5
1) Carrying handle
2) Display
3) Menu / Select buttons
4) Lens
5) Barrel

6
Backside
6
7
8
9
10
Fig. 2
6) Eye for safety cable
7) DMX signal connector (OUT)
8) DMX signal connector (IN)
9) IEC power connector / Fuse 3A / 250V
10) Ground

7
Installation
Installing the Lamp
The Showtec Bat 3 Digital uses the ELC (ordercode 80809G) reflectorbulb as manufactured by all popular
manufacturers. Use only the appropriate lamp for your unit.
Note that, product versions that use other lamps, may be offered in the future. Check your product
specification label for information.
Always disconnect from electric mains power supply before changing lamps.
The lamp has to be replaced when it is damaged or deformed due to the heat.
Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the
device was not designed for.
Damages caused by non-observance are not subject to warranty.
Procedure :
1. Loosen all 10 screws on top of the cover.
2. Remove the cover and gently pull out the lamp socket. Read lamp instructions. Do not touch the lamp
bulb glass. Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with a
clean, lint-free towel and rubbing alcohol.)
3. Hold the lamp socket with one hand. Insert the lamp pins into the small holes in the lamp socket.
4. Push the lamp and the socket in to the lamp holder.
5. Put the cover back and fasten all the screws snugly.
1 2 3 4
Fig. 3
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
One Bat 3
1. Fasten the Bat 3 onto firm trussing. Leave at least 1 meter on all sides for air circulation.
2. Plug one end of the electric mains power cord into the IEC socket on the unit.
Then plug the other end of the cord into a proper electric power supply socket.
3. Turn on the music. If F4 (Audio) is set, then the fixture will react to the beat of the music.

8
Multiple Bats
1. Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
2. Use a 3-p XLR cable to connect the Bats and other devices.
The pins:
1. Earth
2. Signal -
3. Signal +
3. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
4. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the other
end of the mains power cord into proper electric power supply sockets, starting with the first unit. Do not
supply power before the whole system is set up and connected properly.

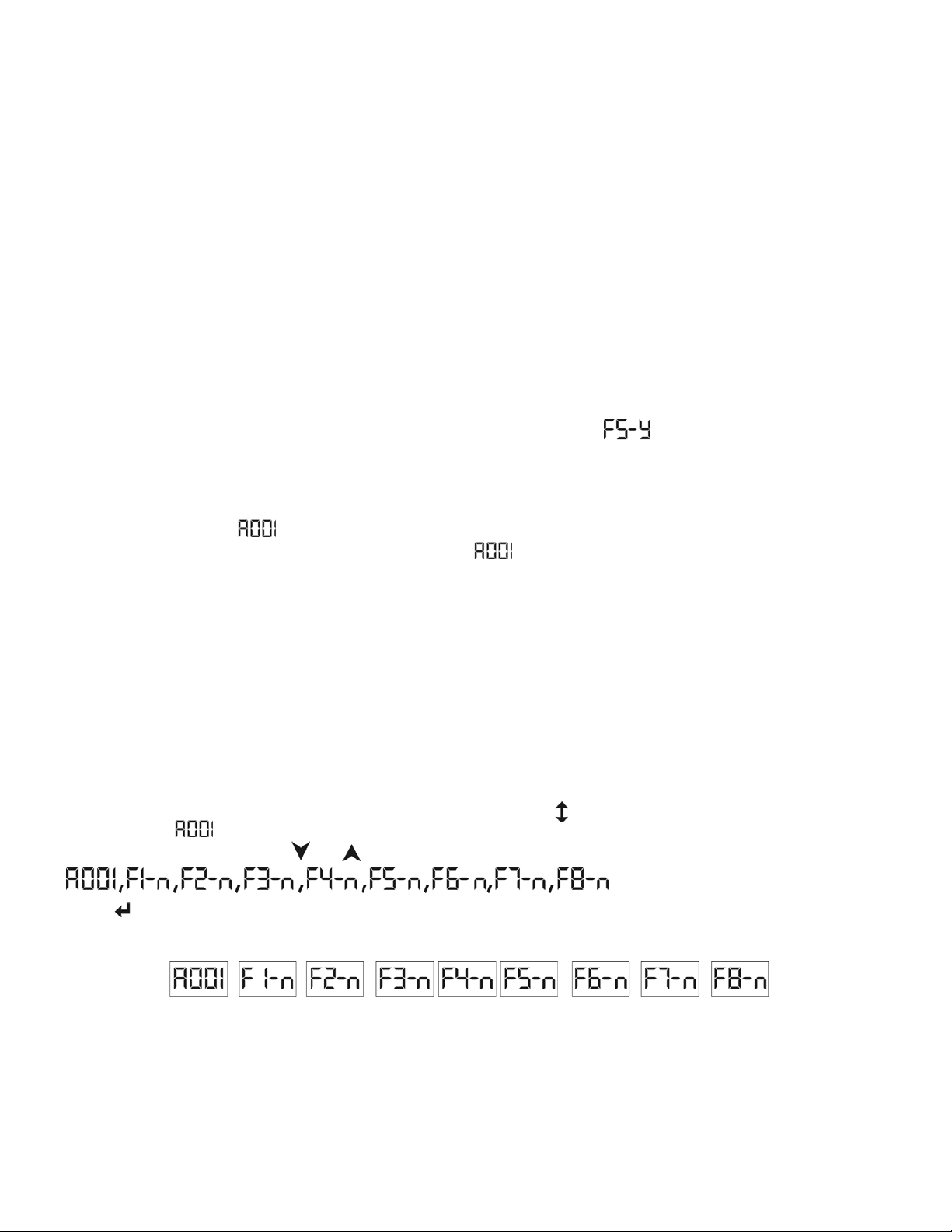

5) Press , until the display shows F6-n or F6-y (with actually stored address).
6) Select , the display shows . Select , the display shows “ . Then select F4-y (audio-
controlled) on the master device. Only one fixture can be the master.
7) On the slave devices you must select F6-n and F4-n. The DMX light on the slave devices will start
blinking. The slave devices must have address A001.
Multiple Bats Set Up
DMX-Set up
Master/Slave Set up
Fig. 4
Note : Link cables before connecting electric power

9
DMX Protocol
The Bat 3 Digital can be operated with a controller in control mode or without the controller in stand-alone
mode.
Control Panel
When the indicator light is on, means the Bat is working
Fig. 5
A. LED D. [MODE] Button
B. Display E. Up Button
C. [ENTER] Button F. Down Button
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the Bat 3 allows you to assign the DMX fixture address, which is the
first channel from which the Bat will respond to the controller.
Please note when you use the controller, the unit has 5channels.
When using multiple Bats, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Bat should be 1(A001); the DMX address of the second Bat should
be 1+5=6(A006); the DMX address of the third Bat should be 6+5=11(A011), etc.
Please, be sure that you don’t have any overlapping channels in order to control each Bat correctly.
If two or more Bats are addressed similarly, they will work similarly.
For address settings, please refer to the instructions under ”Addressing’ (menu )
Controlling:
After having addressed all Bat fixtures, you may now start operating these via your lighting controller.
Note: After switching on, the Bat will automatically detect whether DMX 512 data is received or not. If there
is no data received at the DMX-input, the “LED “ on the control panel will not flash.
The problem may be:
- The XLR cable from the controller is not connected with the input of the Bat.
- The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.

10
Remotely controllable functions
Pan movement
The mirror can be controlled horizontally.
Rotating barrel
The barrel can rotate forwards or backwards.
Static gobo-wheel
This gobo-wheel has 15 metal gobos and open.
Shutter/Dimmer/Strobe
The dimming (0-100%) is provided by a simple mechanical shutter unit. This unit may also be used for
strobe effect (1-8 flashes per second).
Stand-alone Mode
The fixtures on a data-link are not connected to the controller, but can execute pre-set programs, which can
be different for every fixture.
To set the program to be played, see the “Stand-alone setting “ ( menu ) Stand-alone operation” can
be applied to a single fixture (the fixture may be set to the master/slave mode or controller mode) or to
multiple fixture operating synchronously.
For synchronous operation of multiple fixtures the fixtures must all be connected on a data-link and one of
them is set as a master (master mode) and the rest as slaves (slave mode). The DMX address of all the
slaves are assigned to and on that particular slave address only one fixture can be connected. To the
fixture as the master or slave, see “Addressing” (menu ).
If the master fixture resets or runs a test (program), all slaves will execute these acts too.
You can’t play or edit any program on a slave, if the master is switched on and connected to the
master/slave chain.
Note: Disconnect the fixtures from the DMX controller before master/slave operating, otherwise data
collisions can occur and the fixtures will not work properly!
It’s necessary to insert the XLR termination plug (with 120 Ohm ) into the input of the master fixture and into
the output of the last slave fixture in the data-link, in order to ensure proper transmission on the data link.
From the master’s control panel it is possible to control any slave in a master/slave chain.
Functions control panel
The control panel is situated on the front of the base and offers several features. You can simply set the
DMX address, master/slave mode, make a reset and also use many functions for setting purposes.
The main menu of the control panel is accessed by pressing the button [MODE] - press this one until the
display shows (with actually stored address).
Browse the menu by pressing or buttons - the display will show :
Press if you wish to select one of them. The functions are described in the following sections and the
function hierarchy is shown below.

11
Addressing
With this menu you can set the DMX address or address a fixture as a master/slave.
- DMX addressing
1) Press , until the display shows .
2) Press to confirm, the display will show (with actually stored address).
And press and to select the required address , press to confirm.
3) Press , the chosen address is shown on the display.
- Master / slave addressing
1) Press , until the display shows or (with actually stored address).
2) If the display shows message (with actually stores address).
Select , the display shows .
Select , the display shows “ , (with actually stored address).
If you want to address no master or slave, don’t select .
3) Only one fixture can be the master.
When operating the Bat, you can identify the master fixture from the slave fixture easily. The master
device has no cable to the DMX input plug.
Note: Disconnect the fixture from the DMX controller before master/slave operating, otherwise data
collisions can occur and the fixtures will not work properly!

12
Operating options
These options allow you to modify the Bat 3 Digital’s operating behavior.
Press to select the desired option, Press to cancel the desired option and press to set the value.
To return to the menu, press .
The function makes it possible to select from the 5 DMX – channels settings. Use to select the desired
channel setting ( ) and press to confirm or to cancel. Press to return to the
menu.
Channels settings
Channel Action
1 Pan
2 Barrel
3 Gobo Rotation
4 Mirror Rotation
5 Shutter
- Reset function
This option enables the Bat 3 Digital to index all effects (function) and return to their standard positions.
Press ,until the display shows or .
If the display shows (with actually stored address). Press , the display shows .
Press to run a reset. The option enables the Spot to index all effects (functions) and return to their
standard positions, the display shows , ( with actually stored address ). If you want address no reset,
don’t select .
- Music trigger
The Bat 3 Digital enables the sound control of the running programs via the built-in microphone. Press ,
until the display show s or .
If the display shows (with actually stored address). Press , the display shows .
Press to music trigger. The display shows , (with actually stored address ). If you want address no
music trigger, don’t select .
- Playing program
This function allows you to run a built -in program. Press ,until the display shows or .
If the display shows (with actually stored address). Press , the display shows .
Press to play the program. the display shows , ( with actually stored address ). If you want
address no playing program don’t select .
- Display reverse
With this function, you can adjust the display by 180º. Press ,until the display shows or .
If the display shows (with actually stored address). Press , the display shows .
Press to play the program. The display shows , (with actually stored address ). If you want
address no playing program, don’t select .

13
Channel 1-Pan
Push slider up in order to move mirror horizontally (Pan). Gradual mirror adjustment, from one end of the
slider to the other end, is possible (0-255, 128-center). The mirror can be stopped at any position you wish.
Channel 2-Barrel
0-5 No rotation
6-120 Forward rotating from fast to slow
121-140 No rotation
141-255 Backward rotating from slow to fast
Channel 3-Coloured Gobos
0-7 Open
8-15 Gobo 1
16-23 Gobo 2
24-31 Gobo 3
32-39 Gobo 4
40-47 Gobo 5
48-55 Gobo 6
56-63 Gobo 7
64-71 Gobo 8
72-79 Gobo 9
80-87 Gobo 10
88-95 Gobo 11
96-103 Gobo 12
104-111 Gobo 13
112-119 Gobo 14
120-127 Gobo 15
128-132 Open
133-213 Shaking gobo with variable speed
133-137 Gobo 1
138-142 Gobo 2
143-147 Gobo 3
148-152 Gobo 4
153-157 Gobo 5
158-162 Gobo 6
163-167 Gobo 7
168-172 Gobo 8
173-177 Gobo 9
178-182 Gobo 10
183-187 Gobo 11
188-192 Gobo 12
193-197 Gobo 13
198-202 Gobo 14
203-207 Gobo 15
208-213 Gobo 16 (Iris)
214-223 Sound activity gobo
224-225 Open
226-255 Forwards continuous rotating from slow to fast

14
Channel 4- Mirror dish
0-127 Reflector index
128-189 Forwards continuous rotating from fast to slow
190-193 No rotation
194-255 Backward continuous rotating from slow to fast
Channel 5- Shutter, Strobe
0-31 Blackout
32-63 No function (shutter open)
64-95 Strobe-effect from slow to fast (max. flashes 8/sec.)
96-127 No function (shutter open)
128-159 Sound activity strobe
160-191 Pulse strobe in sequence from slow to fast
192-223 Pulse strobe in sequence from slow to fast
224-255 No function (shutter open)

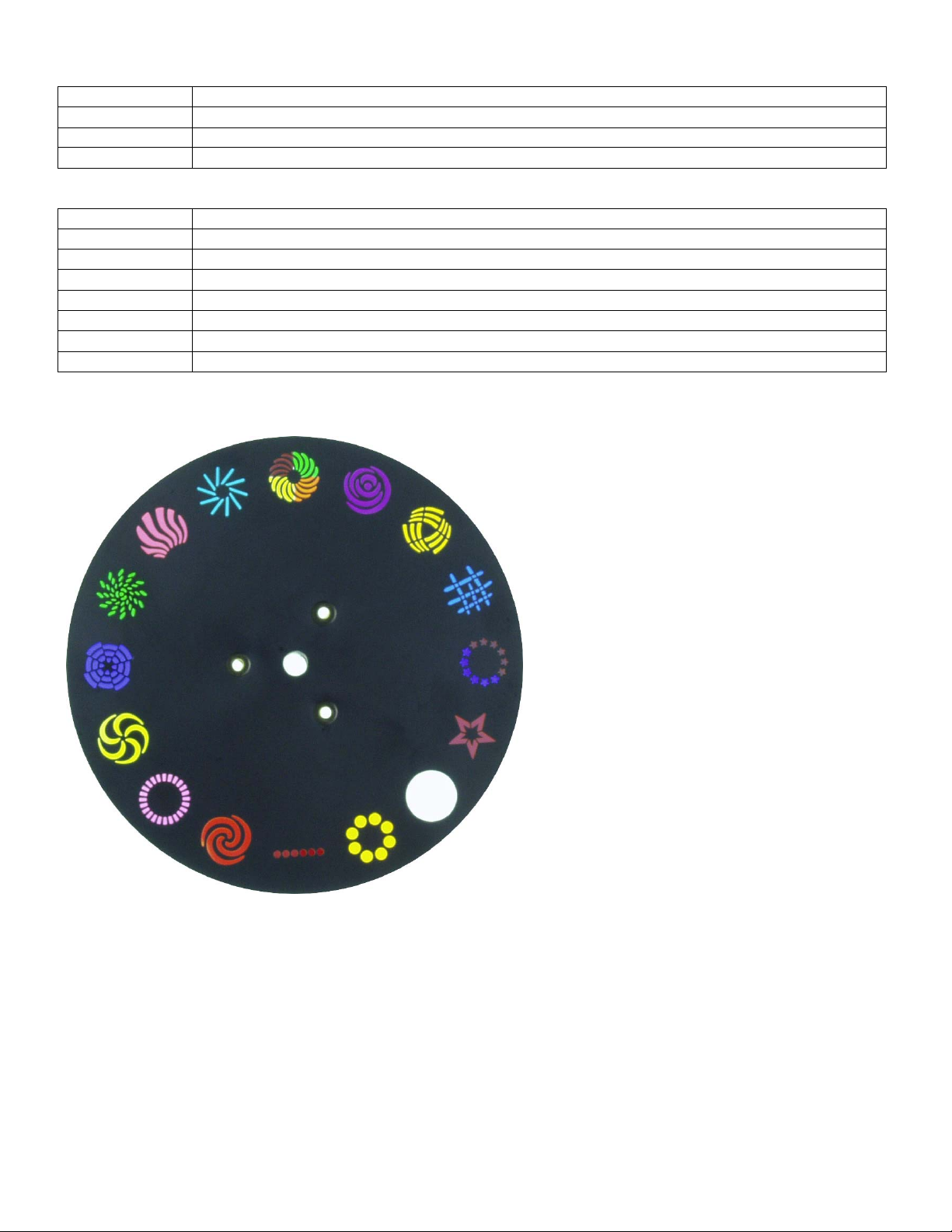

Gobowheel
Maintenance
The operator has to make sure that safety-relating and machine-technical installations are to be inspected
by an expert after every four years in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are to be inspected
by a skilled person once a year.
The following points have to be considered during the inspection:
1. All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
2. There may not be any deformations on housings, fixations and installation spots.
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
4. The electric power supply cables must not show any damages or material fatigue.

15
The Showtec Bat 3 Digital requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and
then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a
soft cloth. Do not use alcohol or solvents.
The front PC lens will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light-
output very quickly.
The cooling-fans and the internal lenses should be cleaned monthly with a soft brush. Dust will cause the
fan to stop and the device will become damaged due to overheating. Then the warranty will become void.
Please clean internal components once a year with a light brush and vacuum cleaner.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections with a
damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.
Changing the Lamp
1. Disconnect mains power supply. Loosen all 10 screws on of the cover.
Gently pull out the lamp holder.
2. With one hand holding the lamp socket, pull the lamp out of the lamp socket with the other.
3. Follow directions for installing a new lamp, page 7.
Replacing a Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the fuse
burns out, the product will not function whatsoever. If this happens, follow the directions below to do so.
1. Unplug the unit from electric power source.
2. Insert a flat-head screwdriver into a slot in the fuse cover. Gently pry up the fuse cover.
3. Remove the used fuse. If brown or unclear, it is burned out.
4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to
use a fuse of the same type and specification. See the product specification label for details.
Troubleshooting
No Light, No Movement - All Products
This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps
below in sequence until a solution is found. Once the unit operates properly, do not carry out following
steps.
If the light effect does not operate properly, refer servicing to a technician.
Response: Suspect three potential problem areas: the power supply, the lamp, the fuse.
1. Power supply. Check that the unit is plugged into an appropriate power supply.
2. The lamp. Replace the old lamp with a new one with the same specifications. See page 7 for replacing
lamps.
3. The fuse. Replace the fuse. See page 15 for replacing the fuse.
No Response to DMX
Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card
malfunction.
1. Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. Try
your DMX control again.
2. Determine whether the controller or light effect is at fault. Does the controller operate properly with other
DMX products ? If not, take the controller in for repair. If so, take the DMX cable and the light effect to a
qualified technician.

16

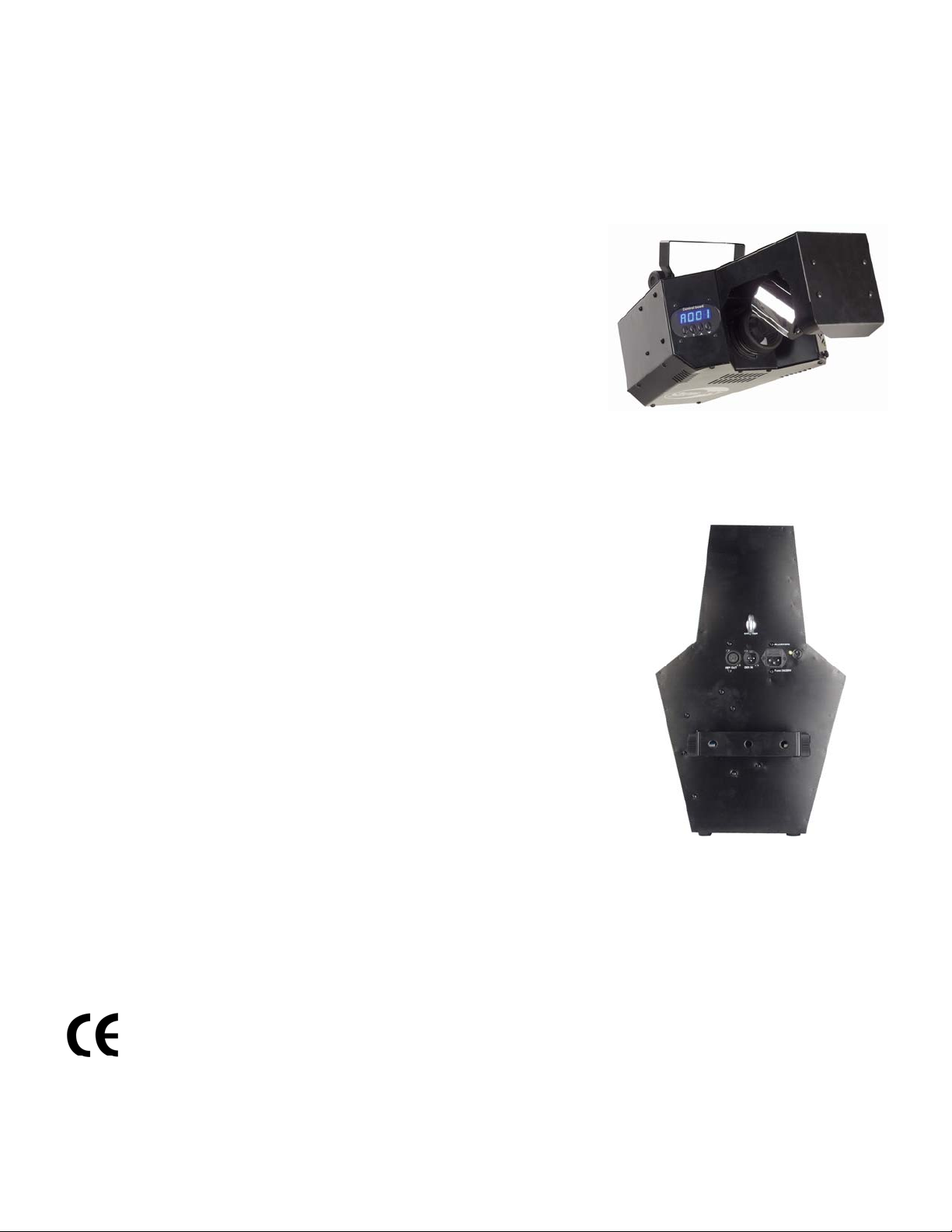

Product Specification
Model: Showtec Bat 3 Digital
Voltage: 240V-50Hz (CE)
Fuse: 3A / 250V
Dimensions: 530x320x160mm (LxWxH)
Weight: 10,4 kg
Operation and Programming
Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+)
Set Up and Addressing: LED control panel
DMX Channels 5
Signal input 3-pin XLR male
Signal output 3-pin XLR female
Lamp
Allowed lamp models*:
Osram ELC 24V 250W ordercode 80809O
GE ELC 24V 250W ordercode 80809G
Philips ELC 24V 250W ordercode 80809P
Control: Automatic and DMX remote ON / OFF
Electro-mechanical effects
Gobos: 15 gobos plus open
All lenses are anti-reflection coated
High luminous-efficiency parabolic system
Dimmer: 0 – 100% linear dimmer
Strobe-effect with variable speed (1 flash -- 8 flashes/sec.)
DMX-control via standard DMX-controller
Sound-controlled via built-in microphone
Wheel control: auto-electronic reset
Gobos
Max. ambient temperature ta: 40°C; Max. housing temperature tB: 80°C
Cooling: 1 axial fan in the projector
Motor: 5 high quality stepping-motor controlled by microprocessors
Minimum distance:
Minimum distance from flammable surfaces: 0.5m
Minimum distance to lighted object: 0.8m
*: Versions for other lamps may be produced. Please check the specification label on your product.
Design and product specifications are subject to change without prior notice.

2004 Showtec.
