Show Tec LED Par 56 Ultra Bright RGB User manual

LED Par 56 Ultra Bright RGB
Black ORDERCODE 42450
Polished ORDERCODE 42451

Congratulations!
You have bought a great, innovative product from Showtec.
The Showtec LED Par 56 Ultra Bright RGB brings excitement to any venue. Whether you want simple plug-&-
play action or a sophisticated DMX show, this product provides the effect you need.
You can rely on Showtec, for more excellent lighting products.
We design and manufacture professional light equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [e-mail]
You can get some of the best quality, best priced products on the market from Showtec.
So next time, turn to Showtec for more great lighting equipment.
Always get the best -- with Showtec !
Thank you!

1
2
2
3
4
5
5
5
5
7
7
7
7
8
Showtec
Showtec LED Par 56 Ultra Bright RGB™Product Guide
Warning..…...................................................................................…………………………………………...
Safety-instructions………………………………………………………………………………………….…
Operating Determinations……………………………………………………………………………….…
Rigging………………………………………………………………………………………………………….
Description..…..............................................................................……….…………………………………..
Features and Overview ………………………………...….……………….………….…………………...
Set Up and Operation.....................................................................……..……………………………….…
Control Modes………………………………………………………………………………………………...
DMX Channels.........................................................................……………………………………………
Maintenance...................................................................................………..………….…….……………..
Troubleshooting............................................................................………………….………………….……
No Light..…………………………………..........................................………………….…………………..
Product Specifications.................................................................……………….…….…………………....

2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should there
be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow
the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-
observance of this manual or any unauthorized modification to the device.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Do not open the device and do not modify the device.
Never use anything to cover the ground contact.
Never look directly into the light source.
Never leave any cables lying around.
Never use the device during thunderstorms, unplug the device immediately.
Do not insert objects into air vents.
Do not connect this device to a dimmerpack.
Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.
Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Do not shake the device. Avoid brute force when installing or operating the device.
Only use device indoor, avoid contact with water or other liquids.
Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always replace the lamp, when it is damaged or deformed due to the heat.
Always keep case closed while operating.
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!

3
Always allow free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used, before cleaning or when
replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the
power-cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged. Check the device and the power-
cord from time to time.
Make sure that no side forces can impact on the truss system.
The cable insert or the female part in the device must never be strained. There must always be
sufficient cable to the device. Otherwise, the cable may be damaged which may lead to deadly
electrical shocks.
If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. Light effect must be installed out of the reach of children. Never leave the unit
running unattended.
For replacement use fuses of same type and rating only.
This device can be installed on a flat surface or onto truss systems via the mounting bracket.
The user is responsible for correct positioning and operating of the LED Par 56. The manufacturer will
not accept liability for damages caused by the misuse or incorrect installation of this device.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
OPERATING DETERMINATIONS
This device is not designed for permanent operation. Consistent operation breaks will ensure that the device
will serve you for a long time without defects.
The minimum distance between light-output and the illuminated surface must be more than 0,5 meters.
The maximum ambient temperature ta= 45°C must never be exceeded.
The relative humidity must not exceed 50 % with an ambient temperature of 45° C.
If this device is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.
You endanger your own safety and the safety of others!
CAUTION ! EYEDAMAGES !.
Avoid looking directly into the light source.
(meant especially for epileptics) !

4
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other
safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
If the LED Par 56 is lowered from the ceiling or high joists, professional trussing systems have to be
used.
Use a clamp to mount the LED Par 56, with the mounting-bracket, to the trussing system.
The LED Par 56 must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
When rigging, derigging or servicing the LED Par 56, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
Improper installation can cause serious damage to people and property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
FASE
N
BLUE
BLACK
SILVER
NUL
YELLOW/GREEN
GREEN
GREEN
EARTH
Make sure that the device is always connected properly to the earth!

5
Description of the device
Features
The Showtec LED Par 56 is a LED parcan with high output and great effects.
• Never change lamps again!
• 109 LEDs (20 Red, 52 Green, 37 Blue)
• 4 DMX channels
Overview
Fig. 1
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Damages caused by non-observance are not subject to warranty.
Control Modes
1. AUTO Mode
When all dipswitches are turned off, the LED Parcan is auto Mode. The LED Parcan will automatically color
change and color fade.
2. Sound Control Mode
When dipswitch #1- #9 are turned on and dipswitch #10 is turned off, the parcan will automatically change
its color to the beat of the music.

6
3. DMX Mode
When dipswitch #1- #9 are turned off and dipswitch #10 is turned on, the LED Parcan is in DMX Mode.
- Dipswitches #1 - #9 control the DMX Addresses.
CH1 Dimmer, flash and music-controlled
CH2 Red
CH3 Green
CH4 Blue
Turn dipswitch #1 and #10 to on. A. DMX address is 1, when in DMX mode
B. As slave projector when in M/S mode
DMX products must have their own "address" to receive DMX signals. Addresses on the controller are set by
flipping the appropriate DMX dipswitches.
You need to know that DMX address settings are the sum of the dip switch values.
A standard DMX address for a Showtec LED Par 56, which has 4 channels is as follow:
Example
LED Par 56 Address Value DMX Dip Switches "ON"
Unit 5 17 #1 , #4, #5
Switch Value
#1 1
#5 16 +
Total sum 17
Explanation: Since each unit has 4 channels, each address advances 4 values (See Address Value above).
Once address values are determined, add DMX dipswitch values to obtain the appropriate address (DMX
Dip Switches "ON") for each unit. Flip appropriate DMX dipswitches on each unit.

7
DMX Channels
Channel 1 –Modi
Mode 1
Mode 2
Mode 3
0 –189 Dimmer
190 –250 Flash
251 –255 music-controlled
Channel 2 –Red
Channel 3 –Green
Channel 4 –Blue
Maintenance
The operator has to make sure that safety-relating and machine-technical installations are to be inspected
by an expert after every four years in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are to be inspected
by a skilled person once a year.
The following points have to be considered during the inspection:
1. All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
2. There may not be any deformations on housings, fixations and installation spots.
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
4. The electric power supply cables must not show any damages or material fatigue.
The Showtec LED Par 56 requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and
then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a
soft cloth. Do not use alcohol or solvents.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections with a
damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric
power.
Troubleshooting
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates
properly, do not carry out following steps.
1. If the device does not operate properly, unplug the device.
2. Check the power from the wall, all cables etc.
3. If all of the above appears to be O.K., plug the unit in again.
4. If you are unable to determine the cause of the problem, do not open the LED Par 56, as this may
damage the unit and the warranty will become void.
5. Return the device to your Showtec dealer.
No Light
This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps
below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps.
If the light effect does not operate properly, refer servicing to a technician.
Response: Suspect two potential problem areas: the power supply or the LEDs.
1. Power supply. Check that the unit is plugged into an appropriate power supply.
2. The LEDs. Return the LED Par 56 to your Showtec dealer.

8
Product Specification
Model: Showtec LED Par 56
Voltage: 240V-50Hz (CE)
Power: 18W

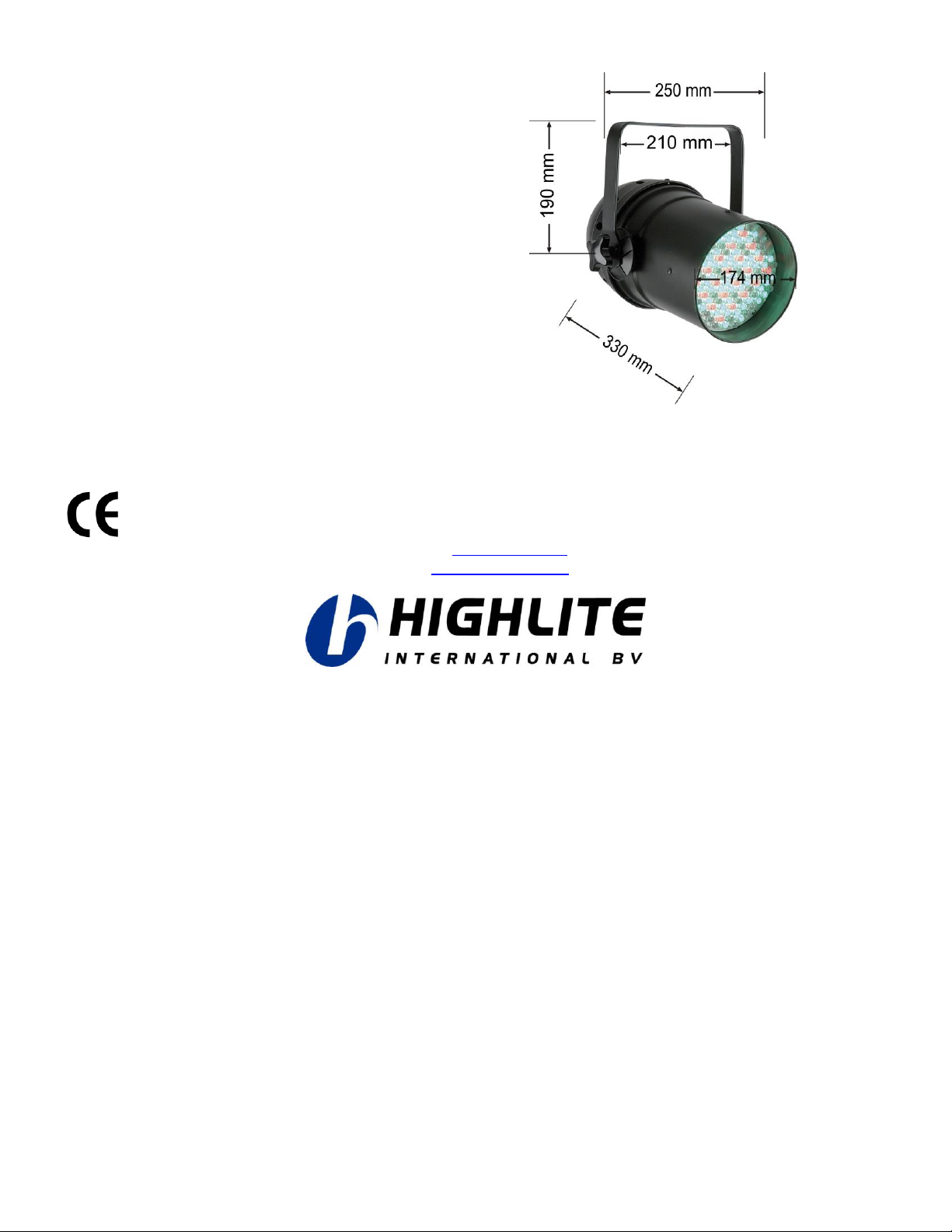

Dimensions (LxWxH): 330x225x225mm
Weight: 2,05 kg
Minimum distance:
Minimum distance from flammable surfaces: 0.5m
Minimum distance to lighted object: 1.3m
Design and product specifications are subject to change without prior notice.
Website: www.Highlite.nl
Email: [e-mail]

2007 Showtec.
