WALL PACK SERIES
FOOTBALL WALL PACK
INSTALLATION MANUAL
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to power off. Do not perform
any operations while this unit is powered on. The electrical system you want to connect the device to must be
grounded. Read the instructions before using or powering this device. The safety instructions must remain with
the unit in case of transfer. Any damage to the device linked to an inappropriate use is excluded from support by
the warranty. Before connecting, make sure that the current and voltage are compatible with this device. We highly
recommend that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by any means for
the use or misuse of the following information. We are NOT responsible in whole or part for any harm or damage
that may or may not be caused. We reserve the right to revise the components of any product, due to part availability
or change ETL, CUL, UL standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations in equipment, nor do they
provide every possible contingency to be met. Turn off / unplug power when installing or service device.
WARNING: Read all safety precautions and installation instructions carefully before installing or servicing this
xture. Failure to comply with these instructions could result in a potentially fatal electric shock, re, and/or
property damage.
• Throughly inspect the xture for freight damage. Freight damage should be reported to the delivery carrier
• To prevent personal injury or product damage only licensed electricians should install
• To avoid electric shock or component damage, disconnect the power before attempting installation or servicing
• This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state,
and local electric codes and safety standards
• Disconnect product and allow cooling prior to servicing
• Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death,
property damage and/or product malfunction
• To prevent product malfunction and/or electrical shock, this product must be properly grounded
• This luminaire is designed to operate in ambient temperatures ranging from -22°F ~104°F and to be horizontally
mounted with the LEDs facing down
• Wall Pack only
WARNING
FCC WARNING
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance
could void the user authority to operate the equipment.
NOTES: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
PRE - INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts
are present. Compare parts with package contents list and diagram on previous
page. If any part is missing or damaged, do not attempt to assemble, install or
operate the product. Contact customer service for replacement parts.
•Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers,
electrical tape, wire cutters, safety glasses, ladder, wire stripper.
INSTALLATION (Caution: Before beginning installation turn off the circuit breaker and light switch)
PRODUCT PARAMETER
INPUT VOLTAGE 120 - 277V
CCT 5000K
MATERIAL DIE CAST ALUMINUM

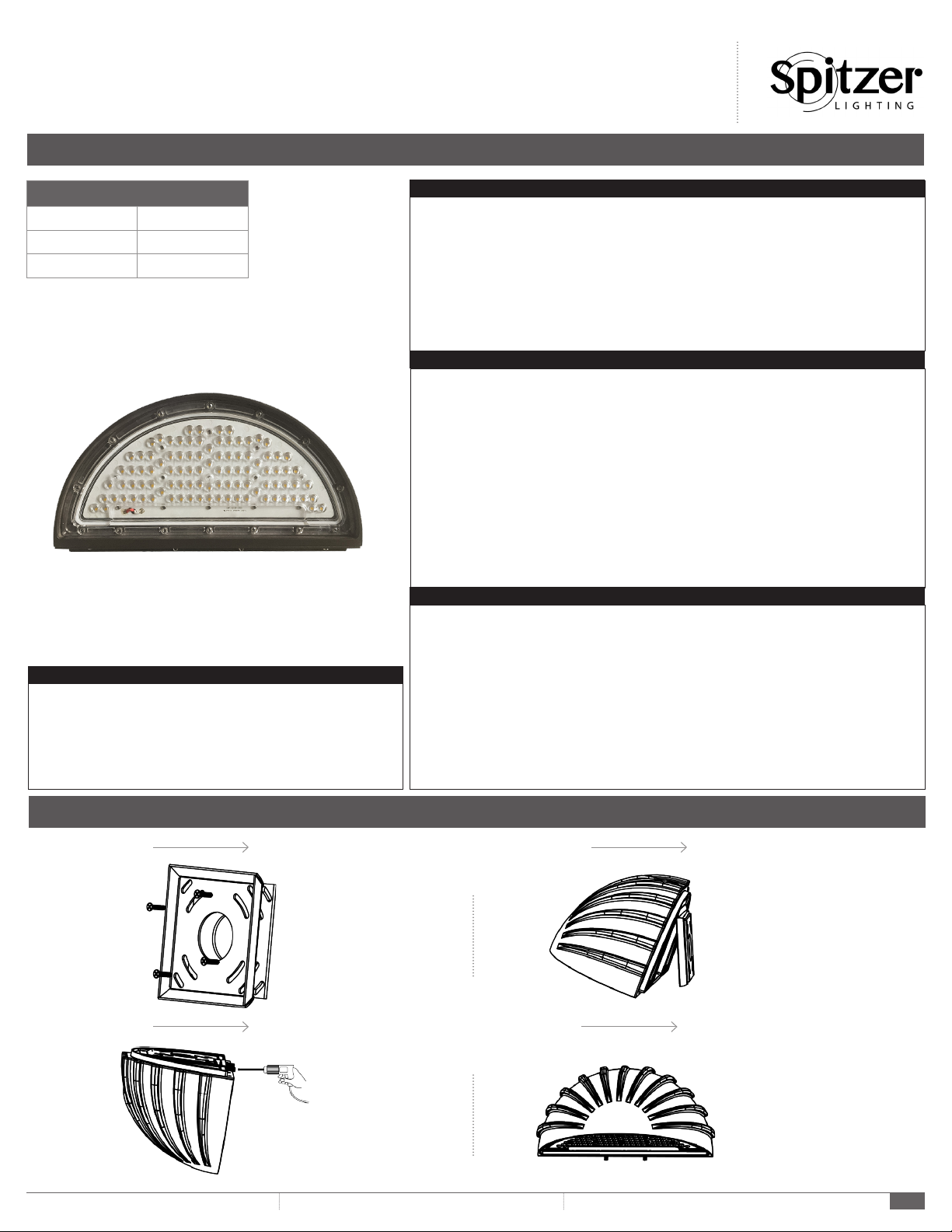

STEP 1 STEP 2
Twist and lock the PC
cover as shown and
remove the reectors
screws after the PC cover
and reector.
Tighten the radiator screw
then connect a good AC
line and grounding line.
After connected line, tted
with a reector and PC
cover, screw down the
screws.
Use an electrical drill
and radiator photogenic
corresponding mounting
holes on the wall.
STEP 3 STEP 4
www.spitzerlighting.com 702 Interchange Blvd., Newark, DE 19711 Specication is subject to change without notice 1/2
WALL PACK SERIES
FOOTBALL WALL PACK
INSTALLATION MANUAL
www.spitzerlighting.com 702 Interchange Blvd., Newark, DE 19711 Specication is subject to change without notice 2/2
AFTER INSTALLATION
1. Do all the wires connect in a correct a way as the pictures show?
2. Is the ground lead installed appropriately?
3. Make sure the photocell functions well.
CARE AND MAINTENANCE
CAUTION: Before attempting to clean the xture, disconnect the power to the xture by turning the breaker off or
removing the fuse from the fuse box. This LED light xture is made from quality materials that will last many years
with minimum care and maintenance. You may want to clean the xture with a soft cloth periodically. To maintain
the best appearance of the xture, do not use cleaners with chemicals, solvents or harsh abrasives. Do not use
liquid cleaner on the LEDs, LED driver, or wiring inside the light xture.
TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Light will not come on A. Light switch is
turned off.
B. Fuse is blown or
circuit breaker is
turned off.
C. Incorrect circuit
wiring
A. Turn light switch on
B. Replace fuse or turn
circuit breaker on
C. Verify that xture is
wired properly
