Shuttle M 2000M Installation guide

Product Specification
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. [phone]
Fax [phone]
[email protected]
©2006 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without notice. Pictures for illustration puposes only.
Pa
g
e 1
|
31 October 2008
Media Center
M
2000
M

Product Specification
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. [phone]
Fax [phone]
[email protected]
©2006 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without notice. Pictures for illustration puposes only.
Pa
g
e 2
|
31 October 2008
HiDef Multimedia in Hi-Fi Format
Shuttle has done an excellent job again when it comes to
integrating multimedia component in a single living room unit
which. Forget the old VHS, CD and DVD player, or radio and TV
receivers. The Shuttle XPC M 2000M packs Dual Core Processor,
Dual TV tuners, DVD drive, and 8-in-1 card reader and stands
ready to deliver pure multimedia bliss. Experience TV, video,
pictures, music and more - all from one device.
Feature Highlights
M chassis
• Flat rack design, Hifi form factor
Software • Microsoft Media Center Edition
• Cyberlink PowerDVD
Input
devices
and VFD
• Wireless keyboard with scroll ball
• IR remote control
• VFD Media Display
Graphics
and
TV cards
• NVIDIA GeForce 7600GS
PCIe X16 graphics card
Video out: DVI, VGA, Component Video S-
Video/Composite, optional HDMI adapter
• Dual Hauppauge WinTV Hybrid tuner
Supports digital DVB-T or
analog cable and FM radio
With hardware MPEG encoder
Storage
• 500GB hard disk
• DVD loader/writer
• Card reader
• 2.5" USB HDD enclosure (w/o disk)
Audio • 7.1 audio, S/PDIF I/O, headset connector
Network • Gigabit LAN
• Wireless LAN (8022.11g)
Other
features
• Intel Mobile Processor, Dual Core, 1.6GHz
• 2GB DDR2-667 SO-DIMM
• Intel 945GT/ICH7M-DH chipset
• 150W power supply
• 2x Firewire, 4x USB
Note: optical drive sold separately.
Images for illustration purposes only.
M
edia Cente
r
M2000M

Product Specification
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. [phone]
Fax [phone]
[email protected]
©2006 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without notice. Pictures for illustration puposes only.
Pa
g
e 3
|
31 October 2008

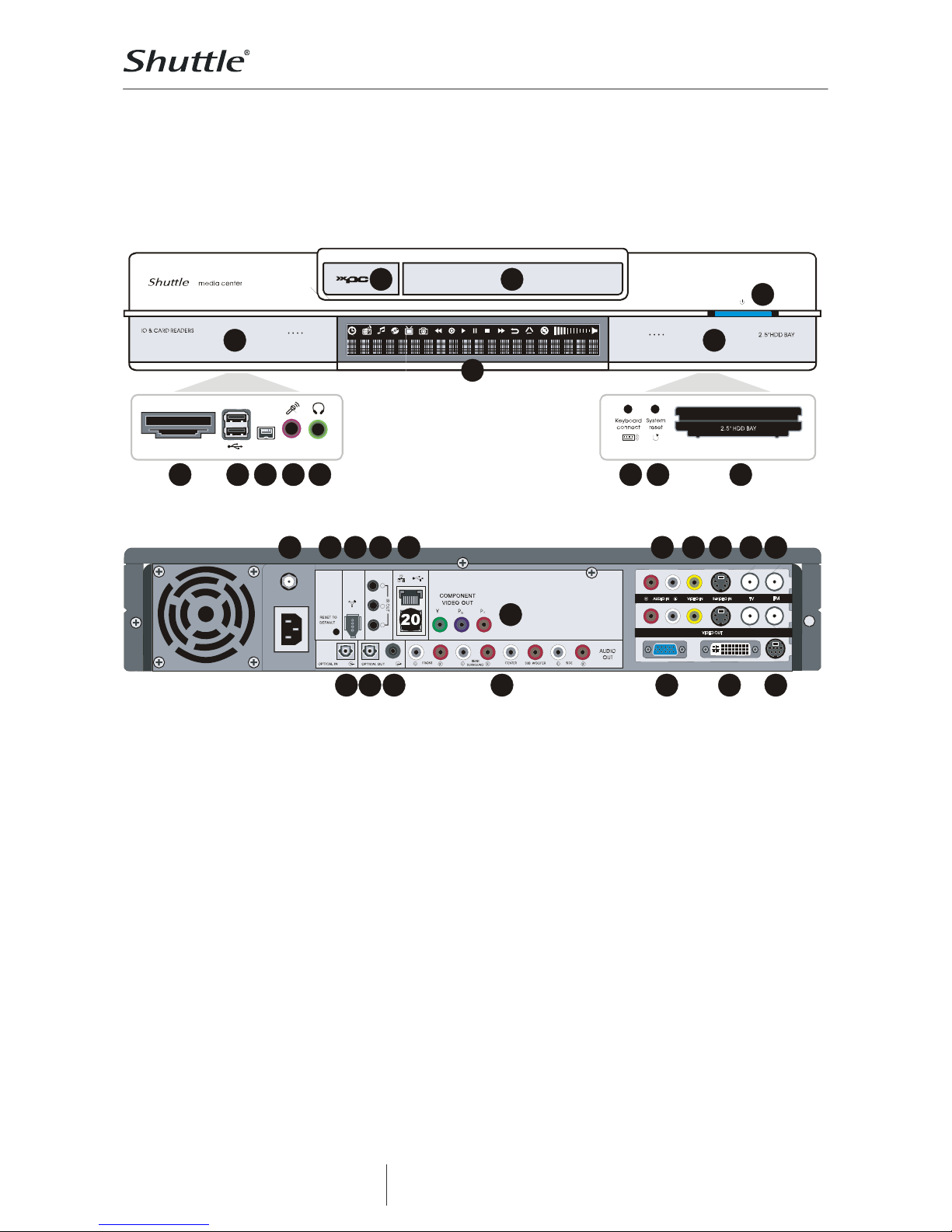

Advanced Connectivity
Front Panel
6 0 6 ' 0 6 0 0 &
8 6 %
1 2
3
4
5
7 8 9 10
11
12 13 146
Back Panel
15 16 17 18 19
21 22 23 24
25
26 27 28 29 30
32 3331
1
2
3
4
5
6
7
8
9
10
11
12
13
14
DVD Eject Button
DVD Writer
VFD Media Display
On/Standby Button
Left Front Panel
8-in-1 Card Reader
2x USB 2.0
IEEE1394 Firewire
Microphone Input
Headphones
Right Front Panel
Keyboard Connect Button
Reset Button
Bay for external 2.5” HDD
15
16
17
18
19
20
21
22
23
24
25
Wireless LAN Antenna
Clear CMOS Button
IEEE1394 Firewire
Infrared Output
Gigabit LAN Ethernet
2x USB 2.0
Optical SPDIF Input
Optical SPDIF Output
Coaxial SPDIF Output
8-channel Audio Output
Component Video Output
26
27
28
29
30
31
32
33
Audio Input (for TV)*
Coaxial Video Input*
S-Video Input*
TV Cable Inpu*t
Radio Antenna*
D-Sub Analog Video Out
DVD Digital Video Out
S-Video TV Out
(Composite via Adaptor)
*26-30 may differ in conection with other
TV card options

Product Specification
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. [phone]
Fax [phone]
[email protected]
©2006 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without notice. Pictures for illustration puposes only.
Pa
g
e 4
|
31 October 2008
Keyboard and remote control
All the features of the Shuttle XPC Media Center can be accessed via the Media Center keyboard and remote
control. Browse your media library, schedule TV recordings, chat with friends, all from the comfort of your armchair.
A D
B
C
A LED
B Power
C My Videos
D My TV
E My Pictures
F My Music
G STOP
H REC
I Rew
J Replay
K Pause
L Play
M FWD
N SKIP
O Back
P Info
Q Arrow
R OK
S Volume
T CH/PG
U Media Center
V MUTE
W DVD MENU
X LIVE TV
Y RECORDED TV
Z GUIDE
AA 0..9, #, *
AB CLEAR
AC ENTER
AD TELETEXT
AE Red Green Yellow Blue
1 Media Center
2 Mouse Buttons
3 Live TV
4 Recorded TV
5 TV Guide
6 DVD MENU
7 Messenger
8 VOL (-)
9 VOL (+)
10 Mute
11 Record
12 Play
13 Pause
14 Stop
15 Rewind
16 Fast Forward
17 Replay
18 Skip
19a On/Standby
19b Activity LED
20 Trackball

Product Specification
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. [phone]
Fax [phone]
[email protected]
©2006 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without notice. Pictures for illustration puposes only.
Pa
g
e 5
|
31 October 2008

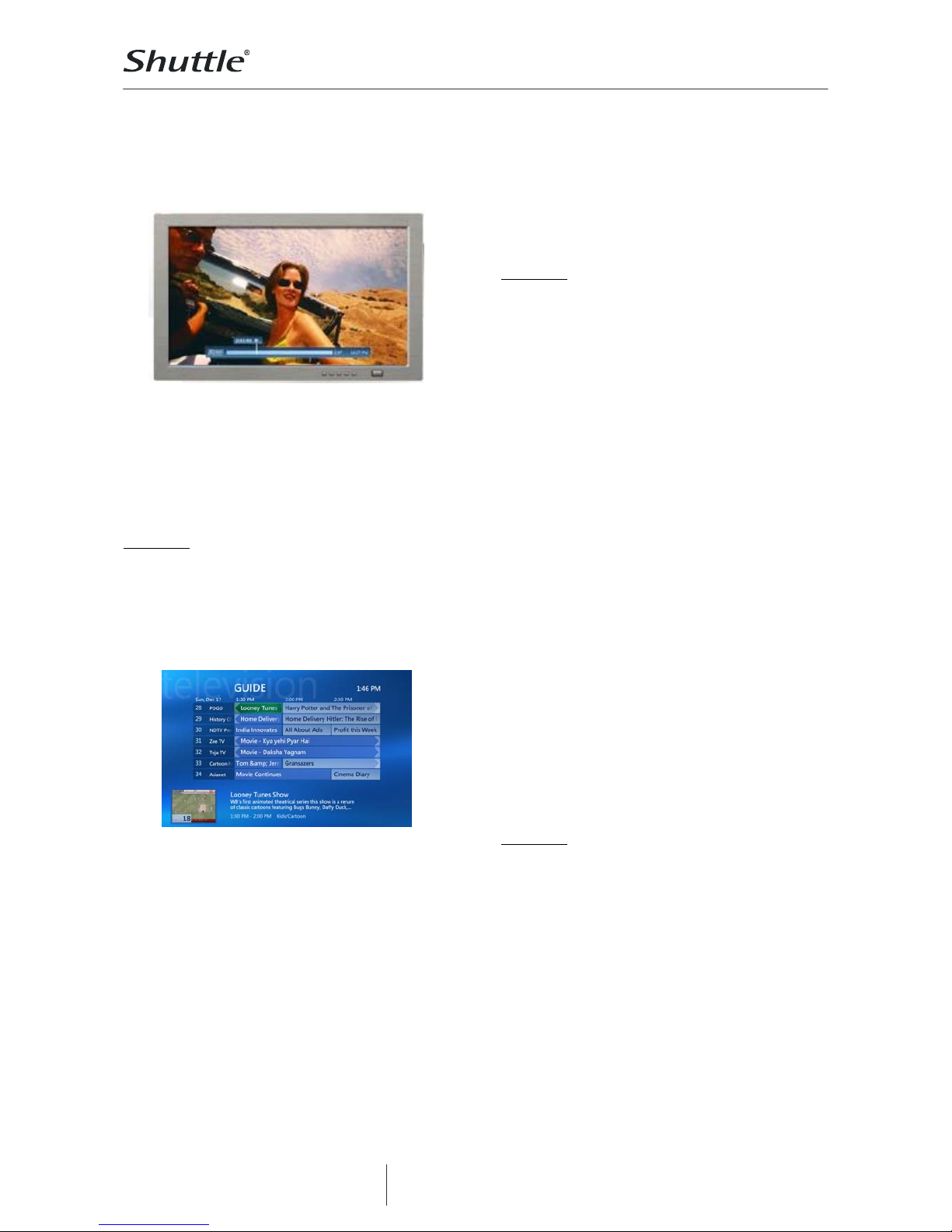

Shuttle Media Center M 2000M – Special Product Features
Watch
Connect the Shuttle XPC Media Center to your
living room high-definition display, television, or
monitor to instantly transform your viewing
experiences. Whether you are watching your
favorite TV shows, enjoying the latest blockbuster
DVDs, or browsing through albums of treasured
digital photos, the Shuttle XPC Media Center gives
you more features to help make the most of your
new digital lifestyle.
Highlights:
Electronic Program Guide (EPG)
The free electronic program guide gives you access
to detailed listings of the TV programs available in
your area, up to one month ahead. Easy to browse
categories and powerful search functions make it
even easier to find, plan and discover great TV
moments.
Pause and Replay Live TV
The Shuttle XPC Media Center gives you added
control over live TV broadcasts. Just like a VCR or
DVD, you can instantly pause or skip back during
live TV shows so you never miss a moment.
Movies-on-Demand
The Online Showcase gives you access to free and
paid services offering downloadable content
whenever you want. Instantly rent the latest movies,
re-watch old classics, or order pay-per-view events
all at the touch of a button.
Listen
The Shuttle XPC Media Center delivers new levels
of home audio. Bring movies to life in captivating
theater-like surround sound with up to 7.1 channels.
Advanced audio processing dramatically enhances
your music with features including Bass Boost,
Multi-Band Graphic Equalizer, Audio Clean-Up, and
more.
Highlights:
Multi-channel surround sound
Connect the Shuttle XPC Media Center to your
home audio equipment and immerse yourself in
realistic multi-channel surround sound. Experience
movies, games and TV with awesome multi-
directional effects just like in the movie theater.
Digital Jukebox
A few simple steps are all you need to turn all your
old CDs into a versatile digital music collection that
can't be scratched, lost or damaged. Hundreds of
albums of compressed digital music can be stored
and managed in the Shuttle XPC Media Center's
easy to use digital music library. Use powerful
search features to quickly find and play songs by
artist, album or genre, or create playlists and
compilations to suit every mood or occasion.
Online Music services
Expand your music collection even further with easy
access to online music services. Browse and
purchase songs from digital music stores and have
them automatically added to your media library, or
get unlimited access to vast online music
collections for a simple monthly subscription fee.
Record
Record and save hours of TV or home movies
directly on the Shuttle XPC Media Center, and
watch them whenever you want. Use the built-in
high-speed DVD burning features to quickly back up
your TV recordings, home movies, pictures, and
music and play them back on any compatible PC or
media center devices.
Highlights:
Schedule
Full integration with the electronic program guide
lets you easily schedule recordings of your favorite
TV shows with the touch of a button. Single shows,
entire series and your favorite movies can all be
automatically recorded in a few simple steps.With
the Shuttle XPC Media Center's advanced
scheduling features you can be sure to never miss
a moment.
DVD burner
The Shuttle XPC Media Center allows you to back
up all your digital content on inexpensive DVD
media. Store hours of TV, 100s of music albums or
1,000s of digital images on a single disc. You can
even create DVDs of your home movie footage that

Product Specification
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. [phone]
Fax [phone]
[email protected]
©2006 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without notice. Pictures for illustration puposes only.
Pa
g
e 6
|
31 October 2008
can be watched on your friends and relatives home
DVD players.
Create
The Shuttle Media Center makes it easy to create
personal media experiences to share with your
friends and family. Touch up your digital pictures,
build rich multimedia slide shows, and even edit
and enhance your home movies with over 100
special effects and transitions.
Highlights:
Photo editing and slide show
With the Shuttle XPC Media Center's easy to use
photo editing features, you can make all your photo
memories perfect. Crop and rotate, improve
contrast, and even remove red eye and other
blemishes with a few simple steps. Then create
media-rich slide shows with music and transition
effects that make sharing your treasured moments
even more enjoyable.
Movie editor with effects and transitions
The Shuttle XPC Media Center includes powerful
yet easy to use movie editing software that allows
you to turn your home movie footage into complete
professional looking DVD movies. Edit and delete
scenes, add your own soundtrack, even include
titles, special effects and transitions. When your
masterpieces are finished you can copy them to
DVD discs that can be enjoyed on almost any home
DVD player.
Share
The Shuttle XPC Media Center features a full range
of connectors allowing you to transfer and share
content with all your digital media devices. Back up
your digital pictures, load music onto your music
player to listen to on the move, even watch your
recorded TV shows on other media center devices
around your home. The Shuttle XPC Media Center
gives you access to all your digital entertainment
from one familiar place.
Highlights:
Universal connectors
High-speed USB and FireWire connectors allow you
transfer content to and from almost any modern
digital device. Attach your digital camera, music
player or video camera to the Shuttle XPC Media
Center to synchronize your media library with new
pictures, sounds or movies in minutes.
Wireless and high-speed networking
Featuring both wired and wireless networking
capabilities the Shuttle XPC Media Center can be
connected to any other compatible computer, Media
Center PC, or Media Center Extender device
around your home giving you access to your entire
media library whenever and wherever you want.
Connect
The Shuttle XPC Media Center connects directly to
your home broadband connection, giving you
access to the World Wide Web on your TV. Built-in
firewall features and anti-virus software help keep
you protected while you surf, and automatic
updates ensure you always have the latest features
and software.
Highlights:
Surf the internet
Read the latest news headlines, get weather
reports, even shop online. With the Shuttle XPC
Media Center you can access the entire World Wide
Web of information from the comfort of your living
room.
Email and instant messaging
The Shuttle XPC Media Center helps you stay in
constant touch with friends and family. Chat in real-
time with text, voice or video messaging, share
files, or even play games. The Shuttle XPC Media
Center helps you stay close to loved ones,
wherever they are.
.

Product Specification
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. [phone]
Fax [phone]
[email protected]
©2006 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without notice. Pictures for illustration puposes only.
Pa
g
e 7
|
31 October 2008
Shuttle Media Center M 2000M Specifications
Application Recommended range of application: Media Center
Operating
System
Microsoft Windows XP Media Center Edition 2005 with Update Rollup 2
3 languages available: German, English, French
Software DVD player software: Cyberlink PowerDVD 6
Chassis Shuttle "M" chassis, flat case design
Dimensions: 442 x 350 x 78 mm (WDH)
Processor
Intel Core Duo T2050 Mobile Processor, Socket 479
Dual core architecture with 2048kB shared L2 cache
Low power consumption: Thermal Design Power (TDP) = max. 31W
Core clock: 1.6 GHz
Front side bus (FSB): 553MHz
Yonah core, 65nm technology
Supports Enhanced Intel Speedstep Technology (EIST)
Supports Execute Disable Bit (XD)
Chipset Northbridge: Intel 945GT (GMCH), Southbridge: ICH7M-DH
Harddisk 500 GB, Serial ATA 3 GBit/s
External
HDD
Enclosure
USB-Harddisk Enclosure with USB port: for one 2.5" Parallel-ATA harddisk
to use as a removable secondary drive.
The 2.5" harddisk is not included.
Optical
drive
4X DVD Dual-Drive (Loader) with Dual Layer support, 2MB Buffer
Write mode: 4X DVD±R, 2X DVD±R/W
Read mode: 6X DVD-ROM, supports Dual Format and Dual Layer, 12X CD-ROM/CD-R/CD-
RW
Memory 2 GB DDR2-667, SO-DIMM
PCI-Express
Graphics
card
Graphics Processor NVIDIA GeForce 7600 GS
Expansion slot: PCI Express X16
Memory: 256MB DDR2, 128-bit data width
GPU Clock Speed 450 MHz, RAMDAC Speed 400 MHz
Max. Screen Resolution: 2560 x 1600
Supports Direct X9.0 Shader Model 3.0 and OpenGL 2.0
Video out: D-Sub VGA (analog), DVI-I (digital), TV (S-Video/Composite)
and Component Video output
S-Video and Composite: up to 1024x768 resolution at 60 Hz

Product Specification
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. [phone]
Fax [phone]
[email protected]
©2006 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without notice. Pictures for illustration puposes only.
Pa
g
e 8
|
31 October 2008
Two Hybrid
Tuner
Cards
2x Hauppauge WinTV-HVR-1300 (PCI)
Supports analog cable TV with FM stereo radio or
DVB-T (digital terristischer Empfang)
Expansion slot definition: PCI 32 Bit
Hardware MPEG-2 encoder: Built-in hi-quality hardware MPEG encoder, for the best
system performance during TV recordings without additional CPU load
Supports recordings from analog video sources into MPEG-1/MPEG-2 format
Supports FM stereo radio, video text
Connectors: TV signal input (analog cable or DVB-T), FM radio antenna input, S-Video
input, Composite-Video input, Audio Line-IN (Stereo), IR receiver input
Note regarding DVB-T: an antenna is required for the DVB-T reception which is similar to
the traditional analog TV antennas. This antenna is not included.
VFD Media
Display
Integrated Versatile front-panel display
Displays the information you need right on the front of your XPC
compliant to MS Windows XP Media Center Edition 2005
VFD with AWAY mode function
8-ch Audio
with S/PDIF
7.1 channel Intel HD Audio Sound
High quality: max. 192kHz / 32-Bit
Audio Codec: Realtek ALC880
Connectors: Line in, Line out (8ch), S/PDIF in/out (optisch), S/PDIF out (coaxial)
LAN
Gigabit Ethernet Network Controller
Intel 82573L, supports up to 1000Mbit/s (Base-T)
Supports Wake-on-Lan function
Wireless
LAN Integrated WLAN module, supports 802.11g (54 Mbit/s)
Card
Reader
integrated multi-format 8-in-1 card reader (USB 2.0)
supports CF I+II, SD, MD, SM, MMC, MS, MSP
Wireless
keyboard Shuttle MCE Wireless Keyboard with Scroll ball
Remote
Control
Ergonomic, slim infrared remote control for easy operation.
Compatible with Microsoft Media Center Edition (MCE)
The IR receiver is integrated into the front panel of the media center
Front Panel
I/O
2x USB 2.0
Microphone
Headphone
Firewire Mini-port
8-in-1 card reader
Power Button
Reset Button
Wireless keyboard connect button

Product Specification
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. [phone]
Fax [phone]
[email protected]
©2006 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without notice. Pictures for illustration puposes only.
Pa
g
e 9
|
31 October 2008
Back Panel
I/O
Sub-D VGA out (analog)
DVI out (digital)
Optional HDMI adapter
TV out (S-Video/Composite)
Component Video Output
2x USB 2.0
1x Firewire (6 pin)
GigaBit LAN (RJ45)
Wireless LAN (54 MBit/s) incl. Antenna
Digital Audio optical S/PDIF input
Digital Audio optical S/PDIF output
Digital Audio coaxial S/PDIF output
Analog Audio 7.1 line-out (8 channel)
Clear CMOS button
Power
Supply
150W PSU with active PFC (Power Factor Correction)
Input : 100~240V AC
EMI Certified: FCC, CE, BSMI
Safety Certified: UL, TÜV, CB
Accessories
Quick Installation Guide (DE, FR or UK)
System Manual
Media Center Software User Manual (DE, FR or UK)
Warranty note
Wireless keyboard with scroll ball and 4x AA batteries
MCE Remote Control with 2x AAA batteries
BNC coaxial splitter for TV with 2 adapter cables and adapters for TV card
FM radio antenna with coaxial connector
Wireless LAN antenna
Power DVD 6 software with serial code
DVI/VGA adaptor
Infrared emitter cable (for settop box)
D-Sub VGA cable
S-video out cable
2.5” HDD external box with USB cable
Analog audio cable (stereo, cinch)
Certi-
fication
Designed for Microsoft Windows XP Professional
FCC, CE, BSMI compliant
Warranty 24 Months Pick-Up-And-Return Service
Conformity
This device is classed as a technical information
equipment (ITE) in class B and is intended for use in
living room and office. The CE-mark approves the
conformity by the EU-guidelines:
- EMV-guideline 89/336/EWG electromagnetic tolerance
- LVD-guideline 73/23/EWG use of electric devices
within certain voltage-limits
