Siemens SIMATIC PG 760 PII Manual

ProductInformationBulletin
This leaflet gives you specific technical information
on your PG 760 PII programming device.
SIMATIC
PG 760 PII Programming Device

Thisproductinformationbulletincontainsnoticeswhichyoushouldobservetoensureyourown
personalsafety,aswellastoprotecttheproductandconnectedequipment.Thesenoticesare
highlightedinthemanual byawarningtriangle andaremarkedas followsaccordingtothe level
ofdanger:
!Warning
indicatesthat death, severe personal injury or substantial property damage can result if proper
precautionsarenottaken.
!Caution
indicates that minor personal injury or property damage can result if proper precautions are not
taken.
Note
drawsyourattentiontoparticularlyimportantinformationontheproduct,handlingtheproduct,or
toaparticularpartofthedocumentation.
Pleaseobservethefollowing:
Note
Youcansetupandoperateyourprogrammingdeviceinconjunctionwiththefollowinginstructions.
You should only connect external devices and work with memory cards in conjunction with the
PG760PIImanual.
Only qualified personnel should be allowed to install and work on this equipment using the
PG760 PIImanual.Qualifiedpersonsaredefinedaspersonswhoareauthorizedtocommission,
to ground, and to tag equipment, systems, and circuits in accordance with established safety
practicesandstandards.
!Warning
Thisdevicemayonlybeusedfortheapplicationsdescribedinthecatalogortechnicaldescription,
andonlyinconnectionwithdevicesorcomponentsfromother manufacturerswhichhavebeen
approvedorrecommendedbySiemens.
Thisproductcanonlyfunctioncorrectlyandsafelyifitistransported,storedandsetupcarefullyand
correctly,andoperatedandmaintainedasrecommended.
SIMATICR,SIMATICNETRandSIMATICHMIRareregisteredtrademarksofSIEMENSAG.
Thereproduction,transmissionoruseofthisdocumentoritscontentsis
notpermittedwithoutexpresswrittenauthority.
Offenderswillbeliablefordamages.Allrights,includingrightscreatedby
patentgrantorregistrationofa utility model ordesign,arereserved.
We have checked the contents of this manual for agreement with the
hardwareandsoftwaredescribed.Sincedeviationscannotbeprecluded
entirely, we cannot guarantee full agreement. However, the data in this
manualarereviewedregularlyandanynecessarycorrectionsincludedin
subsequenteditions.Suggestionsforimprovementarewelcomed.
Technical data subject to change.
Disclaimer of Liability
Copyright ESiemens AG 1998 All Rights Reserved
Siemens AG
Bereich Automatisierungs- und Antriebstechnik
Geschaeftsgebiet Industrie-Automatisierungssysteme
Postfach 4848, D-90327 Nuernberg
C79000Z7076C767
Printed in the Fed. Rep. of Germany
Siemens Aktiengesellschaft
Safety Guidelines
Correct Usage
Trademarks

1
PG760PII ProductInformationBulletin
C79000-K7076-C767-01
Setting Up and Transporting the PG 760 PII
Unpack your PG 760 PII programming device as follows:
1. Remove the packing.
2. Do no throw the original packing away. Keep it in case you have to
transport the unit again sometime in the future.
3. Check with the packing list to make sure no components are missing.
4. Please keep the documentation in a safe place. It contains important
information on the operation of your programming device.
5. Check the packing and its contents for any shipping or transport damage.
6. Please inform your local dealer of any shipping or transport damages and
and of outstanding items indicated on the packing list.
!Caution
Risk of mechanical damage!
When transporting your PG 760 PII in cold weather when it may be exposed
to extreme variations in temperature, make sure that no moisture or
condensation can form on or in the unit.
The unit should be allowed to reach room temperature slowly before it is started
up. If condensation has formed, the unit should be left for about 12 hours before
being switched on.
Fill the serial number of your programming device in the table below. If your
device has been stolen and repair work is required the repair and maintenance
centers can only identify it by its serial number.
Serial number PG 760 PII
Setting up the tower:
Proceed as follows:
1. Place your programming device on a horizontal and even surface.
Don’t cover the ventilating slots.
2. Place monitor, keyboard and mouse in the most convenient position.
3. Connect monitor, keyboard and mouse.
Despite the fact that the PG 760 PII is of rugged design, its internal
components are sensitive to severe vibrations or shock. You must therefore
protect your PG 760 PII against severe mechanical stressing when
transporting it. Use the original packing material if you have to ship the PG
from one location to another.
Unpacking the
PG 760 PII
Setting up your
PG 760 PII
Transport

2PG760PII Product InformationBulletin
C79000-K7076-C767-01
Hardware Components of the PG 760 PII
All important operator controls and displays are located behind the drive
cover on the front of the unit.
All the power supply connectors and interface ports for hooking up to
external devices are located on the rear panel of the PG 760 PII.
1
2
3
4
6
7
5
8
1LED displays
2CD-ROM drive
3 Free slot
4Diskette drive
5On/Off switch
6Memory card port
7Protective cover for disk drive
8Ventilating slots
Power LED
Hard disk access
Memory card port
active
MPI/DP port
Power
MPI/DP
Powersupply
connector
socket (out)
Powersupply
connector
socket (in)
Ventilator
Dummyplatescovering
expansionslots
VGA
PS/2mouse
COM2
COM1
MPI/DP
LPT 1
PS/2keyboard
Mainsvoltage
selector
B
Loudspeaker
Microphone
On/Off Switch
Figure 1-1 Rear panel with connectors and ports and front panel of PG 760 PII
Front
Rear Panel
(Connectors)

3
PG760PII Product InformationBulletin
C79000-K7076-C767-01
Ports and Connectors Function
Power supply connector Connection for power supply
PS/2 keyboard Connection for keyboard (trackball
supported)
PS/2 mouse Connection for PS/2 mouse
LPT 1 printer
Parallelinterface Connectionforparallelprinter
MPI/DPMultipointInterface(RS485)* Connection for S7 programmable
(compatible with CP 5611)
COM 1
V.24/MODEM/PLC
Serialport Connection for S5 programmable controller
COM 2
V24 /mouse
Connection for serial mouse
V.24 /mouse
Serialport Connectionfor serial printer
VGAInterface Connection for external monitor
Loudspeaker Connectionforexternalstereo
loudspeaker
Microphone Connection for microphone (mono)
* Galvanic isolation within the safety extra-low voltage circuit (SELV)
Table 1-1 Control LEDs
Power LED red
green
off
Standby, mains switch to power supply switched on
Power, PC in operating mode
Mains switch to power supply switched off, or mains plug
disconnected
MPI/DP
LED green off Data exchange at Profibus DP No data exchange at Profibus DP or no connection to Profibus
DP
The raised air outlet slots for ventilation are located at the front and back side
of your PG 760 PII. These slots must not be covered in any way.
!Caution
Risk of overheating!
If you cover up the slots for the inlet and outlet air in any way, there is a risk
that your PG 760 PII will be damaged.
Ventilating Slots

4PG760PII Product InformationBulletin
C79000-K7076-C767-01
Observe the following notes concerning the power supply of the unit.
Note
The power plug must be disconnected to isolate the unit completely from the
supply.
For operation in Canada and the USA, a CSA or UL-listed power supply
cable must be used.
For the United States and Canada:
In the United States and Canada the cord must be UL Listed and CSA
Labelled. The male plug is a NEMA 5-15 style.
For operation with 120 V:
Use a UL Listed, CSA Labelled Cord Set, consisting of a min. 18 AWG.
Type SVT or SJT three conductor flexible cord, max. 4.5 m (15 feet) in
length and a parallel blade grounding type attachment plug, rated 15 A,
min 125 V.
For operation with 240 V (within the USA):
Use a UL Listed, CSA Labelled Cord Set, consisting of a min. 18 AWG.
Type SVT or SJT three conductor flexible cord, max. 4.5 m (15 feet) in
length and a tandem blade grounding type attachment plug, rated 15 A,
250 V.
For operation with 230 V (outside of USA):
Use a Cord Set consisting of a min 18 AWG cord and grounding type
attachment plug rated 15A, 250 V. The cord set should have the approviate
safety approvals for the country in which the equipment will be installed and
marked.
The unit is intended for operation with grounded power supply networks
(TN networks, VDE 0100 part 300 or IEC 364-3).
The unit is not intended for operation with non-grounded or
impedance-grounded systems (IT networks).
The mains cable should fulfill the safety requirements of the country in
which you are operating the device.
Power Supply

5
PG760PII Product InformationBulletin
C79000-K7076-C767-01
If the voltage displayed on the system selector switch does not correspond
with your local voltage, you must move the mains voltage selector so that the
voltage set next to the triangle is visible.
To do this, use a small, flat screwdriver to lever out the part with the voltages
printed on it and replace it in the appropriate position.
!Caution
Risk of damage to the unit!
Operating the PG 760 PII with the incorrect mains voltage can damage the unit,
since the input voltage is also applied to the mains outlet.
To operate the monitor, observe the manufacturer’s specifications.
Only a monitor with the following rated currents may be connected:
S120 V 3 A max.
S240 V 1.5 A max.
On/Off switch
Mainsvoltage
selector
Powersupply
connectorsocket
(out)
Powersupply
connectorsocket
(in) B
Loudspeaker
Microphone
Figure 1-2 Mains VoltageSelector
After you have checked the right setting of the mains voltage selector and
connected all cables required for operation, you can switch on your
programming device. When you switch on the ON/OFF switch at the back of
the power supply unit, the red Power LED on the front panel lights up
(Standby: the device is connected to the mains voltage). Now switch on the
switch behind the drive cover in the centre of the front panel to change from
standby to operating mode.
Selecting Mains
Voltage
Switching on

6PG760PII Product InformationBulletin
C79000-K7076-C767-01

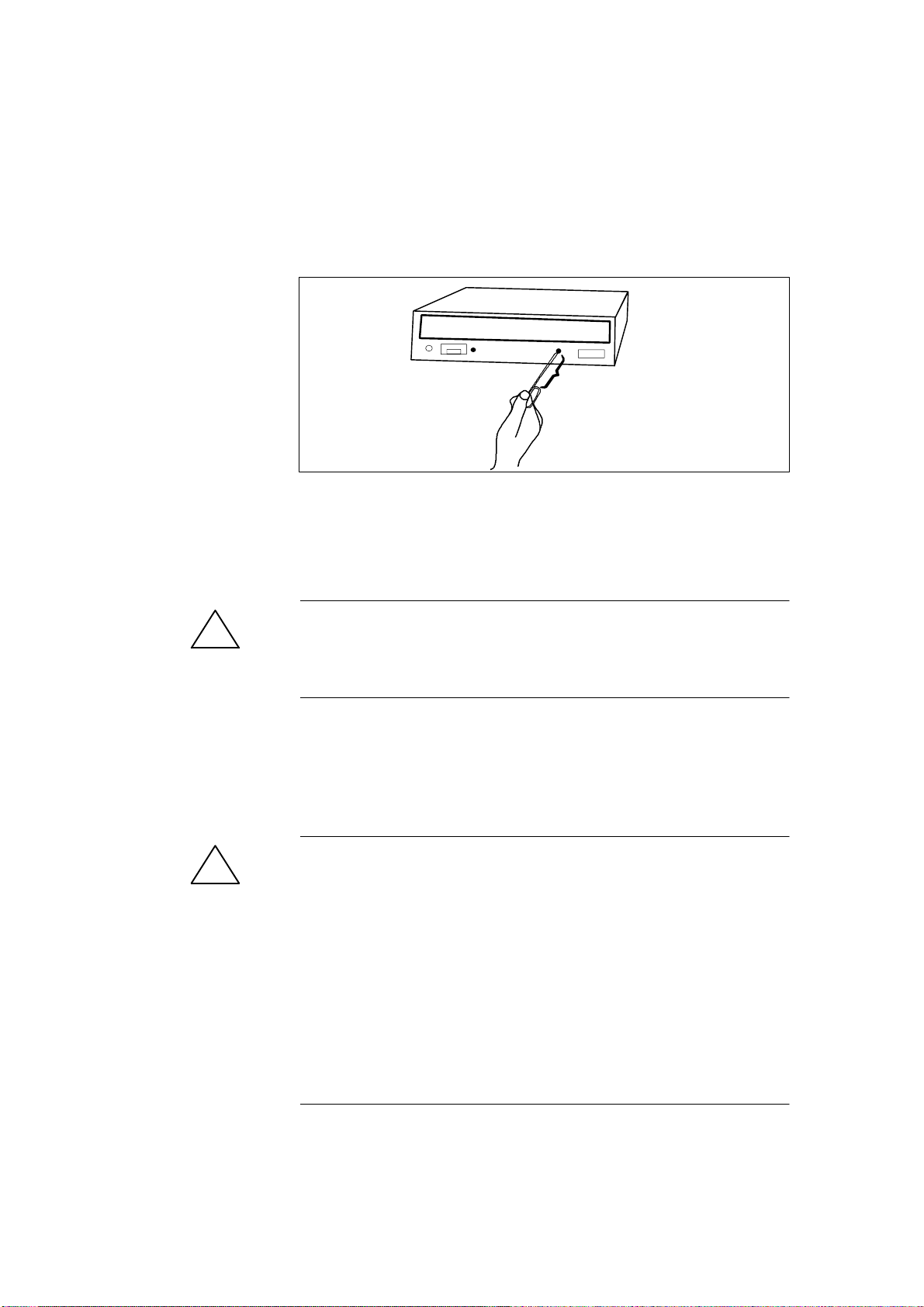

The programming device PG 760 PII is equipped with a floppy disk drive, a
hard disk drive and a CD-ROM drive as standard.

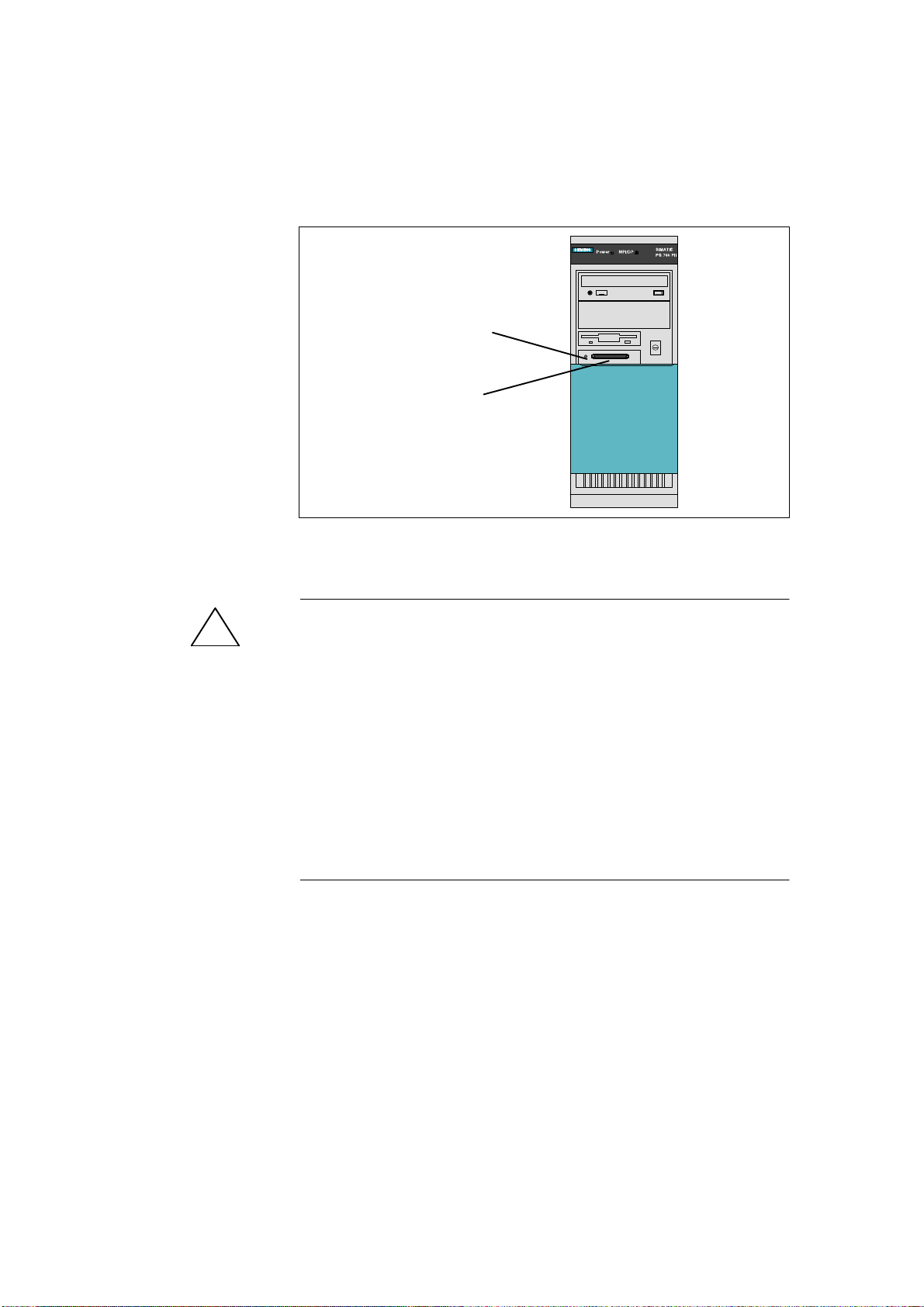

You can read, program and erase SIMATIC Memory Cards via the 68-pin
connector.
SIMATC Memory Cards
Pointoforientation
Figure 1-3 SIMATIC MemoryCardsInterface
Please note the following instructions while working with memory cards.
!Caution
Risk of damage to memory cards and to your programming device
PG 760 PII!
You must insert the memory card into a 68-pin connector with the type label
on top of it. The points of orientation on the memory card and on the slot
have to correspond with each other.
If you try to plug the memory card in the wrong way around, your
programming device or memory card will be damaged!
You must not take out the SIMATIC memory card as long as the LED for the
memory card interface is lit.
In order to program SIMATIC memory cards select the submenu “Hardware
Options” under BIOS-Setup and set “Programming interface” “enabled”.
Drive Type
SIMATIC Memory
Cards

7
PG760PII Product InformationBulletin
C79000-K7076-C767-01

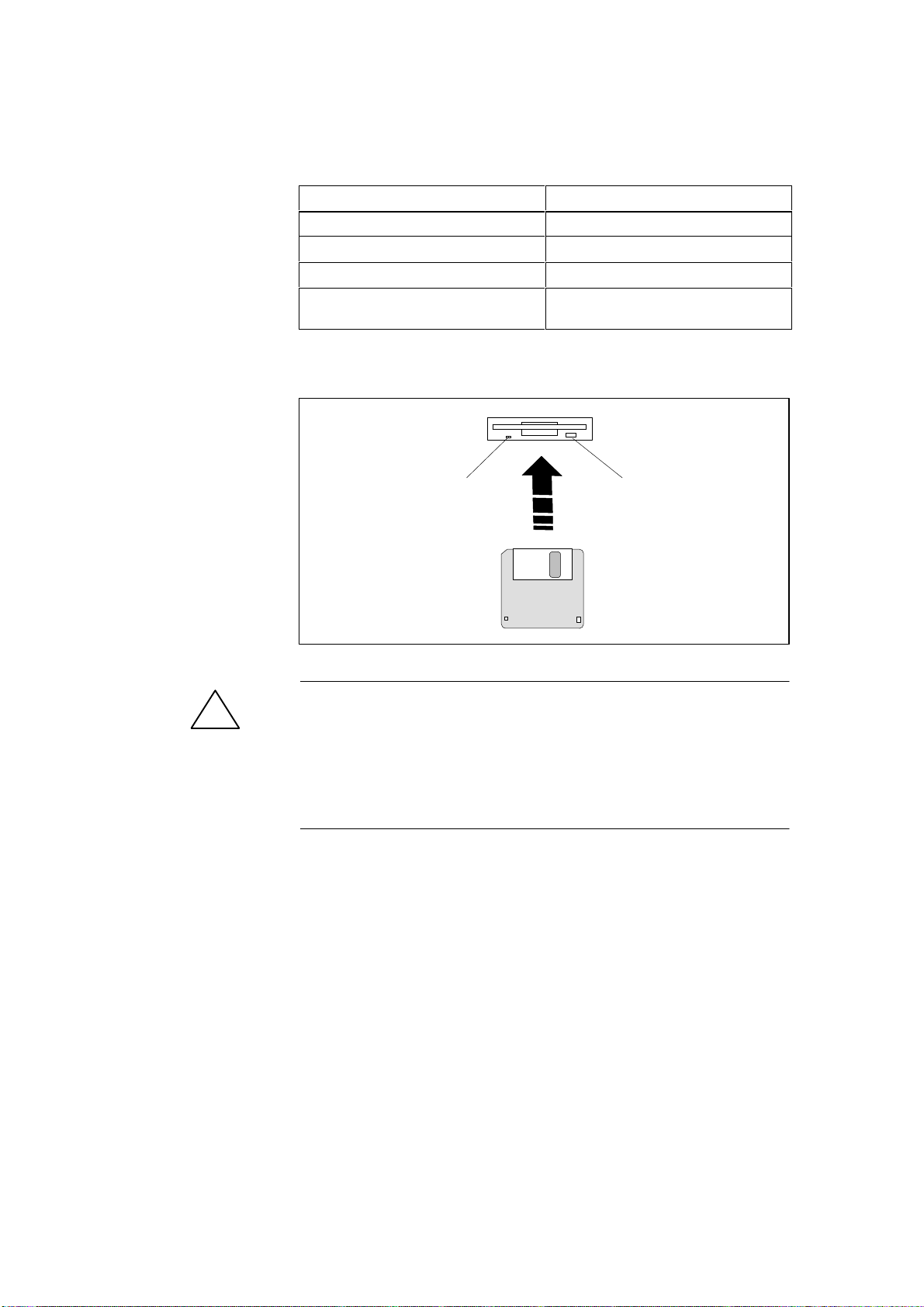

You can store programs and data on diskettes with the disk drive and load
them from diskettes into the PG 760 PII.
You can use the following diskettes:
Double-SidedHigh-DensityDiskette Double-SidedDouble-DensityDiskette
3.5 in. 3.5 in.
1.44 Mbytes (135 TPI) 720 Kbytes
80 tracks per side 80 tracks per side
Programmingdevicerecognizesdiskettes
by their coding Programmingdevicerecognizesdiskettes by their coding
The diskette is inserted in the disk drive as shown below:
Ejector
Access LED
!Caution
Risk of data loss!
You must not remove the diskette as long as the access LED is lit. Otherwise
you might lose the data on the diskette.
Do not remove the diskette until the access LED on the drive of the
PG 760 PII has gone out.
You can use a number of different hard disk drives in your PG 760 PII. The
memory capacity of the particular type of hard disk can be found in the
Technical Specifications. The hard disk drive is connected to the primary
IDE interface.
Whenever the hard disk drive is accessed, its access LED on the front of the
unit lights up.
Diskette Drive
Types of Diskette
Handling Diskettes
Hard Disk Drive
Access LED

8PG760PII Product InformationBulletin
C79000-K7076-C767-01
!Caution
Risk of loss of data and damage to drive!
Drives are sensitive to vibrations and shock. Any vibrations occurring during
operation can lead to the loss of data or damage to the drive.
If you intend transporting the unit, switch it off, and wait until the drive has
come to rest (about 20 seconds) before you move it.
The CD-ROM drive allows you to load programs and data from CDs. The CD-
ROM drive also enables you to easily update the already installed SIMATIC
software and Windows 95. The CD-ROM drive is connected to the secondary
IDE interface.
123 4 5 6
This jack is used to connect a set of headphones. Please use headphones with a
stereo mini-jack plug.
This control is used to adjust the headphone volume. This control has no effect
on the left and right audio outputs from the LINE OUT connector on the back
of the unit.
This indicator lights while data is being read.
This tray prevents dust from getting inside the CD-ROM reader and should
remain closed. If your programming device is not switched on you can manually
push the tray and close the door of your CD-ROM drive.
Use a paper clip or any other device to open the CD-ROM tray if the electrical
eject is disabled by software or if power failure occurs (See “Emergency Eject”
for details).
This button is pressed to open or close the CD tray when the power of your
programming device is on.
CD-ROM drive

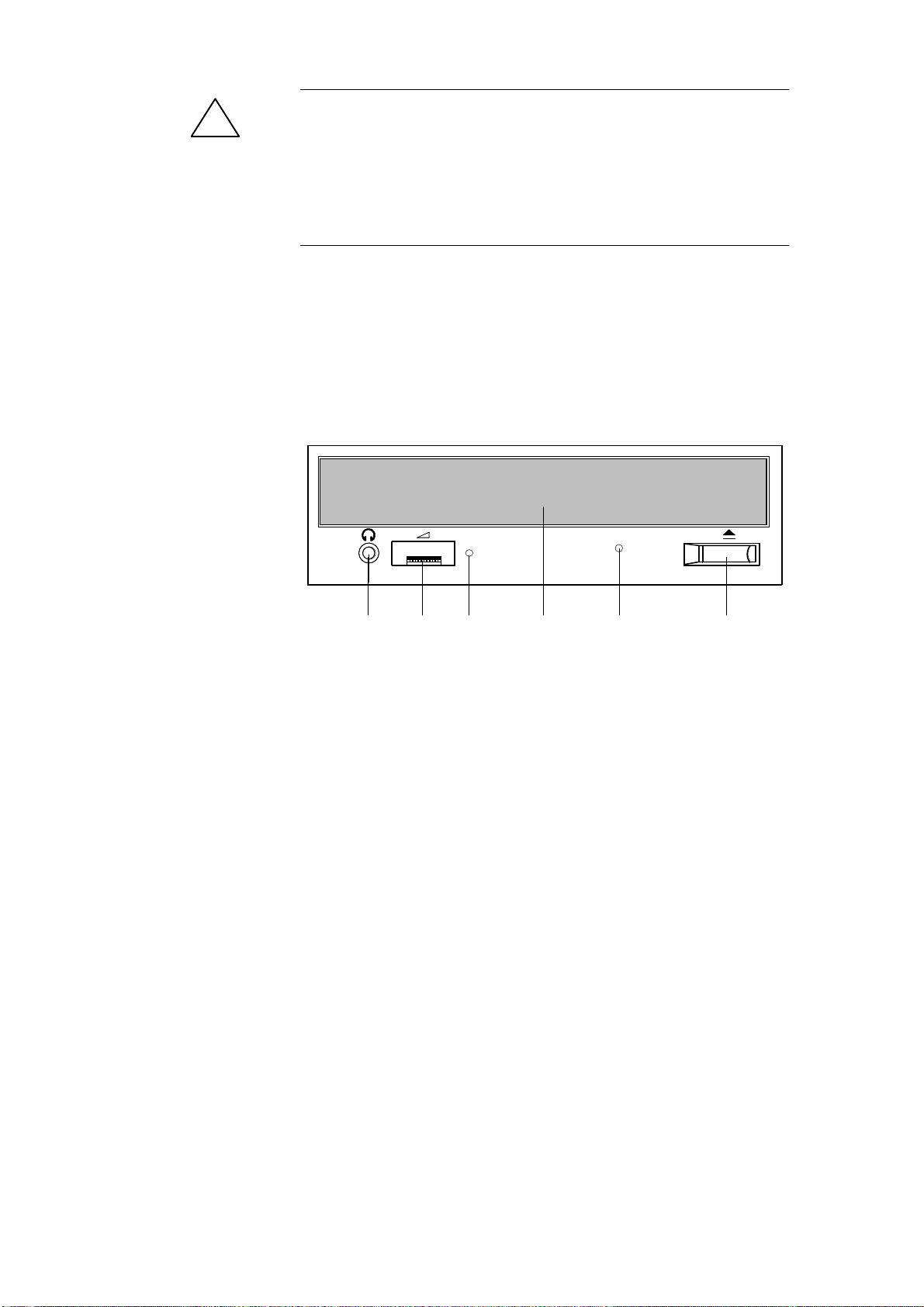

Part Names and
Functions
1 Phones Jack
2 Volume Control
3 BUSY Indicator
4 CD Tray
5 Emergency
Eject Hole
6 Open/
Close Button

9
PG760PII Product InformationBulletin
C79000-K7076-C767-01
The procedure described below can be used to remove a disc from the CD-ROM
reader if the Open/Close button is disabled by software or a power failure occurs.
In this case the CD tray cannot be opened automatically.
1. Turn off the power to the CD-ROM reader (switch off your device if
necessary).
2. Insert a steel rod or a stiff paper clip (with a maximum diameter of 1.3 mm
and a minimum length of 55 mm) into the emergency eject hole at the front
of the drive and push lightly. The CD tray is ejected by about 10 mm. Pull
it all the way open by hand and lift the disc out carefully.
atleast
55mminlength
By pushing the Open/Close button the CD tray is smoothly opened. Place the
CD with the labeled side upward into the tray. Do not use the built-in clips.
The tray is closed automatically after a short push or after having pushed the
Open/Close button.
!Caution
Risk of data loss and damage to the drive!
CD-ROM drives are sensitive to vibrations and shock. Any vibrations occuring
during operation can lead to damage to the drive or CD.
The PG 760 PII is equipped with additional slots for disk drives and
expansion modules. For further information refer to Chapter 4 of the manual.
The manual is available in electronic format on the back-up CD supplied.
A back-up battery (3.6 V lithium battery) powers the hardware clock even
after the PG is switched off.
!Warning
Risk of severe personal injury or property damage, danger of release of
harmful substances.
There may be a danger of explosion if the battery is not handled properly.
Incorrect disposal of used batteries can cause the release of harmful
substances.
Do not throw a new or discharged lithium battery into an open fire, do not
solder onto the cell container. Do not recharge the battery, do not open the
battery by force.
The correct lithium battery is available from Siemens (Order No.:
W79084-E1003-B1).
Return used batteries to the manufacturer/recycler or dispose of them
according to local regulations.
Emergency Eject
Operating your
CD-ROM drive
Additional Slots
Back-Up Battery

10 PG760PII Product InformationBulletin
C79000-K7076-C767-01
SpecialFeatures of the Keyboard
All keys on the keyboard are of the autorepeat type. That is, the relevant
character is repeated as long as you keep the key pressed.
The angle of inclination can be raised from 6°to 12°by using the swivel
feet on the back of the keyboard.
International
Shift
Unshift
National
?
ß\Together with the
Alt Gr key
Example:German
Figure 1-4 The Keyboard Labeling System
The LEDs for the NUM LOCK, CAPS LOCK and SCROLL LOCK keys are
located in the top row of the keyboard and indicate the status of the SHIFT
keys.
SNUM-LOCK
SCAPS-LOCK
SSCROLL-LOCK
When the programming device is powered up, the NUM LOCK, CAPS LOCK
and SCROLL LOCK LEDs light up briefly twice. The keyboard is then ready
for operation.
There is a row of twelve function keys located above the alphanumeric
keyboard. The assignment of individual function keys depends on the
software you are working with.
Autorepeat
Function
Setting Up the
Keyboard
LEDs
Function Keys

11
PG760PII Product InformationBulletin
C79000-K7076-C767-01
TechnicalSpecifications
Dimensions (w x h x d in mm) 448 x 186 x 465
Weight Approx. 15 kg
Line voltage 120 VAC (90..132VAC), or 240 VAC (180..264VAC)
(no automatic switchover)
Line voltage frequency 50/60 Hz (47 to 63 Hz)
Brief voltage interruption acc.
to Namur
Max. 20 ms at 175 W load
Max. power consumption 260 W
Max. current delivery 5 V 3.3 V 12 V 5 V 12 V AUX 5V
20 A 1) 10 A 1) 8 A 2) 0.5 A 0.5 A 0.05 A
Degree of protection IP30 front with closed protective cover. IP20 at the rear
Safety
Protection class Protection class I acc. to VDE 0106 T1: 1982 (IEC 536)
Safety requirements IEC 950/09.91 acc. to EN60950
Electromagneticcompatibility(EMC)
Emitted interference EN 55022 limited value class B
Noise immunity:
linefedinterference on supply
lines
"1 kV (to IEC 100044; burst)
"1 kV (to IEC 100045; surge symm)
"2 kV (to IEC 100045; surge unsymm)
Noise immunity on process
lines, measuring lines,
signal lines
"1 kV (to IEC 100044; burst; length > 3m)
"1 kV (to IEC 100045; surge symm; length > 20m)
"2 kV (to IEC 100045; surge unsymm; length > 20m)
Noise immunity to discharges
of static electricity
"61kV contact discharge (to IEC 100042)
"81kV air discharge (to IEC 100042)
Noise immunity to high
frequency noise
10 V 10KHz  80 MHz, 80% AM (to IEC 100046)
10 V/m 801000 MHz, 80% AM (to IEC 100043)
10 V/m 900 MHz, 50% ED (to ENV 50204)
Ambientconditions
Temperature
operation
storage/transport
gradient
Tested to DIN EN 6006822:1994, DIN IEC 6821, DIN IEC 68214
+ 6 oC to +40 oC
20 oC to +60 oC
max. 10 oC/h (no condensation)
Relativehumidity
operation
storage/transport
Tested to DIN IEC 6823, DIN IEC 68230, DIN IEC 68256
5% to 80% at 25 oC (77 oF) (no condensation)
5% to 95% at 25 oC (77 oF) (no condensation)
Mechanicalspecifications
Vibration
operation
transport
Tested to DIN IEC 6826
10 to 45 Hz: 0.0375 mm, 45 to 500 Hz: 3 m/s2
during CDROM operation, max. 2 m/s2
5 to 9 Hz: 3.5 mm, 9 to 500 Hz: 9.8 m/s2
Shock
operation
storage
Tested to DIN IEC 68229
50 m/s2, 30 ms
250 m/s2, 6 ms

12 PG760PII ProductInformationBulletin
C79000-K7076-C767-01
Motherboard
Processor 333 MHz Pentium II 1st level cache 16 Kbytes data. 16 Kbytes command
2nd level cache 612 Kbytes
Main memory 64 Mbyte EDO RAM
max. 384 Mbyte
Chipset Intel 440LX (PAC) + PIIX4
Expansion slots 3 ISA long format,
3 ISA, 165 mm
3 PCI long format
(1 PCI occupied with SafeCard)
Max. permissible current
consumption per ISA slot
Max. permissible current
consumption per PCI slot
5 V 2 A; 12 V 0.3 A; 12 V 0.05 A; 5 V 0.05 A
5V 2A; 12V 0.5A; -12V 0.1A; -5V 0.1A
(the sum of 5V 10A for ISA and PCI slots must not be exceeded)
Drives
Diskette drive 3.5" (1.44 Mbyte)
Hard disk drive 3.5" EIDE/ 5.2 Gbyte (ATA33)
CDROM drive 5 1/4" EIDE, 650 Mbyte, 24 x speed (ATA)
Port EIDE (primary and secondary ATA33)
Graphics
PCI Graphics chip Matrox Mystique 220 Business
Graphics memory 4 MByte DRAM (can be expanded to 8 MB)
Resolutions/ frequencies/
colors
up to 1600x1200 with 80 Hz, 65K colors
Interfaces
COM1 Serial port 1 (V24) 25pin subD socket
COM2 Serial port 2 (V24) 9pin subD connector (standard)
LPT1 Parallel port
Connection for printer with parallel port
VGA VGA interface, connection for external monitor
Keyboard PS/2 keyboardconnection
Mouse PS/2 mouse connection
Sound Crystal CS 4238 B
Microphone Dynamic microphone, mono, 3.5 mm stereo mini jack socket
Loudspeaker Stereo, active loudspeaker units (800 Ohm), 3.5mm stereo mini jack socket
MPI/DPinterface,
optically isolated * 9pin subD socket, screwtypelocking
For SIMATIC MPI or PROFIBUS DP networks (compatible with CP 5611)
Transmission rate 9.6 Kbps to 12 Mbps, assign parameters with software
Operatingmode Optically isolated *: data lines A, B
control lines RTS AS, RTS_PG
5V line voltage (max. 90 mA)
Groundconnection: MPI/DP connection cable shield
Physical interface RS485, optically isolated
Memory address area Resources are allocated via PCIPNP
Interrupts Resources are allocated via PCIPNP
Functiondisplays
LEDs on the device Power/Standby
Hard disk
MPI/DP
Memory card
Diskette access
CDROM access
1) in sum 100W must not be exceeded
2) 12V can be loaded with 11A for a maximum of 10s
3) The cable supplied allows for a transmission rate of 187.5 kbps
* Optically isolated within the safety extra-low voltage circuit (SELV)

13
PG760PII ProductInformationBulletin
C79000-K7076-C767-01
Notes on the CE Symbol for SIMATIC S5
The following applies to the SIMATIC product described in this manual:
This product fulfils the requirements for the EC directive 89/336/EEC on
“electromagnetic compatibility” and the following fields of application apply
according to this CE symbol:
Field of Application Requirement For
Emitted Interference Noise Immunity
Residential, commercial,
and light industry. EN 50081-1: 1992 EN 50082-1: 1992
Industry EN 50081-2: 1993 --
This product fulfils the requirements for the EC directive 73/23/EEC on “low
voltage” and was tested to EN60950.
The EC declarations of conformity and the documentation relating to this are
available to the authorities concerned, according to the above EC directive,
Article 10 (1), from:
Siemens AG
Bereich Automatisierungs- und Antriebstechnik
A&D AS E14
Postfach 1963
D-92209 Amberg
The setup guidelines and notes on safety given in the documentation must be
observed during startup and when operating the device.
The requirements regarding noise immunity (EN50082-2:1995) are met when
a mouse is connected at the COM2 port.
Note
Any other devices which are connected to this product must also be radio
interference suppressed according to the German Ministry for Post and
Telecommunications provision 1046/84 and 243/91 or European Economic
Community Directive 89/336/EEC. Products which fulfil these specifications
carry a manufacturer’s certificate, the corresponding BZT (German
government body for telecommunications approvals) approval or the CE
symbol. Products which do not fulfil these requirements may only be
employed with special permission from the BZT.
EMC Directive
Low Voltage
Directive
Declaration of
Conformity
Observing the
Setup Guidelines
Mouse Connection

14 PG760PII Product InformationBulletin
C79000-K7076-C767-01
The quality assurance system for the whole product process (development,
production, and marketing) fulfils the requirements of ISO 9001 (corresponds
to EN29001: 1987).
This has been certified by the German society for the certification of quality
management systems (DQS).
EQ-Net certificate no.: 1323-01
The PG 760 PII is shipped with the software already installed. Please observe
the relevant license agreements.
All the important information required to start up and install your software
can be found in the enclosed Product Information PG 760 PII.
ISO 9001
Certificate
Software License
Agreement
Product
Information

15
PG760PII Product InformationBulletin
C79000-K7076-C767-01
Options
An optional second IDE disk drive can be built into the free rear disk drive
slot available. Provisions for the necessary wiring have already been made.
!Caution
Risk of damage to the unit!
Please note that only qualified personnel should be allowed to work on the
open unit, so the warranty on the device is not affected. Authorized Siemens
maintenance and repair centers offer you a specialist maintenance service.
You can obtain a list of addresses from the SIMATIC Customer Support
Hotline. In addition, read Chapter 5 of the manual.
Only ATA33-compatible drives can be used as a second disk drive. The
drives must display the CE- or UR- symbol. You can obtain further
information from your service representative.
On the rear of the disk drive there are plug-in jumpers to set the operating
mode. If there are jumper settings printed on your drive, these settings apply.
You can add to the functionality of your PG 760 PII by expanding the
configuration of the hardware to fit your individual requirements. The
following table shows the options offered by Siemens.
Please contact your Siemens sales representative for further options.
Option OrderNumber
64 Mbytes memory expansion EDO 6ES7791-0FR00-0XA0
128 Mbytes memory expansion SDRAM 6ES7791-0GS00-0XA0
Mouse Use a robustly designed industrial mouse
e.g. DURAPOINT at the COM2 (V24)
portforindustrial applications.
MPI connecting cable for 12 Mbps 6ES7901-4B00-0XA0
!Caution
Risk of damage to the unit!
Please note that only qualified personnel should be allowed to work on the open
unit, so the warranty on the device is not affected. Authorized Siemens
maintenance and repair centers offer you a specialist maintenance service. You
can obtain a list of addresses from the SIMATIC Customer Support Hotline. In
addition, read Chapter 5 of the manual.
Additional Disk
Drive
Authorized Types
of Disk Drive
Setting the Plug-in
Jumpers
Additional
Hardware
Expansions

16 PG760PII Product InformationBulletin
C79000-K7076-C767-01
Plug the SIMM memory cards in as follows:
1. Switch off your device and disconnect it from the power supply.
2. First open the unit as described in Chapter 4 of the manual.
3. Remove all inserted long ISA modules.
4. Plug the SIMM card into the socket in a vertical position, making sure the
cut-out on the connector end of the SIMM card engages properly.
5. Press the card lightly and tilt it downwards until it locks into place.
6. Close the device (see Chapter 4 of the manual).
!Caution
Risk of damage!
After plugging in, make sure that the cards fit tightly into their sockets other-
wise they could be damaged.
Installing SIMM
Cards

17
PG760PII Product InformationBulletin
C79000-K7076-C767-01
Open round the clock, world-wide:
Johnson City
Nuremberg
Singapore
Simatic Basic Hotline
Nuremberg
SIMATICBASIC Hotline Johnson City SIMATIC BASIC Hotline Singapore SIMATIC BASIC Hotline
Local time:Mo.-Fr. 8:00 to 18:00
Phone: [phone]
Fax: [phone]
E-Mail: simatic.support@
nbgm.siemens.de
GMT: +1:00
Local time:Mo.-Fr. 8:00 to 17:00
Phone: [phone]
Fax: [phone]
E-Mail: simatic.hotline@
sea.siemens.com
GMT: –5:00
Local time:Mo.-Fr. 8:30 to 17:30
Phone: [phone]
Fax: [phone]
E-Mail: simatic@
singnet.com.sg
GMT +8:00
SIMATIC PremiumHotline
(Calls charged, only with
SIMATIC Card)
Time: Mo.-Fr. 0:00 to 24:00
Phone: [phone]
Fax: [phone]
GMT +01:00
The SIMATIC Customer Support team offers you substantial additional
information about SIMATIC products via its online services:
SGeneral current information can be obtained from:
– the Internet under http://www.ad.siemens.de/simatic
– the Fax-Polling number 08765-93 02 77 95 00
SCurrent product information leaflets and downloads which you may find
useful are available:
– on the Internet under
http://www.ad.siemens.de/support/html_00/
– via the Bulletin Board System (BBS) in Nuremberg (SIMATIC
Customer Support Mailbox) under the number [phone].
To access the mailbox, use a modem with up to V.34 (28.8 Kbps) with
parameters set as follows: 8, N, 1, ANSI; or dial in via ISDN (x.75, 64
Kbps).
SIMATIC Customer
Support Hotline
SIMATIC Customer
Support Online
Services

18 PG760PII Product InformationBulletin
C79000-K7076-C767-01
RegionalRepair Centers
SIMATIC-Hotline
Ifproblems occur, the SIMATIC Hotline should be able to help.
SiemensAG
AUT 1 CS
Gleiwitzerstr. 555
D-90475 Nürnberg-Moorenbrunn
Telefon: [phone]
Fax: [phone]
(49)911-895-7002
Region PG-RepairCenter Phone
Augsburg ATD TD ABG 6 (0821)3252 599
Berlin ATD TD BLN 5 (030)386 34926
Bielefeld ATD TD [phone]
Bremen ANL TD 47 (0421)364 2996
Chemnitz A&D B 14 (0371)475 3860
Cologne ATD TD SSH 5 (0221)576 6516
Erlangen ATD TD 3 LSE-ITC (09131)7 32714
Erlangen ATD TD 3 LSE-RC (09131)7 31048
Essen ATD TDE [phone]
Frankfurt ANL TD 84 [phone]
Fürth A&D SE B 9.1 (0911)750 2741
Hamburg ANL TD FSZ [phone]
Hanover ANL TD HVR 1 (0511)877 2241
Karlsruhe A&D AS EWK PLZ 52 (0721)595 4183
Kassel ATD TD [phone]
Langen ATD TD E [phone]
Leipzig ATD TD 31 (0341)210 2049
Mannheim ATD TD 9 (0621)456 1328
Munich ATD TD MCH 53 (089)9221 6213
Nuremberg ATD TD S 1 (0911)654 6117
Saarbrücken ATD TD 3 (0681)386 2598
Stuttgart
Weilimdorf ATD TD SDW 5 (0711)137 6228
