Siemens Connected Home RDZ100ZB User manual

Zigbee Room Thermostat, wired and wireless, battery
powered
RDZ100ZB, RDZ101ZB
For heating systems
●Room temperature control
●Communicates with Connected Home Hub via Zigbee network
●2-position/TPI control with On/Off output for heating
–RDZ100ZB: With built-in relay
–RDZ101ZB: With wireless output module
●Open window detection
●Frost protection
●Schedule via mobile application "Connected Home" (downloadable from
Google Play™or Apple App Store®)
●Adjustable commissioning and control parameters via mobile application
●Battery-powered (2xAA batteries)
A6V13360592_en--_c
Siemens AG
2023-10-09
Smart Infrastructure
2
Siemens
A6V13360592_en--_c
Smart Infrastructure
2023-10-09
Use The RDZ100ZB/RDZ101ZB is part of Siemens Connected Home ecosystem. It is used to
control the room temperature in heating systems.
Typical application:
●Apartments
●Single family homes
To control the following pieces of equipment:
●Thermal valves or zone valves
●Gas or oil boilers
●Heat pumps
●Circulating pumps
●Floor heating
Functions
●Room temperature control via built-in sensor
●Selection of operating mode “On” or “Off” (frost protection)
●Setting schedule via the mobile application
●Display of current room temperature
●Setpoint override (manual mode) until the next scheduled switching point
●Limitation of minimum/maximum setpoint adjustments for heating
●Remote operation and monitoring via mobile application
●Open window detection
●Valve exercising
●Heat demand-based boiler or pump release in combination with e.g. Connected Home
Receiver RCR110.2ZB
●Factory reset
●Wireless communication
●Firmware upgrade via Zigbee
●Auto sleep function to save battery
Type summary
Type
Stock number
Description
RDZ100ZB
S55772-T113
Wired, heating, battery powered
RDZ101ZB
S55772-T114
Wireless, heating, battery powered
RCR110.2ZB
S55772-T110
Wireless output module for RDZ101ZB
Accessories
Type
Stock number
Description
ARG101
S55772-T112
Italian adapter plate for RDZ100ZB and
RDZ101ZB
Delivery RCR110.2ZB and ARG101 are not included in the delivery and must be ordered separately.
3
Siemens
A6V13360592_en--_c
Smart Infrastructure
2023-10-09

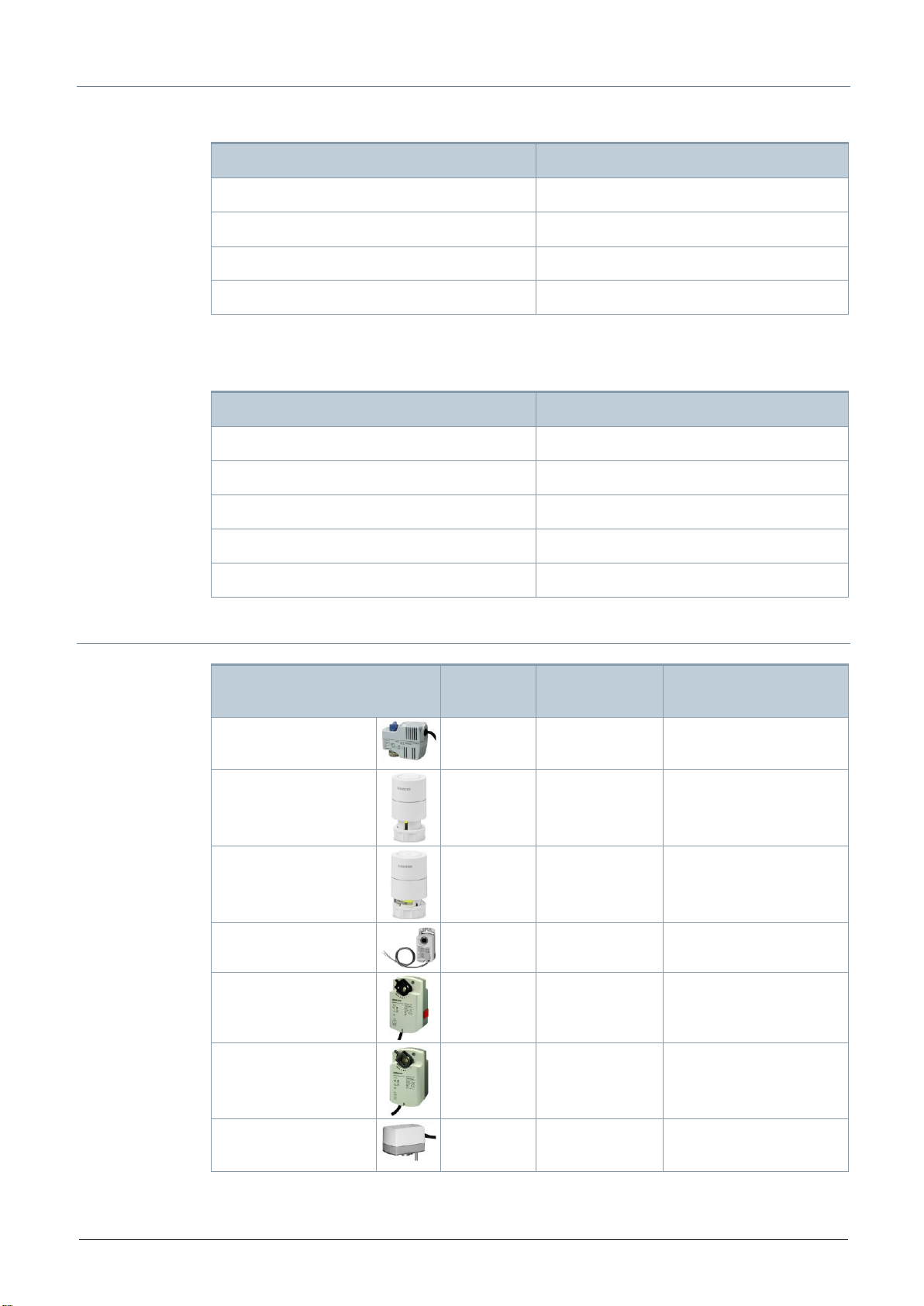

Inbox item
RDZ100ZB
Items
Quantity
RDZ100ZB mounting plate
1
RDZ100ZB front panel
1
Battery
2
Mounting instructions
1
RDZ101ZB
Items
Quantity
RDZ101ZB mounting plate
1
RDZ101ZB table stand
1
RDZ101ZB front panel
1
Battery
2
Mounting instructions
1
Equipment combinations
Type of unit
Product
number
Data Sheet*
Use with the type of
temperature control
Electromotoric
actuator
SFA21...
4863
2-position & TPI slow
Thermal actuator (for
radiator valves)
AC 230 V, NO
STP321
A6V12986007
2-position & All TPI
Thermal actuator
AC 230 V (for small
valves 2.5 mm), NC
STA321
A6V12986007
2-position & All TPI
Damper actuator
GDB...
4634
2-position & TPI slow
Damper actuator
GSD...
4603
2-position & TPI slow
Damper actuator
GQD...
4604
2-position & TPI slow
Rotary damper
actuator
GXD...
4622
2-position & TPI slow
4
Siemens
A6V13360592_en--_c
Smart Infrastructure
2023-10-09
*)The documents can be downloaded from www.siemens.com/bt/download.
Product documentation
Title
Document ID
Mounting instructions
A6V13360576
Operation manual
A6V13360586
CE declaration
A5W00270102A
UKCA declaration
A5W00270107A
Product environmental declaration
A5W00269582A
Siemens Connected Home system
description
A6V13661932
Related documents such as environmental declarations, CE declarations, and so on, can be
downloaded at: http://siemens.com/bt/download.
Notes
Safety
CAUTION
National safety regulations
Failure to comply with national safety regulations may result in personal injury and property
damage.
●Observe national provisions and comply with the appropriate safety regulations.
WARNING
Explosion due to fire or short-circuit, even with discharged batteries
Risk of injury due to flying parts
●Prevent the batteries from coming in contact with water.
●Do not recharge batteries.
●Do not damage or disassemble batteries.
●Do not heat batteries over 60 °C.
WARNING
Electrolyte leakage
Chemical burns
●Only grasp damaged batteries using suitable protective gloves.
●If electrolyte comes into contact with eyes, immediately rinse eyes with plenty of water.
Consult a doctor.
5
Siemens
A6V13360592_en--_c
Smart Infrastructure
2023-10-09
Mounting
●RDZ100ZB is suitable for wall mounting.
●RDZ101ZB is suitable for wall mounting and table standing.
●Recommended height for wall mounting: 1.50 m above the floor.
●Mount the thermostat close to Connected Home Hub if possible. Note that the
communication range can vary because walls, floors, wireless interference and other
factors may reduce the signal strength.
●Do not mount or place the thermostat in recesses, behind curtains or doors, or above or
near heat sources.
●Do not mount or place the thermostat near large metal structures or other construction
elements with fine metal meshes like special glass or special concrete.
●Do not mount or place the thermostat in a location where it is exposed to dripping water,
moisture or excessive heat.
●Do not mount or place the thermostat on metal surfaces.
●Avoid placing RDZ101ZB inside or near metal or sources of radio or electromagnetic
energy or interference, for example, do not place under or on top of a WLAN router.
●Avoid direct sunlight.
●Seal the conduit box or the installation tube if any, as air currents can affect sensor
readings.
●Observe allowed ambient conditions.
●Keep the thermostat out of the reach of people (including children) whose physical,
sensory or mental capabilities, knowledge, or experience prevents them from using the
thermostat safely without supervision or instructions.
●If the adapter plate ARG101 is used, assemble its mounting frame and mounting plate in
such a way that the bigger round spot embossed on the mounting frame is atop.
●Make sure wiring, protection, and earthing comply with local regulations.
●Switch off power to the heating system before mounting/dismantling and wiring.
●Correctly size the cables to the thermostat and the valve actuators.
●Use only valve actuators rated for AC 24…230 V.
●External preliminary protection with maximum C 10 A circuit breaker in the supply lines is
required under all circumstances.
Mounting
Wiring (for
RDZ100ZB only)
6
Siemens
A6V13360592_en--_c
Smart Infrastructure
2023-10-09
Installation
WARNING
No internal line protection for supply lines to external consumers
Risk of fire and injury due to short-circuits
●Adapt the line diameters as per local regulations to the rated value of the installed fuse.
CAUTION
Risk of explosion
Personal injury and property damage
●Insert the battery at the correct polarity (+/-) using the illustration in the battery
compartment.
●Insert only the correct battery types according to the indication in the battery
compartment.
●Store, transport and dispose of the batteries in compliance with local requirements,
regulations and laws, and observe the instructions of the battery manufacturer.
Observe the following:
●The batteries must be undamaged.
●Do not mix new and used batteries.
Commissioning
●The thermostat is ready for commissioning after batteries are inserted.
●After joining is initiated from the mobile application, tap and hold for more than five
seconds on the thermostat to join the Zigbee network.
●After joining the network, set schedules and change parameters in the mobile application
to ensure optimum performance of the entire system. See the operation manual
(http://www.siemens.com/download?A6V13360586) for more information about
parameters.
The wireless room thermostat RDZ101ZB requires a wireless output module, e.g.
RCR110.2ZB, to control HVAC equipment. Binding the thermostat to the output module is
automatic, if located in the same room. Max. 5 wireless output modules can be bound to one
wireless room thermostat RDZ101ZB.
Operation See the operation manual (http://www.siemens.com/download?A6V13360586) for detailed
information.
Maintenance Apart from replacing batteries upon low battery notification on the local screen or in the
mobile application, the thermostat is maintenance-free. See the operation manual
(http://www.siemens.com/download?A6V13360586) for information about battery
replacement.
Commissioning
Wireless output
module
7
Siemens
A6V13360592_en--_c
Smart Infrastructure
2023-10-09
Open Source Software (OSS)
Software license overview
These devices use Open Source Software (OSS). All Open Source Software components
used in the product (including copyrights and licensing agreement) are available at
http://siemens.com/bt/download.
Firmware version
OSS document ID
Device
v10000
A6V13562630
RDZ100ZB, RDZ101ZB
Disposal
This symbol or any other national label indicate that the product, its
packaging, and, where applicable, any batteries may not be disposed of as
domestic waste. Delete all personal data and dispose of the item(s) at
separate collection and recycling facilities in accordance with local and
national legislation.
For additional details, refer to Siemens information on disposal.
Warranty Technical data on specific applications are valid only together with Siemens products listed
under Equipment combinations [▶3]. Siemens rejects any and all warranties in the event
that third-party products are used.
8
Siemens
A6V13360592_en--_c
Smart Infrastructure
2023-10-09
General technical data
Power supply
Operating voltage
DC 3 V (2 x 1.5 V AA alkaline batteries)
Battery life
1 year
Radio parameters
Frequency band
2.4…2.4835 GHz
Maximum radio-frequency power
6 dBm
Communication standard
Based on Zigbee 3.0
MAC protocol
IEEE 802.15.4
Zigbee channels
11...26
Pairing method with GTW100ZB
Global Link Key
Functional data
Protection mode
8 °C
Built-in room temperature sensor
Setpoint setting range
5…35 °C
Accuracy at 25 °C
< ±0.5 K
Temperature calibration range
±2.5 K
Resolution of settings and displays
Setpoints
0.5 °C
Temperature value displays
0.5 °C
Ambient conditions and protection classification
Degree of protection of housing as per
EN 60529
IP30
Protection against electrical shock
RDZ100ZB
Protection class II
RDZ101ZB
Protection class III
Classification as per EN 60730
Function of automatic control devices
Type 1
Degree of pollution
2
9
Siemens
A6V13360592_en--_c
Smart Infrastructure
2023-10-09
Ambient conditions and protection classification
Overvoltage category
RDZ100ZB
III
RDZ101ZB
I
Rated impulse voltage
RDZ100ZB
4000 V
RDZ101ZB
330 V
Climatic ambient conditions
Transport and storage (in packaging)
●Temperature: -25…+70 °C
(-13…+158 °F)
●Ambient humidity: < 95 % r.h.
(non-condensing)
Operation (in dry locations having no
temperature or humidity control)
●Temperature: 0...50 °C
(32...122 °F)
●Ambient humidity: < 95 % r.h.
(non-condensing)
Mechanical ambient conditions
Transport (in transport packaging) as per
IEC/EN 60721-3-2
Class 2M4
Operation as per IEC/EN 60721-3-3
Class 3M11
Standards, directives and approvals
EU conformity (CE)
See EU declaration of conformity
A5W00270102A*)
UK conformity (UKCA)
See UK-declaration of conformity
A5W00270107A*)
Environmental compatibility
The product environmental declaration
(A5W00269582A) contains data on
environmentally compatible product design
and assessments (RoHS compliance,
materials composition, packaging,
environmental benefit, disposal).
*)The documents can be downloaded from www.siemens.com/bt/download.
General
Housing color
RAL9003
Thermostat with box, user document and accessory
RDZ100ZB
210 g
RDZ101ZB
226 g
10
Siemens
A6V13360592_en--_c
Smart Infrastructure
2023-10-09
General
Thermostat
RDZ100ZB
157 g
RDZ101ZB
173 g
Technical data (RDZ100ZB only)
Switching capacity of relay
Voltage
AC 24…230 V
Current
Lx - L1 Maximum 5 (2) A
Lx - L2 Maximum 5 (2) A
WARNING
No internal fuse.
External preliminary protection with maximum C 10 A circuit breaker in the supply lines is
required under all circumstances.
External protection for incoming cable
Circuit breaker
Maximum 10 A
Circuit breaker tripping characteristic
Type B, C or D as per EN 60898 and
EN 60947
Contact life at AC 230 V
At 5 A res.
Guided value:
1 x 105 cycles
Electrical connections
Connection terminals
Screw terminals
For solid wires or prepared stranded wires
2 x 1.5 mm2or 1 x 2.5 mm2(min. 0.5 mm2)
11
Siemens
A6V13360592_en--_c
Smart Infrastructure
2023-10-09
Connection diagrams
Lx
Live, AC 24...230 V
Nx
Neutral conductor, AC 24...230 V
Lx, L2
NC contact (for NO valves)
N1
Wired room thermostat RDZ100ZB
Lx, L1
NO contact (for NC valves)
Y1
Actuating device
WARNING
Current higher than 5(2) A is not allowed to go through RDZ100ZB controller. For high
current device, an additional relay or contactor must be installed.
L
Live, AC 230 V
Nx
Neutral conductor, AC 24...230 V
Lx
Live, AC 24...230 V
N1
Wireless room thermostat RDZ101ZB
Q11, Q12
NC contact (for NO valves)
N2
Wireless output module RCR110.2ZB
Q11, Q14
NO contact (for NC valves)
Y1
Actuating device
N
Neutral conductor, AC 230 V
RDZ100ZB
RDZ101ZB
12
Siemens
A6V13360592_en--_c
Smart Infrastructure
2023-10-09
Application examples
RDZ100ZB
RDZ101ZB (with RCR110.2ZB)
Gas boiler
Gas boiler
Floor heating with valve
Floor heating with valve
Radiator with pump
Floor heating with pump
Electric boiler
Electric boiler
Electric radiator
N1
RDZ100ZB/RDZ101ZB
K1
Heat generator (for example, boiler)
N2
RCR110.2ZB
Y1
Magnetic valve
M1
Circulating pump
13
Siemens
A6V13360592_en--_c
Smart Infrastructure
2023-10-09
Dimensions
Regulatory compliance information
Radio equipment directive
The equipment uses harmonized frequency in Europe and complies with Radio Equipment
Directive 2014/53/EU (formerly 1999/5/EC).
Issued by
Siemens Switzerland Ltd
Smart Infrastructure
Global Headquarters
Theilerstrasse 1a
CH-6300 Zug
+41 58 724 2424
www.siemens.com/buildingtechnologies
© Siemens 2023
Technical specifications and availability subject to change without notice.
Document ID
A6V13360592_en--_c
Edition
2023-10-09

Other manuals for Connected Home RDZ100ZB

1

This manual suits for next models

1

Other Siemens Thermostat manuals

Siemens QFA1000 User manual

Siemens

Siemens QFA1000 User manual

Siemens RDD100.1RFS User manual

Siemens

Siemens RDD100.1RFS User manual

Siemens RDU341 Operator's manual

Siemens

Siemens RDU341 Operator's manual

Siemens RDH100RF/SET User manual

Siemens

Siemens RDH100RF/SET User manual

Siemens RDF300 Series Operator's manual

Siemens

Siemens RDF300 Series Operator's manual

Siemens Free Energy Band TH 193 HC Owner's manual

Siemens

Siemens Free Energy Band TH 193 HC Owner's manual

Siemens RDG405KN User manual

Siemens

Siemens RDG405KN User manual

Siemens RDH100 User manual

Siemens

Siemens RDH100 User manual

Siemens RDG200KN User manual

Siemens

Siemens RDG200KN User manual

Siemens RAB10 Series Owner's manual

Siemens

Siemens RAB10 Series Owner's manual

Siemens RDF600T User manual

Siemens

Siemens RDF600T User manual

Siemens RAK-TR IP43 User manual

Siemens

Siemens RAK-TR IP43 User manual

Siemens RDG User guide

Siemens

Siemens RDG User guide

Siemens QAA2212.*W*N User manual

Siemens

Siemens QAA2212.*W*N User manual

Siemens RDD100.1RF User manual

Siemens

Siemens RDD100.1RF User manual

Siemens RDF310.2/MM User manual

Siemens

Siemens RDF310.2/MM User manual

Siemens RDG200KN User manual

Siemens

Siemens RDG200KN User manual

Siemens RDB160BN Operator's manual

Siemens

Siemens RDB160BN Operator's manual

Siemens RDG Series User guide

Siemens

Siemens RDG Series User guide

Siemens TH 192 DN Owner's manual

Siemens

Siemens TH 192 DN Owner's manual

Siemens RDS110 User manual

Siemens

Siemens RDS110 User manual

Siemens RDS120-B Owner's manual

Siemens

Siemens RDS120-B Owner's manual

Siemens RDF800KN User manual

Siemens

Siemens RDF800KN User manual

Siemens RDF400 User manual

Siemens

Siemens RDF400 User manual

Popular Thermostat manuals by other brands

Bryant LEGACY LINE-RNC T1-NAC installation instructions

Bryant

Bryant LEGACY LINE-RNC T1-NAC installation instructions

Vimar RADIOCLIMA 01910 Instruction handbook

Vimar

Vimar RADIOCLIMA 01910 Instruction handbook

Soloon S6051-L2 Series operation instruction

Soloon

Soloon S6051-L2 Series operation instruction

Ambient WT Installation and operating instructions

Ambient

Ambient WT Installation and operating instructions

Horstmann CENTAURSTAT 1 User instructions

Horstmann

Horstmann CENTAURSTAT 1 User instructions

TENZA CPT11 installation manual

TENZA

TENZA CPT11 installation manual

EPH RS1 Installation and operation guide

EPH

EPH RS1 Installation and operation guide

VDH PROBA 5 Compact installation manual

VDH

VDH PROBA 5 Compact installation manual

Bosch BCC100 quick start guide

Bosch

Bosch BCC100 quick start guide

Danfoss TPONE-RF quick guide

Danfoss

Danfoss TPONE-RF quick guide

Peco TA170-001 Quick manual

Peco

Peco TA170-001 Quick manual

Salus CE-HTR230 Installer manual

Salus

Salus CE-HTR230 Installer manual

Watts Vision BT-D03 RF user guide

Watts

Watts Vision BT-D03 RF user guide

Elko TER-7 quick start guide

Elko

Elko TER-7 quick start guide

IKA EH 4 basic Service manual

IKA

IKA EH 4 basic Service manual

Celect CC852KIT instruction manual

Celect

Celect CC852KIT instruction manual

EWC Controls EWT-855i installation manual

EWC Controls

EWC Controls EWT-855i installation manual

emmeti N CTA W manual

emmeti

emmeti N CTA W manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
