Siemens LC8K950 User manual

LC8K950
Operating and
installation instructions

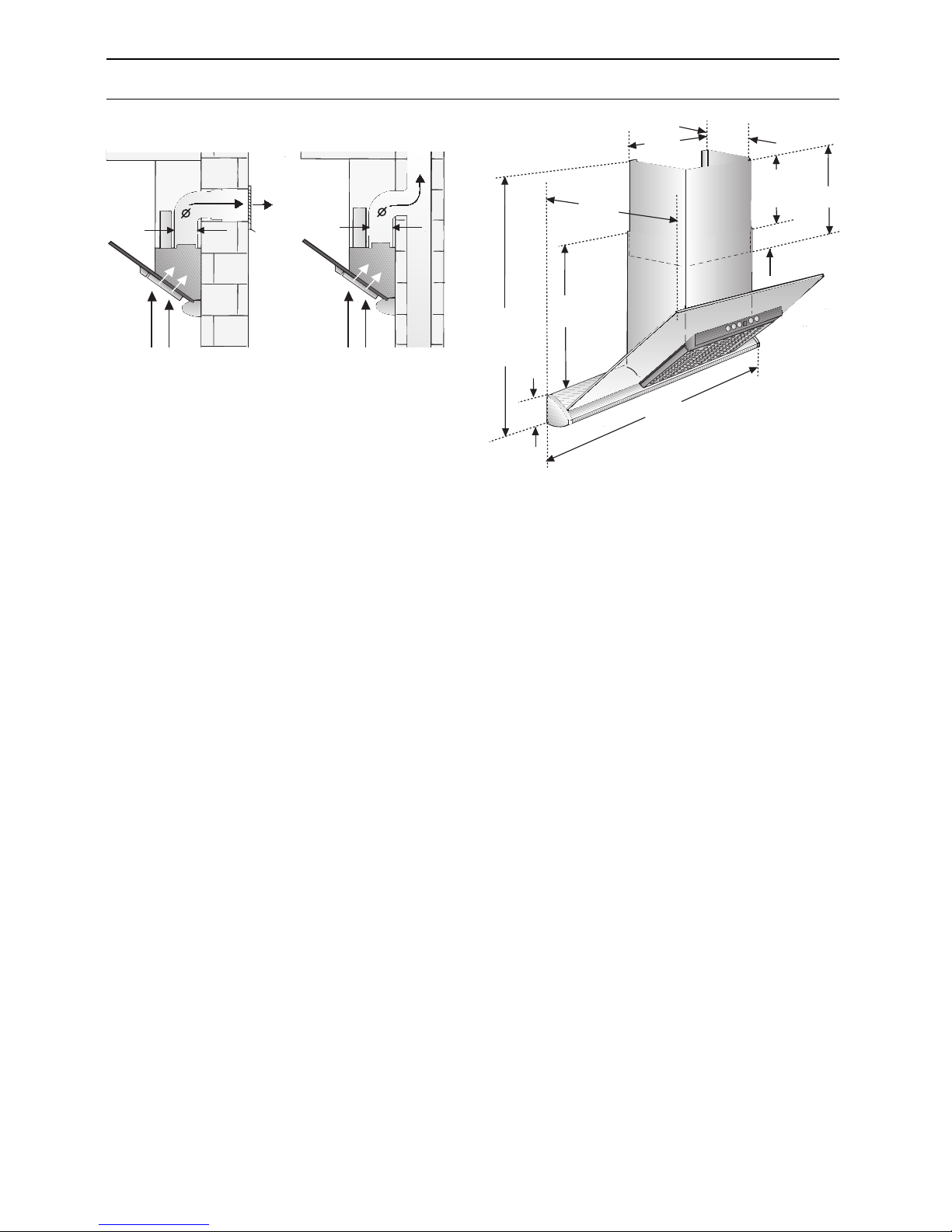

2
m
ind.
550
m
ind.
650
Abb. 1
GAZ
Fig. 1
ELECTRO

3

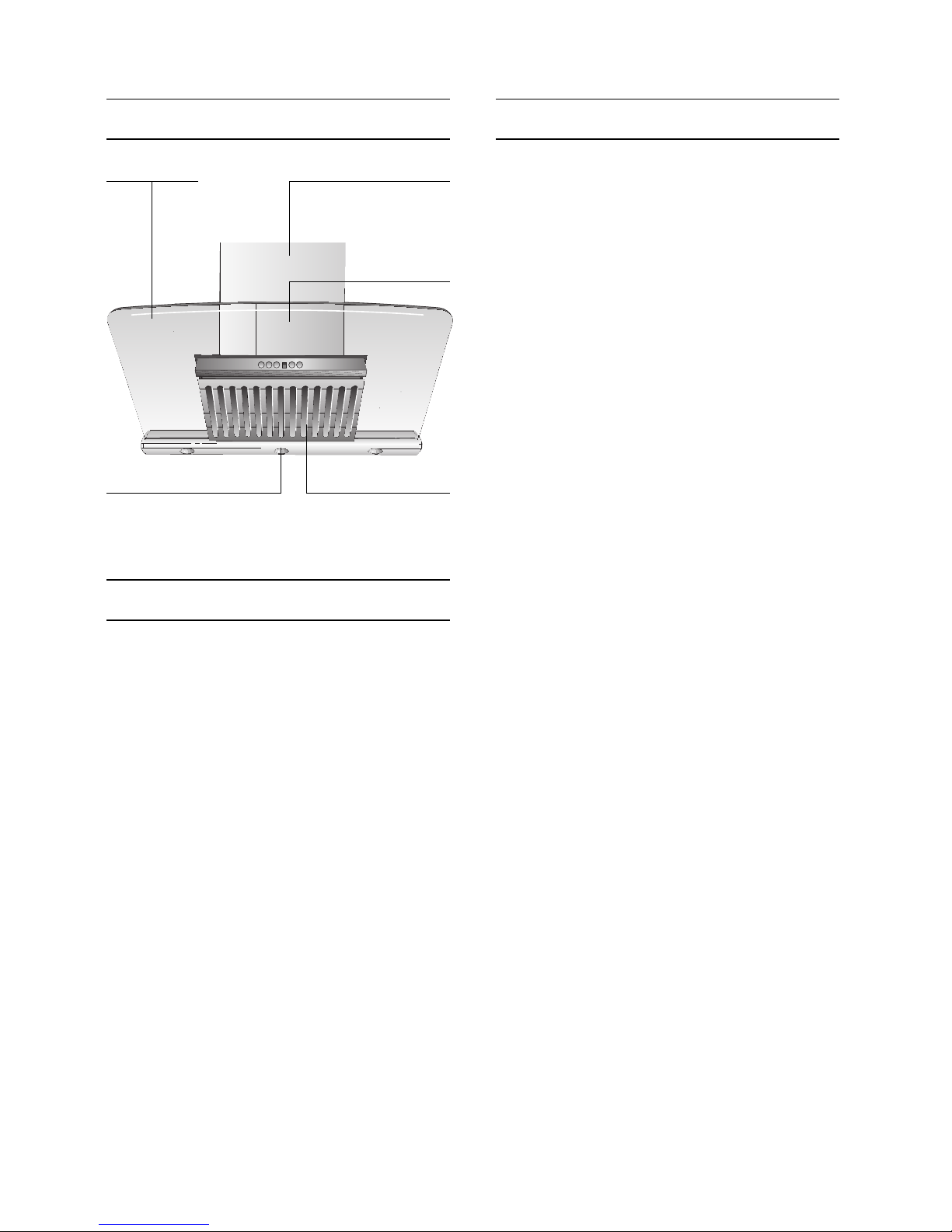

Appliance description
Operating Instructions
Operating modes
Exhaust-air mode:
❑The extractor-hood fan extracts the kit-
chen vapours and conveys them through
the grease filter into the atmosphere.
❑The grease filter absorbs the solid
particles in the kitchen vapours.
❑The kitchen is kept almost free of grease
and odours.
DWhen the extractor hood is operated
in exhaust-air mode simultaneously with
a different burner which also makes use
of the same chimney (such as gas, oil or
coal-fired heaters, continuous-flow heaters,
hot-water boilers) care must be taken to
ensure that there is an adequate supply
of fresh air which will be needed by the
burner for combustion.
Safe operation is possible provided that the
underpressure in the room where the
burner is installed does not exceed 4 Pa
(0.04 mbar).
Operating modes
This can be achieved if the combustion air
is able to flow through non-lockable
openings, e.g. in doors, windows and in
conjunction with an air supply/air-intake wall
box or by other technical procedures such
as reciprocal interlocking.
If the air intake is inadequate, there is a
risk of poisoning from combustion gases
which are drawn back into the room.
An air-intake/exhaust-air wall box by itself is
no guarantee that the limiting value will not
be exceeded.
Note: When assessing the overall
requirement, the combined ventilation
system for the entire household must be
taken into consideration. This rule does not
apply to the use of cooking appliances,
such as hobs and ovens.
Lighting
Light / fan
switches
Filter grille
Chimney panellingGlass panel

4
Before using for the first time
Important notes:
❑The Instructions for Use apply to several
versions of this appliance. Accordingly,
you may find descriptions of individual
features that do not apply to your
specific appliance.
❑This extractor hood complies with all
relevant safety regulations.
Repairs should be carried out by
qualified technicians only.
Improper repairs may put the user at
considerable risk.
❑Before using your appliance for the first
time, please read these Instructions for
Use carefully. They contain important
information concerning your personal
safety as well as on use and care of the
appliance.
❑Please retain the operating and
installation instructions for a subsequent
owner.
❑This appliance is labelled
in accordance with
European Directive
2002/96/EG concerning
used electrical and
electronic appliances
(waste electrical and
electronic equipment –
WEEE). The guideline
determines the
framework for the return and recycling of
used appliances as applicable through-
out the EU.
Gas hobs / Gas cookers
Do not use all the gas hotplates
simultaneously for a prolonged period
(max. 15 minutes) at maximum thermal
load, otherwise there is a risk of burns if the
housing surfaces are touched or a risk of
damage to the extractor hood. If the
extractor hood is situated over a gas hob,
operate the hood at maximum setting if
three or more gas hotplates are operated
simultaneously.
Safety instructions
Do not flambé food directly under the
extractor hood.
Risk of grease filter catching fire due
!to flames.
The hotplates must always be covered
with a utensil.
Restrictions apply to the use of the
extractor hood over a solid-fuel burner
(coal, wood, etc.). (See Installation
instructions).
Do not use the appliance if damaged.
The appliance is not intended for use
by young children or infirmed persons
without supervision.
Young children should be supervised to
ensure they do not play with the appliance.
If the connecting cable for this
appliance is damaged, the cable must be
replaced by the manufacturer or his
customer service or a similarly qualified
person in order to prevent serious injury to
the user.
The appliance may be connected to
the mains by a qualified technician only.
Dispose of packaging materials
properly (see Installation instructions).
This extractor hood is designed for
domestic use only.
Light bulbs must always be fitted when
the extractor hood is in use.
Defective bulbs should be replaced
immediately to prevent the remaining bulbs
from overloading.
Never operate the extractor hood
without a grease filter.
Overheated fat or oil can easily catch
fire.
If you are cooking with fat or oil, e.g. chips,
etc., never leave the cooker unattended.
Carefully clean the extractor hood
before switching on for the first time.

5
Operating procedure
The most effective method of removing
vapours produced during cooking is to:
❑Switch the ventilator ON
as soon as you begin cooking.
❑Switch the ventilator OFF
a few minutes after you have finished
cooking.
Light
Fan OFF Reduce fan speed Fan ON and
increase
speed
Display for
fan setting
Fan
follow-on
Acoustic signal:
❑When a button is pressed, this is verified
by an acoustic signal.
Switching off the acoustic signal:
❑Simultaneously press buttons 0and +
until a signal is emitted after approx. 3
seconds.
Switching on the acoustic signal:
❑Repeat the process.
Switching the fan ON
❑Press the + button.
Setting the required fan speed:
❑Press the + button.
The fan speed is increased by one step.
❑Press the – button.
The fan speed is reduced by one step.
Switching the fan OFF:
❑Press the 0button.
The displayed {goes out shortly
afterwards.
Or:
❑Keep pressing the –button until the fan
switches off.
The displayed {goes out shortly
afterwards.
Intensive setting:
Maximum power is obtained at the
intensive setting. It is only required for short
intervals.
❑Keep pressing the +button until a ç
appears in the display.
❑If the intensive setting is not cancelled by
hand, the fan will automatically switch
back to step }after 10 minutes.
Fan follow-on:
❑Press the button.
The fan continues to run at step |for 10
minutes, and at the same time a dot
flashes in the display. After this period
the fan switches off automatically.
Lighting:
❑Briefly press the abutton to switch the
light on and off.
❑The light can be switched on at any
time, even though the fan is switched off.
❑Adjusting the brightness:
Hold down the abutton until the
desired brightness is obtained.
Switching on the light automatically, e.g.
via a timer:
❑Fan and light must be switched off.
Switching on:
Simultaneously press the – and !
buttons.
❑After approx. 3 seconds the light
switches on to acknowledge the setting.
Switching off:
Repeat the process with the light switched
on.
❑After approx. 3 seconds the light
switches off to acknowledge the setting.

6
Filters and maintenance

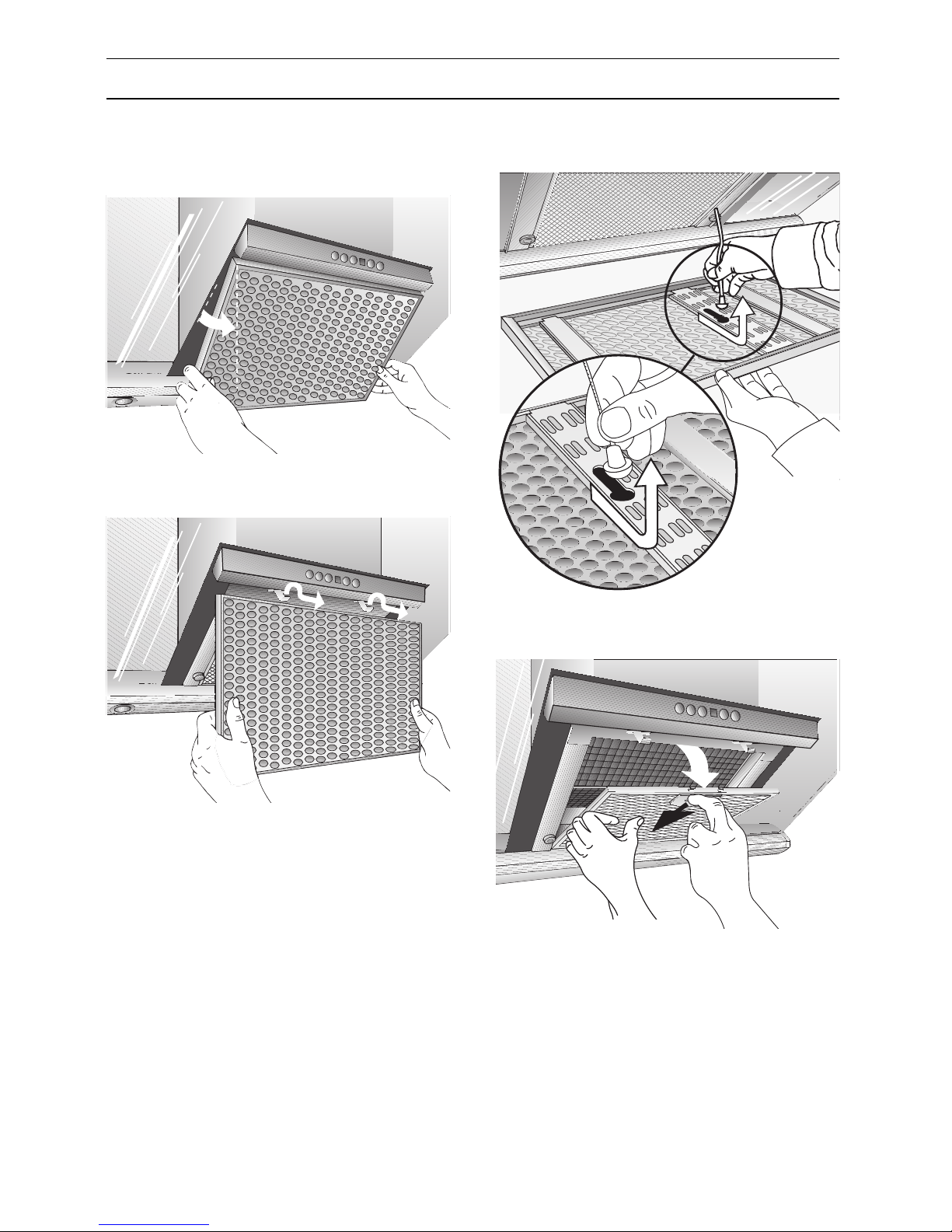

Removing the grease filter:
1. Pull the bottom of the most outer filter
until it comes away from the magnets.
2. Unhook the filter in a vertical position
from the top.
4. Press the notch on the inner filter and
fold the filter down.
Ausbauen der Fettfilter:
3. Detach the safety cord behind the filter.

7
Filters and maintenance
Inserting the grease filter:
1. Insert the inner filter at the back and fold
the filter upwards.
Ausbauen der Fettfilter:
3. Hook in the outer filter in a vertical
position.
4. Press the filter to the back, until the
magnets take hold.
2. Attach the safety cord behind the filter.

8
Grease filters:
Metal filters are used to trap the greasy
element of the vapours that develop
during cooking.
The filter mats are made from non-
combustible metal.
Caution:
As the filter becomes more and more
saturated with grease, not only does the
risk of it catching fire increase but the
efficiency of the extractor hood can also be
adversely affected.
Important:
By cleaning the metal grease filters at
appropriate intervals, the possibility of them
catching fire as a result of a build-up of heat
such as occurs when deep-fat frying or
roasting is taking place, is reduced.
Saturation indicator: #
When the grease filters reach saturation
point, an acoustic signal is sounded for
6 seconds after the fan has switched off,
and an #appears in the display. The grease
filters should be cleaned straight away.
Filters and maintenance
❑When cleaning the filters by hand, soak
them in hot soapy water first of all.
Do not use aggressive, acidic or caustic
cleaners.
Then brush the filters clean, rinse them
thoroughly and leave the water to drain off.
Cancel the #in the display.
❑Press the 0button.
Cleaning the metal grease filters:
❑In normal operation (1 to 2 hours daily),
the metal grease filter must be cleaned
1 x a month.

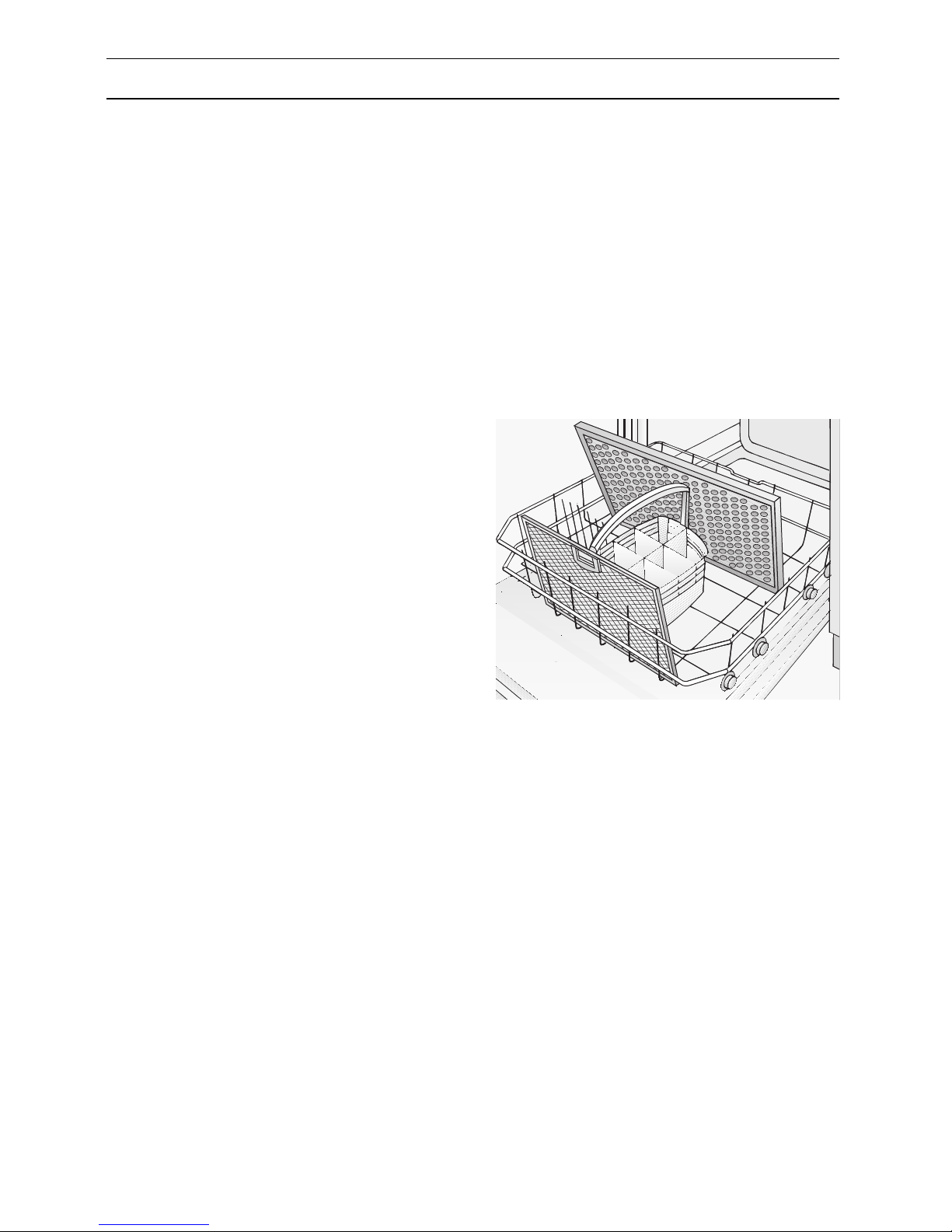

❑The filters can be cleaned in a dish-
washer. It is however possible that they
will become slightly discoloured.
❑The filter must be placed loosely, and
NOT wedged, in the dishwasher.
Important:
Metal filters that are saturated with
grease should not be washed together
with other dishes etc.

9
Cleaning and care
Isolate the extractor hood by pulling out
the mains plug or switching off the fuse.
Do not clean the extractor hood with
abrasive sponges or with cleaning agents
which contain sand, soda, acid or chlorine!
❑Clean the extractor hood with a hot soap
solution or a mild window cleaner.
❑Do not scrape off dried-on dirt but wipe
off with a damp cloth.
❑When cleaning the grease filters, remove
grease deposits from accessible parts of
the housing. This prevents the risk of fire
and ensures that the extractor hood
continues operating at maximum
efficiency.
❑Note: Do not use alcohol (spirit) on
plastic surfaces, as dull marks may
appear.
Caution: Ensure that the kitchen is ade-
quately ventilated. Avoid naked flames!
Clean the operating buttons with a mild
soapy solution and a soft, damp cloth only.
Do not use stainless-steel cleaner to clean
the operating buttons.
Stainless steel surfaces:
❑Use a mild non-abrasive stainless steel
cleaner.
❑Clean the surface in the same direction
as it has been ground and polished.
❑We recommend our stainless steel
cleaner no. 461731.
See enclosed service booklet for order
address.
Aluminium and plastic surfaces:
❑Do not use dry cloths.
❑Use a mild window cleaning agent.
❑Do not use aggressive, acidic or caustic
cleaners.
Observe the warranty regulations in the
enclosed service booklet.

10
Replacing the light bulbs
If you encounter a problem
If an #appears in the display:
❑See "Filters and maintenance" Section.
If is not possible to operate the extractor
hood:
❑Disconnect the extractor hood from the
mains electricity supply by pulling out the
plug or switching it off at the main fuse
box.
Wait for approx. 1 minute and then
switch it on again.
If you have any questions or if a fault
occurs, please call Customer Service.
(See list of Customer Service
representatives).
When you call, please quote the following:
E-Nr. FD
Enter the relevant numbers into the box
above. The E-Nr. (product no.) and FD
(production date) are shown on the
nameplate which can be seen inside the
extractor hood after the filter frame has
been detached.
The manufacturer of the extractor
hoods accepts no liability for complaints
which can be attributed to the design
and layout of the pipework.
1. Switch off the extractor hood and pull
out the mains plug or switch off the
electricity supply at the fuse box.
When switched on, the halogen bulbs
become very hot. Even for some time after
the bulbs have been switched off there is
still a risk of burns.
2. Remove the bulb ring with a screwdriver
or similar tool.
3. Replace the halogen light bulb
(conventional halogen bulb, 12 Volt,
max. 20 Watt, G4 cap).
Caution: Refer to for plug-in
lampholder.
Take hold of the bulb with a clean cloth..
4. Re-insert the bulb ring.
5. Plug the appliance into the mains or
switch it on at the fuse box.
Note: If the light does not function, check
that the bulbs have been inserted correctly.

11
Important information
Installation Instructions:
Additional information concerning gas
cookers:
When installing gas hotplates, comply
with the relevant national statutory
regulations (e.g. in Germany: Technische
Regeln Gasinstallation TRGI).
Always comply with the currently valid
regulations and installation instructions
supplied by the gas appliance
manufacturer.
Only one side of the extractor hood
may be installed next to a high-sided unit
or high wall. Gap at least 50 mm.
Minimum distance on gas hotplates
between the upper edge of the trivet
and lower edge of the extractor
hood: 650 mm, Fig. 1.
Old appliances are not worthless
rubbish. Valuable raw materials can be
reclaimed by recycling old appliances.
Before disposing of your old appliance,
render it unusable.
You received your new appliance in a
protective shipping carton. All packaging
materials are environmentally friendly and
recyclable. Please contribute to a better
environment by disposing of packaging
materials in an environmentally-friendly
manner.
Please ask your dealer or inquire at your
local authority about current means of
disposal.
The extractor hood can only be used in
exhaust air mode.
Always mount the extractor hood over
the centre of the hob.
Minimum distance between electric
hob and bottom edge of extractor hood:
550 mm, Fig. 1.
The extractor hood must not be
installed over a solid fuel cooker – a
potential fire hazard (e.g. flying sparks) –
unless the cooker features a closed,
non-removable cover and all national
regulations are observed.
The smaller the gap between the
extractor hood and hotplates, the greater
the likelihood that droplets will form on the
underside of the extractor hood.

12
Prior to installation
Exhaust-air mode
The exhaust air is discharged upwards
through a ventilation shaft or directly
through the outside wall into the open.
DExhaust air should neither be directed
into a smoke or exhaust flue that is
currently used for other purposes, nor into
a shaft that is used for ventilating rooms in
which stoves or fireplaces are also located.
Exhaust air may be discharged in
accordance with official and statutory
regulations only (e.g. national building
regulations).
Local authority regulations must be
observed when discharging air into smoke
or exhaust flues that are not otherwise in
use.
DWhen the extractor hood is operated
in exhaust-air mode simultaneously with
a different burner which also makes use
of the same chimney (such as gas, oil or
coal-fired heaters, continuous-flow heaters,
hot-water boilers) care must be taken to
ensure that there is an adequate supply
of fresh air which will be needed by the
burner for combustion.
Safe operation is possible provided that the
underpressure in the room where the
burner is installed does not exceed 4 Pa
(0.04 mbar).
This can be achieved if combustion air can
flow through non-lockable openings, e.g. in
doors, windows and via the air-
intake/exhaust-air wall box or by other
technical measures, such as reciprocal
interlocking, etc.
If the air intake is inadequate, there is a
risk of poisoning from combustion gases
which are drawn back into the room.
An air-intake/exhaust-air wall box by itself
is no guarantee that the limiting value will
not be exceeded.
Note: When assessing the overall
requirement, the combined ventilation
system for the entire household must be
taken into consideration. This rule does not
apply to the use of cooking appliances,
such as hobs and ovens.
If the exhaust air is going to be
discharged into the open, a telescopic
wall box should be fitted into the outside
wall.
For optimum extractor hood efficiency:
❑Short, smooth air exhaust pipe.
❑As few bends in the pipe as possible.
❑Diameter of pipe to be as large as
possible and no tight bends in pipe.
If long, rough exhaust-air pipes,
many pipe bends or smaller pipe
diameters are used, the air extraction
rate will no longer be at an optimum
level and there will be an increase in
noise.
The manufacturer of the
extractor hoods accepts no liability
for complaints which can be
attributed to the design and layout of
the pipework.
120
150
120
150
900
86
min.800
max.1080
350
600
273
45
0
480
mind.
40
mind.55

13
Prior to installation
Preparing the wall
❑The wall must be flat and perpendicular.
❑Ensure that the wall is capable of
providing a firm hold for mounting
screws and plugs.
Weight in kg: 27,0.
We reserve the right to construction changes within the
context of technical development.
Electrical connection
If you fit your own plug, the colours of
these wires may not correspond with the
identifying marks on the plug terminals.
This is what you have to do:
1. Connect the green and yellow (Earth)
wire to the terminal in the plug marked
‘E’ or with the symbol ( ), or
coloured green or green and yellow.
2. Connect the blue (Neutral) wire to the
terminal in the plug marked ‘N’ or
coloured black.
3. Connect the brown (Live) wire to the
terminal marked ‘L’, or coloured red.
The extractor hood should only be connec-
ted to an earthed socket that has been
installed according to relevant regulations.
If possible, site the earthed socket directly
behind the chimney panelling.
❑The earthed socket should be
connected via its own circuit.
❑If the earthed socket is no longer
accessible following installation of the
extractor hood, ensure that there is a
permanently installed disconnector.
If it is necessary to wire the extractor
hood directly into the mains:
The extractor hood should only be
connected to the electricity supply by a
properly qualified electrician.
A separator must be installed in the
household circuit. A suitable separator is a
switch that has a contact gap of more than
3 mm and interrupts all poles. Such devices
include circuit breakers and contactors.
If the connecting cable for this
appliance is damaged, the cable must be
replaced by the manufacturer or his cus-
tomer service or a similarly qualified person
in order to prevent serious injury to the user.
Electrical data:
Are to be found on the name plate inside
the appliance after removal of the filterframe.
Before undertaking any repairs,
always disconnect the extractor hood from
the electricity supply.
Length of the connecting cable: 1.30 m.
This extractor hood corresponds to EC
regulations concerning RF interference
suppression.
❑Round pipes:
We recommend
Internal diameter: 150 mm (at least
120 mm).
❑Flat ducts must have an internal cross-
section that equates to that of round
pipes.
There should be no sharp bends.
l120 mm approx. 113 cm2
l150 mm approx. 177 cm2
❑If pipes have different diameters:
Insert sealing strip.
❑For exhaust-air mode, ensure that
there is an adequate supply of fresh air.
Connecting a l150 mm exhaust-air
pipe:
❑Mount the pipe directly onto the air
outlet on the hood.
Connecting a l120 mm exhaust-air
pipe:
❑Attach the reducing
connector directly to
the air pipe.
❑Attach the exhaust-air
pipe to the reducing
connector.
WARNING: THIS APPLIANCE MUST BE
EARTHED
IMPORTANT: Fitting a Different Plug:
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow – Earth
Blue – Neutral
Brown – Live
Electrical connection

14
Installation

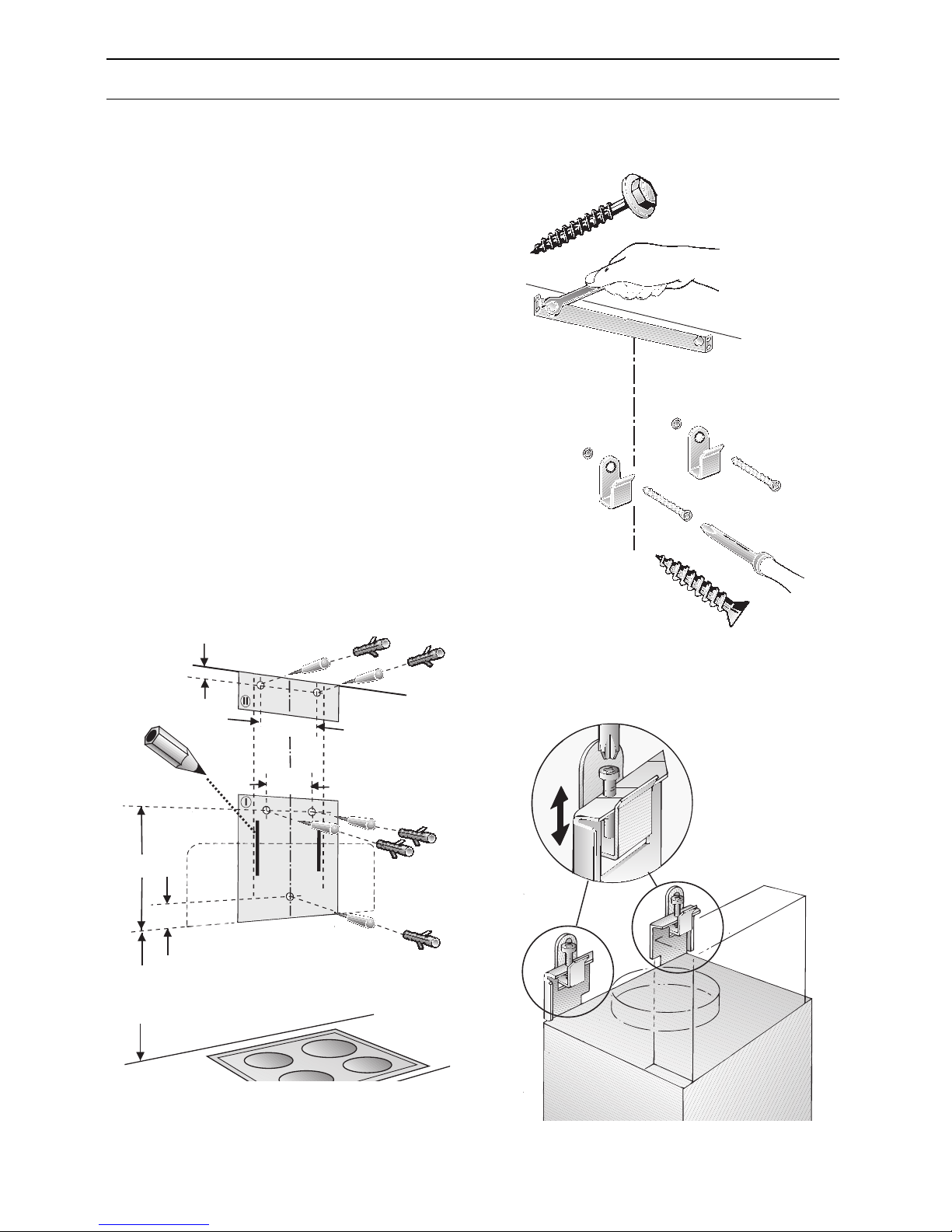

05. Screw on the upper and the two lower
fixing brackets.
24
300
mind 550 Elektro
mind 650 Gas
233
471
112
Note: Take into account any special
accessories that are going to be fitted.
06. Attach the extractor hood.
Adjust the height and align horizontally
with the adjusting screws.
This extractor hood is intended to be
mounted onto the kitchen wall.
01. Remove the grease filter
(refer to Operating Instructions).
02. Draw a line on the wall from the ceiling
to the lower edge of the hood at the
centre of the location where the hood is
going to be mounted.
03. Use the template to mark the points on
the wall where the screws will be moun-
ted. In order to make it easier to hook
the hood onto the screws, draw the out-
line of the area where the hood will be
attached.
Ensure that the minimum distance bet-
ween the hob and the extractor hood is
maintained – 550 mm for an electric hob
and 650 mm for a gas hob. The bottom
edge of the template corresponds to the
lower edge of the extractor hood (glass
screen).
04. Drill 3 x l8 mm holes for the extractor
hood and 2 x l8 mm holes for the
chimney panelling. Insert plugs into the
holes so that they are flush with the wall.

15
15. Insert the grease filter (refer to
Operating Instructions).
Installation
07. Screw in the lower bolt (hex bolt).
08. Connect up the air outlet pipe.
09. Connect the hood to the electricity
supply.
10. Remove the protective film from the
two flue ducts.
Avoid damage to the sensitive
surface.
12. Insert the upper flue duct (slots
downwards) into the lower flue duct.
Protect the cover panels from
scratches, for example by laying the
template used for marking the wall over
the top edge of the lower section.
12. Insert the whole chimney cover panel
inclined and press back.
13. Carefully pull the upper flue duct
upwards and screw the sides to the
fixing bracket with 2 screws.
14. Fitting the glass panel:
–Hold the glass panel with both hands
and carefully push it all the way to the
bottom in the side guide rails.
In doing so, do not scratch the
printed area on the glass panel.
–press the two plastic grommets, left
and right into the fastening guide
rails. In order to carry this out, the
glass panel must be pushed all the
way to the bottom.
–fasten both screws, left and right into
the plastic grommets.

9000 161 455
Printed in Germany 0306 Es.
Siemens-Electrogeräte GmbH
Family Line
018 0 5-2223
30,12/min. DTAG
Siemens-Hausgeräte
Besuchen Sie uns im Internet:
http://www.siemens.de/hausgeraete
