Siemens Family 1650 User manual

S
en
Family 1650
Operating and installation instructions

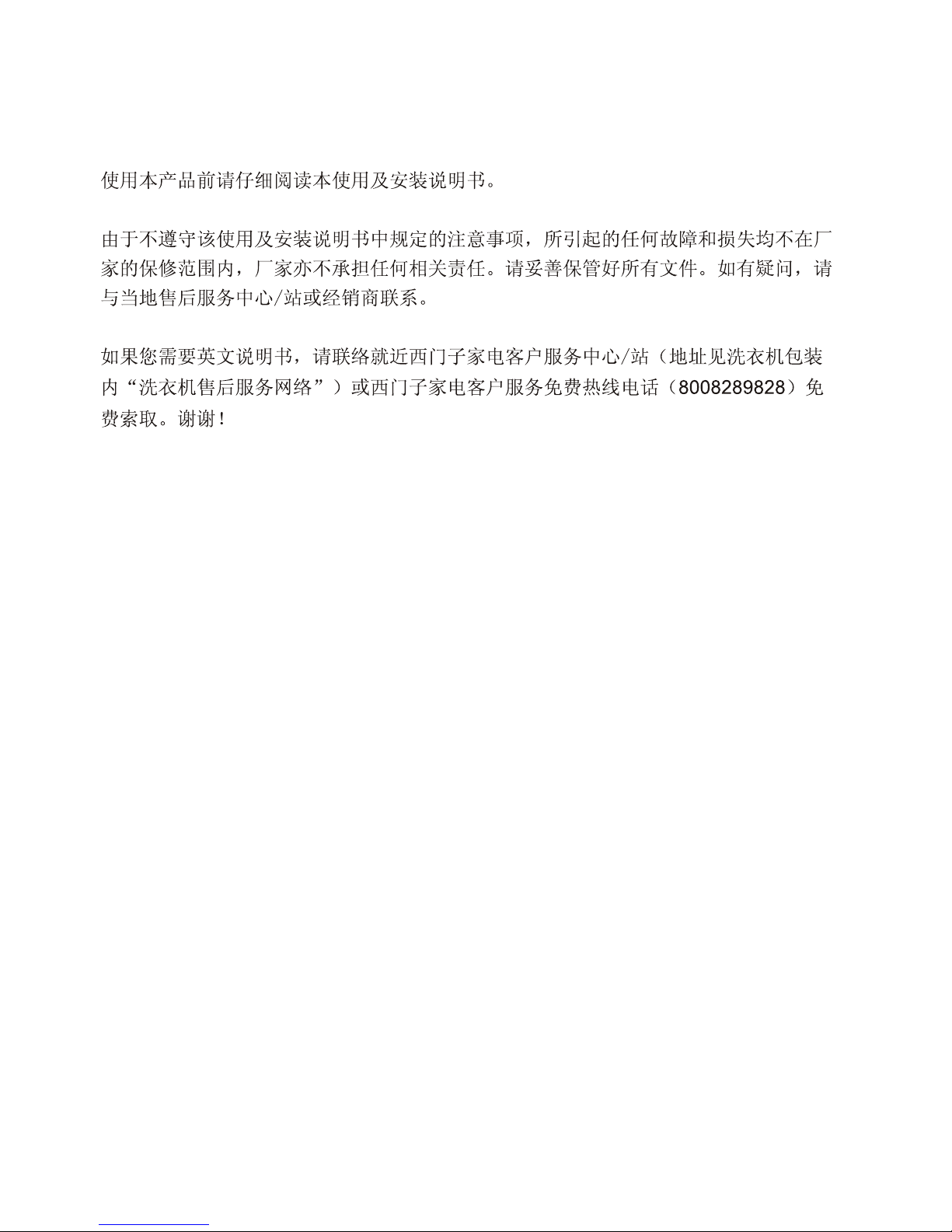

Please read this specification carefully before you use the product.
Any failure and losses caused by ignoring the above mentioned items and cautions
mentioned in the operation and installation instruction are not covered by our warr-
anty and any liability . Please keep all documents in a safe place for future referen-
ce. if you have any doubt, please contact our local service center/depot or dealer.
If you need an English user manual, please contact our local CS center/station
specified in the "Washing Machine CS network" in your washing machine package
or call our customer service free hotline [phone]) for free supply. Thanks.
http://www.siemens - ha.com.cn
[email protected]
Address:
66. Wang Zhuang Road, Wuxi 214028,
Jiangsu Province, P. R. China
Web site:
Email:

Disposal Information . . . . . . . . . . . . . . . . . . . . . .
Environmental Protection/Conservation Issues . .
Your New Washing Machine . . . . . . . . . . . . . . . .
First Wash Cycle . . . . . . . . . . . . . . . . . . . . . . . . .
Laundry Detergents and Additives . . . . . . . . . . .
Selecting Programmes . . . . . . . . . . . . . . . . . . . .
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
When the Programme has Ended. . . . . . . . . . . .
Special Applications . . . . . . . . . . . . . . . . . . . . . .
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . .
Trouble Shooting Minor Faults . . . . . . . . . . . . . .
Customer Service . . . . . . . . . . . . . . . . . . . . . . . .
Programme Table . . . . . . . . . . . . . . . . . . . . . . .
Installation, Connection and Transport . . . . . . .
Safety Precautions and Warnings . . . . . . . . . . . .
Preparing, Sorting and Loading the Laundry . . .
1
Operating
Instructions
Table of Contents
Installation
Instructions
2
3
4
6
9
10
15
18
21
23
24
26
31
34
35
36
Appendix
Adjust the Volume of Buzzer . . . . . . . . . . . . . . .
Audible Feed Back of Function Button . . . . . . . .
46
47

2
Disposal Information
Your old machine
Dispose of packing materials in a responsible manner.
Keep packing materials out of the reach of children.
Packing materials are not toys.
Reprocessing and re-using materials saves raw
materials and reduces waste.
All packing materials used are environment friendly
and re-usable.
Cardboard boxes consist of 80% to 100% recycled
paper.
Plastic wrappings are made from polythene(PE),
the tapes are made from polypropylene(PP) and
the CFC-free packing is made from foamed
polystyrene (PS). These materials are pure
hydrocarbon compounds and can be recycled.
Render the machine inoperable when it can no
longer be used. Remove the plug from the socket
and cut off the power cable.
Destroy the catch on the porthole door. Prevent
children at play from being locked in and risking
death by suffocation.
The old machine contains valuable materials which
should be recycled.
Please make your contribution to the environment
by assisting with proper disposal or recycling.
The new machine s
packaging
,

Environmental Protection
Conservation Issues
Your washing machine uses water, energy and
detergent efficiently, thereby protecting the
environment and reducing your household costs.
Using your washing machine in an efficient
and environmentally friendly manner:
Do not exceed the maximum load.
Cottons/coloureds
The variable capacity automatic system reduces
the amount of water and energy consumed
accordingly if the amount of laundry loaded
into the machine is small.
Intensive
How to save water, energy and detergent:
Omit the prewash programme for lightly or
normally soiled laundry.
How to save energy and time:
Select the short programme suitable for the
fabric if items are lightly soiled.
How to save detergent:
Measure the detergent according to the water
hardness, degree of soiling and amount of
laundry, and follow the instructions on the
detergent package.
5.2kg
Easy care 2.6kg
Delicate and Wool 2.0kg
How to save energy:
Where possible, use the 60 LC with additional
function Stains programme instead
of the 90 LC Cottons/coloureds programme.
The extended washing duration means that a
cleaning result comparable to that of the 90 LC
programme is achieved using considerably
less energy.
,,
,,
3

Safety Precautions and Warnings
The washing machine must be installed and
operated in a room with the drain.
Install the machine in accordance with the
instructions(page 36-45). Remove the transit
bolts and keep them in a safe place.
Please keep all documents in a safe place for
future reference.
The manufacturer does not accept liability if
these instructions are not followed.
Please contact an authorized technician to
install the machine and instruct the using
method.
Please read the enclosed documents carefully
before using the washing machine for the first
time. They contain important information on
the installation, use and safety of the machine.
Before using for the
first time:
This machine complies with all relevant safety
regulations.
When heating, the maximum current of the
washing machine is 10A, so please make sure
that the power supply system(voltage; current
and the cable) is applicable to the load of the
applied appliance.
In order to ensure your safety, you must plug
the cable into a socket which connected to
earth. And please check your socket to make
sure that it is connected with reliable earth
correctly.
If the washing machine is visibly damaged,do
not connect it up. If you are in doubt,contact
your customer service representative or dealer.
This machine use thread connection water inlet
hose, connect it to the water tap together with
the machine. (carry out by an authorized tech-
nician)
4

When the programme has ended:
The Spin/Door lock control light flashes. The
buzzer of machine sounds(the duration is 10
minutes) to remind the user that the washing
programme is completed. Open the loading
door after cutting the power of machine.
A flashing light does not indicate a fault.
See the section: Washing machine status
indicator lights .
Taking care of your
machine:
When the programme
has ended:
When transporting
the machine:
Do not lean against the door.
Do not climb onto the washing machine.
After the programme has ended, please cut
the supply of power and water immediately.
Exercise caution when pumping out hot deterg-
ent solution.
Keep pets away from the washing machine.
Never let children play with the washing machine.
Never wash the carpet in the washing machine.
Your washing machine is designed for domestic
use only, i.e. for washing machine-washable
textiles in a detergent solution.
Never use flammable; explosible and/or poison-
ous solvents, such as gasoline; alcohol etc. As
the washing lotion. Please only use the lotions
suitable for using in washing machine available
in the market.
Do not expose the machine in the place with
causticity or explosibility gas.(e.g. dust, steam
and gas, etc.)
Do not install the washing machine in a bath-
room or a room very wet.
Insert the transit bolts by technician.
Drain any water left in the machine.
Take care when moving the machine. Do not
lift the machine by any of the protruding parts,
and the loading door.
Operate the machine with cold tap water only.
When washing:
,,,,
,,
5
,,
,,,,

Your New Washing Machine
Filling laundry detergent
and/or additive dispensers.
Chamber I:
Detergent for pre-wash,starch,
or pre-soaking agent.
Chamber II:
Detergent for main washing period,
water softener, blench and stain-
removing salt.
Chamber :
Additives, e.g. fabric softener or
former(Do not exceed Max )
Open the loading door and close it Drain washing solution
if necessary.
,,
,,
6

Control Panel Drawing
1.
Cottons/Coloureds
Easy-Care
Delicates/Silk
Wool
Cold
Quick and Clean
Weekend
Prewash
Daily
Rinsing
Spin
Pumping
Off
2.
Status
Ready
Wash
Rinsing
Spin
Door lock
3.
Intensive
Extra rinsing
Anticrease
4.
Start
+
7
13
24
棉织物
化纤洗
超柔洗
羊毛洗
冷洗
快洁洗
周末洗
带预洗
日常洗
单漂洗
单脱水
单排水
停止
运行状态
准备
洗涤
漂洗
脱水
门锁
强力去污
爽肤漂洗
开心免熨

Control Panel

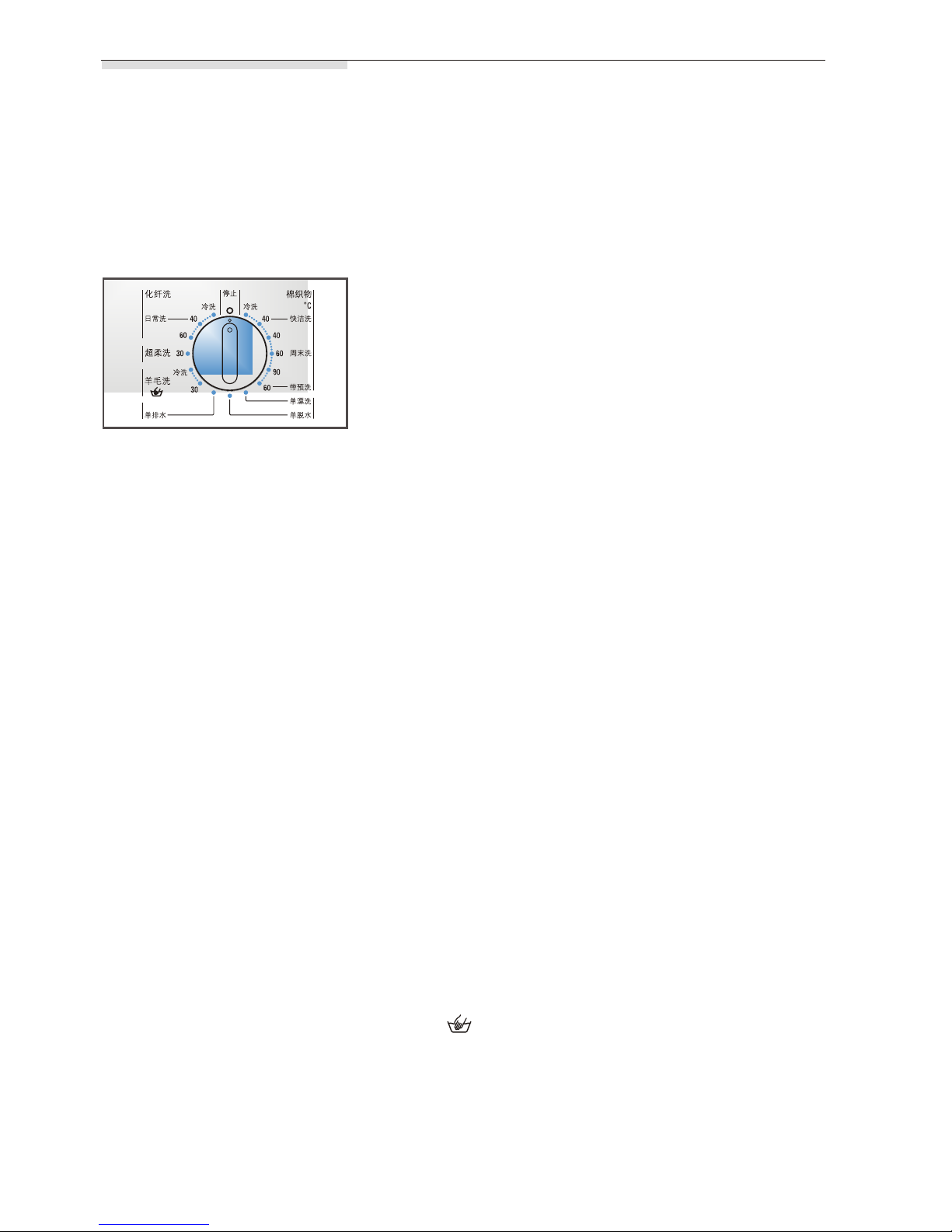

Can be turn in both directions to select/switch
off the washing programme. Stop/alter a
programme when it is in process, you should
turn the programme selector to first. If
necessary, select a new programme. The
programme sequence is computer controlled.
1. Programme selector
,,
,,
3. Additional functions button:
After the programme selected, press this button,
you can change the machine from waiting
status to active status. It is not Power/Stop
button and can not switch off the machine or
cancel a programme. You can cancel a pro-
gramme by turning the programme selector
to off , and cut the power of machine by
removing the plug from the socket.
4. Start button
,,,,
,,
,,,,
,,
Caution. The selector cannot be turned
mid-programme. It remains fixed in the
position selected.
The Ready/Wash control light flashes when
the required programme has been selected.
This control light remains lit when the Start
button is pressed and the programme begins.
The Rinsing control light comes on(set)
during the rinse programme.
While the washing machine is spinning and
emptying out the water, the Spin/Door lock
control light remains lit. This indicator light
flashes when the programme is completed.
To turn the machine off, set the programme
selector to Stop .
2. Washing machine status indicator lights
,,
,,
,,
,,
,,
,,
,,
,,
,,
,,
8
Intensive stains: Extend the washing duration.
Extra rinsing: Additional rinsing cycle.
Anticrease: Reduces creasing.

The Spin/Door lock control light flashes when
the programme is completed. To turn the machine
off, set the programme selector to Off ．
Press the Start button
Ready/Wash control light remains lit.
Ready/Wash control light flashes.
Do not use a special detergent for delicates or
wollens as these will create too much foam.

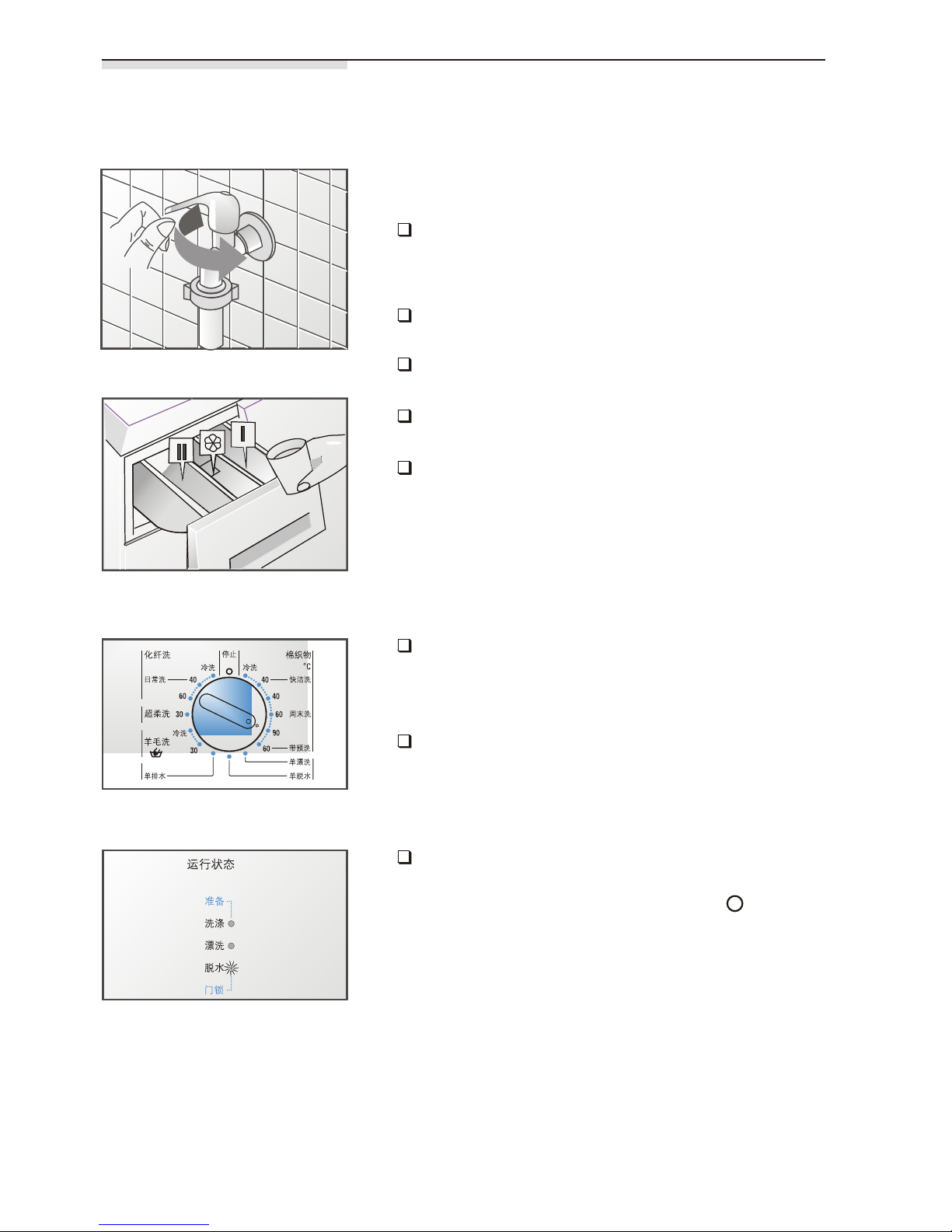

Pour half a measuring cup of detergent into
chamber II.
Input about 1 liter of water in chamber II.
Pull the detergent drawer out as far as it will go.
Turn the tape ON.
Carry out the first wash cycle without laundry
to remove any water left over from the factory
tests.
The installation of the washing machine is
finished.(see page 36-45)
Turn the programme selector to 90 LC Cottons/
Coloureds .
First Wash Cycle
,,,,
,,
,,
,,,,
,,
,,,,
,,
,,,,
,,
,,,,
,,
,,,,
9

Preparing, Sorting and Loading
the Laundry

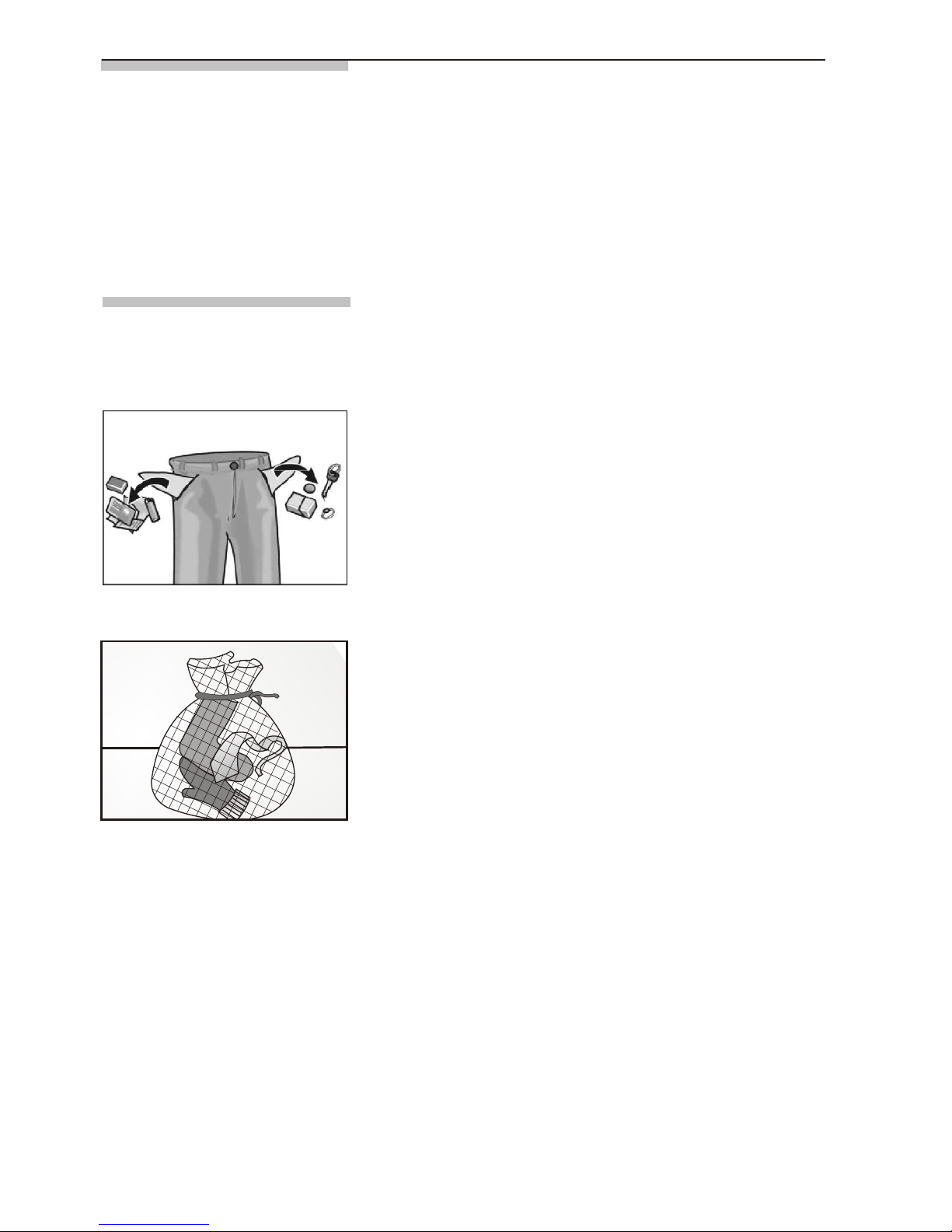

Preparing the
laundry
Make sure that wire-cup bras in a pillow case
which can be securely closed with a zip or
buttons. If the wire works itself out of the cup it
may fall through the holes of the drum and
cause extensive damage.
Make sure that the wire-cup bras are machine
washable.
Some items are best turned inside out. These
included knitwear, trousers, T-shirts and swe-
atshirts.
Particularly delicate items, such as tights or lace
curtains, or smaller items, such as tiny socks or
handkerchiefs, should only be washed in a net
bag or pillow case.
Remove curtain runners, or secure them in a
net bag.
Close zips and button up cushion covers, duvet
covers, etc.
Brush sand, coins, etc. out of pocket and cuffs.
Remove any loose items or metal objects, such
as safety pins, paper clips, etc. from the laundry.
!
10

According to colour and
degree of dirt
Sorting the laundry
Degree of dirt
White items may become grey. Always wash
white and coloured items separately.
Items of clothing can become discoloured.
Never wash new multi-coloured items together
with other items.
Caution
Normal dirt
- Light summer clothing and sportswear that
No recognizable dirt or staining. Laundry may
have some body odour.
Slight dirt
has only been worn for a few hours.
- T-shirts, shirts and blouses that have been
used for one day.
- Bed linen and guest towels that have been
used for one day.
Visible dirt and/or some light staining recognizable.
- T-shirts, shirts and blouses that are very sweaty
or have been worn several times.
- Underwear that has been worn for one day.
- Tea towels, hand towels and bed linen that have
been used for up to one week.
- Net curtains (without nicotine staining) that have
not been washed for up to 1/2 year.
11

Intensive dirt
Dirt and/or staining reconizable.
- Kitchen hand towels that have been used for
up to one week.
- Fabric napkins.
- Children's outer clothing or football shirts and
shorts with grass and soil stains.
- working clothes such as overalls or baker's
and butcher's coats.
Typical stains
- Skin fat, cooking oils/fat, sauces, mineral oil,
wax(containing fat/oil)
- Tea, coffee, red wine, fruit, vegetables(blea-
chable).
- Blood, egg, milk, starch(containing protein/
carbohydrate).
- Soot, soil, sand(pigments), red sand on tennis
clothes.
Removing stains
Wherever possible, remove/pretreat stains
whilst they are still fresh.
First, dab soapy water onto the stain. Do not
rub.
Subsequently wash the items of clothing using
the appropriate program.
Several washing cycles may sometimes be
required in order to remove stubborn/dried in
stains.
12

Sorting laundry
according to their
care label
specifications
Loading the laundry
Only wash laundry that is labelled with the
following care symbols:
95
60
60
90
40
40
30
30
40 40 30 30
40 40 30 30
= do not wash
Risk of explosion
Caution
!
Items of clothing that have been pretreated
with solvent-based cleaning agents, e.g. stain
remover and dry cleaning spirit, represent an
explosion hazard once loaded into the washi-
ng machine.
Therefore, these items must be rinsed thoroughly
by hand.
Loose debris in the washing machine drum can
damage the laundry. Before loading the laundry,
check that there is no debris in the drum.
90 LC Cottons + lines
40 LC, 30 LC Delicates
40 LC, 30 LC Wollens
(hand and machine-washable)
60 LC, 40 LC, 30 LC Cottons + lines
60 LC, 40 LC, 30 LC Easy-care
Laundry that is labelled with the following care
symbol must not be washed in the washing
machine.
13

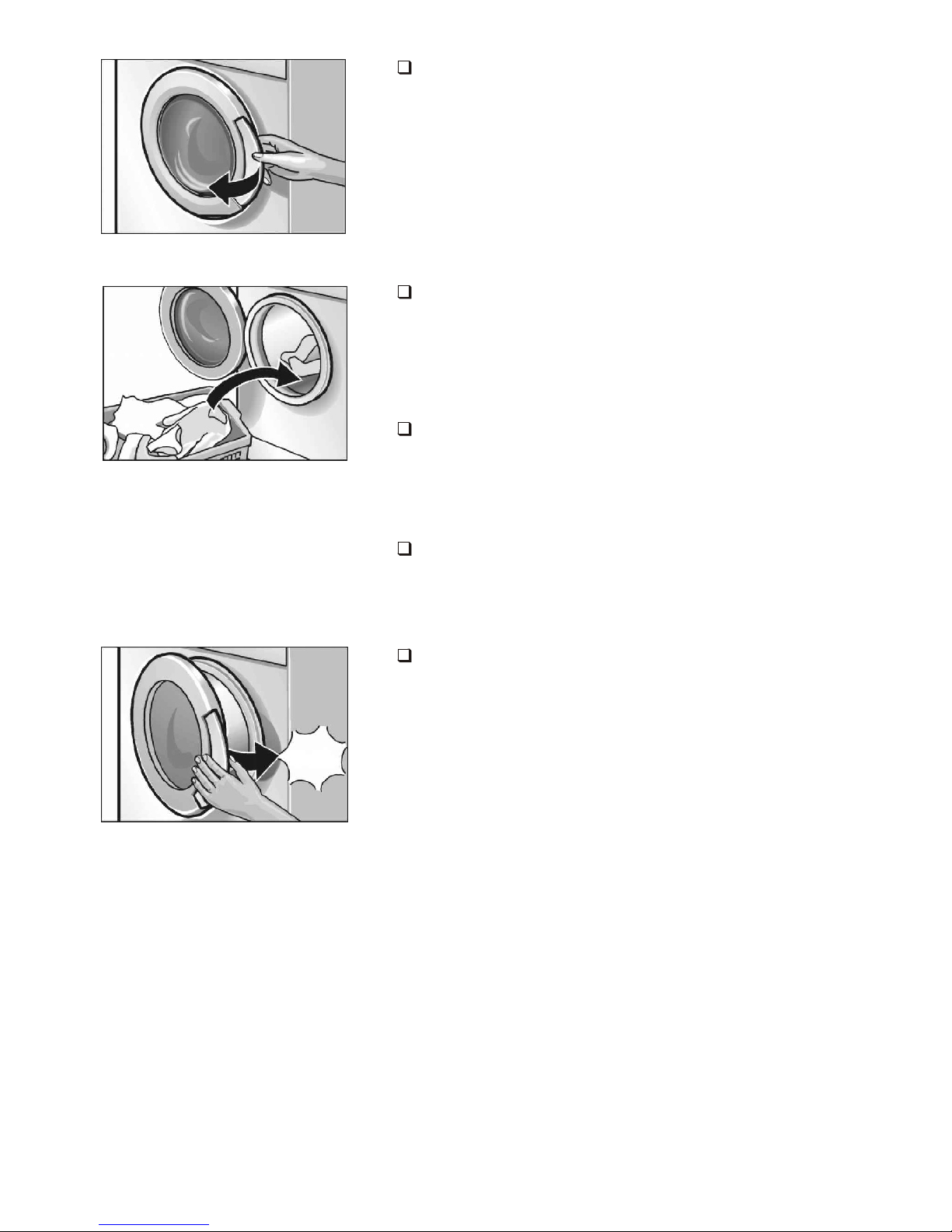

Close the loading door.
Take care not to trap any items of clothing
between the loading door and rubber seal.
When washing a small amount of laundry, the
washing machine automatically reduces the
amount of the water and energy used.
Do not exceed the maximum load: Overloading
will cause poor wash results and encourage
creasing.
Unfold the sorted items of clothing and place
them loosely into the drum. Mix up large and
small items. Items of varying size will distribute
better during the spin cycle.
Open the loading door.
klack
14

!
Laundry Detergents and Additives
Amount of detergent
Risk of poisoning
not use solvent-based cleaning agents in
fully automatic washing machines. Explosion
hazard.
Do
Keep detergents and additives out of the reach
of children.
You can use any standard powder or liquid de-
tergent which is suitable for automatic washing
machines.
Do not use any detergent boosters containing
solvents or dirt and stain-removing spraying
near the machine, as these could damage the
machine.
Do not use non-automatic detergent as these
produce too much foam.
The best washing results will only be achieved
if you add the correct amount of detergent.
Observe the instructions for use shown on the
detergent packing.
When using liquid detergents, you can use any
measuring aids provided with the detergent,
such as dosage balls of bags.
Please put the liquid detergents into correct
chamber.
The amount of detergent depends on:
- water hardness
15

- degree of soiling
- size of the load
- amount of detergent to be added according to
its manufacturer.
Dispensing the correct amount of detergent
relieves the strain on the environment and ensures
optimum washing results.
Frequent use of insufficient detergent will eventually
become noticeable as follows:
- washing appears grey or not properly clean
- grey-brown stains(grease marks) form on the
washing
- scale builds up on the heating elements
Too much detergent results in:
- unnecessarily high environmental pollution
- due to the generation of too much foam, the
washing is hardly agitated which leads to
poor washing results.
The amount of detergent indicated on its packaging
refers to a full machine load.
For small loads or less soiling, reduce the amount
of detergent.
16

Filling laundry
detergent and/or
additive dispensers
Chamber I:
Detergent for prewash, starch or pre-soaking
agent.
Chamber II:
Detergent for main wash, water softener, bleach
and stain removal product.
Chamber :
Additives, e.g. fabric softener of former.
- Do not fill beyond the MAX mark, otherwise
will be flushed into the machine together with
the detergent at the start of the program.
- If the liquid additive is thick, mix with a little
water before dispensing(prevents clogging of
the overflow).
Pull out the detergent dispenser up to the
end stop.
Add the detergent and/or additive.
Close the detergent dispenser.
,,,,
,,
17

Basic programme
Selecting Programme
Select the desired programme (refer also to
separate Programme Table ).
90 LC Cottons/Coloureds
An energy-intensive programme for heat-resistant
fabrics made from cotton or linen.
For the protection of the drainage pipe, the hot
washing solution is mixed with approx.5 liters
of cold water before being drained.
60 LC Cottons/Coloureds with prewash and
additional function Intensive .
Energy-saving programme. The longest washing
cycle reduces energy consumption.
Whites and coloureds, hard-wearing fabrics and
colourfast, 60 LC, with prewash
For highly soiled laundry.
Cold, 40, 40-Quick and Clean,60 LC-Weekend
Cottons/Coloureds
For hard-wearing fabrics.
Cold, 40-Daily, 60 LC Easy-Care
For easy-care fabrics made from cotton,
synthetics or blended fibres.
30 LC, Delicates/Silk
For sensitive, easy-care fabrics made from
cotton, synthetics or blended fibres, and net
curtain. No spinning between rinsing cycles.
30 LC wool, cold
For hand or machine-washable fabrics made
from wool or wool blend.
,,
,,,,
18
