Installation
Instructions
Appendix
Disposal Information ...............................................2
Environmental Protection/Conservation Issues ......3
4
Your New Washing Machine ..................................6
First Wash Cycle ....................................................10
11
Laundry Detergents and Additives .......................16
Selecting Programmes .........................................19
Washing ................................................................23
When the Programme has Ended ........................25
Special Applications .............................................26
Cleaning and Care ...............................................28
Troubleshooting Minor Faults ..............................34
Customer Service ................................................37
Programme Table ................................................38
Installation,Connection and Transport .................39
Adjust the Volume of Buzzer and Audible Feedback
of Start Button .....................................................49
Audible Feedback of Function Button ...................50
Safety Precautions and Warnings ...........................
Preparing,Sorting and Loading the Laundry .........
＂＂
1
Table of Contents
Operating
Instructions

Disposal Information
Your old machine
Dispose of packing materials in a responsible manner.
Keep packing materials out of the reach of children.
Packing materials are not toys.
Reprocessing and re-using materials saves raw mat-
erials and reduces waste.
All packing materials used are environment friendly
and re-usable.
Cardboard boxes consist of 80% to 100% recycled
paper.
Plastic wrappings are made from polythene(PE),the
tapes are made from polypropylene(PP) and the CFC-
free packing is made from foamed polystyrene(PS).
These materials are pure hydrocarbon compounds and
can be recycled.
Render the machine inoperable when it can no longer
be used. Remove the plug from the socket and cut off
the power cable.
Destroy the catch on the porthole door. Prevent children
at play from being locked in and risking death by
suffocation.
The old machine contains valuable materials which
should be recycled.
Please make your contribution to the environment by
assisting with proper disposal or recycling.
2
The new machine's
packaging

Environmental Protection
Conservation Issues
The most economical and environmentally friendly
way to use the machine is always to wash the
maximum amount of laundry:
Cottons/coloureds 5,20kg
Easy Care 2,60kg
Delicates/Silk and Wool 2,00kg
How to save energy:
The variable capacity automatic system reduces the
amount of water and energy consumed accordingly
if the amount of laundry loaded into the machine is
small.
Select the “Intensive” C
Cotton/Coloureds 90 LC” ．The
90 LC.
How to save water, energy and detergent:
Omit the prewash programme for lightly or normally
soiled laundry.
How to save energy and time:
Select the short programme suitable for the fabric if
items are lightly soiled.
How to save detergent:
Measure the detergent according to the water
hardness, degree of soiling and amount of laundry,
and follow the instructions on the detergent package.
60 Lprogramme instead
of “ programme
uses the longest wash cycle to reduce energy
consumption whilst achieving the same results as
washing at
3

Safety Precautions and Warnings
The washing machine must be installed and
operated in a room with the drain.
Install the machine in accordance with the inst-
ructions (page 39-48). Remove the transit bolts
and keep them in a safe place.
Please keep all documents in a safe place for
future reference.
The manufacturer does not accept liability if th-
ese instructions are not followed.
Please contact an authorized technician to ins-
tall the machine and instruct the using method.
Please read the enclosed documents carefully
before using the washing machine for the first
time. They contain important information on the
installation, use and safety of the machine.
Before using for the
first time:
This machine complies with all relevant safety
regulations.
When heating, the maximum current of the
washing machine is 10A, so please make sure
that the power supply system (voltage; current
and the cable) is applicable to the load of the
applied appliance.
In order to ensure your safety, you must plug the
cable into a socket which connected to earth. And
please check your socket to make sure that it is
connected with reliable earth correctly.
If the washing machine is visibly damaged, do
not connect it up. If you are in doubt, contact
your customer service representative or dealer.
This machine use thread connection water inlet
hose, connect it to the water tap included in the
machine.(carry out by an authorized technician)
4

Taking care of your
machine:
When the programme
has ended:
When transporting
the machine:
Do not lean against the door.
Do not climb onto the washing machine.
When the programme has ended, please cut the
supply of power and water immediately.
When the programme has ended:
The Digital screen displays " " . The buzzer
of machine sounds(the duration is 10 minutes)
to remind the user that the washing programme is
completed.
Open the loading door after cutting the power of
machine.
Exercise caution when pumping out hot detergent
solution.
Keep pets away from the washing machine.
Never let children play with the washing machine.
Never wash the carpet in the washing machine.
Your washing machine is designed for domestic
use only, i.e. for washing machine-washable
textiles in a detergent solution.
Operate the machine with cold tap water only.
When washing:
5
Never use flammable; explosible and/or poisonous
solvents, such as gasoline; alcohol etc. As the
washing lotion. Please only use the lotions suitable
for using in washing machine available in the
market.
Do not expose the machine in the place with
causticity or explosibility gas.(e.g. dust, steam
and gas, etc.)
Do not install the washing machine in a bathroom
or a room very wet.
Insert the transit bolts by technician.
Dｒain any water left in the machine.
Take care when moving the machine.
Do not lift the machine by any of the protruding
parts, and the loading door.

6
Your New Washing Machine
Filling laundry detergent
and/or additive dispensers.
Chamber I:
Detergent for pre-wash,starch,
or pre-soaking agent.
Chamber II:
Detergent for main washing period,
water softener, blench and stain
removing salt.
Chamber :
Additives, e.g. fabric softener or
former(Do not exceed "Max")
Open the loading door and close it Drain washing solution
if necessary.
TOP WM5200TOP WM5200
s

7
Control Panel Drawing
TOP WM5200TOP WM5200
1144
2255
Silver 5000Silver 5000
33
s
s
66
棉织物
化纤洗
超柔洗
羊毛洗
冷洗
强快洗
带预洗
单漂洗
单脱水
单排水
停止
1.1.
Cottons/Coloureds
Easy-Care
Delicates/Silk
Wool
Cold
Quick
Prewash
Rinsing
Spin
Pumping
Off
2.2.
剩余时间
预约开始 Finish In
Delay Start
3.3.
准备
洗涤
漂洗
脱水
Ready
Wash
Rinse
Spin
4.4.
脱水转速
免排水 Spin Speed
Rinse Hold
5.5.
强力去污
额外漂洗
防皱免熨
Intensive
Extra Rinse
Less Ironing
6.6.
开始 Start
+
1144
2255
3366

Can be turn in both directions to select/switch
off the washing programme. Stop/alter a programme
when it is in process, you should turn the programme
selector to " " first. If necessary, select a new
programme. The programme sequence is computer
controlled.
1.Programme selector
8
Control Panel
Caution. The selector cannot be turned mid-
programme. It remains fixed in the position
selected.
Display Delay Start : Press "Delay Start" button to
select desired time delay.(unit: hour)The machine
will start working after this time automatically, so
you do not need to press "Start" button again.
Display Finish In: Display the remaining time of the
selected programme in process.
Remind the end of programme: If "Rinse Hold" is
selected, when the programme has ended, it displays
" " to remind the user that there is still water in
the drum.
If "Rinse Hold" is not selected, it displays " "
when the programme has ended.
Display the abnormal phenomena in process:
Display " " when the machine works abnormally.
2.Digital screen
8 88
:
剩余时间/预约开始
- --
剩余时间/预约开始
»¯ÏËÏ´»¯ÏËÏ´ ÃÞÖ¯ÎïÃÞÖ¯Îï
剩余时间/预约开始
准备准备
洗涤洗涤
漂洗漂洗
脱水脱水
The"Ready" control light comes on when the required
programme has been selected. This control light goes
out and the "Wash"control light comes on when the
"Start" button is pressed and the programme begins.
3.Washing machine status indicator lights

After the programme selected, press this button,
you can change the machine from waiting status
to active status. It is not Power/Stop button and
and can not switch off the machine or cancel a
programme. You can cancel a programme by turning
the programme selector to Off , or cut the power
of machine by removing the plug from the socket.
" "
6. Start button""
Less Ironing: Reduces creasing.
Extra Rinse: Additional rinsing cycle.
Intensive : Extend the washing duration.
5. Additional functions button:
4．Spin speed selector:
You can select the desired spin speed or the
.
The maximum spin speed is automatically limited
in the
"Rinse Hold" option
"Easy care", "Delicates/Silk" and "Wool"
washing programmes to ensure that the laundry is
washed carefully.
"Rinse Hold" option: The laundry remains in the
water after the final rinse to avoid creasing the
fabric.
9
开始开始
强力去污强力去污 防皱免熨防皱免熨
额外漂洗额外漂洗
脱水选择脱水选择
免排水免排水
12001200
10001000
800800
600600
脱水选择脱水选择
免排水免排水
10001000
900900
800800
700700
600600
TOP WM5200 Silver 5000
The "Rinse" indicator light comes on(set) during
the rinse programme.
The "Spin" indicator light comes on(set) during
the spin programme.
The "Spin" indicator light goes out when the
programme is completed. The digital screen displays
" " and the buzzer sounds. To turn the machine
off, set the programme selector to "Off".

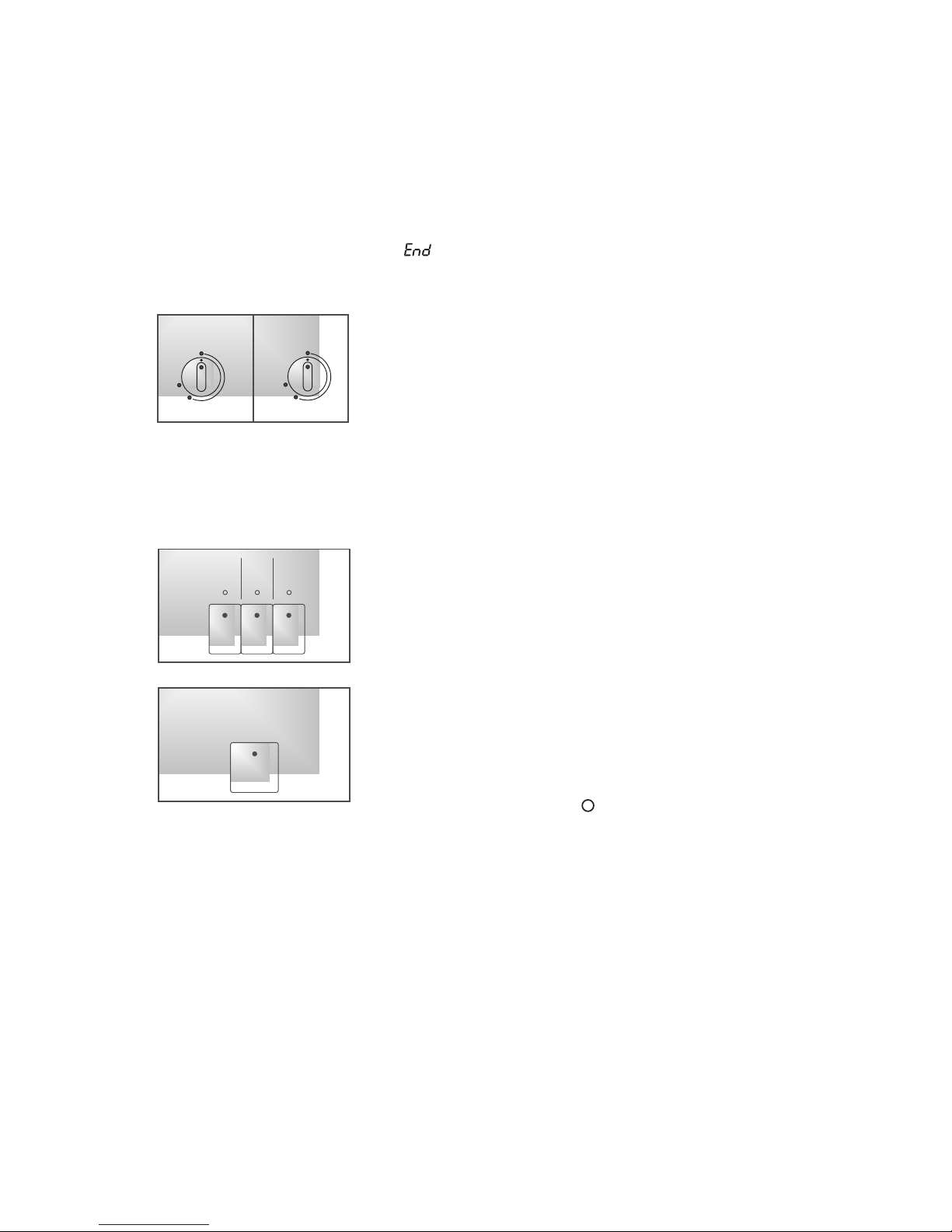

Press the “Start” button
“Wash” control light comes on.
The digital screen displays “ ”and the buzzer
sounds when the programme has ended. Turn the
programme selector to “Off” .
”Ready”control light comes on.
Do not use a special detergent for delicates or
wollens as these will create too much foam.
Pour half a measuring cup of detergent into
chamber II.
Input about 1 liter of water in chamber II.
Pull the detergent drawer out as far as it will go.
Turn the tape ON.
Do not load any laundry.
Carry out the first wash cycle without laundry
to remove any water left over from the factory
tests.
The installation of the washing machine is
finished.(see page 39-48)
10
First Wash Cycle
Turn the programme selector to "90LC Cottons/
coloureds".
剩余时间/预约开始
»¯ÏËÏ´»¯ÏËÏ´ ÃÞÖ¯ÎïÃÞÖ¯Îï

Preparing, Sorting and Loading
the Laundry
Preparing the
laundry
Make sure that wire-cup bras in a pillow case
which can be securely closed with a zip or buttons.
If the wire works itself out of the cup it may fall
through the holes of the drum and cause extensive
damage.
Make sure that the wire-cup bras are machine
washable.
Some items are best turned inside out. These
included knitwear, trousers, T-shirts and
sweatshirts.
Particularly delicate items, such as tights or lace
curtains, or smaller items, such as tiny socks or
handkerchiefs, should only be washed in a net
bag or pillow case.
Remove curtain runners, or secure them in a
net bag.
Close zips and button up cushion covers, duvet
covers, etc.
Brush sand, coins, etc. out of pocket and cuffs.
Remove any loose items or metal objects, such
as safety pins, paper clips, etc. from the laundry.
!
11

According to colour and
degree of dirt
Sorting the laundry
Degree of dirt
White items may become grey. Always wash
white and coloured items separately.
Items of clothing can become discoloured.
Never wash new multi-coloured items together
with other items.
Caution:
Normal dirt
- Light summer clothing and sportswear that
No recognizable dirt or staining. Laundry may
have some body odour.
Slight dirt
12
has only been worn for a few hours.
- T-shirts, shirts and blouses that have been
used for one day.
- Bed linen and guest towels that have been
used for one day.
Visible dirt and/or some light staining recognizable.
- T-shirts, shirts and blouses that are very sweaty
or have been worn several times.
- Underwear that has been worn for one day.
- Tea towels, hand towels and bed linen that have
been used for up to one week.
- Net curtains (without nicotine staining) that have
not been washed for up to 1/2 year.

Intensive dirt
Dirt and/or staining recognizable.
- Kitchen hand towels that have been used for
up to one week.
- Fabric napkins.
- Children's outer clothing or football shirts and
shorts with grass and soil stains.
- Working clothes such as overalls or baker's
and butcher's coats.
Typical stains
- Skin fat, cooking oils/fat, sauces, mineral oil,
wax (containing fat/oil)
- Tea, coffee, red wine, fruit, vegetables
(bleachable).
- Blood, egg, milk, starch (containing protein/
carbohydrate).
- Soot, soil, sand (pigments), red sand on tennis
clothes.
Removing stains
Wherever possible, remove/pretreat stains
whilst they are still fresh.
First, dab soapy water onto the stain. Do not
rub.
Subsequently wash the items of clothing using
the appropriate program.
Several washing cycles may sometimes be
required in order to remove stubborn/dried in
stains.
13

Sorting laundry
according to their
care label
specifications
Loading the laundry
Only wash laundry that is labelled with the
following care symbols:
95
60
60
90
40
40
30
30
40 40 30 30
40 40 30 30
= do not wash
Risk of explosion
Caution:
!
Items of clothing that have been pretreated
with solvent-based cleaning agents, e.g. stain
remover and dry cleaning spirit, represent an
explosion hazard once loaded into the washing
machine.
Therefore, these items must be rinsed thoroughly
by hand.
Loose debris in the washing machine drum can
damage the laundry. Before loading the laundry,
check that there is no debris in the drum.
90 LC Cottons + lines
40 LC, 30 LC Delicates/Silk
40 LC, 30 LC Wollens
(hand and machine-washable)
60 LC, 40 LC, 30 LC Cottons + lines
60 LC, 40 LC, 30 LC Easy-Care
14
Laundry that is labelled with the following care
symbol must not be washed in the washing
machine.
90LC90LC60LC60LC
40LC40LC
30LC30LC

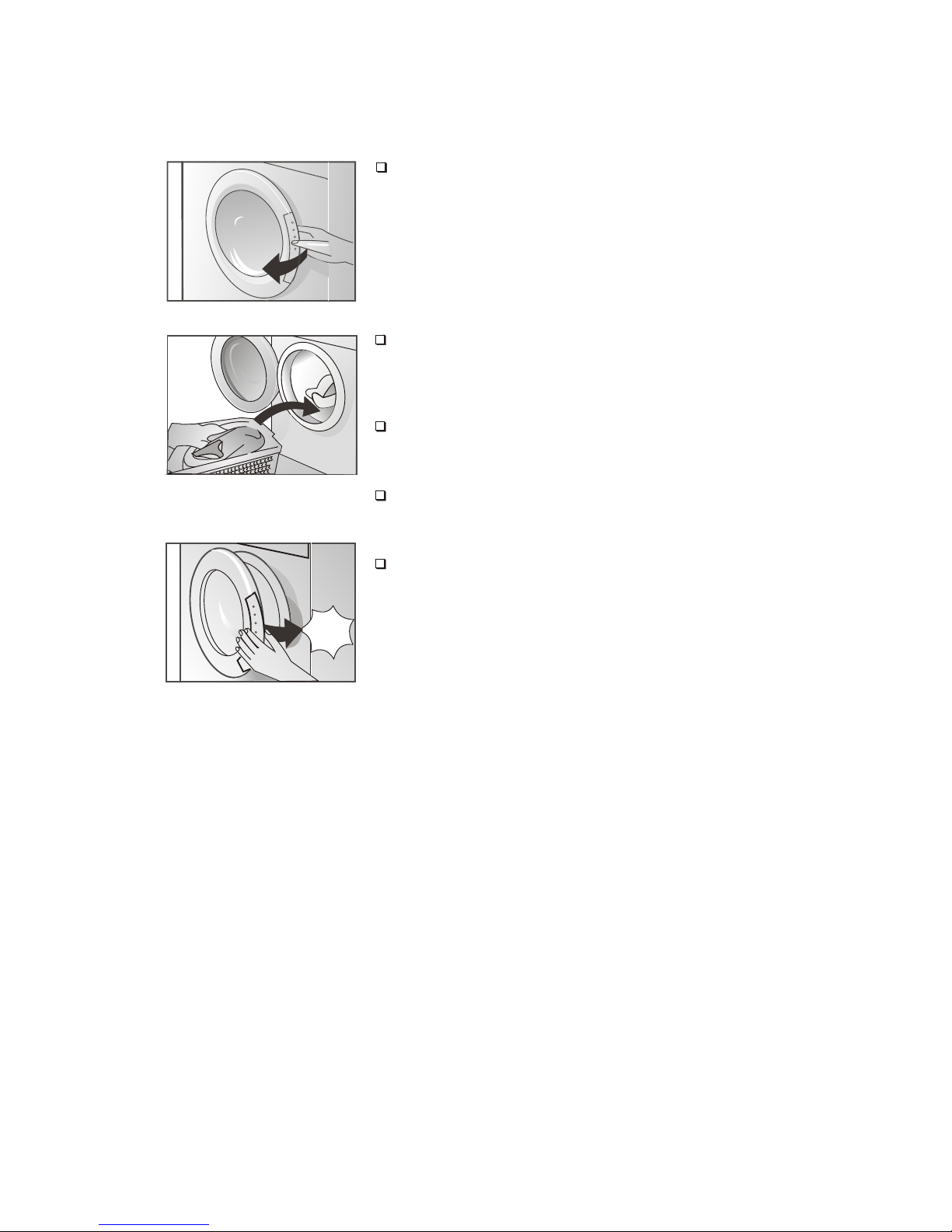

Close the loading door.
Take care not to trap any items of clothing
between the loading door and rubber seal.
When washing a small amount of laundry, the
washing machine automatically reduces the
amount of the water and energy used.
Do not exceed the maximum load: Overloading
will cause poor wash results and encourage
creasing.
Unfold the sorted items of clothing and place
them loosely into the drum. Mix up large and
small items. Items of varying size will distribute
better during the spin cycle.
15
Open the loading door.
klack

!
Laundry Detergents and Additives
Amount of detergent
Risk of poisoning
Do
Keep detergents and additives out of the reach
of children.
You can use any standard powder or liquid
detergent which is suitable for automatic
washing machines.
Do not use any detergent boosters containing
solvents or dirt and stain-removing spraying
near the machine, as these could damage the
machine.
Do not use non-automatic detergent as these
produce too much foam.
not use solvent-based cleaning agents in
fully automatic washing machines. Explosion
hazard.
The best washing results will only be achieved
if you add the correct amount of detergent.
Observe the instructions for use shown on the
detergent packing.
When using liquid detergents, you can use any
measuring aids provided with the detergent,
such as dosage balls of bags.
Please put the liquid detergents into correct
chamber.
The amount of detergent depends on:
- water hardness
16

17
- degree of soiling
- size of the load
- amount of detergent to be added according
to its manufacturer
Dispensing the correct amount of detergent
relieves the strain on the environment and
ensures optimum washing results.
Frequent use of insufficient detergent will
eventually become noticeable as follows:
- washing appears grey or not properly clean
- grey-brown stains(grease marks) form on
the washing
- scale builds up on the heating elements
Too much detergent results in:
- unnecessarily high environmental pollution
- due to the generation of too much foam, the
washing is hardly agitated which leads to
poor washing results.
The amount of detergent indicated on its
packaging refers to a full machine load.
For small loads or less soiling, reduce the
amount of detergent.

18
Filling laundry
detergent and/or
additive dispensers
Chamber I:
Detergent for prewash, starch or pre-soaking
agent.
Chamber II:
Detergent for main wash, water softener, bleach
and stain removal product.
Chamber :
Additives, e.g. fabric softener of former.
- Do not fill beyond the " MAX" mark, otherwise
will be flushed into the machine together with
the detergent at the start of the programme.
- If the liquid additive is thick, mix with a little
water before dispensing(prevents clogging of
the overflow).
Pull out the detergent dispenser up to the end
stop.
Add the detergent and/or additive.
Close the detergent dispenser.
