Sievert Crane & Hoist ACCOLIFT CLH VFD-230 User manual

SEP.2014
ELECTRIC CHAIN HOIST
71965-01
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

3
Install start up
9
15
16
19
26
28
1.3. Hook Suspension Series(Three phase)
1.4. Hook Suspension Series(Single phase)
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

4
6.6.2. Chain fixing pin on the bottom hook
6.7. Load sheave and Chain guide
6.8. Brake Operation
6.9. Motor
6.9.1. Motor rating of hoist
6.10. Overwinding & Overload Limiter
6.11. Push Button Pendant Switch
7.1. Recommended periodic maintenance and inspection table
7.2. Lubrication
7.3. Recommended Technical Support for Various Spare Parts
7.4. Troubleshooting
8.1. Exploded View of CH Parts
(2330010,2330020,2330040)
8.2. Exploded View of CH Parts
(2230010,2230020,2230040 & 2230010-VFD, 2230020-VFD, 2230040-VFD)
8.3. Exploded View of CH Parts
(2330010-VFD, 2330020-VFD, 2330040-VFD)
8.4. Part List
8.5. Electric connection drawing of hook suspension series
9.1. Operating hoist
9.2. Push button control for inverter hoist
9.3. Trial operation
9.4. Inverter parameter settings
9.5. Display and control keys
9.6. Viewing and Editing parameters
9.7. Electric connection drawing of hook suspension series
Variable Frequency Drive (Powerflex 523)
Motor Voltage change(Important)
Hour/Count Meter
Parts illustrations
Preventive maintenance
9.
10.
11.
12.
54
64
65
66
40
37
Lug Mount Plain Trolley kit
12.1. How to install Lug Mount Plain Trolley on the runway I-Beam
12.2.Applied Collar Numbers for Each Trolley Capacity on I-Beam
12.3. Exploded View of Lug MountTrolley kit Parts
12.4. Parts List
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

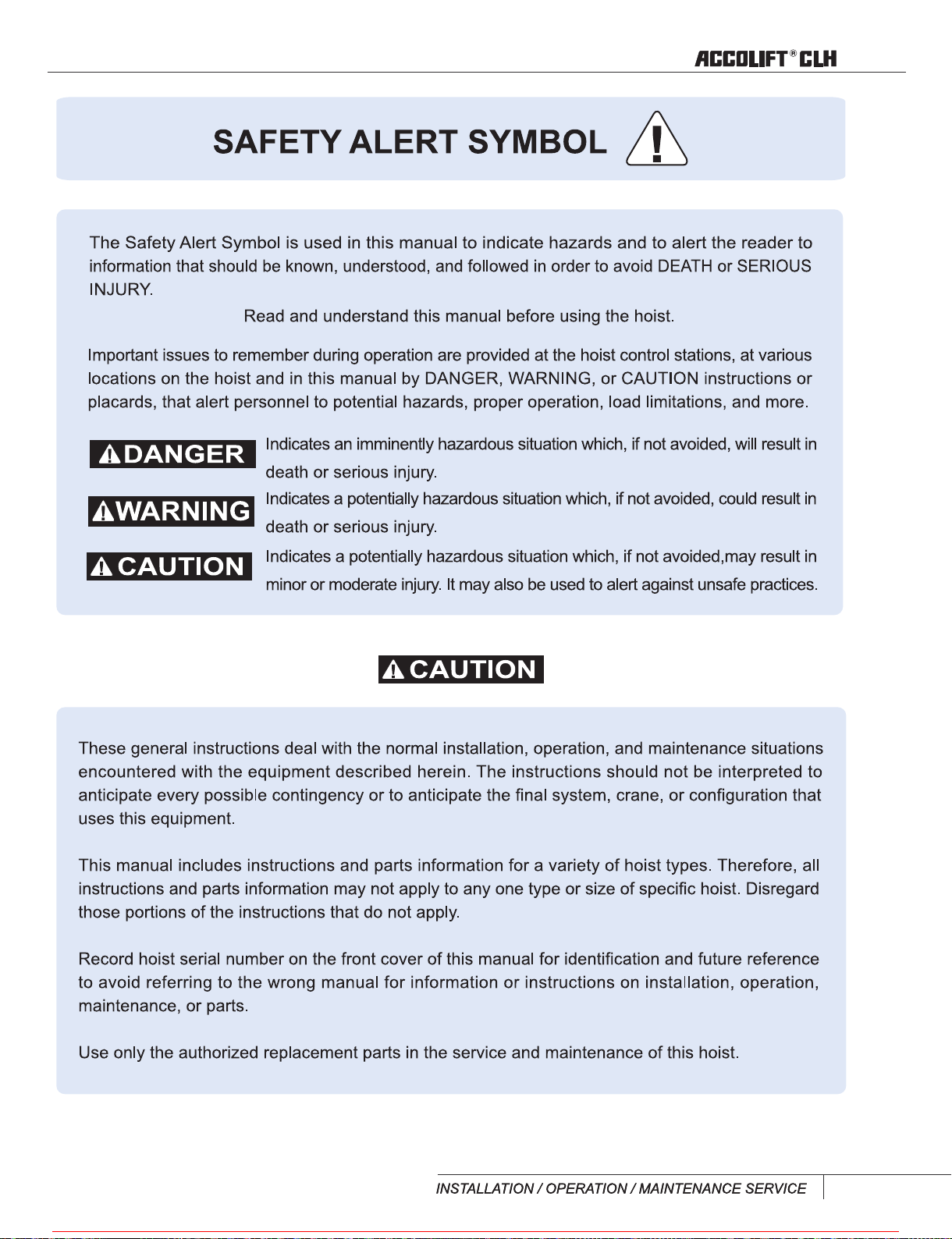

5
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

6
Double
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

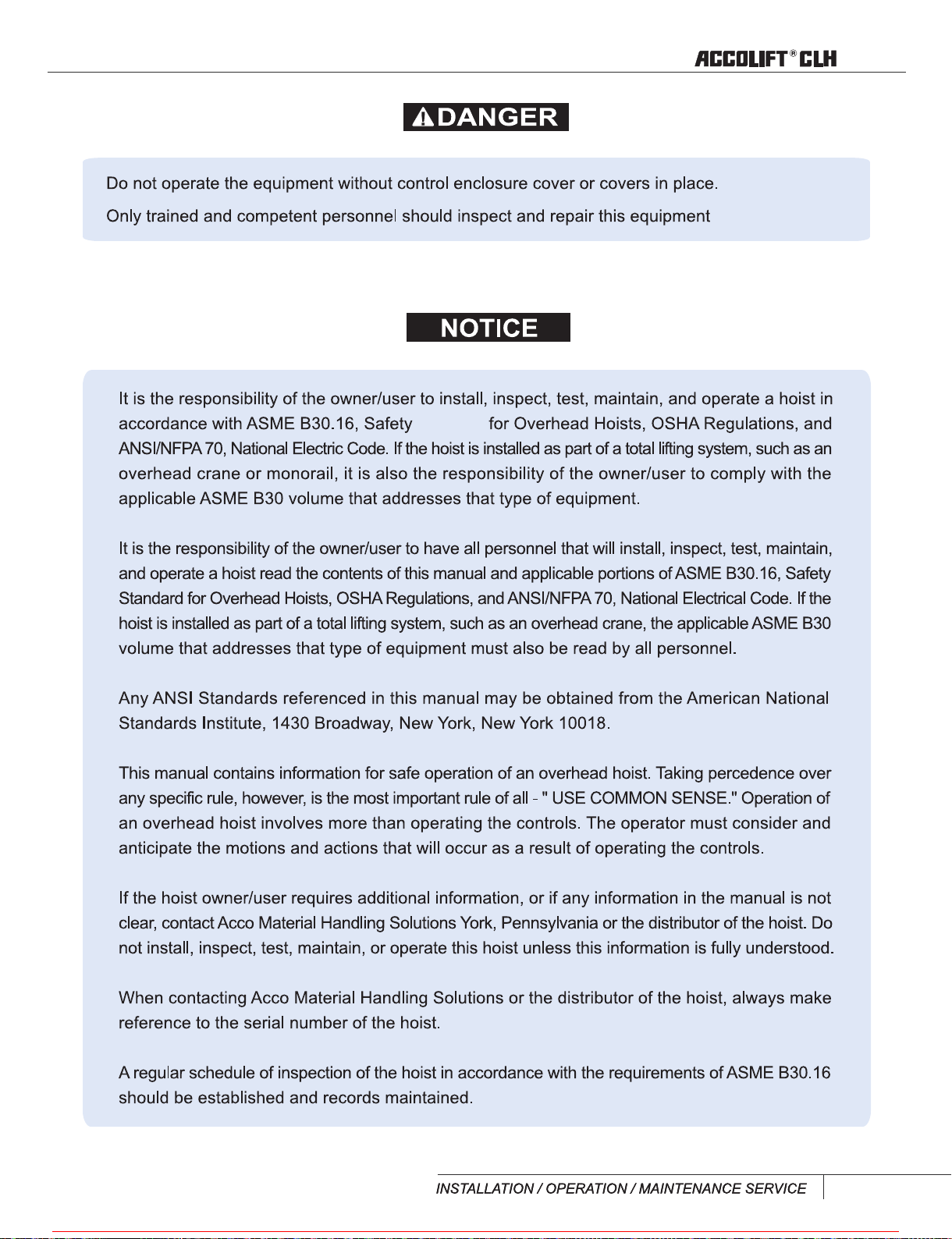

7
Standard
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

8
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

9
hoists feature lower headroom than conventional hoists. Due to their compact size
these hoists fit well into jib crane and light rail applications. These hoists are available for single-phase
and three-phase applications. Careful consideration has been given to optimize performance.
All hoists are equipped with quality parts and mechanisms to provide proper lifting and traversing
of the load. Components undergo numerous tests and inspections, while our production processes
meet stringnet quality requirements.
cone brake
Upper Limit Switch prevents over-lifting of chain
Electric Chain Hoists are allocated to mechanism groups in accordance with the
following regulations. Under the allowance of the following mechanism groups, the hoist should
be operated and should not exceed the nominal values. On each identification plate, the following
is indicated.
Hook suspension chain hoist <3 phase> : FEM9.511(Hoist = FEM 2m 40% ED)
Hook suspension chain hoist <1 phase> : FEM9.511(Hoist = FEM 2m 30%ED)
Average operating period per day (h)Load group
Light
k 0.50
Medium
0.50 k 0.63
Heavy
0.63 k 0.8
Very Heavy
0.8 k 1.00
2
1
0.5
0.25
2-4
1-2
0.5-1
0.5
4-8
2-4
1-2
0.5-1
8-16
4-8
2-4
1-2
16
8-16
4-8
2-4
-
16
8-16
4-8
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

10
electric chain hoists should be operated under the allowance of the above FEM
determination. The above mechanism group is valid for the entire period of operation, and
for reasons of operational safety, hoists shall not be operated outside these recommendations.
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

11
1.3. Hook Suspension Series (THREE PHASE)
Specifications
VFD-230 VFD-460 VFD-230 VFD-460 VFD-230 VFD-460
V 208-230 460 208-230 460 208-230 460 208-230 460 208-230 460 208-230 460
KW(HP)
Load chain dia(inch)xChainfall Lines
Net weight lbs
Weight for additional 1ft lift lbs
2230040
Model
20
18
2230010 2230020
Lifting motor
Capacity(WLL) ton
Standard lift ft
Pushbutton cord length ft
Lifting speed fpm
0.280"x1 0.280"x2 0.280"x1 0.280"x2
2230020 2230040
1/2t 1t 2t 1/2t 1t 2t
2230010
17/6 9/3 17 9
1.5(2.0)
181 168146 134
0.67 0.671.34 1.34
VFD Control Single Speed
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

12
2230010 2230020 2230040
Model
VFD-230 VFD-460 VFD-230 VFD-460 VFD-230 VFD-460
2230010 2230020 2230040

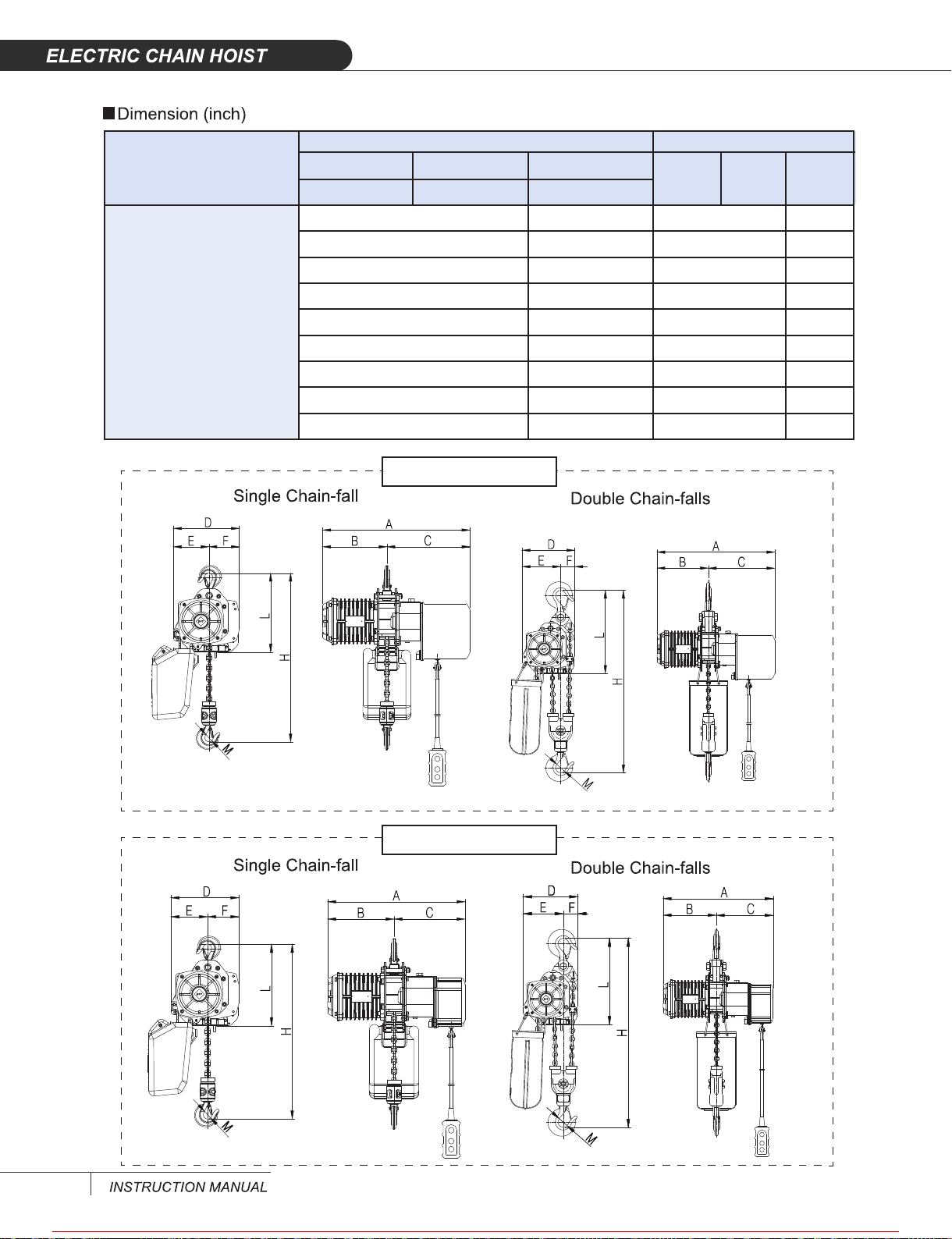

A 23.9 23.9 20.7 20.7
B 10.4 10.4 10.4 10.4
C 13.5 13.5 10.3 10.3
D 12.9 12.9 10.7 10.7
* H : minimum headroom E 5.7 7.8 5.8 7.8
* Hook is produced by the F 7.2 5.1 4.9 2.9
hot forging process and M 1.38 2.1 1.38 2.1
has ±2% variation from H 15.8 26.8 15.8 26.8
nominal dimension. L 14.9 19 12.7 16.9
VFD Control
Single Speed
VFD Control Single Speed
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

13
1.3. Hook Suspension Series (SINGLE PHASE)
Specifications
V 115 230 115 230 115 230
KW(HP)
VFD-230-1 2330040
Capacity(WLL) ton 1/2t 1t 2t 1/2t 1t 2t
Model
2330010 2330020 2330040 2330010 2330020
VFD-230-1 VFD-230-1
Standard lift ft 20
Pushbutton cord length ft 18
Lifting speed fpm 17/6 9/3 14 7
0.280"x1 0.280"x2
1.5(2.0) 0.8(1.1)
230
139 172
Weight for additional 1ft lift lbs 0.67 1.34 0.67 1.34
230 230
Net weight lbs 148 181
Lifting motor
Load chain dia(inch)xChainfall Lines 0.280"x1 0.280"x2
VFD Control Single Speed
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

14
VFD-230 VFD-230 VFD-230
A
B
C
D
* H : minimum headroom E
* Hook is produced by the F
hot forging process and M
has ±2% variation from H
nominal dimension. L 14.9 19 12.7 16.9
1.38 2.1 1.38 2.1
15.8 26.8 15.8 26.8
5.8 7.8 5.8 7.8
4.9 2.9 4.9 2.9
13.5 13.5 11.1 11.1
10.7 10.7 10.7 10.7
2330040
23.9 23.9 21.5 21.5
10.4 10.4 10.4 10.4
Model 2330010 2330020 2330040 2330010 2330020
VFD Control
Single Speed
VFD Control Single Speed
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

15

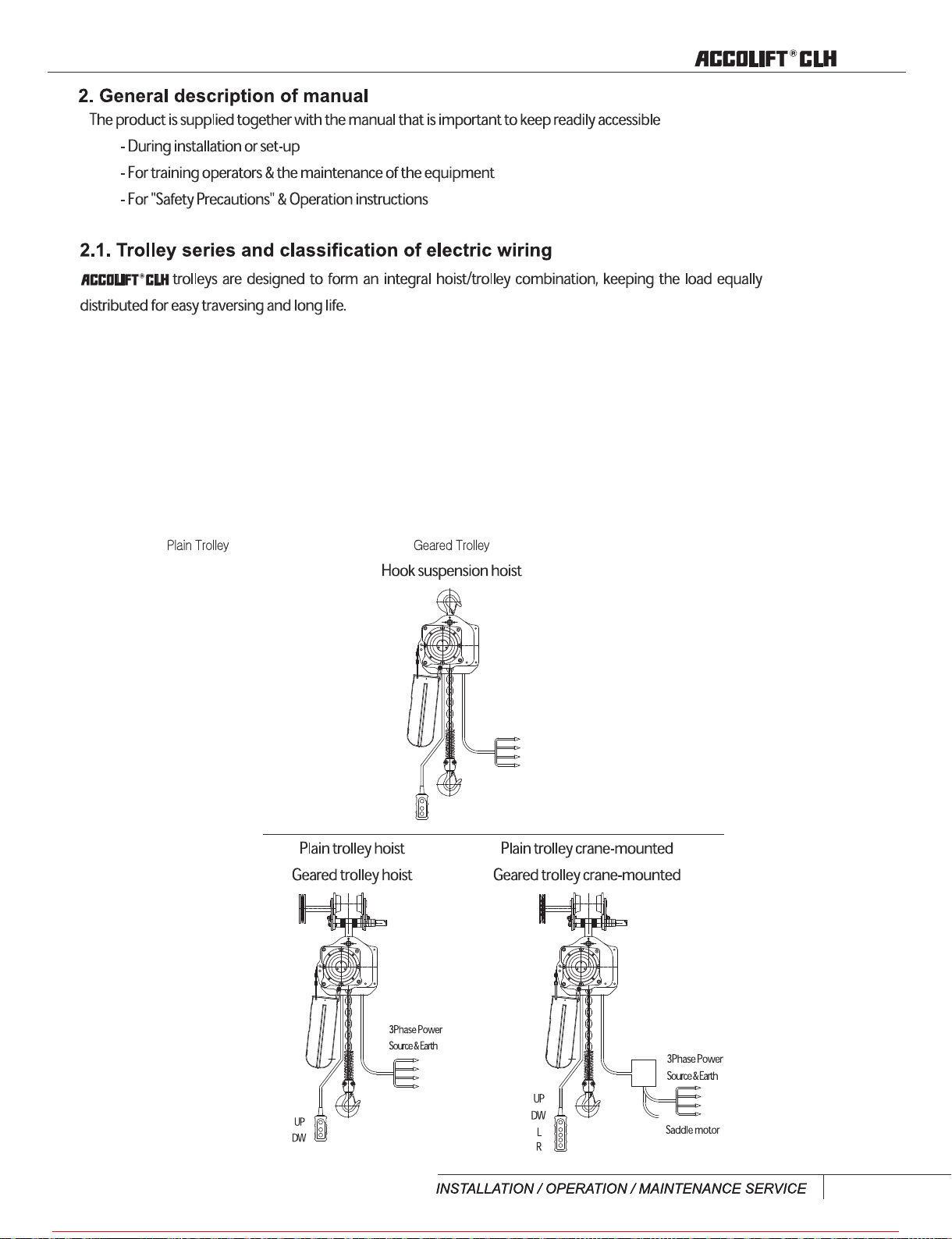

Lug mount plain trolley kit
Hook suspension trolleys are available as push/pull and hand-geared versions. Alug mounted push/pull trolley
is also available for easy mounting to the hoist by removing the top hook and bolting in the supplied lug connector.
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

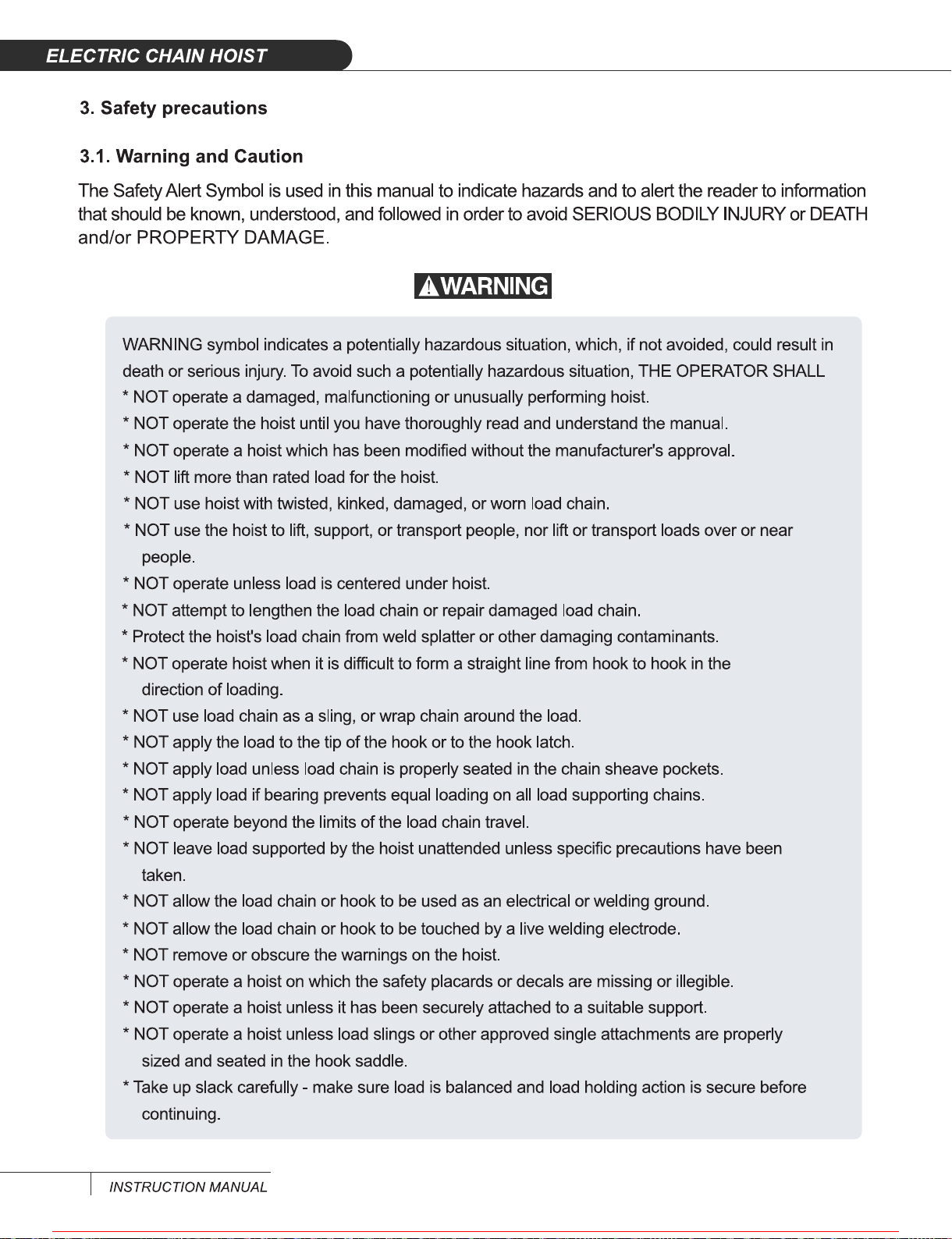

16
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

17
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

18
<Example of MODEL NO. 2230040>
208V 7.9
2.0HP(1.5Kw)1150
9.2230V 3.9460V
3Ph-60Hz Rating 30min. Insulation Class:B
Model no.
Capacity
208V / 230V / 460V-3Ph-60Hz reconnectable
Lifting-Speed
No. of chain
Chain(dia.x pitch)
DUTY CLASS : FED 2M,40%ED
Insulation class B
Serial No.
MADE IN KOREA
2TON
9 FPM
2 fall
7.1x21.0mm
2
TON
2230040
2
7.1 x 21.0mm 8 mtr
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

19
(115V,208V,230V,460V)
The
For more information contact: Sievert Crane and Hoist, [phone], [email protected], www.sievertcrane.com

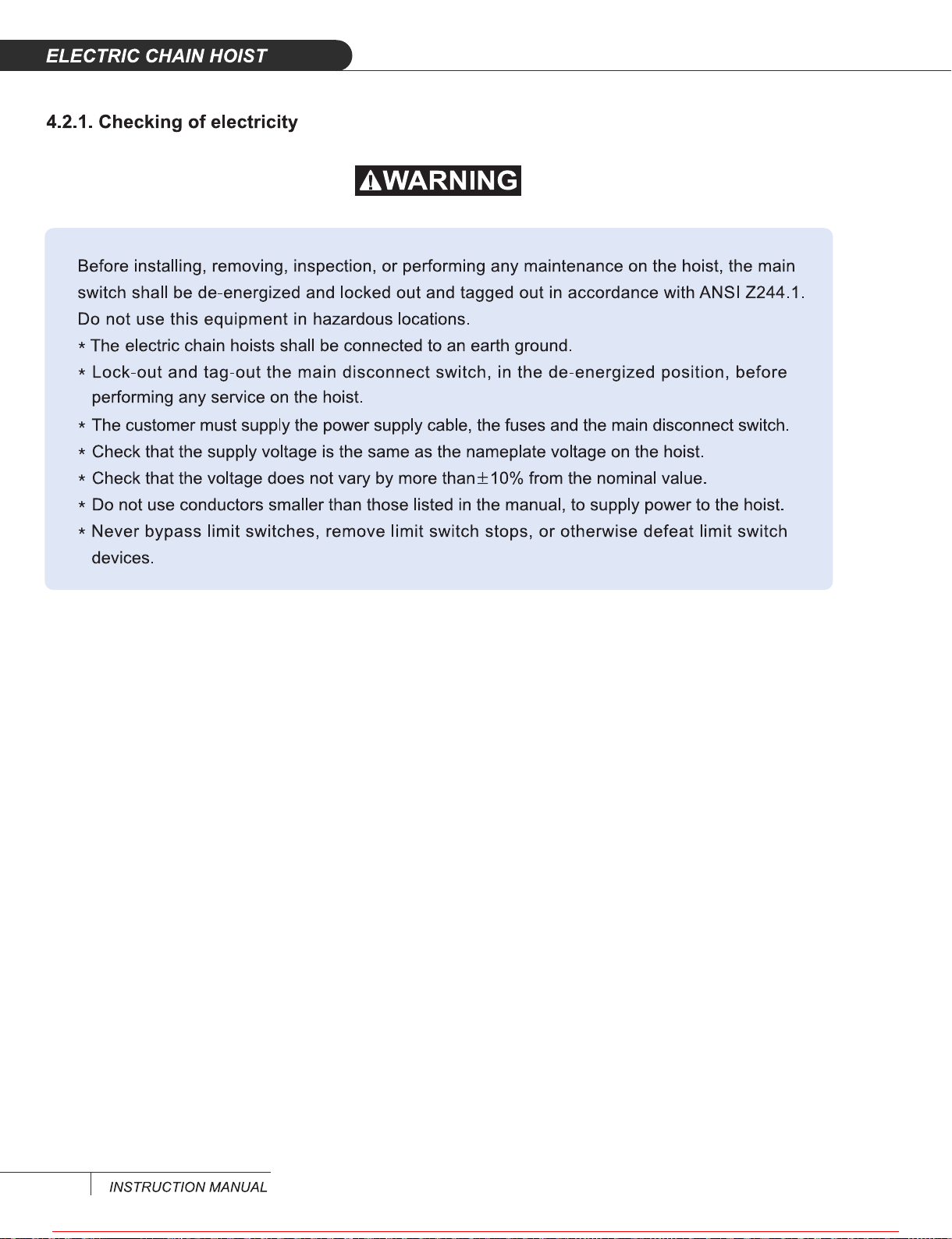

20
