SIGMA TEK IIO 041 User manual

IIO 041
S-DIAS Interface SDCI Master
Instruction Manual
Date of creation: 07.02.2017
Version date: 26.07.2023
Article number: 20-104-041-E

Publisher: SIGMATEK GmbH & Co KG
A-5112 Lamprechtshausen
Tel.: [phone]
Fax: [phone]
Email: [email protected]
WWW.SIGMATEK-AUTOMATION.COM
Copyright © 2017
SIGMATEK GmbH & Co KG
Translation of the Original Instructions
All rights reserved. No part of this work may be reproduced, edited using an electronic system, duplicated or
distributed in any form (print, photocopy, microfilm or in any other process) without the express permission.
We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not
responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur
through use of this handbook.

S-DIAS SDCI MASTER MODULE IIO 041
26.07.2023 Page 1
S-DIAS SDCI Master Module IIO 041
with 4 SDCI ports and 4 digital inputs
The S-DIAS Single-Drop Digital Communication Interface (SDCI)
master module enables the connection of up to 4 intelligent SDCI
sensors or SDCI actuators in compliance with the SDCI
specification V1.1 according to IEC61131-9. All SDCI ports can also
be configured as +24 V digital inputs or +24 V digital outputs. The
module has a 24 V supply connection for powering the SDCI ports
and connected SDCI devices. Additionally, the module has 4
standard +24 V/3.7 mA/0.5 ms digital inputs.
The SDCI devices are configured with the SDCI configuration tool
integrated into LASAL Using the tool, an SDCI configuration file
(IODD) can be loaded for each device and their parameters
defined.

IIO 041 S-DIAS SDCI MASTER MODULE
Page 2 26.07.2023
Contents
1Technical Data .......................................................................12
1.1 SDCI Interface Specifications....................................................12
1.2 SDCI Interface as a Digital Output ............................................12
1.3 SDCI Interface as a Digital Input ...............................................13
1.4 Digital Input Specifications........................................................13
1.5 Electrical Requirements.............................................................14
1.6 Voltage Monitor...........................................................................15
1.7 Miscellaneous .............................................................................15
1.8 Environmental Conditions.........................................................15
2Mechanical Dimensions........................................................16
3Connector Layout..................................................................17
3.1 Status LEDs.................................................................................18
3.2 Applicable Connectors...............................................................19
3.3 Label Field...................................................................................20
4Wiring......................................................................................21
4.1 Wiring Example...........................................................................21
4.2 Wiring Versions ..........................................................................22
5Mounting.................................................................................24
6Hardware Class IIO041..........................................................26
6.1 General.........................................................................................27

S-DIAS SDCI MASTER MODULE IIO 041
26.07.2023 Page 3
6.1.1 Communication Interfaces ................................................................ 28
6.2 Global Methods...........................................................................28
6.2.1 GetEvent........................................................................................... 28
6.2.2 Data structure t_SDCIEventDetails................................................... 28
6.3 Internal Properties......................................................................30
6.3.1 Behavior Asynchronous Communication (SDOs) ............................. 30
6.3.2 Behavior SDCI Device at Project Start.............................................. 30
6.3.3 Auto Connect Function of the SDCI Devices .................................... 30
Documentation Changes..............................................................33

IIO 041 S-DIAS SDCI MASTER MODULE
Page 4 26.07.2023
1 Introduction
1.1 Target Group/Purpose of this Operating Manual
This operating manual contains all information required for the operation of the product.
This operating manual is intended for:
•Project planners
•Technicians
•Commissioning engineers
•Machine operators
•Maintenance/test technicians
General knowledge of automation technology is required.
Further help and training information, as well as the appropriate accessories can be found
on our website www.sigmatek-automation.com.
Our support team is happily available to answer your questions.
Please see our website for our hotline number and business hours.
1.2 Important Reference Documentation
This and additional documents can be downloaded from our website or obtained through
support.
1.3 Contents of Delivery
1x IIO 041

S-DIAS SDCI MASTER MODULE IIO 041
26.07.2023 Page 5
2 Basic Safety Directives
2.1 Symbols Used
The following symbols are used in the operator documentation for warning and danger
messages, as well as informational notes:
DANGER
Danger indicates that death or serious injury will occur, if the
specified measures are not taken.
To avoid death or serious injuries, observe all guidelines.
Danger indique une situation dangereuse qui, faute de prendre les
mesures adéquates, entraînera des blessures graves, voire mortelles.
Respectez toutes les consignes pour éviter des blessures
graves, voire mortelles.
WARNING
Warning indicates that death or serious injury can occur, if the
specified measures are not taken.
To avoid death or serious injuries, observe all guidelines.
Avertissement d’une situation dangereuse qui, faute de prendre les
mesures adéquates, entraînera des blessures graves, voire mortelles.
Respectez toutes les consignes pour éviter des blessures
graves, voire mortelles.
CAUTION
Caution indicates that moderate to slight injury can occur, if the
specified measures are not taken.
To avoid moderate to slight injuries, observe all guidelines.
Attention indique une situation dangereuse qui, faute de prendre les
mesures adéquates, peut entraîner des blessures assez graves ou
légères.
Respectez toutes les consignes pour éviter des blessures
graves, voire mortelles.

IIO 041 S-DIAS SDCI MASTER MODULE
Page 6 26.07.2023
INFORMATION
Information
Provides important information on the product, handling or
relevant sections of the documentation, which require
attention.

S-DIAS SDCI MASTER MODULE IIO 041
26.07.2023 Page 7
2.2 Disclaimer
INFORMATION
The contents of this operating manual were prepared with the greatest
care. However, deviations cannot be ruled out. This operating manual
is regularly checked and required corrections are included in the
subsequent versions. The machine manufacturer is responsible for the
proper assembly, as well as device configuration. The machine
operator is responsible for safe handling, as well as proper operation.
The current operating manual can be found on our website. If
necessary, contact our support.
Subject to technical changes, which improve the performance of the
devices. The following operating manual is purely a product
description. It does not guarantee properties under the warranty.
Please thoroughly read the corresponding documents and this
operating manual before handling a product.
SIGMATEK GmbH & Co KG is not liable for damages caused
through, non-compliance with these instructions or applicable
regulations.

IIO 041 S-DIAS SDCI MASTER MODULE
Page 8 26.07.2023
2.3 General Safety Directives
The Safety Directives in the other sections of this operating manual must be observed.
These instructions are visually emphasized by symbols.
INFORMATION
According to EU Directives, the operating manual is a component of a
product.
This operating manual must therefore be accessible in the vicinity of
the machine since it contains important instructions.
This operating manual should be included in the sale, rental or transfer
of the product, or its online availability indicated.
Regarding the requirements for Safety and health connected to the use
of machines, the manufacturer must perform a risk assessment in
accordance with machine directives 2006/42/EG before introducing a
machine to the market.
Operate the unit with devices and accessories approved by
SIGMATEK only.

S-DIAS SDCI MASTER MODULE IIO 041
26.07.2023 Page 9
CAUTION
Handle the device with care and do not drop or let fall.
Prevent foreign bodies and fluids from entering the device.
The device must not be opened!
Manipulez l’appareil avec précaution et ne le laissez pas tomber.
Empêchez les corps étrangers et les liquides de pénétrer dans
l’appareil.
L’appareil ne doit pas être ouvert!
If the device does not function as intended or has damage that could
pose a danger, it must be replaced!
En cas de fonctionnement non conforme ou de dommages pouvant
entraîner des risques, l'appareil doit être remplacé!
The module complies with EN 61131-2.
In combination with a facility, the system integrator must comply with
EN 60204-1 standards.
For your own safety and that of others, compliance with the
environmental conditions is essential.
Le module est conforme à la norme EN 61131-2.
En combinaison avec une équipement, l’intégrateur de système doit
respecter la norme EN 60204-1.
Pour votre propre sécurité et celle des autres, le respect des conditions
environnementales est essential.
2.4 Software/Training
The application is created with the software LASAL CLASS 2 and LASAL SCREEN Editor.
Training for the LASAL development environment, with which the product can be
configured, is provided. Information on our training schedule can be found on our website.

IIO 041 S-DIAS SDCI MASTER MODULE
Page 10 26.07.2023
3 Standards and Directives
3.1 Directives
The product was constructed in compliance with the following European Union directives
and tested for conformity.
3.1.1 EU Conformity Declaration
EU Declaration of Conformity
The product IIO 041 conforms to the following European directives:
•2014/35/EU Low-voltage Directive
•2014/30/EU Electromagnetic Compatibility (EMC Directive)
•2011/65/EU “Restricted use of certain hazardous substances in
electrical and electronic equipment” (RoHS Directive)
The EU Conformity Declarations are provided on the SIGMATEK website.
See Products/Downloads or use the search function and the keyword “EU
Declaration of Conformity”.

S-DIAS SDCI MASTER MODULE IIO 041
26.07.2023 Page 11
4 Type Plate
HW: Hardware version
SW: Software version

IIO 041 S-DIAS SDCI MASTER MODULE
Page 12 26.07.2023
5 Technical Data
5.1 SDCI Interface Specifications
Number of interfaces
4
Specification version
SDCI V1.1
Data transfer rate
4.8 kbit/s, 38.4 kbit/s, 230.4 kbit/s
SDCI supply
24 V (via power switch, short-circuit proof)
SDCI supply current
maximum 500 mA per connection
SDCI switching signal
+24 V and GND switching
SDCI switching current
maximum 500 mA
Connection technology
3-wire (unshielded)
Cable length
maximum 20 m
wire resistance
maximum 6 Ω
wire capacity
maximum 3 nF
Status LEDs
yes
5.2 SDCI Interface as a Digital Output
Output signal
+24 V-switching
Short-circuit proof
yes
Maximum continuous current
load/channel allowed
0.25 A
Maximum total current
(all channels)
1 A (100 % of on-time)
Maximum braking energy of
outputs (inductive load)
maximum 1 Joule/channel
Residual current output
(off)
≤ 10 µA
Turn-on delay
< 10 µs
Turn-off delay
< 10 µs

S-DIAS SDCI MASTER MODULE IIO 041
26.07.2023 Page 13
5.3 SDCI Interface as a Digital Input
Input voltage(1)
typically +24 V
maximum +30 V
Signal level
low: < +8 V
high: > +14 V
Switching threshold
typically +11 V
Input current
6.8 mA at +24 V
Input delay
typically 0.5 µs
(1) The input voltage cannot exceed the +24 V SDCI supply.
5.4 Digital Input Specifications
Number
4
Input voltage
typically +24 V
maximum +30 V
Signal level
low: < +8 V
high: > +14 V
Switching threshold
typically +11 V
Input current
3.7 mA at +24 V
Input delay
typically 0.5 ms

IIO 041 S-DIAS SDCI MASTER MODULE
Page 14 26.07.2023
5.5 Electrical Requirements
External +24 V supply
+18-30 V DC
Current consumption external
+24 V supply without actuators or
sensors
typically 20 mA at +18 V
typically 23 mA at +24 V
typically 26 mA at +30 V
maximum 25 mA at +18 V
maximum 29 mA at +24 V
maximum 33 mA at +30 V
Current consumption external
+24 V supply with actuators or
sensors
Intrinsic current consumption of the external +24 V supply + current
consumption of the connected SDCI actuators or sensors + switching
current of the SDCI actuators or sensors (max. 3.0 A)
Voltage supply from the S-DIAS
bus
+24 V
Current consumption on the
S-DIAS bus
(+24 V power supply)
typically 33 mA at +18 V
typically 27 mA at +24 V
typically 23 mA at +30 V
maximum 41 mA at +18 V
maximum 34 mA at +24 V
maximum 29 mA at +30 V
INFORMATION
If this S-DIAS module is connected to an S-DIAS supply module with
several S-DIAS modules, the total current of the S-DIAS modules used
must be determined and checked.
The total current of the +24 V supply cannot exceed 1.6 A!
The total current of the +5 V supply cannot exceed 1.6 A!
The specification for the current can be found in the module-specific
documentation under "Electrical Requirements".

S-DIAS SDCI MASTER MODULE IIO 041
26.07.2023 Page 15
5.6 Voltage Monitor
Supply voltage
+24 V SDCI
supply voltage > 18 V (corresponding DC OK-LED lights green)
5.7 Miscellaneous
Article number
20-104-041
Standard
UL 508 (in preparation)
5.8 Environmental Conditions
Storage temperature
-20 ... +85 °C
Environmental temperature
0 ... +55 °C
Humidity
0-95 %, non-condensing
Installation altitude above sea
level
0-2000 m without derating
> 2000 m up to a maximum of 5000 m with derating of the maximum
environmental temperature by 0.5 °C per 100 m
Operating conditions
pollution degree 2
EMC resistance
in accordance with EN 61000-6-2 (industrial area)
EMC noise generation
in accordance with EN 61000-6-4 (industrial area)
Vibration resistance
EN 60068-2-6
3.5 mm from 5-8.4 Hz
1g from 8.4-150 Hz
Shock resistance
EN 60068-2-27
15 g
Protection type
EN 60529
IP20

IIO 041 S-DIAS SDCI MASTER MODULE
Page 16 26.07.2023
6 Mechanical Dimensions

S-DIAS SDCI MASTER MODULE IIO 041
26.07.2023 Page 17

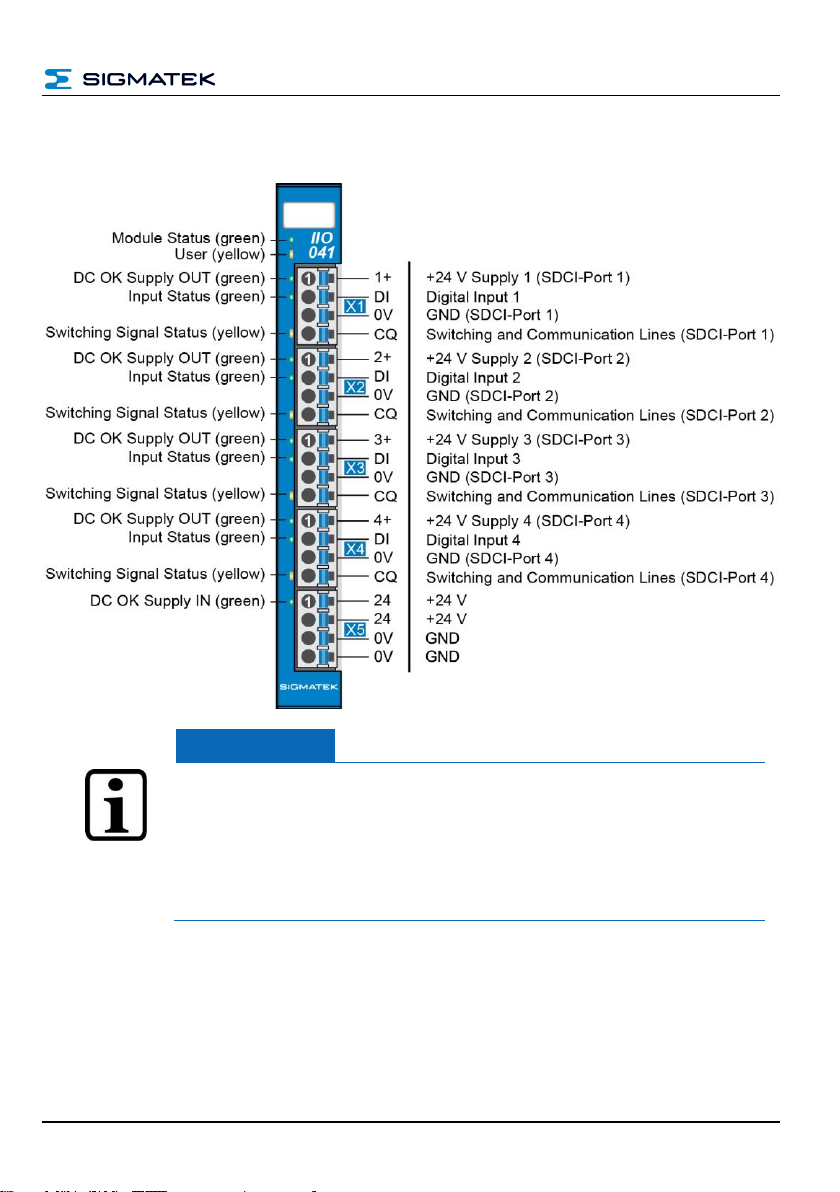

7 Connector Layout
INFORMATION
The connections of the +24 V supply (X5: pin 1 and pin 2) or the GND
supply (X5: pin 3 and pin 4) are internally bridged. To supply the
module, only one connection to a +24 V pin (pin 1 or pin 2) and a GND
pin (pin 3 or pin 4) is required. The bridged connections may be used
for further looping of the +24 V supply and the GND supply. However, it
must be taken into account that a total current of 6 A per connection is
not exceeded by the forward looping!

IIO 041 S-DIAS SDCI MASTER MODULE
Page 18 26.07.2023
7.1 Status LEDs
Module Status
green
ON
module active
OFF
no supply available
BLINKING (5 Hz)
no communication
User
yellow
ON
can be set from the application
(e.g. the module LED can be set to blinking through the
visualization so that the module is easily found in the control
cabinet)
OFF
BLINKING (2 Hz)
BLINKING (4 Hz)
DC OK Supply OUT
green
ON
+24 V supply SDCI port ON
OFF
+24 V supply SDCI port OFF or shorted
Input Status
green
ON
input on
OFF
input OFF
Switching Signal
Status
yellow
ON
SDCI switching signal / in/output HIGH
OFF
SDCI switching signal / in/output LOW
DC OK Supply IN
green
ON
+24 V supply available
OFF
+24 V supply missing
