Signal Recovery PS0055 User manual

Model PS0055/PS0056
External Power Supply
Operating Instructions
SIGNAL RECOVERY
Introduction

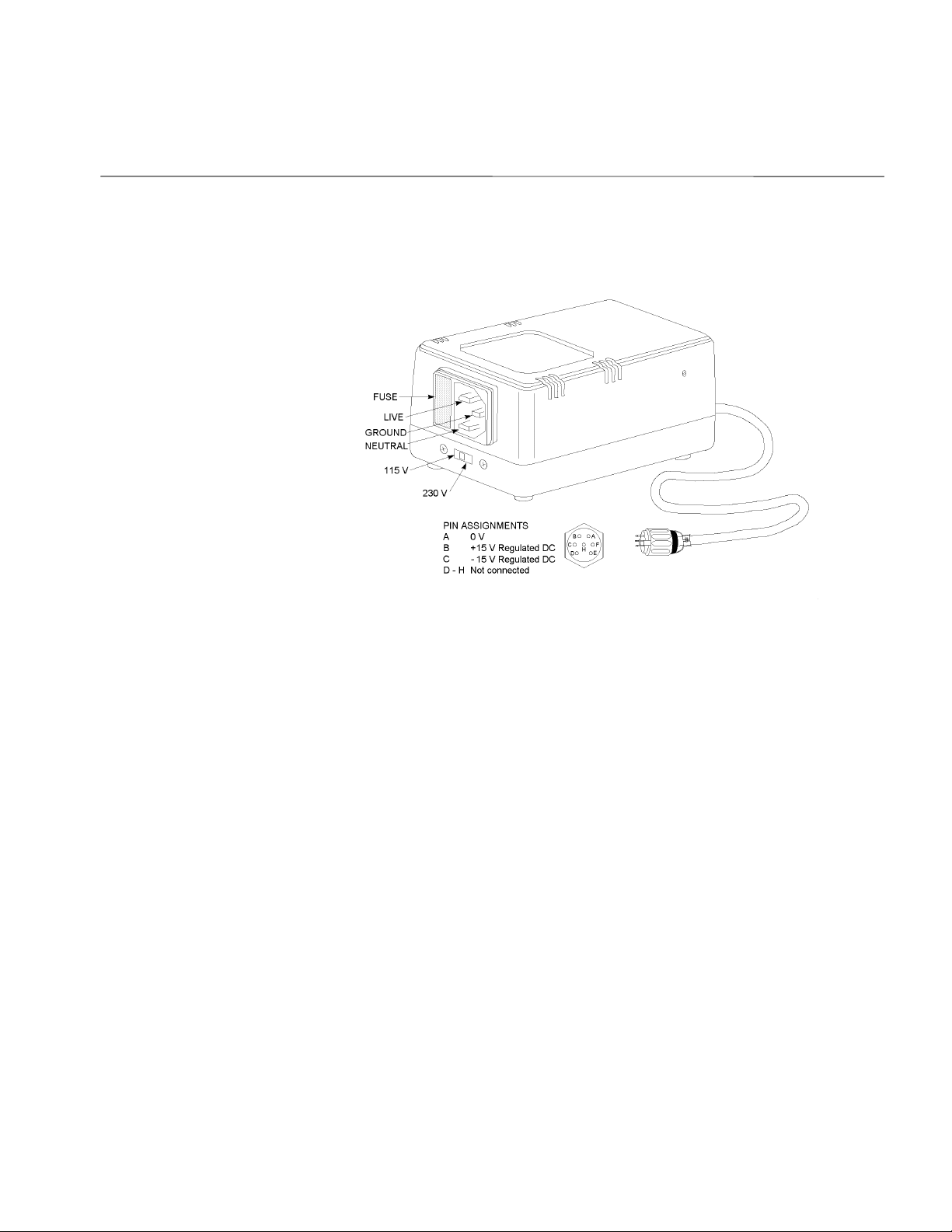

Figure 1, Model PS0055 / PS0056 Power Supply
The SIGNAL RECOVERY model PS0055 / PS0056 (figure 1) is a ±15 V DC @
100 mA regulated power supply for use with the model 181 current preamplifier. The
two different model numbers refer to the setting of the line power input voltage, with
the model PS0055 being supplied set for 110 - 120 V AC while the PS0056 is set to
220 - 240 V AC.
Operating Instructions
1) Check that the LINE voltage selector slide switch on the end of the unit is set to
the voltage of your local line supply.
2) Connect the output lead with 7-pin plug to the instrument to be powered.
3) Connect the supplied line input power cord to the power supply and then plug it
into the line power output.
4) Switch on the line power.
5) Switch on the instrument to be powered.

Model PS0055 / PS0056 External Power Supply - Operating Instructions
Precautions
Always switch off and disconnect the power supply from the line input before
disconnecting the output power lead. Failure to do this may result in damage to the
unit should the output power plug pins become shorted.
Should it be necessary to replace a blown fuse in the PS0055/PS0056, first switch off
and disconnect the line input. Always replace with a fuse of the correct rating, as
follows:-
Fuse Rating
115 V operation 1 A
230 V operation 500 mA
Fuse Type 5 mm ×20 mm, 250 V, Slow Blow
Warning: This equipment must be connected to a grounded power outlet.
Mechanical
Dimensions
2¼" ×3" ×5" (58 mm ×75 mm ×130 mm)
Weight
2 lbs (0.9 kg)
