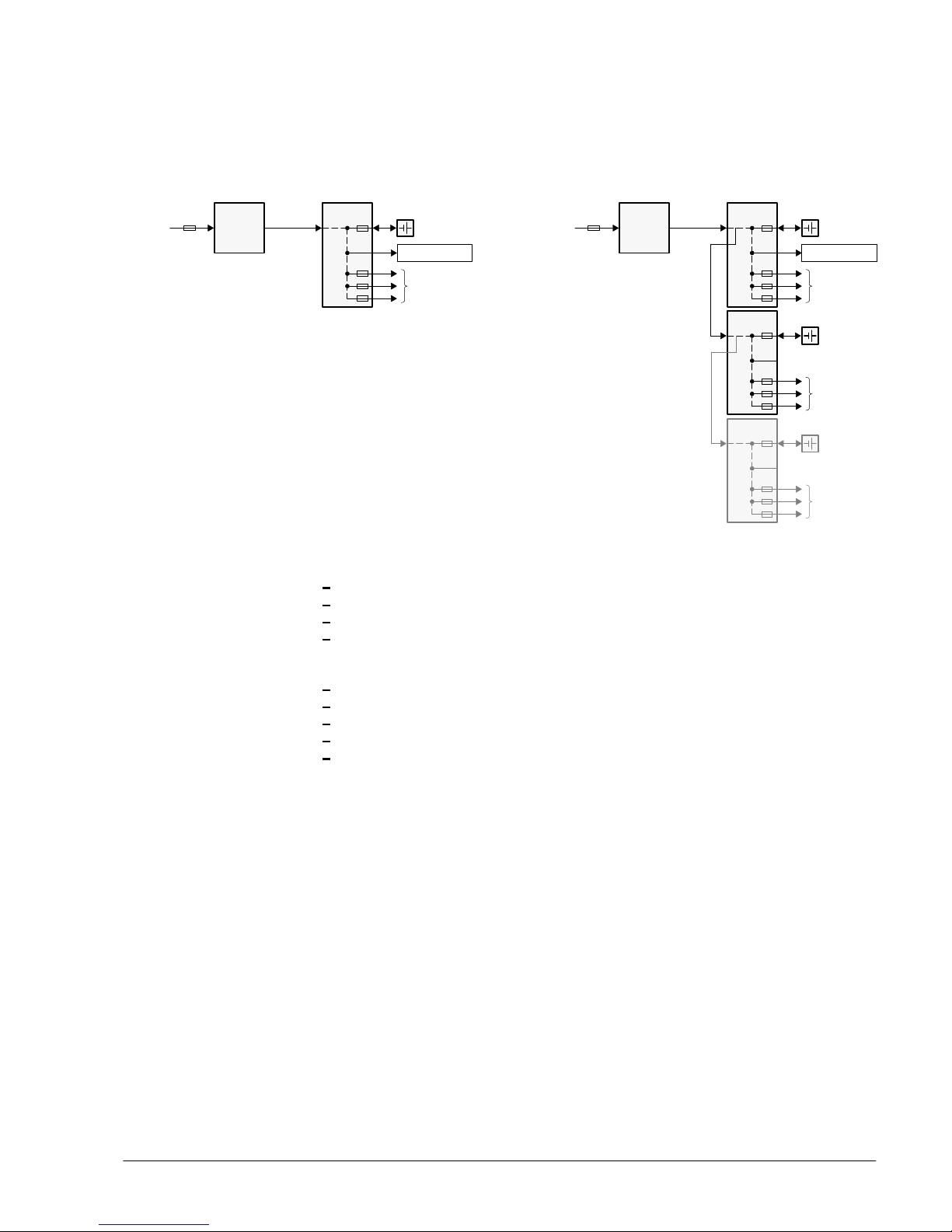

1 Concept of the MN7002 power supply
nConverter B2F020,
nBattery charging module E3C021,
nBatteries, depending of required emergency power capacity.
2×12V
≤40Ah
Control unit
various
loads
E3C021
29VDC
≤6A 2×12V
≤40Ah
Control unit
various
loads
E3C021
29VDC
≤6A
2×12V
≤40Ah
various
loads
E3C021
2×12V
≤40Ah
various
loads
E3C021
B2F020
115VAC
230VAC
≤10A B2F020
115VAC
230VAC
≤10A
115/230VAC mains voltage Ü29.6VDC system voltage, ≤6A continuous current:
current limitation, short-circuit proof,
requires no special cooling,
temperature fuse,
metal housing.
for emergency power lead batteries 2×12V ≤40Ah (24h charge):
charging current up to 1.7A,
selectable charging caracteristics depending on battery model,
symmetry monitoring,
automatic battery load test,
temperature compensation for battery charging voltage via external temperature sen-
sor.
a) Battery operation and symmetry monitoring
b) Battery operation without symmetry monitoring
c) Operation with external voltage (instead of battery)
d) Operation without battery or external voltage
Choice of earth according to equipment supplied,
– earth-free,
– positive to earth,
– negative to earth (not recommended).
Additional surge protectors are only required in special cases e.g. where there is a partic-
ular lightning hazard, overhead power lines etc. (see Z3I04, Z3I121).
The mains feeder must have an own and clear labelled fuse up to 10A.
Consists of
B2F020 converter
E3C021 battery charging
module
Operating modes
Earthing
Overvoltage protection
Mains back-up fuse

e1493d
2
Fire & Security Products
Siemens Building Technologies Group 04.2002
B2F020 and all E3C021 must be installed in the same housing (or in permanently joined
housings).
Batteries larger then 40Ah per E3C021 are not possible, if the recharging of a discharged
battery must be carried out according to regulations (to 80% capacity within 24h).
42
40
B2F020
E3C021
130
210
B2F020 470588 Converter 115/230VAC Ô29.6VDC 6A
E3C021 505408 Battery charging module
with module chassis and terminals
Z1B050 496630 Mounting set
L-section plate for mounting of one B2F020 + two E3C021
Z3I840 496533 Cable set „short”:
– PTC with 0.8m cable,
– battery cables (blue, red, green) 0.8m
– connection cable B2F020 – E3C021 (blue, red) 0.3m
– connection cable E3C021 – control unit 0.8m, with AMP T-connector
– earth wire 0.5m
Z3I850 496588 Cable set „long”:
– PTC with 2.5m cable,
– battery cables (blue, red, green) 2.2m
– connection cable B2F020 – E3C021 (blue, red) 0.3m
– connection cable E3C021 – control unit 2.0m, with AMP T-connector
– earth wire 0.5m
– prolongation „Monitoring signals” 2.0m
Z3B220 496504 Interconnecting cable
connection of monitoring signals (K3+K4) between two E3C021, 0.3m
AX1210 475570 Battery 12V / 15Ah
AX1201 225487 Battery 12V / 24Ah
AX1209 462936 Battery 12V / 38Ah
R1P061 496711 Power supply rack
delivered as a complete wired unit, without batteries
Limitations
Modules
Electronics
Accessories
Batteries
DMS7000
refer to page 12

e1493d
3
Fire & Security Products
Siemens Building Technologies Group 04.2002

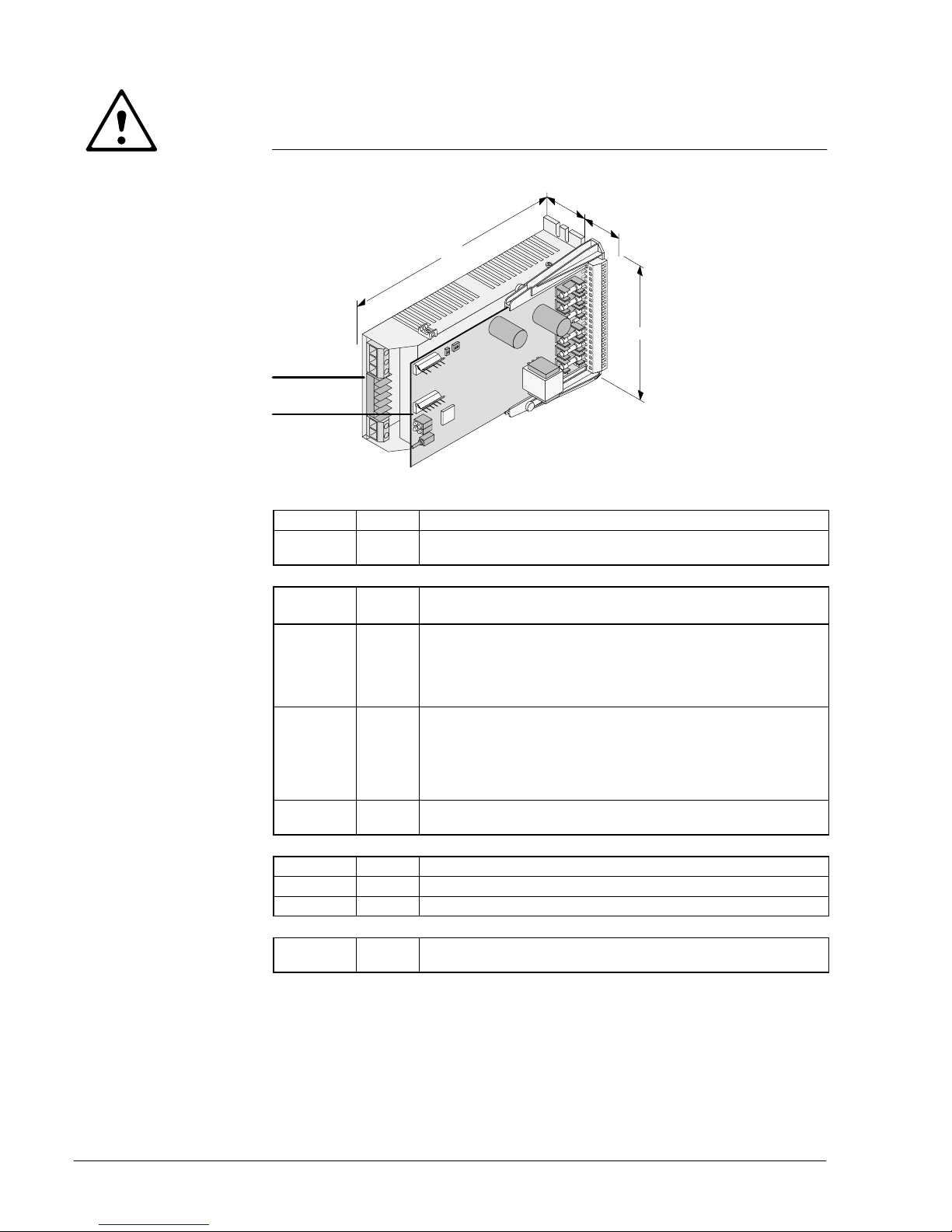

2 Converter B2F020
115VAC
230VAC Mains voltage change-over:
1. Remove converter cover.
2. Change cable connect position.
Default = 230VAC
115/230VAC
29.6VDC Fixing point for
mains cable
Disconnect mains
voltage before open-
ing converter cover!
Key data B2F020
Mains voltage 115 / 230VAC ±15% 50...60Hz
Power consumption 40...220VA
Mains fuse 3.15A slow-blow (can only be changed at factory)
Output current up to 6A continuous
Output voltage 29.6VDC +2%
Residual ripple max. 300mVpp
Quiescent current on battery
operation 0mA
Temperature fuse automatic switch-off at >90°C
Cooling no special cooling required
Temperature range 0...+55°C
Standard prEN54-4
Dimensions 120 (100) x 42 x 204mm
Wire range max. 4mm2
Connections of B2F020
B2F020
+
–
E
N
L
Input voltage
(115VAC) 230VAC / 50...60Hz
max. 220VA
Output voltage
29.6VDC / max. 6A
Mains
E3C021
10
11
Opt
Sd
–
–S
+ S
+
Jumpers inserted ex factory
(essential, do not remove)
≤10A

e1493d
4
Fire & Security Products
Siemens Building Technologies Group 04.2002

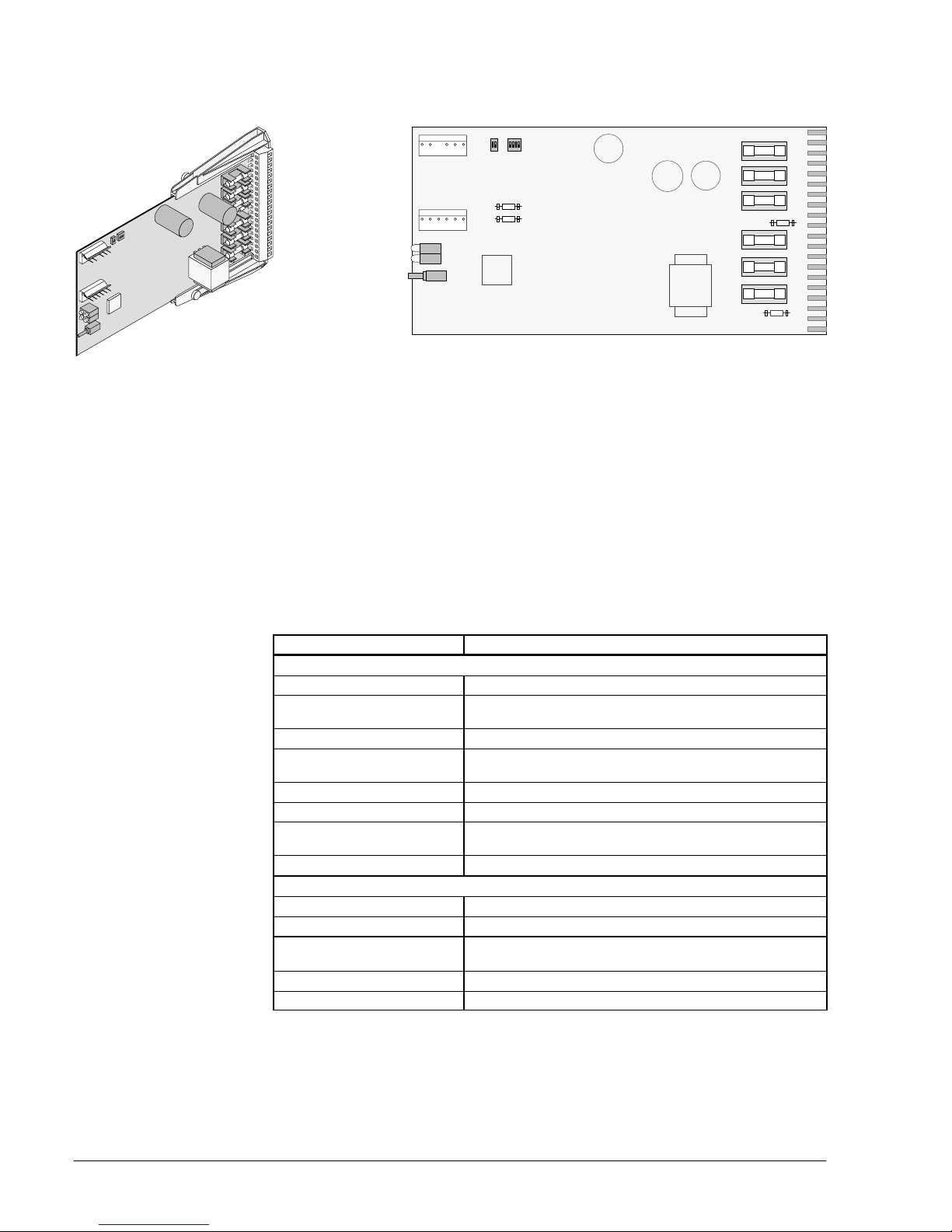

3 Battery charging module E3C021
F1
F2
F3
F11
F13
F12 X2
S2S3
K3
K4
H1
H2
S10
1
20
E3C021
1
20
R67
R66
X1
F1...F3 Output fuses 2A slow-blow
F11...F13 Battery fuses 6.3A slow-blow, with high breaking capacity
H1, H2 LED display block „Power supply state”(page 6)
K3, K4 Monitoring signals connector (K3 = to control unit, K4 = from external)
R66, R67 Resistors „Operating mode”
S2 Switch „Battery type”
S3 Switch „Monitoring signals”
S10 Push button „Start-up without mains voltage”
X1 Jumper, for function see connection diagram of E3C021, page 8
X2 Jumper „Door contact simulation”(not inserted ex works)
Key data E3C021
Input voltage 29.6VDC ±2%, from B2F020 module
Charging section
Battery 2 x 12V / 6...40Ah, lead battery
Charging characteristics Can be adjusted to different makes of battery using pro-
gramming switch ”S2”
Charging current up to 1.7A (current limitation)
Temperature compensation of
battery charging voltage with external temperature sensor
Battery monitoring battery presence test every 55sec
Symmetry monitoring asymmetry >1V = trouble
Battery test automatic battery load test
(3A for 10sec, 1 times every 23h)
EMI-protection battery line no
Supply voltage outputs
Monitored load 1, load 2, load 3: each 24VDC <2A
Not monitored 24VDC to the control unit
Quiescent current 30mA when on emergency power operation
50mA when on mains operation without battery charge
Print dimensions 100 x 200 x 30mm
Wire range max. 2.5mm2

e1493d
5
Fire & Security Products
Siemens Building Technologies Group 04.2002
3.1 Programming switches, jumpers
Battery type: S2
To set temperature compensation according to information from the various battery
manufacturers.
Possible battery variants Programming switch S2
Var. Battery manufacturer Battery model S2-1 S2-2 S2-3 S2-4
0 off off off off
1 on off off off
2 Varta
Shin-Kobe (Hitachi)
Kobe PSD (Power Storage
Germany)
CF 12-24 (VM 1224)
HP..-12
HP..-12
off on off off
3 Genesis G12V120W15 on on off off
4 Sunrise
Panasonic LCL 12V24S LCL 12V..P off off on off
5Phoenix (Korea) FNC 12..0 on off on off
6 Yuasa NP..-12B off on on off
7Sonnenschein Dryfit A212/..G5 on on on off
8 Power-Sonic PS12..0 off off off on
9Hagen Drysafe HDS-12..0NB on off off on
10 Sonnenschein Dryfit A512/..G5 off on off on
11 ALARMCOM (FIAMM) 1) FG... on on off on
12 off off on on
13 on off on on
14 off on on on
15 on on on on
”S2”is set to variant 11 (ALARMCOM) at the factory
1) available from index ’AA’onwards
Monitoring signals: S3
For settings refer to the „Application examples”, chapter 4
Operating mode: R66, R67
Operating mode: R66 R67
a) Battery operation and symmetry monitoring
b) Battery operation without symmetry monitoring –
c) Operation with external voltage (instead of battery) –
d) Operation without battery or external voltage – –
Door contact simulation: X2
Without door contact: insert jumper X2 at first E3C021.
Factory settings →
without jumper ex factory →

e1493d
6
Fire & Security Products
Siemens Building Technologies Group 04.2002
3.2 LED display block
É
É
É
É
É
É
yellow ”Trouble power supply”
green ”Mains operation”
yellow ”Trouble battery”
yellow unused
H1
H2
Indicators vary in meaning according to operating mode:
LED ”Trouble power supply”
–Fuse F1 / F2 / F3 blown
–Input voltage >31.0V →converter malfunction
–Battery voltage >29.5V or <25V →charging module malfunction
–Battery charging module malfunction
–Temperature sensor open line / short circuit
–Temperature sensor measures >55°C
–EEPROM check sum error
LED ”Power on”
–Input voltage >28.5V
LED ”Trouble battery”
–Battery voltage <23V
–Asymmetry >1.0V or fuse F12 blown
–Eventually cell short circuit
–Open line to battery or fuse F11 / F13 blown
–Autom. test to indicate battery presence negative
–Autom. battery load test negative
LED ”Trouble power supply”
–Fuse F1 / F2 / F3 blown
–Input voltage >31.0V →converter malfunction
–Battery voltage >29.5V or <25V →charging module malfunction
–Battery charging module malfunction
–Temperature sensor open line / short circuit
–Temperature sensor measures >55°C
–EEPROM check sum error
LED ”Power on”
–Input voltage >28.5V
LED ”Trouble battery”
–Battery voltage <23V
–Open line to battery or fuse F11 / F13 blown
–Autom. test to indicate battery presence negative
–Autom. battery load test negative
LED ”Trouble power supply”
–Fuse F1 / F2 / F3 blown
–Input voltage >31.0V →converter malfunction
–EEPROM check sum error
LED ”Power on”
–Input voltage >28.5V
LED ”Trouble battery”
–Battery voltage or external voltage <23V or >31.0V
–Autom. presence test (external voltage) negative or fuse F11 / F13 blown
LED ”Trouble power supply”
–Fuse F1 / F2 / F3 blown
–Input voltage >31.0V →converter malfunction
–EEPROM check sum error
LED ”Power on”
–Input voltage >28.5V
LED ”Trouble battery”
–no function
a) Battery operation and
symmetry monitoring
b) Battery operation without
symmetry monitoring
c) Operation with external
voltage (instead of battery)
d) Operation without battery
or external voltage

e1493d
7
Fire & Security Products
Siemens Building Technologies Group 04.2002
3.3 Floating charging voltage in function of temperature
2.10
2.12
2.14
2.16
2.18
2.20
2.22
2.24
2.26
2.28
2.30
2.32
2.34
2.36
2.38
2.40
2.42
2.44
2.46
2.48
2.50
0 1020304050
[V/Z]
Var. 5 Phoenix (Korea)
FNC 12240
Ua min. [V]
Ua max. [V]
2.10
2.12
2.14
2.16
2.18
2.20
2.22
2.24
2.26
2.28
2.30
2.32
2.34
2.36
2.38
2.40
2.42
2.44
2.46
2.48
2.50
0 1020304050
[V/Z]
Var. 6 Yuasa
NP24-12B
2.10
2.12
2.14
2.16
2.18
2.20
2.22
2.24
2.26
2.28
2.30
2.32
2.34
2.36
2.38
2.40
2.42
2.44
2.46
2.48
2.50
0 1020304050
[V/Z]
Var. 7 Sonnenschein Dryfit
A212/24G5
Ua min. [V]
Ua max. [V]
Ua min. [V]
Ua max. [V]
[ T °C] [ T °C] [ T °C]
2.10
2.12
2.14
2.16
2.18
2.20
2.22
2.24
2.26
2.28
2.30
2.32
2.34
2.36
2.38
2.40
2.42
2.44
2.46
2.48
2.50
0 1020304050
[V/Z]
[ T °C]
Var. 2 Shin-Kobe HP24-12F
Kobe HP24-12
2.10
2.12
2.14
2.16
2.18
2.20
2.22
2.24
2.26
2.28
2.30
2.32
2.34
2.36
2.38
2.40
2.42
2.44
2.46
2.48
2.50
0 1020304050
[V/Z]
[ T °C]
Var. 3 Genesis
G12V120W15
Ua min. [V]
Ua max. [V] Ua min. [V]
Ua max. [V]
Ua middle [V]
2.10
2.12
2.14
2.16
2.18
2.20
2.22
2.24
2.26
2.28
2.30
2.32
2.34
2.36
2.38
2.40
2.42
2.44
2.46
2.48
2.50
0 1020304050
[V/Z]
[ T °C]
Var. 4 Sunrise LCL 12V24S
Panasonic LCL12V24P
Ua min. [V]
Ua max. [V]
2.10
2.12
2.14
2.16
2.18
2.20
2.22
2.24
2.26
2.28
2.30
2.32
2.34
2.36
2.38
2.40
2.42
2.44
2.46
2.48
2.50
0 1020304050
Var. 8 Power-Sonic
PS12260
2.10
2.12
2.14
2.16
2.18
2.20
2.22
2.24
2.26
2.28
2.30
2.32
2.34
2.36
2.38
2.40
2.42
2.44
2.46
2.48
2.50
0 1020304050
Var. 9 Hagen Drysafe
HDS-12260NB
Ua min. [V]
Ua max. [V]
Ua min. [V]
Ua max. [V]
2.10
2.12
2.14
2.16
2.18
2.20
2.22
2.24
2.26
2.28
2.30
2.32
2.34
2.36
2.38
2.40
2.42
2.44
2.46
2.48
2.50
0 1020304050
Var. 10 Sonnenschein Dryfit
A512/25G5
Ua min. [V]
Ua max. [V]
[V/Z] [V/Z] [V/Z]
[ T °C] [ T °C] [ T °C]
Var. 11 FIAMM-GS
FG....
[V/Z]
[ T °C]
2.10
2.12
2.14
2.16
2.18
2.20
2.22
2.24
2.26
2.28
2.30
2.32
2.34
2.36
2.38
2.40
2.42
2.44
2.46
2.48
2.50
0 1020304050
Ua min. [V] Ua middle [V]
Ua max. [V]

e1493d
8
Fire & Security Products
Siemens Building Technologies Group 04.2002
3.4 Connections of E3C021
brown
blue
E3C021
1
2
3
4
5
6
7
8
9
10
11
12
+
–
+
–
+
–
+
+
–
+
13
14
15
16
17
18
19
20
Battery 24V max. 40Ah,
symmetry monitored
From converter B2F020
System voltage
Temperature sensor for battery
12V
12VBattery (internal) or 24V external voltage
PTC
white
red
green
blue
brown
Terminal block X10
1
2
3
4
5
6
+
–
–
–
–
Monitoring inputs
Connector K3
Emerg. power
24V
Power supply
Coding
Battery
Door switch
Monitoring outputs
(optocouplers)
Connector K4
–
–
–
–
+
–
+
Common for K3
Door switch X2
S3#1
F1: 2A
F2: A2
F3: A2
–
+
24VDC to control unit,
cable with AMP T-connector
24VDC load 1: <2A
24VDC load 2: <2A
24VDC load 3: <2A
F12: 6,3A
F13: 6,3A
F11: 6,3A
X1
Door contact or jumper X2 (at first E3C021 only)
Common for monitoring signals or S3#1 = on
1
2
3
4
5
6
–
–
–
–
–
Emerg. power
Power supply
24V
Battery
Door switch
Parallel connection: next E3C021
Monitoring signals to control unit
brown
yellow
white
green
Monitoring signals from next E3C021, K3 (Z3B220 cable)
or S3#2 = on at last E3C021
–PTC is always required including for operation ”with external voltage”or ”without battery”.
–PTC is polarity sensitive, observe the correct colour of connection wires!
For mode settings and wiring refer to
chapter 4 „Application examples”.
Central ground
DPOSITIVE to earth = pin 7
DNEGATIVE to earth = pin 9:
Do not use for Cerberus equipment.
DEarth-free
When using filters neither + nor –may
be connected to earth.

e1493d
9
Fire & Security Products
Siemens Building Technologies Group 04.2002
4 Application examples
4.1 Conventional power supply
Emergency power capacity 40Ah (4.3A for all load circuits + 1.7A for batteries)
üMains feeder via back-up fuse of max. 10A
E3C021
Load 1: <2A
Load 2: <2A
Load 3: <2A
Control unit
PTC
12V
12V
1+
2–
3+
4–
5+
6–
7+
8+
9–
10+
11–
12+
13–
14+
15
16–
17+
18–
K3 K4
Control unit
Batteries
≤40Ah
X1
X2
S3#1
S3#2
ON
ON
115VAC
230VAC
≤10A ≤6A
B2F020
refer to page 8
≤1.7A
≤4.3A

e1493d
10
Fire & Security Products
Siemens Building Technologies Group 04.2002

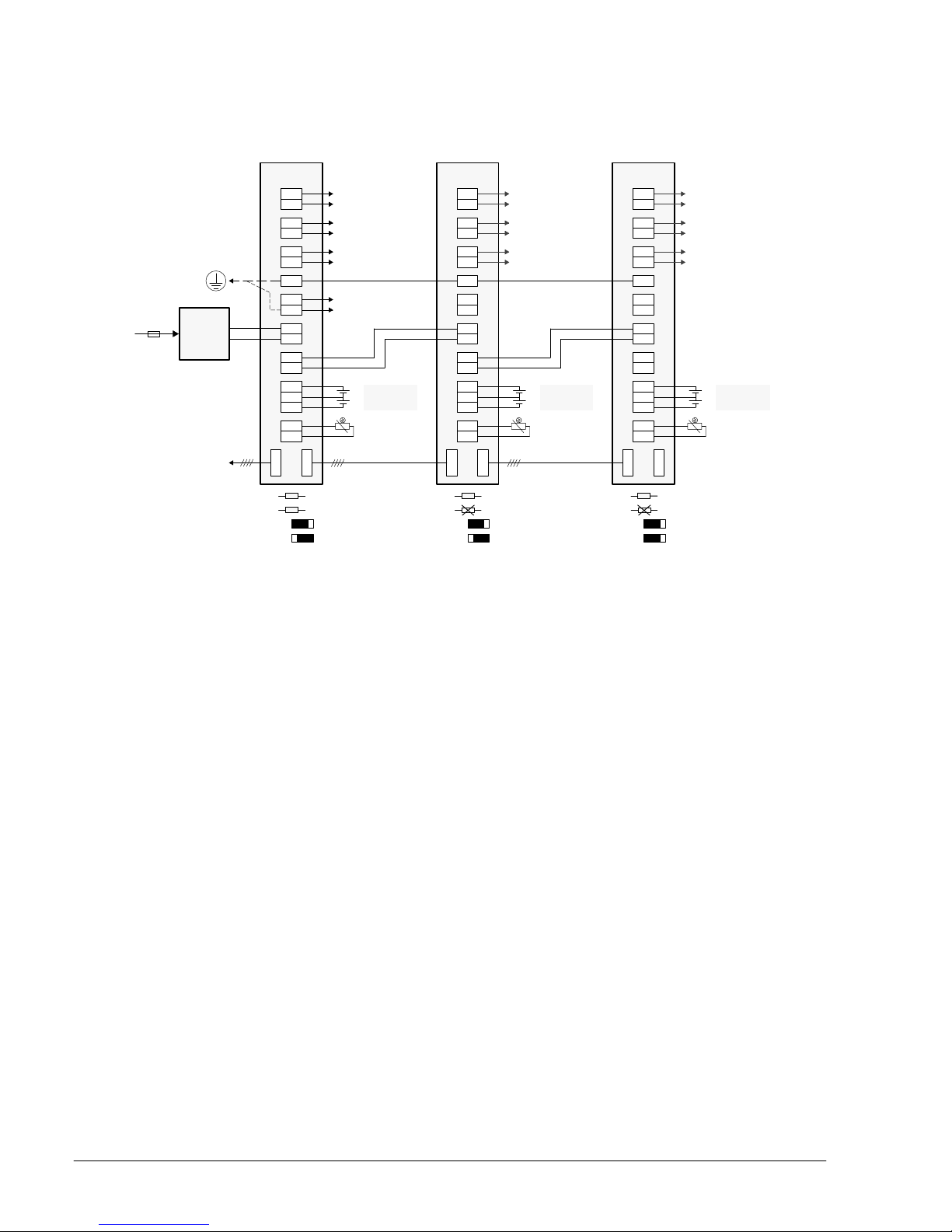

4.2 Extended emergency power capacity
Emergency power capacity 120Ah (0.9A for all load circuits + 3×1.7A for batteries)
üMains feeder via back-up fuse of max. 10A
E3C021
Load 1: <2A
Load 2: <2A
Load 3: <2A
PTC
12V
12V
1+
2–
3+
4–
5+
6–
7+
8+
9–
10+
11–
12+
13–
14+
15
16–
17+
18–
E3C021
Load 1: <2A
Load 2: <2A
Load 3: <2A
Control unit
PTC
12V
12V
1+
2–
3+
4–
5+
6–
7+
8+
9–
10+
11–
12+
13–
14+
15
16–
17+
18–
E3C021
Load 1: <2A
Load 2: <2A
Load 3: <2A
PTC
12V
12V
1+
2–
3+
4–
5+
6–
7+
8+
9–
10+
11–
12+
13–
14+
15
16–
17+
18–
K3 K4 K3 K4 K3 K4
first E3C021 last E3C021
Common
Control unit
Common
Batteries
≤40Ah
Z3B220 Z3B220
Batteries
≤40Ah Batteries ≤40Ah
X1
X2
S3#1
S3#2
X1
X2
S3#1
S3#2
X1
X2
S3#1
S3#2 OFF ON
OFF
ONONON
115VAC
230VAC
≤10A ≤6A
B2F020
refer to page 8

e1493d
11
Fire & Security Products
Siemens Building Technologies Group 04.2002

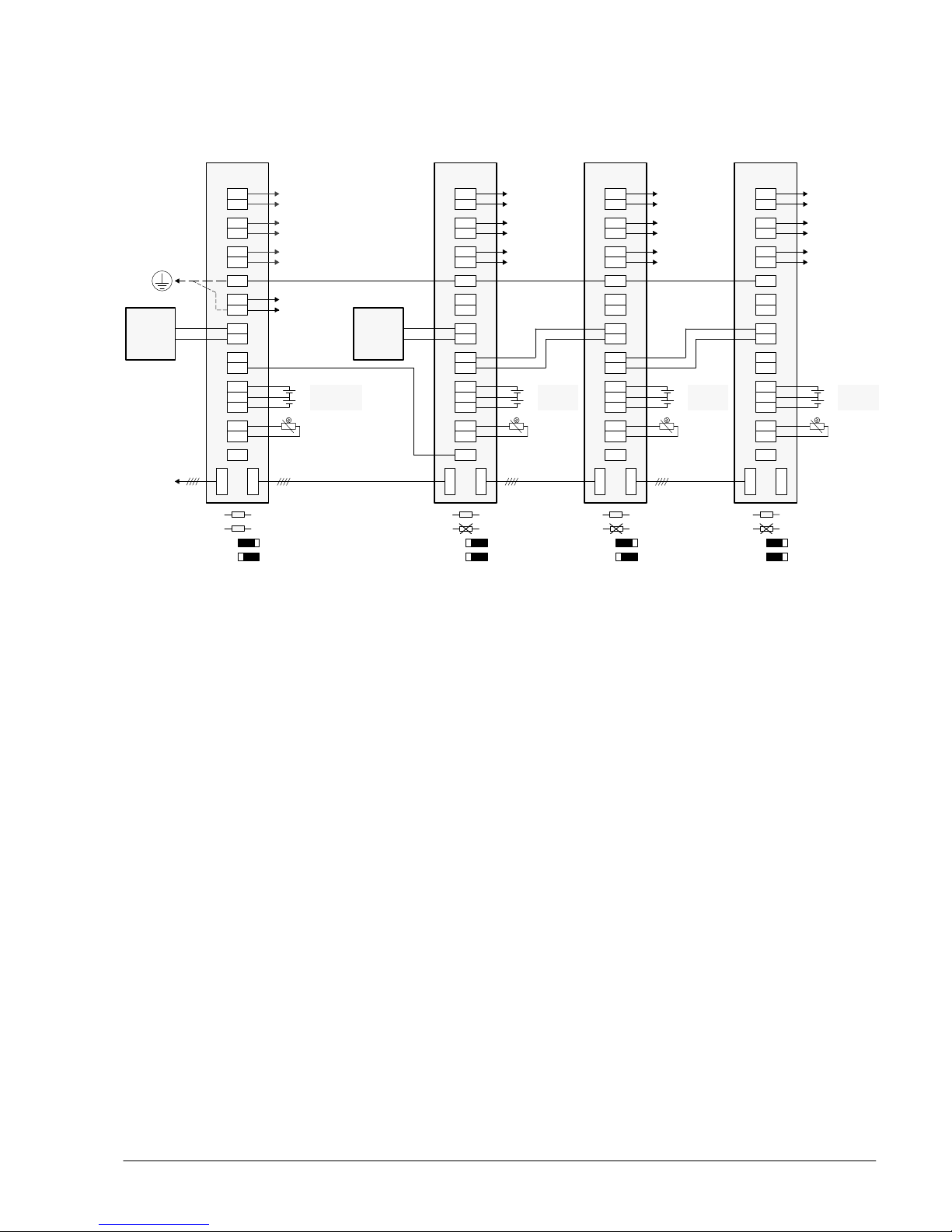

4.3 Power splitting
Control unit emergency power capacity = 40Ah + Load circuits = 120Ah
üMains feeder via back-up fuse of max. 10A
E3C021
Load 1: <2A
Load 2: <2A
Load 3: <2A
PTC
12V
12V
1+
2–
3+
4–
5+
6–
7+
8+
9–
10+
11–
12+
13–
14+
15
16–
17+
18–
E3C021
Load 1: <2A
Load 2: <2A
Load 3: <2A
PTC
12V
12V
1+
2–
3+
4–
5+
6–
7+
8+
9–
10+
11–
12+
13–
14+
15
16–
17+
18–
E3C021
Load 1: <2A
Load 2: <2A
Load 3: <2A
PTC
12V
12V
1+
2–
3+
4–
5+
6–
7+
8+
9–
10+
11–
12+
13–
14+
15
16–
17+
18–
K3 K4 K3 K4 K3 K4
last E3C021
Common supply Common supply
Batt.
≤40Ah
Z3B220 Z3B220
Batt.
≤40Ah
X1
X2
S3#1
S3#2
X1
X2
S3#1
S3#2
X1
X2
S3#1
S3#2 OFF ON
OFF
ONON
E3C021
Load 1: <2A
Load 2: <2A
Load 3: <2A
Control unit
PTC
12V
12V
2–
3+
4–
5+
6–
7+
8+
9–
10+
11–
12+
13–
14+
15
16–
17+
18–
K3 K4
first E3C021
Common supply
Control unit
Batteries
≤40Ah
X1
X2
S3#1
S3#2 OFF
ON
Z3B220
Batt.
≤40Ah
OFF
20–20–20–20–
Common monitoring
1+
≤6A
B2F020
≤6A
B2F020
refer to page 8

e1493d
12
Fire & Security Products
Siemens Building Technologies Group 04.2002
5 Mounting possibilities

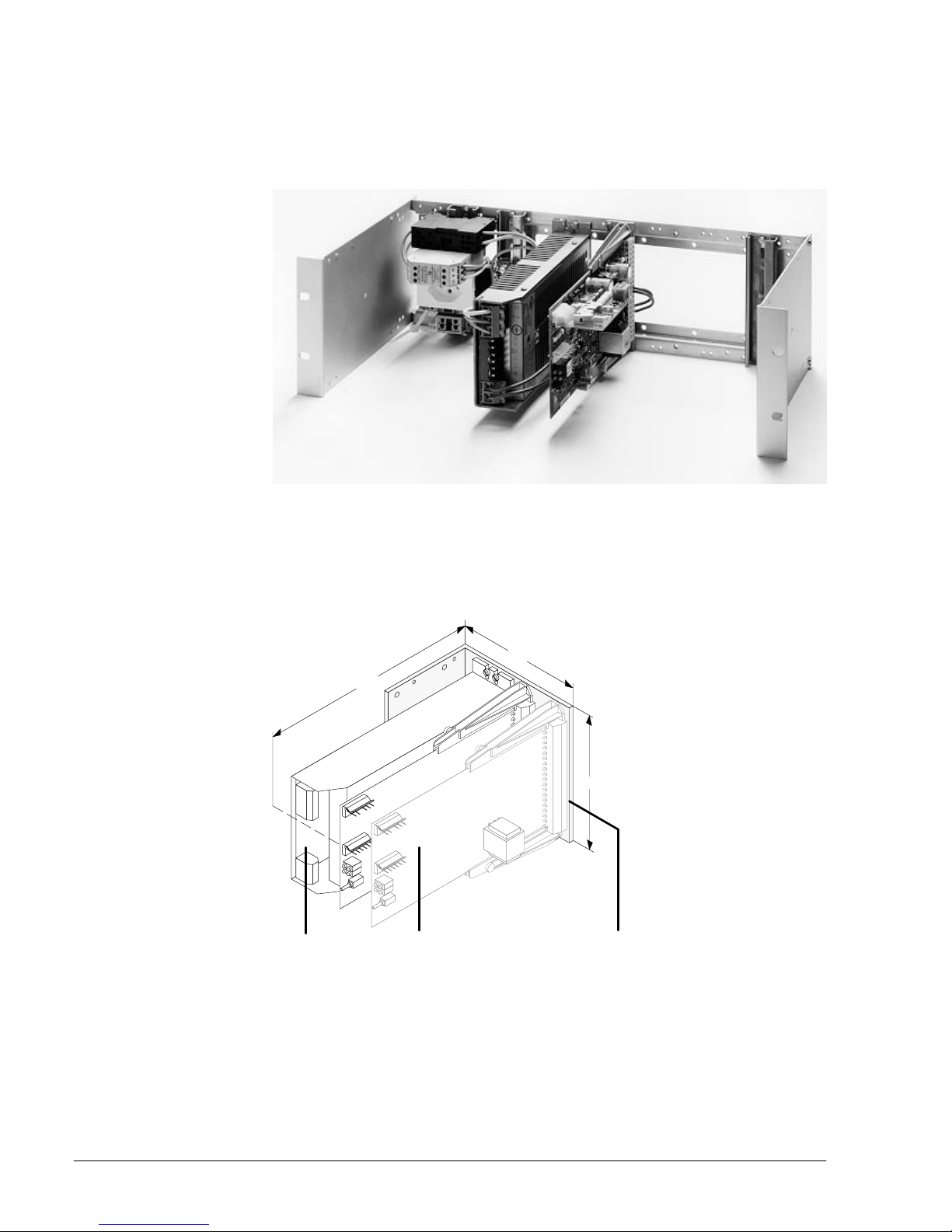

5.1 In danger management system DMS7000
R1P061 power supply rack
delivered as complete wired unit, without batteries
5.2 On L-section plate of the Z1B050 mounting set
120
210
B2F020 E3C021 Z1B050
130

e1493d
13
Fire & Security Products
Siemens Building Technologies Group 04.2002
5.3 In CZ10 fire detection system control unit
5.3.1 On G1E010 universal bracket

e1493d
14
Fire & Security Products
Siemens Building Technologies Group 04.2002
5.3.2 Mounting variations
Standard mounting on the G3E010 module chassis
G3E010
11 12 13 14 15 16 17 18 19
31
32 33 34
Z3I...
AX1201AX1201
B2F020
E3C021
Z1B050
Mounting of two MN7002 in series «G» housing
123
Z3I030
1234
46
Z3I050 G3E010
11 12 13 14 15 16 17 18 19
31
32 33 34
AX1201AX1201
AX1201AX1201
–mount the second MN7002 on Z3I050;
Z3I030 can also be used in place of Z3I050
–position one paire of batteries on YAH00’s, the other is positioned on the
base of the control unit housing
2x YAH00
Z3I..
5
B2F020
E3C021
Z1B050
B2F020
E3C021
Z1B050
B2F020
E3C021
Z1B050
4

e1493d
15
Fire & Security Products
Siemens Building Technologies Group 04.2002
5.4 In CC60 gas warning system control unit
G3E010
11 12 13 14 15 16 17 18 19
31
32 33 34
Z3I...
AX1201AX1201
B2F020
E3C021
Z1B050
12
G1E010
Z3I140
B2F020
E3C021
Z1B050
G3E010
11 12 13 14 15 16 17 18 19
31
32 33 34
Z3I...
AX1201AX1201
35 36 37 38 39
5.5 In CZ1-02 extinguishing system control unit
G2E020
Z3I...
AX1201AX1201
12
G1E010
Z3I110
B2F020
E3C021
Z1B050
22
21
12

Back
16
Fire & Security Products
Siemens Building Technologies Group 04.2002
Document no.
Edition
e1493d
04.2002
Siemens Building Technologies AG
CH8708 Männedorf
Alte Landstrasse 411
Tel.
Fax
www.cerberus.ch
+41 1 − 922 61 11
+41 1 − 922 64 50
MN7000
2
CG60
4
Manual
Section
