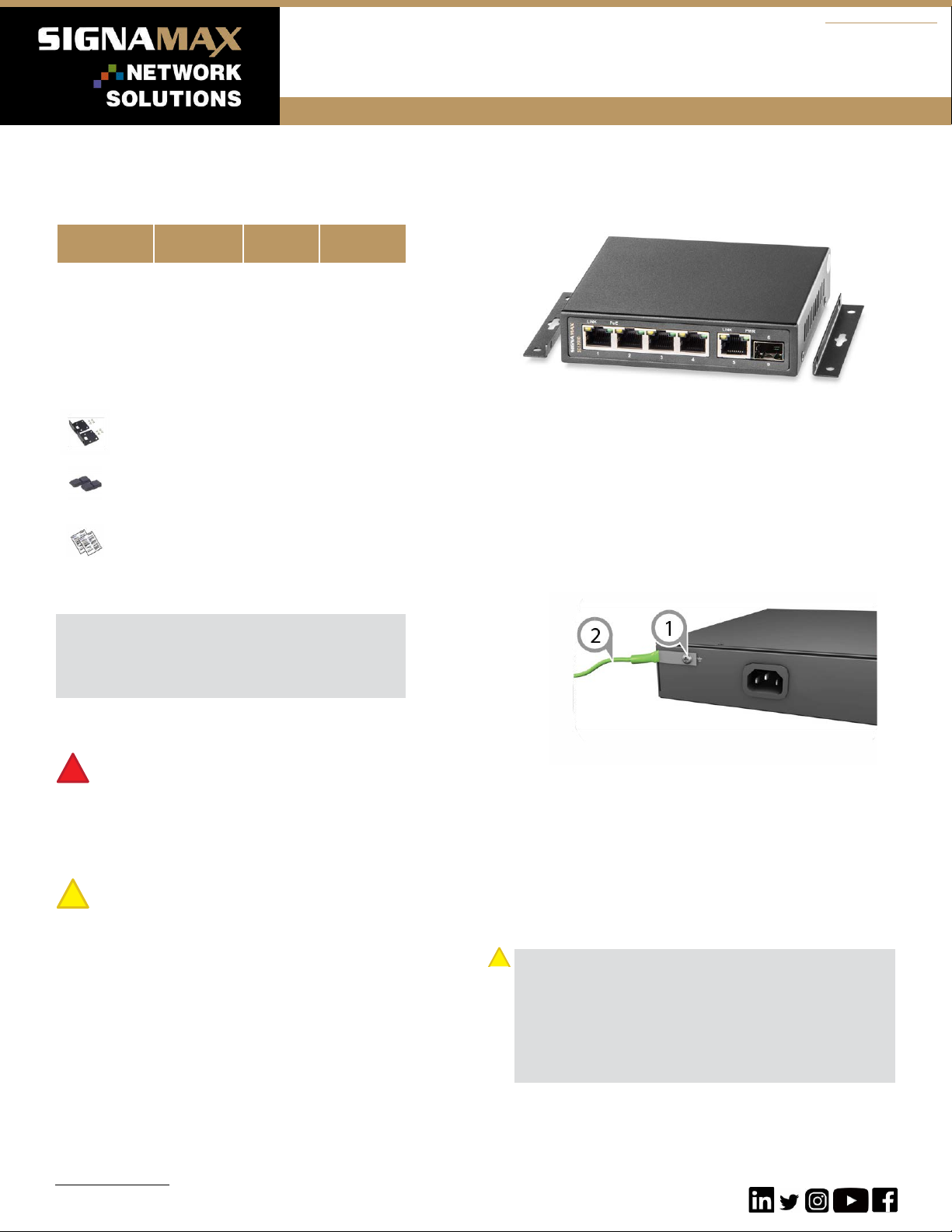

SignaMax E-130 Series User manual

Quick Start Guide
www.signamax.com
QSG-EC130XX_A-2-22
www.signamax.com
999 N.W. 159th Drive
Miami, FL 33169
Tel: [phone]
COPYRIGHT 2007 SIGNAMAX, INC. ■ ALL RIGHTS RESERVED ■ SPECIFICATIONS SUBJECT TO CHANGE
CONNECT WITH US
E-130 Series PoE and Ethernet Extenders
Part Number Primary
Ports Uplink PoE Budget
EC13010 4 Gigabit 1 Gigabit 66W
Unpack the Extender and Check Contents
Wall Mounting Kit - two brackets and four screws.
Four adhesive foot pads
Documentation—Quick Start Guide (this document)
and Warranty Card
Note: The E-130 Series extenders are for indoor use only.
Note: Additional documentation can be obtained from
www.signamax.com
Warning: This product does not contain any serviceable user
parts.
Warning: Installation and removal of the unit must be carried out
by qualied personnel only.
Warning: When connecting this device to a power outlet, connect
the eld ground lead on the tri-pole power plug to a valid earth
ground line to prevent electrical hazards.
Caution: Wear an anti-static wrist strap or take other suitable
measures to prevent electrostatic discharge when handling this
equipment.
Caution: Do not plug a phone jack connector in the RJ-45 port.
This may damage this device.
Caution: Use only twisted-pair cables with RJ-45 connectors that
conform to FCC standards.
!
!
Mount the Switch
1. Remove the screws from both sides of the switch.
2. Place the provided Wall Mount brackets
3. Screw the Wall Mount bracket into the sides of the switch
Warnings and Cautionary Messages
1. This equipment must be grounded. Never defeat the ground conductor
or operate the equipment in the absence of a suitably installed ground
conductor. Contact the appropriate electrical inspection authority or an
electrician if you are uncertain that suitable grounding is available.
2. Attach a lug (not provided) to a #12 AWG (PoE switch) or #18 AWG
(non-PoE switch) minimum grounding wire (not provided), and connect
it to the grounding point on the switch rear panel. Then connect the other
end of the wire to ground.
Ground the Switch
Caution: The earth connection must not be removed unless all
supply connections have been disconnected.
Note: The device must be installed in a restricted access loca-
tion. It should have a separate protective earthing terminal on
the chassis that must be permanently connected to earth to ad-
equately ground the chassis and protect the operator from elec-
trical hazards.
!
1. The E-130 Series can be powered by any standard 802.3 PoE type.
2. The E-130 Series PoE Ports all support 802.3at up to 30W per port.
3. Total available PoE budget will be dependent on the PSE providing
power to the extender

www.signamax.com
999 N.W. 159th Drive
Miami, FL 33169
Tel: [phone] CONNECT WITH US
QSG-SC120XX_A-2-22
COPYRIGHT 2007 SIGNAMAX, INC. ■ ALL RIGHTS RESERVED ■ SPECIFICATIONS SUBJECT TO CHANGE
Quick Start Guide
E-130 Series PoE and Ethernet Extenders
1. Connect the PD Input power to a PoE Power Sourcing Equipment using
a standard 100-ohm Category 5e or better twisted-pair cable.
1. For RJ-45 ports, connect 100-ohm Category 5, 5e or better twisted-pair
cable
2. As connections are made, check the port status LEDs to be sure the
links are valid. See the LED description table on the next page.
1. Verify basic switch operation by checking the system LEDs. When oper-
ating normally, the Power LED should be on and green.
Connect PoE Power
Verify Switch Operations
Connect Network Cables
LED Status Description
PWR ON Switch operating normally.
OFF No DC power is connected or the switch has failed.
LINK
ON Port has a valid link
BLINKING Port has network activity
OFF The link is down
PoE
ON A PoE device is connected and delivered PoE power
BLINKING PoE Error: short circuit or current overload
OFF Doesn’t deliver PoE power
LED Description Table
