Signatrol Professional weather station User manual

www.signatrol.com
PROFESSIONAL WEATHER STATION
(WIND AND AIR PRESSURE)
Operation Manual
About this manual
Thank you and congratulations on selecting this professional weather station! We
are positive you will enjoy the benefits of accurate weather readings and the
precise radio controlled time information that our instruments offer.
This manual will guide you step-by-step through setting up your device. Use this
manual to become familiar with your professional weather station, and save it for
future reference.
Glossary of Common Terms
DCF/WWVB/MSF
The DCF, WWVB or MSF time signal is an AM modulated time-of-day signal
broadcasted by the Federal Government of Germany, NIST from USA or National
Physical Laboratory. The time base is generated from an atomic time generator
which is accurate to 10 billions of one second.
LCD
“LCD” is an acronym for ”Liquid Crystal Display”. This is a common type of
display screen used in televisions, computers, watches, and digital clocks.
BAROMETER & BAROMETRIC PRESSURE
A barometer is a device that measures the pressure of the air pushing on it—this
measurement is called the barometric pressure. We don’t actually feel the
barometric pressure because the air pressure is pushing equally in every direction.
RELATIVE AIR PRESSURE
Relative air pressure is the same as the barometric pressure. The calculation of
relative air pressure is a combination of the absolute air pressure and the altitude.
ABSOLUTE AIR PRESSURE
Absolute air pressure is the actual air pressure on the barometer without regard to
altitude.
INCHES OF MERCURY (inHg)
Inches of Mercury is the common unit of measurement for air pressure in the
- 1 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
United States.
HECTOPASCALS (hPa)
Hectopascals are the common units of measurement for air pressure in the
International System (SI) of measurement. The hectopascal holds the same
value
Important Note:
The Professional weather station includes a base station (receiver), a transmitter
unit, one wind direction sensor, one wind speed sensor, one rain gauge, USB
cable and a PC software package on CD-ROM.

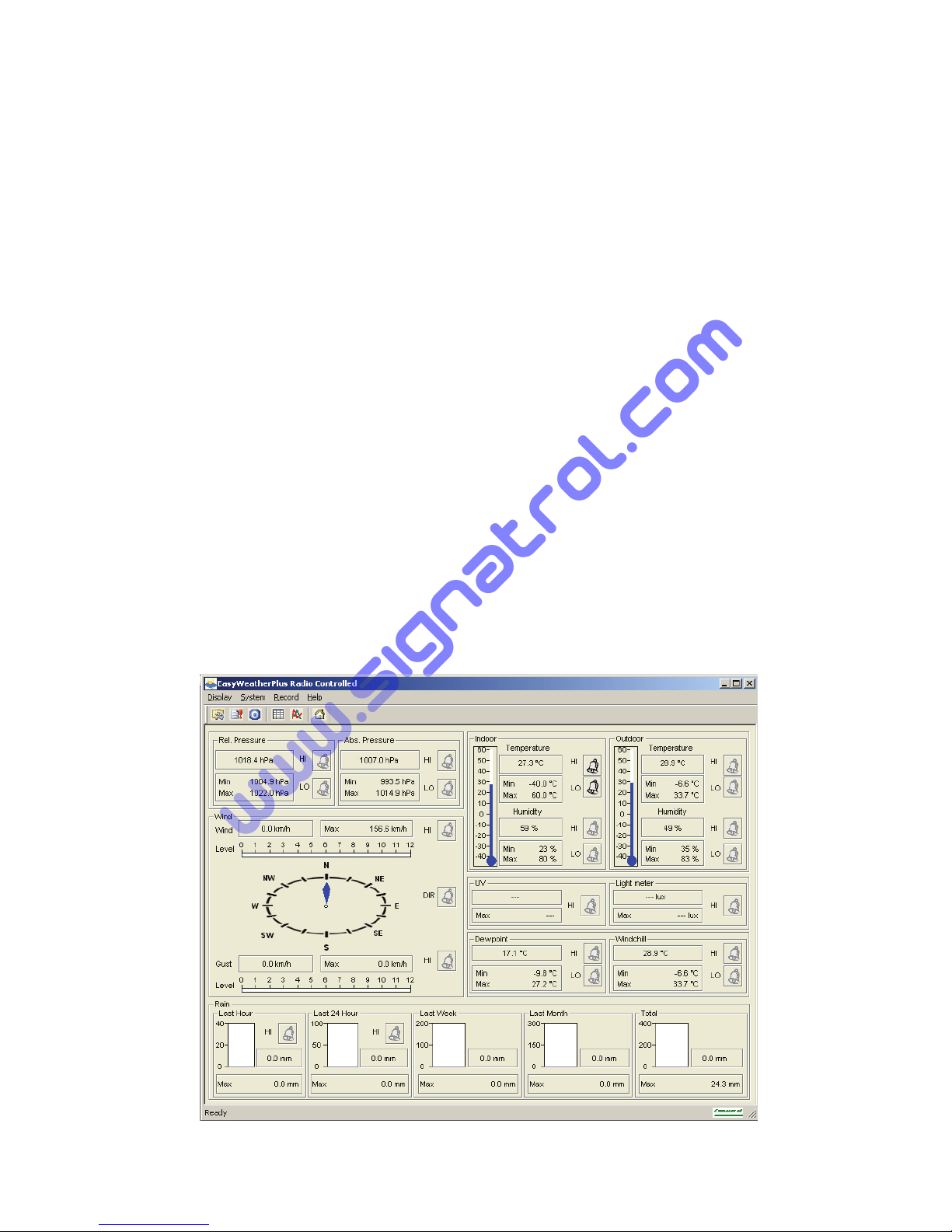

An added feature of the Weather Station is the readout of all measured and
displayed time and weather data on a PC.

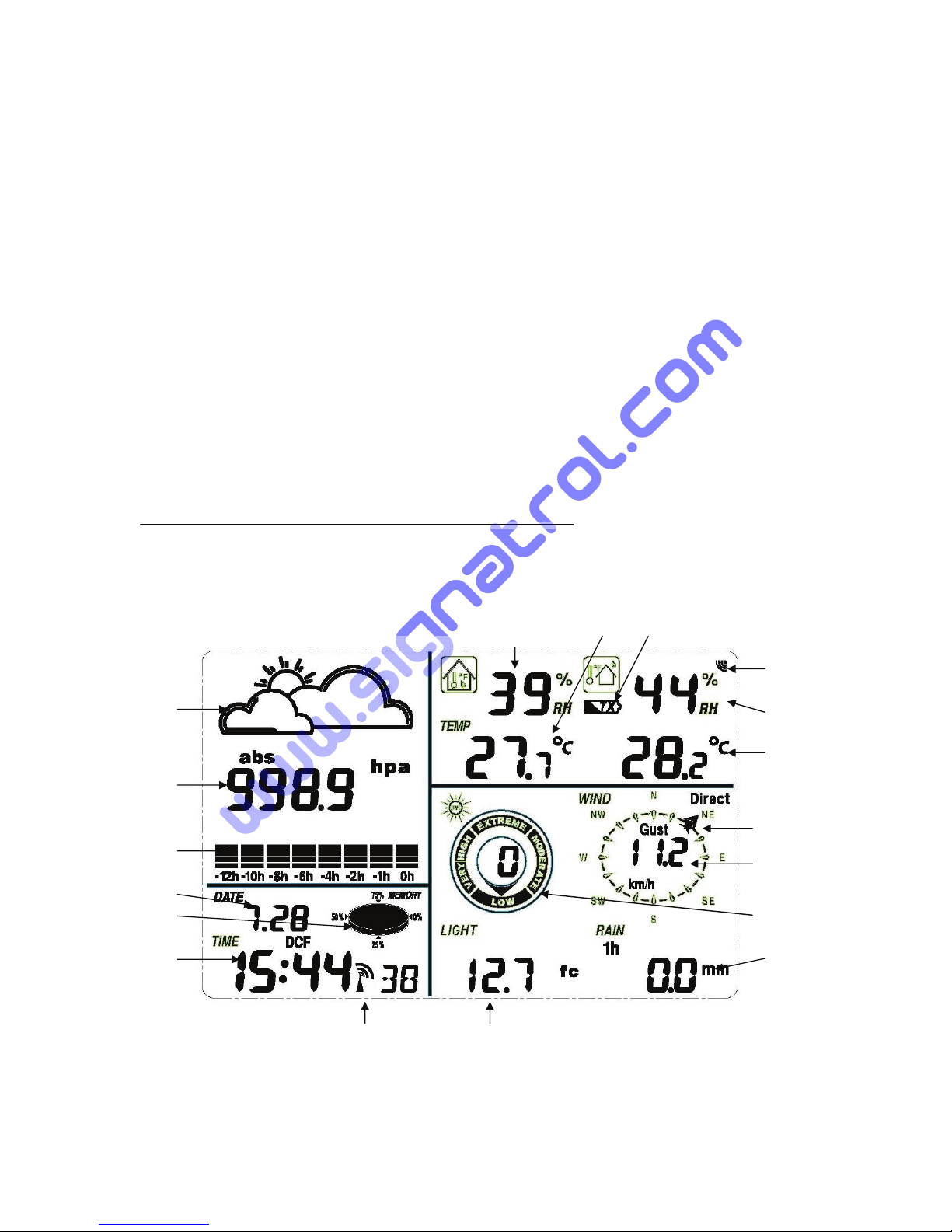

LCD display
- 2 -
7. 8. 9
10
1. 11.
12.
2.
13.
3.
14
4.
5. 15.
6. 16.
18 17.
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
1. Weather Forecast
2. Barometric Pressure
3. Barometric trend
4. Date
5. Memory
6. Time
7. Indoor Humidity
8. Indoor Temperature
9. transmitter low battery indicator
10.Outdoor reception signal
11.Outdoor Humidity
12.Outdoor Temperature
13.Wind direction
14.Wind speed/Gust
15.UV index
16.Rainfall
17.Light
18.Radio Controlled Clock (RCC)
Note: The presence of the "Alarm-On icon" in the section means that the particular
alarm has been enabled.
Set up Guide
Before placing and installing all components of the weather station at there final
destination, please set up the weather station with all parts being nearby for testing
the correct function.

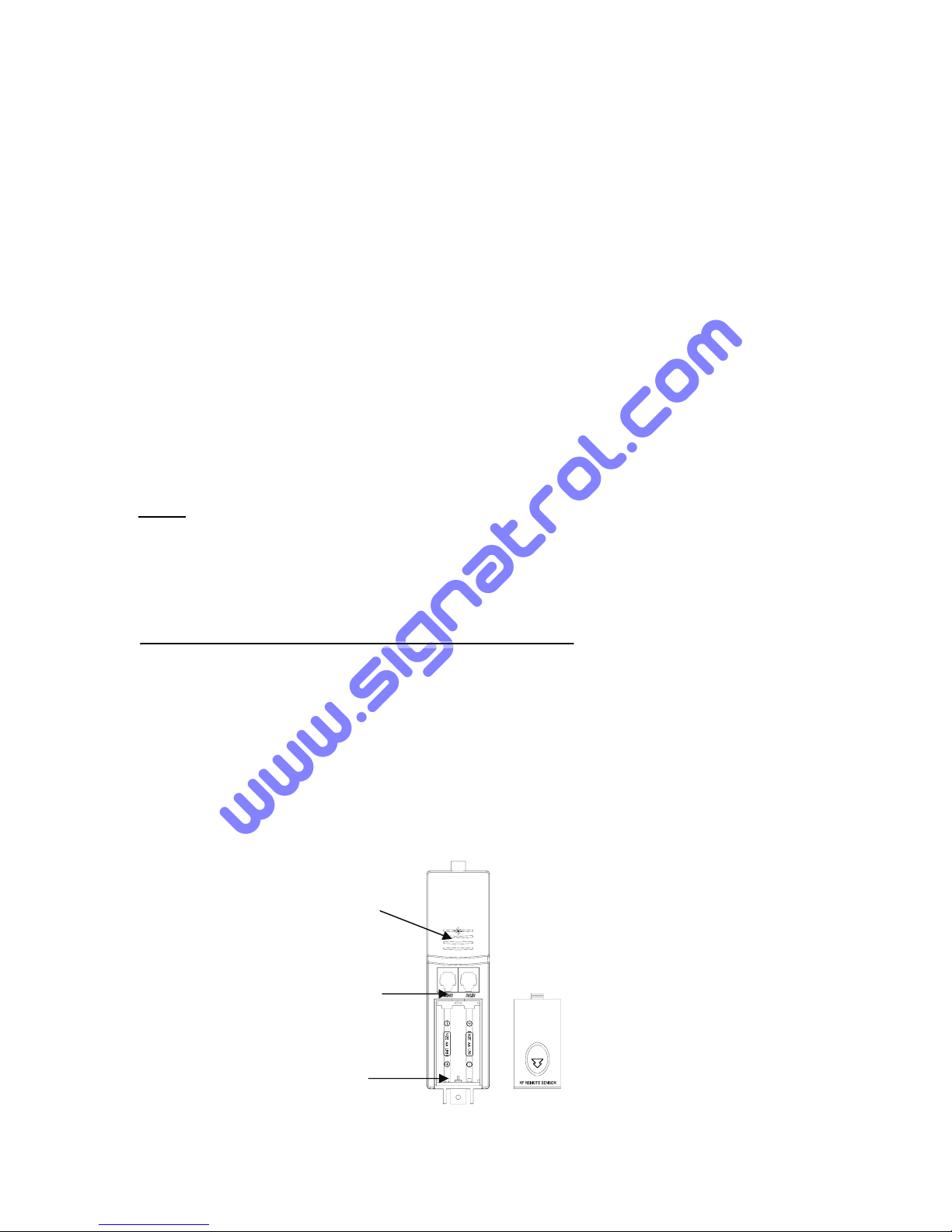

Setting up the base station and transmitter
LED Indicator
Sensor Sockets
Battery
Compartment Battery cover
Thermo-hygro Sensor
Setting up using batteries:
- 3 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
1) Insert 2XAA 1,5V alkaline rechargeable batteries first into the battery
compartment of the remote sensor and immediately afterwards 3XAA 1,5V
alkaline batteries in the base station, observing the correct polarity. When
battery is first inserted, the red LED light on the remote sensor will be light up
for 3-4 seconds. (If no LED light up or is lighted permanently, make sure the
battery is inserted the correct way or a proper reset is happened)

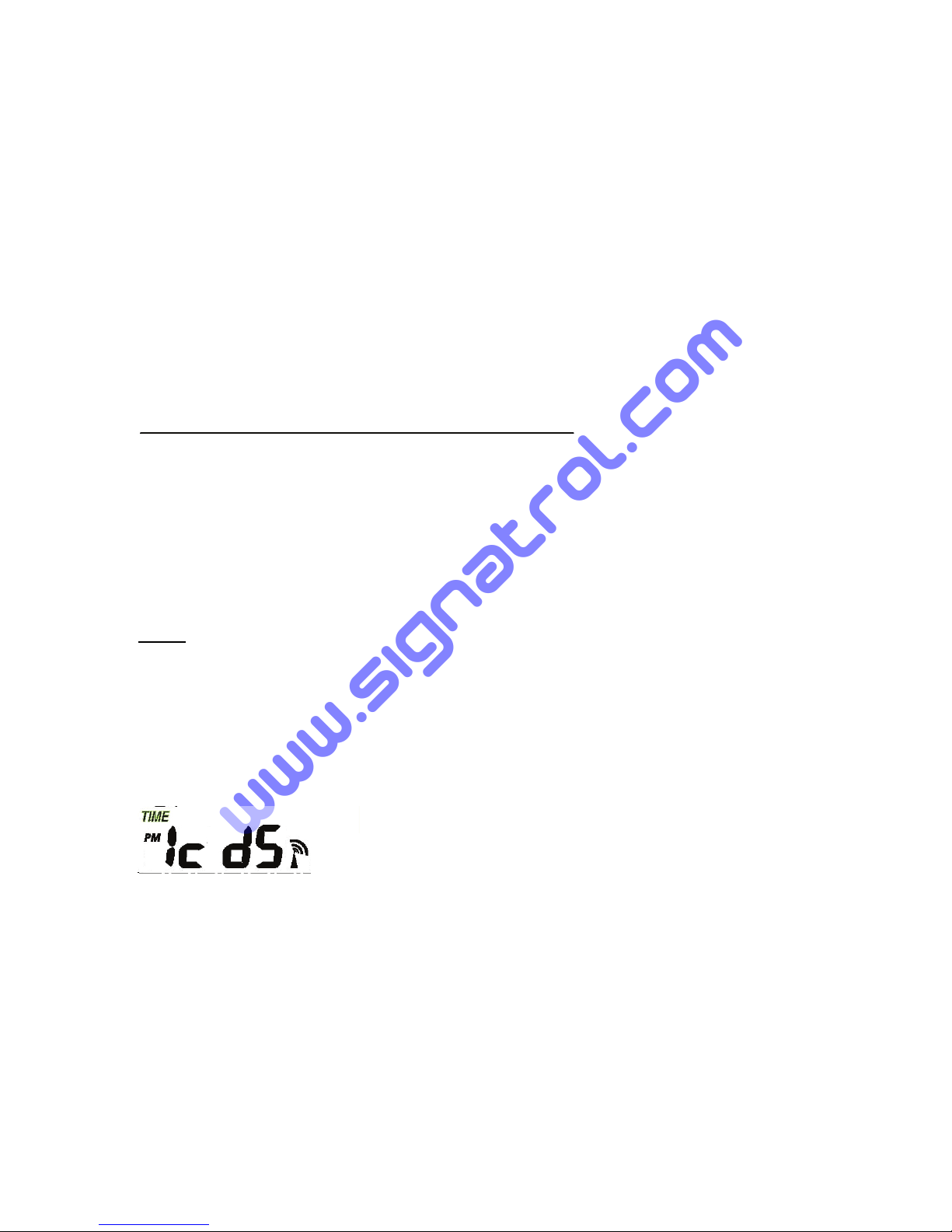

2) When the base station is powered up, the LCD display activates for 3 seconds
and after the “Beep”, it begins measuring indoor temperature, humidity and air
pressure. The unit then enter the RF(Radio Frequency) state, where it receives
data from the remote sensor and RCC(Radio Controlled Clock) receiving state
at the same time. During radio controlled time reception period, there is no
transmission and normal transmission will only resume after time reception
routine is complete. The longest time for radio controlled time reception is 5
minutes.
RF (Radio Frequency) Receiving Mode
1. After power-on, the weather station enters RF receiving state for 144s.
2. Base station receive the temperature, humidity, wind speed and rain data each
48s, receive illuminance date each 60s. If there is no new effective signal from
the sensor in constance receiption failure 8 times, the outdoor temperature and
humidity will display “----”. The base station will start search the new remote sensor
signal for 144s.
3. Hold the “▼” key for 4s to enter manual RF receiving state.
4. Do not press any key before outdoor sensor data received, otherwise the
outdoor sensor learning mode will be terminated. When outdoor transmitter has
been registered, the base station will automatically switch to the normal display
mode from which all further settings can be performed by the user.
5. If there is no temperature reading in the indoor station, make sure the units are
within range of each other or repeat the battery installation procedure.
RCC (Radio Controlled Clock) Receiving Mode
1. After the thermo-hygro sensor is powered up, the sensor will transmit weather
data for 24s, and then the sensor will start radio controlled time reception. During
the RCC time reception period (maximum 5 minutes), no weather data will be
transmitted.
2.If no RCC signal is detected in the initial setup, the thermo-hygro sensor will try
once every hour to get an RCC signal until a signal is received. Once the sensor
receives the RCC signal it will transmit the signal to the base station, the received
time and date will overwrite the manually set time and date, on the base station the
RCC icon will be displayed. If the base station doesn’t receive the RCC signal or
loses the signal the RCC icon will not be display.
3. If your time zone is not at UTC+1:00, then manually set the time zone so
that your clock time will be updated correctly after radio controlled time is
received.
- 4 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
4. The best condition for reception is at night, between midnight and 6:00am –
when there is less atmospheric interference.
Note:
Commonly the radio communication between receiver and transmitter in the open
field can reach a distance of up to 330 feet providing that there are no interfering
obstacles such as buildings, trees, vehicles, high voltage lines, etc.
Radio interferences such as PC screens, radios or TV sets can, in bad cases,
entirely cut off radio communication. Please take this into consideration when
choosing standing or mounting locations.

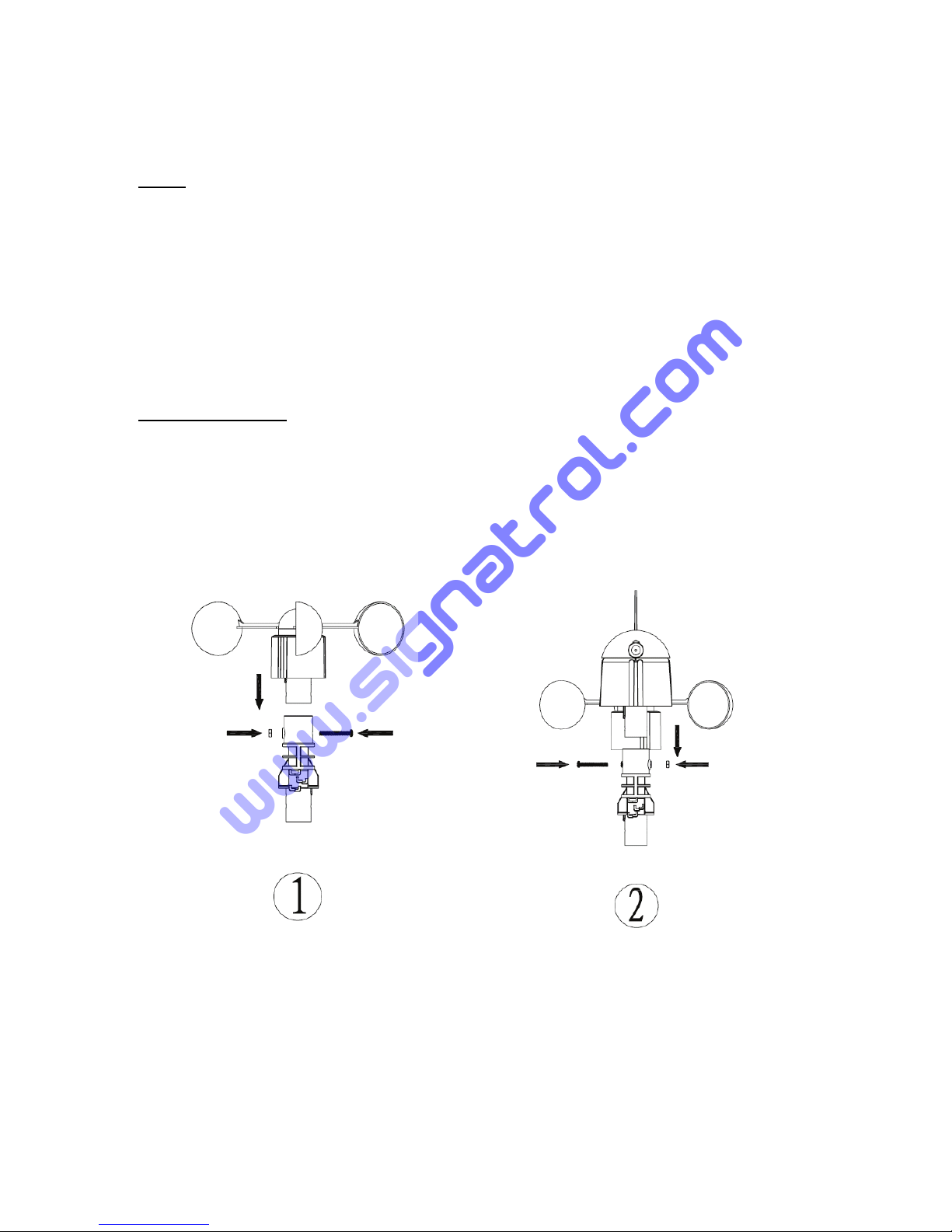

Mounting the sensor
Important Notes:
On the edge of wind direction sensor, there are four alphabet letter of
“N”,”E”,”S”and “W” representing for the direction of North, East, South and West.
Wind direction sensor has to be adjusted so that the directions on the sensor are
matching with your real location. Permanent wind direction error will be introduced
when the wind direction sensor is not positioned correctly during installation.
Anemometer winddirectionsensor
- 5 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com

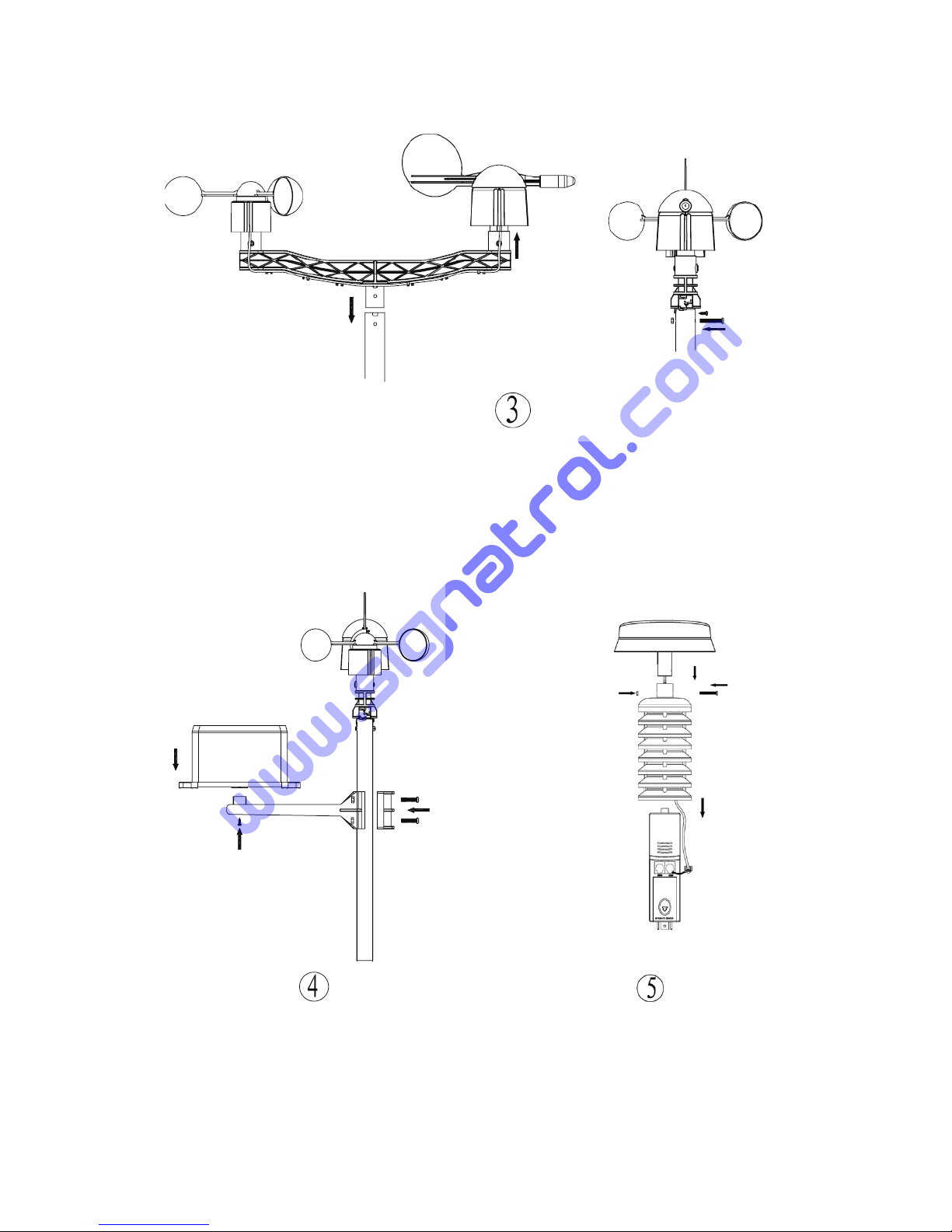

Mounting the dual wind sensor holder
Mountingtherainsensor Thermo-hygro sensor with solar panel
- 6 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com

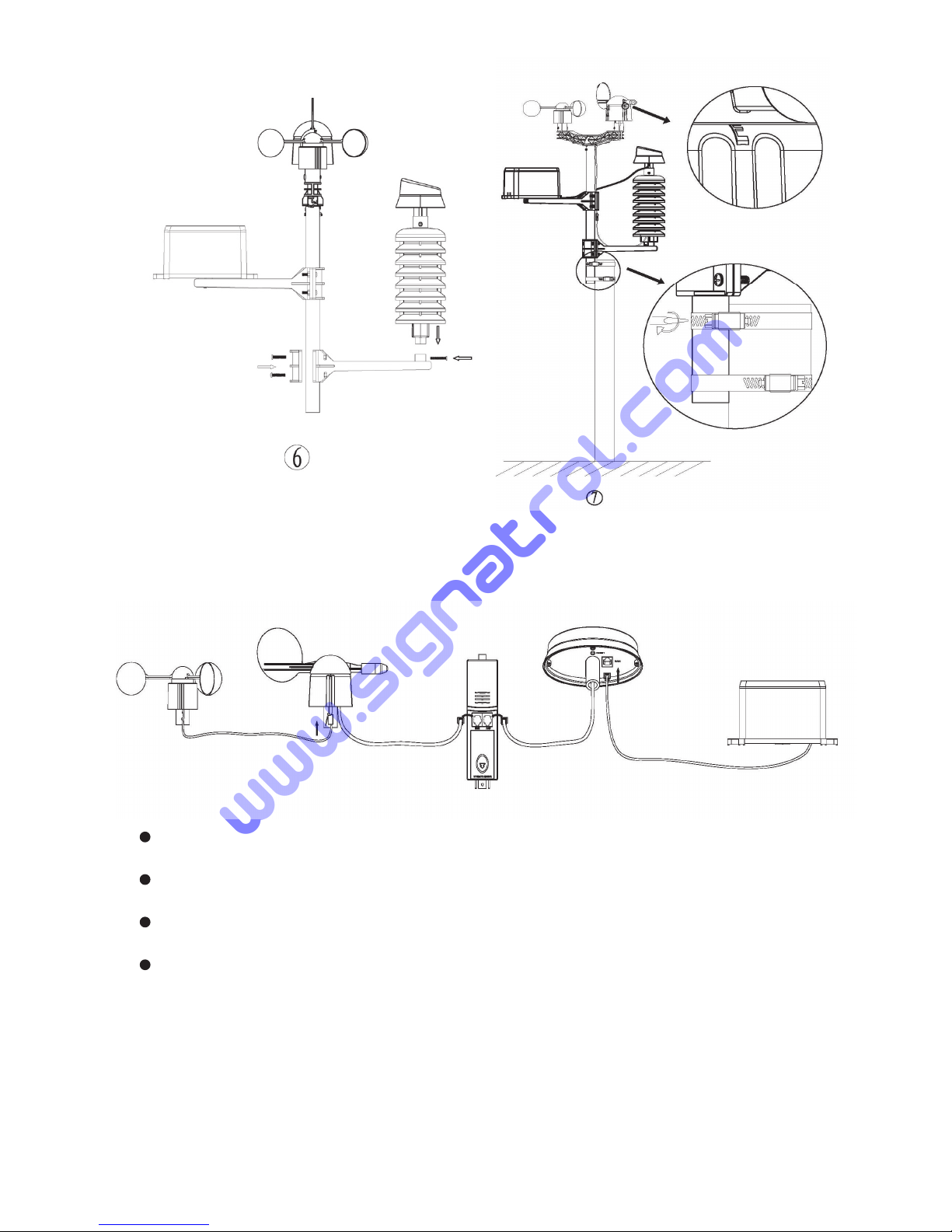

Mounting the thermo-hygro sensor Fix the whole set to a pole
same as rain sensor with the two adjustable hoops.
The anemometer’s cable is connected to the input on the wind direction
sensor.
The wind direction sensor’s cable is connected to the input marked Wind on
the thermo-hygro sensor
The rain sensor’s cable is connected to the input marked Rain on the solar
panel
The solar panel’s cable is connected to the input marked Rain on the
thermo-hygro sensor.
The solar transmitter
The solar transmitter makes use of solar energy to power the instruments they are
connected to.
Note: It use AA size alkaline rechargeable batteries. For the solar transmitters to
function properly, make sure the solar receptors on the transmitters are exposed to
sunlight and the connectors of the connection cable are securely plugged in.
- 7 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
For best results, direct solar panel as follows:
Solar panel facing north if you reside in the southern hemisphere; Solar panel
facing south if you reside in the northern hemisphere.
Positioning
Once you have verified that all of the components of the weather station are
working, they can be positioned in their permanent places. Before permanently
mounting, make sure that all components work properly together at their chosen
mounting or standing locations. If e.g. there appear to be problems with the 433
MHz radio transmission, they can mostly be overcome by moving the mounting
locations.
Program Mode
The base station has six keys for easy operation: MENU key, ▲(UP) key, ▼
(DOWN) key, ENTER key, HISTORY key, ON/OFF key
Note: Because of the default settings already determined by the manufacturer it
may not necessary for the majority of user to perform-except the relative
pressure(see further down)-any further basic settings and changes, however, can
be easily made.
Note: Keeping the ▲(UP) or ▼(DOWN) key depressed when setting certain
units in the manual setting mode will increase/decrease digits in greater steps.
The setting procedure can be exited at any time by either pressing the HISTORY
key or waiting for the 30-second time-out to take effect.
The basic settings can now be performed in the following order:
Time
- Press the MENU key to select the TIME section, TIME section digits will start
flashing. Enter LCD contrast setting mode (level 0-8, default level 5), press the
▲(UP) or ▼(DOWN)key to set the value.
- Press the ENTER key to select the following modes:
zTime zone
Note: At Europe, 0 for GMT+1 time zone, 1 for GMT+2 time zone, -1 for GMT
time zone.
At America, -4 for Atlantic time zone, -5 for Eastern Time zone, -6 for
Central Time Zone, -7 for Mountain Time zone, -8 for Pacific time zone,
-9 for Alaska time zone, -10 for Hawaii time zone.
- 8 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
z12/24h time display select (default 12 hours)
zDST ON/OFF (this function is only available for WWVB version, while for DCF
version this feature is not activated)
zManual time setting (hours/minutes)
Press the ▲(UP) or ▼(DOWN)key to set the value.
Note:Press ON/OFF key to set the DST ON/OFF. “DST OFF” indicates that the
feature is off and the internal real time clock will not change times automatically.
“DST ON” indicates that the feature is on and the internal real time clock will
change times according to the DST time schedule automatically. Some locations
(Arizona and parts of Indiana) do not follow Daylight Saving Time, and should
select “DST OFF”.
Date
- Press the MENU key twice to select the DATE section, DATE section digits will
start flashing. Enter DD-MM-SECOND/DD-MM-WEEK/Time alarm display mode.
(Default DD-MM-SECOND format), press the ▲(UP) or ▼(DOWN)key to select
the display mode.
- Press the ENTER key to select the following modes, press the ▲(UP) or ▼
(DOWN)key to set the value:
zSelect DD-MM or MM-DD format. (Default DD-MM format)
zCalendar setting (year/month/date)
zTime alarm setting. (Hours/minutes). Press the ON/OFF key to on/off the alarm.
If alarm is enabled, an alarm symbol appears in the display indicating the
alarm function has been enabled.
Note: When a set weather alarm condition has been triggered that particular alarm
will sound for 120 seconds. The corresponding value, ‘HI AL” or “LO AL” and the
alarm symbol are flashing until the weather condition doesn’t meet the user set
level. Press any key to mute the alarm.
Pressure history bar graph
- 9 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
- Press the MENU key the third time to select the PRESS HISTORY section,
PRESSURE HISTORY section digit will start flashing. Press the ▲(UP) or
▼(DOWN)key to select the bar graph time scale between 12hrs and 24 hrs for
pressure history.
Press
- Press the MENU key the fourth time to select the PRESSURE section,
PRESSURE section digits will start flashing. Enter the pressure display mode
(relative and absolute pressure. Default absolute pressure), press the ▲(UP) or
▼(DOWN)key to select the display.
- Press ENTER key to select the following modes, then press the UP/+ or ▼
(DOWN)key to select the display or set the value:
zSelect pressure unit between hPa, mmHg, inHg. (Default hPa).
zThe relative pressure setting. (If select absolute pressure display, skip this
step)
zThe pressure high alarm setting. Press the ON/OFF key to on/off the alarm. If
alarm is enabled, an alarm symbol appears in the display indicating the
alarm function has been enabled
zThe pressure low alarm setting. Press the ON/OFF key to on/off the alarm. If
alarm is enabled, an alarm symbol appears in the display indicating the
alarm function has been enabled
zReset the maximum pressure value. When both the pressure value and MAX
icon are flashing, hold the ENTER key for 3s, the maximum pressure value will
be reset to current reading.
zReset the minimum pressure value. When both the pressure value and MIN
icon are flashing, hold the ENTER key for 3s, the minimum pressure value will
be reset to current reading.
Weather forecast tendency
- Press the MENU key the fifth time to select the TENDENCY section, TENDENCY
section digits will start flashing. Enter the weather forecast tendency display
mode(SUNNY, PARTLY CLOUDY, NIGHT, CLOUDY, RAINY and SNOW icon),
press the ▲(UP) or ▼(DOWN)key to select the display.
- Press ENTER key to select the following modes, then press the ▲(UP) or ▼
(DOWN) key to select the display or set the value:
zSet the pressure threshold from 2-4hPa(default 2hPa)
zSet the storm threshold from 3-9hPa(default 4hPa)
- 10 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
Weather forecast symbol:
Sunny
Partly Cloudy
Cloudy
Rainy
Snow
Storm
Snowstorm
Clear Night
Cloudy Night
For every sudden or significant change in air pressure, the weather symbols will
update accordingly to represent the change in weather.
Notes to pressure sensitivity setting for weather forecasting:
The pressure threshold can be set to suit the user’s requirement for weather
forecasting from 2-4hPa (default 2hPa). For areas that experience frequent
changes in air pressure requires a higher hPa setting compared to an area where
the air pressure is stagnant. For example if 4hPa is selected, then there must be a
fall or rise in air pressure of at least 4hPa needed to change the weather forecast
- 11 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
icons.
Notes to storm threshold setting
The storm threshold means the weather icons (rain and clouds) will begin to flash
indicating a dramatic change in pressure, indicating a storm. Similar to the general
pressure sensitivity setting it is possible to adjust the storm threshold sensitivity
form 3-9hPa (default 4hPa). When there is a fall over pressure threshold within 3
hours, the storm forecasting will be activated, the clouds with rain icon and
tendency arrows will flash for 3 hours indicating the storm warning feature has
been activated.

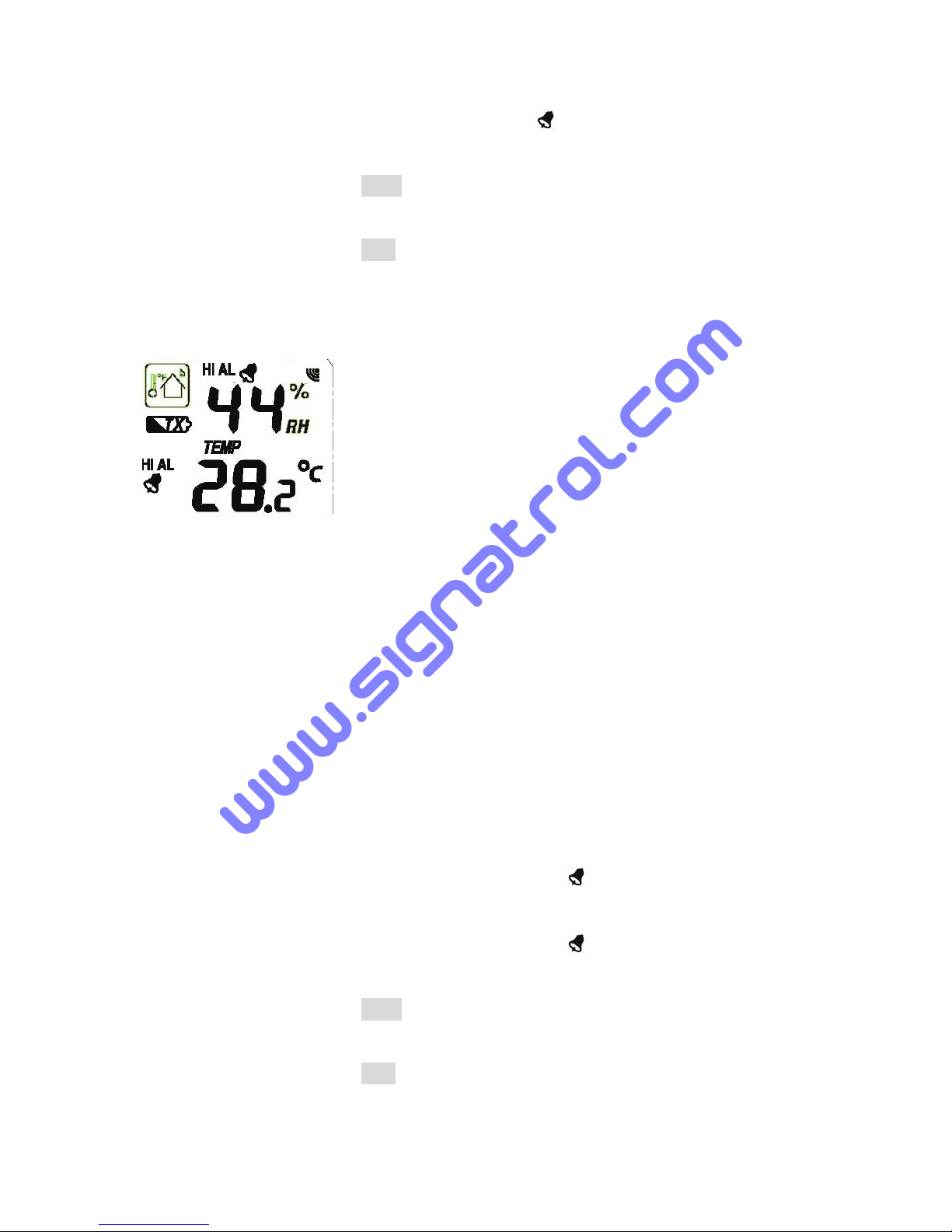

Indoor humidity
- Press the MENU key the sixth time to select the INDOOR HUMIDITY section,
INDOOR HUMIDITY section digits will start flashing. Enter the indoor humidity
high alarm setting mode, press the ON/OFF key to on/off the alarm. If alarm is
enabled, an alarm symbol appears in the display indicating the alarm
function has been enabled
- Press ENTER key to select the following modes:
zThe indoor humidity low alarm setting. Press the ON/OFF key to on/off the
alarm. If alarm is enabled, an alarm symbol appears in the display
indicating the alarm function has been enabled
zReset the maximum indoor humidity value. When both the indoor humidity
value and MAX icon are flashing, hold the ENTER key for 3s, the maximum
indoor humidity value will be reset to current reading.
zReset the minimum indoor humidity value. When both the indoor humidity
value and MIN icon are flashing, hold the ENTER key for 3s, the minimum
indoor humidity value will be reset to current reading.
Indoor temperature
- Press the MENU key the seventh time to select the INDOOR TEMPERATURE
section, INDOOR TEMPERATURE section digits will start flashing. Enter the
temperature unit mode, press the ▲(UP) or ▼(DOWN)key to select temperature
unit between ℃and ℉
- Press ENTER key to select the following modes:
zThe indoor temperature high alarm setting. Press the ON/OFF key to on/off the
alarm. If alarm is enabled, an alarm symbol appears in the display
indicating the alarm function has been enabled
- 12 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
zThe indoor temperature low alarm setting. Press the ON/OFF key to on/off the
alarm. If alarm is enabled, an alarm symbol appears in the display
indicating the alarm function has been enabled
zReset the maximum indoor temperature value. When both the indoor
temperature value and MAX icon are flashing, hold the ENTER key for 3s, the
maximum indoor temperature value will be reset to current reading.
zReset the minimum indoor temperature value. When both the indoor
temperature value and MIN icon are flashing, hold the ENTER key for 3s, the
minimum indoor temperature value will be reset to current reading.
Outdoor humidity
- Press the MENU key the eighth time to select the OUTDOOR HUMIDITY section,
Procedures and settings are similar to Indoor humidity
Outdoor temperature
- Press the MENU key the ninth time to select the OUTDOOR TEMPERATURE
section, OUTDOOR TEMPERATURE section digits will start flashing. Enter the
outdoor temperature display mode, press the ▲(UP) or ▼(DOWN)key to Select
the outdoor temperature display between Outdoor Temperature, Wind Chill and
Dew Point.
- Press ENTER key to select the following modes:
zTemperature unit display. Press the ▲(UP) or ▼(DOWN)key to select the
temperature unit between ℃and ℉
zThe outdoor temperature high alarm setting. Press the ON/OFF key to on/off
the alarm. If alarm is enabled, an alarm symbol appears in the display
indicating the alarm function has been enabled
zThe outdoor temperature low alarm setting. Press the ON/OFF key to on/off
the alarm. If alarm is enabled, an alarm symbol appears in the display
indicating the alarm function has been enabled
zReset the maximum outdoor temperature value. When both the outdoor
temperature value and MAX icon are flashing, hold the ENTER key for 3s, the
maximum outdoor temperature value will be reset to current reading.
zReset the minimum outdoor temperature value. When both the outdoor
temperature value and MIN icon are flashing, hold the ENTER key for 3s, the
minimum outdoor temperature value will be reset to current reading.
- 13 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
UV index
The UV intensity indicators is to show the UV intensity level from 0-12
UV Index
Very high : 10, 11, 12+
High : 7, 8, 9
Extreme : 5,6,
Moderate : 3, 4,
Low : 0, 1, 2
-Press the MENU key the tenth time to enter UV high alarm setting, Press the
ON/OFF key to on/off the alarm. If alarm is enabled, an alarm symbol appears
in the display indicating the alarm function has been enabled
- Press ENTER key to reset the maximum UV index value. When both the UV
index value and MAX icon are flashing, hold the ENTER key for 3s, the maximum
UV index value will be reset to current reading.
Wind
- Press the MENU key the eleventh time to select the WIND section, WIND section
digits will start flashing. Enter average wind speed / Gust display mode. (Default
average wind speed), press the ▲(UP) or ▼(DOWN)key to select the display
mode.
- Press ENTER key to select the following modes, then press the ▲(UP) or ▼
(DOWN)key to select the display or set the value:
zSelect the wind speed unit between km/h, mph, m/s, knots, bft. (Default mph)
zThe wind speed high alarm setting.
zThe wind direction alarm setting.
zReset the maximum wind speed value. When both the wind speed value and
- 14 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
MAX icon are flashing, hold the ENTER key for 3s, the maximum value will be
reset to current reading.
Note: Press the ON/OFF key to on/off the alarm. If alarm is enabled, an alarm
symbol appears in the display indicating the alarm function has been enabled

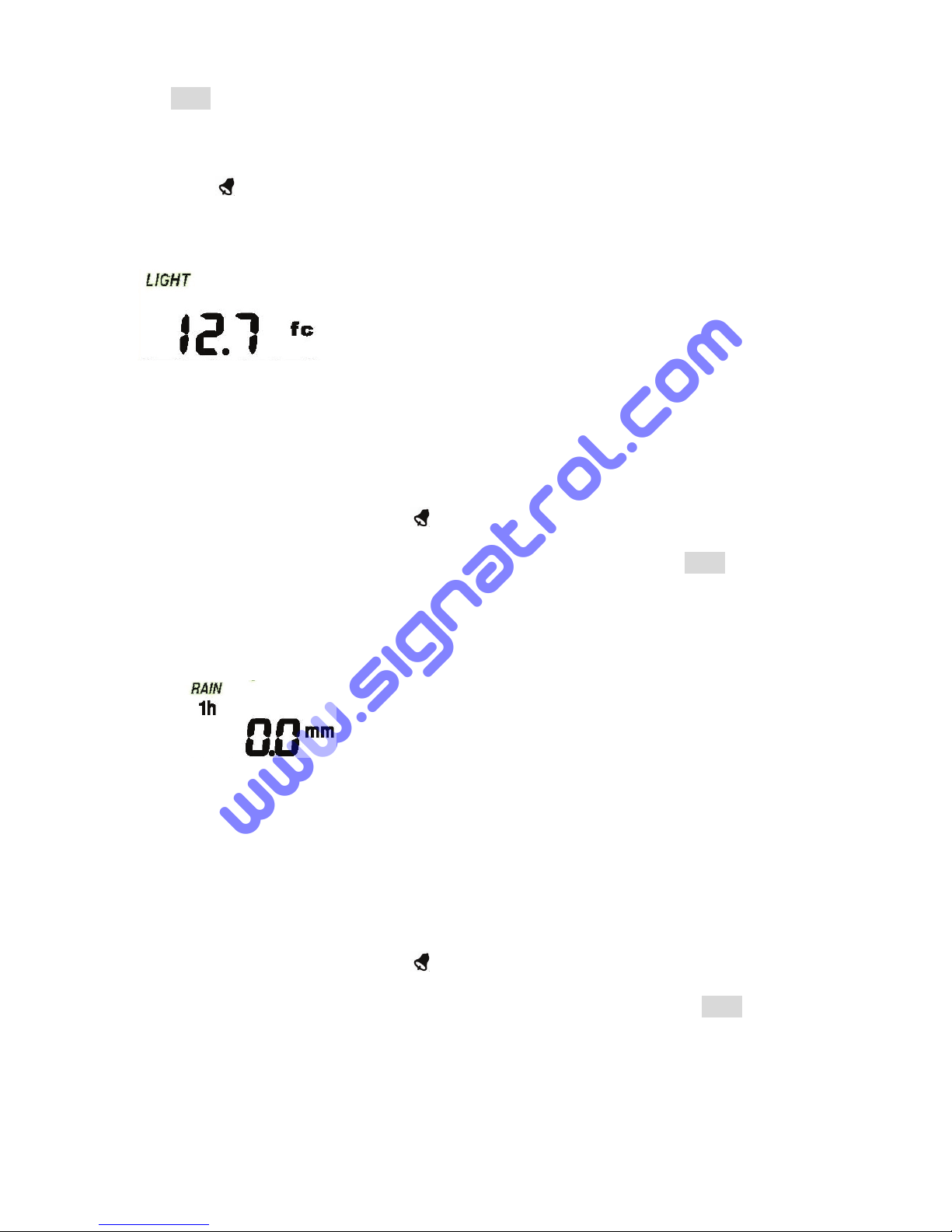

Light
- Press the MENU key the twelfth time to select the LIGHT section, LIGHT section
digits will start flashing. Enter the light unit mode, press the ▲(UP) or ▼(DOWN)
key to select light intensity unit between FC and LUX
- Press ENTER key to select the following modes:
zThe light high alarm setting. Press the ON/OFF key to on/off the alarm. If alarm
is enabled, an alarm symbol appears in the display indicating the alarm
function has been enabled
zReset the maximum light value. When both the light value and MAX icon are
flashing, hold the ENTER key for 3s, the maximum light value will be reset to
current reading.
Rain
- Press the MENU key the thirteenth time to select the RAIN section, RAIN section
digits will start flashing. Enter rain display mode (1h, 24h, week, month and total
rain. Default 1h), press the ▲(UP) or ▼(DOWN)key to select the display.
- Press ENTER key to select the following modes, then press the ▲(UP) or ▼
(DOWN)key to select the display or set the value:
zSelect rain fall unit between mm, inch. (Default mm)
zThe rain high alarm setting. Press the ON/OFF key to on/off the alarm. If alarm
is enabled, an alarm symbol appears in the display indicating the alarm
function has been enabled
zReset the maximum rainfall value. When both the rain value and MAX icon are
flashing, hold the ENTER key for 3s, the maximum rain value will be reset to
current reading.
zClear the total rainfall. When both the total rain value and CLEAR word are
flashing, hold the ENTER key for 3s, the total value will be reset to zero. 1h,
24h, week, month rain value will be reset to zero automatically.
- 15 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
Memory modes
1) Press the HISTORY key to activate history data toggle display, Press ▼
(DOWN)key to toggle forward to see earlier weather history data together time
stamp, press ▲(UP)key to see later history weather data. When history data
displayed, the corresponding time will be displayed at the time section area
( History data saving interval can only be changed using the PC software that
comes with this product, the default history data saving time interval is preset to
30 minutes prior to shipment).
2) Press the HISTORY key again will trigger the memory clear procedure: the
word of “CLE” will be flashing; the full memory usage icon will be flashing. Hold
the ENTER key for 3 seconds will clear the memory.
Reset To Factory Default Settings
While in normal display, press and hold the ▲(UP)key for 20seconds to reset all
settings to the manufacturer default settings.
PC Connection
As an important feature in addition to the display, the Weather Station allows
the read-out of all measured and displayed time and weather data in form of
complete history data sets on a PC.
Data Storage
For a comprehensive weather history, the Base Station allows the internal storage
of up to 4080 complete sets of weather data with time and date. These data sets
are being stored in non-volatile ring buffer memory (EEPROM) and will not be lost
even in case of an interruption of power supply (e. g. change of batteries). In case
the memory capacity of the Weather Station is exhausted the oldest data sets
stored will be overwritten by the new ones entered.
Data Recall
Certain weather data or setting values can only be read out, processed, and
displayed by means of a PC. Also the settings of the storing intervals from 5
minutes to 240 minutes for the storage of data sets can only be performed by
means of a PC.
- 16 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
Connections and Software
The wiring between Weather Station and PC takes place by means of an included
USB cable. The EasyWeatherPlus software package, also included in the shipping
contents, must be installed on the PC.

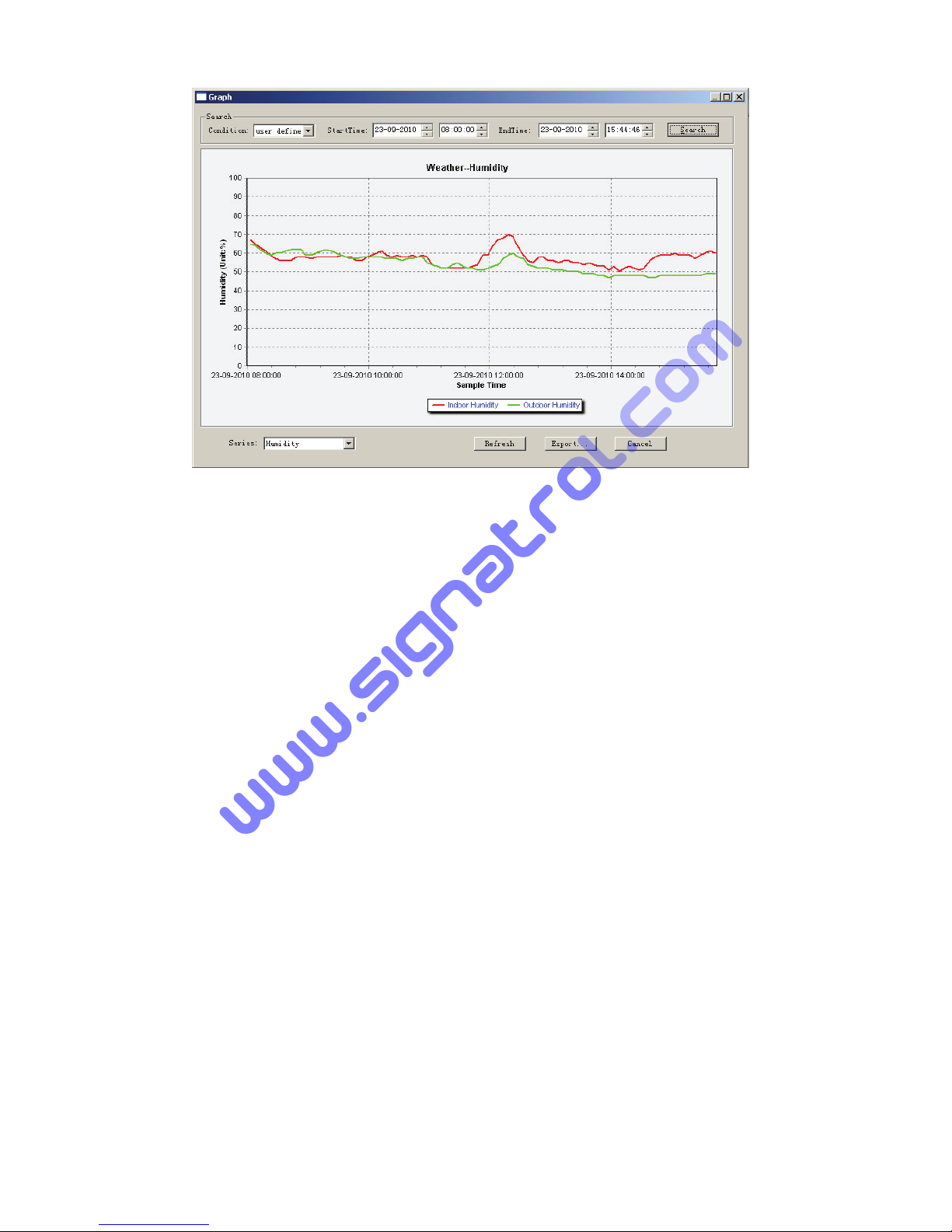

This software allows the display of all present weather data with graphic symbols.
It also allows the display, storage, and printing of history data sets, whose volume
exceeding the maximum 4080 data sets of the Weather Station is only limited by
the capacity of the PC’s main memory.
PC software installation
The installation of software is very simple: double click the setup.exe file and follow
the steps popped up.
Make sure you are running the program under the administrator accounts of your
windows PC platform. Otherwise the graphic function might not be working when
graph display mode is needed to display all history data.
If you run the program for the first time, the current weather display will be
displayed and at the sub line of the window, the program will show related
information regarding the read of all history data into the PC. Please note however,
when there is large amount of data is being uploaded, it will take a few minutes
time before the system can respond to your setup settings. Otherwise it will display
“read weather data fail” error message since the USB port is reading the data from
the memory and the system is not able to respond any further job tasks.
- 17 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
When memory is full, it will take about two minutes to upload all history data into
PC and it takes another two minutes to process all history data for graphic display.
Specifications
Outdoor data
Transmission distance in open field : 100m(330 feet)
Frequency : 433 MHz
Temperature range : -40˚C--60˚C (-40℉to +140℉)
Accuracy : +/-1°C
Resolution : 0.1˚C
Measuring range rel. humidity : 10%～99%
Accuracy : +/-5%
Rain volume display : 0 – 9999mm (show --- if outside range)
Accuracy
: + / - 10%
Resolution
: 0.3mm (if rain volume < 1000mm)
1mm(ifrainvolume>1000mm)
Wind speed
: 0-50m/s (0~100mph)
(show --- if outside range)
Accuracy : +/- 1m/s (wind speed< 5m/s)
+/-10% (wind speed > 5m/s)
Light : 0-400K Lux
Accuracy : +/-15%
- 18 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
°
Measuring interval thermo-hygro sensor : 48 sec
Measuring interval UV sensor : 60 sec
Measuing interval Light sensor : 60 sec
Water proof level : IPX3
Indoor data
Measuring interval pressure / temperature : 48 sec
Indoor temperature range : -10 --60 C (14℉to + 140℉)
(show --- if outside range)
Resolution : 0.1 C
Measuring range rel. humidity : 10%～99%
Resolution : 1%
Measuring range air pressure : 300-1100hPa (8.85-32.5inHg)
Accuracy : +/-3hpa under 700-1100hPa
Resolution : 0.1hPa (0.01inHg)
Alarm duration : 120 sec
Power consumption
Base station
: 3XAA 1.5V LR6 Alkaline batteries (not included)
Remote sensor : 2xAA Alkaline rechargeable batteries (included)
Battery life : Minimum 12 months for base station
Minimum 24 months for thermo-hygro sensor
Remark: Be sure to use 1.5V rechargeable battery for solar transmitter.
Where outdoor temperature is lower than -20 C, make sure proper type of
batteries to be used to assure that the device can get enough power to
maintain its function properly. Normal alkaline batteries is not allow to be
used since when outdoor temperature is lower than -20 C, the battery’s
discharging capability is greatly reduced.
Please help in the preservation of the environment and return used
batteries to an authorized depot.
All rights reserved. This handbook must not be reproduced in any form,
even in excerpts, or duplicated or processed using electronic, mechanical or
chemical procedures without written permission of the publisher.
This handbook may contain mistakes and printing errors. The information in this
handbook is regularly checked and corrections made in the next issue. We
accept no liability for technical mistakes or printing errors, or their consequences.
All trademarks and patents are acknowledged.
- 19 -
˚
C
˚
°
°
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]

www.signatrol.com
EasyWeatherPlus PC Software User Manual
1.0 General Information
This Weather Station is a high quality, easy to use weather monitoring system that
reads, displays and records the weather data from internal as well as external
sensors. Besides the internally measured values for indoor temperature, indoor
humidity and air pressure the outdoor sensor will take data for temperature and
humidity, wind and rainfall. Operation of these units is by wireless transmission to
the Base Station.
After installing the “EasyWeatherPlus” program on this CD-ROM, your PC can
display all indoor data as well as the weather data from the Base Station received
from the external sensors. For operation, simply use the USB cable supplied and
connect the Base Station to the PC. From now on you can start to track current and
history weather information at your finger tips.
2.0 System Requirements
To install the "EasyWeatherPlus" software onto your PC, the minimum
requirements are as follows:
Operating System: Windows NT4 (Service Pack >= 6a), Windows 2000, Windows
XP, Windows Vista, Windows 7.
Internet Explorer 6.0 or above
Processor: Pentium III 500 MHz or above
Memory: at least 128MB, 256MB recommended
CD-ROM Drive
Base Station and PC must be connected by USB cable
3.0 Installation of the “EasyWeatherPlus” Software
Firstly, the Base Station and the Outdoor Sensors should be connected and
checked for correct function (see Operation Manual for setting up the Weather
Station). After successful checking, install the “EasyWeatherPlus” software as
follows:
1. Switch on your PC and insert the CD-ROM into the CD-ROM Drive.
2. Double click “Setup.exe”
3. Select the installation process language option and click next
4. click next and select the destination folder(change directory when needed)
5. click next and the software will be installed automatically
6. press ok to finish the installation process
7. From “Start—All Programs—EasyWeahterPlus” path and the
“EasyWeatherPlus” icon to start application.
- 20 -
www.signatrol.com
www.signatrol.com
Signatrol Ltd, UK
Tel: [phone]
