Signature Design by Ashley 10028204 User manual

DRESSER
SIX DRAWER
L I F E D OESN’T C O ME W I TH INSTRUC T IONS
B U T TH I S D OES
BUILT FOR
1
Place Serial # Here
Lugar número # aquí
Part # 10028204
(7/1/23)

Children have died from furniture tip over. To reduce
the risk of furniture tipover:
WARNING
!
ALWAYS install tip over restraint provided.
NEVER put a TV on the product.
NEVER allow children to stand, climb, or hang on drawers,
doors or shelves
NEVER open more than one drawer at a time.
Place heaviest items in the lowest drawers.
ADVERTENCIA
!
Se han producido muertes infantiles producto del
valcado de muebles. Para reducir el riesgo de volcado
de muebles:
NUNCA coloque televisores sobre este producto.
NUNCA permita que los niños se paren, trepen o cuelguen
de cajones, puertas o estanterías
NUNCA abra más de un cajón al mismo tiempo.
Coloque los artículos más pesados en los cajones inferiores.
ATTENTION
!
Le basculement d’un meuble peut blesser vos enfants,
voire entraîner leur mort. Pour réduire ce risque:
Installez TOUJOURS le dispositif de retenue fourni.
N’installez JAMAIS un téléviseur sur ce produit.
Ne permettez JAMAIS à vos enfants de monter sur les
tiroirs, portes ou éstagères, d’y grimper ou de s’y accrocher.
N’ouvrez JAMAIS plus d’un tiroir à la fois.
Rangez les objets le plus lourds dans les tiroirs du bas.
ERIFIED
Product Stability
(50 Ibs.)
Program Endorsed
by American Home
Furnishings Alliance
VERIFIED
Verify.UL.com
B993140
U
2

Ashley Furniture Industries, LLC disclaims any liability for damages or injuries
which may occur due to failure to properly follow assembly instructions,
properly assemble the product, or properly use the product.
IMPORTANT SAFETY NOTICE
READ CAREFULLY BEFORE BEGINNING ASSEMBLY
This unit contains small parts that present a choking hazard for children
under 3 years of age. These parts are for adult assembly only and should
be permanently affixed to the furniture. Any unused parts should be
discarded properly.
To make the assembly process easier, ask a friend to help you.
***2 people required***
Always use proper tools.
Carefully review the parts and hardware list.
Follow assembly steps in order. DO NOT SKIP ANY STEPS.
Periodically check to ensure that all connectors (bolts,screws, etc.) are tight.
Keep the instructions for future reference.
It is recommended that you assemble the unit on a protected surface or
carpeted floor to avoid scratches.
Ashley Furniture Industries, LLC aanvaardt geen aansprakelijkheid voor schade of
verwondingen die zich te wijten aan niet goed voordoen kunnen volgen montage-
instructies, het product goed te monteren of correct gebruik van het product.
BELANGRIJKE VEILIGHEIDS AANKONDIGING AANDACHTIG TE
LEZEN ALVORENS BEGIN VERGADERING
Dit apparaat bevat kleine onderdelen die gevaar voor verstikking opleveren
voor kinderen jonger dan 3 jaar. Deze onderdelen zijn voor volwassen verga-
dering alleen en moeten permanent op de meubels worden aangebracht. Alle
ongebruikte delen moeten naar behoren worden weggegooid.
Om de assemblage proces gemakkelijker maken, vraag een vriend om u te
helpen. ***2 personen vereist***
Gebruik altijd juiste hulpmiddelen.
Controleer zorgvuldig de onderdelen en de harwarelijst.
Assemblage stappen in volgorde. NIET ALLE STAPPEN OVERSLAAN.
Regelmatig controleren om ervoor te zorgen dat alle connectors (bouten,
schroeven, enz.) strak zijn.
Bewaar de instructies voor toekomstig gebruik.
Het is raadzaam dat u de eenheid op een beschermde oppervlakte of
beklede vloer samenstellen te voorkomen krassen.
Ashley Furniture Industries, LLC se exime de cualquier responsabilidad por daños o
lesiones que pueden ocurrir debido a que no correctamente sigan las instrucciones de
montaje, montan correctamente el producto o usan correctamente el producto.
AVISO IMPORTANTE DE SEGURIDAD
LEA CUIDADOSAMENTE ANTES DE COMENZAR A ARMAR
Esta unidad contiene piezas pequeñas que presentan un peligro de asfixia
para los niños menores de 3 años de edad. Estas piezas son para montaje
por un adulto solamente y deben colocarse permanentemente a los muebles.
Las partes no utilizadas deben desecharse correctamente.
Para facilitar el proceso de ensamblaje, pedirle a un amigo que te ayude.
***2 personas requeridas***
Siempre use las herramientas adecuadas.
Revisar cuidadosamente las piezas y lista de hardware.
Siga los pasos de montaje en orden. NO SE SALTE LOS PASOS.
Revise periódicamente para asegurarse de que todos los conectores
(pernos, tornillos, etc.) están bien apretados.
Guarde las instrucciones para referencia futura.
Le recomendamos que montar la unidad sobre una superficie protegida o
moqueta para evitar arañazos.
Ashley Furniture Industries, LLC décline toute responsabilité pour les dommages
ou blessures pouvant survenir en raison de I’omission de bien suivent les instructions
d’assemblage, assemblent corrctement le produit ou utilisent correctement le prouit.
AVIS DE SÉCURITÉ IMPORTANT
LIRE ATTENTIVEMENT AVANT DE COMMENCER LE MONTAGE
Cet appareil contient de petites pièces qui présentent un risque d’étouffement
pour les enfants âgés de moins de 3 ans. Ces pièces sont pour
I’assemblage par un adulte seulement et doivent être apposées de façon
permanente aux meubles. Toute pièce inutilisée devrait être éliminé correctement
Pour faciliter le processus d’assemblage, demandez à un ami pour vous
aider. ***2 personnes nécessaires***
Toujours utiliser des outils appropriés.
Lire aentivement les pièces et la liste du matériel.
Suivez les étapes de montage dan I’odrde. NE SAUTEZ PAS LES ÉTAPES.
Vérifier périodiquement pou s’assurer que tous les connecteurs (boulons,
vis, etc.) sont bien serrés.
Conserver les instructions pour toute consultation ultérieure.
Nous recommandons que vous montez I’appareil sur une surface protégée
ou de moquee pour éviter les rayures.
WE CARE ABOUT YOUR SAFETY PLEASE READ
3

1-844-966-0809
Congratulations on the purchase of your new product. Proper care and cleaning
will extend the life of your purchase. To ensure your product maintains its finish
and quality:
Use a so, clean cloth that will not scratchthe surface when dusting
Clean only with a slightly damp cloth
Do not use chemical based products or solvents
Liquid spills should be removed immediately
Direct sunlight may fade or alter color of wood finishes
CARE AND CLEANING INSTRUCTIONS
Felicidades por la compra de su nuevo producto. El cuidado apropiado y la
limpieza prolongar la vida de su compra. Para asegurar que el producto
mantiene sucalidad y acabado:
Utilice un paño suave que no se reyará la superficie cuando el polvo
Limpie sólo con un paño ligeramente humedecido
¿No use químicos basado en productos o disolventes
Los derrames de líquidos deben eliminarse inmediatamente
La luz solar directa puede desaparecer o alterar color de revestimientos de
CUIDADOY LIMPIEZA
Toutes nos félicitations pour I’achat de votre nouveau produit. Bon entretien et
un neoyage prolonger la vie de votre achat. Pour vous assurer que votre
produit maintient sa finition et sa qualité:
Utilisez un chiffon doux et propre qui n’égratigne pas la surface lorsque
l’epoussetage
Neoyer uniquement avec un chiffon légèrement humide
Ne pas utiliser chimique basé de produits ou de solvants
Déversements de liquides doivent être retirés immédiatement
INSTRUCTIONS DE NETTOYAGE ET DE SOINS
Lumiére directe du soleil peut s’estomper ou modifier la couleur de la finition en bois
madera
Gefeliciteerd met de aankoop van uw nieuwe product. Juiste zorg en
schoonmaak zal verlengen de levensduur van uw aankoop. Om ervoor tezorgen
dat uw product handhaa zijn afwerking en kwaliteit:
Gebruik een zachte, schone doek dat geen op het oppervlak krassen zal
Alleen met een licht vochtige doek schoonmaken
Doen niet gebruik chemische gebaseerd producten of oplosmiddelen
Gemorstevloeistof moeten onmiddellijk worden verwijderd
Direct zonlicht kan vervagen of veranderen van kleur van hout afwerkingen
wanneer afstoffen
CUIDADOY LIMPIEZA
To order replacement parts, or if you have any difficulty assembling this unit refer tothe front page of this manual for
model and serial # information along with finding the needed part number(s) from the parts list. Then call our customer
service line. Please do not return parts tothe store.
Te volgorde vervangende onderdelen, of als u problemen hee dit apparaat te monteren verwijzen naar de voorpagina
van deze handleiding voor model en seriële # informatie samen met het vinden van het benodigde deel nummer uit de
onderdelenlijst met. Roep vervolgens onze klantenservice lijn. Ga niet delen terug naar de winkel.
Pour commander des pièces de remplacement, ou sivous avez des difficultés à assembler les pièces voir la première
page de ce manuel pour les informations de modèle et numéro de série ainsi que de trouver le numéro de partie
nécessaire de la liste de piéces. Alors appelez notre service client. Priére de ne pas retourner piéces
au magasin.
Para pedir piezas de repuesto, ositienes alguna dificultad para ensamblar esta unidad refiérase a la portada de este
manual para el modelo y #serial información junto a encontrar los números de parte necesaria de la lista de piezas.
Luego llame a nuestra línea de servicio al cliente. Por favor, no devuelva las piezas a la tienda.
SERVICE ÀLA CLIENTÈLE
SERVICIO AL CLIENTE
KLANTENSERVICE
CUSTOMER SERVICE
WE’RE HERE IF YOU NEED IT CONTACT US
WE WANT YOUR FURNITURE TO LAST PLEASE READ
[e-mail]
@
www.ashleyfurniture.parts
http://
4

COMPONENTS
DRAWER LEFT SIDE (6)
TOP (1) 8DRAWER RIGHT SIDE (6)
LEFT SIDE (1) 9
9
11
11
DRAWER BACK (6)
RIGHT SIDE (1) 10 DRAWER BOTTOM (6)
DIVIDER (1) UNIT BACK (1)
BOTTOM (1)
G77
METAL BASE STRETCHER (2)
DRAWER FRONT (6) METAL SIDE (2)
METAL FOOT (1)
PEOPLE NEEDED
EFFORT SCALE
(you’ve got this)
ANTI-TIP KIT
Pro Tip: Choose wisely.
Your sanity depends on it.
REQUIRED TOOL REQUIRED TOOL
TIME
50
Minutes
LOW HIGH
BUST OUT
HEADS UP
5
7
7
1
1
2
2
3
3
4
4
5
5
6
6
8
G77 G79
10
G78
G78
G79

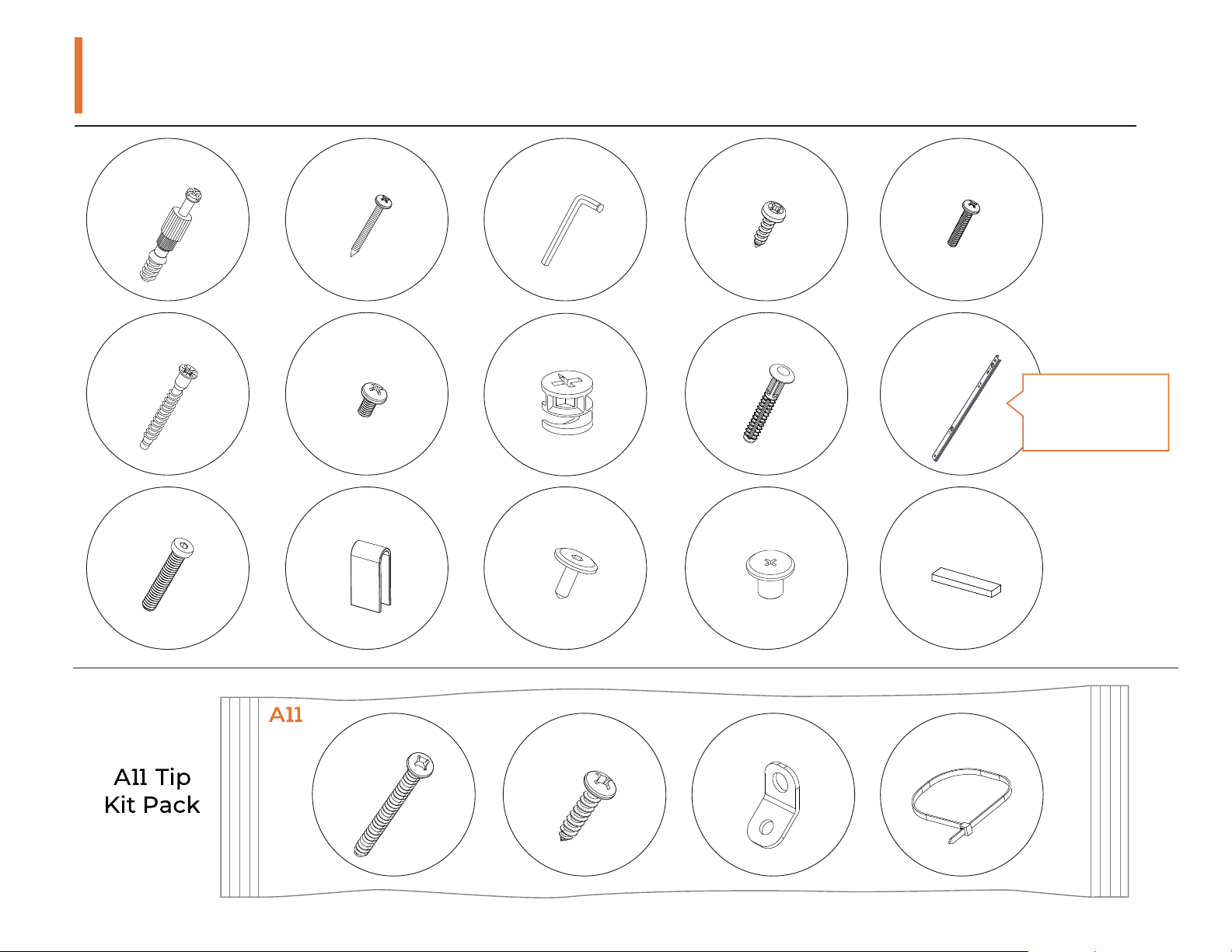

HARDWARE
H30 x4H14x6
H58x12 H62 x6 H68x24
G31 x6
H21x24 H24 x1 H31x12
G6x4
H84 x12
G7x4
G80x4 G81x4
6
H50 x6
We pre-assembled
these to the unit
sides for you!
You’re welcome!
A8 x1
A7x1 A10 x1
A9 x2

1
43
2
7
H14
x6
1
A quick laugh before you get started....
I decided to start telling jokes this year.
Sofa, so good.
2
3
H62
x4
H62
x2
4
1
3
4
x6
2

5
87
6
8

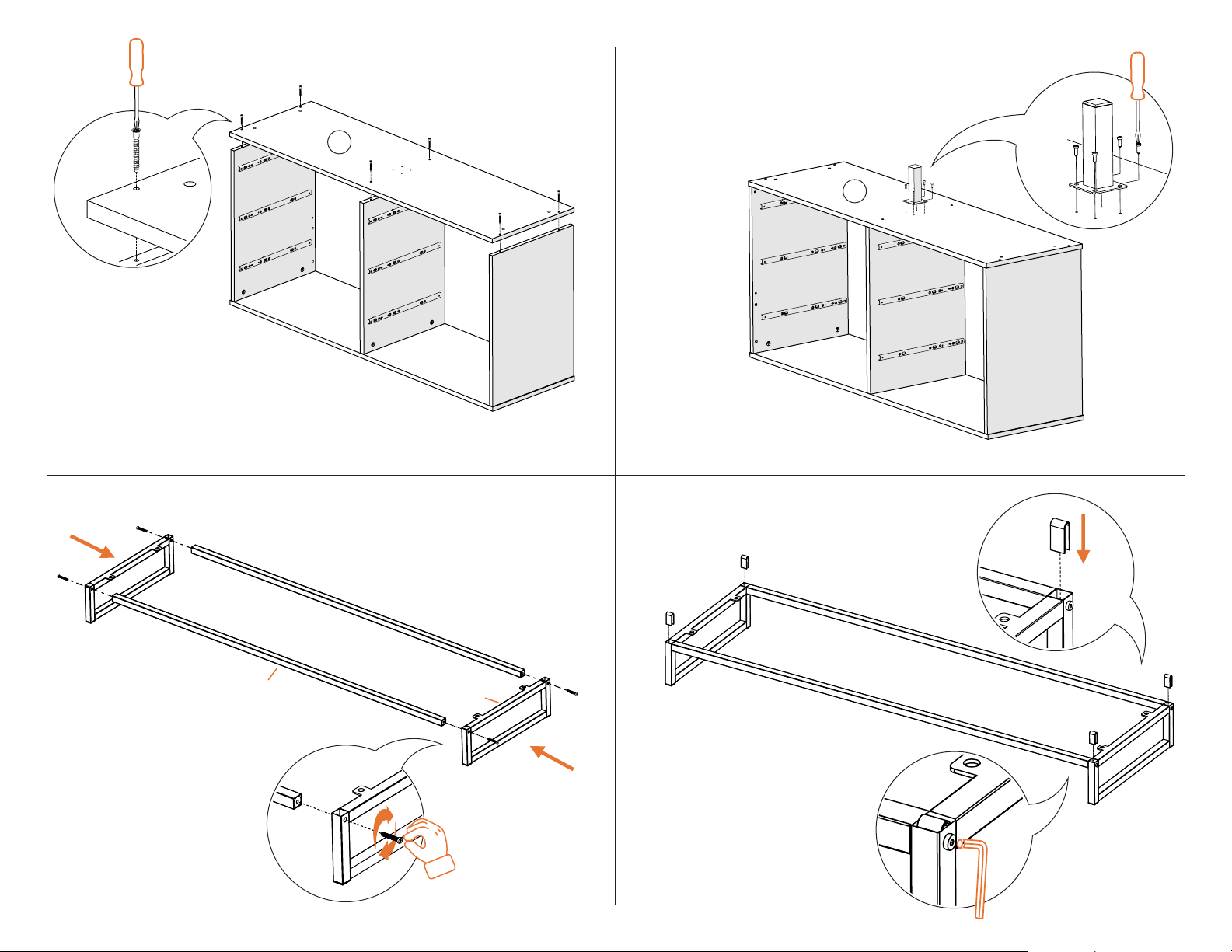

5
5
H50
x6
H30
G79
x4
x4
G77
G80
G78
x4
x4
G81
H24

910
9
11
H24
x4
G6
x4
G7
H21
x24
align edges 90
alinear bordes
randen uitlijnen
aligner les bords
ANTI-TIP ANCHORING INSTALLATION
ANTI-TIP KIT
REQUIRED TOOL
RECOMMENDED
TOOL
1/4”
Locate stud in wall. Attach bracket
(A9) to wall using the long screw
(A7). Attach second bracket (A9) to
the underside of the top (as shown
below) with the small screw (A8).
Insert zip tie (A10) through open
holes of each bracket and slide
into its end. Pull tight.
Localisez le montant dans le mur.
Fixez le support (A9) au mur à l'aide
de la vis longue (A7). Fixez le
deuxième support (A9) sous le
dessus (comme illustré ci-dessous)
avec la petite vis (A8). Insérez
l'attache zippée (A10) dans les trous
ouverts de chaque support et
glissez-la dans sonextrémité.
Tirez fort.
Zoek de nop in de muur. Bevestig
de beugel (A9) aan de muur met de
lange schroef (A7). Bevestig de
tweede beugel (A9) aan de onderkant
van de bovenkant (zoals hieronder
getoond) met de kleine schroef (A8).
Steek de kabelbinder (A10) door de
open gaten van elke beugel en schuif
hem in het uiteinde. Strak trekken.
Ubique el montante en la pared.
Fije el soporte (A9) a la pared con
el tornillo largo (A7). Coloque el
segundo soporte (A9) en la parte
inferior de la parte superior
(como se muestra a continuación)
con el tornillo pequeño (A8). Inserte
la brida (A10) a través de los orificios
abiertos de cada soporte y deslícela
hacia su extremo. Tira fuerte.
A10 x1
A10
A9 x2
A9
A8 x1
A8
A7x1
A7

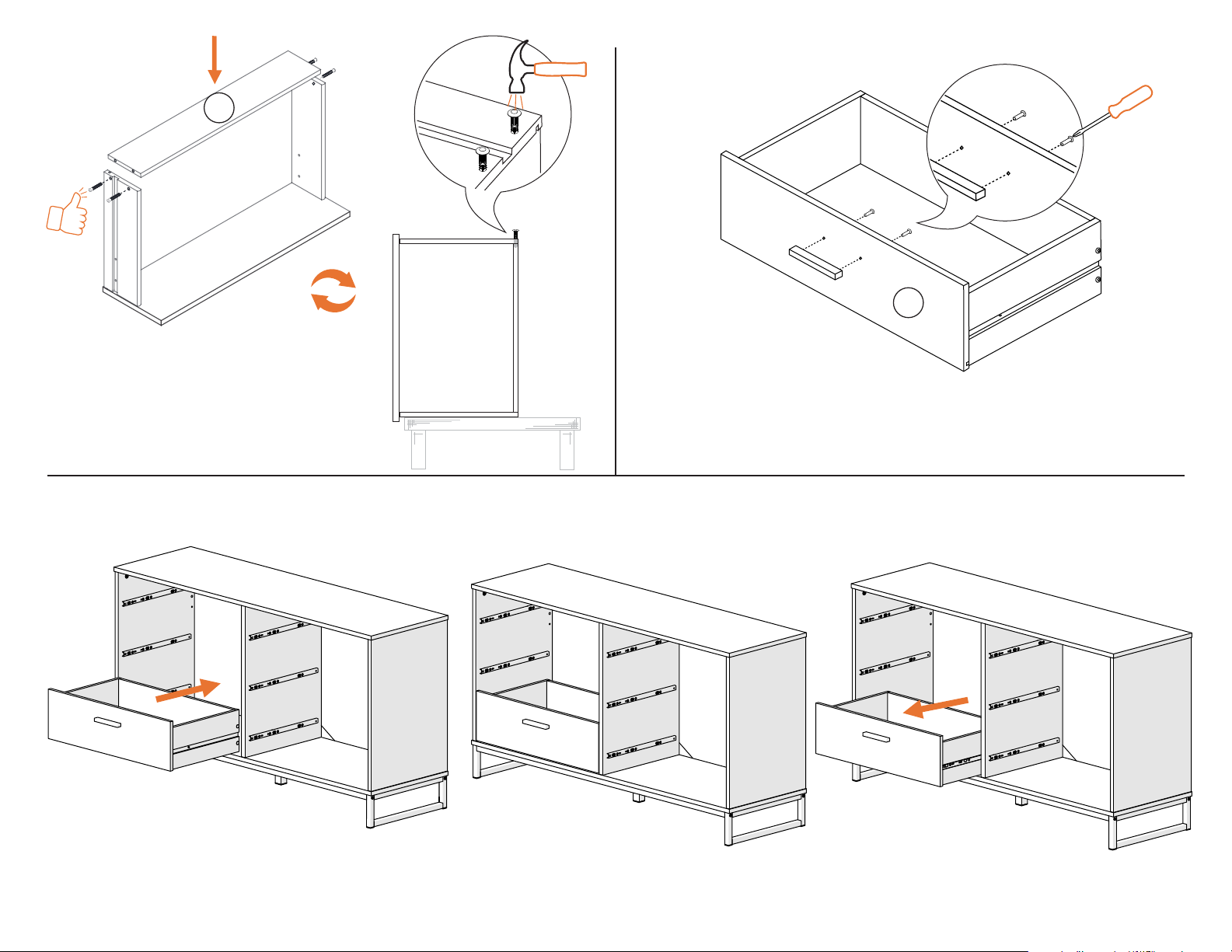

12 13
10
6
x2
Do Not Overextend, risk of Damage!
No sobreextender, riesgo de daños!
Ne pas prolonger, risque de dommages!
Overbelast niet, risico op schade!
7
8
x6
10
Side Step: Getting hangry?
Try adding some nachos
to this step.
x6
A9
A7
11
A9
A8
A10

14
16
15
11
9
6
x6
H68 x4
H31 x2
x1
G31

17
Share your #AshleyFurniture style
with us @AshleyHomestore
TO THE ARTISAN CLUB
Now Get Social With US
ashleyfurniture.com
12
x6
H84
H58
Apply pressure to glide for screw to engage.
Appliquez une pression pour glisser pour que la vis s'engage.
Aplique presión para deslizar el tornillo para que encaje.
Oefen druk uit om te glijden om de schroef vast te zetten.
H58
x2

Warranty Information
LIMITED WARRANTIES
The following Limited Warranties are given only to the original retail purchaser,
subject to all the terms and conditions below. These Limited Warranties are
non-transferable:
Ashley Furniture Industries, LLC (the “Warrantor”), subject to all the limitations
and exclusions described in these Limited Warranties, warrants the following
products and parts against material manufacturing defects for the duration set
forth next to that product or part in the table below.
All warranty periods commence on the date of delivery of the product.
Product Part Limited Warranty
Duration
Labor
Coverage
Frames Used in Upholstered & Leather Products Limited Lifetime
Warranty*
5 Year Limited
Warranty
5 Year Limited
Warranty
3 Year Limited
Warranty
1 Year Limited
Warranty
1 Year Limited
Warranty
1 Year Limited
Warranty
30 Days 30 Days
1 Year
1 Year
1 Year
1 Year
1 Year
1 Year
1 Year
1 Year Limited
Warranty 1 Year
The metal spring systems are generally, sinuous, wire
seat springs, and, where applicable, back springs.
Springs
Recliner Mechanisms
Sleeper Mechanisms
Unattached Cushioning**
Attached Cushioning**
Leather and Upholstery Fabric***
Unattached Cushion means each cushion core in a
unattached (loose) seat cushion.
Attached Cushion means each cushion core in a seat
cushion which is attached to the product.
Top of Bed
Top of Bed means comforters, bed skirts, pillow shams,
and any accent pillows included with a comforter set.
Finishes and all Other Furniture Products
Finishes and all other Furniture Products means all
finishes and other parts, components, and other furniture
products no specifically included in the above Limited
Warranties, including but not limited to dining room
tables, chairs, occasional tables, beds, dressers, sleeper
mattresses, marble tops, granite tops, desks, curio
cabinets, china cabinets, buffets, entertainment centers,
lamps, electrical components (other than light bulbs),
recliner pull cords and handles incorporated into any
furniture product.
*As used in these Limited Warranties, “lifetime” means the normal useful life
of the product under reasonable use.
**All seat cushion cores in both Unattached Cushioning and Attached Cushioning
will soften with normal use and will conform to the shape of the user. This shall
be considered normal wear, and shall not be considered a loss of resiliency or a
material manufacturing defect.
***The Leather and Upholstery Fabric Limited Warranty also includes seam
slippage, cracking, and dye transfers. Leather is a natural product, and, as such,
each hide will reflect its own individuality. Some variations of shade and tone are
to be expected, as are nicks, scratches, and wrinkles that only occur in genuine
leather; these characteristics are in no way to be considered a defect. These
Limited Warranties do not cover tears, flattening of nap, pilling, fading, or shrinking
and is not valid when heavy soiling or abuse is evident. These Limited Warranties
also do not cover protective finishes, velvets, velvet types, since by their very
nature, these fabrics are of soft texture and will crush, shade and mark more
readily than most fabrics; these characteristics are in no way to be considered
a defect.
LIMITATIONS AND EXCEPTIONS
Remedy
The following limitations and exceptions apply to the Limited Warranties:
Under these Limited Warranties, for all of its products other than an Unattached
Cushion (as defined in the topical heading “Unattached Cushioning”), the sole
liability of Warrantor is limited to repair, or at its option, replacement the applicable
product or part not in conformity with these Limited Warranties. REFUNDS ARE
NOT AVAILABLE. If within the warranty period, identical materials are unavailable
at the time of repair or replacement, Warrantor reserves the right to substitute
materials of equal or better quality. Replacement fabrics may vary in color from
the original due to dye lot differences.
In addition, during the period of any applicable Labor Coverage, Warrantor will
pay, within one year from the date of delivery, reasonable and customary labor
rates to repair or replace the defective parts (at Warrantor’s option) and shipping
costs from the retailer to and from Warrantor, at no charge to the original retail
purchaser. After the expiration of the Labor Coverage or for all products or parts
not covered by Labor Coverage, the original retail purchaser will be responsible
for labor, packing, and all shipping and transportation costs. The costs associated
with transporting the furniture or parts from your home to the retailer or from the
retailer to your home are excluded from all Limited Warranties.
For Unattached Cushions with a material manufacturing defect, Warrantor will
replace the defective Unattached Cushion provided that the original retail
purchaser during the warranty period (i) complies with the Claim Procedure set
forth in these Limited Warranties and (ii) if requested by Warrantor, returns the
defective cushion core contained within an Unattached Cushion to Signature
Design, Attn: Director of Quality, One Ashley Way, Arcadia, WI 54612. The remedy
13

specified in the paragraph is Warrantor sole liability related to Unattached Cushions.
Any item repaired or replaced under these Limited Warranties will be covered by the
Limited Warranties for the remainder of the original warranty period only.
These Limited Warranties do not apply to (i) rented, business, commercial, institutional, or
other non-resident uses (ii) merchandise that was, at any time, used as a floor sample or
display model, (iii) any merchandise purchased “as is” or second-hand, (iv) any merchandise
purchased at a distress sale or a going-out-of-business sale, (v) any merchandise
purchased from a liquidator, or (vi) merchandise obtained from a rental retailer. All
warranties, whether express or implied, cover only normal household usage. No warranty,
express or implied, applies to any condition resulting from misuse, abuse, delivery or
transportation damage, nor any condition resulting from incorrect or inadequate maintenance,
cleaning or care. These Limited Warranties are null and void if furniture has been moved
from original point of delivery to consumer.
These Limited Warranties do not cover damages or defects caused by use of chemical
treatments or protective coatings on the finish, leather, or upholstered fabric by the
retailer or the original retail purchaser, and any such chemical treatments or protective
coatings voids all warranties of Warrantor.
The Limited Warranties on “Leather”, “Upholstered Fabric” and “Finishes and all Other
Furniture Products” do no cover (i) damages resulting from excessive soiling, improper or
unapproved cleaning methods, (ii) fading or other damages resulting from exposure to
sunlight, (iii) damages resulting from household humidity, or (iv) damages resulting from
any liquid, including but not limited to alcohol and water. CAUTION: Any use of improper or
unapproved cleaning methods voids all warranties of Warrantor.
These Limited Warranties do not apply to any products that have been altered by any
person, dealer, or company without the express written authorization of Warrantor.
IMPLIED WARRANTIES, INCLUDING ANY OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE IMPOSED ON THE SALE OF THIS FURNITURE AND ITS
PARTS UNDER STATE LAW, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD
AND NO WARRANTIES APPLY AFTER THAT PERIOD. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU.
All Products
Chemical Treatments
Leather, Upholstered Fabric and Finishes
Modifications to Products
CAUTION
CLAIM PROCEDURE
Implied Warranties
DISCLAIMER
NO OTHER EXPRESS WARRANTY HAS BEEN MADE OR WILL BE MADE ON BEHALF
OF WARRANTOR WITH RESPECT TO THE FURNITURE AND ITS PARTS, OR THE
OPERATION, REPAIR, OR REPLACEMENT OF THE FURNITURE AND ITS PARTS.
FURTHERMORE, NO REPRESENTATIVE OF WARRANTOR OR ITS DISTRIBUTORS OR
RETAILERS IS AUTHORIZED TO MAKE ANY CHANGES OR MODIFICATIONS TO THESE
LIMITED WARRANTIES.
SOME RETAILERS OFFER EXTENDED OR ADDITIONAL WARRANTIES, INCLUDING
BUT NOT LIMITED TO EXTENDED OR ADDITIONAL FABRIC WARRANTIES, EITHER
FROM THE RETAILER OR THROUGH A THIRD-PARTY. WARRANTOR SHALL NOT BE
LIABLE UNDER ANY EXTENDED OR ADDITIONAL WARRANTIES OFFERED BY ANY
RETAILER OR THROUGH A THIRD-PARTY UNDER ANY CIRCUMSTANCES.
IN NO EVENT SHALL WARRANTOR BE RESPONSIBLE FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES, SUCH AS LOSS OF USE, INCONVENIENCE, LOSS OR
DAMAGE TO PERSONAL PROPERTY, WHETHER INDIRECT OR DIRECT, AND
WHETHER ARISING IN CONTRACT OR TORT EVEN IF IT HAD REASON TO KNOW
IN ADVANCE THAT SUCH DAMAGES WERE POSSIBLE. SOME STATES DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
SO THE FOREGOING LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
IN NO EVENT SHALL WARRANTOR’S RESPONSIBILITY EXCEED THE PURCHASE
PRICE OF THE PRODUCT OR ITS REPLACEMENT.
This warranty gives you specific legal rights, and you may also have other rights that vary
from state to state.
Motion furniture (recliners, sleeper sofa, etc.) has many moving parts. Caution must be
used in operation (opening, closing, etc.). Children should not be allowed to play on or
operate motion furniture. Always leave recliners in an upright position and keep hands
and feet clear of mechanism. Only the occupant should operate it.
To obtain warranty services, the original retail purchaser must comply with the
requirements of the Claim Procedure.
Contact the Signature Design authorized retailer from whom you purchased your furniture,
to obtain warranty service. All claims must include the original bill of sale, the product
serial number, and be filed within the applicable warranty period. Warrantor reserves
the right to require defective parts be returned upon request. You must make
arrangements with the retailer to schedule the transportation of the furniture or parts
from your home to the retailer or from the retailer to your home. If the retailer from
which you purchased the furniture has closed and you need service, contact Ashley in
writing or call our Customer Service.
Signature Design Brand Warranty
and Retailer Information
July 2023, Ashley Furniture Industries, LLC. All rights reserved.
Signature Design is a registered trademark of Ashley Furniture Industries, LLC
C
14
Ashley Furniture Industries, LLC
Attn: Consumer Affairs
One Ashley Way
Arcadia, WI 54612
Parts Website:
ashleyfurniture.parts
Customer Service Phone
Number: 844-966-0809
