Signature Design P445-772 User manual

P445-772
SAVE THESE INSTRUCTIONS
Product has been CSA tested and certified.
ITEM#:
THIS PROODUCT WAS MANUFACTURED BY QUANZHOU SANSHUI COMPOSITE MATERIALS INDUSTRY AND TRADE CO.,LTD. FOR ASHLEY FURNITURE INDUSTRIES, INC.
P445-772
Outdoor Square Fire Pit User Guide
Page 1 of 46

ASSEMBLY INSTRUCTIONS
Installer: Leave these instructions with consumer.
Consumer: Keep these instructions for future reference.
SAFETY INFORM ATION
IMPORTANT, FAILURE TO CAREFULLY READ, UNDERSTAND AND FOLLOW EVERY PART
OF THIS DOCUMENT MAY RESULT IN PROPERTY DAMAGE, SERIOUS BODILY INJURY
OR DEATH
FOR USE WITH 20LB (9KG) PROPANE CYLINDER
WITH TYPE 1 CONNECTION OR FOR USE WITH
NATURAL GAS AFTER CONVERSION KIT IS
INSTALLED (MUST BE PROFESSIONALLY
INSTALLED) ALSO THE LP REGULATOR MUST BE
SUPPLIED BY THE MANUFACTURER.
DANGER
DANGER indicates an imminently hazardous situation
which. If not avoided. Will result in death or serious injury.
!DANGER
FOR YOUR SAFETY - if you smell gas;
1. Shut off gas to the
appliance.
2. Extinguish any open flame.
3. If odor continues. Keep away from the appliance
and immediately call you gas supplier or fire
department.
!WARNING
USE FACTORY APPROVED REPLACEMENT PARTS
AND ACCESSORIES ONLY. USE OF UNAPPROVED
PART OR ACCESSORIES CAN VOID THE WARRANTY
ON THIS PRODUCT AND RESULT IN AHAZARDOUS\
CONDITION. PLEASE CONTACT US FOR
INFORMATION REGARDING REPLACEMNT HOSES,
THERMOCOUPLES, ELECTRODES, IGNITION
MODULES,LAVAROCKS,LOGS, FIRE ICE, ETC.
!
! DANGER
Failure to comply with the precautions and instructions
provided with this fire pit can result in death, serious
bodily injury and property loss or damage from
hazards of fire, explosion, burn, asphyxiation, and/or
carbon monoxide poisoning. Only persons who can
understand and follow the instructions should use or
service this fire pit.
!WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored
in the vicinity of this or any other appliance.
P445-772
CSA MODEL S5-011
Page 2 of 46

SAFETY INFOR MATION
!WARNING
We cannot foresee every use which may be made of
our fire pit.
Check with your local fire safety authority if you have
questions about fire pit use.
Other standards govern the use of fuel gases and heat
producing products for specific uses. Your local
authorities can advise you about these.
If no local codes exist, follow National Fuel Gas Code,
ANSI Z223. 1. In Canada, installation must conform to
local codes. If no local codes exist, follow the current
National standards of CANADA CAN/CGA-B 149.2.
!DANGER
EXPLOSION-FIRE HAZARD
Keep solid combustibles, such as building materials,
paper of cardboard, a safe distance away from the
fire pit as recommended by the instructions.
Provide adequate clearances around air openings
into the combustion chamber.
Never use the fire pit in spaces which do or may
contain volatile or airborne combustibles, or products
such as gasoline, solvents, paint thinner, dust particles
or unknown chemicals.
During operation, this product can be a source of
ignition. Keep fire pit area clear and free from
combustible materials, gasoline, paint thinner, cleaning
solvents and other flammable vapors and liquids. DO
not use fire pit in areas with high dust content.
Minimum fire pit clearances from combustible
materials: two (2) feet from the sides &two (2)
feet from the rear, 6 feet from ceiling.
DANGER
CARBON MONOXIDE HAZARD
This fire pit is a combustion appliance. All combustion
appliances produce carbon monoxide (CO) during the
combustion process. This product is designed to produce
extremely minute, non-hazardous amounts of CO if used
and maintained in accordance with all warnings and
instructions. DO not block air flow into or out of the fire pit.
Carbon monoxide (CO) poisoning produces flu-like
symptoms, watery eyes, headaches, dizziness, fatigue
and possibly death. You can't see it and you can't
smell it. It’s an invisible killer. If these symptoms are
present during operation of this product get fresh air
immediately!
For outdoor use only.
Never use inside house, or other unventilated or
enclosed areas.
This fire pit consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid endangering
your
life.
!DANGER
EXPLOSION - FIRE HAZARD
Never store propane near high heat, open flames,
pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120 degrees F (49°C).
Propane vapors are heavier than air and can
accumulate in low places. If you smell gas, leave the
area immediately.
Never install or remove propane cylinder while fire pit is
lighted, near flame, pilot lights, other ignition sources
or while fire pit is hot to touch.
The fire pit is red hot during use and can ignite
flammables too close to the burner. Keep flammables
at least 2 feet from sides & 2 feet from rear, 6 feet
from ceiling. Keep gasoline and other flammable liquids
and vapors well away from fire pit.
Store the propane cylinder outdoors in a well ventilated
space out of reach of children. Never store the propane
cylinder in an enclosed area (house, garage, etc.). If fire
pit is to be stored indoors, disconnect the propane
cylinder for outdoor storage.
!WARNING
WARNING indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
!WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
!WARNING: For Outdoor Use Only
!WARNING
Improper installation, adjustment alteration, service or
maintenance can cause property damage, injury or
death. Read the installation, operating and
maintenance instructions thoroughly before installing
or servicing this equipment.
!
! DANGER CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or home.
P445-772 Page 3 of 46

15
15
14
10.
9. Maintenance
8.
Page 4 of 46
TABLE OF CONTENTS
1. Important Safety Information ................................................. 5
2. Information about Propane .................................................... 7
3. Specifications .............................................................................. 7
4. Parts List ..................................................................................... 8
6.Installation ..................................................................................10
Lighting Instructions ...................................................................
..............................................................................
Troubleshooting Guide .............................................................
P445-772
5.Hardware List .............................................................................. 9
Natural Gas Conversion .............................................................137.

Page 5 of 46
IMPORTANT SAFETY INFORMATION
The installation must conform with local codes or, in the absence of all applicable local codes, including,
without limitation, with the National Fu el Gas Code, ANSI Z223.1/NFP A 54; International Fuel Gas Code;
Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as
applicable.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve
during any pressure testing of the gas supply system at test pressure equal to or less than 1/2 psi (3.5kPa).
The appliance area must be kept clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
Do not use this appliance if any part has been damaged or under water. Immediately call a qualified service
technician to inspect. Immediately call a qualified service technician to inspect the appliance and to replace
any part of the control system and any gas control which has been damaged or under water.
Do not sit or stand on appliance even when not in use and do not touch appliance
while in use or for at least 45 minutes after use as the appliance is very hot during
use and can cause serious burns.
The appliance will remain hot for up to 45 minutes after use. Do not touch or move
appliance for at least 45 minutes after it has been completely shut off.
Children and adults should be alerted to the hazards of high surface temperatures
and kept at a safe distance to avoid burns or clothing ignition.
All children should be kept away from the appliance and should not be allowed near the
product unless carefully supervised by an adult.
Clothing, any other object or flammable material should not be hung from the
appliance, placed on, near or underneath the appliance.
Any screen or guard removed for servicing an appliance must be replaced prior
to operating the appliance.
Keep children away from this appliance. This appliance contains small parts that
can be swallowed by children resulting in serious bodily injury or death.
Installation and repair should be done by a qualified service person. The appliance should
be inspected before use and at least annually by a professional service person. More frequent cleaning
may be required as necessary. It is imperative that the control compartments, burners and circulating
air passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
Do NOT ignite the burner before pouring all of the burner media (lava rock or fire glass) into the burner pan.
The media must be evenly distributed over the burner.
During initial firing of fire pit, please stay away from the fire pit for 20 minutes as fire media (lava rock or fire
glass may pop and hit someone on the face or eyes
Do NOT ignite or use the fire pit if the burner media (lava rock or fire glass) are wet. Ensure the burner media
are completely dry before igniting as intense heat could cause the media to crack and pop. Always place the
cover on the appliance when not in use in orderto avoid water contacting the media.
P445-772

Page 6 of 46
IMPORTANT SAFETY INFORMATION
It is UNSAFE to use this product for any purpose except as described in this document including, without
limitation, cooking.
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This
regulator is set for an outlet pressure of 11 inches water column.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
Before each use of this gas appliance, open the LP (Liquid Propane) Tank Drawer and inspect the LP
Hose. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to
the gas appliance being put into operation. Use only the replacement hose assembly specified in this
manual. Inspect the burner before each use of the appliance. The burner must be replaced prior to the
appliance being put into operation if it is evident that the burner is damaged. Use only the burner listed in
these instructions.
Keep the fuel supply hose away from any heated surfaces.
If you have any questions regarding the use of this unit, or find that your fire pit unit needs service, please
contact Ashley Furniture Industries at the below number.
1 [phone] Customer Service.
P445-772

Page 7 of 46
A self-contained LP-gas cylinder for use with this appliance must have a capacity of 20
lbs. and must be equipped with a Type 1 connector and an OP D (overfill protection

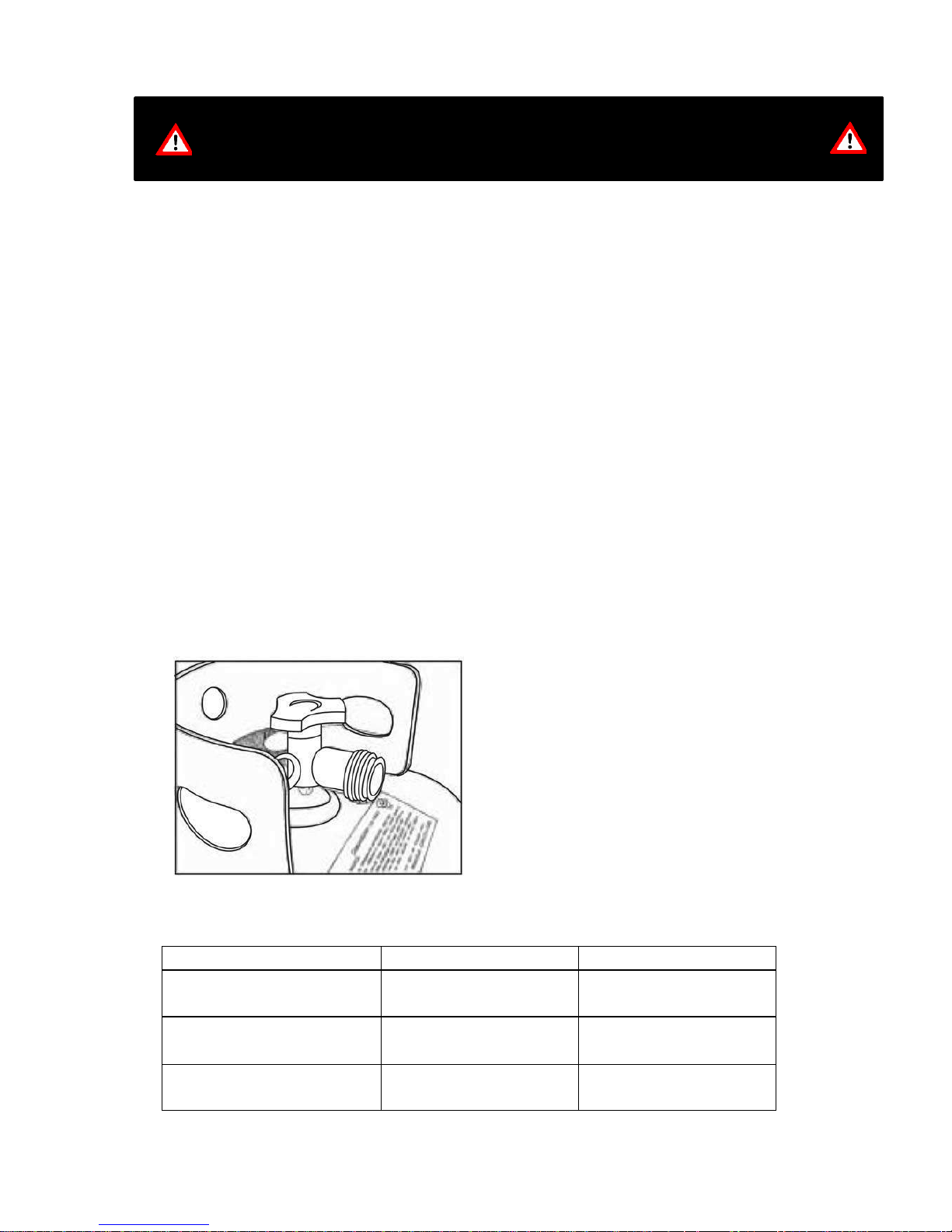

device). See Figure 1.
The LP-gas supply cylinder to be used must be constructed and marked in accordance
with the specification for LP- gas cylinders of the U.S. Department of Transportation
(DOT) or the National Standard of Canada, CAN/CSA-B339, Cylinder, Sphere and
Tubes for the Transportation of Dangerous Goods.
The cylinder supply system must be arranged for vapor withdrawal.
The cylinder used must include a collar to protect the cylinder valve.
This appliance shall be used only outdoors in a well-ventilated space and shall
not be used in a building, garage or any other enclosed space.
When this appliance is not is use, the gas must be turned off at the supply
cylinder.
Storage of this appliance indoors is permissible only if the cylinder is
disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of the reach
of children. Disconnected cylinders must have threaded valve plugs tightly installed
and must not be stored in a building, garage or any other enclosed areas.
CSA (Canadian Standards Association) certified to ANSI Z21.97•CSA 2.41-2016
“Outdoor Decorative Gas Appliances”.
Figure 1
SPECIFICATIONS
INPUT 50,000 Btu/hr
Propane Regulator
Pressure
11 inches water column
Natural Gas Minimum
Inlet Pressure
7 inches water column
Clearances to
combustible surfaces
Sides: 48in./121.9cm Top: 72 in. / 182.9 cm
IMPORTANT SAFETY INFORMATION ABOUT
PROPANE (LP) GAS
P445-772

1PC
1PC
1BOX
1PC
1PC
1PC
1PC
L
K
J
I
H
1PC
1PC
G
F
E
D
C
B
A
Page 8 of 46
PARTS IDENTIFICATION LIST
Item Qty
1PC
2PCS
P445-772
1PC
1PC
M
B
E
A
D
C
F
G
J
K
L
I
H
M
Description
Fire Glass ( Weight: 7kg)
Battery (AAA)
Table Top
PVC Rain Cover
Door Frame
Lid
Handle
Left Frame
Right Frame
Slide Rails & Tank Holder
Reinforcement bar
Back Frame
Aluminium Tube

Tools required for assembly (included): Wrench(N)
Q
P
O
N
NO
PQR
Page 9 of 46
P445-772
HARDW ARE L I S T
Item Description Qty
1/4"*30 Bolt
1PC
4mm Allen Wrench 1PC
∅6.5*∅16 Flat Washer
18PCS
1/4" Lock Washer
2PCS
22PCS
Before beginning assembly of this product be sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part appears to be missing or damaged do
not begin assembly of this product and call customer service immediately.
Estimated assembly time: 30 minutes
R
M4*30 Flange Bolt
22PCS
S1/4"*40 Bolt 2PCS
T
S
T
1/4"*20 Bolt

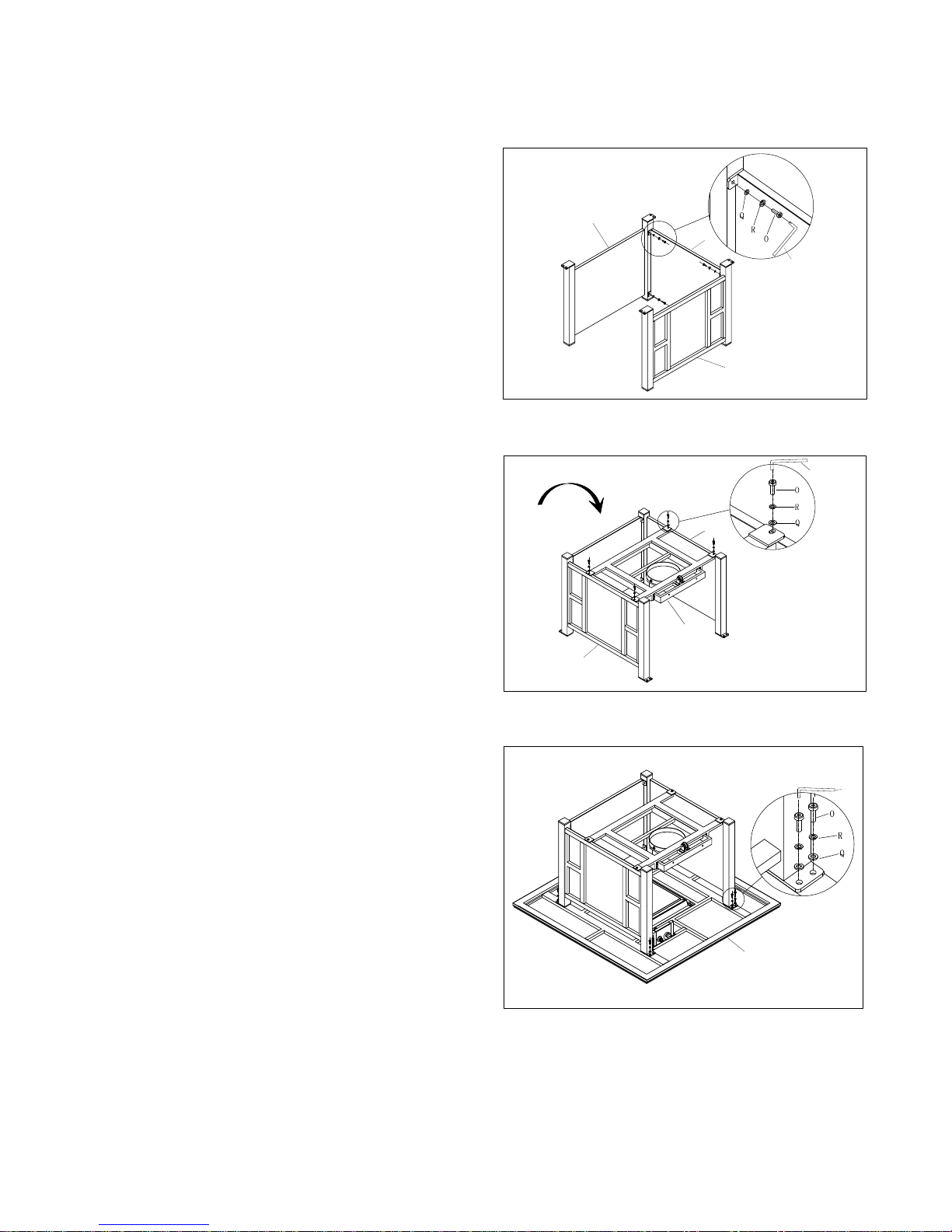

1. Attach Back Frame (L) to Left Frame (H)
and Right Frame (I) using 4pcs of 1/4"*20
Bolt (O), 4pcs of 1/4" Lock Washer (R) and
4pcs of ∅6.5*∅16 Flat Washer (Q)
by 4mm Allen Wrench (N).
Page 10 of 46
INSTALLATION
P445-772
H
I
L
3. Attach the three frames to Table Top (C)
using 8pcs of 1/4"*20 Bolt (O), 8pcs of
1/4" Lock Washer (R) and 8pcs of
∅6.5*∅16 Flat Washer (Q) by 4mm Allen
Wrench (N).
2. Turn over the unit, then attach Slide Rails
& Tank Holder (J) to Left Frame (H) and
Right Frame (I) using 4pcs of
1/4"*20 Bolt (O), 4pcs of 1/4" Lock Washer
(R) and 4pcs of ∅6.5*∅16 Flat Washer (Q)
by 4mm Allen Wrench (N).
H
I
J
C
N
N
N

Page 11 of 46
P445-772

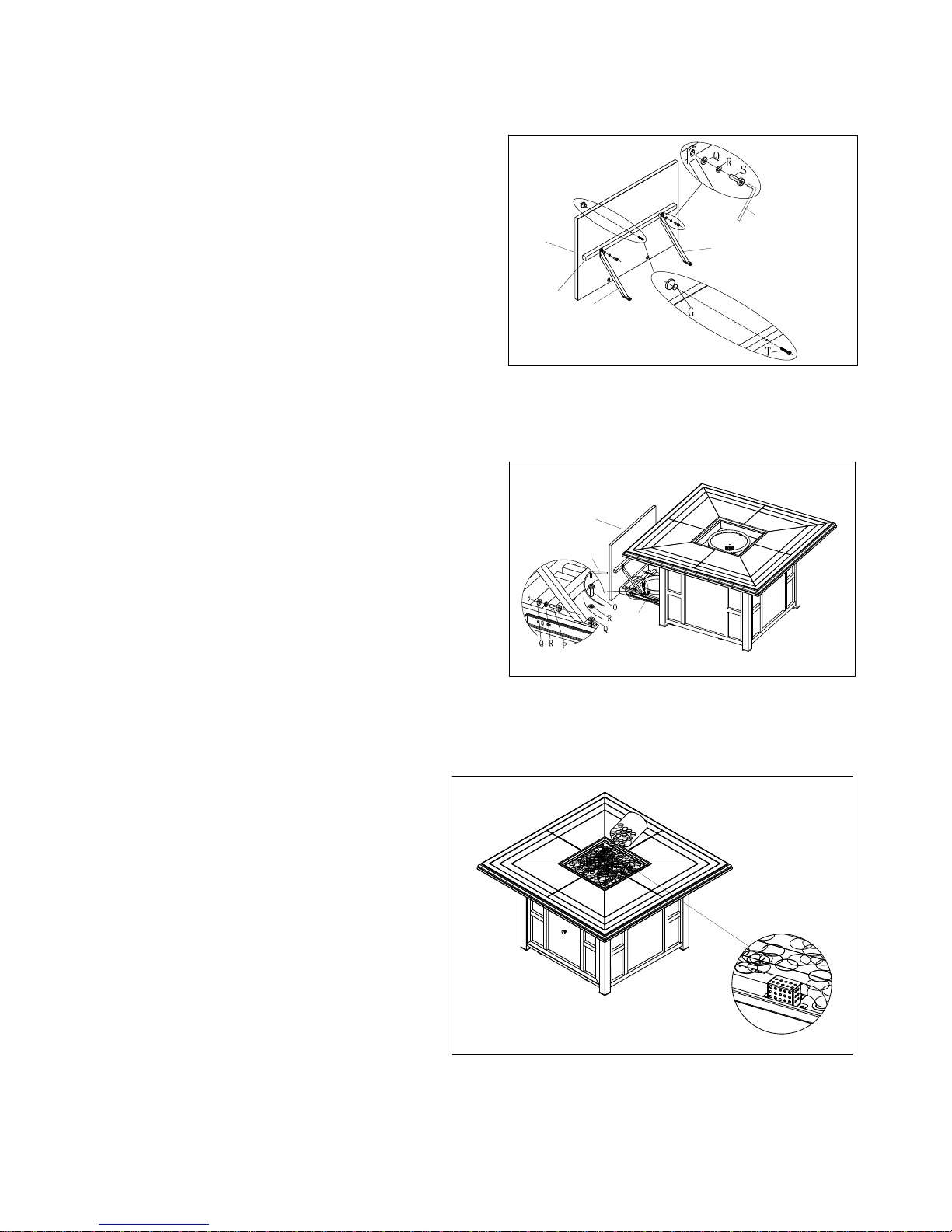

5. Attach Door Frame (E) to Slide Rails & Tank
Holder (J) using 2pcs of 1/4"*30 Bolt (P), 2pcs
of 1/4"*20 Bolt (O), 4pcs of 1/4" Lock Washer
(R) and 4pcs of ∅6.5*∅16 Flat Washer (Q) by
4mm Allen Wrench (N).
INSTALLATION
4. Attach Aluminium Tube (M) and Handle (G)
to Door Frame (E) using 1pc of M4*25 Flange
Bolt (T), then attach 2pcs of Reinforcement
bar (K) to Aluminium Tube (M) using 2pcs of
1/4"*40 Bolt (S), 2pcs of 1/4" Lock Washer
(R) and 2pcs of ∅6.5*∅16 Flat Washer (Q)
by 4mm Allen Wrench (N).
EK
K
M
N
E
N
J
6.Pour the fire glass into fire bowl.
DANGER
To ensure proper function, the guard on
this burner must not be covered by glass
beads.

OFF
Page 12 of 46
P445-772
INSTALLATION
9. Pull the door open and place the propane
gas tank (not included) into the tank holder.
Tighten the preassembled wing screw
clockwise to ensure the propane tank is
secure. Replace the door after the tank is
connected to the regulator.
B
8. Make sure the control knob is in the “OFF”
position. Unscrew the push button cap on
the ignition module located on the control
panel to access the Battery(B) compartment.
The ignition module requires one AAA size
Battery(B).
F
7. Cover the Lid (F) on the fire bowl.

Page 13 of 46
P445-772
INSTALLATION
10.Turn the cylinder valve on the tank
clockwise to close the propane tank.
Attach the preassembled regulator to
the cylinder valve by turning the
regulator coupling nut clockwise.
Make sure it is fastened securely and
tighten connections by hand only.
Open the tank valve. Apply a solution
of soapy water to the tank-regulator
connection and to the valve-hose
connection to check for leaks. If soap
bubbles continue to form, the
connection has a leak. If a leak is
found, close the tank valve and tighten
all connections. NEVER USE A
FLAME TO CHECK FOR LEAKS.
PRESSURE
RELIEF VALVE
BLEED-OFF
VALVE
REGULATOR
CYLINDER VALVE
BLACK COUPLING NUT
turn clockwise to connect
turn clockwise
to reseal
Natural gas conversion must be performed only by your natural gas provider or
service company. Attempting to perform the natural gas conversion yourself is
not safe and may result in property damage, serious bodily injury or death.
NATURAL GAS CONVERSION
This unit can be converted to operate on natual gas. If you wish to
convert this unit, please contact your Ashley Furniture representative
and order PA50-1 (sold separately).
If the information in this manual
is not followed exactly, a fire or
explosion may result causing
property damage personal injury
or loss of life.
Improper Installation, adjustment,
alteration, service or maintenance
can cause injury or property
damage.
Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
!
!IMPORTANT
WARNING
SAVE THESE INSTRUCTIONS
!DANGER
If you smell gas:
1. Shut o gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
USC

Page 14 of 46
LIGHTING INSTRUCTIONS
To Light
1. Read instructions before lighting.
2. Control knob must be in the “OFF” position.
3. Connect propane cylinder (See Manual), open cylinder valve.
4. Push and turn control knob counter clockwise to “LOW”.
5. Press the igniter button repeatedly to light burner.
6. Release control knob after 45 seconds.
7. If ignition does not occur in 45 seconds, push and turn burner control knob to “OFF”, wait 5
minutes, fan with newspaper or magazine, and repeat lighting procedure.
8. If igniter does not light burner, use a long match or long butane lighter.
9. After burner ignites, adjust flame to desired flame with the control knob.
To Extinguish
1. Turn and push the control knob clockwise to the OFF position.
2. Close cylinder valve, disconnect propane cylinder.
Prior to turning gas on and attempting to light the appliance, make sure the appliance is
outside, in a well ventilated area and free of any debris and is not in contact with or near any
people, animals, materials or structures. Failure to adhere to the above instruction may result
inpropertydamage, seriousbodilyinjury ordeath.
P445-772

Page 15 of 46
MAINTENANCE
• Before performing any maintenance always disconnect propane gas tank.
• Keep the heating item free and clear from combustible materials.
• Visually inspect burner for obstructions and keep tank enclosure free and clear from debris.
• Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner is
completely cooled down. Wipe down with a soft cloth.
• Harsh weather conditions may cause stubborn stains, discoloration and possibly rust pitting.
• Permanent damage may occur if powder or solvent comes in contact with painted or
plastic components on this heating unit.
• Keep the heating unit stored away from direct sunlight.
• If storing this unit inside, disconnect the propane gas tank from the gas valve.
• Not using manufacturer approved or supplied parts/accessories may result in a defective
condition and void the warranty of this heating unit.
• Carbon deposits may pose as a fire hazard; clean the reflector and inside of the glass tube
with soap and water if any carbon deposits are present.
TROUBLESHOOTING GUIDE
It is recommended that you contact a qualified service technician if you believe the appliance is not
functioning properly.
PROBLEM CAUSE REMEDY
Burner won’t light
No Propane Gas at Burner
Check that gas tank valve is open.
Turn control knob to “ON” and push
control knob in. Make sure tank has
propane gas.
No Spark at Electrode
Check that AAA battery is installed
with negative (-) end first and has a
charge. Check that the wire is
connected to the ignition module.
Check that the electrode is not
cracked or broken.
Lack of oxygen Remove excess fire glass from
around the ignition well.
Burner won’t stay
lit after lighting
Thermocouple not in flame
Check that the tip of the
thermocouple is even with the top
of the ignition well. Remove any
glass beads from the ignition well.
Thermocouple connection
at the main control valve is
loose
Tighten the thermocouple nut at the
back of the valve.
No fire glass on Burner Cover the burner with fire
glass per the instructions
P445-772

P445-772
SAUVEGARDER CES INSTRUCTIONS
Le produit a été testé et certifié par CSA.
ARTICLE#:
CE PRODUIT A ETE FABRIQUE PAR QUANZHOU SANSHUI COMPOSITE MATERIALS INDUSTRY AND TRADE CO.,LTD. FOR ASHLEY FURNITURE INDUSTRIES, INC.
P445-772
Guide d’Utilisateur Foyer de Carré Extérieur
Page 16 sur 46

INSTRUCTIONS DE MONTAGE
Installeur: Laisser ces instructions avec le client.
Client: Garder ces instructions pour la consultation ultérieure.
IMPORTANT, FAUTE DE LIRE ATTENTIVEMENT, COMPRENDRE ET SUIVRE CHAQUE
PARTIE DE CE DOCUMENT POURRAIT CAUSER LE DOMMAGE DE BIENS, DE
BLESSURE SERIEUSE DU CORPS OU LA MORT
P445-772
Modèle CSA S5-011
Page 17 sur 46
CONSIGNES DE SECURITE
POUR L’UTILISATION AVEC LA BOUTEILLE DE
PROPANE DE 20LB (9KG) AVEC LA CONNEXION
DU TYPE 1 OU POUR L’UTILISATION AVEC LE GAZ
NATUREL APRES QUE LE KIT DE CONVERSION
SOIT INSTALLE (DOIT ETRE INSTALLE
PROFESSIONNELLEMENT) EGALEMENT LE
REGULATEUR LP DOIT ETRE FOURNIT PAR LE
FABRICANT.
!
DANGER
DANGER indique une situation extrêmement dangereuse
qui, si elle n’est pas évitée, pourrait causer des blessures
! DANGER
Faute de conformer avec les précautions et les
instructions fournies avec ce foyer peut causer la mort,
la blessure grave corporelle et la perte de propriété ou
dommage des dangers d’incendie, d’explosion, de
brûlure, l’asphysie, et/ou l’intoxication de monoxyde
de carbone. S eule le s per so nne s q ui pe uve nt
com pre ndre et sui vr e le s instructions doivent
ut i l iser ou server ce foyer.
!DANGER
POUR VOTRE SECURITE –si vous sentez le gaz;
1. Eteindre le gaz à l’appareil.
2. Eteindre toute flamme
ouverte
3. Si l’odeur continue. Garder loin de l’appareil et appeler
immédiatement votre fournisseur de gaz ou le
département de feu
! AVERTISSEMENT
SEULEMENT
ET LES
LES PIECES UTILISER DE
REMPLACEMENT ACCESSOIRES
APPROUVES PAR L’USINE. L’UTILISATION DE PIECE
OU ACCESSOIRE NON APPROUVE PEUT ANNULER
LA GARANTIE SUR CE PRODUIT ET CAUSER UNE
CONDITION DANGEREUSE. VEUILLEZ NOUS
CONTACTER POUR L’INFORMAITON CONCERNANT
LES TUYAUX , LES THERMOCOUPLES ? DES
ELECTRODES , DES MODULES D’ALLUMAGE, DES
PIERRES DE LAVA, DES BUCHES, ET LA GLACE DE
FEU ETC.
! AVERTISSEMENT
Ne pas stocker ou utiliser l’essence ou autres vapeurs
et liquides inflammables à l’approximité de ceci ou tout
autre appareil. Une bouteille LP non connectée pour
l’utilisation ne doit pas être stockée à l’approximité de
ceci ou tout autre appareil.
!

P445-772 Page 18 sur 46
CONSIGNES DE SECURITE
! AVERTISSEMENT
! DANGER
DANGER EXPLOSION -FEU
Jamais stocker la propane prè sde haute chaleur, des
flammes ouvertes, des voyants lumineux, des lumières
solaires directe, autres sources d’allumage ou oùles
tempé raturedé passant 120 degré s F
(49° C). Les vapeurs de propane sont plus é paissesque l’air
et peuvent accumuler dans les endroits bas.
Si vous sentez le gaz, laisser immé diatementla zone
la zone.Jamais installer ou enlever la bouteille de
propane lorsque le foyer est allumé, près de flamme,
des voyants lumineux, ou autres sources d’allumage ou
lorsque le foyer est chaud à toucher
Le foyer est chaud rouge en cours d’utilisation et peut allumer
des flammes très près de brûleur. Garder des flammes au mois
2 pouces de côtés & 2 pouces d’arrière, 6 pouces de plafond.
Garder l’essence et autres liquides et vapeurs loin de
foyer.Stocker la bouteille de propane à l’extérieur dans un
espace bien ventiléhors porté edes enfants. Jamais stocker la
bouteille de propane dans une zone enfermée (maison, garage
etc.).
Si le puits de feu doit être entreposé à l'intérieur, débranchez l
e cylindre de propane pour l'entreposage en plein air et laissez
le puits de feu se refroidir complètement avant d’être déplacé
à l'intérieurr.
Nous ne pouvons pas anticiper chaque usage qui
pourrait être de notre foyer.
Vérifier avec l’autorité de sécurité de votre local si vous
avez des questions à propos de l’usage de foyer.
Autres normes régissent l’emploi de gaz et des
produits produisant de chaleur pour des usages
spécifiques. Votre autorités locales peuvent vous
conseiller à propos de celles-ci.
Si aucun code local existe, suivre le Code de Gaz
National, ANSI Z223. 1. Au Canada, l’installation doit
conformer aux codes locaux. Si aucun code local
existe, suivre les normes nationales actuelles de
Canada.
! DANGER
DANGER D’EXPLOISION-FEU
Garder des combustibles solids, tels que des
matériaux de consutruction, le papier de carton, une
distance sûre loin de foyer comme recommandé par
des instructions.
Garder le déblaiement adéquat autour des
ouvertures d’air dans la chambre de combustion.
Jamais utiliser le foyer dans les espaces qui ne ou
pourrait contenir les combustibles volatiles ou aérieuns,
ou des produits comme l’essence, les solvants, le diluant
à peinture, des particules de poussières ou des produits
chimiques inconnus.
En cours d’opération, ce produit peut être une source
d’allumage. Garder la zone de foyer déblaie et sans
matériaux de construction, d’essence, de diluant à
peinture, des solvants de nettoyage et autres vapeurs
et liquides inflammables. Ne pas utiliser le foyer dans
les zones avec le contenu de poussière élevé.
! DANGER
DANGER DE MONOXYDE DE CARBONE
Ce foyer est un appareil de combustion. Tous les
appareils de combustion produisent le monoxyde de
carbone (CO) en cours de combustion. Ce produit est
conçu pour produire des montants de particules infimes
non dangereuses de CO si utilisé et maintenu en
conformité avec tous les avertissements et des
instructions. NE pas bloquer la circulation d’air dans ou
à l’extérieur de foyer. L’intoxication de monoxyde de
carbone (CO) produit des symptômes similaires à la
grippe, des yeux larmoyants, des maux de tête, des
vertiges, la fatigue et possiblement la mort. Vous ne
pouvez le voir et vous ne pouvez le sentir. C’est un
tueur invisible. S ices symptômes sont presents en
cours d’opération de ce produit avoir l’air frais
immédiatement!
Pour l'usage extérieur seul.
Jamais utiliser à l'intérieur de la maison, ou autres zones no
! AVERTISSEMENT
AVERTISSEMENT indique une situation extrêmement
dangereuse qui, si elle n’est pas évitée, peut causer la
mort ou la blessure grave.
! AVERTISSEMENT
Ne pas stocker ou utiliser l’essence ou autres vapeurs
et liquides inflammables à l’approximité de cet ou tout
autre appareil. Une bouteille LP non connectée pour
l’utilisation ne doit pas être stockée à l’approximité de
cet ou tout autre appareil.
! AVERTISSEMENT:Seulement pour l’usage extérieur
! AVERTISSEMENT
L’installation incorrecte, l’altération d’ajustement, l’entretien
ou la maintenance peut causer le dommage de bien, la
blessure ou la mort. Lire complètement des instructions
d’installation, d’opération et de maintenance avant
l’installation ou l’opération de cet équipement.
!
! DANGER DANGER DE MONOXYDE DE
CARBONE
Cet appareil peut produire le
monoxyde de carbone qui n’a
aucune odeur. L’utilisation de ceci
dans un espace enfermé peut vous
tuer. Jamais utiliser cet appareil
dans un camp, une tente, un
véhicule ou à la maison

30
30
29
10.
9. Maintenance
8.
Page 19 sur 46
TABLE DE MATIERES
1. Consignes de Sécurité Importantes ......................................... 20
2. Information à propos de Propane. .............................................. 22
3. Spécifications .............................................................................. 22
4. Liste des Pièces ......................................................................... 23
6.Installation ...................................................................................25
Instructions d’Allumage .............................................................
...............................................................................
Guide de Dépannage ................................................................
P445-772
5.Lista de hardware........................................................................ 24
Conversion Au Gaz Naturel.........................................................287.

Page 20 sur 46
P445-772
CONSIGNES DE SECURITE IMPORTANTES
L’installation doit conformer aux codes locaux ou, dans l’absence de tous les codes locaux applicables, y
compris, sans limite, avec National Fu el Gas Code, ANSI Z223.1/NFP A 54; International Fuel Gas Code;
Natural Gas and Propane Installation Code, CSA B149.1; ou Propane Storage and Handling Code, B149.2,
comme applicable.
L’appareil et la vanne de gaz principale de l’appareil doivent être déconnectés de système de tuyauage
d’alimentation de gaz en cours de test de pressure de ce système à la pressure de test limitée à1/2 psi
(3.5kPa).
L’appareil doit être isolé de système de tuyauage de gaz en fermant la vanne de fermeture en cours de test de
pressure de système d’alimentation de gaz à la pressure de test égal ou moins de 1/2 psi (3.5kPa).
La zone de l’appareil doit être gardée dégagée et libre des matériaux combustibles, d’essence et autres vapeurs
et liquides flammables.
Ne pas utiliser cet appareil si toute pièce a été endommagée ou dans l’eau. Appeler immédiatement un
technicien d’entretien qualifié pour inspecter l’appareil et remplacer toute pièce de système de contrôle et tout
contrôle de gaz qui a été endommagé ou dans l’eau.
Ne pas vous asseoir ou reposer sur l’appareil même s’il n’est pas en utilisation et
ne pas toucher l’appareil en cours d’usage ou pour au moins 45 minutes après l’usage comme l’appareil est
très chaud en cours d’usage et peut causer les brûlures graves.
L’appareilva rester chaud pour jusqu’à 45 minutes aprèsl’usage. Ne pas toucher ou
déplacer l’appareilpour au moins 45 minutes après qu’il soit complètement éteint.
Les enfants et les adultes doivent être avertis aux dangers de hautes températures
de surface et gardées à une distance sûre pour éviter des brûlures ou l’allumage de tissue.
Lesenfantsdoiventêtre gardésloinde l’appareiletnedoiventpasêtre permisde
prèsdu produitsaufsurveillanceattentiveparun adulte.
La garniture, tout autreobjetou matérielflammablene doit pasêtresuspendu de
l’appareil, mis la-dessus, près ousous l’appareil.
Toutécranouprotectionenlevéepourentretenir un appareildoitêtrereplaceavant
l’opérationde l’appareil.
Garderdesenfantsloin de cet appareil. Cet appareilcontient des petites pièces qui
peuventêtreavalées par les enfantscausantdeblessuregravecorporelle ou la mort.
L’installation et la réparation doivent être faites par une personne d’entretien qualifiée.
L’appareil doit être inspecté avant l’usage et au moins une fois par an par une personne d’entretien professionnelle. Le
nettoyage plus fréquent pourrait être exigé si nécessaire. Il est impérative que les compartiments de contrôle, les
brûleurset lespassagesd’air de circulationde l’appareilsoientgardéspropre.
Ne PAS brûler des carburants solides dans ce foyer au gaz.
Ne PAS allumer le brûleur avant de verser tout de media de brûleur(pierre de lava ou glace de feu) dans le plat
de brûleur. Le média doit être distribué proportionnellement sur le brûleur.
Si en cours d’allumage de foyer, veuillez rester loin de foyer pour 20 minutes comme le media de feu (pierre de
lava ou glace de feu) pourrait sauter et frapper quelqu’un sur le visage ou dans les yeux.
Ne PAS allumer ou utiliser le foyer si le média de feu (pierre de lava ou glace de feu) sont mouillé. S’assurer
que le média de brûleur soit sec complètement avant de l’allumer comme la chaleur intense pourrait causer le média
à craquer et sauter. Mettre toujours le couvercle sur l’appareil en cas de non usage afin d’éviter l’eau de contacter le
média .
