Signature Kitchen Suite UPSXB2627 Series User manual

ENGLISH FRANÇAIS ESPAÑOL
www.thesignaturekitchen.com
OWNER’S MANUAL
BUILT-IN SXS REFRIGERATOR
Please read this owner's manual thoroughly before operating
and keep it handy for reference at all times.
UPSXB2627*

ENGLISH
2
4
6
When Connecting the Power
When Using the Refrigerator
Product Overview
Starting
Adjusting the Temperatures and Functions
Control Panel

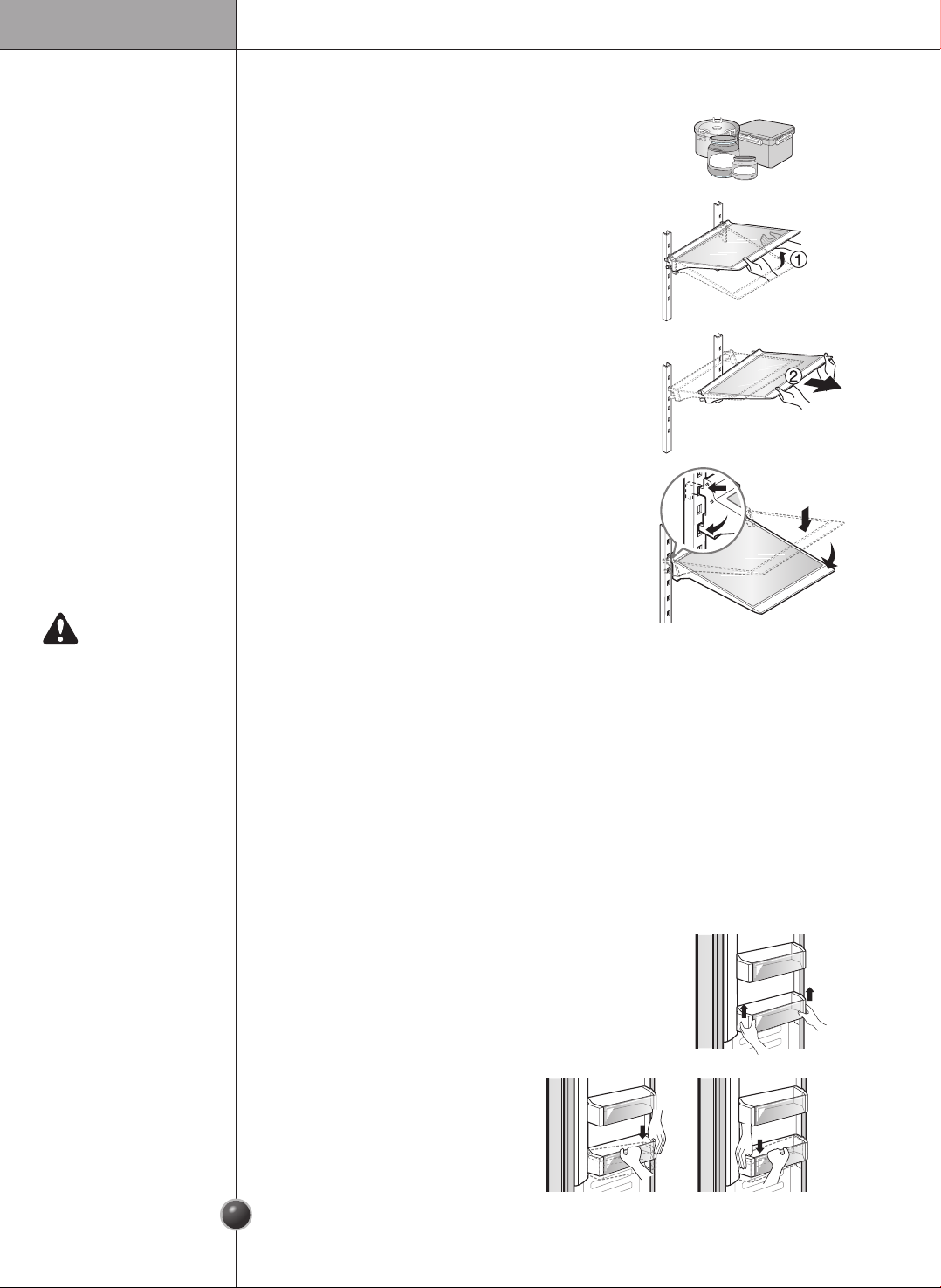

Shelf
Freezer Door Bin
Dairy Corner
Adjustable Door Bin
Refrigerator Gallon Bin
Refrigerator/Freezer Drawers
Upper/Lower Drawer Covers
Replacing the Water Filter
Food Storage Guide
Before Using Tag On
Using the Tag On Function
Using Tag On with Applications
General Information
Cleaning
Smart Diagnosis
Troubleshooting Guide
Before Calling for Service
12
11
12
13
19
19
20
20
21
22
22
26
27
27
24
28
29
30
31
46
21
TABLE OF CONTENTS
SAFETY
INSTRUCTIONS
PRODUCT
OVERVIEW
OPERATION
STORING FOOD
SMART FEATURES
CARE AND
MAINTENANCE

Safety Instructions
3
IMPORTANT SAFETY INSTRUCTIONS
This guide contains many important safety messages.
Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING, or CAUTION. These words mean:
All safety messages will identify the hazard, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.
DANGER
You may be killed or seriously injured if you don’t follow
instructions.
WARNING
You can be killed or seriously injured if you don’t follow
instructions.
CAUTION
Indicates an imminently hazardous situation which, if
not avoided, may result in minor or moderate injury, or
product damage only.

4
Safety Instructions
ENGLISH
WARNING
To reduce the risk of fire, electric shock, or personal injury when using your
product, basic safety precautions should be followed, including the following.
Read all instructions before using this appliance.
WARNING
TIP-OVER HAZARD
Use two or more people to move and install the refrigerator.
To prevent the refrigerator from tipping over, install anti-tip brackets
(provided). Failure to follow the refrigerator installation instructions
can result in serious injury or death.
1. When Connecting the Power
Use a dedicated outlet.
• Using several devices at one outlet may cause a fire.
When moving the refrigerator away from the wall, be careful not to roll over or
damage the power cord. Do not squeeze or crush the cord or plug when
pushing the refrigerator back in.
Doing so could result in fire or electric shock.
Do not allow the power cord to be bent, crushed, or damaged. Do not run the
power cord under heavy objects like furniture, other appliances, or inthrough
high-traffic areas.
It may damage the power cord and result in fire or electric shock.
Plug in the power plug with the power cord facing downward.
Failure to do so could damage the plug or cord, resulting in fire or electric shock.
WARNING
This product contains chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm. Wash hands after handling.
Do not extend or modify the length of the power cord.
Use only an exact factory replacement part to avoid electrical issues, fire, or electric
shock.

Safety Instructions
5
Remove water or dust from the power plug and insert it securely into the wall
socket.
Dust, water, or a loose connection may cause a fire or electric shock.
Do not use the power cord or the power plug if it is damaged or if the outlet is
damaged.
Doing so may cause electric shock or short circuit resulting in a fire.
Wait for 5 minutes or longer when reconnecting the plug.
Give the compressor time to cycle before re-starting.
If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
Do not unplug the refrigerator by pulling on the cord.
Doing so may cause electric shock or short circuit to fire.
Do not pull out the cord or touch the power plug with wet hands.
Doing so may cause electric shock or injury.
Unplug the power cord or turn off the power when cleaning or moving the
refrigerator.
• Failure to do so may cause electric shock or injury.
• Press the POWER button for 3 seconds to turn off the power at display panel.

6
Safety Instructions
ENGLISH
2. When Using the Refrigerator
Do not place heavy or dangerous objects on the refrigerator.
Opening or closing the door may cause objects to fall, resulting in injury, fire, or
electric shock.
Do not install the refrigerator in a damp location or where it will be exposed to
running water.
Deterioration of the insulation on electrical parts may result, causing risk of electric
shock.
Do not allow children to hang on the refrigerator doors, shelves or drawers.
Doing so may cause serious injury.
Do not allow children to climb into the product.
A child's life could be endangered if the child climbs into the refrigerator.
Opening and closing the door of the refrigerator vigorously may cause the
stored food in the door bins to fall.
Do not use or store flammable materials like ether, benzene, alcohol,
medicine, LP gas, sprays, or cosmetics near or in the refrigerator.
Doing so may cause explosion or fire.
Do not use a hair drier to dry the inside, nor light a candle to remove odor.
Doing so may cause explosion or fire.

Safety Instructions
7
If your refrigerator is leaking, have it checked by an authorized service
technician before operating it.
Failure to follow this warning may cause electric shock or fire.
Turn off the refrigerator if you will not be using it for an extended period of
time, or in the event of a severe electrical storm.
Press the POWER button for 3 seconds to turn off the power at the control panel.
Do not install the refrigerator near a gas stove, water heater or other source
of ignition that may possibly leak gas.
Do not use combustible sprays (including cooking sprays,
oils and other aerosol products) on or near the refrigerator.
Doing so may cause a fire.
Do not spray water inside or outside the refrigerator,
do not clean it with benzene or thinner.
If the insulation around electrical parts deteriorates, it can result in electric shock or
fire.
If a strange smell or smoke is detected from the refrigerator, turn off the
refrigerator and contact the service center.
Failure to follow this warning may result in a fire.
This product is not to be used for special purposes such as the storage of
medicine or test materials or for use on ships, vehicles, aircraft, etc.
It may cause an unexpected risk such as fire, electric shock, deterioration of stored
material, chemical reaction.
Do not allow any person except an authorized servicer to disassemble, repair,
or alter the refrigerator.
Doing so may cause injury, electric shock or fire.

8
Safety Instructions
ENGLISH
When disposing of the refrigerator, remove the packing materials from the
door or take off the doors but leave the shelves in place so that children may
not easily climb inside.
Child entrapment generally results in death by suffocation.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Install the refrigerator on a solid and level floor.
If the refrigerator tips when opening or closing the door, it could fall over, causing
property damage and personal injury.
Do not step on the pipe under the freezer door.
Doing so may cause electric shock or injury.
If connected to a circuit protected by fuses, use time delay fuse.
Do not put hands, feet, or metal objects into the air vents or cover, or below
or behind the refrigerator.
Doing so may result in electric shock or injury.
Supply the automatic icemaker with drinkable water.
Non-potable water can cause health risks.

Safety Instructions
9
Do not touch food or containers in the freezer with wet hands.
Doing so may cause frostbite.
Do not put ice in a thin crystal cup or ceramic ware.
The glass may shatter and present a hazard.
In event of power outage, remove ice from ice bin.
Ice will melt and water will leak onto floor. Dump ice if power is out for a long period.
Do not remove the cover of the automatic ice dispenser.
The internal mechanism of the icemaker can cause injury if handled.
Place food items and containers carefully on the shelves in the refrigerator.
Opening and closing the door may cause food to fall, resulting in injury.
Do not put glass bottles or containers in the freezer.
Contents may break the bottle when frozen, resulting in risk of injury.
Do not stick your hands under the refrigerator.
Sharp edges, fans, and wires may cause an injury.
CAUTION
Do not insert hands into the ice bucket or the ice dispenser.
Doing so may cause injury.

10
Safety Instructions
ENGLISH
Close the door carefully when children are near.
Keep fingers out of pinch point areas; clearances between the doors and cabinets
are necessarily small. Be careful closing doors when children are nearby.
Do not put live animals into the refrigerator.
SAVE THESE INSTRUCTIONS

Product Overview
11
Product Overview
Freezer
Compartment Refrigerator Compartment
Dairy Corner
LED Display
Control Panel
LED Lamp
Automatic
Icemaker
Top Cover
Shelf
Shelf
Door Bin
Drawer (3)
Lower Cover
Shelf
Shelf
LED Lamp
Filter
Gallon bin
Adjustable door bin
Adjustable door bin
Drawer(3)

12
Operation
ENGLISH
Starting
When the refrigerator is first installed, allow it to stabilize at normal operating
temperatures for 2-3 hours prior to filling it with fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting.
Adjusting the Temperatures and Functions
Dispenser Push Switch
Dispenser Lamp (hidden)
Water/Ice Output
Dispenser Control Panel
LED Display Control Panel

Operation
13

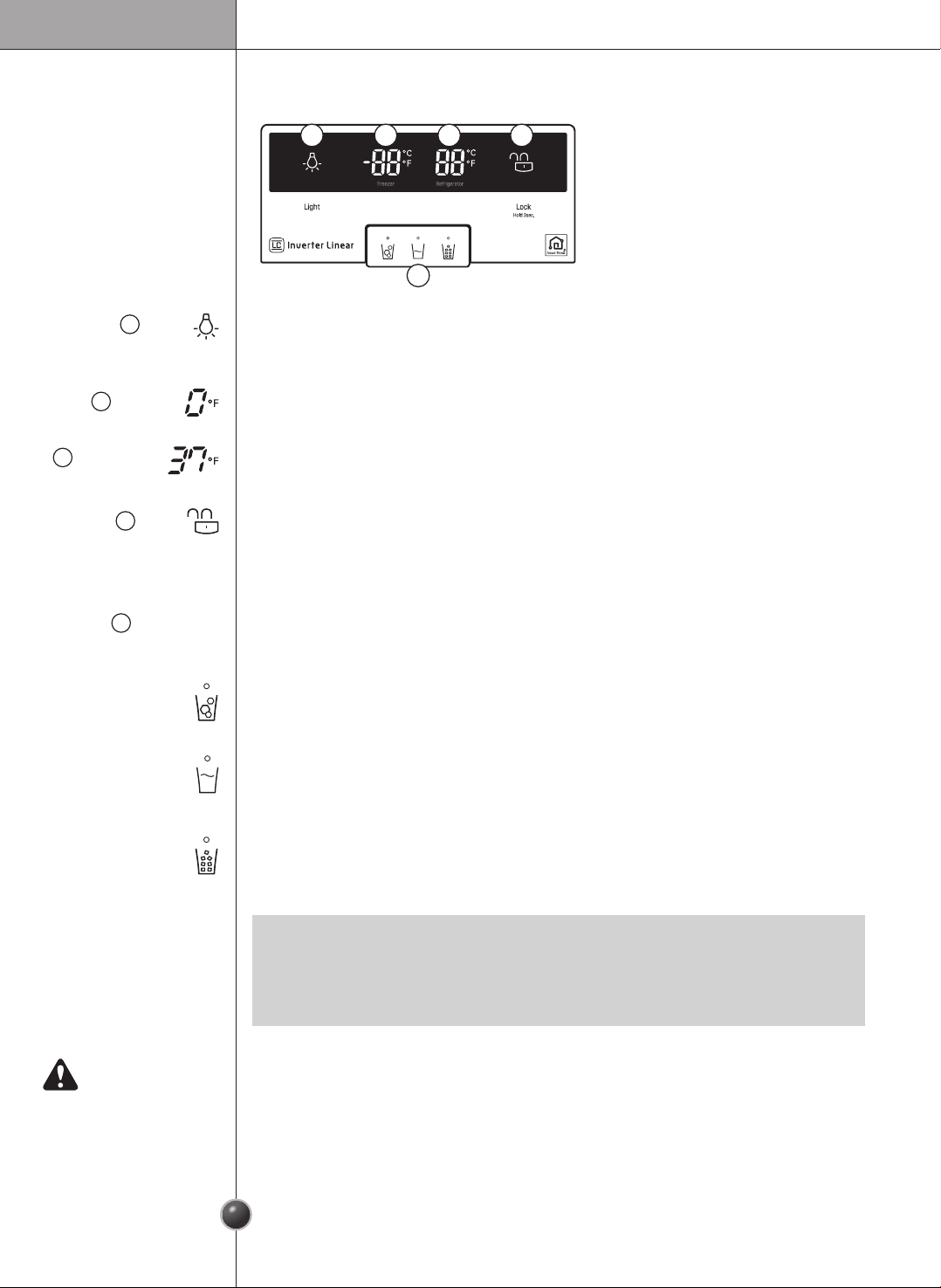

Control Panel
1
1211109
13
2 3 4 5 6 7 8
LED Display Control Panel
1
Power
2
Ice Plus
3
Freezer
4
Refrigerator
The Power button turns off all electrical power to the unit.
Press and hold the Power button for 3 seconds to turn off the power. When the
power is off, the indicator light is off. There is no need to turn off power at the circuit
breaker or wall receptacle. Use this function for service or extended vacations.
Press the Ice Plus button once to activate the Ice Plus function.
The Ice Plus icon on the display panel illuminates when activated.
The Ice Plus function runs the freezer compartment at the coldest setting for a
24-hour period to increase icemaking by up to about 20%, and then turns off
automatically.
To adjust the temperature in the freezer compartment, press the Freezer button to
cycle through the range of available settings.
To adjust the temperature in the refrigerator compartment, press the Refrigerator
button to cycle through the range of available settings.
•
Press the button again to cancel the Ice Plus function.
NOTE
• The actual inner temperature varies depending on the food status, since the
indicated temperature setting is the target temperature and not the actual
temperature within the refrigerator.
Initially set the REFRIGERATOR CONTROL at 37 ˚F and the FREEZER
CONTROL at 0 ˚F. Leave them at these settings for 24 hours (one day) to
stabilize.
Then adjust the compartment temperature as illustrated above.
• To change temperature display from Fahrenheit to Celsius press and hold the
Freezer and Refrigerator buttons simultaneously for approximately 5 seconds.
Do the same to convert back to Fahrenheit.
NOTE
Smart Diagnosis

14
Operation
ENGLISH
6
Water Filter
7
Smart Diagnosis
8
NFC Tag On
Press and hold the Water Filter button for approximately 3 seconds to reset the filter
indicator after the water filter has been replaced.
Use during the Smart Diagnosis Feature.
The Tag On icon, for use with Smart Features.
•
It is recommended that you replace the water filter approximately every 6 months,
when the water filter indicator light reaches 0 or if the ice or water starts to taste
bad.
NOTE
5
Door Alarm The Door Alarm button also controls the door alarm that sounds three times at
30-second intervals when a compartment door is left open for more than 60
seconds. The alarm stops sounding when the door is closed. Press the Door Alarm
button once to activate and deactivate the door alarm function.
• Contact your local service center if the alarm continues to sound after the
doors are closed.
NOTE

Operation
15
9
Light
10
Freezer
11
Refrigerator
12
Lock
Dispensing Water
13
Dispenser
Selection Indicator
When Light is pressed the dispenser light turns on and the indicator appears on the
LED display.
Freezer temperature indicator.
Refrigerator temperature indicator.
Press and hold the Lock button for three seconds to lock the dispenser and all of
the other control panel functions.
Press and hold again for 3 seconds to unlock.
Press the dispenser selection button repeatedly until the cubed ice icon illuminates.
Press the dispenser switch with a glass or other container to dispense cubed ice.
Press the dispenser selection button repeatedly until the water icon illuminates.
Press the dispenser switch with a glass or other container to dispense water.
Press the dispenser selection button repeatedly until the crushed ice icon
illuminates.
Press the dispenser switch with a glass or other container to dispense crushed ice.
Displays whether the dispenser is set to dispense water, cubed or crushed ice.
1
1211109
13
2 3 4 5 6 7 8
Dispenser Control Panel
• Hold the container as close to the ice or water chute as possible to avoid
spilling and splashing.
• Do not dispense ice into fine china or crystal glasses. China or crystal can be
broken.
• Hold the glass or other container in place for a couple of seconds after
dispensing ice or water to catch the last few cubes or drops. The dispenser is
designed to not operate while either refrigerator door is open.
NOTE
CAUTION
Dispensing
Crushed Ice
Dispensing
Cubed Ice

16
Operation
ENGLISH
• The automatic icemaker can automatically make 6 cubes at a time, 70~120 pieces
per day. This quantity may vary by circumstance, including ambient temperature,
door opening, freezer load. etc.
• Icemaking stops when the ice storage bin is full.
• If you don't want to use the automatic icemaker, turn the icemaker switch to OFF.
If you want to use automatic icemaker again, change the switch to ON.
Automatic
Icemaker
• It is normal that a noise is produced when ice drops into the ice storage bin.
• Occasionally shake the ice storage bin so that the ice does not pile higher on one
side. If the ice piles up high next to the ice maker, ice production will stop.
NOTE
Cleaning
The water collector has no self-drainage function,
so it should be cleaned regularly. Remove the
cover by pulling the front of the water collector
cover and dry it with a cloth.
• To avoid injury, do not insert hands into icemaker.
WARNING
lcemaker
ON/OFF Switch
Automatic
Shutoff Arm

Operation
17
Ice is Lumped Together
• When ice is lumped together, take the ice lumps out of the ice storage bin,
break them into small pieces, and then place them into the ice storage bin
again.
• When the icemaker produces too small or lumped together ice, the amount of
water supplied to the ice maker may need to be adjusted. Contact the service
center.
❈ If ice is not used frequently, it may lump together.
Power Failure
• 

Ice may drop into the freezer compartment. Take the ice storage bin out and
discard all the ice. Dry the ice bin and place it back in the freezer.
The Refrigerator is Newly Installed
• It takes about 12 hours for a newly installed refrigerator to make ice in the
freezer compartment.
Icemaker Not
Working Properly
Other Functions Open Door Alert
• A warning tone will sound 3 times at thirty-second intervals if the refrigerator or
freezer door is left open for more than sixty seconds.
• Please contact a local service center if the warning continues to sound after door is
closed.
Auto-Closing Door
System The doors automatically close when in the 60
degree position, as shown in the picture below.
• This function is operated with a spring-damper
mechanism. Closing speed and strength depends
on the ambient temperature, frequency of door
opening/closing and contents of the door bins.
NOTE

18
Operation
ENGLISH
Throw away the first few batches of ice (about 24 cubes) and water
(about 7 glasses) first made after refrigerator installation.
The first ice and water may include particles or odor from the feed water pipe or
feed water box. This is also necessary if the refrigerator has not been used for
a long time.
Children should be supervised when using the dispenser.
Be careful that frost does not block the ice passage.
The ice passage may become blocked with frost if only crushed ice is used.
Remove the frost that accumulates by removing the ice bin and clearing the
passage with a rubber spatula. Dispensing cubed ice can also help prevent
frost buildup.
Never store beverage cans or other items in the ice bin for the purpose of
rapid cooling.
Doing so may damage the icemaker or the containers may burst.
Never use thin crystal glass or crockery to collect ice.
Such containers may chip or break resulting in glass fragments in the ice.
Dispense ice into a glass before filling it with water or other beverages.
Splashing may occur if ice is dispensed into a glass that already contains liquid.
To avoid personal injury, keep hands out of the ice door and passage.
Part breakage or injury may occur.
Never remove the icemaker cover.
If discolored ice is dispensed, check the water filter and water supply. If
the problem continues, contact service center. Do not use the ice or water
until the problem is corrected.
Never use a glass that is exceptionally narrow or deep.
Ice may jam in the ice passage and refrigerator performance may be affected.
Keep the glass at a proper distance from the ice outlet.
A glass held too close to the outlet may prevent ice from dispensing.
CAUTION

Operation
19
Shelf
The shelves in the refrigerator are adjustable to meet
individual storage needs.
1. Hold the front part of the shelf and lift it up slightly.
2. While holding the shelf, tilt the shelf to pull it out.
Make sure that shelves are level from one side to the
other.
Failure to do so may result in the shelf falling or food
spilling.
Tilt the front of the shelf up and guide the shelf
hooks into the slots at a desired height. Then, lower
the front of the shelf so that the hooks drop into the
slots.
Disassembling
Reassembling
Freezer Door Bin
Use to store small packaged frozen food.
Do not store ice cream or food a for long period of time.
Hold the bin with both hands and slightly lift up the
front part to pull it out.
Disassembling
Hold the bin with both hands and
reassemble one side at a time by
pushing it in.
Reassembling
CAUTION
