Signature Kitchen Suite SKSFD3613 Series User manual

OWNER'S MANUAL
FRENCH DOOR
REFRIGERATOR
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
ENGLISH
SKSFD3613*
MFL69497041
Rev.01_092320
www.signaturekitchensuite.com (USA)
www.signaturekitchensuite.ca (CANADA)
Copyright © 2020 Signature Kitchen Suite. All Rights Reserved.

TABLE OF CONTENTS
2
3 IMPORTANT SAFETY
INSTRUCTIONS
3 READ ALL INSTRUCTIONS BEFORE USE
3WARNING
6CAUTION
7 PRODUCT OVERVIEW
7 Product Features
10 INSTALLATION
10 Before Installing
11 Choosing the Proper Location
13 Removing/Assembling Handles
14 Removing/Assembling Doors and Drawers
19 Connecting the Water Line
22 Leveling and Door Alignment
23 Turning on the Power
24 OPERATION
24 Before Use
25 Control Panel
27 Sabbath Mode
27 Ice and Water Dispenser
29 Ice Compartment
30 Automatic Icemaker
31 Storing Food
33 Humidity Controlled Crispers
34 Glide‘N’Serve
34 Refrigerator Shelves
35 Door-in-Door
37 Door Bins
37 Durabase
38 SMART FUNCTIONS
38 SIGNATURE KITCHEN SUITE Application
40 Smart Diagnosis™ Feature
41 Smart Grid Function
43 MAINTENANCE
43 Cleaning
43 Air Filter
44 Water Filter
48 TROUBLESHOOTING
48 FAQs
49 Before Calling for Service
59 LIMITED WARRANTY
59 USA
61 Canada

3IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Safety Messages
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what may happen if the instructions are not followed.
WARNING
WARNING
• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this
product, follow basic precautions, including the following:
Installation
• To reduce the risk of injury to persons, adhere to all industry recommended safety procedures including
the use of long-sleeved gloves and safety glasses.
• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has
missing or broken parts, including a damaged cord or plug.
• Only connect this product to a dedicated grounded electrical outlet rated for use with this product (115
V, 60 Hz, AC only). It is the user’s responsibility to replace a standard 2-prong wall outlet with a standard
3-prong wall outlet.
• Do not use an outlet that can be turned off with a switch. Do not use an extension cord.
• The appliance must be positioned for easy access to a power source.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
• Contact an authorized service center when installing or relocating the refrigerator.
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
• Keep packing materials out of the reach of children. Packaging material can be dangerous for children.
There is a risk of suffocation.
• Do not install the refrigerator in a damp or dusty place where insulation on electrical parts may
deteriorate.
• Do not place the refrigerator in direct sunlight or expose it to the heat from heating appliances such as
stoves or heaters.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages
will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.

4IMPORTANT SAFETY INSTRUCTIONS
• Do not bend or pinch the power cord excessively or place heavy objects on it.
Operation
• This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
• This product is not to be used for special purposes such as the storage of medicine or test materials or
for use on ships, etc.
• DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the
refrigerator. They could damage the refrigerator and seriously injure themselves.
• Do not allow children to climb into the refrigerator. They could be trapped and suffocated.
• Children should be supervised to ensure that they do not play with the refrigerator.
• Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small.
Be careful closing doors when children are nearby.
• Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. Doing
so may cause frostbite.
• Do not refreeze frozen food that has thawed completely. Doing so may result in a serious health hazard.
• Do not use an adapter plug or plug the power plug into a multi-outlet extension cord.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
• Do not operate the refrigerator or touch the power cord with wet hands.
• Do not modify or extend the power cord.
• Do not use an uncertified power outlet. Do not plug appliance into a damaged wall outlet.
• Do not put hands, feet or other objects into the air vents or bottom of the refrigerator. Doing so could
result in personal injury or electric shock.
• In the event of a gas leak (propane/LPG), ensure the area is adequately ventilated and contact an
authorized service center before resuming use. Do not touch the refrigerator or power cord of the
refrigerator.
• Disconnect the power cord immediately and contact an authorized service center if there is a strange
noise, odor, or smoke coming from the appliance.
• Do not use any fuse (such as copper, steel wire, etc.) other than a standard fuse.
• Do not place or use an electrical appliance inside the refrigerator, unless it is of a type recommended by
the manufacturer.
• Do not put animals inside the appliance.
• Do not place heavy or fragile objects, liquid filled containers, combustible substances, or flammable
objects (such as candles and lamps) on the appliance.
• If connected to a circuit protected by fuses, use time delay fuse.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are
of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

5IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
Maintenance
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not light a candle to remove odors in the refrigerator.
• In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure the area is
adequately ventilated and contact an authorized service center.
• Keep flammable materials and vapors, such as gasoline, away from the refrigerator.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• Unplug the power plug before cleaning or repairing the refrigerator.
• The refrigerator and freezer compartment lights are interior LED lighting, and service should be
performed by a qualified technician.
• Unplug the power plug immediately in the event of a blackout or thunderstorm.
• Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
• Do not store glass containers or soda in the freezer compartment. Contents may expand when frozen,
break the container and cause injury.
• Do not store, disassemble or repair the appliance yourself or allow unqualified personnel to do so.
Disposal
• Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. When
disposing of the refrigerator, remove the packing materials from the door or take off the doors but leave
the shelves in place so that children may not easily climb inside.
• If disposing of a refrigerator, make sure the refrigerant and insulation foam are removed for proper
disposal by a qualified servicer. If you release the refrigerant or throw away the insulation foam, you
may be fined or imprisoned in accordance with the relevant environmental law. Insulation foam contains
flammable blowing gas.
• When discarding the appliance, remove the door gasket while leaving the shelves and bins in place, and
keep children away from the appliance.
Grounding Instructions
• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or service personnel if you are in doubt whether the appliance is properly
grounded. Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
• Have a certified electrician check the wall outlet and wiring for proper grounding.
• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight
out from the outlet. Failure to do so may damage the power cord, resulting in a risk of fire and electric
shock.

6IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Risk of Fire and Flammable Materials
CAUTION
CAUTION
• To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or
property when using this product, follow basic precautions, including the following:
Installation
• Do not install the refrigerator where there may be a danger of the unit falling.
• The refrigerator must be properly installed in accordance with the Installation Instructions.
Operation
• Do not use aerosols near the refrigerator.
• This appliance is intended to be used only in domestic and similar applications.
• Do not strike or apply excessive force to any glass surface. Do not touch glass surfaces if they are
cracked or broken.
• Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin or
personal injury if items are removed with excessive force.
• Do not hang on to or place heavy objects on the refrigerator’s dispenser.
Maintenance
• Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.
• Remove foreign objects (such as dust and water) off the prongs of the power plug and contact areas. Do
not use a wet or damp cloth when cleaning the plug.
• Do not spray water directly on the inside or outside of the refrigerator.
• Do not clean glass shelves or covers with warm water when they are cold. They may break if exposed to
sudden temperature changes.
This appliance contains a small amount of isobutane refrigerant (R600a), which is combustible.
When transporting and installing the appliance, care should be taken to ensure that no parts
of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or
cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of
ignition and air out the room in which the appliance is standing for several minutes.
In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating
circuit occurs, the size of the room in which the appliance may be sited depends on the
amount of refrigerant used. The room must be 10.8 square feet (1 square meter) in size for
every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your
particular appliance is shown on the identification plate inside the appliance. Never start up an
appliance showing any signs of damage. If in doubt, consult your dealer.

7PRODUCT OVERVIEW
ENGLISH
PRODUCT OVERVIEW
Product Features
The images in this guide may be different from the actual components and accessories, which are subject
to change by the manufacturer without prior notice for product improvement purposes.
Exterior
aFiltered Water and Ice Dispenser
Dispenses purified water and ice.
bLED Display
Displays the refrigerator and freezer temperature, the water filter condition and the dispenser status.
cControl Panel
Sets the refrigerator temperature and freezer temperature, the water filter condition and the dispenser
mode.
dSmartPull™ Handle
Easily opens the freezer door.
eHandle
Opens and closes the refrigerator door.
fDoor Button
Opens the Door-in-Door Compartment.
gRefrigerator
Fresh food compartment
hFreezer
Frozen food compartment

8PRODUCT OVERVIEW
Interior
Door-in-Door: SKSFD3613*
aLED Interior Lighting
Lights up the inside of the refrigerator.
bIn-Door Icemaker (Refrigerator)
This is where ice is automatically produced and stored.
cDoor Mullion
Prevents the cold air in the refrigerator from escaping when the doors are closed.
CAUTION
• To reduce the risk of scratching the door or breaking the center door mullion, make sure that the folding
door mullion is folded in before closing the left-hand door.
• The door alarm will sound every 30 seconds if the door remains open longer than one minute.
dHumidity Controlled Crisper
Helps vegetables and fruit to stay crisp and controls humidity.
eFixed Door Bin
Stores chilled food or drinks.
fAuto-Closing Hinge
The refrigerator doors and freezer drawers close automatically when pushed slightly. (The door only
closes automatically when it is open at an angle of less than 30°.)
gDoor-in-Door Case
A convenient storage area for frequently-used items that require easy access.

9PRODUCT OVERVIEW
ENGLISH
hCheese & Butter and Condiment Bins
Cheese & Butter and Condiment bins are specially designed for these items, making spreading butter
and slicing cheese easier.
iAdjustable Refrigerator Shelf
The refrigerator shelves are adjustable to meet individual storage needs.
jModular Door Bin
Interchangeable bins can be arranged to suit storage needs.
kGlide'N'Serve
Stores food items at a different temperature than the regular refrigerator area.
lAutomatic Icemaker (Freezer)
Dispenses ice automatically.
mIce Bin
Stores ice from the freezer icemaker.
NOTE
• The pad attached to the bottom of the ice bin is designed to reduce the sound of the ice dropping. Do
not remove the pad.
nPullout Drawer
Provides extra storage within the freezer compartment.
oDurabase and Durabase Divider
Provides storage for large frozen food items.
Product Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Electrical requirements: 115 V, 60 Hz
Min. / Max. water pressure: 20 - 120 psi (138 - 827 kPa)
Model Description Net weight
SKSFD3613* Counter-Depth, Door-in-Door French Door Refrigerator, Bottom
Freezer, Craft Ice
317 lb (144 kg)

10 INSTALLATION
INSTALLATION
Before Installing

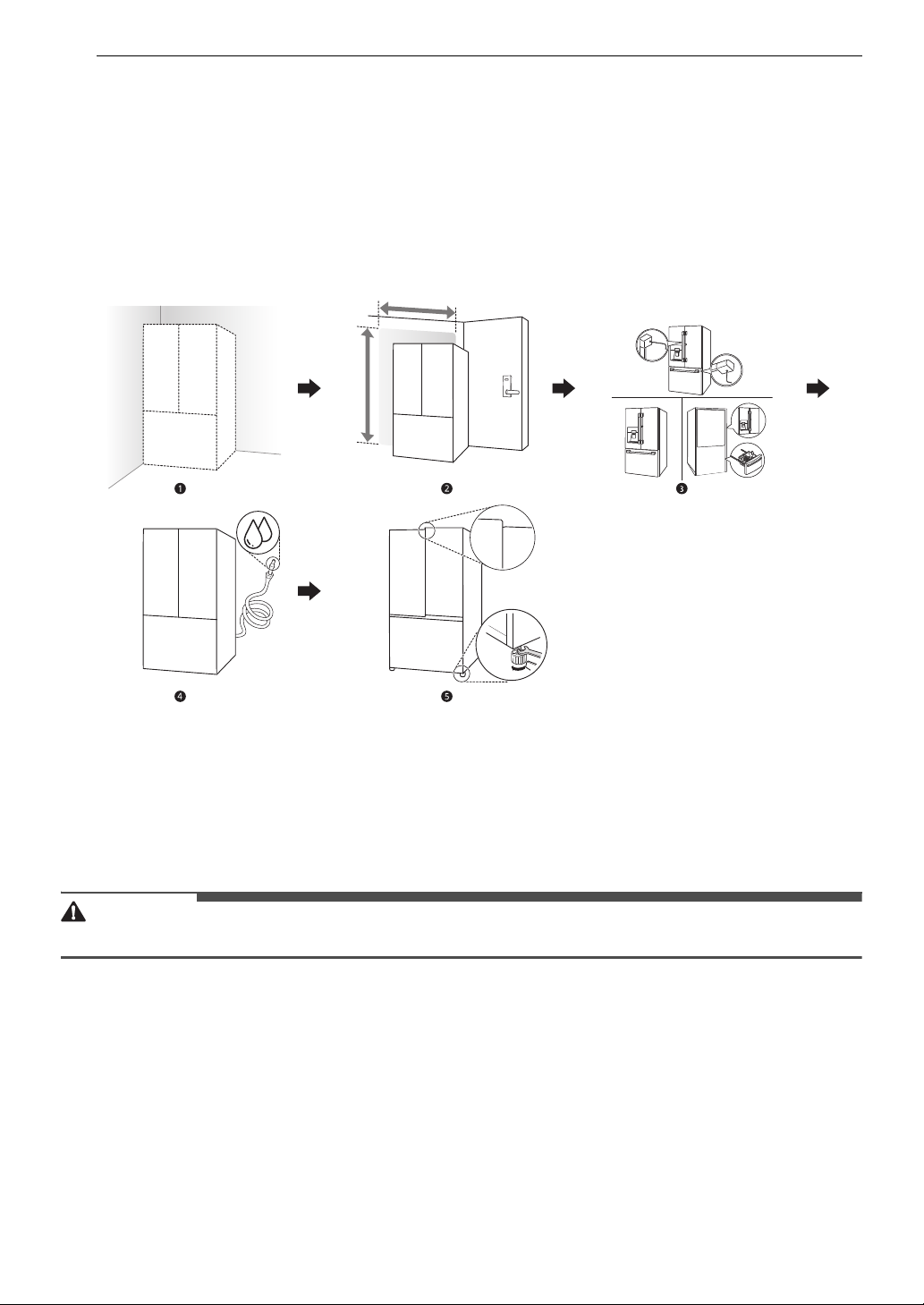

Installation Overview
Please read the following installation instructions first after purchasing this product or transporting it to
another location.
aUnpacking the Refrigerator
bChoosing the Proper Location
cDisassembling/Assembling
dConnecting the Water Line
eLeveling and Door Alignment
WARNING
• Connect to potable water supply only.

11INSTALLATION
ENGLISH
Unpacking the Refrigerator
WARNING
• Use two or more people to move and install the
refrigerator. Failure to do so can result in back
injury or other injury.
• The refrigerator is heavy. Protect the floor when
moving the refrigerator for cleaning or service.
Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator
when trying to move it, as floor damage could
occur.
• Keep flammable materials and vapors, such as
gasoline, away from the refrigerator. Failure to
do so can result in fire, explosion, or death.
NOTE
• Remove tape and any temporary labels from
your refrigerator before using. Do not remove
any warning labels, the model and serial number
label, or the Tech Sheet that is located under the
front of the refrigerator.
• To remove any remaining tape or glue, rub the
area briskly with your thumb. Tape or glue
residue can also be easily removed by rubbing a
small amount of liquid dish soap over the
adhesive with your fingers. Wipe with warm
water and dry.
• Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator.
• Reinstall or adjust shelves as needed.
Refrigerator shelves are installed in the shipping
position. Reinstall shelves according to your
individual storage needs.
Choosing the Proper
Location
Water
The refrigerator must be located where a water
supply can be connected for the automatic
icemaker.
NOTE
• The water pressure must be 20 - 120 psi or 138 -
827 kPa or 1.4 - 8.4 kgf/cm2. If the refrigerator is
installed in an area with low water pressure
(below 20 psi or 138 kPa or 1.4 kgf/cm2), you can
install a booster pump to compensate for the
low pressure.
Electricity
Use an individual, grounded outlet:115 Volts, 60
Hz, AC, 15 amps minimum.
WARNING
• Do not overload house wiring and cause a fire
hazard by plugging in multiple appliances in the
same outlet with the refrigerator.
• To reduce the risk of electric shock, do not install
the refrigerator in a wet or damp area.
Flooring
To avoid noise and vibration, the unit must be
installed and leveled on a solidly constructed floor.
If required, adjust the leveling legs to compensate
for the unevenness of the floor.
NOTE
• Installing on carpeting, soft tile surfaces, a
platform or weakly supported structure is not
recommended.
Ambient Temperature
Install this appliance in an area where the
temperature is between 55 °F (13 °C) and 110 °F
(43 °C).
If the temperature around the appliance is too low
or high, cooling ability may be adversely affected.

12 INSTALLATION

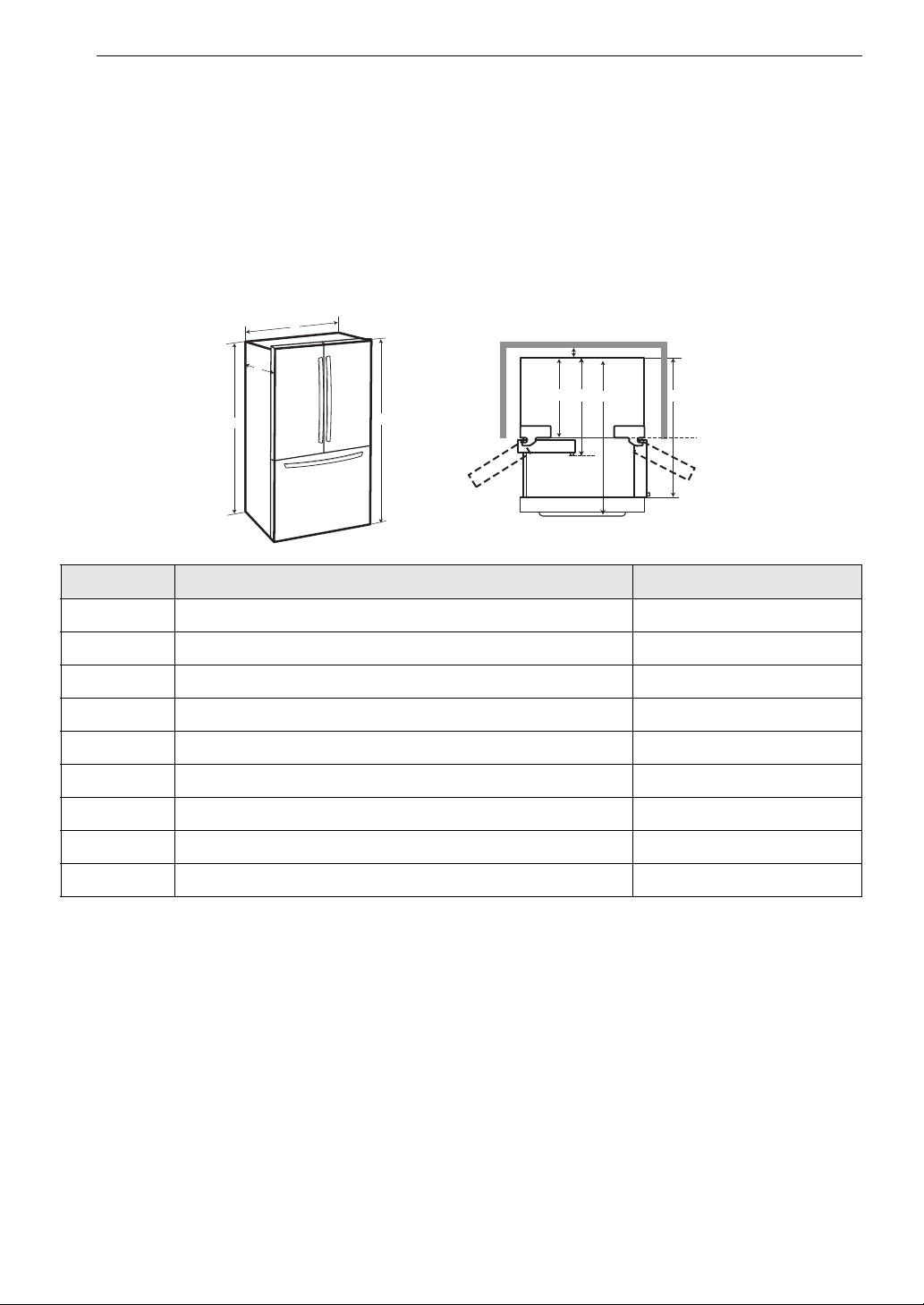

Dimensions and Clearances
• Check the dimensions of the appliance and the installation path to ensure there is sufficient room to
move the refrigerator through doors or narrow openings.
• If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/
Assembling the Doors and Drawers in this manual.
• The installation location chosen for the refrigerator should allow space behind the unit for connections
and airflow and space in front to open the doors and drawers.
• Too small of a distance from adjacent items may result in lowered freezing capability and increased
electricity consumption charges. Allow at least 24 inches (610 mm) in front of the refrigerator to open the
doors, and at least 2 inches (50.8 mm) between the back of the refrigerator and the wall.
-Dimension/Clearance SKSFD3613*
A Depth without Handle 28 1/4″(718 mm)
B Width 35 3/4″(908 mm)
C Height to Top of Case 68 7/8″(1750 mm)
D Height to Top of Hinge 70 1/4″(1785 mm)
EBackClearance 2″(50 mm)
F Depth without Door 24″(610 mm)
G Depth with Handle 30 3/4″(781 mm)
H Depth (Total with Freezer Drawer Open) 47 1/4″(1200 mm)
I Depth (Total with Door Open 90°) 42 5/8″(1083 mm)
B
A
CD
FI
H
E
G

13INSTALLATION
ENGLISH

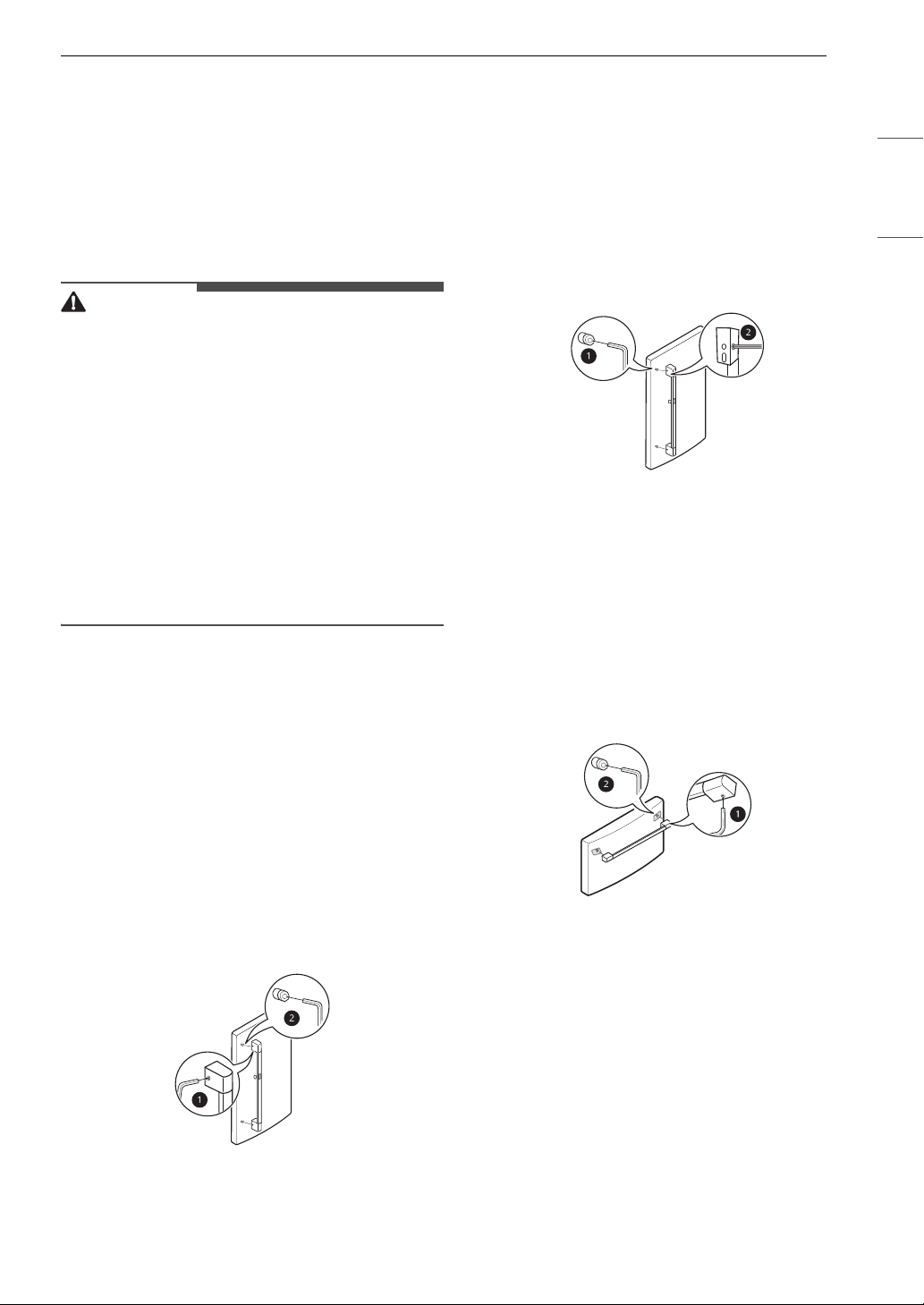

Removing/Assembling
Handles
When moving the refrigerator through a narrow
opening, removing the doors is preferred. If you
must remove the handles, be very careful not to
scratch the doors.
The appearance of the handles may vary from
what is shown.
CAUTION
• When assembling or disassembling the
refrigerator handles, grasp the handle firmly to
avoid dropping it.
• Do not swing the handle into nearby people or
animals.
• Make sure that the set screws are in place and
the handle footprints at the ends of the handles
are aligned correctly over the mounting
fasteners on the doors. The set screws should be
loose enough to allow the handle footprints to
slide down into place over the mounting
fasteners on the door.
• Make sure that there is not a gap between the
door and handle after assembling the handle.
• Tools Needed
- 3/32 in. Allen wrench
- 1/8 in. Allen wrench
- 1/4 in. Allen wrench
Removing Refrigerator Handles
1 Loosen the set screws awith a 3/32 in. Allen
wrench and remove the handle.
2 If needed, loosen the mounting fasteners b
that connect the refrigerator door and handle
using a 1/4 in. Allen wrench, and remove the
mounting fasteners.
Assembling Refrigerator Handles
1 If needed, reassemble the mounting
fasteners aon the door with a 1/4 in. Allen
wrench.
2 Place the handle on the door by fitting the
handle footprints over the mounting
fasteners and tightening the set screws b
with a 3/32 in. Allen wrench.
Removing Freezer Drawer Handles
1 Loosen the set screws alocated on the lower
side of the handle with a 1/8 in. Allen wrench
and remove the handle.
2 Loosen the mounting fasteners bwith a 1/4
in. Allen wrench, and remove the mounting
fasteners.
Assembling Freezer Drawer
Handles
1 Assemble the mounting fasteners aat both
ends of the handle with a 1/4 in. Allen wrench.
2 Place the handle on the door by fitting the
handle footprints over the mounting

14 INSTALLATION
fasteners and tightening the set screws b
with a 1/8 in. Allen wrench.
Removing/Assembling
Doors and Drawers
If the entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
WARNING
• Use two or more people to remove and install
the refrigerator doors and drawers.
• Disconnect the electrical supply to the
refrigerator before installing.
• Do not put hands, feet or other objects into the
air vents or bottom of the refrigerator.
• Be careful when handling the hinge and hinge
lever.
• Remove food and bins before detaching the
doors and drawers.
• Do not hold the handle when removing or
replacing the doors and drawers as the handle
may come off.
• Tools Needed
- 3/32 in. Allen wrench
- 1/8 in. Allen wrench
- 1/4 in. Allen wrench
Removing the Hinge Cover
Remove the screws from the hinge cover at the top
of the refrigerator. Lift the hook (not visible),
located at the bottom of the front side of the cover
with a flat-head screwdriver.

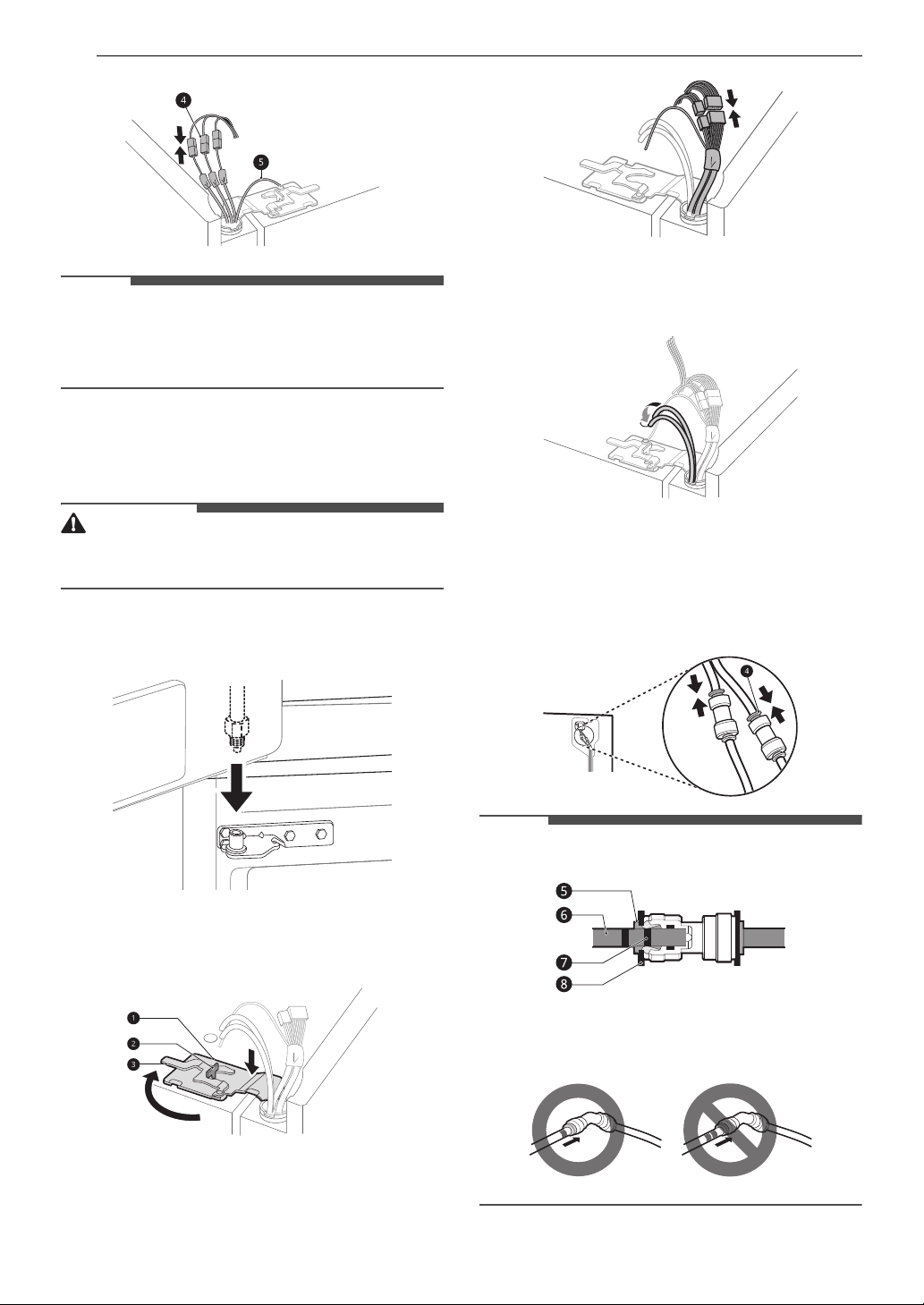

Removing the Left Refrigerator
Door
1 The water supply is connected to the upper
right part of the rear surface of the
refrigerator. Remove the clip in the joint area.
Hold the water supply connection and gently
push the collet ato detach the water supply
line as shown.
NOTE
• Disassembling/Assembling the Water Lines
bCollet cTube dInsert line eClip
2 Pull out the water supply lines f. Disconnect
all the wire harnesses g. Unscrew the
ground wire h.
3 Rotate the hinge lever icounterclockwise.
Lift the top hinge jfree of the hinge lever
latch k.
CAUTION
• When lifting the hinge free of the latch, be
careful that the door does not fall forward.

15INSTALLATION
ENGLISH
4 Lift the door from the middle hinge pin and
remove the door.
CAUTION
• Place the door, inside facing up, on a
nonscratching surface.
Removing the Right Refrigerator
Door
1 Detach all the wire harnesses a. Unscrew the
ground wire b.
NOTE
• The number of wire harnesses may vary
depending on the model.
• Ground wire is only present on some models.
2 Rotate the hinge lever cclockwise. Lift the
top hinge dfree of the hinge lever latch e.
CAUTION
• When lifting the hinge free of the latch, be
careful that the door does not fall forward.
3 Lift the door from the middle hinge pin and
remove the door.
CAUTION
• Place the door, inside facing up, on a
nonscratching surface.

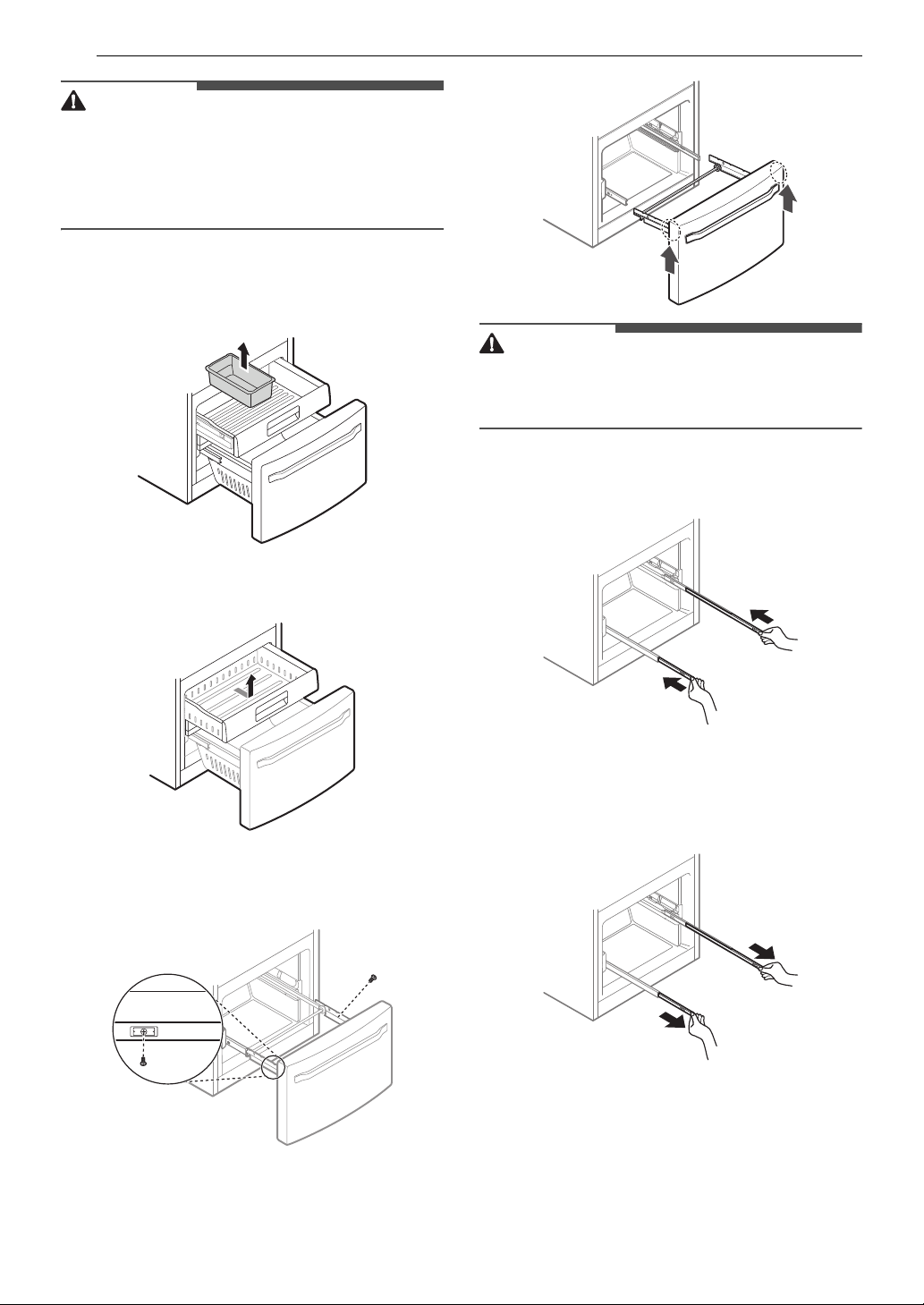

Removing Freezer Drawers
The Pullout Drawer located above the freezer
drawer is not shown for clarity.
WARNING
• Use two or more people to remove and install
the refrigerator doors and freezer drawer.
• Be careful of sharp hinges on both sides of the
drawer.
• When you lay the drawer down, be careful not to
damage the floor.
• Do not sit or stand on the freezer drawer.

16 INSTALLATION
WARNING
• To prevent accidents, keep children and pets
away from the drawer. Do not leave the drawer
open. If the Durabase®storage bin is removed
from the freezer drawer, there is sufficient space
for a small child or pet to crawl inside.

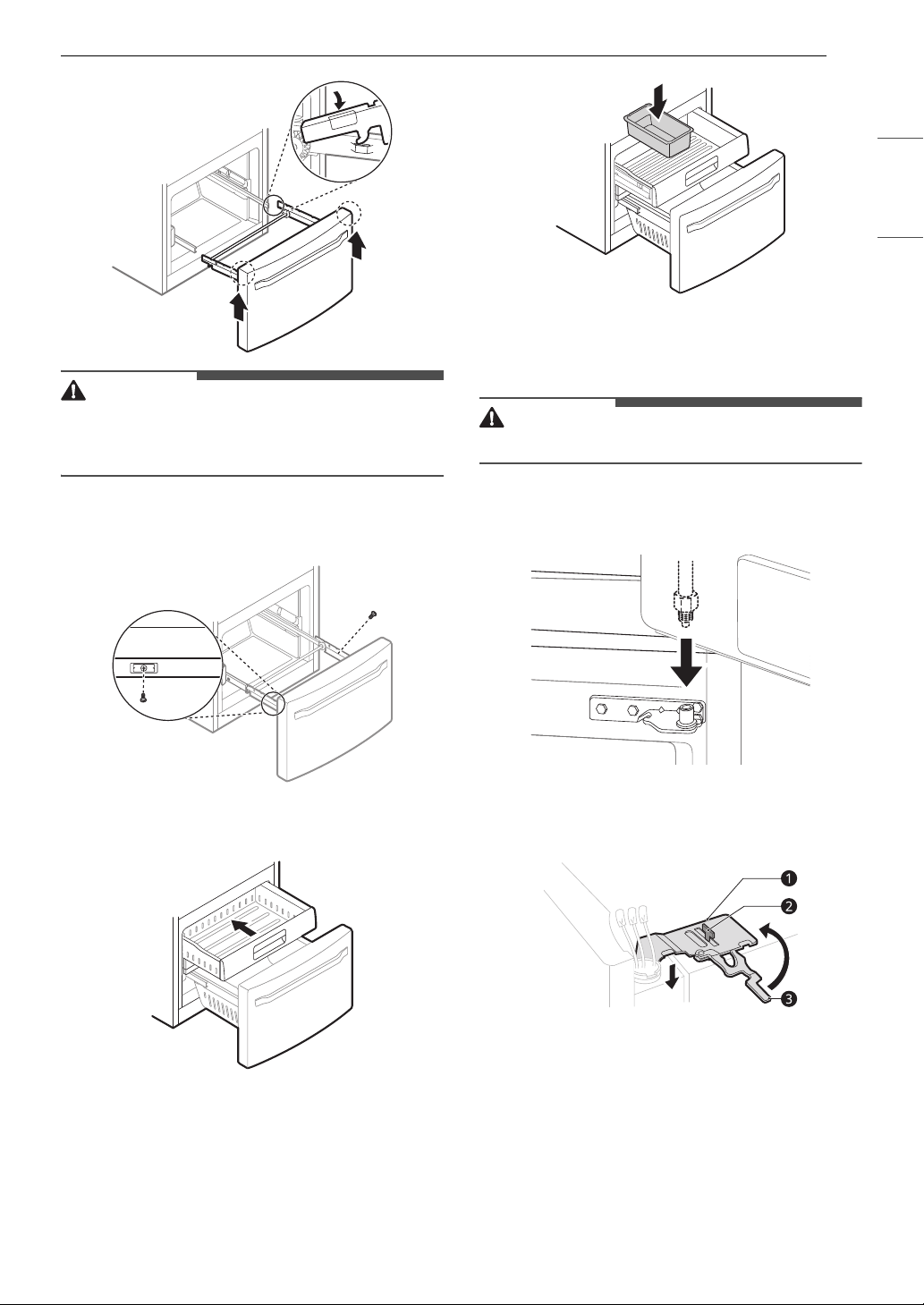

1 Pull the drawer open to full extension.
2 Gently lift and pull out the ice bin.
3 Lift the front of the drawer up, then pull it
straight out.
4 Remove the Durabase basket from the rails.
Remove the screws from the rails at both
ends.
5 Grip both sides of the drawer and pull it up to
remove it from the rails.
CAUTION
• Do not hold the handle when removing or
replacing the drawer. The handle may come off,
causing personal injury.
6 Hold both rails and push them in
simultaneously.
Assembling Freezer Drawers
1 Pull out both rails simultaneously, until they
are fully extended.
2 Grasp the drawer on each side and hook the
drawer supports into the rail tabs located on
both sides.

17INSTALLATION
ENGLISH
CAUTION
• Do not hold the handle when removing or
replacing the drawer. The handle may come off,
causing personal injury.
3 Lower the door into its final position and
insert the screws in the rails on both sides.
4 Insert the drawer into the frame, and push
the drawer back until it clicks into place.
5 Replace the ice bin in the drawer. Insert the
Durabase basket in the rail assembly.
Assembling the Right Refrigerator
Door
CAUTION
• Install the right-side door first.
1 Make sure that the plastic sleeve is inserted in
the bottom of the door. Lower the door onto
the middle hinge pin as shown in the figure.
2 Fit the hinge aover the hinge lever latch b
and slot it into place. Rotate the lever c
counterclockwise to secure the hinge.
3 Connect all the wire harnesses d. Screw in
the ground wire e.

18 INSTALLATION
NOTE
• The number of wire harnesses may vary
depending on the model.
• Ground wire is only present on some models.
Assembling the Left Refrigerator
Door
CAUTION
• Install the left refrigerator door after the right
door is installed.
1 Make sure that the plastic sleeve is inserted in
the bottom of the door. Install the refrigerator
door onto the middle hinge.
2 Fit the hinge aover the hinge lever latch b
and slot it into place. Rotate the lever c
clockwise and fasten the hinge.
3 Connect all the wire harnesses and the
ground wire.
4 Push the water supply lines into the hole on
the top case and pull them through the
backplate.
5 Hold the water supply connection and gently
push in the collet dto connect the water
supply lines as shown. Insert the tube at least
5/8 inch (15 mm) into the connector. Insert
the clip on the joint to fasten the tubes in
place.
NOTE
• Disassembling/Assembling the Water Lines
eCollet fTube gInsert line hClip
• Gently press the collet and insert the tube until
only one line shows on the tube.

19INSTALLATION
ENGLISH
Assembling the Hinge Cover
Position the hinge cover in its place. Insert and
tighten the cover screws.
Connecting the Water Line
Before Beginning
This water line installation is not covered by the
refrigerator warranty. Follow these instructions
carefully to minimize the risk of expensive water
damage.
If necessary, call a qualified plumber to correct
water hammer before installing the water supply
line to the refrigerator. Water banging in the pipes
(water hammer) in residential plumbing can cause
damage to refrigerator parts and lead to water
leakage or flooding.
• Turn the icemaker OFF if the refrigerator will be
used before the water line is connected.
• Do not install the icemaker tubing in areas
where the ambient temperatures fall below
freezing.
WARNING
• Connect to potable water supply only.
CAUTION
• To prevent burns and product damage, only
connect the refrigerator water line to a cold
water supply.
• Wear eye protection during installation to
prevent injury.
Water Pressure
You will need a cold water supply.
Water Pressure
•Models with water filter:
- 20 - 120 psi (138 - 827 kPa)
•Where reverse osmosis water filtration
system is connected to a cold water supply:
- 40 - 60 psi minimum to reverse osmosis
system (2.8 kgf/cm2- 4.2 kgf/cm2, or less than
2 - 3 seconds to fill a cup of 7 oz capacity)
If the water pressure from the reverse osmosis
system is less than 20 psi or 138 kPa or 1.4 kgf/cm2
(takes more than 4 seconds to fill a cup of 7 oz or
198 cc capacity):
• Check to see if the sediment filter in the reverse
osmosis system is blocked. Replace the filter if
necessary.
• Allow the storage tank on the reverse osmosis
system to refill after heavy usage.
• If the water pressure remains low, call a
licensed, qualified plumber.
• All installations must be in accordance with local
plumbing code requirements.
Supplies Needed
•Copper or PEX Tubing, ¼ in. outer diameter, to
connect the refrigerator to the water supply. Be
sure both ends of the tubing are cut square. To
determine how much tubing you need, measure
the distance from the water valve on the back of
the refrigerator to the water supply pipe. Then,
add 8 feet (2.4 m). Be sure there is sufficient
extra tubing (about 8 feet [2.4 m] coiled into 3
turns of about 10 in. [25 cm] diameter) to allow
the refrigerator to move out from the wall after
installation.
•Power drill.
•½ in. or adjustable wrench.
•Flat-blade and Phillips screwdrivers.
•Two ¼ in. outer diameter compression nuts
and 2 ferrules (sleeves) to connect the copper
tubing to the shutoff valve and the refrigerator
water valve.
• If your existing copper water line has a flared
fitting at the end, purchase an adapter (available
at plumbing supply stores) to connect the water
line to the refrigerator OR cut off the flared

20 INSTALLATION
fitting with a tube cutter and use a compression
fitting.
• Shutoff valve to connect to the cold water line.
The shutoff valve should have a water inlet with
a minimum inside diameter of 5/32 in. at the
point of connection to the COLD WATER LINE.
Saddle-type shutoff valves are included in many
water supply kits. Before purchasing, make sure
a saddle-type valve complies with your local
plumbing codes.
NOTE
• A self-piercing saddle type water valve should
not be used.
Water Line Installation Instructions
Install the shutoff valve on the nearest frequently
used drinking water line.
WARNING
• When using any electrical device (such as a
power drill) during installation, be sure the
device is battery-powered, double-insulated or
grounded in a manner that will prevent the
hazard of electric shock.
1 Shut off the main water supply.
• Turn on the nearest faucet to relieve the
pressure on the line.
2 Choose the valve location.
• Choose a location for the valve that is easily
accessible. It is best to connect into the side
of a vertical water pipe. When it is necessary
to connect into a horizontal water pipe,
make the connection to the top or side,
rather than at the bottom, to avoid drawing
off any sediment from the water pipe.
3 Drill the hole for the valve.
• Drill a ¼ in. hole in the water pipe using a
sharp bit. Remove any burrs resulting from
drilling the hole in the pipe. Be careful not
to allow water to drain into the drill. Failure
to drill a ¼ in. hole may result in reduced ice
production or smaller cubes.
NOTE
• The hookup line cannot be white, plastic tubing.
Licensed plumbers must use only copper tubing
(NDA tubing #49595 or #49599) or Cross Link
Polyethylene (PEX) tubing.
4 Fasten the shutoff valve.
• Fasten the shutoff valve to the cold water
pipe with the pipe clamp.
NOTE
• Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle
valves are illegal and use is not permitted in
Massachusetts. Consult with your licensed
plumber.
aPipe Clamp
bSaddle-Type Shutoff Valve
cVertical Cold Water Pipe
