Signature Kitchen Suite SKSUD2402P User manual

INSTALLATION MANUAL
BUILT-IN REFRIGERATOR
Read this installation manual thoroughly before installing the appliance and
keep it handy for reference at all times.
ENGLISH
SKSUD2402P / SKSUW2401P
MFL67410830
Rev.01_071423
www.signaturekitchensuite.com
Copyright © 2021-2023 Signature Kitchen Suite. All Rights Reserved.
en-us_main.book.book Page 1 Friday, July 14, 2023 11:13 AM

TABLE OF CONTENTS
2
3 IMPORTANT SAFETY
INSTRUCTIONS
3 WARNING
3 Installation
3 Electrical Connection
4CAUTION
4 General
5 INSTALLATION
5 Before Installation
5 Choosing the Install Location
5 Anti-tip Devices
5 Enclosure
5Floor
5 Electrical Requirements
6 Grounding
6 Cutout Dimensions
7 Installation Clearances
8 Required Accessories and Tools
8 Accessories
8Tools
9 Product Dimensions
9 Product Dimensions
11 Custom Panel Dimensions
12 Moving Appliance into Enclosure
12 Installing the Anti-tip Brackets
13 Protecting Edges of Enclosure
13 Installing Appliance in Enclosure
15 Leveling and Securing the Appliance
15 Aligning and Leveling the Appliance
17 Attaching Appliance to Enclosure
18 Attaching the Toe Kick Panel
20 Panels and Trim
20 Installing Door Panels
22 Adjusting Door Panels
22 Installing Door Trim
26 Reversing the Door
27 Attaching the Badge
28 Inserting the Link Assembly
en-us_main.book.book Page 2 Friday, July 14, 2023 11:13 AM

3IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
WARNING
• TIP-OVER HAZARD
- The appliance is very heavy. If it tips over, it could cause damage, serious injury or death. Do not open
the doors or drawers before the appliance is securely installed.
- Use two or more people to move and install the refrigerator. To prevent the refrigerator from tipping
over, install anti-tip brackets (provided). Failure to follow the refrigerator installation instructions can
result in serious injury or death.
• To reduce the risk of fire, electric shock, or personal injury when using the product, basic safety
precautions should be followed, including the following. Read all instructions before using this
appliance.
Installation
• These products are not designed to be used as freestanding units. Doing so will result in a risk of tipover,
personal injury, and product or property damage.
• Do not install the refrigerator near a gas stove, water heater or other source of ignition that may
possibly leak gas. Do not install product in direct sunlight. Install the product in a well ventilated area.
• Ensure that enclosure dimensions allow for sufficient air circulation at the sides and back of the product.
Do not block the front air inlet. Failure to follow these instructions may cause product malfunction.
• Enclosure must be constructed of materials which are strong enough to avoid damage during
installation and frequent use.
• Cabinet materials must be able to withstand the heat and humidity produced during product operation
and use without twisting or deforming.
• Install the product on a firm, level surface that can support the weight of the product without bending.
The product must be level both horizontally and vertically.
• Keep children away from area during installation.
• Do not use an extension cord or power strip with this product.
• Do not install the refrigerator in a damp location or where it will be exposed to running water.
Deterioration of the insulation on electrical parts may result, causing risk of electric shock.
• Connect to potable water only. Non-potable water can cause health risks.
Electrical Connection
•If connected to a circuit protected by fuses, use time delay fuse.
•Use a dedicated outlet.
- Plugging several devices into one outlet may cause a fire.
•Plug in the power plug with the power cord facing downward.
- Failure to do so could damage the plug or cord, resulting in fire or electric shock.
•When installing or moving the refrigerator, be careful not to roll over or damage the power cord.
Do not squeeze or crush the cord or plug when pushing the refrigerator in.
- Doing so could result in fire or electric shock.
•Do not allow the power cord to be bent, crushed, or damaged. Do not run the power cord under
heavy objects like furniture, other appliances, or through high-traffic areas.
- Doing so may damage the power cord and result in fire or electric shock.
•Do not extend or modify the length of the power cord.
- Use only an exact factory replacement part to avoid electrical issues, fire, or electric shock.
en-us_main.book.book Page 3 Friday, July 14, 2023 11:13 AM

4IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
•Turn off the power before cleaning or moving the refrigerator.
- Failure to do so may cause electric shock or injury.
- Press the POWER button for 3 seconds to turn off the power at the display panel.
•Do not pull out the cord or touch the power plug with wet hands.
- Doing so may cause electric shock or injury.
•Remove water or dust from the power plug and insert it securely into the wall socket.
- Dust, water, or a loose connection may cause a fire or electric shock.
•Do not unplug the refrigerator by pulling on the cord.
- Doing so may cause an electric shock or a short circuit resulting in a fire.
•Do not use the power cord or the power plug if it is damaged or if the outlet is damaged.
- Doing so may cause an electric shock or a short circuit resulting in a fire.
•Wait for 5 minutes or longer when reconnecting the plug or turning the power back on.
- Give the compressor time to cycle before restarting.
•If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
CAUTION
•Do not stick your hands under the refrigerator.
- Sharp edges, fans, and wires may cause an injury.
•Save these instructions for the local inspector's use.
•Observe all governing codes and ordinances.
•Installer: Leave these instructions with the consumer.
•Consumer: Keep these instructions with the owner's manual for future reference.
General
These installation instructions are intended for use by qualified installers. All connections for water,
electrical power and grounding must comply with local codes and ordinances and be made by licensed
personnel when required. In the absence of a local code:
• In the U.S.A., in accordance with the National Electric Code, ANSI/NFPA70 – latest edition/State and
Municipal codes and/or local codes.
• In Canada, in accordance with the Canadian Electric Code C22.1 – latest edition/Provincial and Municipal
codes and/or local codes.
en-us_main.book.book Page 4 Friday, July 14, 2023 11:13 AM

5INSTALLATION
ENGLISH
INSTALLATION
Before Installation
WARNING
• Do not store or install the appliance where it will
be exposed to:
- outside weather
- water damage
- temperatures under 32 ℉(0 ℃)
Choosing the Install Location
Temperature and Humidity
• The appliance should be installed in a dry, well
ventilated area.
• The ambient temperature should stay between
55 ℉(13 ℃) and 110 ℉(43 ℃), to avoid
malfunctions.
• Do not install product where it will be exposed to
direct sunlight or near a heat source, such as an
oven or radiator.
Anti-tip Devices
WARNING
• Tip Hazard
- The appliance is very heavy and may tip over if
the door is opened before the appliance is
securely installed.
- Install the supplied anti-tip brackets to prevent
the appliance from tipping. The safest method
of installing the appliance in a stable position
is to use the supplied anti-tip devices.
- Do not open the appliance door unless it is still
on the pallet or the anti-tip brackets are
engaged.
• If the enclosure is sturdy enough, attaching the
appliance to the upper and side walls of the
enclosure may provide additional stability, as
long as the enclosure is firmly connected to the
back wall. If in doubt, contact an architect or
structural engineer.
Enclosure
• The panel above the appliance must be made
from a solid material (not MDF) and at least 5/8"
(16 mm) thick.
• The side walls of the cavity or enclosure must be
flush.
• The front 4 inches (100 mm) of the interior
surface (furniture return) will be visible when
doors are open. Make sure this area is finished
to at least 4 inches deep.
• Follow the specifications for the installation
enclosure to ensure a trouble free installation.
• Above all, the enclosure cannot be out of square.
Use a spirit level or measure the diagonals of the
opening to make sure corners are square.
• The appliance is attached at the sides and the
top to either the enclosure or to adjacent
cabinets. Make sure the enclosure or the
adjacent cabinets are securely connected to the
floor or wall structures.
Floor
WARNING
• The floor in the installation area must be firm,
level, and rigid for safe installation and best
performance.
• Do not install the appliance on a platform or
raised structure.
• The structure underneath the appliance must be
able to support the weight of the appliance
without tilting or flexing.
• For best performance and to avoid leakage, level
the appliance.
Electrical Requirements
WARNING
• Electrical Shock Hazard
- Plug into a grounded 3-prong outlet.
- Do not remove ground prong.
- Do not use an adapter.
- Do not use an extension cord.
• Failure to follow these instructions can result in
death, fire, or electrical shock.
• Follow all state and local codes or NEC.
• The appliance comes with a UL listed 3-wire
power supply cord.
• The appliance requires a 3-wire receptacle.
en-us_main.book.book Page 5 Friday, July 14, 2023 11:13 AM

6INSTALLATION
WARNING
• The receptacle must be installed by a licensed
electrician only.
Grounding
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of
least resistance for the electric current.
WARNING
• Improper connection of the equipment
grounding conductor may result in electric
shock. Have the appliance checked by a qualified
electrician or service technician if you are in
doubt as to whether the appliance has been
properly grounded.
NOTE
• Some local regulations may require a separate
ground. In such cases, the required ground wire,
clamp and screw are available as a separate
accessory and must be purchased separately.
• Never ground the appliance to plastic plumbing
lines, gas lines or water pipes.
Cutout Dimensions
CAUTION
• The anti-tip bracket should be firmly fixed to a
concrete wall/wood with strength of 15 t or
greater, or a wall with equivalent strength. (The
structure where the bracket is fixed should be a
solid structure that can withstand a force of 70
kgf or greater.)
• Before installing the appliance, make sure that
the enclosure is the correct size. For the
appliance to operate properly, the notch in the
bottom front plate must be aligned with the
center of the appliance.
• A minimum 4" (101 mm) finished return that
matches the cabinet exterior is recommended
on all sides and at the top of the cutout opening.
The shaded area will be visible after installation.

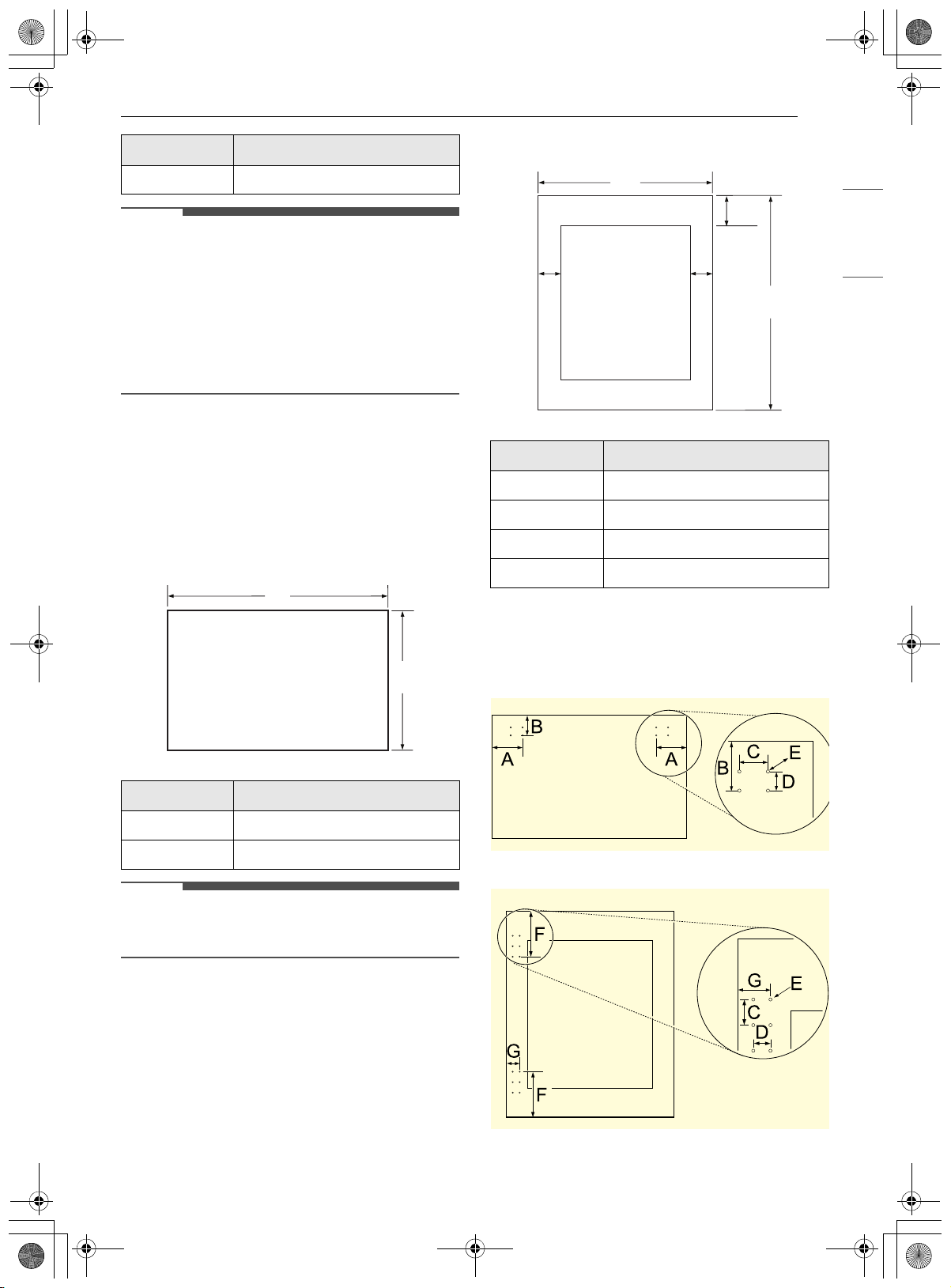

-SKSUD2402P SKSUW2401P
A224" (610 mm)
B224" (610 mm)
C234 1/2" (876 mm)
D 4" (101 mm)
E 23 11/16" (602 mm)
F 30 5/16" (770 mm)
A
B
C
D
E
F
SKSUD2402P
SKSUW2401P
A
C
D
F
B
E
en-us_main.book.book Page 6 Friday, July 14, 2023 11:13 AM

7INSTALLATION
ENGLISH
Electrical
• A 115 V, 60 Hz, 15 amp power supply is required.
An individual, properly grounded branch circuit
or circuit breaker is recommended. Install a
properly grounded 3-prong electrical receptacle
recessed into the back wall. Electrical must be
located on rear wall as shown.
• When installing a single product, use a single
outlet.
NOTE
• GFCI (ground fault circuit interrupter) is not
recommended.
Installation Clearances
Model: SKSUD2402P
* Side clearance at cabinet
** Side clearance at front panel
Model: SKSUW2401P
* Right hand hinge installation shown. When
reversing the door, the hinge and handle side
clearances also reverse.
** Side clearance at front panel
Top View (Door Closed)
Top View (Door Open 90°)
A
B
C* C*
D** D** E
F
-Dimensions and Clearances
A224" (610 mm)
B 23 7/16" (595 mm)
C 5/16" (7.5 mm) min.
D 3/16" (4 mm)
E 18" (457 mm) with panel
F 23 11/16" (602 mm) with panel
A
B
C*
D** D**
C*
E
Door
Case
Panel
D**
C*
Case
Door
Hinge
D**
en-us_main.book.book Page 7 Friday, July 14, 2023 11:13 AM

8INSTALLATION
Top View (Door Open 115°)
NOTE
• Door Swing Clearances
- The installation must allow for clearances to
adjacent walls or cabinets. This wine
refrigerator is equipped with a 2-position door
stop. The factory-set 115° door swing can be
adjusted to 90° if clearance to adjacent
cabinets or walls is restricted.
• Door Handle Clearances
- The door handle depth must be added to the
dimension as noted to determine the total
clearances required from adjacent cabinets or
walls. This clearance will vary depending on
the custom handle used. When using the
Stainless Steel Door Panel Kit w/ Stainless Steel
Handle, the door handle clearance with door
open 115° is 11 3/4" (298 mm).

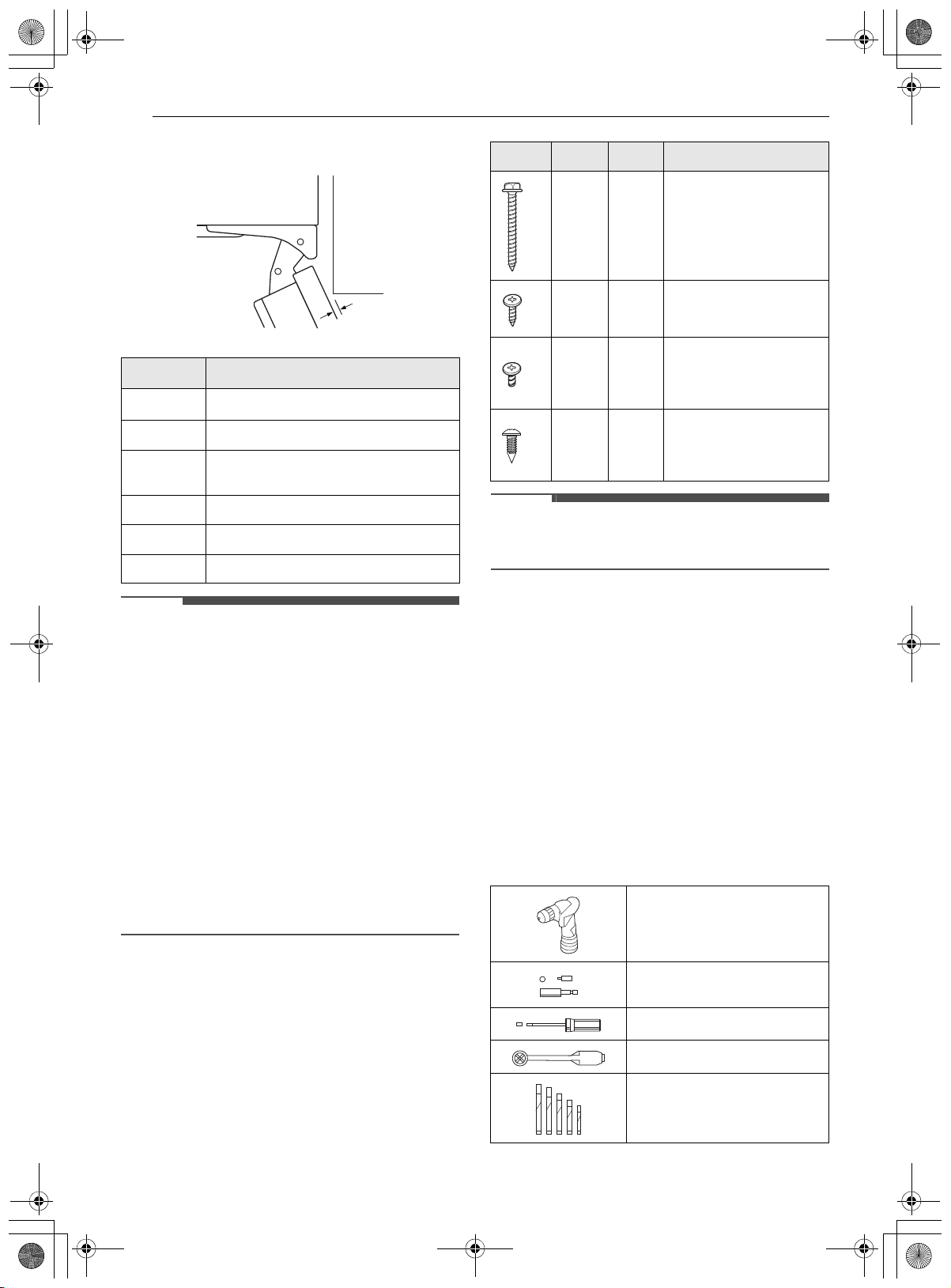

Required Accessories and
Tools
Accessories
Supplied Accessories
• Installation instructions
• Operating instructions
• Installation kit
NOTE
• In addition to the quantity required for installing
the appliance, spare screws may be provided.
Other
• Dolly, hand truck
• Drill for drilling holes in wall or floor.
• Drill bits in various sizes and suitable for
materials
• Wood screws in different sizes
• Thin plywood sheet, particle board or cardboard
to protect the floor from damage
• Suitable material for covering and protecting
furniture (e.g. protective sheets)
• Adhesive tape
Tools
-Dimensions and Clearances
A224" (610 mm)
B 23 7/16" (595 mm)
CHandle Side 1/8" (2.5 mm) min.
Hinge Side 1/2" (12.5 mm) min.
D 3/16" (4 mm)
E 23 11/16" (602 mm) with panel
F1/4"(6.5mm)
Case
Door
Hinge
F
Screw Size No. Used for
5H x
45L 6 Anti-tip bracket
4D x
14L 10 Anti-tip bracket (6) Enclosure (4)
4D x
6L 4Enclosure
4D x
12L 12 Door panel
Cordless screwdriver
Torx bit T20, T30 and
magnetic holder
Torx screwdriver T20, T30
3/8" (10 mm) hex nut driver
Various drill bits
A Type
B Type
C-1 Type
C-2 Type
en-us_main.book.book Page 8 Friday, July 14, 2023 11:13 AM

9INSTALLATION
ENGLISH

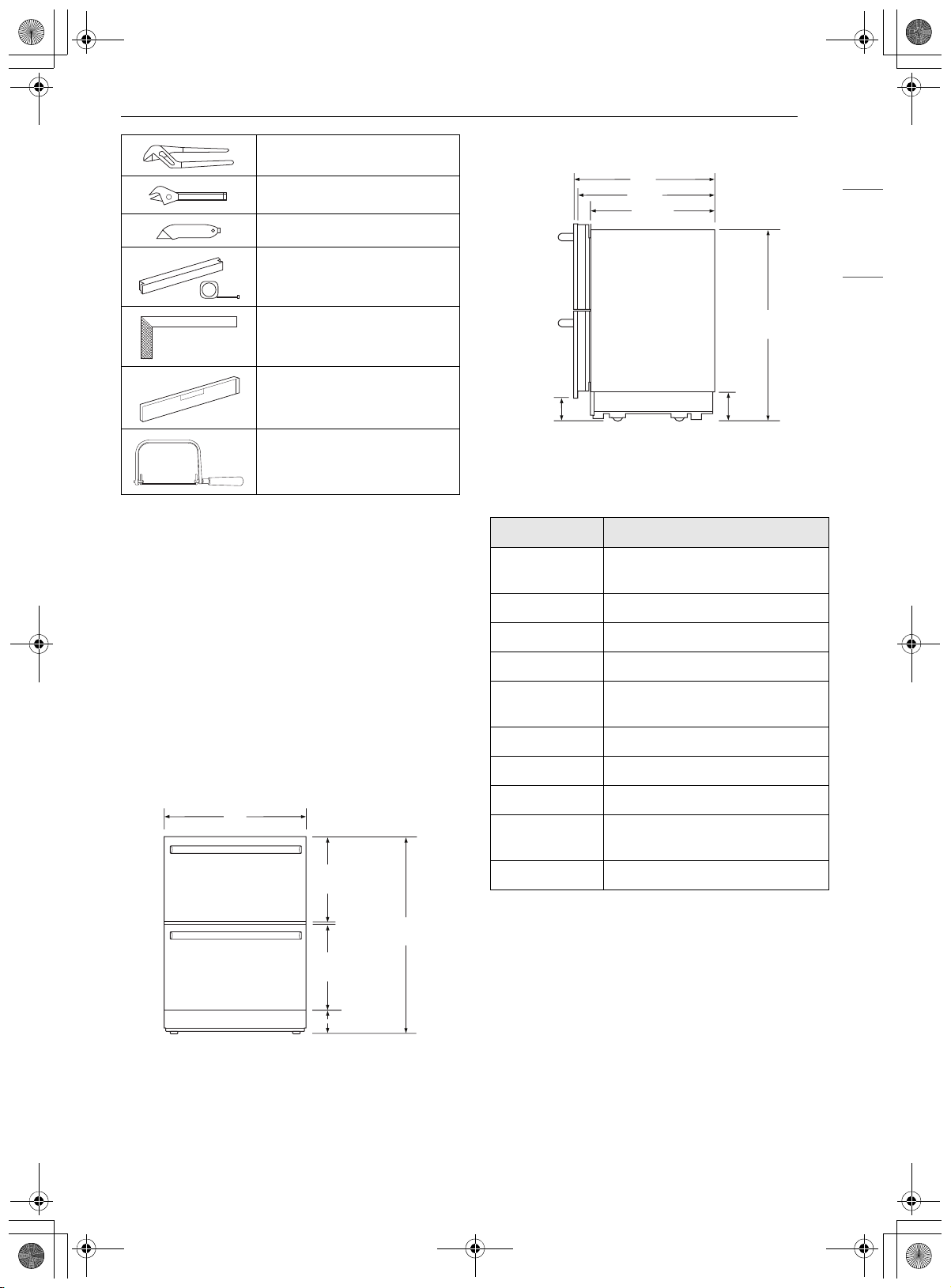

Product Dimensions
The following installation instructions describe the
installation steps for various appliance types.
The diagrams may be a general representation of
your appliance.
Particular reference is made to special installation
steps for individual appliance types.
Product Dimensions
Model: SKSUD2402P
• Front View
• Side View
* Depth with 3/4" (19 mm) drawer panel
** Depth with drawers (no panel)
*** Unit depth without drawers
Multigrip pliers
Adjustable wrench
Cutter with adustable blade
Metal tape measure, folding
rule
Square
Level, length 2" (60 cm) and 4'
(1.2 m)
Saw to cut top trim pieces (for
retrofit installation only)
A
B
B
C
D
E
-Dimensions
A23 11/16" (602 mm) with panel
23 7/16" (595 mm) without panel
B 15" (381 mm)
C 1/4" (7 mm)
D 4" (101 mm)
E34 1/4" (870 mm) min.
34 5/8" (880 mm) max.
F 23 1/4" (590 mm)
G 22 1/2" (571 mm)
H 20 1/2" (520 mm)
I33 3/16" (843 mm) min.
33 9/16" (853 mm) max.
J 5" (128 mm)
F*
G**
H***
I
J
D
en-us_main.book.book Page 9 Friday, July 14, 2023 11:13 AM

10 INSTALLATION
Model: SKSUW2401P
• Front View
• Side View
* Depth with 3/4" (19 mm) drawer panel
** Depth with door (no panel)
*** Unit depth without door
• Top View (Door Open 90º)
• Top View (Door Open 115º)
* Door handle must be added to this dimension.
** Varies depending on the thickness of the
custom cabinet panel. The door panels in the
optional Signature Kitchen Suite stainless steel
door panel kit are 3/4" (19 mm) thick.
-Dimensions
A 23 11/16" (602 mm) with panel
B34 1/4" (870 mm) min.
34 5/8" (880 mm) max.
C 4" (101 mm)
D 23 5/8" (600 mm)
E 22 7/8" (581 mm)
F 20 7/8" (530 mm)
G33 3/16" (843 mm) min.
33 9/16" (853 mm) max.
H 5" (128 mm)
A
B
C
D*
E**
F***
G
H
C
-Dimensions
I 23 7/16" (595 mm)
J 20 7/8" (530 mm)
K 26 1/8" (663 mm)
L 10 1/2" (266 mm)
M 24 3/8" (620 mm)
I
J
K
I
L*
M
N**
en-us_main.book.book Page 10 Friday, July 14, 2023 11:13 AM

11INSTALLATION
ENGLISH
NOTE
• This unit is designed to be customized with a
decorative panel. A field-installed custom door
panel or an optional Stainless Steel Panel Kit is
required.
•For Custom Panels: Use templates provided
with units to pre-drill holes for mounting panel
brackets (provided with unit). Adjustment screws
and instructions are also provided with units.
Custom Panel Dimensions
3/4" (19 mm) Custom panel dimensions
– Flush installation
• 24-inch undercounter convertible drawer
refrigerator
NOTE
• The custom panel dimensions are the same for
the upper and lower drawers.
• 24-inch built-in undercounter wine refrigerator
SKS door handle installation
dimensions of custom panel
• 24-inch undercounter convertible drawer
refrigerator
• 24-inch built-in undercounter wine refrigerator
N 3/4" (19 mm)
-Dimensions
A 23 11/16" (602 mm)
B 15" (381 mm)
-Dimensions
A
B
-Dimensions
C 23 1/16" (602 mm)
D 3 11/32" (84.9 mm)
E 4 15/16" (124.9 mm)
F 30 9/32" (769 mm)
F
C
D
E
D
en-us_main.book.book Page 11 Friday, July 14, 2023 11:13 AM

12 INSTALLATION
Optional Accessories
•SKSUK240DS - Stainless Steel Panel and
Handle Kit for 24-inch Undercounter Drawer
Refrigerator
- This unit can be installed with an optional
Stainless Steel Panel Kit. Kit includes two
drawer panels and two handles.
•SKSUK240WS - Stainless Steel Panel and
Handle Kit for 24-inch Undercounter Wine
Refrigerator
- This unit can be installed with an optional
Stainless Steel Panel Kit. Kit includes door
panel and handle.
•SKSHK230HS - Handles for use with custom
panel
- 22 3/4" (578 mm) medium brushed aluminum
handle
Moving Appliance into
Enclosure
Installing the Anti-tip Brackets
WARNING
• To avoid injury or damage, check for electrical
wires or plumbing in walls before drilling or
installing screws.
• The anti-tip bracket should be firmly fixed to a
concrete wall/wood with strength of 15 t or
greater, or a wall with equivalent strength. (The
structure where the bracket is fixed should be a
solid structure that can withstand a force of 70
kgf or greater.)
Install the anti-tip brackets at the rear of the
enclosure, locating the brackets based on stud
locations and product and enclosure dimensions.
NOTE
• Brackets must be attached as shown below. The
brackets could fail to prevent tipover of the unit
if installed in an alternate orientation.
-Dimensions
A 3 3/4'' (94.5 mm)
B 2 7/16'' (62.4 mm)
C 1 7/16'' (37 mm)
D 15/16'' (24.4 mm)
EΦ3/16'' (4.8 mm)
F 7'' (178 mm)
G 1 1/4'' (57.9 mm)
-Dimensions
A33 3/16" (843 mm) min.
33 9/16" (853 mm) max.
B 2 3/8" (60 mm)
C 3 3/4" (90 mm)
A
B
C
Anti-Tip Bracket x 2
en-us_main.book.book Page 12 Friday, July 14, 2023 11:13 AM

13INSTALLATION
ENGLISH
• Use A type or B type screws. (Recommended:
Concrete wall ~A Type, Wood wall ~B Type) Protecting Edges of Enclosure
To protect the front edges of the enclosure, tape
thin cardboard or some other protective material
around the edges.
aProtective cover
Installing Appliance in Enclosure
WARNING
• Use 2 or more people when installing the appliance. Take care when moving the appliance. It is very
heavy and prone to tipping when not secured.
CAUTION
• Take care to avoid damaging the water line or power cord when moving the appliance into the
enclosure.
• Before moving the unit into position, secure the door/drawers closed and protect any finished flooring.
• Use an appliance dolly to move the unit near the opening.
• The front leveling legs are extended below the front rollers to improve stability during placement. Once
the unit is placed in front of the opening, completely retract the front leveling legs to allow the unit to be
rolled into position. Front and rear leveling legs can be adjusted from the front once the unit is
positioned.
• If the unit has been on its back or side, it must stand upright for a minimum of 24 hours before turning
on the power.
A Type
B Type
en-us_main.book.book Page 13 Friday, July 14, 2023 11:13 AM

14 INSTALLATION
CAUTION

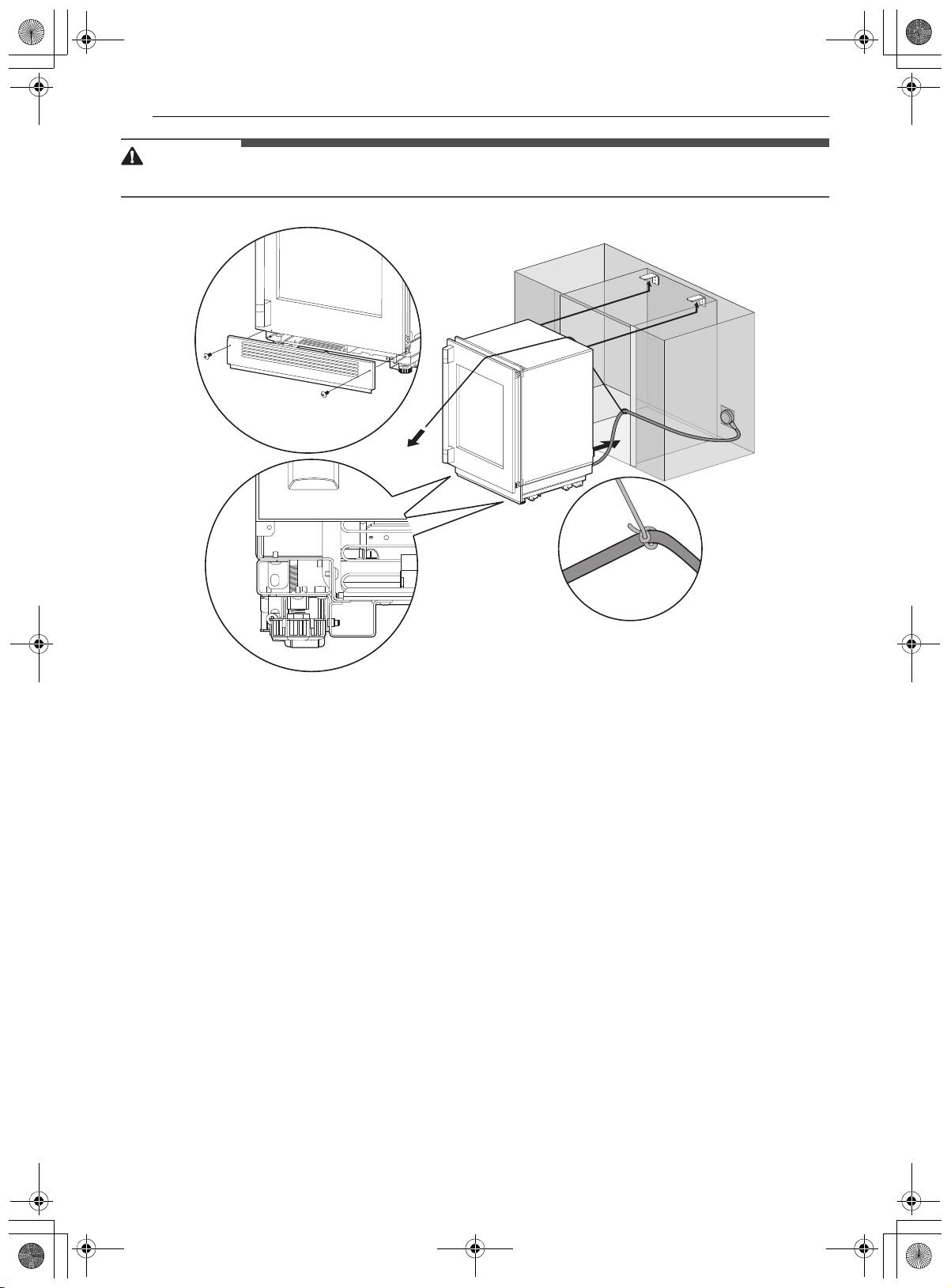

• After the appliance is rolled into position, verify that the anti-tip brackets are properly engaged.
1 Remove the base panel.
2 Retract the leveling legs so the appliance can be wheeled forward.
3 Plug the power cord into the outlet.
4 Tie a long string around the middle of the power cord. Feed the string over the top of the appliance,
pull it until the power cord is held high off the ground, then tape the string to the front of the
appliance to hold the power cord off the ground. Do not pinch or strain the power cord. Make sure it
is still plugged in.
5 Carefully move the appliance into the enclosure, making sure not to pinch thepower cord or water line
under or behind the appliance.
6 Remove the string from the power cord and the edge protection on the enclosure.
2
1
3
4
5
4
en-us_main.book.book Page 14 Friday, July 14, 2023 11:13 AM

15INSTALLATION
ENGLISH

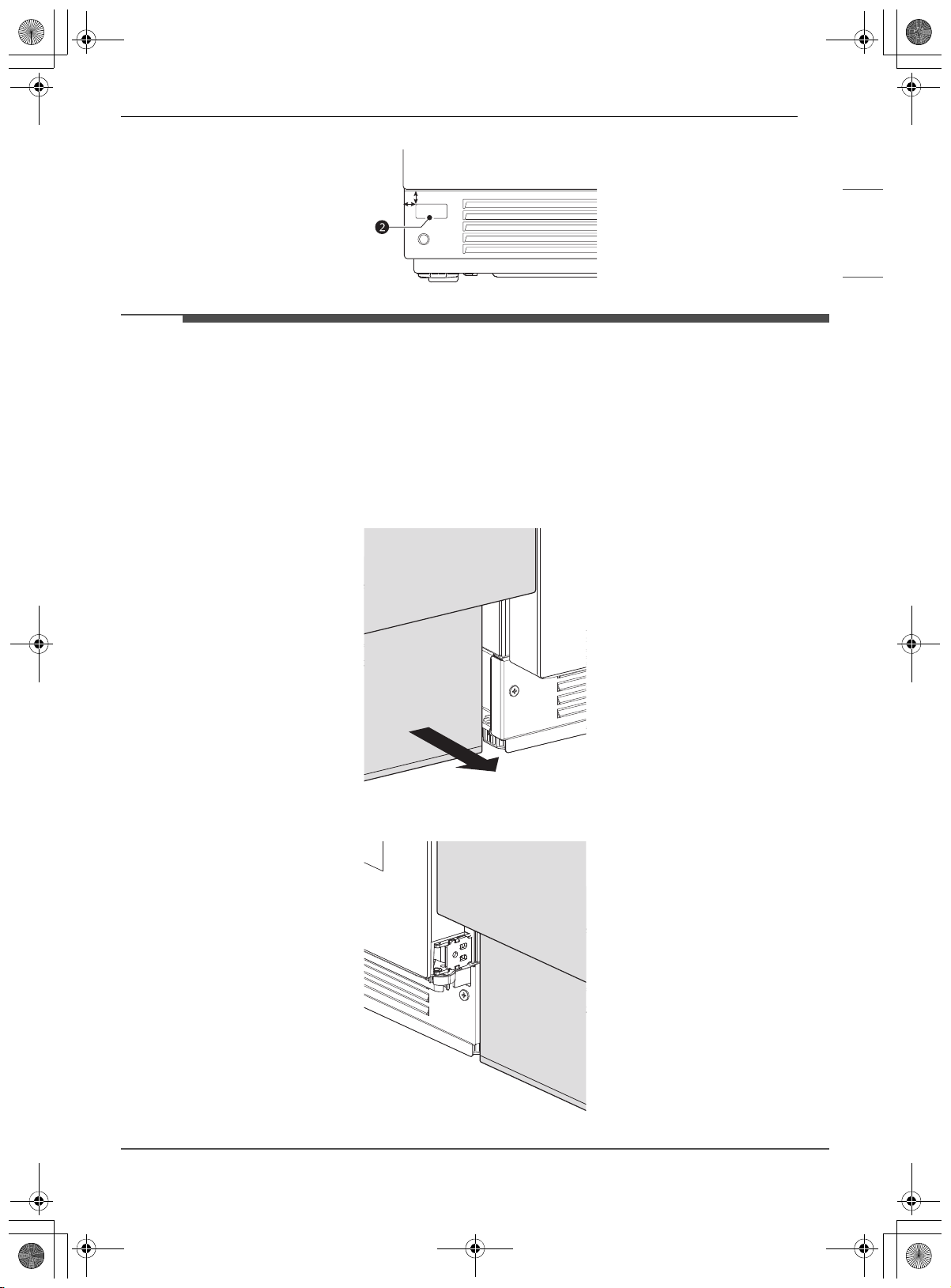

Leveling and Securing the Appliance
Aligning and Leveling the Appliance
• Depth Adjustment
- Adjust the depth of the unit in the enclosure so the door panels will fit flush with the surrounding
cabinetry. Use the gauge tool provided for a precise fit.
• Height Adjustment
- The front and rear leveling legs can both be adjusted from the front.
• Leveling
- Once the appliance is aligned properly in the enclosure, level it using the front and rear leveling legs.
1 Use a Phillips screwdriver and wrench to extend the front and rear leveling legs until they are in firm
contact with the floor.
2 Turn the screws as shown above to raise the appliance. Turn the screws in the opposite direction to
lower the appliance.
3 Make sure the weight of the refrigerator is carried on the legs, not the wheels.
Rear
adjustment
Front
adjustment
)URQW
DGMXVWPHQW
5HDU
DGMXVWPHQW
Left
Rear
Raise
Product
Raise
Product
RearFront Front
Right
en-us_main.book.book Page 15 Friday, July 14, 2023 11:13 AM

16 INSTALLATION
4 Use a smartphone leveling app or place a carpenter's level on the top and sides of the appliance to
check that it is level and plumb. Or use the provided gauge tool to measure the distance of the
bottom edge of the appliance from the floor at the front corners.
WARNING
• To reduce the possibility of the unit tipping forward, the front leveling legs must be in contact with the
floor.
CAUTION
• If using a power drill, use the lowest torque setting.
• Leave at least 3/8 inch (10 mm) between the top front of the appliance and the top of the enclosure to fit
the top filler strip.
• Do not exceed 20 inch-pounds (2.25 Nm) of torque.
• 20 revolutions equal 1/16” (2 mm) of height adjustment.
en-us_main.book.book Page 16 Friday, July 14, 2023 11:13 AM

17INSTALLATION
ENGLISH

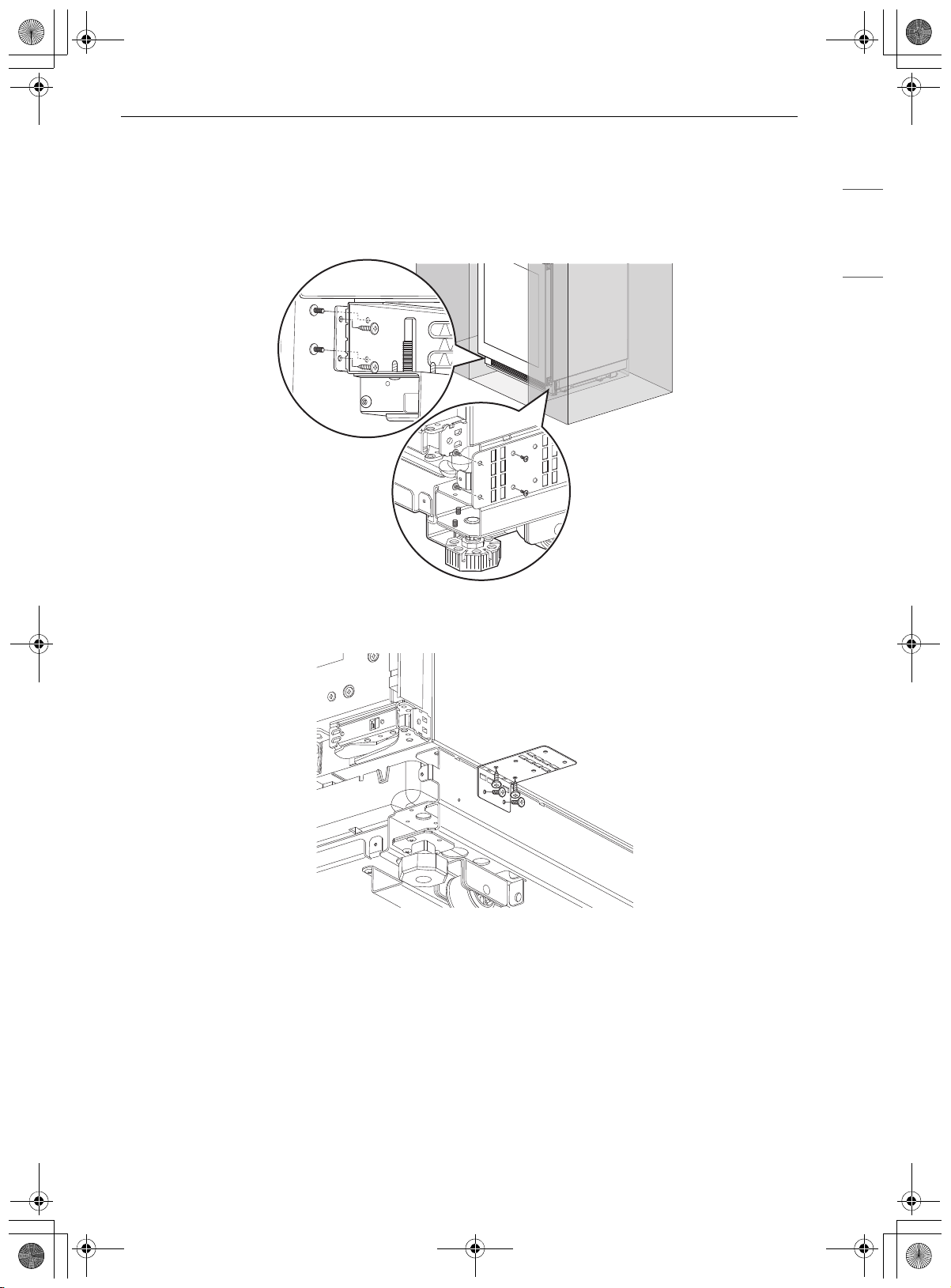

Attaching Appliance to Enclosure
• Tighten the side fixing bracket to the bottom left and right sides of the cabinet using the B type and C-1
type screws.
• Use the B type screw to fix the bracket to the cabinet and use the C-1 type screw to attach the bracket to
the appliance.
• If there is not enough space to tighten the screw on the side by the baseboard, attach the bracket to the
bottom of the adjoining cabinet.
•If the mounting bracket is attached to the cabinet first:
1 Attach the bracket to the cabinet using a B type screw.
2 Insert the appliance, level the appliance with the adjoining cabinet, and secure the appliance by
extending the front and rear legs.
en-us_main.book.book Page 17 Friday, July 14, 2023 11:13 AM

18 INSTALLATION
3 After securing the appliance, attach the bracket to the refrigerator using a C-1 type screw.
Attaching the Toe Kick Panel
CAUTION
• Do not close the air vent in the bottom cover of the appliance.
1 Use a screw ato attach the bottom cover to the appliance.
2 Attach the Smart Diagnosis label bin the location shown.
-Dimensions
A 6 11/16" (170 mm)
B 5 5/16" (135 mm)
Front
Floor
A
1
1
2
3
B
en-us_main.book.book Page 18 Friday, July 14, 2023 11:13 AM

19INSTALLATION
ENGLISH
NOTE
• The Wi-Fi transmission and reception unit is located on the baseboard, so the reception may depend on
the baseboard material.
• Finishing the baseboard installation
- If the position (depth from the front) of the cabinet baseboard is different from the position of the
appliance baseboard, adjust the cabinet baseboard so that it is aligned with the position of the
appliance baseboard.
• To adjust the baseboard
- Pull the cabinet baseboard forward and align it with the refrigerator baseboard.
- After adjusting the baseboard
3/8”
(10 mm)
3/8” (10 mm )
en-us_main.book.book Page 19 Friday, July 14, 2023 11:13 AM

20 INSTALLATION
Panels and Trim
Installing Door Panels
The door panel should be installed first, followed by the upper then lower drawer panels, if needed.
1 Place the door panel face down on a protected surface.
2 Locate the correct side of the door panel template for your product and position the template flush
with the top and left sides of the panel.
3 Use the template to mark the correct screw locations on the back of the panel.
4 Slide the template to the right so it is flush with the top and right sides of the panel.
5 Use the template to mark the correct screw locations on the back of the panel.
6 On refrigerator/freezer columns, begin inserting a #8 x 1/2" screw into the fifth hole from the top on
each side. On wine columns, use the third hole from the top. Stop when the screws are 3/16" (4 mm)
proud of the panel. These will be the support screws during the panel installation.
en-us_main.book.book Page 20 Friday, July 14, 2023 11:13 AM
