Signature 250 2008 User manual

Signature 250

ID. PAGE NO. DESCRIPTION PAGE NO.
Deck - Overhead View (includes the following) 8 9
Anchor, Lid & Hardware
Arch Antenna Option
Boarding Ladder
Bow Rail
Bow Roller
Cleats
Deck Hatch
Fuel Fittings
Galvanized Anchor Option
GPS Antenna
Horn & Grills
Navigation Lights
Pull-Up Cleats for Swim Platform Option
Radar Arch Options
Remote Spotlight
Sirius Satellite Antenna
Stern Lids & Hardware
Water Fitting
Windlass
Windshield
Windshield Wiper
Hull/Deck Exterior(includes the following) 10, 12, 14 11, 13, 15
Battery Switch Panels
Bow & Stern Eyes
Bow Chafe
Cleats
Drain Plug
Jump Start Charge Assembly (Optional Seating Only)
Optional Motor Box
Port Lights
Radar Arch Lighting
Rod Holder Option (Standard Seating Only)
Rubrails & Inserts
Shore Power Inlet
Ski Tow
Thru Hulls
Transom Door & Gate
Transom Remote
Transom Trim Panels
Trim Tabs
Trunk Lids & Hardware
TV Inlet Option
Vents & Covers
VHF Radio Antenna
Waste Fitting
Waste Vent
Water Fitting
PARTS IDENTIFICATION GUIDE INDEX
2008 MODEL YEAR
SIGNATURE 250
DESCRIPTION

ID. PAGE NO. DESCRIPTION PAGE NO.
Dash/Helm (includes the following) 16 17, 19, 21
Cabin Door
Capacity Plates
Compass
Console & Panels
Depth Finder
Garmin 172C GPS
Shifter & Engine Components
Steering Wheel Options
Stereo Remote
Subwoofer (Upgrade Speaker Option)
Tilt Steering
Trim Tab Indicators
VHF Radio Option
Windshield Braces
Cockpit (includes the following) 22, 24 23, 25
Aft Cabin Window
Aft Seating Hardware
Cockpit Galley Faucet
Cockpit Grab Rails
Cockpit Lighting
Cooler & Retainer
Cup Holders & Tub
Lounge Base & Hardware
Manual Bilge Pump
Pole Light Base
Rod Holder Option (Standard Seating Only)
Speakers
Transom Shower
Cabin (includes the following) 26, 28 27, 29
Aft Cabin Lighting
Air Conditioner Components
Cabin Lighting
Cabin Table, Hardware & Storage
Carbon Monoxide Detectors
Fish Anode
Head Door Ring
Speaker Upgrade W/Amplifier
Television & Wiring
Waste Basket & Label
Galley(includes the following) 30 31
AC Panel & Doors
Euro Breaker Panel Option
Faucet
Galvanic Isolator
Generator Panels
Grab Rail
Light Switch & Plug
Microwave
Refrigerator
Sink & Drain
Stereo
Stove Option
Water Pressure Panel
PARTS IDENTIFICATION GUIDE INDEX
SIGNATURE 250
2008 MODEL YEAR
DESCRIPTION

ID. PAGE NO. DESCRIPTION PAGE NO.
Head (includes the following) 32 33
Electrical Outlets
Faucet
Grab Rail
Head Lighting
Head Panel
Keeper Rail
Macerator Option Panel
Mirror & Clips
Porta Pottie
Pump-Out Porta Pottie Option
Shower Drain
Sink & Drain
Storage Door & Hardware
Tissue Holder
Towel Set
Vacuflush Toilet Option
Ventilation System
Cabinets (includes the following) 34, 36 35, 37
Speaker Boxes
Side Shelves
Dinette Table & Components
Plex Doors
Keeper Rail
Countertops
Engine Well (includes the following) 38, 40, 42 39, 41, 43
Actuator (Optional Seating Only)
Aft Bilge Pump & Bracket
Air Conditioner Option
Battery Charger
Battery Trays
Bilge Hose
Blowers & Hoses
Cockpit Table & Storage
Fire Extinguisher
Float Switch (High Water Bilge Alarm)
Fuel Lines
Fuel Shut Off
Fuel Tank
Fwd Bilge
Gas Vapor Detector Option
Generator Options
Thru-Hull Transducer
Vacuflush System Option
Waste Hoses
Water Heater
Water Tank & Hardware
Battery Cables (includes the following) 44 45
Standard Battery Cables & Schematics
Battery Cables & Schematics With Generator Option
Fresh Water (includes the following) 46 47
Hose Routing
Hoses & Couplings
Filter
Water Tank
Drain System (includes the following) 48 49
Drains & Hoses
Gray Water (includes the following) 50 51
Circuit Breaker
Drains & Hoses
Sump Pump
DESCRIPTION
SIGNATURE 250
2008 MODEL YEAR
PARTS IDENTIFICATION GUIDE INDEX

ID. PAGE NO. DESCRIPTION PAGE NO.
Interiors - Overhead View(includes the following) 52, 54, 56, 58 53, 55, 57, 59
Helm & Lounge Seat Components
Port Seating
Shifter Panels
Snap In Cockpit Carpet
Stern Seating
Stern Seat Rail Option
Interiors - Bow Interior (includes the following) 60, 62 61, 63
Aft Curtain Window Cover
Bow Mirror Board
Bow Seating Assembly
Cabin Steps
Ceiling Panels
Entrance Headliner & Trim Sticks
Filler Cushions
Gunnel Boards
Shelves
Interiors - Bulkheads & Trim Boards (includes the following) 64 65
Aft Port Window Panel
Entry Door Header
Galley Floor
Stbd Aft Ceiling Panel
DESCRIPTION
2008 MODEL YEAR
SIGNATURE 250
PARTS IDENTIFICATION GUIDE INDEX

PARTS IDENTIFICATION GUIDE
SIGNATURE 250
2008 MODEL YEA
R
Deck Overhead
2
1
3
6
4
25
24
21
23 7
8
9
22
55
11
20
19
10
18
14
12
14
16
17
15
13
5
5

Item No. Part Number Description Qty. U.O.M.
1 62026-4705H SEARCHLIGHT 5 IN STAINLESS STEEL (Option: Remote Spotlight) 1 EA
1a 67492-0800 SPOTLIGHT CABLE (Option: Remote Spotlight) 24 FT
2 3810P1 COMBO BOW LIGHT W/ PLUG 1 EA
2a 203-00817 HARNESS - BOW LT 250SIG 1 EA
3 11079 DROP IN HORN 1 EA
3a 11090 WHITE DROP-IN GRILL 1 EA
3b 11124 SS HORN GRILL 1 EA
4 66434-1 HINGE STRAP 4 INCH - 94 2 EA
5 66816C1 CLEAT - PULL UP 6IN NEAT CLEAT W/LOGO (Option: Pull-Up Cleats) 6 EA
5a 150-0140 HOSE - 3/8 IN. CLEAR PVC TUBING (Option: Pull-Up Cleats) 2 @ 7 FT
5b 66009-1 6 INCH CLEAT-HOLLOW BASE 6 EA
6 3-1246 276SIG ANCHOR LOCKER LID 1 EA
7 36-00005 RAIL - S250 BOW RAIL 1 EA
8 33105 14 INCH CURVED BLADE 1 EA
8a 33110A DLX WIPER ARM 1 EA
8b 203-00812 HARNESS - WIPER 250SIG 1 EA
8c 37181 WIPER MOTER AFI 1000 1 EA
9 588-1040055 WINDSHIELD- 250 SIG 3 PIECE FRONT/WING SET 1 EA
10 2600053 ARCH 250 SIG NONHINGED (Option: Radar Arch) 1 EA
10a 28-00014 TRIM - VINYL AWNING TRACK FOR ARCH 20 FT. (Radar Arch Options) 2 EA
10b 220-01883-H ARCH HARNESS PULL WIRE (Radar Arch Options) 1 EA
10c CKO.001437.000 LIGHT- NEGRIL WT W/G4 12V (Radar Arch Options) 2 EA
11 SRA-25-B SATELLITE ANTENNA SIRIUS 1 EA
12 99820 FILL - GAS VENTED STRAIGHT 1 1/2 1 EA
12a 99860 FILL - DIESEL VENTED STRAIGHT 1 1/2 (Diesel Engines) 1 EA
13 2340-3669 HINGE - 2 1/4 X 1 1/2 SWAGED FM 2 EA
14 66816C1 CLEAT-PULL UP 6IN NEAT CLEAT W/LOGO (Opt: Pull-Up Cleats for Swim Plat) 2 EA
15 84251 2 IN. HATCH LIFT PIN 1 EA
16 TDL-3XDA LADDER - 3 STEP W/ RAIL TELESCOPING 1 EA
17 SS66 LID - STBD STERN LID 1 EA
18 99810 FILL - WATER VENTED ANGLED 1 1/2 1 EA
19 1637-SPL-004 MAST HEAD LIGHT 12 5/8 INCH (Radar Arch Options) 1 EA
20 010-00174-03 ANTENNA, GA29 GPS ANTENNA FLUSH/POLE MOUNT (Option: Garmin GPS) 1 EA
20a Q119 NUTS (Option: Garmin GPS) 1.5 EA
20b Q120 THREADED STUDS (Option: Garmin GPS) 1.5 ST
21 41-00002 MAGNETIC WINDOW HOLDER SS 20X10 STRIKE 1 EA
22 588-1040056 WINDSHIELD- 250 SIG DOOR AND HARDWARE PACK 1 EA
23 588-1020015 HATCH- 20X20 ULTRA 3 1 EA
23a SFSSLX-20/20-B SKY SCREEN 20X20 SKY SCREEN W/ DEEP LINER 1 EA
24 24.00013 LATCH- MODIFIED M1 2" SLAM W/O EGRESS "N" 1 EA
25 66816C1 CLEAT - PULL UP 6IN NEAT CLEAT W/LOGO 1 EA
Parts Not Pictured Which Are Associated With Deck Overhead
Not Pictured 1045-SPL-009-P ROUND LIGHT BASE PACKARD CONNECTOR/ 1 EA
Not Pictured 27.00014 ANCHOR- ROLLER 1 EA
Not Pictured 220-01883-H ARCH HARNESS PULL WIRE 1 EA
Not Pictured 1632SPL056 LIGHT-ALL ROUND 66" OAH W/ 18 DEG. FOR BEND 1 EA
Not Pictured 203-00816 HARNESS - ARCH 250SIG (Radar Arch Options) 1 EA
Not Pictured GAZ-360 ARCH ANTENNA (Option: Arch Television Antenna) 1 EA
Not Pictured RG6-FM048 COAX CABLE- 48 IN M/M W/F F ADAPTOR (Option: Arch Television Antenna) 1 EA
Not Pictured SL0057406/F 14LB. DELTA ANCHOR (Option: Galvanized Anchor) 1 EA
Not Pictured SS180003 ANCHOR SAFETY STRAP 11 INCHES (Anchor Options) 1 EA
Not Pictured 203-00811 HARNESS - WINDLASS 250SIG (Option: Windlass) 1 EA
Not Pictured 69600655 WINDLASS- V-700 VERTICAL KIT W/O BREAKER (Option: Windlass) 1 EA
Not Pictured HM10HT200PX 8 PLAITED 1/2 ANCHOR RODE (Option: Windlass) 1 EA
Not Pictured 2600054 ARCH 250 SIG WITH HINGE (Option: Hinged Radar Arch) 1 EA
Not Pictured 255-270
I
NGED RADAR ARCH BRACKETS-10 1/2 IN. LENGTH (Option: Hinged Radar Ar
c
2EA
Not Pictured 98404A505 PIN - QUICK RELEASE SS RING GRIP 1/2 (Option: Hinged Radar Arch) 2 EA
primary numbered part for which there is no photo representation.
Deck Overhead
PARTS IDENTIFICATION GUIDE
SIGNATURE 250
2008 MODEL YEA
R
NOTE: Numbers with letter designations represent parts included with

PARTS IDENTIFICATION GUIDE
SIGNATURE 250
2008 MODEL YEA
R

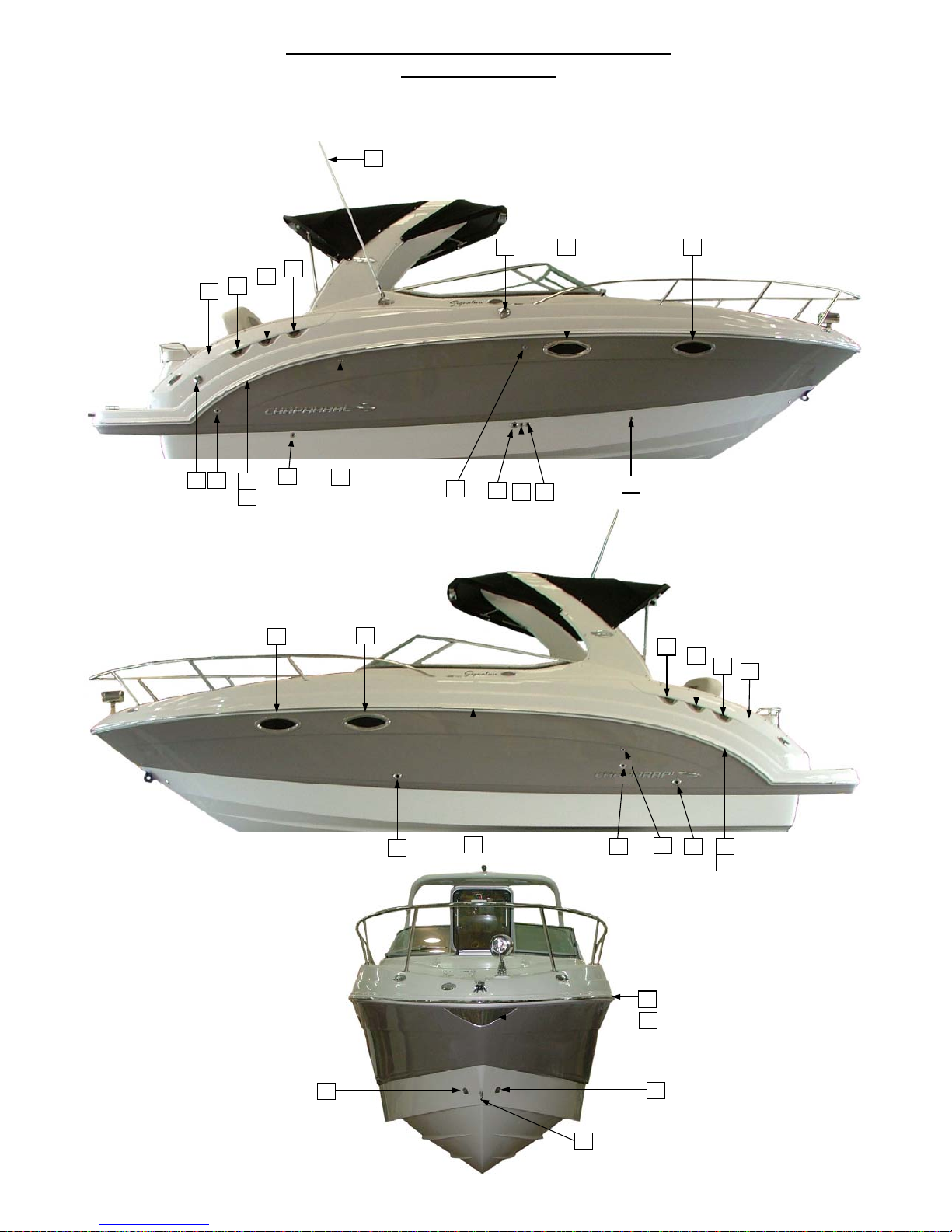

Hull / Deck Exterior
4 5 6
7
9 8
10
1617
2
2
2
1
12
3
11
13
14
15
6522218
24 21
22 19
17
23
25
26
26
27
23
20

Item No. Part Number Description Qty. U.O.M.
1 3-1334 250 SIG STBD VENT COVER 1 EA
2 81933SS-HP VENT- 4" HIGH POLISHED SS 6 EA
3 5101-B ANTENNA- 8FT VHF ANTENNA (Option: VHF Radio) 1 EA
3a 2340-840 MIDGET VENT 1 1/2 X 1 3/4 (Option: VHF Radio) 1 EA
3b 4600W ANTENNA CLEAT (Option: VHF Radio) 1 EA
3c 6520S SS ANTENNA MOUNT (Option: VHF Radio) 1 EA
4 855 VENT - 4 X 5 CLAMSHELL 1 EA
4a VHF-3WS 3 IN. SAND FLANGE 1 EA
5 19.00004 PORTLIGHT - OPENING SS OUTER/PLAS. INNER 2 EA
6 19.00006 PORTLIGHT - FIXED SS OUTER/ INJ. MOLDED INNER 2 EA
7 72001 5/8 SS SHORT THRU HULL (Option: Air Conditioning) 1 EA
8 72002 3/4 SS SHORT THRU HULL (Sump Pump-Delete w/Gray Water) 1 EA
9 72002 3/4 SS SHORT THRU HULL (Forward Bilge) 1 EA
10 72005 1 1/4 SS SHORT THRU HULL (Head Sink-Delete w/Gray Water) 1 EA
11 954 VENT- SS FLUSH MOUNT W/ 90 DEGREE 5/8 ELBOW (Option: Pump-Out Porta Pottie) 1 EA
12 954 VENT- SS FLUSH MOUNT W/ 90 DEGREE 5/8 ELBOW (Option: Vacuflush System) 1 EA
13 71003 1IN SS THRU HULL BARB (Option: Macerator) 1 EA
14 CHAP250SIGS INSERT - S250 PREBENT STBD 1 EA
15 V21-9747CRA26D RUBRAIL, 2 1/8 RIGID VINYL WHITE 26FT. 3 EA
16 72004 1 1/8 SS SHORT THRU HULL (Aft Bilge) 1 EA
17 99622 FILL - WASTE STRAIGHT 1 1/2 (Option: Vacuflush System) 1 EA
18 3-1333 250 SIG PORT VENT COVER 1 EA
19 CHAP250SIGP INSERT - S250 PREBENT PORT 1 EA
20 71008 2IN. SS THRU HULL (Option: Gasoline Generator) 1 EA
20a 71006 1 1/2IN SS THRU HULL BARB (Option: Diesel Generator) 1 EA
21 72002 3/4 SS SHORT THRU HULL (Cockpit Galley-Delete w/Gray Water) 1 EA
22 71006 1 1/2IN SS THRU HULL BARB (CE Package) 1 EA
23 STA2416H12 SS INSERT 3/4 X 12 3 EA
24 72006 1 1/2 SS SHORT THRU HULL (Galley Sink-Delete w/Gray Water) 1 EA
25 R-1981 BOW PLATE - S250 1 EA
26 850 VENT CLAMSHELL 2 EA
27 BOWSW1001 BOW EYE - 1/2 X 3 7/16 BOW EYE 1 EA
Parts Not Pictured Which Are Associated With Hull / Deck Exterior
Not Pictured U16817-01 WINDOW WARNING LABEL 4 EA
Not Pictured 99622 FILL - WASTE STRAIGHT 1 1/2 (Option: Pump-Out Porta Pottie-Below 855 Vent) 1 EA
Not Pictured 88391-2 FLUSH MOUNT ROD HOLDER (Option: Rod Holder-Standard Seating Only) 2 EA
Not Pictured 49.00034 HATCH TRACK- EPDM SPONGE 17 FT
Not Pictured 99860 FILL - DIESEL VENTED STRAIGHT 1 1/2 (Option: Diesel Generator) 1 EA
Not Pictured 72002 3/4 SS SHORT THRU HULL (Option: Aft Sunpad) 1 EA
primar
y
numbered part for which there is no photo representation.
Hull / Deck Exterior
PARTS IDENTIFICATION GUIDE
SIGNATURE 250
2008 MODEL YEA
R
NOTE: Numbers with letter desi
g
nations represent parts included with

PARTS IDENTIFICATION GUIDE
SIGNATURE 250
2008 MODEL YEA
R
Hull / Deck Exterior
6
11
6
7
8
9
42
23
3
11
10
1
1
ACCESS PLATE
SUPPLIED ON ARCH
STANDARD SEATING SHOWN
13
OPTIONAL SEATING SHOWN
12
15
5
14

Item No. Part Number Description Qty. U.O.M.
1 CKO.001437.000 LIGHT- NEGRIL WT W/G4 12V (Radar Arch Options) 2 EA
2 130210 HINGE - 2 7/8 X 3 1/4 SS 2 EA
3 41-00001 STAINLESS STEEL - RANDALL BUNGEE RETAINER (Opt: Camper Canvas) 2 EA
4 66448-1 2.5 INCH FLUSH SKI TOW 1 EA
5 3-1339 250 SIG FIBERGLASS MOTOR BOX (OPTIONAL) 1 EA
6 STESW1003 1/2 X 3 7/16 BOW EYE 2 EA
7 10045-001 TRIM TAB KIT- 250 SIG 1 EA
8 STA75I128 SS INSERT 3/4 X 128 INCH 1 EA
9 205-00351-A TRANSOM TRIM PANEL MERC (Opt: Tran Tilt Swtch & Stereo Rem-Merc) 1 EA
9a 44-00011 STEREO REMOTE ADAPTER - Y CABLE 2 WAY (Opt: Tran Tilt & Rem) 1 EA
9b 44-00013 STEREO REMOTE - WHITE (Option: Transom Tilt Switch & Stereo Remote) 1 EA
9c 44-00034 STEREO REMOTE CABLE - 20FT (Opt: Tran Tilt Switch & Stereo Remote) 1 EA
9d 205-00656-A TRANSOM TRIM PANEL VOLVO SSX (Opt: Tr Tilt & Ster Rem-Volvo N/A diesel) 1 EA
10 IST34349 250SIG OPTIONAL SUNDECK TRANSOM DOOR (Option: Aft Sunpad) 1 EA
10a IST34348 250SIG SMALL TRANSOM DOOR (STD) 1 EA
11 35394 GATE - OPT TRANSOM GATE S250 (Option: Aft Sunpad) 1 EA
11a 35393 GATE - TRANSOM GATE S250 (Standard) 1 EA
12 35399 RAIL - S250 TRUNK LID (Standard Seating Only) 1 EA
13 2266 LATCH - 2 1/2 SS LIFT HANDLE (Standard Seating Only) 1 EA
14 3-1336 250 SIG MOTOR BOX (Standard Seating Only) 1 EA
15 3-1337 250 SIG TRUNK LID (Standard Seating Only) 1 EA
15a 130200 HINGE 2 1/2 X 2 1/2 CAST ROUND (Standard Seating Only) 2 EA
Parts Not Pictured Which Are Associated With Hull / Deck Exterior
Not Pictured 14-00125 DECAL - CO TRANSOM LABEL 1 EA
Not Pictured U17403-01 DANGER USING SKI EYE 1 EA
Not Pictured U16852-01 WINTERIZED LABEL 1 EA
Not Pictured U23505-01 DECAL - SWIM PLATFORM WARNING LABEL 500LB 1 EA
Not Pictured BP-027 BOW CHAFE - 240SIG (Option: Bow Scuff Plate) 1 EA
Not Pictured 714-1-PLB DRAIN PLUG 1 EA
primar
y
numbered part for which there is no photo representation.
Hull / Deck Exterior
PARTS IDENTIFICATION GUIDE
SIGNATURE 250
2008 MODEL YEA
R
NOTE: Numbers with letter desi
g
nations represent parts included with

PARTS IDENTIFICATION GUIDE
SIGNATURE 250
2008 MODEL YEA
R
Hull / Deck Exterior
2
5
6
INSIDE DUNNAGE LID (STANDARD SEATING)
PORT SIDE STARBOARD SIDE
3
7
6
8
4
2
3
1
10
2
3
10
2
3
711 12
INSIDE SUNPAD STORAGE (OPTIONAL SEATING)
INSIDE SUNPAD STORAGE - AFT END (OPTIONAL SEATING)
9

Item No. Part Number Description Qty. U.O.M.
1 350 BUSHING SKI STORAGE 2 EA
2 SL40SSP3-1-R FLAT BRACKET STAINLESS 2 EA
3 625-SSID-8-10 GAS SHOCK SS 10 LB 20INCH - HEF-10M ENDS 2 EA
4 13.00258 PANEL - STD SEATING BATTERY SWITCH PANEL 1 EA
5 R-1241 3/8 SS CABLE HOLDER (100) HOOK 1 EA
6 HBL303NM INLET PLUG (LOT 3) 1 EA
7 TV97 INLET (Option: Main Cabin TV/DVD-Flat Screen-Std CE) 1 EA
8 HBLCBINM CIRCUIT BREAKER INLET COVER 1 EA
8a 204-00040-A AC SHORE INLET BRKR ASSY SIG 1 EA
9 3-1329 250 SIG STD MOTOR BOX TRUNK TUB 1 EA
10 SL58SSP3-1 90 DEG. SS BRACKET 2 EA
11 JSC-2AW JUMP START CHARGE ASSY. (Option: Aft Sunpad Only) 1 EA
12 13.00263 PANEL - OPT SEATING BATTERY SWITCH PANEL (Option: Aft Sunpad) 1 EA
Parts Not Pictured Which Are Associated With Hull / Deck Exterior
Not Pictured U13779-01 NOTICE MAIN SHORE POWER LABEL 1 EA
Not Pictured HBL61CM08WLED CABLE - 50FT 125V W/ LED 1 EA
Not Pictured 20-048-Y2
4
8IN GROUND BATTERY CABLE 2GA YELLO (Opt. Aft Sunpad to Jump Start) 1 EA
Not Pictured HBL316NM SHORE POWER INLET PLUG INTERNATIONAL (CE Package) 1 EA
Not Pictured TV99 CORD (Option: Main Cabin TV/DVD-Flat Screen-Std CE) 1 EA
Not Pictured HBL316CSW 50 FT. WHITE CABLE 230V (CE Package) 1 EA
Not Pictured U13810-01 SYMBOL ELECTRICAL HAZARD CE LABEL (CE Package) 1 EA
primar
y
numbered part for which there is no photo representation.
Hull / Deck Exterior
PARTS IDENTIFICATION GUIDE
SIGNATURE 250
2008 MODEL YEA
R
NOTE: Numbers with letter desi
g
nations represent parts included with

PARTS IDENTIFICATION GUIDE
SIGNATURE 250
2008 MODEL YEA
R
Dash / Helm
21
18
19
5
10
3
6
9
17
20
21
4
12
13
1415
7
22 22
23 24
26
26
16
8
11
OPTIONAL REMOTE
SPOTLIGHT PANEL
(PART OF SPOTLIGHT KIT)
See Engine
Components for Depth
Finder Unit

Item No. Part Number Description Qty. U.O.M.
1 F-83-C VOYAGER FLUSH MOUNT CMPSS WITH PLUG 1 EA
2 38.00108 CONSOLE - SHADOW 1 EA
3 13.00264 PANEL - MERC INSTRUMENT PANEL (Mercruiser Engines) 1 EA
3a 13.00254 PANEL - VOLVO INSTRUMENT PANEL (Volvo Engines) 1 EA
4 44-00012 STEREO REMOTE - BLACK 1 EA
5 13.00255 PANEL - STD SEATING SWITCH PANEL(Std Seating) 1 EA
5a 13.00262 PANEL - OPT SEATING SWITCH PANEL (Optional Seating) 1 EA
6 YACHTPLATE YACHT PLATE 1 EA
6a 14-00239 CONFORMITY PLATE - SIG 250 (Canadian Boats) 1 EA
6b 14-00242 CAPACITY PLATE - CE S250 (CE Package) 1 EA
6c 14-00243 CAPACITY PLATE - #15 AUSTRALIAN BUILDERS (Australian Boats) 1 EA
7 205-00333-B PANEL - STBD STEERING SW 270/276SIG 1 EA
8 10024-001 STANDARD TACTILE SWITCH W/ DEUTSCH CONN. 1 EA
8a 10023-001 INDICATOR SWITCH L.E.D. & RETRACTOR DEUTSCH CON (Opt: Trim Tab Ind. Lts.) 1 EA
9 883709A03 GEN II SIDE MOUNT SHIFTER (Mercruiser Engines) 1 EA
9a 3888318 CONTROL -XACT SIDE MOUNT W/HRNS,CUT OFF SWITCH (Volvo Gas Eng) 1 EA
10 44.00051 SPEAKER - STANDARD PANASONIC SPEAKERS 4 EA
10a 44.00053 SPEAKER - COVER CHAPARRAL SHOCKWAVE 6.5" 4 EA
10b 44.00052 SPEAKER - COAXIAL PANASONIC SPEAKER (Option: Upgrade Speakers) 4 EA
10c 203-00815 HARNESS - CLARION AMP 250SIG (Option: Upgrade Speakers) 1 EA
10d 44.00048 SPEAKER - SUBWOOFER 10" PANASONICSUBWOOFER (Option: Upgrade Speakers) 1 EA
10e 44.00054 SPEAKER - COVER CHAPARRAL SHOCKWAVE 10" (Option: Upgrade Speakers) 1 EA
10f 44-00006 AMP - CLARION MARINE OEM 1X150 (Option: Upgrade Speakers) 1 EA
10g 44-00020 RCA CABLE - 13.1' AUDIO/VIDEO (Option: Upgrade Speakers) 1 EA
11 17-00013 LIGHT KIT & OWNERS MANUAL FOR DOMESTIC(FE241) EXTI 1 EA
11a 17-00014 LIGHT KIT & OWNERS MAN. FOR INTERNATIONAL(227) EXT(Opt. Int'l. Std for CE) 1 EA
12 E43003 RAY 215 VHF RADIO (Option: VHF Radio) 1 EA
12a M46023 FLUSH MOUNT KIT/VHF215 (Option: VHF Radio) 1 EA
12b E43004 RADIOTELEPHONE- RAY 215E (Option: International) 1 EA
13 14-00169 DECAL - STEERING WHEEL 1.37IN ALUM EMBOSSED 1 EA
13a 43-00005 STEERING WHEEL - MEDALLION HOLDER BLK 37MM 1 EA
14 43.00018 STEERING WHEEL - SS MODEL 73 1 EA
14a 43.00020 STEERING WHEEL - FOUR SPOKE - MODEL 910 (Option: Mahogany Steering Wheel) 1 EA
14b 61710135251 STEERING WHEEL COVER (Option: Mahogany Steering Wheel) 1 EA
15 13.00266 PANEL - MERC CIRCUIT BREAKER PANEL (SHADOW) (Merc Engines) 1 EA
15a 13.00257 PANEL - VOLVO CIRCUIT BREAKER PANEL (SHADOW) (Volvo Engines) 1 EA
16 31-13685 DOOR TRACK- S250 1 EA
17 13.00265 PANEL - MERC IGNITION PANEL (Merc Engines) 1 EA
17a 13.00256 PANEL - VOLVO IGNITION PANEL (Volvo Engines) 1 EA
18 53109-1.5 9 IN RAIL W/ PAD 1 EA
19 12-00001 CUPHOLDER - STEPPED WELL W/ NOISE PROTECTION PAD 3 1 EA
20 13.00261 ELECTRICAL - OPT GARMIN GPS FACEPLATE (Option: Garmin 530 GPS) 1 EA
20a 200-00337 FACEPLATE 276 SIG OPT BLANK CENTER 1 EA
21 15.00030 ELECTRONICS - 530 GPS (Option: Garmin 530 GPS) 1 EA
21a 15.00029 ELECTRONICS - FLUSH MOUNT KIT FOR 530 GPS (Option: Garmin 530 GPS) 1 EA
22 WB-125 WINDSHIELD BRACE - S250 1 EA
23 31-13687 COMPANIONWAY TRIM - S250 1 EA
24 3-1341 250SIG CABIN/ENTRANCE DOOR 1 EA
25 7422S FLUSH ALUM. LATCH W/SEAL 1 EA
26 4350-35398 HANDLE - S250 CABIN DOOR 1 EA
primar
y
numbered part for which there is no photo representation.
Dash / Helm
PARTS IDENTIFICATION GUIDE
SIGNATURE 250
2008 MODEL YEA
R
NOTE: Numbers with letter desi
g
nations represent parts included with

Part Number Description Qty. U.O.M.
Parts Not Pictured Which Are Associated With Dash / Helm
14.00287 LABEL - CO/OPERATOR/BOATMAN COMBO 08 1 EA
14-00126 DECAL - CO CABIN LABEL 1 EA
14-00127 DECAL - CO HELM LABEL 1 EA
205-00344-A FUSEBLOCK 276 SIG RAYTHEON 10 WAY 1 EA
DP40-B 4 IN. BLK. PLATE (100BX) 1 EA
SH91523 QUICK CONNECT TILT HELM 1 EA
SH91810 PRO SERIES SPLINE TILT MECHANISM 1 EA
SSC6217 17' STEERING CABLE 1 EA
U13767-01 WARNING OPEN DOORS MAY CAUSE DAMAGE 2 EA
U13780-01 SAFETY ORANGE SYMBOL CE LABEL (CE Package) 1 EA
Mercruiser Engines (All):
13.00267 HARNESS - MERC ENGINE HARNESS 1 EA
132-0580R HOSE - 5/8 HD WATER HEATER 2 @ 7 FT
14-00069 DECAL - MERCURY IQ CERTIFICATION- CERTIFIED MANUFA 1 EA
22-72932A3 MERC HEAT EXCHANGE KIT 1 EA
5324K81 SPRING HOSE CLAMP 1/4 IN. 1 EA
59.00020 HOSE - 3/8" X 42" FUEL FEED HOSE FLAIR/FLAIR (5.0L & 5.7L) 1 EA
59.00022 HOSE - 3/8" X 52" FUEL FEED HOSE FLAIR/FLAIR (6.2L & 8.1l) 1 EA
63.00000 TRANSDUCER - DEPTH FINDER TRANSDUCER - MERCURY 1 EA
883709A03 GEN II SIDE MOUNT SHIFTER 1 EA
Mercruiser Gasoline Engines (add the following):
123-0120 HOSE - 1/2 FLAME RET.SPLIT COND. 24 FT
151-0400 HOSE - 4MM PITOT TUBING 22 FT
203-00174 HARNESS- TRIM PUMP 13 FT. 1 EA
13.00265 PANEL - MERC IGNITION PANEL 1 EA
84-865772A01 CONTROL TRIM HRNS WITH NEW PLUG 1 EA
CC67914 TFXTREME GEN II MERC CABLE 1 EA
CC67915 TFXTREME GEN II MERC CABLE 1 EA
Mercruiser 8.1L 496MAG & Seacore 2.00-Bravo 3 (375HP)w/6in Riser (add the following):
116-200-3340 HOSE - 3 3/4 MARINE EXHAUST 2 @ 0.75 FT
Mercruiser Seacore Enginges (add the following):
65-907-53 1 1/4 ELBOW PIPE TO HOSE 90 DEGREE 1 EA
65-BN8-12 1 1/4 BRZ INTAKE STRAINER 1 EA
78-666-01 BRASS BALL VALVE 1 1/4 1 EA
Mercruiser Diesel Engines (add the following):
151-0400 HOSE - 4MM PITOT TUBING 22 FT
2503-8-6 ELBOW - STEEL 90 DEGREE 3/8 FLARE X 3/4 UNF O-RING 2 EA
30682-6-6B FITTING - BRASS STRAIGHT 3/8 FLARE X 3/8 BARB 2 EA
46.00062 TANK - FUEL - DIESEL - 80G S250 1 EA
500MA10 FUEL FILTER RACOR 10 MICRON 1 EA
59.00020 HOSE - 3/8" X 42" FUEL FEED HOSE FLAIR/FLAIR 1 EA
59.00029 HOSE - 3/8" X 96" FUEL FEED HOSE FLAIR/FLAIR 1 EA
816492A9 HORN KIT 1 EA
84-865772A02 HARNESS - TRIM PUMP 1 EA
99860 FILL - DIESEL VENTED STRAIGHT 1 1/2 1 EA
CC67917 TFXTREME GEN II MERC CABLE 1 EA
CC67918 TFXTREME GEN II MERC CABLE 1 EA
Dash / Helm
PARTS IDENTIFICATION GUIDE
SIGNATURE 250
2008 MODEL YEA
R
