OWNER’S MANUAL
DISHWASHER
MFL71467501
Rev.01_070820
Read this owner’s manual thoroughly before operating the appliance and keep it handy for
reference at all times.
SKSDW2402P

TABLE OF CONTENTS
2
3 PRODUCT FEATURES
4 SAFETY INSTRUCTIONS
4 IMPORTANT SAFETY INSTRUCTIONS
9 PRODUCT OVERVIEW
9 Exterior Parts
10 Interior Parts
10 Accessories
11 INSTALLATION
11 Installation Parts and Tools
12 Installation Overview
12 Product Dimensions
12 Product Specifications
13 Preparing Dishwasher
14 Installation Location Requirements
15 Installing Moisture Barrier Tape
15 Installing Fleece Tape
16 Preparing Water and Electrical Connections
17 Sliding Dishwasher into Cabinet Opening
19 Attaching Installation Brackets
19 Connecting Water Supply Line and Power
20 Connecting Drain Hose
22 Leveling Dishwasher
24 Securing Cabinet Panel to Dishwasher
25 Preparing Cabinet Panel
26 Mounting Cabinet Panel
26 Securing Dishwasher to Cabinet Opening
28 Final Installation Check
29 OPERATION
29 Using the Appliance
32 Control Panel
33 Cycles
34 Options
35 Auto Open Dry (AOD)
36 Cycle/Option Guide
37 Loading the Dishwasher
37 Loading the Lower Rack
39 Loading the Silverware Basket
40 Loading the Upper Rack
43 Loading the Cutlery Rack
45 Adding Cleaning Agents
47 SMART FUNCTIONS
47 The SIGNATURE KITCHEN SUITE
Application
50 Smart Diagnosis™ Feature
51 MAINTENANCE
51 Cleaning the Exterior
51 Cleaning the Interior
51 Seasonal Maintenance and Storage
52 Clogged Drain Air Gap or In-Sink Disposal
53 Cleaning the Filters
54 Cleaning the Spray Arms
55 TROUBLESHOOTING
55 FAQs: Frequently Asked Questions
58 Before Calling for Service
62 LIMITED WARRANTY
62 USA
64 CANADA
66 Warranty Exceptions (U.S. and Canada)

ENGLISH
3
PRODUCT FEATURES
PRODUCT FEATURES
QuadWash™ System
Multi-Motion lower spray arm shoots water in various directions and at optimized intensities to reach every
area of the tub. This system provides more powerful and complete cleaning coverage.
Inverter Direct Drive Motor
SIGNATURE KITCHEN SUITE experience in motor technology results in extraordinary functionality, with
advanced features like the Dual Zone option, whisper-quiet operation, energy efficiency, and durability.
The simple design and high build quality of the motor make it so reliable that it’s covered for 10 years under
the warranty.
EasyRack Plus
This easy-to-use system of adjustable tines and rack height provides more flexibility and versatility when
loading dishes of various shapes and sizes.
Auto Open Dry System
The door opens automatically at the end of cycles that include drying in order to enhance the drying
performance.
Signature Kitchen Suite Application
Download the smart phone app to set options, self-diagnose and troubleshoot problems with the appliance,
and other useful features. This function uses Wi-Fi.
TrueSteam™ Technology
Tiny drops of purified water coat the surfaces of every dish from the steam that fills the tub, resulting in
sparkling clean dishes.
Status Indicator Light
Status Indicator Light shows the status of the appliance: whether it has encountered any problems, whether it
is operating normally, or whether it is ready to wash dishes.
TRUEFIT™ Sliding Panel
The appliance is panel ready, to allow for full integration with the surrounding cabinets. This appliance
requires a custom front panel, which can be purchased from many cabinet manufacturers.
Remote Start
Use a smart phone to control the appliance remotely or check to see how much time is left in the cycle.

4SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always
read and follow all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or
CAUTION. These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of
injury, and tell you what may happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons
when using this product, follow basic precautions, including the following:
INSTALLATION
•Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.
•To reduce the risk of severe injury or death, follow all installation instructions.
•The appliance must be installed and electrically grounded by qualified service personnel in
accordance with local codes.
•Disconnect the power cord, house fuse or circuit breaker before installing or servicing the appliance.
•When moving or installing the product in a different location, call qualified service personnel for
installation and service.
•Keep packing materials out of the reach of children. Packaging material can be dangerous for
children. There is a risk of suffocation.
•Moving or installation of the appliance requires two or more people.

ENGLISH
5
SAFETY INSTRUCTIONS
•This appliance is not designed for maritime use or for mobile installations such as in RVs, trailers, or
aircraft.
•Store and install the appliance where it will not be exposed to temperatures below freezing or
exposed to outdoor weather conditions.
•This appliance must be positioned near to an electrical power supply.
•Do not, under any circumstances, cut or remove the ground from the power cord.
•When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord.
•Do not install the appliance in humid spaces.
•Destroy the carton, plastic bag, and other packing materials after the appliance is unpacked.
Children might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can
become airtight chambers.
•Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or
has missing or broken parts, including a damaged cord or plug.
•Adhere to all industry recommended safety procedures including the use of long sleeved gloves and
safety glasses.
•The installer must ensure that the dishwasher is completely enclosed at the time of installation.
•Use new hoses when connecting the appliance to the water supply. Do not reuse old hoses.
•After installing, check the hose connection for leaks.
•Do not damage or place heavy items on the power cord of the appliance.
OPERATION
•Repair or immediately replace all power cords that have become frayed or otherwise damaged. Do
not use a power cord that shows cracks or abrasion damage along its length or at either end.
•If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance,
unplug it immediately, and contact an SIGNATURE KITCHEN SUITE customer information center.
•Never unplug the appliance by pulling on the power cord.
•Do not use an extension cable or adapter with this appliance.
•Do not grasp the power cord or touch the appliance controls with wet hands.
•Do not modify or extend the power cable.
•If the product has been submerged, contact an SIGNATURE KITCHEN SUITE customer information
center for instructions before resuming use.
•Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
•Keep the area underneath and around your appliances free of combustible materials (lint, paper,
rags, etc.), gasoline, chemicals and other flammable vapors and liquids.
•This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety.
•If the electrical supply line is damaged, it must only be replaced by the manufacturer or its service
agent or a similar qualified person in order to avoid a hazard.
•Do not abuse, sit on, or stand on the door of the appliance.
•Read all instructions before using the appliance and save these instructions.
•Use this appliance only for its intended purpose.

6SAFETY INSTRUCTIONS
•Do not allow children to play on, in or with the appliance. Close supervision of children is necessary
when the appliance is used near children.
•Do not tamper with controls.
•In the event of a gas leak (propane gas, LP gas, etc.) do not operate this or any other appliance.
Open a window or door to ventilate the area immediately.
•Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been
used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not
been used for such a period, before using the appliance turn on all hot water faucets and let the
water flow from each for several minutes. This will release any accumulated hydrogen gas. As the
gas is flammable, do not smoke or use an open flame during this time.
•Fix the drain hose securely in place.
•Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of
the reach of children.
•Do not let children eat detergent or dishwasher rinse agent.
•When loading items to be washed:
−Locate sharp items so that they are not likely to damage the door seal.
−Load sharp knives with the handles up to reduce the risk of cut-type injuries.
•Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic
items not so marked, check the manufacturer’s recommendations.
•Do not touch the HEATING ELEMENT during or immediately after use.
•Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.
•Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
•Do not install or store the dishwasher where it will be exposed to weather conditions.
•After cleaning the dishes, turn off the faucet. Turn on the faucet again and check the connection
status of water supply hose before cleaning.
•Do not open the door while operating. For safety reasons, the drain pump operates if the door is
opened, resulting in a longer cycle time.
•Be careful not to catch your hand when closing the door of the product.
•Do not plug the dishwasher into a damaged outlet.
•Do not install or keep the dishwasher near electrical components or exposed flames.
•Do not wash dishes exposed to gasoline, solvents or other flammable materials.
•When cleaning, do not spray water on the product directly.
•Do not press buttons with a sharp object such as an awl or pin.
•Do not use solvent-based detergent.
•Do not come into contact with the steam outlet.
•Small parts, such as rack clips and filter retaining posts can be a choke hazard to small children if
removed from the dishwasher. Keep out of reach of small children.

ENGLISH
7
SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
MAINTENANCE
•Do not repair or replace any part of the appliance. All repairs and servicing must be performed by
qualified service personnel unless specifically recommended in this Owner’s Manual. Use only
authorized factory parts.
•Do not disassemble or repair the appliance by yourself.
•Remove any dust or foreign matter from the power cord.
•Disconnect this appliance from the power supply before cleaning and attempting any user
maintenance. Turning the controls to the OFF position does not disconnect this appliance from the
power supply.
•Remove the door before the appliance is removed from service or discarded to avoid the danger of
children or small animals getting trapped inside.
•Unplug the appliance before cleaning to avoid the risk of electric shock.
•Before discarding the appliance, cut off the power cord and destroy the appliance’s control panel.
GROUNDING INSTRUCTIONS
•For a permanently connected dishwasher: This appliance must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding conductor must be run with the circuit
conductors and connected to the equipment-grounding terminal or lead to the appliance.
•Connect the ground wire to the green ground connector in the terminal box.
TIP OVER HAZARD
•Do not use the dishwasher until completely installed.
•Do not push down on the open dishwasher door.
•Failure to follow these instructions may result in serious injury or cuts.

8SAFETY INSTRUCTIONS
CAUTION
To reduce the risk of minor injury to persons, malfunction, or damage to the product or
property when using this product, follow basic precautions, including the following:
INSTALLATION
•Install the product on a firm and level floor.
•This dishwasher must be connected to a hot water supply with a temperature range between 120 °F
(49 °C) and 149 °F (65 °C). This temperature range provides the best washing results and shortest
cycle time. The temperature should not exceed 149°F (65 °C) to prevent damage to dishes.
•Do not put the drain hose under the dishwasher during installation.
•Use caution when opening or closing the appliance door before installing the custom panel. The door
may open or close abruptly.
OPERATION
•Do not place objects on top of the appliance.
•Turn off the water faucets and unplug the appliance if the appliance is to be left for an extended
period of time, such as during vacations.
•Do not store or spill liquid detergents, cleaners, or bleaches (chlorine bleach, oxygen bleach) on the
appliance. Doing so may result in corrosion, discoloration or damage to the surface of the appliance.
•Do not touch draining water which may be hot.
•If the drain hose and the water supply hose are frozen in winter, defrost before using the appliance.
•Do not put hands, feet, or metal objects below or behind the appliance.
•Do not put the drain hose under the dishwasher during installation.
MAINTENANCE
•If cooking oil is spilled on the exterior of the product, wipe it off immediately. Do not clean the exterior
of the product with cleaners which contain alcohol, thinners, bleach, benzene, flammable liquids, or
abrasives. These substances may discolor or damage the appliance.

ENGLISH
9
PRODUCT OVERVIEW
PRODUCT OVERVIEW

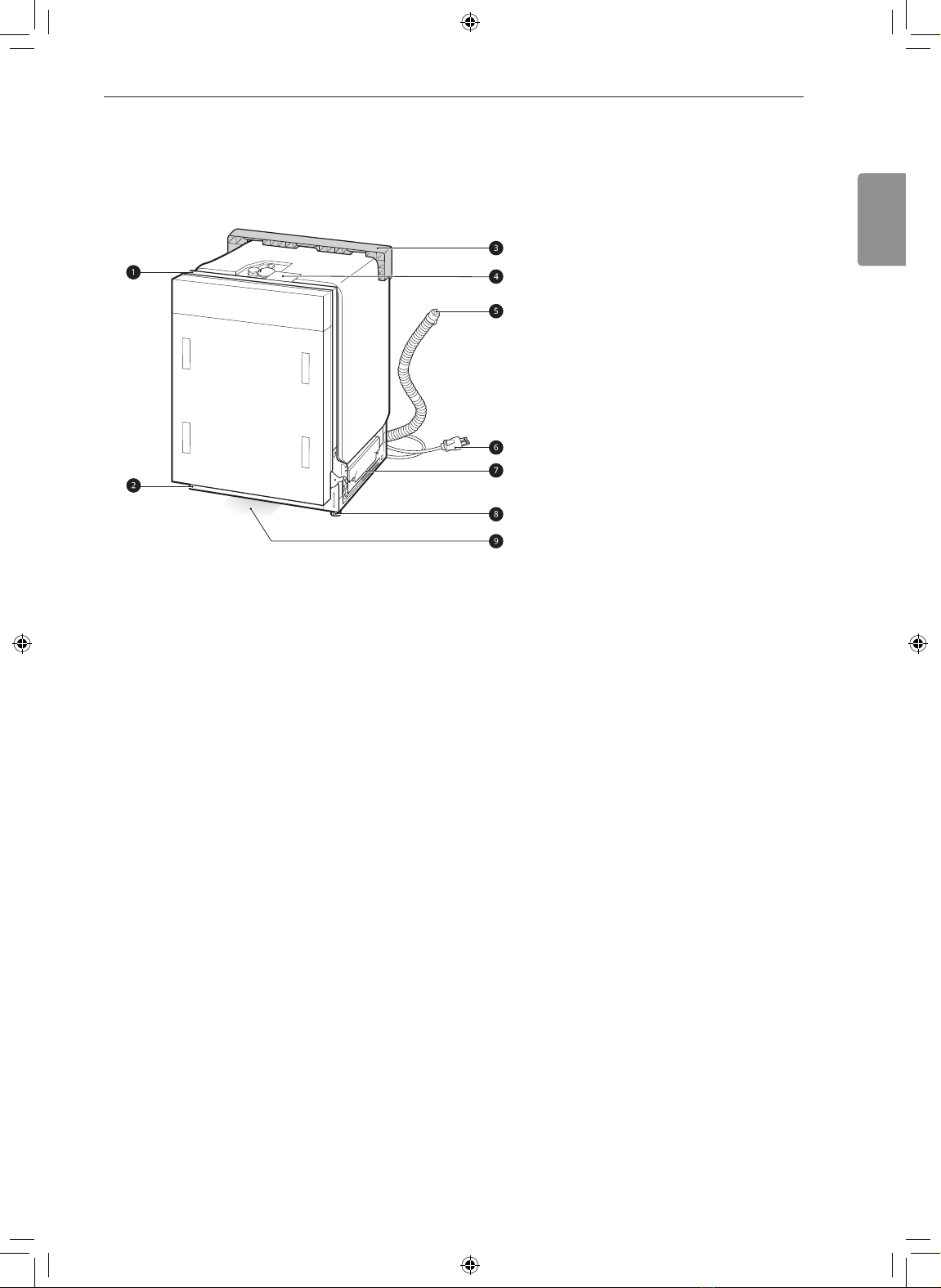

Exterior Parts
a Control Panel
b Lower Cover
c Shipping Brace
d Safety Cover
e Drain Hose
f Power Cord
g Base
h Leveling Feet
i Status Indicator Light
NOTE
•Do not remove the safety cover at any time.
•To ensure reliability, each Signature Kitchen Suite dishwasher goes through thorough quality control
before it leaves the factory.
•You may find water droplets or water spots from this process inside your new dishwasher.
Status Indicator Light
The Status Indicator light at the bottom of the dishwasher shows the status of the appliance: whether it has
encountered any problems,whether it is operating normally, or whether it is ready to wash dishes.
White LED
•Pulses when the cycle is running
•Remains on when the cycle is finished.
•Turns off when the door is opened.
Red LED
•Flashes if the appliance encounters an error. For more information about error codes, see the
Troubleshooting section.

10 PRODUCT OVERVIEW

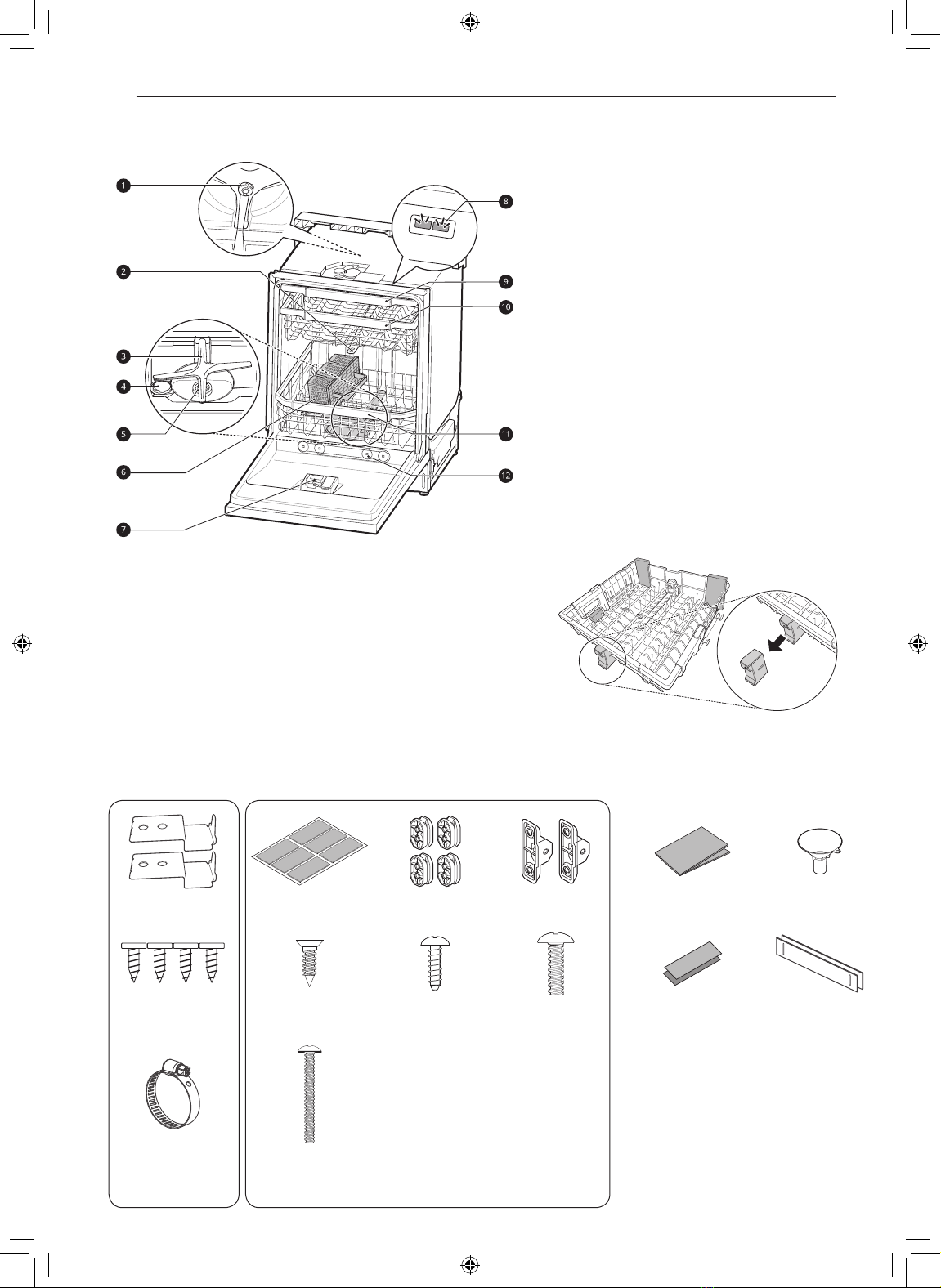

Interior Parts
a Top Wash Impeller
b Upper Spray Arm
c Lower Spray Arm
d Dishwasher Salt Cover
e Filtration System
f Cutlery Basket
g Detergent and Rinse Aid Dispenser
h Tub Light
i Cutlery Rack
j Upper Rack
k Lower Rack
l Steam Nozzle
NOTE
•The cutlery basket ships installed at the back of the bottom
rack. For best performance, install it along the right side.
•Remove all packing materials from the exterior and interior of
the dishwasher before installing the appliance.
Accessories
Included Accessories
Installation
brackets
Fleece Tape Panel Bracket
(Upper & Middle)
Panel Bracket
(Lower)
Moisture Barrier Tape
(Aluminum Tape)
Funnel
Φ4.5mmx12mm Φ4mmx14mm Φ4mmx14mm Φ4mmx14mm Moisture Barrier Tape
(Aluminum Tape, Side)
Lower Cover
Wood Screw Bracket Screw
Lower Cover Screw Wood Screw
Hose clamp Φ4mmx34mm
Door Adjustment
Screw

ENGLISH
11
INSTALLATION
INSTALLATION
Installation Parts and Tools
Parts not Provided
Water supply tube Fittings for tube Coupler Air gap Hose clamp
¾” Elbow Baseboard (Wood) Wood Panel &
Handle
Tools Needed
Flat-blade
screwdriver Phillips screwdriver Hole saw min. 2½” bit Electrical drill Gloves
Safety glasses Adjustable wrench (2) Tape measure Utility knife Level
¼” Square drive
wrench Pliers Scale Tape Torque wrench
⅜” Square drive
wrench + ½” Socket Saw

12 INSTALLATION
Installation Overview
Preparing Dishwasher
Installation Location Requirements
Installing Moisture Barrier Tape
Installing Fleece Tape
Preparing Water and Electrical Connections
Sliding Dishwasher into Cabinet Opening
Attaching Installation Brackets
Connecting Water Supply Line and Power
Leveling Dishwasher
Securing Cabinet Panel to Dishwasher
Preparing Cabinet Panel
Mounting Cabinet Panel
Securing Dishwasher to Cabinet Opening
Final Installation Check

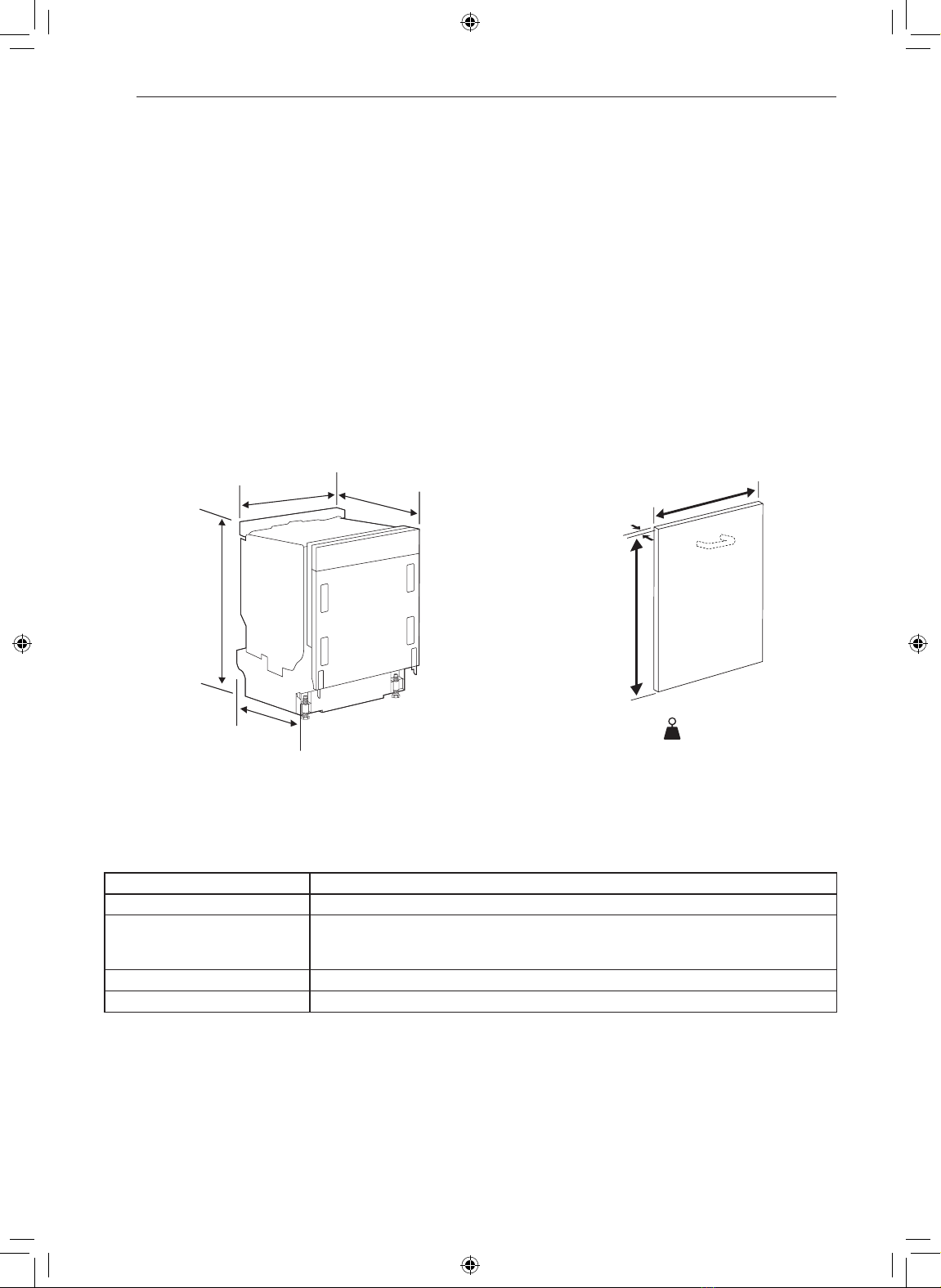

Product Dimensions
Product Cabinet Panel
23 1/4 " (590 mm)
5/8 - 7/8 "
(16 - 22 mm)
28 3/8 " - 30 11/16
(720 - 780 mm)
5.5 lb (2.5 kg) ≤ ≤ 24.2 lb (11 kg)
23 1/2”
(598 mm)
18”
(455 mm)
32 3/32”
(815 mm)
21 7/8”
(554 mm)
Product Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Electrical requirement 120 V, 60 Hz AC only, minimum 15 A circuit breaker
Water pressure 20 - 80 psi (140 - 550 kPa)
Dimensions
(W X D X H)
23 1/2” X 21 7/8” X 32 3/32”
598 mm X 554 mm X 815 mm
Inlet water temperature 120 °F (49 °C) minimum, 149 °F (65 °C) maximum
Net weight 88 lb (40 kg)

ENGLISH
13
INSTALLATION

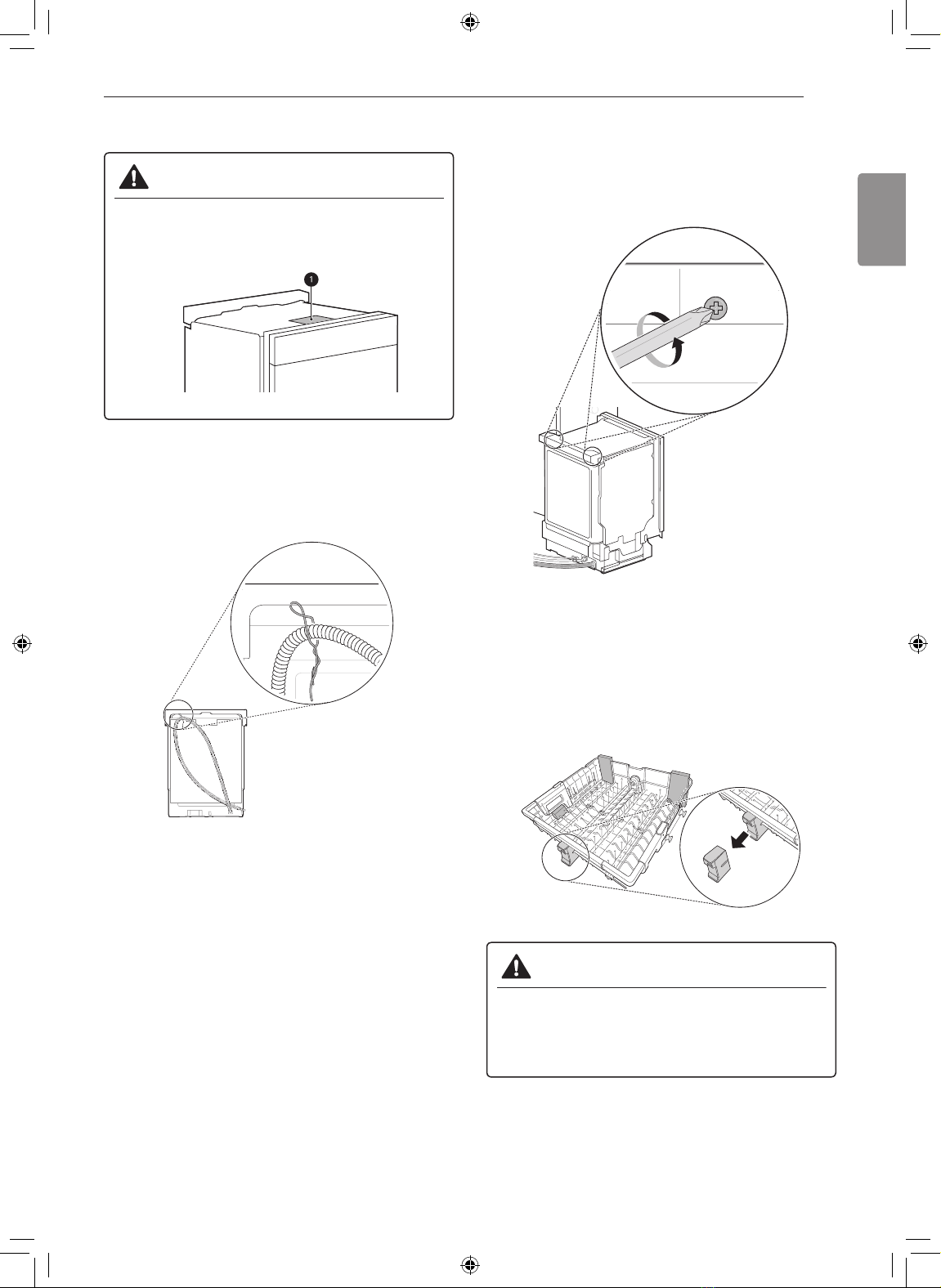

Preparing Dishwasher

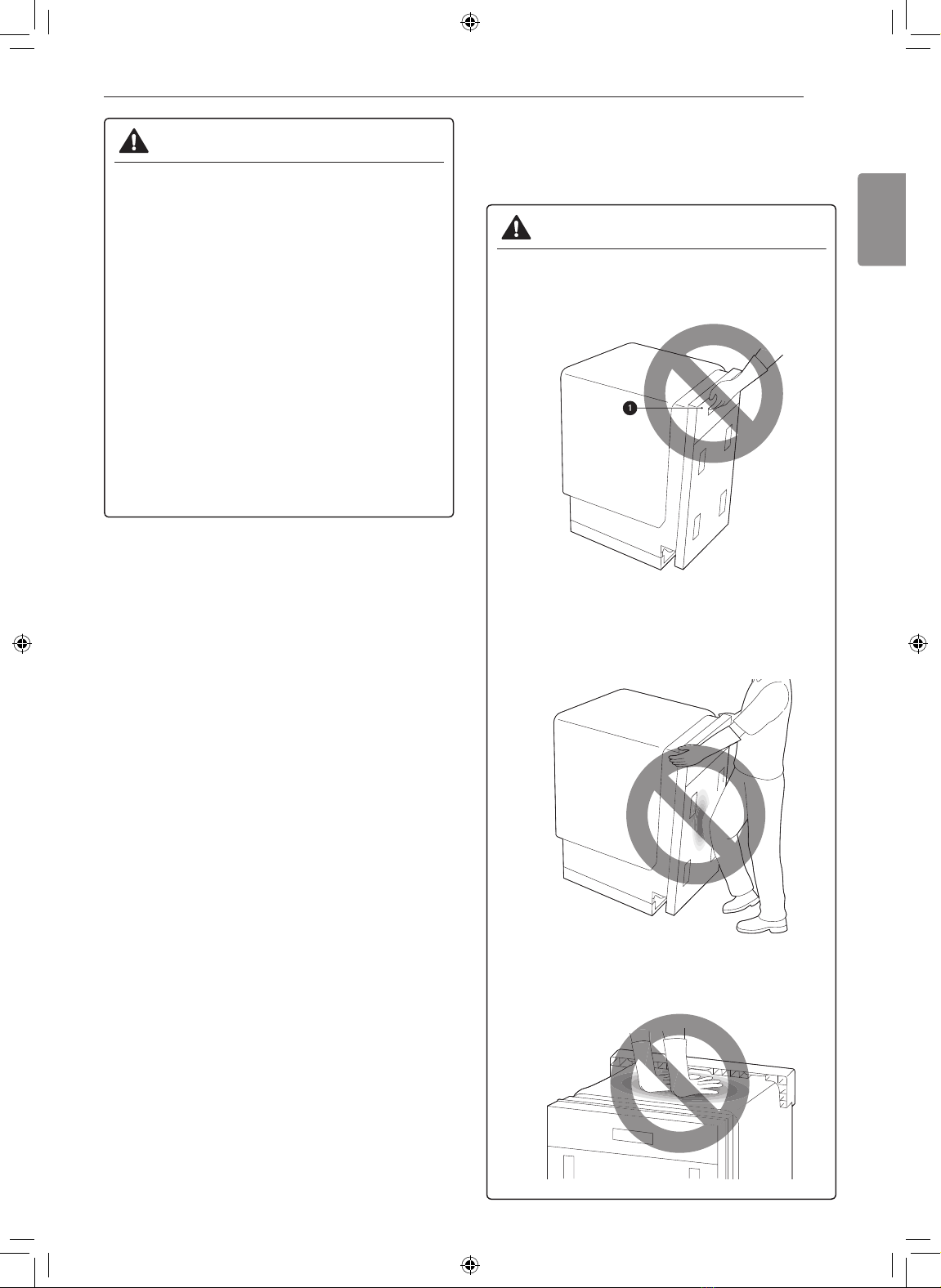

WARNING
•Do not remove safety cover a. Removal can
result in fire, electric shock or death.
Releasing Drain Hose
Remove the twist tie holding the drain hose to the
back of the shipping brace.
Removable Shipping Brace
The rear shipping brace can be removed if
additional clearance is needed when installing the
dishwasher under a low countertop.
Removing Packing Materials from
the Interior
Remove all packing materials from the interior of
the dishwasher before installing the appliance.
CAUTION
•Take care when opening or closing the
appliance door before the custom door panel
is installed. The door may open or close
abruptly without the weight of the panel.

14 INSTALLATION
Installation Location
Requirements
Preparing Cabinet Opening
This dishwasher is designed to fit a standard
dishwasher opening. An opening may be
needed on sides to route plumbing and electrical
connections.
•To ensure proper drainage, install the
dishwasher no more than 12 ft. (3.65 m) from
the sink.
•The location must have sufficient space for the
dishwasher door to open easily and provide at
least 0.1” (2 mm) between the dishwasher and
the cabinet sides.
•If installing the dishwasher in a corner, leave a
minimum of 2” (50 mm) between the dishwasher
and the adjacent wall.
•The adjacent wall must be free of obstructions.
•For flush installations only, you may remove the
cabinet brace ainside the cabinet.
1 Select a location as close to the sink as
possible for easy connections to water supply
line, drain hose and electrical connection.
Max. 24"
(610mm)
Max. 24"
(610mm)
32 ¼ " - 34 ½ "
(820 - 876 mm)
32 ¼ " - 34 ½ "
(820 - 876 mm)
2 Check that all surfaces have no protrusions,
lips or other trim that would prohibit
dishwasher installation.
3 To allow for proper clearance of plumbing and
electrical, use the template included with the
literature to determine the clearance on the
side of the cabinet where the cabinet meets
the back wall. Using a 2 ½” diameter hole saw,
drill a hole in the target area as shown on the
template.
Max. 24"
(610mm)
Max. 24"
(610mm)
32 ¼ " - 34 ½ "
(820 - 876 mm)
32 ¼ " - 34 ½ "
(820 - 876 mm)
4 "
(100 mm)
3 "
(75 mm)
WARNING
•Installation damage is not covered by the
warranty, and leaks caused by improper
installation may result in property damage.
•Do not use existing holes unless they are in
the target area.
•Failure to properly locate the hole for the
water and drain lines may prevent the
dishwasher from installing flush with the
cabinets and could result in kinked, pinched,
crushed, stressed or damaged lines.
Checking the Cabinet Panel
This dishwasher is designed to work with a cabinet
front panel (not provided) which slides up as the
door is opened. Before installing the dishwasher,
check the weight and dimensions of the cabinet
front panel you have selected.
•The dishwasher can support panels weighing
5.5–24.2 lb (2.5–11 kg).

ENGLISH
15
INSTALLATION
•If the cabinet panel weighs between 17.6 lb (8
kg) and 24.2 lb (11 kg), adjust the door spring
tension to make the door easier to open. See
the Adjusting Door Spring Tension section.
23 1/4 " (590 mm)
5/8 - 7/8 "
(16 - 22 mm)
28 3/
8 " - 30 11/16 "
(720 - 780 mm)
5.5 lb (2.5 kg) ≤ ≤ 24.2 lb (11 kg)
You can adjust the width dimensions of the wood
panel to match the cabinet width.
Installing Moisture Barrier
Tape
Install the moisture barrier tape to the underside
of the countertop to protect the surface from
condensation when the appliance is opened.
1 Clean and dry the area on the underside of
the countertop and the sides of the cabinet
opening where the tape will be applied.
2 Remove the protective film from the tape.
3 Install the tape on the underside of the
countertop.
4 Install the shorter pieces of tape to the sides of
the cabinet opening at the top.
NOTE
•Moisture barrier tape is included in the manual
assembly bag.
•If the countertop is made of granite or a
waterproof material, the moisture barrier tape is
not required.
•Condensation may occur on the underside or
along the front edge of the countertop when the
room temperature is low.
Installing Fleece Tape
Attaching fleece tape between the dishwasher
door and the cabinet panel will reduce the friction
when the door slides up and down.
1 Install the fleece tape close to the bracket
openings to make sure the door slides
smoothly.
2 Peel the fleece tape strips off the carrier and
attach them to the door.
8 1/8"
(207 mm)
6 11/16"
(170 mm)
5 7/8”
(150 mm)
9 5/8”
(345 mm)

16 INSTALLATION
Preparing Water and
Electrical Connections

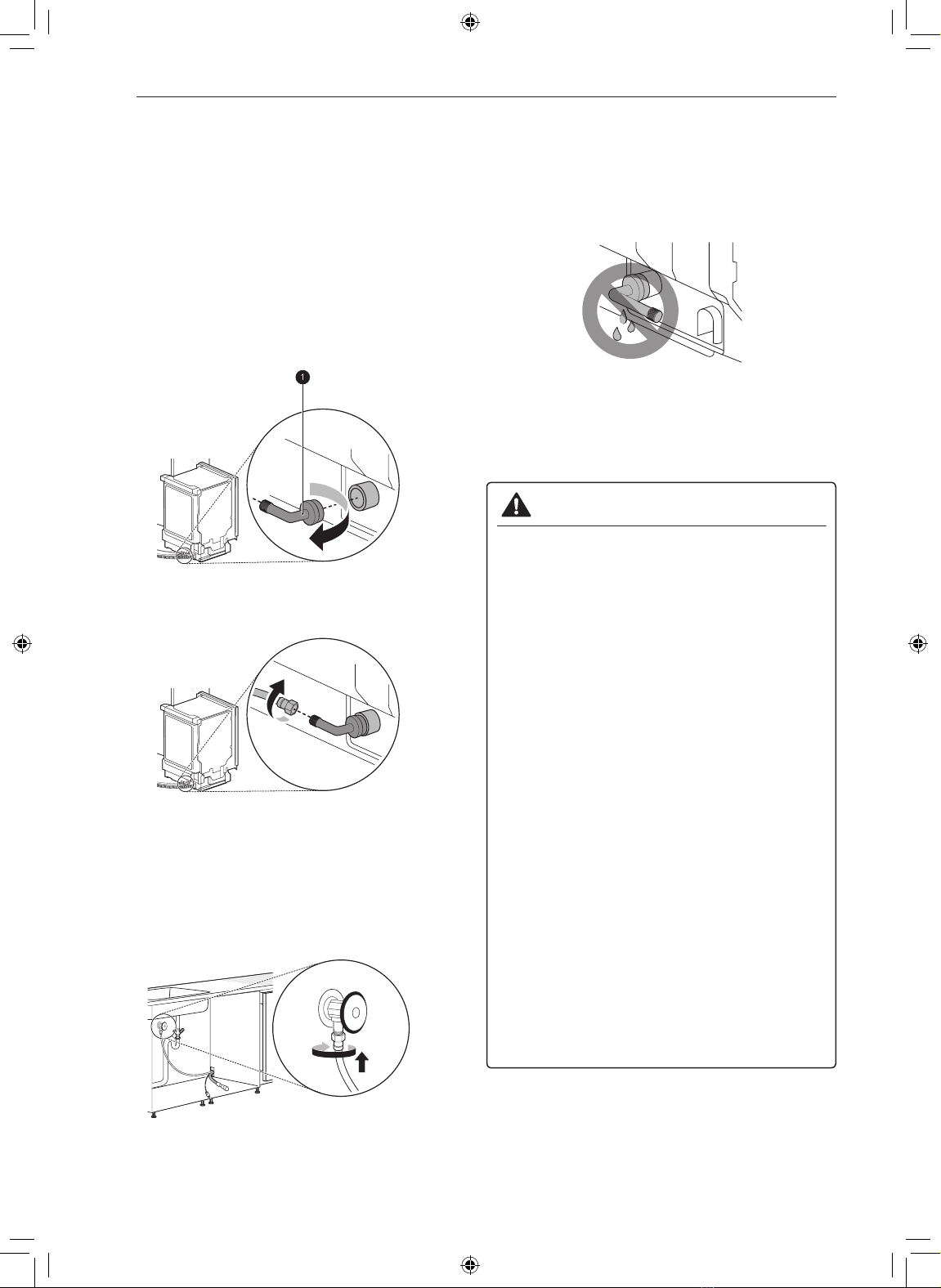

Connecting Water Supply Tube and
Power
*Water supply tube: 'Minimum 3/8″ O.D. copper
tubing or metal braided dishwasher supply line
1 Connect the elbow ato the inlet valve on the
back of the dishwasher.
2 Connect the water supply tube to the elbow.
3 Tighten both connections using two adjustable
wrenches to avoid putting stress on the water
inlet valve.
4 Make sure the water supply is turned off.
Connect the water supply tube to the tap.
5 Insert the power plug into an outlet.
6 Turn on the water and check for leaks at the
connections.
•If there is a leak, reconnect the elbow.
•Do not cross thread or overtighten the
connections to avoid leakage.
7 Unplug the power cord.
8 Turn off the water supply and disconnect the
water supply tube at the tap.
WARNING
Water Connection
•Do not reuse an old hose. Use only a new
hose when installing the dishwasher. The old
hose could leak or burst causing flooding and
property damage. Contact a SIGNATURE
KITCHEN SUITE Customer Information
Center for assistance in buying a new hose.
Electrical Connection
•Use a time-delay fuse or circuit breaker.
•Operate this appliance with the correct
voltage as shown in this manual and on the
rating plate.
•The wiring must be grounded properly. If
in doubt, have it checked by a qualified
electrician.
•The appliance and outlet must be positioned
so that the plug is easily accessible.
•Do not use an extension cable or adapter
with this dishwasher.
•Do not overload the outlet with more than
one appliance.
•It is the personal responsibility and obligation
of the product owner to have a proper outlet
installed by a qualified electrician.

ENGLISH
17
INSTALLATION
CAUTION
•When connecting the dishwasher water
supply line to the house water supply, sealing
tape or compound should be used on pipe
threads to avoid leaks. Tape or compound
should not be used on compression fittings.
•Connect the dishwasher to a hot water
supply with a temperature range between
120 °F (49 °C) and 149 °F (65 °C). This
temperature range provides the best washing
results and shortest cycle time. To prevent
damage to dishes, the temperature should
not exceed 149 °F (65 °C).
•Water supply pressure must be between 20
psi and 80 psi (140–550 kPa). If the water
supply pressure exceeds 80 psi, a pressure
reducing valve must be installed. Otherwise
premature failure of the inlet valve may occur.
Sliding Dishwasher into
Cabinet Opening
CAUTION
•Do not pull or lift the dishwasher using the
door a. Doing so can damage the door and
hinges.
•Do not push the door of the dishwasher
with knees when sliding the dishwasher into
position. Doing so can damage the front
cover.
•Do not push the top of the dishwasher. Doing
so can damage the interior of the dishwasher.

18 INSTALLATION
NOTE
•Open the door and grab the body frame and the
top front opening bof the tub to move or lift the
dishwasher.

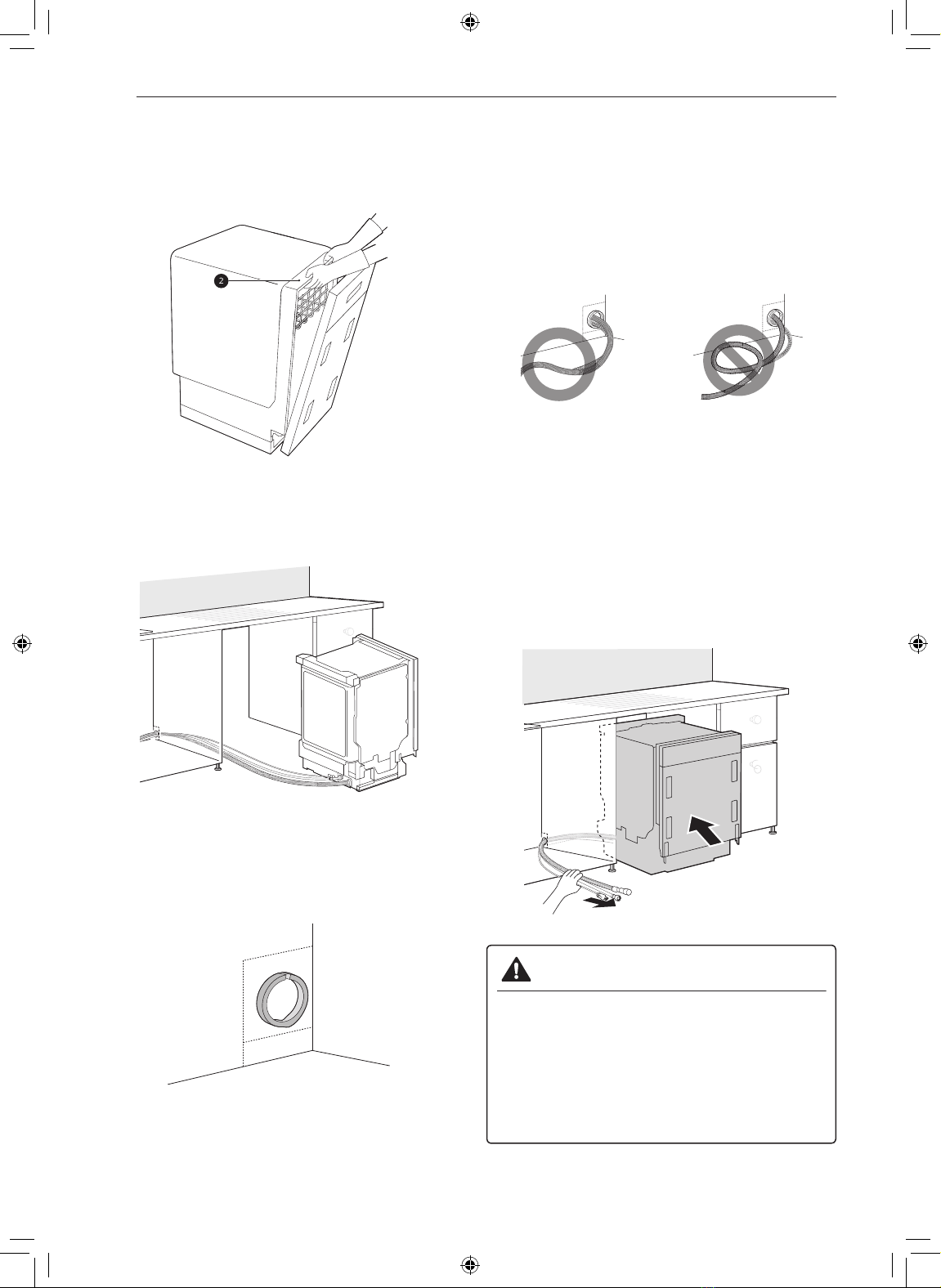

1 Align the dishwasher with the opening. Make
sure the water supply line and power cord
extend smoothly without kinks or bends.
2 Smooth out or pad the edges of the hole
drilled for the water supply to avoid damaging
the drain hose.
3 Make sure the drain hose is straight before
feeding the end of it through the hole for the
water supply. As you slide the dishwasher into
the opening, slowly pull on the drain hose from
inside the cabinet to take up some slack. Be
careful not to kink, pinch, crush or stress the
drain hose during installation to avoid leaking
and water damage.
4 Gradually slide the dishwasher into the
opening, making sure that the water supply
line and power cord are passing freely through
the opening and do not get caught under the
dishwasher.
•As you slide the dishwasher into the opening,
stop periodically (or have an assistant help)
to take up the slack by pulling the drain hose
farther into the cabinet.
CAUTION
•To avoid malfunctions or leakage, it is
important that the drain hose not get kinked,
pinched, stressed or crushed behind or under
the dishwasher or inside the neighboring
cabinet.
•Damage resulting from improper installation
is not covered under the warranty.

ENGLISH
19
INSTALLATION
Attaching Installation Brackets
For countertops made of wood or other material
that will not be damaged by drilling, use the metal
installation brackets provided.
For countertops made of granite, marble, or other
materials that could be damaged by drilling, use
the wood screws to attach the dishwasher to the
cabinet. See installation instructions in Securing
Dishwasher to Cabinet Opening.
NOTE
•Installation brackets and screws can be found in
the silverware basket.
1 Insert the tabbed end of the installation
brackets into the slots in the upper frame.
Rotate the brackets until the tabbed ends are
facing up.
Connecting Water Supply
Line and Power
Connecting Water Supply Line
1 With the home water supply turned off,
connect the water supply tube to the tap.
2 Tighten the connection using a square drive
wrench to avoid putting stress on the water
tap.
Connecting Power
Insert the power plug into a grounded outlet.
•The power cord should not be positioned behind
the appliance but within 47.2 inches of the side
so that the plug is easily accessible.

20 INSTALLATION
WARNING
•Do not use an extension cord or 2-prong
adapter.
•The plug must be plugged into an appropriate
outlet that is properly installed and grounded
in accordance with all local codes and
ordinances.
•Connect to a properly rated, protected,
and sized power circuit to avoid electrical
overload.
Connecting Drain Hose

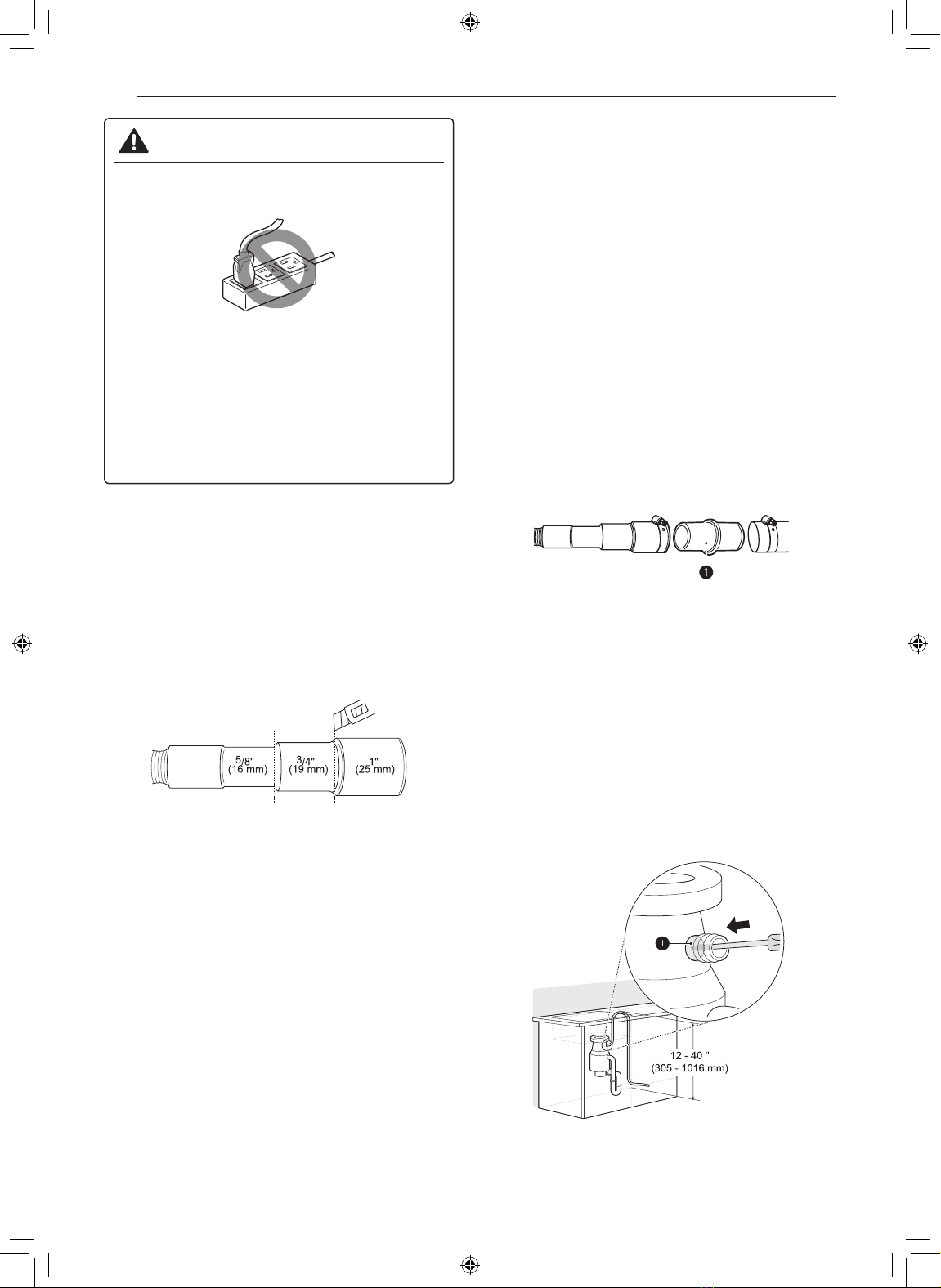

If the end of the drain hose does not fit the drain
line, use a heat and detergent resistant adapter
(not supplied). These may be obtained from a local
plumbing supply store.
•Cut the adapter so the end matches the size of
the drain connection.
NOTE
•For drain hose installation, use the screw style
hose clamp provided with this dishwasher in the
silverware basket.
•If connecting the dishwasher’s drain hose to
the garbage disposal, be sure to follow your
garbage disposal’s manual for proper installation
instructions.
Drain Hose Requirements
•Follow local codes and ordinances.
•Do not exceed 12 ft. (3.65 m) distance to drain.
•Do not connect drain hoses from other
appliances to the dishwasher’s drain hose.
•If an extension drain hose is required, use a 5/8”
or 7/8” inside diameter, 2-3 ft. length hose and a
coupler afor connecting the two hose ends.
Connecting to Disposal without Air
Gap
The height of the drain hose end must be at least
12” (305 mm) and within 40” (1016 mm) from
the base of the dishwasher to avoid water being
siphoned from the tub.
1 Remove the knockout plug aon the disposal
with a hammer and screwdriver.
