Signtex MOONLITE MOE-BB Series Quick start guide
7
6
INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
Series MOE-BB
MOONLITE
REV 06.15.08
Dual Function LED Exterior Wall Pack
with Integral Battery
2
1
10
35
49
1. Disconnect AC power before servicing.
2. Refer to wiring diagram for proper connections.
3. All servicing should be performed by qualified personnel.
4. Consult your local building code for approved wiring and
installation.
5. Do not use this equipment for other than intended use.
6. Do not let power cords touch hot surfaces.
7. Mount and secure the fixture at a location and height
to avoid ready access and tampering by unauthorized
persons.
8. The use of accessory equipment is not recommended by
the manufacturer and may cause an unsafe condition.
9. Suitable for wet locations. See product label for temperature
limitations.
IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
11
2
1
3
(2) #6-32 x 3/8"
TOP SCREWS
(2) #6-32 x 1/4"
SET SCREWS
J- BOX
SECURITY/ NORMALLY ON
SWITCH CONTROL
GROUND SCREW
GASKET
INSTALLATION TOOL
TEST PANEL
CONNECTOR
120/277 VAC
ITEM QTY P/N DESCRIPTION
1 1 343004-X HOUSING "X" COLOR
2 1 586102 BASE UNIT EQUIP.
3 1 586104 LENS
4 1 343005 LED 2- LAMP ASSBY KIT
5 1 343006 LED 3- LAMP ASSBY KIT
6 1 SEE SPEC BATTERY STD
7
9
8
10
11
1
1
1
1
1
SEE SPEC
343007
343012
343013
343035
BATTERY LT
TEST PANEL ASSBY
INSTALLATION TOOL
POWER SUPPLY ASSBY
GASKET
8
SEC CONTROL INPUT VOLTS
STANDARD FIXTURE = 120 VAC
DG FIXTURE = 120/ 277 VAC
UNIVERSAL
BATT
L N
LAMPS
RED
(LINE)
BLACK
WHITE
SEC CONTROL
MAKE- SEC ON
BREAK- SEC OFF
120 / 277 VAC
UN- SWITCHED NORMAL INPUT
POWER
SUPPLY
SECURITY LIGHTING SWITCH CONTROL OPTION
RED
MOONLITE
-2-
220 VFW Avenue, Grasonville, MD 21638
TEL: (410) 827-- 8300 Fax:(410)827- 8866
sales@signtexinc.com www.signtexinc.com
Signtex Inc
LIGHTING
TRIM TO 7" INSIDE TRIM TO 5" INSIDE
Product is supplied assembled. To separate Housing and Base, remove two #6-32 screws
at top of housing and back out two #6-32 set screws on each side.
JUNCTION
BOX MOUNT
AC INPUT WIRING
OPTIONAL SEC/ NORMALLY ON CONTROL WIRING
GROUND
TERMINAL
GASKETGASKET
#6-32
SET SCREW
SET SCREW
INSTALLATION TOOL
6-32 SCREW
TEST PANEL
PLUG
TEST PANEL
PLUG
Dual Function LED Exterior Wall Pack
with Integral Battery
Installation Instructions Series MOE-BB
BATTERY
PLUG
BATTERY
PLUG
J-BOX MOUNT SHOWN

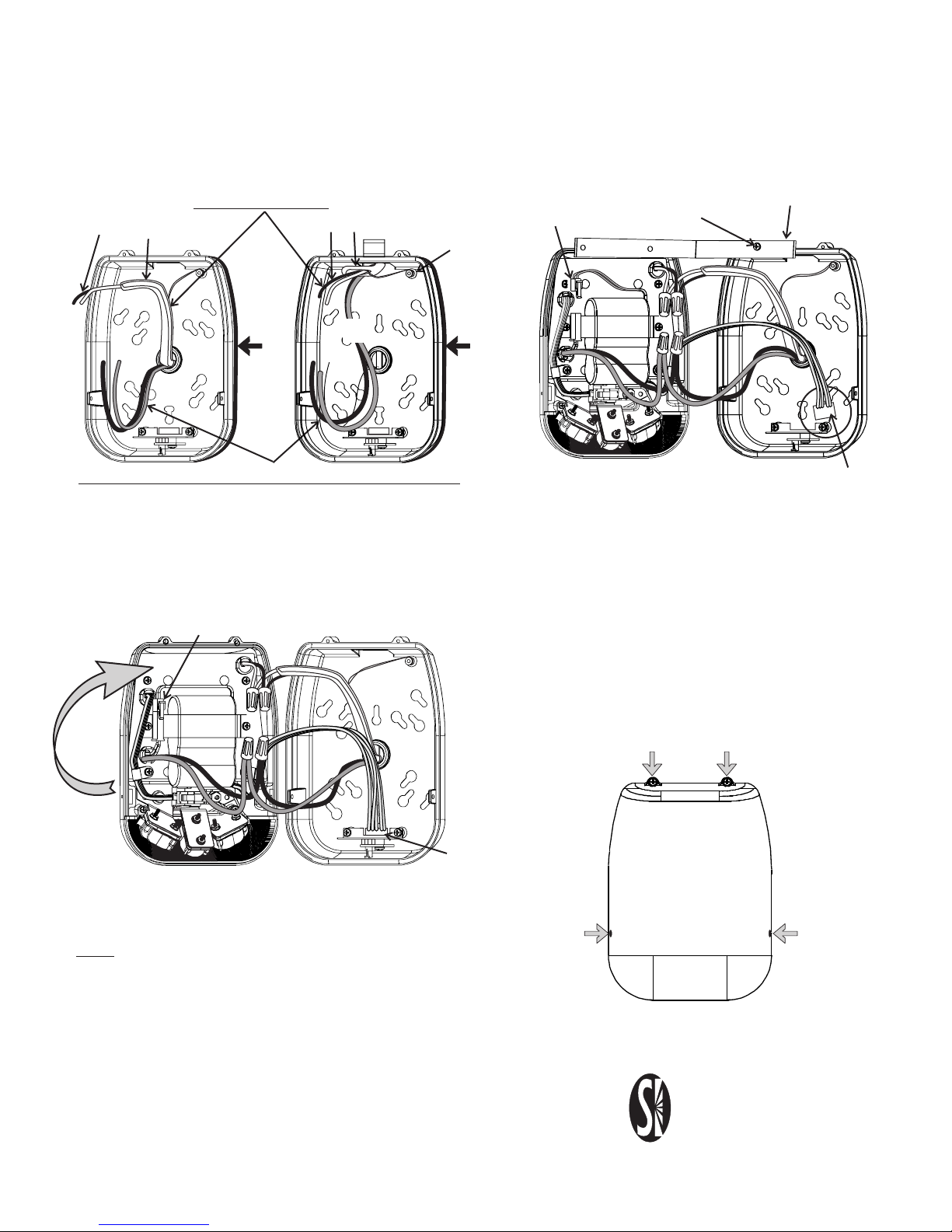

1. Route AC wiring into j-box or via external conduit. For j-box mount,
remove knockouts as required. Route AC wiring through gasket and
into Base, secure to j-box or surface. Trim and shape AC wiring and
optional SEC/Normally On switch control wiring as shown. Connect
AC GROUND wire to screw boss provided.
2. Attach Installation Support Tool to Base with 6-32 screw and insert
two pins into upper holes of Housing as shown. The Housing
assembly will be supported in a convenient position for wiring.
3. Connect the BLACK/ WHITE AC input wiring to building supply, and the
optional SEC/ NORMALLY ON wiring, with wire nuts. Connect the TEST
PANEL plug, making sure the 6 pins are aligned correctly. Connect the
BATTERY plug:
NOTE: IF AC POWER IS OFF, THE FIXTURE WILL TURN ON UNDER
BATTERY POWER. TO MINIMIZE BATTERY DISCHARGE, TURN AC
POWER ON.
Remove Installation Tool, position wire nuts as shown in above, and rotate
upper housing into position.
4. Press down firmly to seal gasket and tighten two 6-32 screws and
two set screws. Turn AC power ON and press the PUSH TO TEST
button to check operation. Full battery charge requires 24 hrs.
SURFACE MOUNT
WITH CONDUIT
REV 06.15.08
