SIIG USB USB 2.0 to VGA User manual

1
USB 2.0 to VGA
Installation Guide
04-0473J
Introduction
The USB 2.0 to VGA allows you to connect an
additional display to your desktop or notebook
PC and use it as an extended desktop or as an
additional larger/different display for your main
screen.
Features and Benefits
• Compliant with USB specification, Rev.2.0
• Supports suspend and wake-up modes
• Functionality:primary,extendedandmirror
• Resolution: up to 1680 x1050 @ 32-bit color
Lot Number Sticker
For future product return or exchange, this lot
number is required. Please keep it for your
reference.
Lot Number Part Number

2
System Requirements
• Pentium® 4 1.5GHz or equivalent PC
• An available USB 2.0 port
• Windows® 10 (32-/64-bit) / 8.x (32-/
64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit)
/ XP (32-/64-bit) / Server 2003 & 2008 (32-
/64-bit) / Server 2008 R2
Package Contents
•USB 2.0 to VGA
• Driver CD
• Installation guide
Layout
Figure 1: USB 2.0 to VGA
VGA port
USB port

3
Installation
Make sure the proper version driver for your
graphics card is installed, the USB 2.0 to VGA is
not designed to work with Windows' Standard
VGA Graphics Adapter driver.
Note: DO NOT plug the USB 2.0 to VGA
adapter into your computer's USB port
until you are instructed to do so. The
driverinstallationwillfailwhen the adapter
is plugged in prematurely.
1. Insert the driver CD, close the CD autoplay
box if prompted.
2. Enter This PC, Computer or My Computer,
and browse the CD/DVD.
3. Run Setup.exe, and choose Yes at User
Account Control window if prompted.
4. Follow the on-screen steps to install the
driver.
5. After installation process ends, select Yes, I
want to restart my computer now, then
click Finish.

4
6. While Windows is restarting, connect your
second monitor to the USB 2.0 to VGA and
turn it on.
7. When Windows resumes, plug the USB 2.0
to VGA into the computer, and it's ready for
use.
To Verify Installation
1. From the desktop, right click This PC,
Computer or My Computer, then click
Manage.
For Windows 10 / 8 / 7 / XP / 2003: Click
Device Manager.
For Windows Vista: Click Continue, then
click Device Manager.
For Windows Server 2008 / 2008 R2: Double
click Diagnostics, then click Device
Manager.
2. Double click Trigger USB Graphic Family,
and USB Display Device (T1N) should be
displayed.

5
Display Utility
After successful driver installation, the icon
will appear in the taskbar by the system clock.
This utility allows you to change the viewing
modes, screen resolution, screen rotation, and
physical arrangement of your monitors.
Access the utility by right clicking the icon. Note
that the utility icon may be hiddden in the
Windows System Tray. Click (arrow icon) to
bring up more icons.

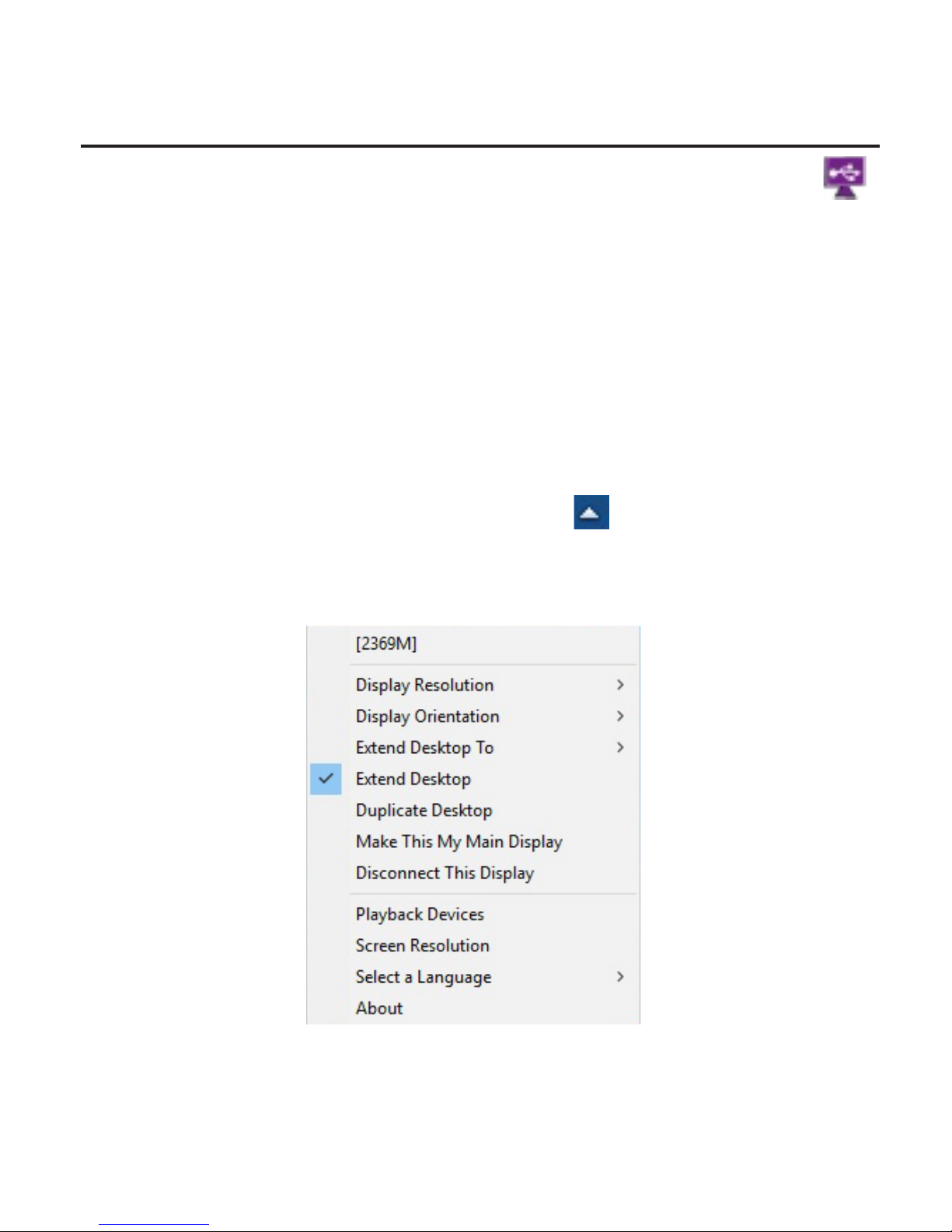

Figure 2: Utility Settings

6
Description of the Utility Settings
•Display Resolution: Click to select an
available resolution
• Display Orientation: Rotates the screen
according to the desired orientation
including Landscape, Portrait (Flipped),
Landscape (Flipped) and Portrait
• Extend Desktop To: Extends the screen
according to the desired orientation (Right/
Left/Top/Bottom)
• Extend Desktop: Extends your desktop for
easyviewingofmultiplewindows.Tomatch
the physical arrangement of your displays,
go to Extend Desktop To for further settings
• Duplicate Desktop: Displays the same
image on both monitors (Mirror mode)
• Make This My Main Display: Sets the
connected display of the USB 2.0 to VGA as
the main display
• Disconnect This Display: Disables the
connected display of the USB 2.0 to VGA
• Playback Devices: Enables the Windows
audio configuration page, see Figure 3

7
• Screen Resolution: Choose from advanced
options such as display resolution, display
orientation and multiple display modes
(Mirror / Extend / Primary), see Figure 4
Figure 3
Figure 4
• Select a Language: Choose the preferred
language from the list
• About: Shows the version of the software

8
Frequently Asked Questions
Q1: Why won't my DVD video play when I move
it over to the extended display?
A1: Some DVD playback software packages do
not support playing on a secondary display
adapter. This is a limitation of the DVD
playback software.
Q2: There are lines running up and down my
screen or the screen is distorted
A2: This is due to a low or unsupported refresh
rate. Make sure you select the USB 2.0 to VGA
and not set the refresh rate higher than what
your monitor can support.
Q3: How do I move a Window to the extended
display?
A3: When a window is Maximized it can not be
moved to the extended display. Click on the
Restore Down button located in the upper
right hand corner of the window to the left of
the Close button. To move the window, place
the mouse cursor over the title bar, hold
down the left mouse button and drag the
window to the other screen.

9
Blank page

10
Blank page

11
