SIIG AV-GM0993-S1 User manual

3G/HD/SD-SDI Pattern Generator
with Serial Control
P/N: AV-GM0993-S1

1
Safety and Notice
The AV-GM0993-S1 3G/HD/SD-SDI Pattern Generator with Serial Control has been tested for
conformance to safety regulations and requirements, and has been certified for international
use. However, like all electronic equipments, the AV-GM0993-S1 should be used with care. Please
read and follow the safety instructions to protect yourself from possible injury and to minimize
the risk of damage to the unit.
Follow all instructions and warnings marked on this unit.
Do not attempt to service this unit yourself, except where explained in this manual.
Provide proper ventilation and air circulation and do not use near water.
Keep away the objects that might damage the device and assure that the placement of this
unit is on a stable surface.
Use only the power adapter, power cords and connection cables designed for this unit.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.

2
The AV-GM0993-S1 3G/HD/SD-SDI Pattern Generator with Serial Control is an advanced SDI
pattern generator with multi-format (3G/HD/SD) and multi-pattern support. Besides still and
moving video test patterns, other features such as audio (SMPTE-291M) are also provided.
AV-GM0993-S1 can support up to 8 channel AES compliant audio with 48KHz sample rate.
Another attractive feature of AV-GM0993-S1 comes from bypassing HDMI input and allows users
with more testing patterns for connected display or treats AV-GM0993-S1 as an advanced HDMI
to SDI converter with 3G capability. With portable size, AV-GM0993-S1 is equipped four buttons
and LCM screen to ease the control. This device provides a cost effective way to calibrate and test
SDI enable video devices and displays.
In order to create the accessibility for SDI system integrators, AV-GM0993-S1 is equipped the
serial port thru mini-USB connector and the complete serial command sets are also provided for
reference!
Features
Supported output resolution
NTSC 525@60, PAL 625@50, [email protected], 720p@24, 720p@25, [email protected], 720p@30,
720p@50,[email protected], 720p@60, 1080i@50, [email protected], 1080i@60, [email protected],
1080p@24, 1080p@25, [email protected], 1080p@30, 1080p@50, [email protected], 1080p@60
Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 270 Mbps
Resolution: 10bit
Video Patterns
100% Color Bars, Borderline, Random Noise, Check Field, Black, Vertical Lines, Black / White
alternate fields, Full Grey / Full White, Black to White Gradient, Random Generator for all still
patterns, moving squares White noise, Inverse effect with still pattern, Scrolling Title (see
Appendix for illustrations)
Save Settings to Memory Option
ANC Data
EDH (RP-165), SMPTE 352M, SMPTE291M
Control
By LCM or panel buttons & serial command control
Video Output
Triple SDI output (SDI, HD-SDI, 3G-SDI)
Introduction

3
Specifications & Package Contents
Model Name
AV-GM0993-S1
AV-GM0973-S1
Technical
Role of usage
Pattern generator
SDI standards
3G/HD/SD-SDI
Auto SDI rate detection
Yes
Supported protocols
SMPTE 259M (270Mbps / 360Mpbs)
SMPTE 292M / HDTV (1.485 & 1.485/1.001Gbps)
SMPTE 424/425M (2.97 & 2.97/1.001Gbps)
Video bandwidth
2.97Gpbs
Data rates
143 / 270 / 1483 / 1485 / 2967 / 2970 Mbps
Video support
[3G] 1080p@50/59.94/60 (4:2:2)
[HD] 720p50/59.94/60, 1080p24/30, 1035i50/59.94/60, 1080i50/59.94/60
[SD] NTSC@59.94Hz, PAL@50Hz
SDI signal type
SMPTE-292M / 259M / 424M
HDMI bypass
Yes
Output impedance
75
Cable (Belden 1694A)
equalization /
transmission
[3G-SDI] up to 60m (190ft) / [HD-SDI] up to 150m (500ft) / [SD-SDI] up to 300m
(1000ft)
Audio support
Yes
PCB Stack-up
4-layer board [impedance control —differential 100; single 50]
Input
HDMI
HDMI + USB
Output
2x BNC [SDI]
BNC connector
75interlocking socket
HDMI connector
Type A [19-pin female]
USB connector
mini
[HD] Eye pattern
characteristics
Amplitude: Within 800mV <10%
Rise overshoot: Less than 2%
Fall overshoot: Less than 2%
Long time jitter <1.0 UI
Timing jitter <1.0 UI
Alignment jitter <0.2 UI
Mechanical
AV-GM0993-S1
AV-GM0973-S1
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
150 x 190 x 32mm [5.9” x 7.5” x 1.3”]
Package
175 x 270 x 100mm [6.9” x 10.6” x 3.9”]
Carton
450 x 370 x 300mm [1’6” x 1’3” x 1’]
Weight
Model
660g [1.5 lbs]
Package
1260g [2.8 lbs]
Fixedness
Interlocking power supply
Power supply
5V 4A DC
Power consumption
10 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]
Package Contents
1x AV-GM0993-S1
1x AV-GM0973-S1

4
1x 5V power supply unit
1x User manual
1x 5V power supply unit
1x User manual
The measurement results are from Tektronix WFM-7120 with SDI through 1m (3.3ft) long Belden
1694A.

5
Menu Operation
Menu
Items
01 Format
Resolution
NTSC
PAL
720p
1080p
1080i
Frequency
60
59.94
50
30
29.97
25
24
23.98
Output
YCbCr 422
02 Video
Patterns
SMPTE Bar
100% Bar
Check Field 1
Check Field 2
Check Field 3
Gradient R1
Gradient G1
Gradient B1
Gradient R2
Gradient G2
Gradient B2
Gradient R3
Gradient G3
Gradient B3
Gradient R4
Gradient G4
Gradient B4
Red Level 1
Red Level 2
Green Level 1
Green Level 2
Blue Level 1
Blue Level 2
100% Red
100% Green
100% Blue
100% White
70% Gray

6
40% Gray
Black
Noise
Circle 1
Circle 2
Moire
H Stripe R
H Stripe G
H Stripe B
V Stripe R
V Stripe G
V Stripe B
Chess 1
Chess 2
Sequence
Text
Off
On-White
On-Black
Timer
Off
On-W/B
On-B/W
03 Audio
Mode
Off
On
Group
1+2
3+4
Level
-6dB
-12dB
-18dB
-24dB
-30dB
-36dB
-42dB
Silence
Random
Mask
Off
CH 1234
CH 1
CH 2
CH 3
CH 4
CH 1+2
CH 3+4
04 Motion
Motion
No Motion
Square 1

7
Square 2
2 Squares
Square Inv
Data Speed
1
2
3
4
5
6
7
8
05 ANC
Data
SMPTE-352M
Off
On
EDH
On
Off
06 System
Status
No Change
Factory
Now Save
Version
V1.00

8

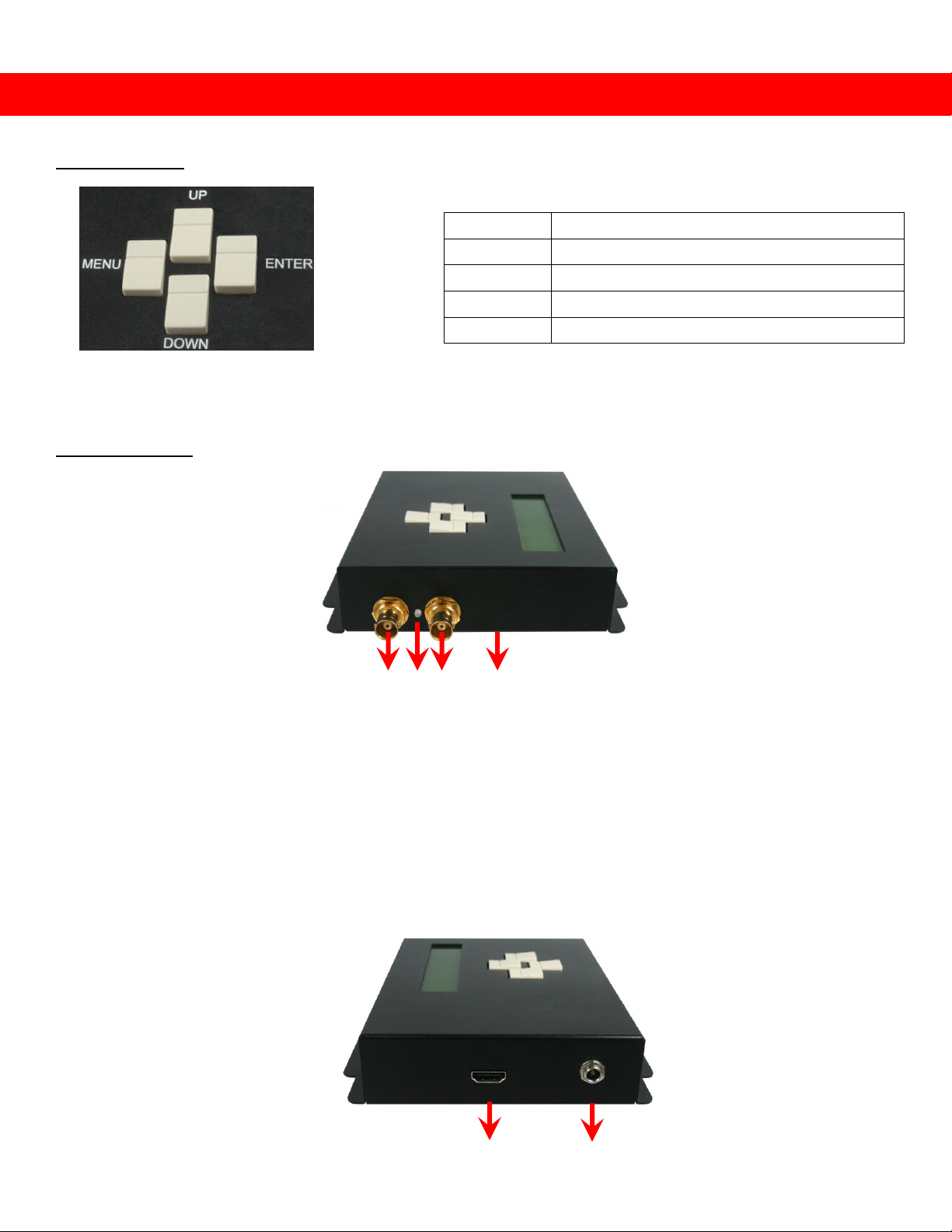

Top View
Side View
1. SDI OUTPUT A: Connect to a SDI device for SDI, HD-SDI, or 3G-SDI signal output either from
the chosen pattern or the converted HDMI source signal
2. Lock LED: showing if the audio/video signal existed or not
3. SDI OUTPUT B: Connect to a SDI device for SDI, HD-SDI, 3G-SDI signal output either from the
chosen pattern or the converted HDMI source signal.
4. Mini-USB: Serial control port
Button
Function
Menu
Trigger the menu operation
Enter
Enter the menu item
Up
Choose the last menu item
Down
Choose the next menu item
Panel Descriptions
1
3
2
5
6
4

9
5. HDMI INPUT: Plug in a HDMI cable to be linked to a HDMI source
6. +5V DC: Connect to a 5V DC power supply unit

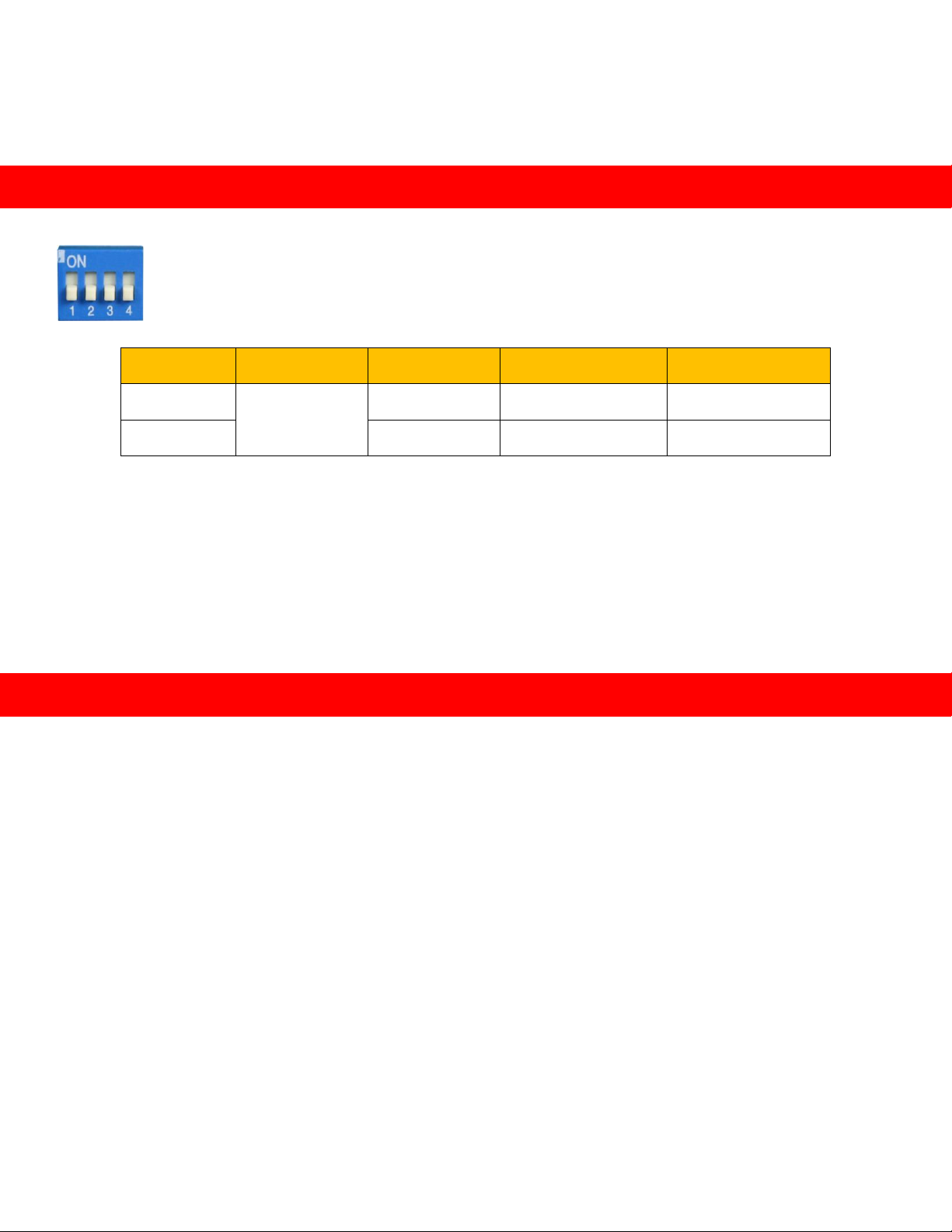

A 4-pin DIP switch is used for user interface, and users can access this switch from
the bottom of the unit.
Pin No.
1
2
3
4
ON ()
Used for
SMPTE352M
3G level B
Not in use
Update EDID
OFF ()
3G level A
Not in use
Default EDID
Note
1. Factory default for 4-pin DIP switch: OFF-OFF-OFF-OFF [---]
2. In order to keep the compatibility of HDMI to most monitors, AV-GM0993-S1 features EDID
learning ability. The operation is shown in the EDID learning section.
1. Turn off AV-GM0993-S1 and set the pin 4 of DIP switch of AV-GM0993-S1 to OFF [].
2. Connect the HDTV to the HDMI port on the AV-GM0993-S1, and then turn on AV-GM0993-S1.
3. The Lock LED on the AV-GM0993-S1 will dim and light again, which indicates the EDID learning
process is done.
4. Connect AV-GM0993-S1 to the HDMI source through a HDMI cable and enjoy the experience.
DIP Switch
EDID Learning

10
1. In HDMI bypass mode, users must be aware of that the jitters coming from HDMI sources,
such as DVD players, may be much higher than typical requirement according to SMPTE
request on HD-SDI signals. This will result in SDI output with high jitters or even no SDI
outputs!
2. Due to the high frequency bandwidth and low jitter requirement of 3G-SDI signals, it is
strongly recommended to use just one SDI OUTPUT with one 75 ohm.
Data Identification Word of Ancillary Data Packet
ANC Data
DID
SDID/DBN
352M
0x41
0x01
RP-165-EDH*
0xF4
0x00
*Data Type 1(SMPTE-291M)

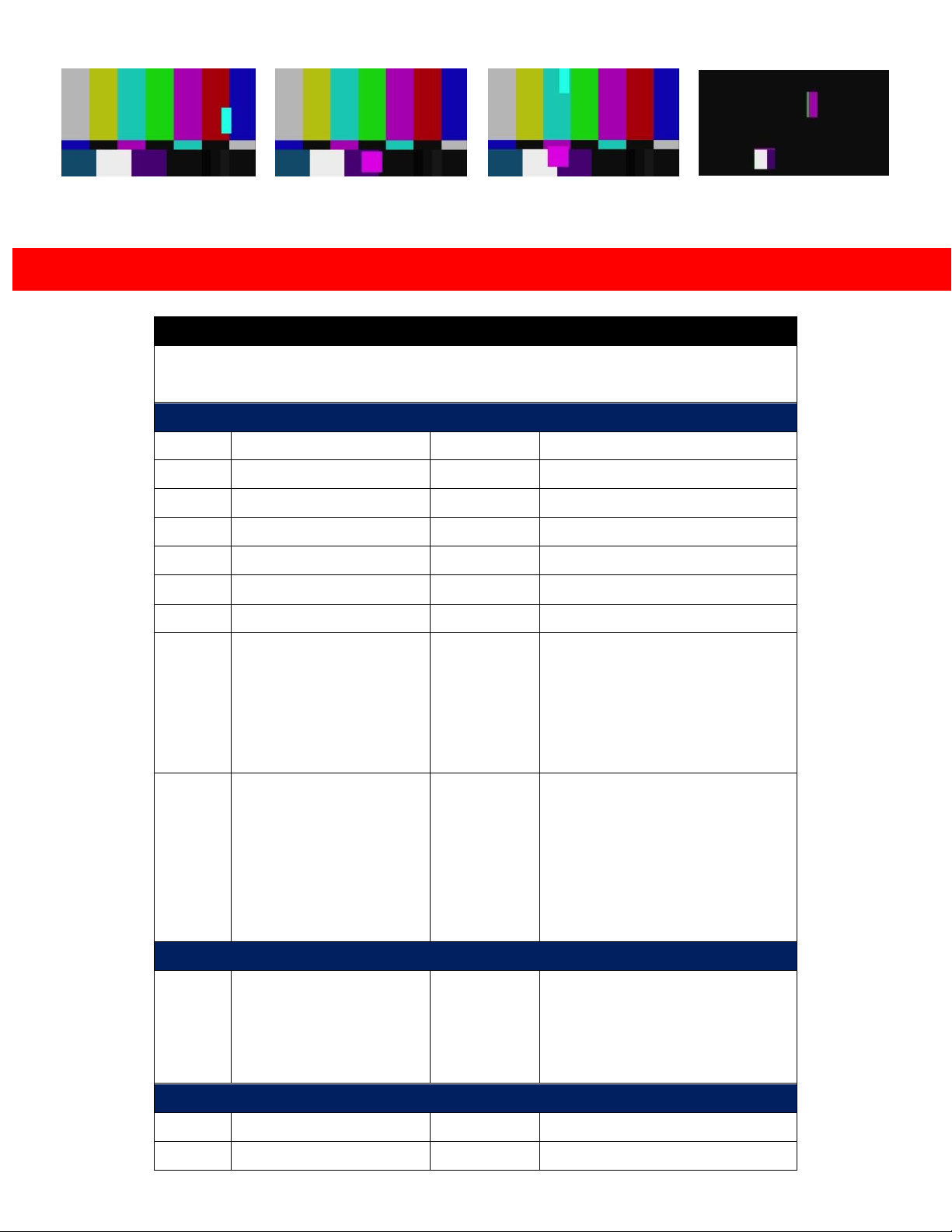

Built-in Video Patterns
Appendix
Notice

11

12
Set Format Resolution
Function Description:
Set Resolution
Command
Byte
Name
Value
Comment
0
Command Length
0x08
1
Check Code 1
0x50
2
Check Code 2
0x47
3
Check Code 3
0x33
4
Device ID
0xff
5
Command ID
0x11
6
Command
Parameter 1
0x01
01 : 720p
02 : 1080i
03 : 1080p
04 : NTSC
05 : PAL
7
Check Sum
unsigned char chksum=0;
for (int i=0; i<buf_size;++i){
chksum += buf[i];
if (chksum>0xff)
chksum =
chksum–0xff–1;}
Acknowledgement
0
ACK/NACK
0xaa/0x55
ACK: 0xaa
Command value is right
NACK: 0x55
Command value is error.
Receive
0
Command Length
0x03
1
Acknowledgement
0xaa/0x55
Serial Command S
ets

13
2
Check Sum
0xad/0x58
Example
Command:
0x08 0x50 0x47 0x33 0xff 0x11 0x01 0xe3
Acknowledgement:
0x03 0xaa 0xad

14
Set Format Frequency
Function Description:
Set Frequency
Frequency Support :
720p : 50Hz, 59.94Hz, 60Hz
1080i : 50Hz, 59.94Hz, 60Hz
1080p: 23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
NTSC : 59.94Hz
PAL : 50Hz
Command
Byte
Name
Value
Comment
0
Command Length
0x08
1
Check Code 1
0x50
2
Check Code 2
0x47
3
Check Code 3
0x33
4
Device ID
0xff
5
Command ID
0x12
6
Command
Parameter 1
0x01
01 : 23.98
02 : 24
03 : 25
04 : 29.97
05 : 30
06 : 50
07 : 59.94
08 : 60
7
Check Sum
unsigned char chksum=0;
for (int i=0; i<buf_size;++i){
chksum += buf[i];
if (chksum>0xff)
chksum =
chksum–0xff–1;}
Acknowledgement character
0
ACK/NACK
0xaa/0x55
ACK: 0xaa
Command Value is right
NACK: 0x55
Command Value is error.
Receive

15
0
Command Length
0x03
1
Acknowledgement
0xaa/0x55
2
Check Sum
0xad/0x58
Example
Command:
0x08 0x50 0x47 0x33 0xff 0x12 0x01 0xe4
Acknowledgement:
0x03 0xaa 0xad

16
Set Video Pattern
Function Description:
Set Pattern
Command
Byte
Name
Value
Comment
0
Command Length
0x08
1
Check Code 1
0x50
2
Check Code 2
0x47
3
Check Code 3
0x33
4
Device ID
0xff
5
Command ID
0x21
6
Command
Parameter 1
0x01
01 : HDMI Bypass
02 : SMPTE Bar
03 : 100% Color Bar
04 : 75% Color Bar
05 : Check Field
06 : EQ
07 : PLL
08 : Grad Black->Red(H)
09 : Grad Black->Green(H)
0a : Grad Black->Blue(H)
0b : Grad Red->Black(H)
0c : Grad Green->Black(H)
0d : Grad Blue->Black(H)
0e : Grad Black->Red(V)
0f : Grad Black->Green(V)
10 : Grad Black->Blue(V)
11 : Grad Red->Black(V)
12 : Grad Green->Black(V)
13 : Grad Blue->Black(V)
14 : Red Level Black->Red
15 : Red Level Red->Black
16 : Grn Level Black->Green
17 : Grn Level Green->Black
18 : Blu Level Black->Blue
19 : Blu Level Blue->Black
1a : Gra Level White->Black

17
1b : Gra Level Black->White
1c : 100% Red
1d : 100% Green
1e : 100% Blue
1f : 100% White
20 : 70% Gray
21 : 40% Gray
22 : Black
23 : Noise
24 : Circle 1
25 : Circle 2
26 : Moire
27 : V Stripe R
28 : V Stripe G
29 : V Stripe B
2a : H Stripe R
2b : H Stripe G
2c : H Stripe B
2d : Chess 1
2e : Chess 2
2f : Sequence
7
Check Sum
unsigned char chksum=0;
for (int i=0; i<buf_size;++i){
chksum += buf[i];
if (chksum>0xff)
chksum =
chksum–0xff–1;}
Acknowledgement character
0
ACK/NACK
0xaa/0x55
ACK: 0xaa
Command Value is right
NACK: 0x55
Command Value is error.
Receive
0
Command Length
0x03
1
Acknowledgement
0xaa/0x55
2
Check Sum
0xad/0x58
Example
Command:
0x08 0x50 0x47 0x33 0xff 0x21 0x01 0xf3

18
Acknowledgement:
0x03 0xaa 0xad
Set Video TEXT
Function Description:
Set TEXT
Command
Byte
Name
Value
Comment
0
Command Length
0x08
1
Check Code 1
0x50
2
Check Code 2
0x47
3
Check Code 3
0x33
4
Device ID
0xff
5
Command ID
0x22
6
Command
Parameter 1
0x01
01 : OFF
02 : On/W
03 : On/B
7
Check Sum
BYTE CheckSum = 0;
for(int i =0; i<n; i++ )
CheckSum += Byte(i);
Acknowledgement character
0
ACK/NACK
0xaa/0x55
unsigned char chksum=0;
for (int i=0; i<buf_size;++i){
chksum += buf[i];
if (chksum>0xff)
chksum =
chksum–0xff–1;}
Receive
0
Command Length
0x03
1
Acknowledgement
0xaa/0x55
2
Check Sum
0xad/0x58
Example
Command:
0x08 0x50 0x47 0x33 0xff 0x22 0x01 0xf4
Acknowledgement:
0x03 0xaa 0xad

19
Set Video Timer
Function Description:
Set Timer
Command
Byte
Name
Value
Comment
0
Command Length
0x08
1
Check Code 1
0x50
2
Check Code 2
0x47
3
Check Code 3
0x33
4
Device ID
0xff
5
Command ID
0x23
6
Command
Parameter 1
0x01
01 : OFF
02 : On-W/B
03 : On-B/W
7
Check Sum
unsigned char chksum=0;
for (int i=0; i<buf_size;++i){
chksum += buf[i];
if (chksum>0xff)
chksum =
chksum–0xff–1;}
Acknowledgement character
0
ACK/NACK
0xaa/0x55
ACK: 0xaa
Command Value is right
NACK: 0x55
Command Value is error.
Receive
0
Command Length
0x03
1
Acknowledgement
0xaa/0x55
2
Check Sum
0xad/0x58
Example
Command:
0x08 0x50 0x47 0x33 0xff 0x23 0x01 0xf5
Acknowledgement:
0x03 0xaa 0xad
