Silicon Laboratories Si5347-EVB User manual

Rev. 1.1 5/15 Copyright © 2015 by Silicon Labs Si5347-EVB
Si5347-EVB
Si5347 EVALUATION BOARD USER’SGUIDE
Description
The Si5347-EVB is used for evaluating the Si5347
Quad Any-Frequency Jitter Attenuating Clock Multiplier.
The Si5347 contains 4 independent DSPLLs in a single
IC with programmable jitter attenuation bandwidth on a
per DSPLL basis. The Si5347-EVB supports 4
independent input clocks and 8 independent output
clocks via on-board SMA connectors. The Si5347-EVB
can be controlled and configured via a USB connection
to a host PC running Silicon Labs’ next generation
Clock Builder Pro(CBPro) software tool. Test points
are provided on-board for external monitoring of supply
voltages.
EVB Features
Powered from USB port or external +5 V power
supply via screw terminals.
Onboard 48 MHz XTAL allows standalone or
holdover mode of operation on the Si5347.
CBProGUI programmable VDD supply allows
device supply voltages of 3.3, 2.5, or 1.8 V.
CBPro GUI programmable VDDO supplies allow each
of the 8 outputs to have its own supply voltage
selectable from 3.3, 2.5, or 1.8 V.
CBPro GUI allows control and measurement of
voltage, current, and power of VDD and all 8 VDDO
supplies.
Status LEDs for power supplies and control/status
signals of Si5347.
SMA connectors for input clocks, output clocks and
optional external timing reference clock.
Figure 1. Si5347 Evaluation Board

Si5347-EVB
2 Rev. 1.1

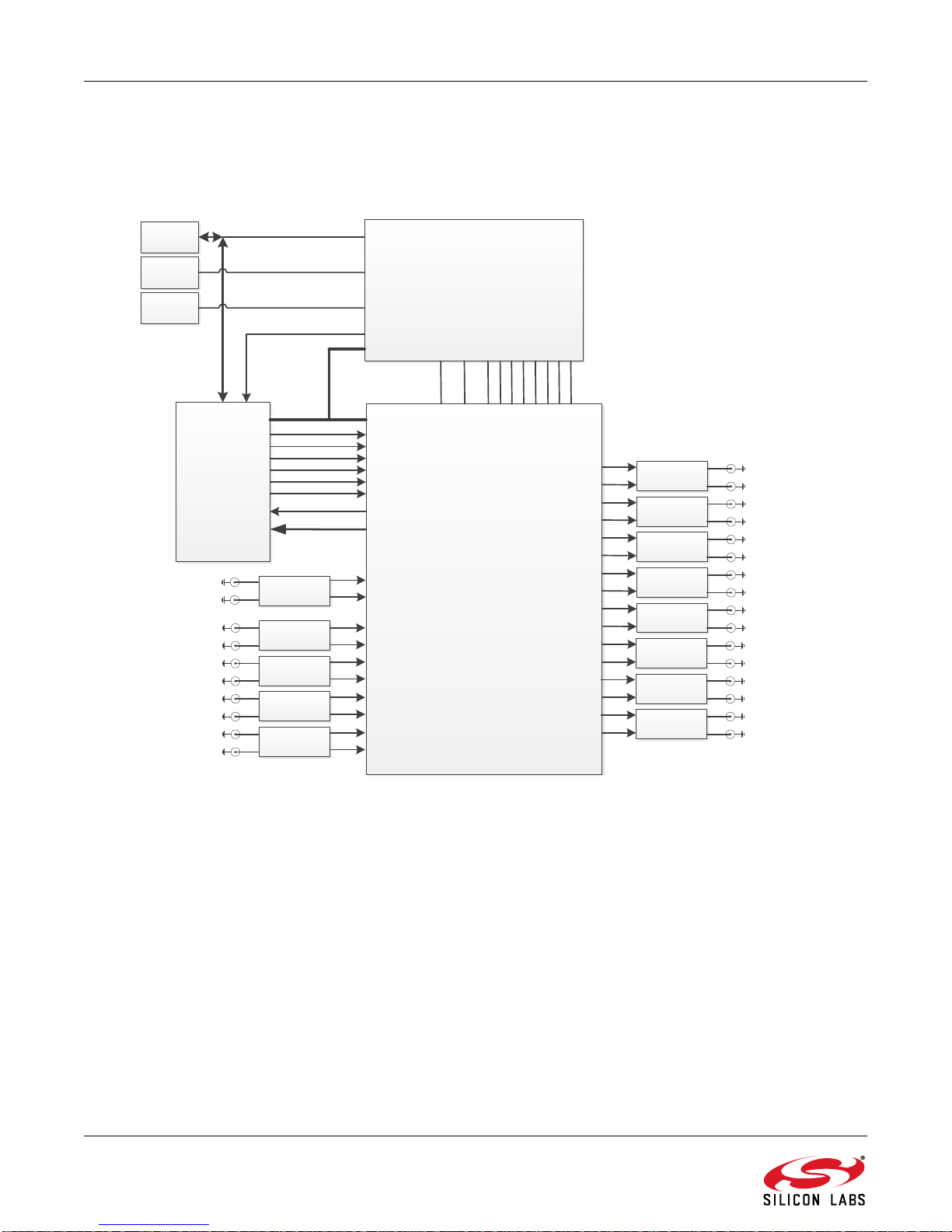

1. Si5347-EVB Functional Block Diagram
Below is a functional block diagram of the Si5347-EVB. This EVB can be connected to a PC via the main USB
connector for programming, control, and monitoring. See section “3. Quick Start” for more information.
Figure 2. Si5347-EVB Functional Block Diagram
Si5347
CLKOUT_0
CLKOUT_0B
Output
Termination
CLKOUT_1
CLKOUT_1B
Output
Termination
CLKOUT_2
CLKOUT_2B
Output
Termination
CLKOUT_3
CLKOUT_3B
Output
Termination
CLKOUT_4
CLKOUT_4B
Output
Termination
CLKOUT_5
CLKOUT_5B
Output
Termination
CLKOUT_6
CLKOUT_6B
Output
Termination
CLKOUT_7
CLKOUT_7B
Output
Termination
Input
Termination
Input
Termination
Input
Termination
Input
Termination
CLKIN_0
CLKIN_0B
CLKIN_1
CLKIN_1B
CLKIN_2
CLKIN_2B
CLKIN_3
CLKIN_3B
Power Supply
C8051F380
MCU
+
Peripherals
I2C/SPI Bus
VDDO_0
VDD_Core
VDD_3.3
VDDO_1 VDDO_2 VDDO_3 VDDO_4 VDDO_5 VDDO_6 VDDO_7
VDDO_0 VDD_Core VDD_3.3 VDDO_1 VDDO_2 VDDO_3 VDDO_4 VDDO_5 VDDO_6 VDDO_7
Main USB
Connector
Aux USB
Connector
Ext +5V
Connector
FINC
OE_0
OE_0
DSPLL_SEL0
DSPLL_SEL1
FDEC
I2C/SPI Bus
Alarm_Status
INTR
+5V_USB
+5V_Aux
+5V_Ext
VDDMCU
Input Clock 0 {
Input Clock 1 {
Input Clock 2 {
Input Clock 3 {
}Output Clock 0
}Output Clock 1
}Output Clock 2
}Output Clock 3
}Output Clock 4
}Output Clock 5
}Output Clock 6
}Output Clock 7
Power only
Power only
XAXB
Crystal / Term
XA
XB
Optional External
XAXB Ref Input {

Si5347-EVB
Rev. 1.1 3
2. Si5347-EVB Support Documentation and ClockBuilderProSoftware
All Si5347 schematics, BOMs, User’s Guides, and software can be found online at the following link:
http:www.silabs.com/products/clocksoscillators/pages/si538x-4x-evb.aspx
3. Quick Start
1. Install ClockBuilderPro desktop software from EVB support web page given in Section 2.
2. Connect USB cable from Si5347-EVB to PC with ClockBuilderPro software installed.
3. Leave the jumpers as installed from the factory, and launch the ClockBuilderPro software.
4. You can use ClockBuilderPro to create, download, and run a frequency plan on the Si5347-EVB.
5. For the Si5347 data sheet, go to http://www.silabs.com/timing.
4. Jumper Defaults
Refer to the Si5347-EVB schematics for the functionality associated with each jumper.
Table 1. Si5347 EVB Jumper Defaults
Location Type I = Installed
0 = Open Location Type I = Installed 0 = Open
JP1 2 pin I JP23 2 pin O
JP2 2 pin O JP24 2 pin O
JP3 2 pin I JP25 2 pin O
JP4 2 pin I JP26 2 pin O
JP5 2 pin O JP27 2 pin O
JP6 2 pin O JP28 2 pin O
JP7 2 pin I JP29 2 pin O
JP8 2 pin O JP30 2 pin O
JP9 2 pin O JP31 2 pin O
JP10 2 pin I JP32 2 pin O
JP13 2 pin O JP33 2 pin O
JP14 2 pin I JP34 2 pin O
JP15 3 pin all open JP35 2 pin O
JP16 3 pin 1 to 2 JP36 2 pin O
JP17 2 pin O JP38 3 pin all open
JP18 2 pin O JP39 2 pin O
JP19 2 pin O JP40 2 pin I
JP20 2 pin O JP41 2 pin I
JP21 2 pin O
JP22 2 pin O J36 5x2 Hdr All 5 installed

Si5347-EVB
4 Rev. 1.1
5. Status LEDs
D27, D22, and D26 are illuminated when USB +5 V, Si5347 +3.3 V, and Si5347 Vcore supply voltages,
respectively, are present. D25, D21, and D24 are status LEDs showing on-board MCU activity. D2 indicates loss of
signal at XAXB input (either crystal osc or external reference). D5, D6, D8, D12 indicate loss of lock for one of 4
internal DSPLLs (A–D). D11 indicates Si5347 interrupt output is active (as configured by Si5347 register
programming). LED locations are highlighted below with LED function name indicated on board silkscreen.
Table 2. Si5347-EVB Status LEDs
Location Silkscreen Color Status Function Indication
D27 5VUSBMAIN Blue Main USB +5 V present
D22 3P3V Blue DUT +3.3 V is present
D26 VDD DUT Blue DUT VDD Core voltage present
D25 INTR Red MCU INTR (Interrupt) active
D21 READY Green MCU Ready
D24 BUSY Green MCU Busy
D2 LOS_XAX-
B_B
Blue Loss of Signal at XAXB input
D5 LOL_AB Blue Loss of Lock - DSPLL A
D6 LOL_BB Blue Loss of Lock - DSPLL B
D8 LOL_CB Blue Loss of Lock _ DSPLL C
D11 INTRB Blue Si5347 Interrupt Active
D12 LOL_DB Blue Loss of Lock _ DSPLL D

Si5347-EVB
Rev. 1.1 5
Figure 3. Si5347-EVB LED Locations

Si5347-EVB
6 Rev. 1.1
6. External Reference Input (XA/XB)
An external timing reference (48 MHz XTAL) is used in combination with the internal oscillator to produce an
ultra-low jitter reference clock for the DSPLL and for providing a stable reference for the free-run and holdover
modes. The Si5347-EVB can also accommodate an external reference clock instead of a crystal. To evaluate the
device with an external REFCLK, C111 and C113 must be populated and XTAL Y1 removed (see Figure 4 below).
The REFCLK can then be applied to SMA connectors J39 and J40.

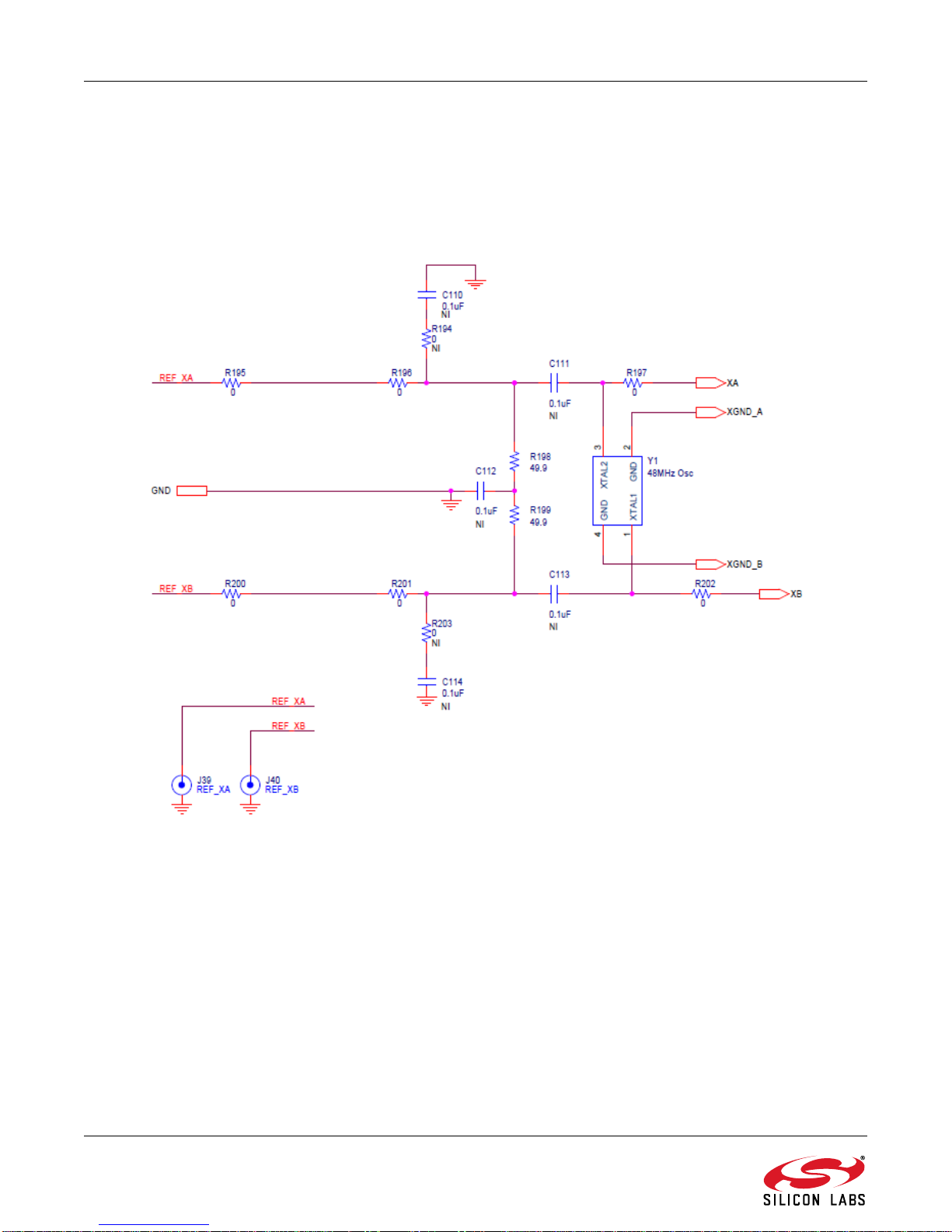

Figure 4. External Reference Input Circuit

Si5347-EVB
Rev. 1.1 7
7. Clock Input Circuits (INx/INxB)
The Si5347-EVB has eight SMA connectors (IN0-IN0B—IN3./IN3B) for receiving external clock signals. All input
clocks are terminated as show in Figure 5 below. Note input clocks are AC coupled and 50 terminated. This
represents 4 differential input clock pairs. Single-ended clocks can be used by appropriately driving one side of the
differential pair with a single-ended clock. For details on how to configure inputs as single-ended, please refer to
the Si5347 data sheet.

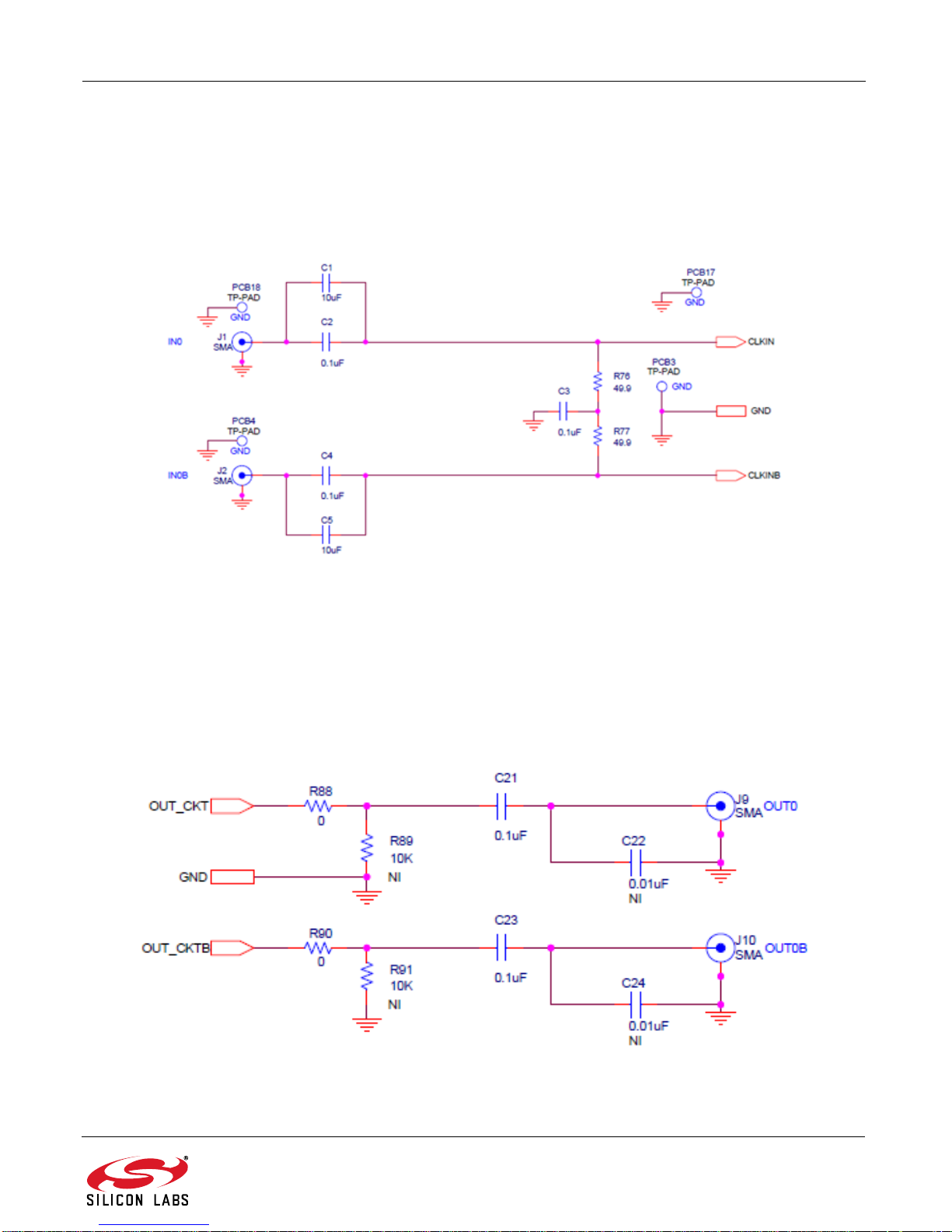

Figure 5. Input Clock Termination Circuit
8. Clock Output Circuits (OUTx/OUTxB)
Each of the sixteen output drivers (8 differential pairs, OUT0/OUT0B—OUT7/OUT7B) is ac coupled to its
respective SMA connector. The output clock termination circuit is shown in Figure 6 below. The output signal will
have no dc bias. If dc coupling is required, the ac coupling capacitors can be replaced with a resistor of appropriate
value. The Si5347-EVB provides pads for optional output termination resistors and/or low frequency capacitors.
Note that components with schematic “NI” designation are not normally populated on the Si5347-EVB and provide
locations on the PCB for optional dc/ac terminations by the end user.
Figure 6. Output Clock Termination Circuit

Si5347-EVB
8 Rev. 1.1
9. Installing ClockBuilderPro(CBPro) Desktop Software
To install the CBPro software on any Windows 7 (or above) PC:
Go to http://www.silabs.com/CBPro and download ClockBuilderPro software.
Installation instructions and User’s Guide for ClockBuilder can be found at the download link shown above. Please
follow the instructions as indicated.
10. Using the Si5347 EVB
10.1. Connecting the EVB to Your Host PC
Once ClockBuilderPro software is installed, connect to the EVB with a USB cable as shown below.
Figure 7. EVB Connection Diagram

Si5347-EVB
Rev. 1.1 9
10.2. Additional Power Supplies
The Si5347-EB comes pre-configured with jumpers installed at JP15 and JP16 (pins 1-2 in both cases) in order to
select “USB”. These jumpers, together with the components installed, configure the evaluation board to obtain all
+5 V power solely through the main USB connector at J37. This setup is the default configuration and should
normally be sufficient.

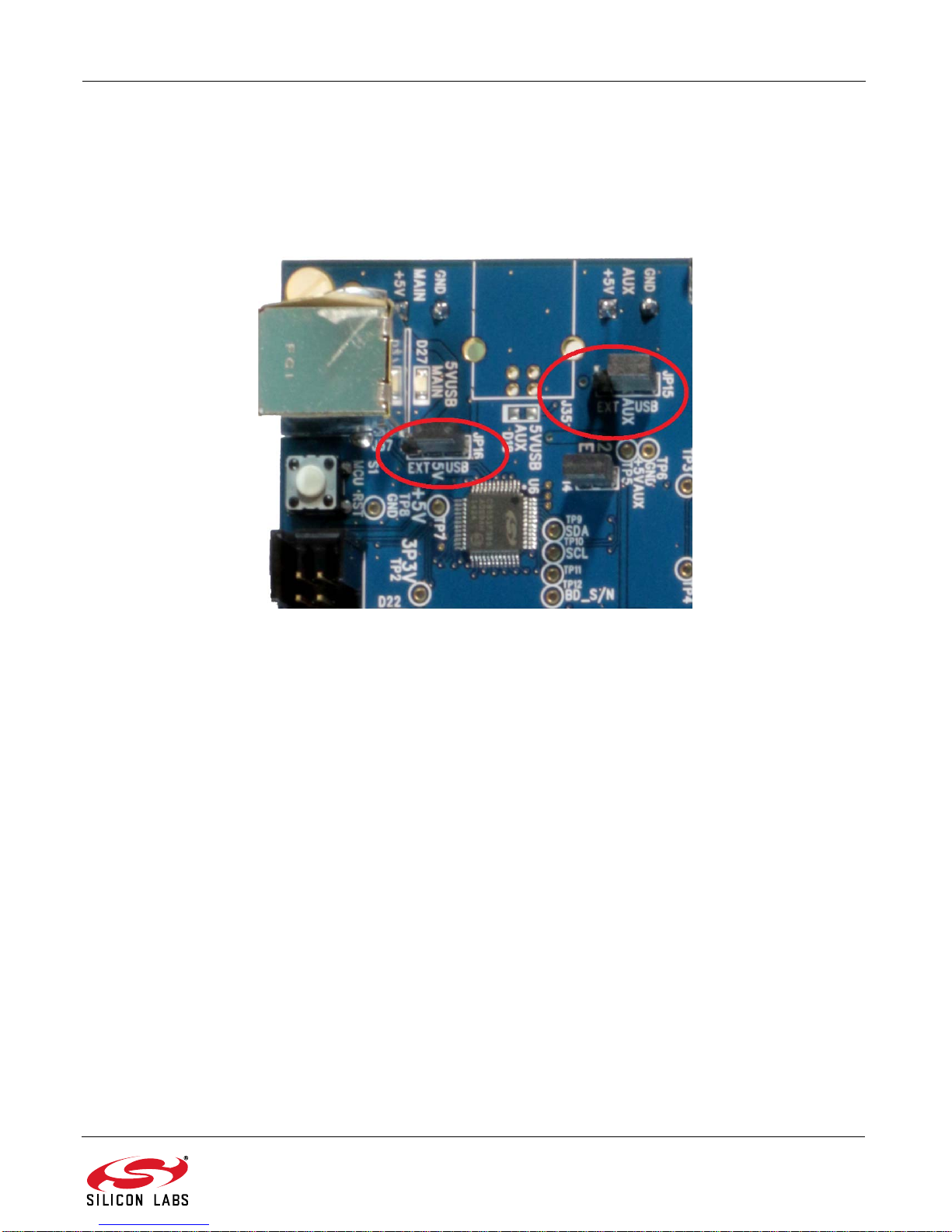

Figure 8 shows the correct installation of the jumper shunts at JP15 and JP16 for default or standard operation.
Figure 8. JP15-JP16 Standard Jumper Shunt Installation
Errata Note:Some early versions of the 64-pin Si534x-EVBs may have the silkscreen text at JP15-JP16 reversed regarding
EXT and USB, i.e., USB EXT instead of EXT USB. Regardless, the correct installation of the jumper shunts for
default or standard operation is on the right hand side as read and viewed in Figure 8.
The general guidelines for single USB power supply operation are listed below:
Use either a USB 3.0 or USB 2.0 port. These ports are specified to supply 900 mA and 500 mA
respectively at +5 V.
If you are working with a USB 2.0 port and you are current limited, turn off enough DUT output voltage
regulators to drop the total DUT current ≤470 mA. (Note: USB 2.0 ports may supply > 500 mA. Provided
the nominal +5 V drops gracefully by less than 10%, the EVB will still work.)
If you are working with a USB 2.0 and you are current limited and need all output clock drivers enabled,
re-configure the EVB to drive the DUT output voltage regulators from an external +5 V power supply as
follows:
Connect external +5 V power supply to terminal block J33 on the back side of the PCB.
Move the jumper at JP15 from pins 1-2 USB to pins 2-3 EXT.

Si5347-EVB
10 Rev. 1.1
10.3. Overview of ClockBuilderPro Applications
The ClockBuilderPro installer will install two main applications:

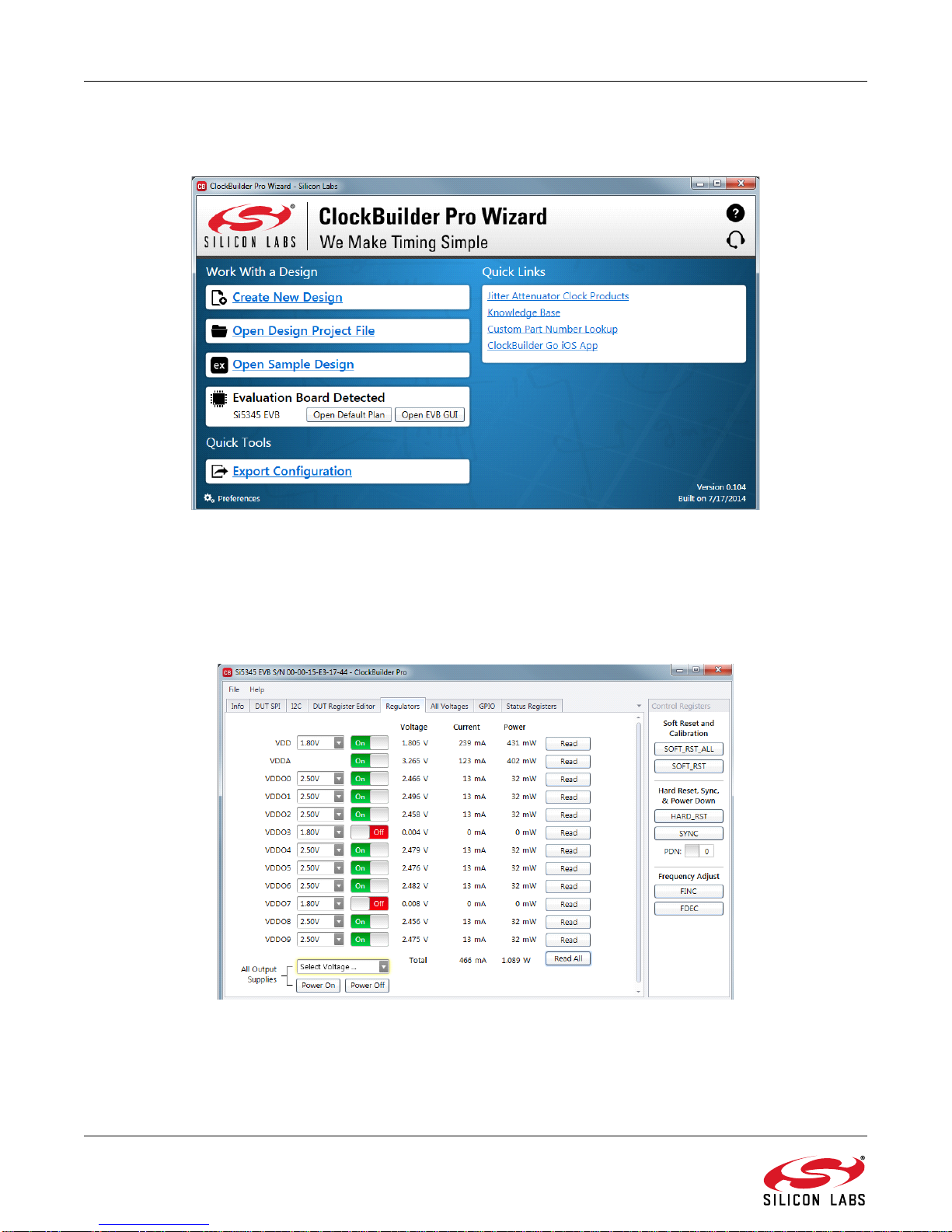

Figure 9. Application #1: ClockbuilderPro Wizard
Use the CBPro Wizard to:
Create a new design
Review or edit an existing design
Export: create in-system programming files
Export: create in-system programming files
Figure 10. Application #2: EVB GUI
Use the EVB GUI to:
Download configuration to EVB’s DUT (Si5347)
Control the EVB’s regulators
Monitor voltage, current, power on the EVB

Si5347-EVB
Rev. 1.1 11
10.4. Common ClockBuilderProWork Flow Scenarios
There are three common workflow scenarios when using CBPro and the Si5347 EVB. These workflow scenarios
are:
Workflow Scenario #1: Testing a Silicon Labs-Created Default Configuration
Workflow Scenario #2: Modifying the Default Silicon Labs-Created Device Configuration
Workflow Scenario #3: Testing a User-Created Device Configuration
Each is described in more detail in the following sections.
10.5. Workflow Scenario #1: Testing a Silicon Labs-Created Default Configuration
The flow for using the EVB GUI to initialize and control a device on the EVB is as follows.
Once the PC and EVB are connected, launch ClockBuilder Pro by clicking on this icon on your PC’s desktop.

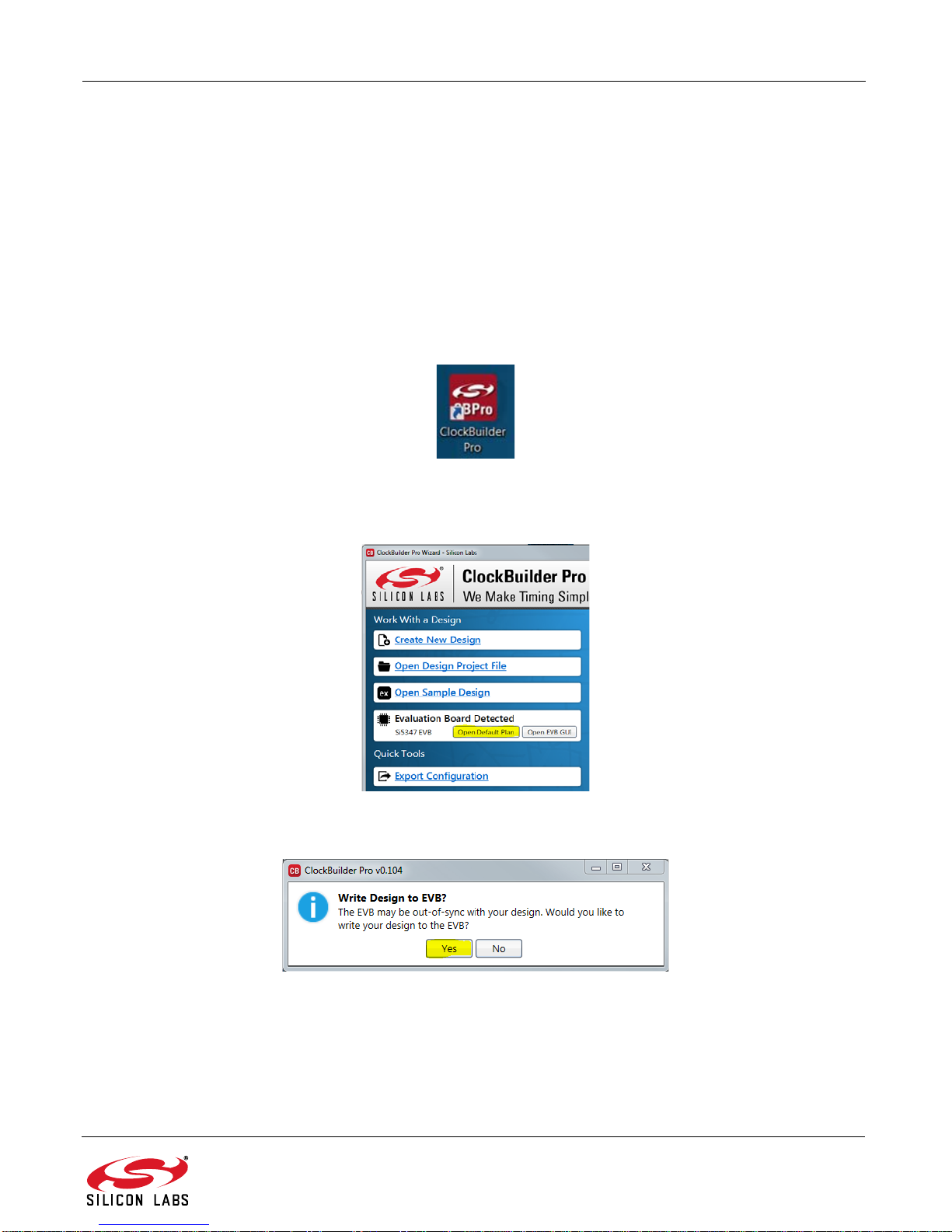

Figure 11. ClockBuilderPro Desktop Icon
If an EVB is detected, click on the “Open Default Plan” button on the Wizard’s main menu. CBPro automatically
detects the EVB and device type.
Figure 12. Open Default Plan
Once you open the default plan (based on your EVB model number), a popup will appear.
Figure 13. Write Design to EVB Dialog
Select “Yes” to write the default plan to the Si5347 device mounted on your EVB. This ensures the device is
completely reconfigured per the Silicon Labs default plan for the DUT type mounted on the EVB.

Si5347-EVB
12 Rev. 1.1

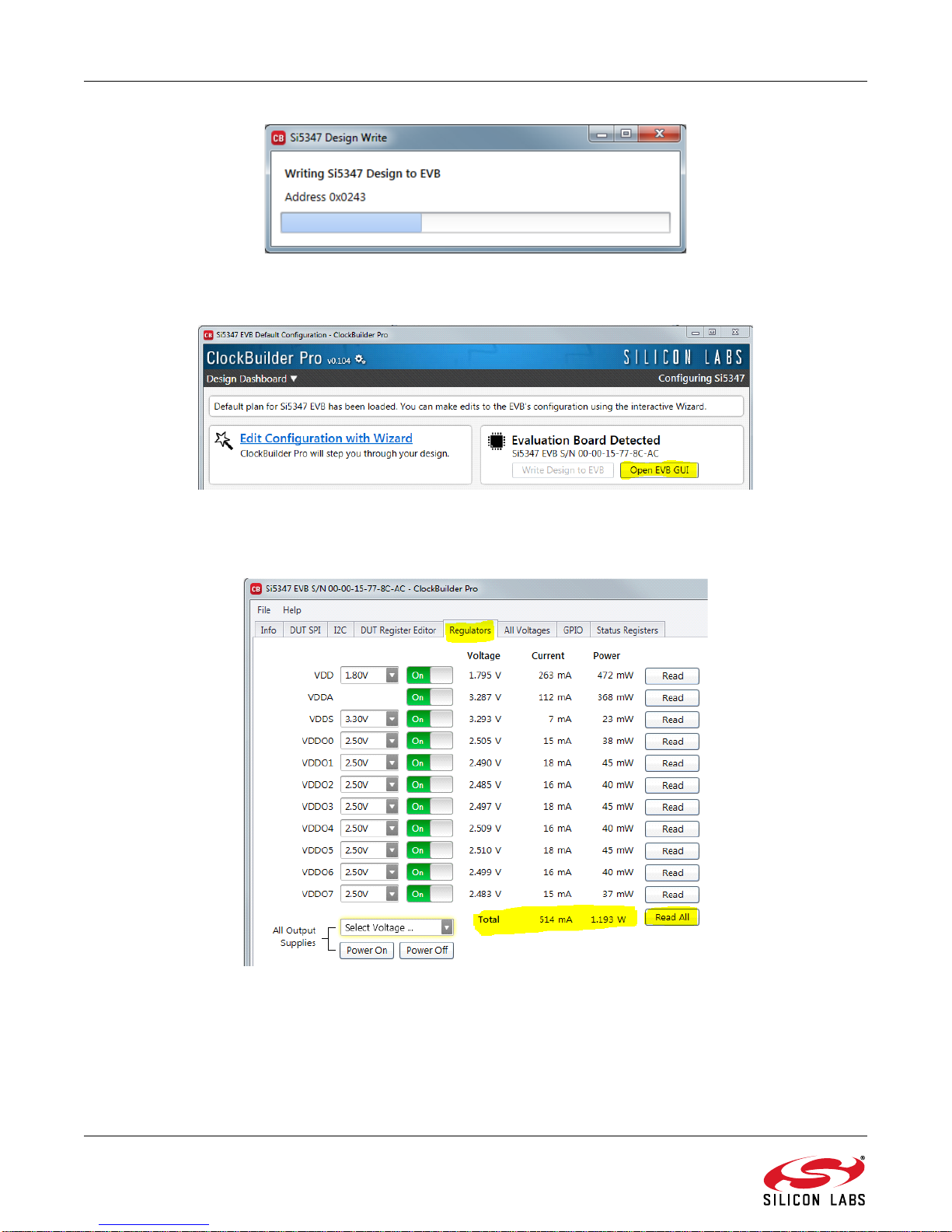

Figure 14. Writing Design Status
After CBPro writes the default plan to the EVB, click on “Open EVB GUI” as shown below.
Figure 15. Open EVB GUI
The EVB GUI will appear. Note all power supplies will be set to the values defined in the device’s default CBPro
project file created by Silicon Labs, as shown below.
Figure 16. EVB GUI Window

Si5347-EVB
Rev. 1.1 13
10.5.1. Verify Free-Run Mode Operation
Assuming no external clocks have been connected to the INPUT CLOCK differential SMA connectors (labeled
“INx/INxB”) located around the perimeter of the EVB, the DUT should now be operating in free-run mode, as the
DUT will be locked to the crystal in this case.
You can run a quick check to determine if the device is powered up and generating output clocks (and consuming
power) by clicking on the Read All button highlighted above and then reviewing the voltage, current and power
readings for each VDDx supply.
Note: Shutting “Off” then “On” of the VDD and VDDA supplies will power-down and reset the DUT. Every time you do
this, to reload the Silicon Labs-created default plan into the DUT’s register space, you must go back to the Wiz-
ard’s main menu and select “Write Design to EVB”:
Figure 17. Write Design to EVB
Failure to do the step above will cause the device to read in a pre-programmed plan from its non-volatile
memory (NVM). However, the plan loaded from the NVM may not be the latest plan recommended by
Silicon Labs for evaluation.
At this point, you should verify the presence and frequencies of the output clocks (running to free-run mode from
the crystal) using appropriate external instrumentation connected to the output clock SMA connectors. To verify the
output clocks are toggling at the correct frequency and signal format, click on View Design Report as highlighted
below.
Figure 18. View Design Report

Si5347-EVB
14 Rev. 1.1
Your configuration’s design report will appear in a new window, as shown below. Compare the observed output
clocks to the frequencies and formats noted in your default project’s Design Report.
Figure 19. Design Report Window
10.5.2. Verify Locked Mode Operation
Assuming you connect the correct input clocks to the EVB (as noted in the Design Report shown above), the DUT
on your EVB will be running in “locked” mode.


Si5347-EVB
Rev. 1.1 15
10.6. Workflow Scenario #2: Modifying the Default Silicon Labs-Created Device
Configuration
To modify the “default” configuration using the CBPro Wizard, click on Edit Configuration with Wizard:
Figure 20. Edit Configuration with Wizard
You will now be taken to the Wizard’s step-by-step menus to allow you to change any of the default plan’s
operating configurations.
Figure 21. Design ID and Notes
Note you can click on the icon on the lower left hand corner of the menu to confirm if your frequency plan is valid.
After making your desired changes, you can click on Write to EVB to update the DUT to reconfigure your device
real-time. The Design Write status window will appear each time you make a change.

Si5347-EVB
16 Rev. 1.1
Figure 22. Writing Design Status
10.7. Workflow Scenario #3: Testing a User-Created Device Configuration
To test a previously created user configuration, open the CBPro Wizard by clicking on the icon on your desktop and
then selecting Open Design Project File.
Figure 23. Open Design Project File

Si5347-EVB
Rev. 1.1 17
Locate your CBPro design file (*.slabtimeproj or *.sitproj file) in the Windows file browser.
Figure 24. Browse to Project File
Select Yes when the WRITE DESIGN to EVB popup appears:
Figure 25. Write Design to EVB Dialog
The progress bar will be launched. Once the new design project file has been written to the device, verify the
presence and frequencies of your output clocks and other operating configurations using external instrumentation.

Si5347-EVB
18 Rev. 1.1

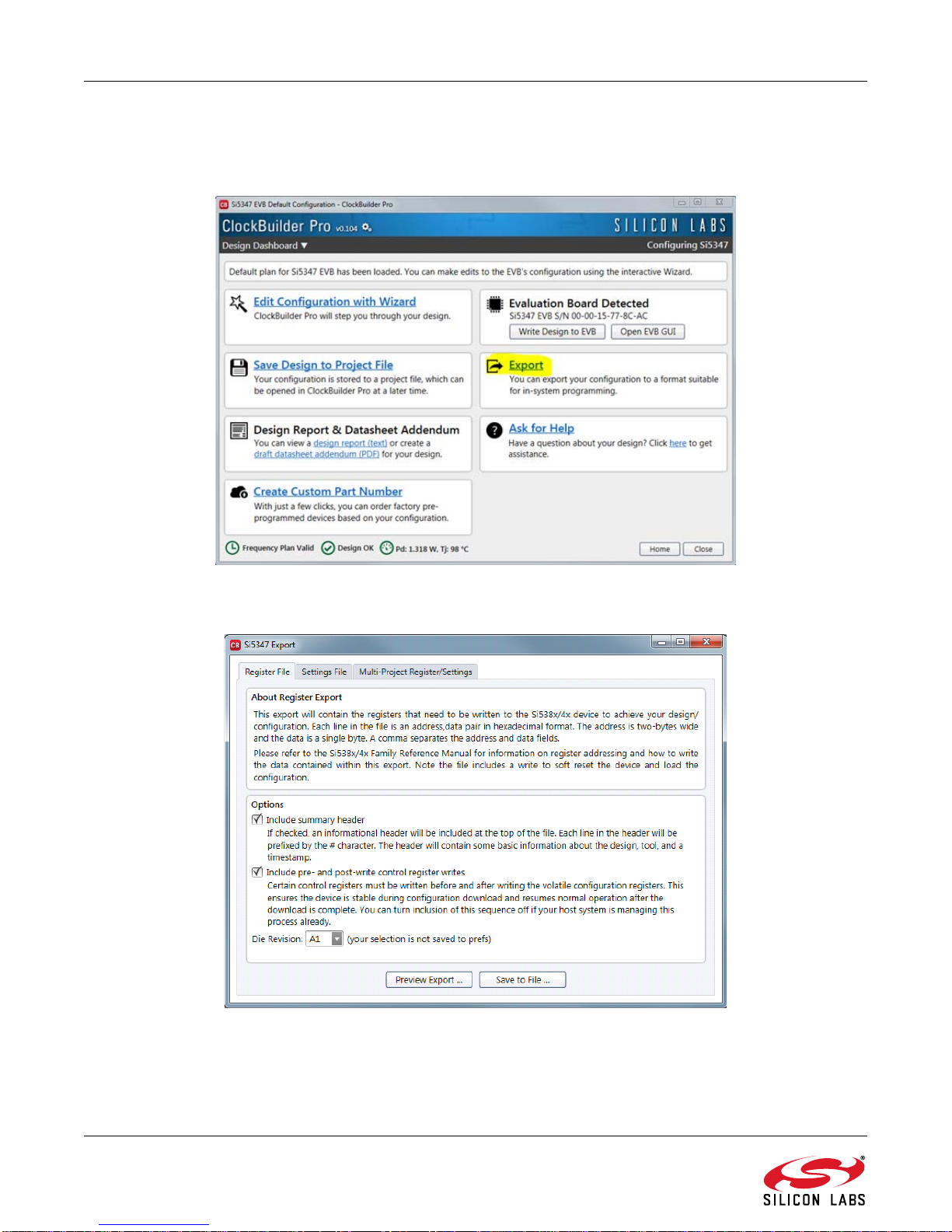

10.8. Exporting the Register Map File for Device Programming by a Host Processor
You can also export your configuration to a file format suitable for in-system programming by selecting Export as
shown below:
Figure 26. Export Register Map File
You can now write your device’s complete configuration to file formats suitable for in-system programming.
Figure 27. Export Settings

Si5347-EVB
Rev. 1.1 19
11. Writing a New Frequency Plan or Device Configuration to Non-Volatile
Memory (OTP)
Note: Writing to the device non-volatile memory (OTP is NOT the same as writing a configuration into the Si5347 using Clock-
BuilderPRo on the Si5347 EVB. Writing a configuration into the EVB from ClockBuilderPro is done using Si5347 RAM
space and can be done virtually unlimited numbers of times. Writing to OTP is limited as described below.
Refer to the Si534x/8x Family Reference Manuals and device data sheets for information on how to write a
configuration to the EVB DUT’s non-volatile memory (OTP). The OTP can be programmed a maximum of two
times only. Care must be taken to ensure the configuration desired is valid when choosing to write to OTP.
12. Serial Device Communications
12.1. On-Board SPI Support
The MCU on-board the Si5347-EVB communicates with the Si5347 device through a 4-wire SPI (Serial Peripheral
Interface) link. The MCU is the SPI master and the Si5347 device is the SPI slave. The Si5347 device can also
support a 2-wire I2C serial interface, although the Si5347-EVB does NOT support the I2C mode of operation. SPI
mode was chosen for the EVB because of the relatively higher speed transfers supported by SPI vs. I2C.
12.2. External I2C Support
I2C can be supported if driven from an external I2C controller. The serial interface signals between the MCU and
Si5347 pass through shunts loaded on header J36. These jumper shunts must be installed in J36 for normal EVB
operation using SPI with CBPro. If testing of I2C operation via external controller is desired, the shunts in J36 can
be removed thereby isolating the on-board MCU from the Si5347 device. The shunt at J4 (I2C_SEL) must also be
removed to select I2C as Si5347 interface type. An external I2C controller connected to the Si5347 side of J36 can
then communicate to the Si5347 device. For more information on I2C signal protocol, refer to the Si5347 data
sheet.
Figure 28 illustrates the J36 header schematic. J36 even numbered pins (2, 4, 6, etc.) connect to the Si5347
device, and the odd numbered pins (1, 3, 5, etc.) connect to the MCU. Once the jumper shunts have been removed
from J36 and J4, I2C operation should use J36 pin 4 (DUT_SDA_SDIO) as the I2C SDA and J36 pin 8
(DUT_SCLK) as the I2C SCLK. Note that the external I2C controller will need to supply its own I2C signal pull-up
resistors.
Figure 28. Serial Communications Header J36

Si5347-EVB
20 Rev. 1.1
13. Si5347-EVB Schematic and Bill of Materials (BOM)
The Si5347 EVB Schematic and Bill of Materials (BOM) can be found online at:
http://www.silabs.com/products/clocksoscillators/pages/si538x-4x-evb.aspx
Note: Please be aware that the Si5347-EVB schematic is in OrCad Capture hierarchical format and not in a typical “flat” sche-
matic format.
