Silicon Laboratories CP2112 User manual

Rev. 0.3 7/13 Copyright © 2013 by Silicon Laboratories CP2112-EK
CP2112-EK
CP2112 EVALUATION KIT USER’SGUIDE
1. Kit Contents
The CP2112 Evaluation Kit contains the following items:
CP2112 Evaluation Board
USB Cable
DVD
Quick Start Guide
2. Relevant Documentation
Application notes can be found on the Interface Application Notes page for all fixed-function devices:
www.silabs.com/interface-appnotes.
AN721: CP210x/CP211x Device Customization Guide — Customize the VID, PID, serial number, and
other parameters stored in the CP2112 one-time programmable ROM.
AN496: CP2112 HID-to-SMBus API Specification — Provides function descriptions and examples for all
of the PC software functions that control the CP2112.
AN495: CP2112 Interface Specification — Describes the HID report format for CP2112 devices.
3. Software Setup
The Software Development Kit (SDK) for the CP2112 kit is included on the kit DVD. The latest version of this
installer can also be downloaded from the www.silabs.com/cp2112ek website. This package includes:
Device Customization Utility
Documentation — data sheet, application notes, user’s guide, quick start guide, etc.
HidSmbusExample — Example software utilizing the CP2112 API interface described in AN496.
Library — repackaged HID DLL and CP2112 API DLL
The Windows installer should launch automatically after inserting the DVD. For Mac and Linux, browse to the
appropriate directory on the DVD to install the software package. Follow the instructions to install the SDK to the
system. The CP2112 is an HID device, so a driver does not need to be installed on most operating systems.

CP2112-EK
2 Rev. 0.3
4. CP2112 Hardware Interface
1. Connect the CP2112 evaluation board to a PC as shown in Figure 1.
2. Connect one end of the USB cable to a USB Port on the PC.
3. Connect the other end of the USB cable to the USB connector on the CP2112 evaluation board.
4. Connect the SDA, SCL, and Ground pins on the CP2112 to an SMBus device. External pull-up resistors
are not needed if the pull-up resistors on the CP2112 evaluation board are used.
Figure 1. Hardware Setup
CP2112 EK
SMBus/I2C
Device
SCL
CP2112 HID USB
to SMBus/I2C
Bridge
USB
SDA
ground

CP2112-EK
Rev. 0.3 3
5. CP2112 Software Interface
The CP2112 is an HID device that uses the standard HID functions available in the operating system. To facilitate
this process in Windows, Silicon Labs packaged the standard HID functions into the SLABHIDDevice DLL in the
CP2112 software package. The HID report structure for the CP2112 is customized for the device and is not
compatible with other HID report structures, like a mouse or keyboard. AN495, “CP2112 Interface Specification”
describes the custom HID report structure for the CP2112, and AN496, “CP2112 HID-to-SMBus API Specification”
describes the API software functions that can be used to read or write data and control the CP2112 from the PC.
The software application described in “6. CP2112 Windows Application” provides an example of how to use these
functions.
The CP2112 appears as an HID device in Device Manager as shown in Figure 2.
Figure 2. CP2112 in Device Manager

CP2112-EK
4 Rev. 0.3
6. CP2112 Windows Application
The HID SMBus Example application uses the Windows CP2112 HID-to-SMBus DLL to transmit and receive data
with the CP2112. The application also has access to the CP2112’s GPIO pins. Figure 3 shows a screenshot of the
Windows Application. The following steps describe how to start the application and use some of its features.
1. Ensure that the hardware is connected to a Windows PC as shown in Figure 1. If the device is properly
connected, the red SUSPEND LED on the CP2112 evaluation board will turn on.
2. Launch the Hid SMBus Example application, which is found by clicking
StartAll ProgramsSilicon LaboratoriesCP2112 Evaluation KitHidSmbus Example.
3. In this application, you can configure the SMBus settings and GPIO pins, customize the device
descriptors, and read/write data over the SMBus interface.
4. Select the appropriate device in the Connection drop down box and click Connect.
5. The Configuration tab enables setting and getting the SMBus configuration parameters. To set a
parameter, modify the value that is in the corresponding text box or check/uncheck a box and click Set
SMBus Config. To verify that the settings took effect, click Get SMBus Config. These configuration
parameters reset to their default values when the CP2112 is reset.
Figure 3. Configuring the SMBus Interface using the Example Application
4
5

CP2112-EK
Rev. 0.3 5
6. To read data from an SMBus device (non-addressed mode):
a. Click the Data Transfer tab.
a. Enter the slave address and the number of bytes to read in the Read Request box.
b. Click the Read Request button.
c. To see the number of bytes that were read back, click Get Read/Write Transfer Status and verify the number of
bytes read at the bottom of the application.
d. Next, click Force Read Response and then Get Read Response until the application reads back the total number
of bytes. The bytes will be shown in the Received Data field. The status of the CP2112 will be shown at the bottom
of the application.
Figure 4. Performing a Non-Addressed Read using the Example Application
6a
6d
6b
6c 6e

CP2112-EK
6 Rev. 0.3
7. To read data from an EEPROM or similar device (addressed mode):
a. Click the Data Transfer tab.
e. Enter the slave address, the number of address bytes in the target address, the target address of the SMBus device
being read (in hex), and the number of bytes to read in the Addressed Read Request box.
f. Click the Address Read Request button.
g. To see the number of bytes that were read back, click Get Read/Write Transfer Status and verify the number of
bytes read at the bottom of the application.
h. Click Force Read Response and then Get Read Response until the application reads back the total number of
bytes. The bytes will be shown in the Received Data field. The status bar of the application displays the current
status of the CP2112.
Figure 5. Performing an Addressed Read using the Example Application
7a
7d
7b
7c
7e

CP2112-EK
Rev. 0.3 7
8. To write data over the SMBus interface:
a. Click the Data Transfer tab.
i. Enter the Slave address and data (in hex) in the Write Request box.
j. Click the Write Request button.
k. Click Get Read/Write Transfer Status and verify that the transfer completed using the status bar at the bottom of
the application.

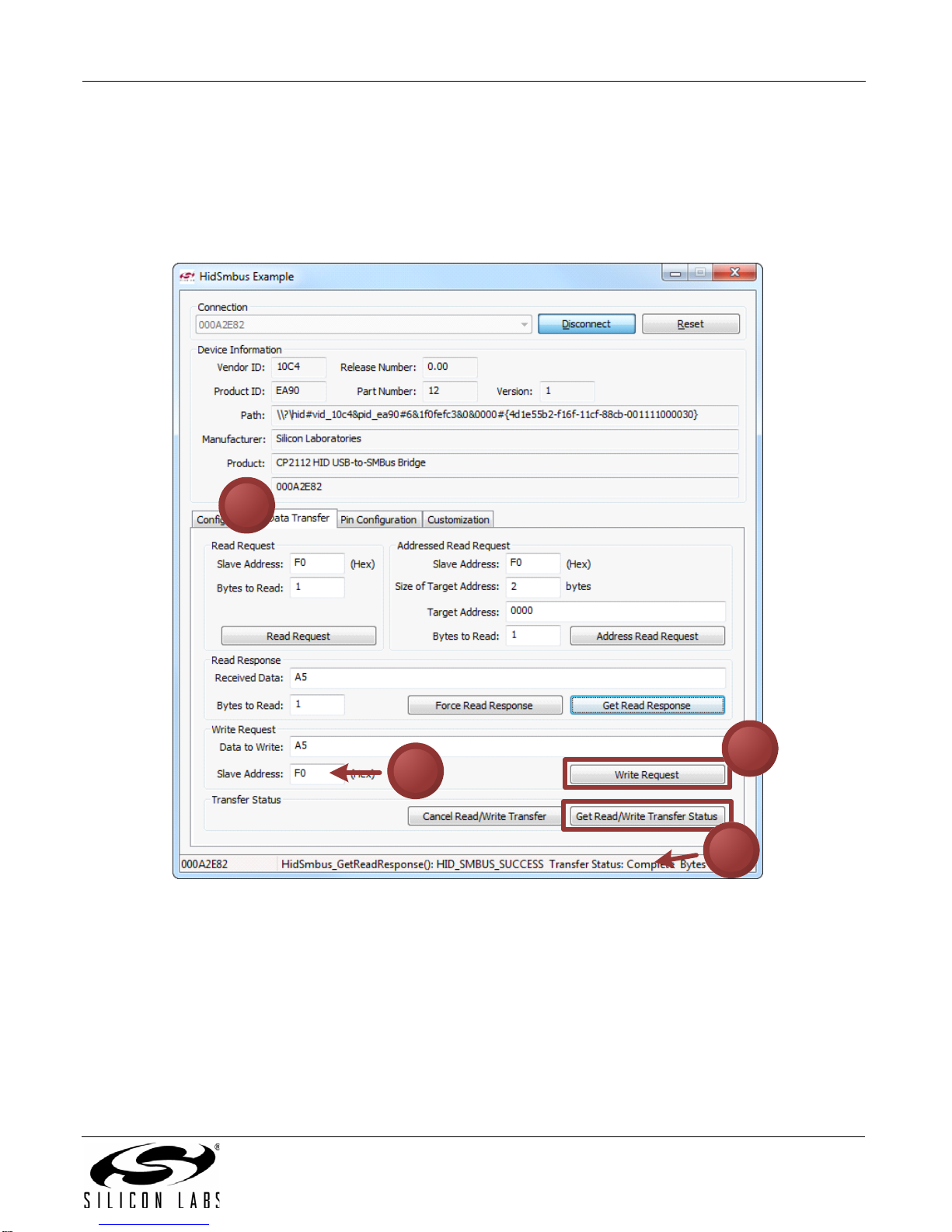

Figure 6. Performing a Write using the Example Application
8a
8d
8b 8c

CP2112-EK
8 Rev. 0.3
9. The Pin Configuration tab enables configuration of the GPIO and special functions (TX Toggle, RX
Toggle, and Clock Output).
a. Click the Pin Configuration tab.
l. GPIO pins toggle between Input/Ouput and Open-Drain/Push-Pull by clicking the corresponding GPIO boxes in the
GPIO Configuration area. Check the boxes for TX Toggle, RX Toggle, and Clock Output to enable the special
functionality on these pins. Click the Set GPIO Config button to update the device settings.
m. The Latch Values section enables writing or reading the GPIO latches. Clicking the box next the GPIO pins listed
will scroll through 1, 0, and X for a don’t care. Click the Write Latch button to change the state of the GPIO latch.
Figure 7. Configuring the CP2112 Pins using the Example Application
9a
9b 9c

CP2112-EK
Rev. 0.3 9
10. The Customization tab allows for programming the One-Time-Programmable (OTP) parameters of the
device. These parameters can only be programmed once and cannot be changed back to their default
values after being programmed. This tab has the same functionality as the CP2112SetIDs application
provided with the CP2112 software package. In order for these parameters to be sucessfully programmed,
a 4.7 µF capacitor must be connected between the VPP pin and ground. This capacitor is populated by
default on the CP2112 Evaluation Kit board has this capacitor. See "8. Schematic" on page 12 for more
information.
a. The USB Customization section sets the USB parameters. Click Get to retrieve the current settings.
Change the settings by modifying the text boxes and checking the box next to the parameter being
modified. Click the Set button to program the device with the modified settings. The parameter will not
be changed without checking the corresponding box. Perform a Get after changing any parameters to
ensure that the settings updated correctly.
n. The String Descriptors section enables modification of the serial strings in the CP2112. Type a string into the
corresponding text box and click the Set button to modify the strings. Perform a Get after changing any parameters
to ensure that the settings updated correctly.
o. The Lock Byte section displays which fields have been programmed and can lock fields to prevent future
modification. Any field that has been programmed will not be checked. To prevent a field from being programmed,
uncheck the corresponding box and click the Set button. Perform a Get after changing any parameters to ensure that
the settings updated correctly.

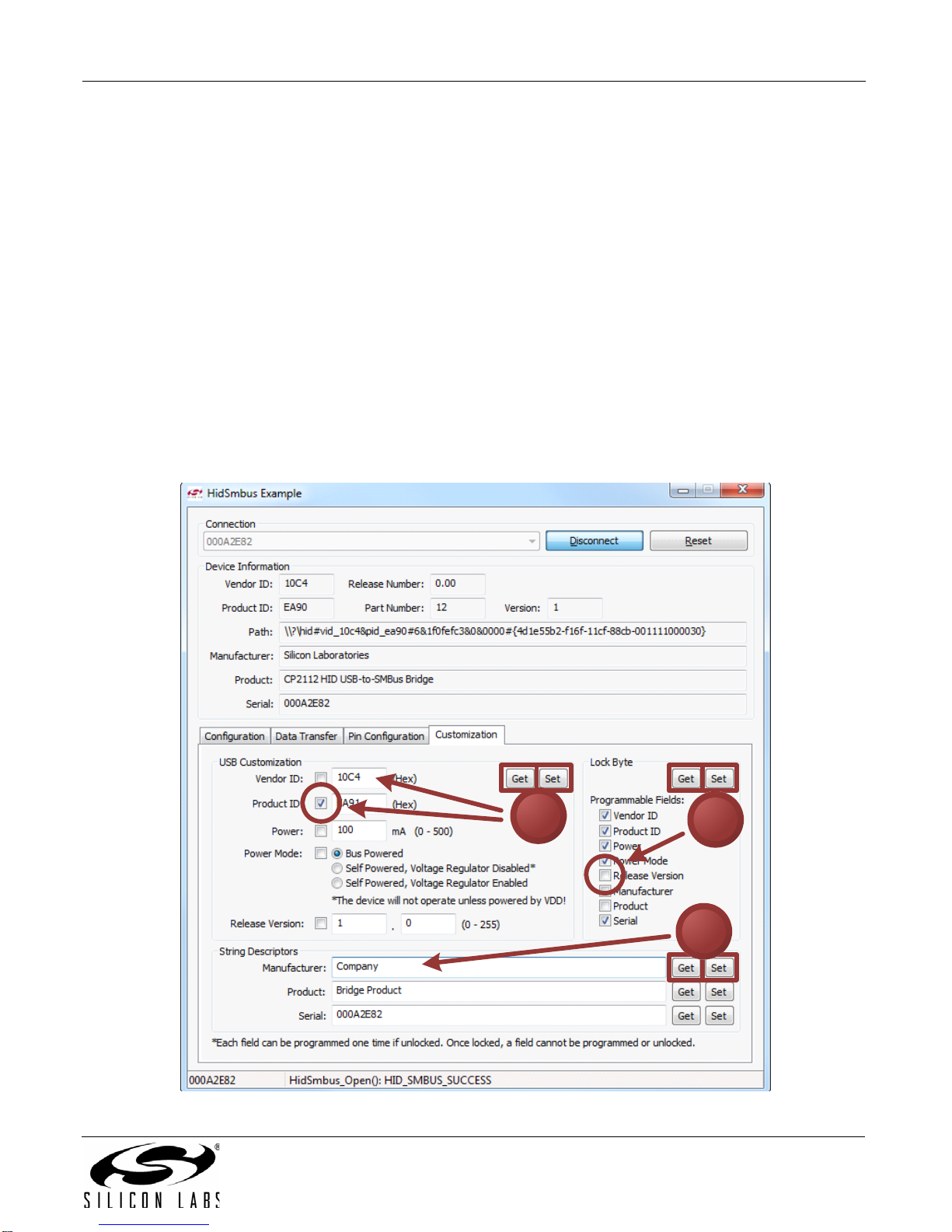

Figure 8. Customizing a CP2112 Device using the Example Application
10a
10b
10c

CP2112-EK
10 Rev. 0.3
7. Target Board
The CP2112 Evaluation Kit includes an evaluation board with a CP2112 device pre-installed for evaluation and
preliminary software development. Numerous input/output (I/O) connections are provided to facilitate prototyping
using the evaluation board. Refer to Figure 9 for the locations of the various I/O connectors. Refer to Figure 10,
“CP2112 Evaluation Board Schematic” for information regarding the SMBus pull-up resistors that are located on
the target board.
P1 USB connector for USB interface
H1 Access Connector for SMBus interface (SDA, SCL, GND, Pull-Up Voltage)
J1, J2, J3, J4 GPIO access connectors
J6 Power connector
J7 SMBus pull-up voltage connector
J8 Red SUSPEND LED connector
DS0–DS7 Green GPIO LEDs
DS8 Red SUSPEND LED
TB1 SMBus interface terminal block

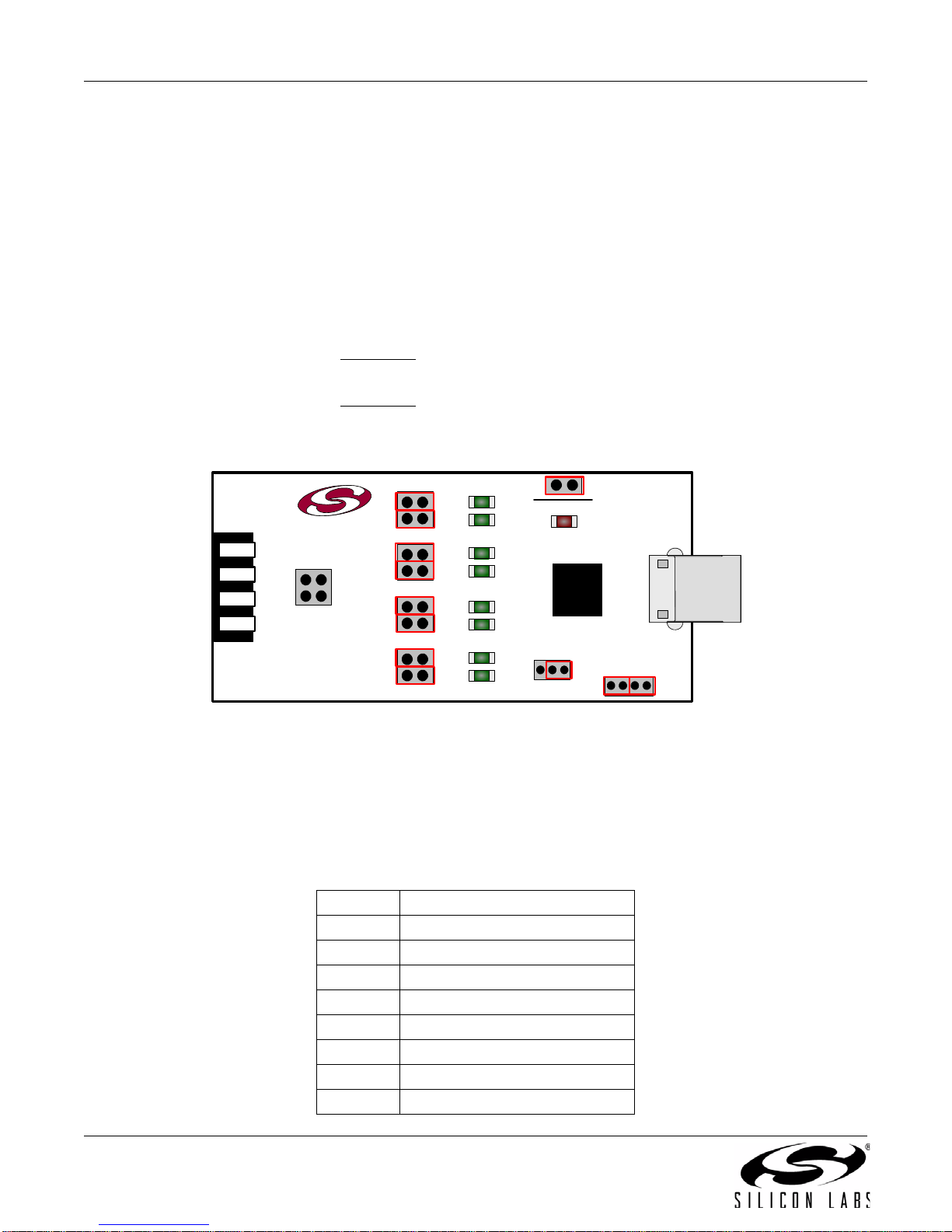

Figure 9. CP2112 Evaluation Board with Default Shorting Blocks Installed
7.1. LED Headers (J1, J2, J3, J4)
Connectors J1, J2, J3, and J4 are provided to allow access to the GPIO pins on the CP2112. Place shorting blocks
on J1, J2, J3, and J4 to connect the GPIO pins to the eight green LEDs, DS0–DS7. These LEDs can be used to
indicate active communications through the CP2112. Table 1 lists the LED corresponding to each header position.
Table 1. J2 and J3 LED Locations
LED Pins
DS0 J1[3:4]
DS1 J1[1:2]
DS2 J2[3:4]
DS3 J2[1:2]
DS4 J3[3:4]
DS5 J3[1:2]
DS6 J4[3:4]
DS7 J4[1:2]
GND
SDA
SCL
EXT_PU
H1 GND
EXT_PU
J4
J3
J2
J1
DS7
DS6
DS5
DS4
DS3
DS2
DS1
DS0
CP2112
U1
SILICON LABS
www.silabs.com
P1
CP2112-EK J7 J6
SMBUS PU_V
EXT_PU
VIO
VIO
VDD
+3V
NET A
TB1 DS8
SUSPEND
J8

CP2112-EK
Rev. 0.3 11
7.2. Universal Serial Bus (USB) Interface (P1)
A Universal Serial Bus (USB) connector (P1) is provided to facilitate connections to the USB interface on the
CP2112. See Table 2 for the USB pin definitions.
7.3. SMBus Signals (TB1, H1)
The SMBus interface terminal block and access headers are included to easily interace SMBus devices to the
evaluation board. The terminal block can be used to connect wires to the board, and the access connectors can be
used to connect scope probes to the SMBus interface for debugging. The signals that are accessible through these
two connectors are SDA, SCL, GND, and the external pull-up voltage signal.
7.4. VDD and VIO Power Connector (J6)
This header (J6) is included on the evaluation board to provide several power options. The following describes the
function of each pin:
Pins 1–2: Connect CP2112 VIO input (pin 5) to CP2112 VDD (Pin 6). Remove the shorting block to power
VIO from an external source.
Pins 3–4: Connects the main +3 V net to the CP2112 VDD (Pin 6). The main +3 V net powers the other
components (eight green LEDs) on the board.
7.5. SMBus Pull-Up Voltage Connector (J7)
This header (J7) is included on the evaluation board to provide power options for SMBus pull-up voltage. The
following describes the function of each pin:
J7[1:2]: Connects CP2112 VIO pin (Pin 5) to the 4.7 kpull-up resistors located on the evaluation board.
J7[2:3]: Connects the External Pull-Up signal from TB1 (Pin 4) to the 4.7 kpull-up resistors on the
evaluation board.
7.6. SUSPEND LED Connector (J8)
The J8 header is used to connect the CP2112 SUSPEND pin (Pin 17) to the DS8 red LED. When the LED is on,
the device has enumerated with the PC operating normally. When the LED is off, the device has not yet
enumerated or is in the USB Suspend state.
Table 2. USB Connector Pin Descriptions
Pin # Description
1 VBUS
2D-
3D+
4 GND (Ground)

CP2112-EK
12 Rev. 0.3
8. Schematic
Figure 10. CP2112 Evaluation Board Schematic

CP2112-EK
13 Rev. 0.3
DOCUMENT CHANGE LIST
Revision 0.1 to Revision 0.2
Updated Figure 1.
Updated "6. CP2112 Windows Application" on page
4.
Instructions and figures from updated PC application.
Updated Figure 10 on page 12.
Revision 0.2 to Revision 0.3
Updated “1. Kit Contents” to change CD-ROM to
DVD.
Added “2. Relevant Documentation” and “5. CP2112
Software Interface”.
Updated “3. Software Setup” to point to the drivers
on the website.
Updated Figure 1.
Updated the instructions and figures in “6. CP2112
Windows Application”.

CP2112-EK
14 Rev. 0.3
CONTACT INFORMATION
Silicon Laboratories Inc.
400 West Cesar Chavez
Austin, TX 78701
Tel: 1+[phone]
Fax: 1+[phone]
Toll Free: 1+[phone]
Please visit the Silicon Labs Technical Support web page:
https://www.silabs.com/support/pages/contacttechnicalsupport.aspx
and register to submit a technical support request.
Patent Notice
Silicon Labs invests in research and development to help our customers differentiate in the market with innovative low-power, small size, analog-
intensive mixed-signal solutions. Silicon Labs' extensive patent portfolio is a testament to our unique approach and world-class engineering team.
Silicon Laboratories and Silicon Labs are trademarks of Silicon Laboratories Inc.
Other products or brandnames mentioned herein are trademarks or registered trademarks of their respective holders.
The information in this document is believed to be accurate in all respects at the time of publication but is subject to change without notice.
Silicon Laboratories assumes no responsibility for errors and omissions, and disclaims responsibility for any consequences resulting from
theuseofinformationincludedherein.Additionally, Silicon Laboratories assumes no responsibility forthefunctioningofundescribed features
or parameters. Silicon Laboratories reserves the right to make changes without further notice. Silicon Laboratories makes no warranty, rep-
resentation or guarantee regarding the suitability of its products for any particular purpose, nor does Silicon Laboratories assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation conse-
quential or incidental damages. Silicon Laboratories products are not designed, intended, or authorized for use in applications intended to
support or sustain life, or for any other application in which the failure of the Silicon Laboratories product could create a situation where per-
sonal injury or death may occur. Should Buyer purchase or use Silicon Laboratories products for any such unintended or unauthorized ap-
plication, Buyer shall indemnify and hold Silicon Laboratories harmless against all claims and damages.
