1. Introduction
The Si890x are isolated ADCs suitable for low-frequency analog data acquisition applications. These devices
integrate an isolated 10-bit SAR ADC with I2C, UART, or SPI serial communication ports. Isolation ratings of 2.5 or
5 kV are available. See the Si8900 data sheet for details.
2. Kit Contents
The Si890xPWR-EVB Evaluation kit contains the following items:
Si890xPWR-EVB evaluation module containing:
High voltage 110 V/220 V ac line current and voltage measurement circuit with 3.3 Vpp analog output signals
Si8900 Isolated 10-bit ADC with UART serial port
Si8901 Isolated 10-bit ADC with I2C serial port
Si8902 Isolated 10-bit ADC with SPI serial port
C8051F007 mixed-signal MCU master controller
AC line-side bias supply
2.1. Hardware Overview
The Si890xPWR-EVB (Figure 1) demonstrates 50/60 Hz ac line voltage and current measurements. This EVB is
housed in a plastic case with recessed connectors to protect against user electrical shock. The Si890x accepts a
110 or 220 Vac input and supports load currents up to 10 A (max). The on-board line side circuit interface
measures ac voltage and current, which is then digitized by the Si890x on-chip 10-bit ADC. The resulting converted
data is then transmitted through the output side isolated serial port to the on-board master processor (C8051F007
MCU). The C8051F007 converts the serial data back to analog format where it is available to the user at the low-
voltage side of the evaluation module.
Key features for this EVB include the following:
EVB module measures ac line voltage (110 Vac or 220 Vac at 50/60 Hz) and ac line current (10 A max)
10-bit ADC with three input channels and selectable, isolated serial ports: UART (Si8900) or I2C (Si8901) or SPI
(Si8902)
High common mode transient immunity (CMTI): 35 kV/µs (min), 50 kV/µs (typ)
Industrial temperature operating range (–40 to +85 °C)
60-year isolation barrier life at rated working voltage
Safety certified (pending)
CSA component notice 5A approval
IEC 60950, 61010, 60601
VDE/IEC 60747-5-2
UL1577 recognized: (Up to 5 kVrms for 1 minute)
Danger! High Voltage: Read instructions carefully. Do not operate this evaluation board unless it is
housed in its plastic case and secured by the four screws.

Si890x-PWR-EVB
2 Rev. 1.1
Figure 1. Si890xPWR-EVB Block Diagram
Figure 2. Si890xPWR-EVB Circuit Board and Plastic Housing
Figure 2 shows photographs of the EVB circuit board and plastic housing. Note the location of the Si8900, Si8901,
and Si8902 ICs, which are centered between the two isolated ground planes. The ac input barrier strip (TB-1,
bottom side of board) is recessed to provide an extra margin of space between the housing exterior and the ac line
connection.
Safety Warning: The board MUST remain in the plastic enclosure whenever the ac line voltage is
connected to the Si890x input terminals.
C8051F007
DebugConnector
ACHVInterface
Isolation
Barrier
C8051F007
MCU
Output
Connector
JumperSelection
Options
Si890xPWR‐EVB
(Topside)
Attenuators
acin
acout
Line Load
ACInputConnector
Voltage
Measurement
Current
Measurement
dcBias
Jumper
Selection
Options
Si8900
Si8902
Si8901

Si890x-PWR-EVB
Rev. 1.1 3
3. Required Equipment
One dc regulated power supply capable of generating 2.7 V to 3.6 Vdc at 200 mA.
Small hand tools: soldering iron, wire cutters, needle-nose pliers, wire stripper, screwdrivers.
Minimum two-channel oscilloscope.
22-gauge stranded wire for low-voltage signal connector P1.
A suitable ac load (e.g., power resistor, lamp with or without dimmer, max current of 10 A).
AC line cord wire (Note: wire gauge depends on the amount of current to be measured).
Optional line-side external dc supply input. Use only if the EVB is connected to a low-voltage (5 V or less) line-
side device instead of the ac line).

Si890x-PWR-EVB
4 Rev. 1.1
4. EVB Factory Jumper Configuration

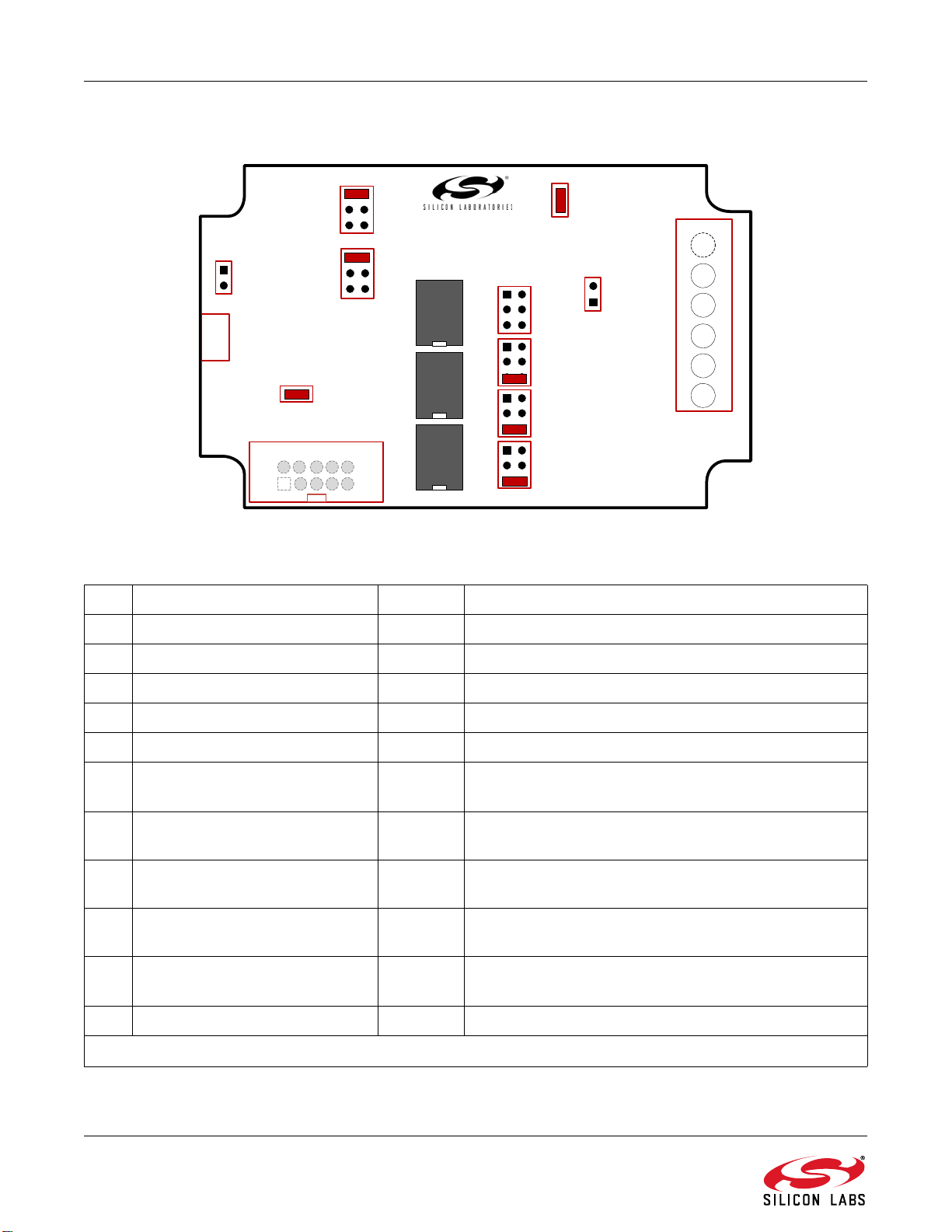

Figure 3. EVB Default (Factory) Jumper Settings
Table 1. Factor Jumper Settings
Item Function Settings Comments
J1 Master MCU debug connector None User can optionally modify Master MCU firmware*
J2 ADC channel 1 analog input 5-6 Si8900 ADC channel AIN1 measures ac line voltage
J3 3.3 V bias voltage 5-6 3.3 V bias voltage connected to Si8900
J4 ADC channel 0 analog input 5-6 Si8900 ADC channel AIN0 measures ac line voltage
J5 ADC channel 2 analog input No Jumper Not Used
J6 Master MCU RESET input No Jumper Adding a jumper disables master MCU, customer
master uses serial ports
J7 Output connector P1 pin D0
assignments 1-2 Si8900 UART Rx input assigned to P1 pin D0
J8 Output connector P1 pin D1
assignments 1-2 Si8900 UART Tx output assigned to P1 pin D1
J11 110 Vac or 220 Vac line voltage
select No Jumper 110 Vac line voltage selected
J12 3.3 V bias voltage 1-2 3.3 V bias voltage generated from ac line
(no jumper = VDD coming from TB-1, pin 4)
J24 For future use 1-2 For future use
*Note: Requires C8051F005 MCU Development Kit
C8051F007DebugConnector
TB1
J24
J8
J6
J12
J5
J4
J3
J2
J11
Si8900
Si8901
Si8902
J1
1 2
3 4
5 6
1 2
3 4
5 6
1 2
3 4
5 6
1 2
3 4
5 6
1 2
3 4
5 6
1
2
1
2
1
2
12
P1
J
J
J
J
J
J
J7
1 2
3 4
5 6
J
U5
U3
U4

Si890x-PWR-EVB
Rev. 1.1 5
Table 2. User Jumper Options
Item Pins 1–2 Pins 3–4 Pins 5–6
J2 Connects ac current signal to U3,
AIN1 Connects ac current signal to U5, AIN1 Connects ac current signal to U4, AIN1
J3 Connects 3.3 V bias to U5, VDDA Connects 3.3 V bias to U3, VDDA Connects 3.3 V bias to U4, VDDA
J4 Connects ac line voltage signal to
U5, AIN0 Connects ac line voltage signal to U3, AIN0 Connects ac line voltage signal to U4, AIN0
J5 Connects external AIN2 to U5,
AIN2 Connects external AIN2 to U3, AIN2 Connects external AIN2 to U4, AIN2
J6 Holds master MCU in reset N/A N/A
J7 Connects UART Rx to D0 output
header Connects I2C port SCL to D0 out-
put header Connects SPI port SD0 to D0 out- put header
J8 Connects UART Tx to D1 output
header Connects I2C port SDA to D1 out-
put header Connects SPI port SCLK to D1 output header
J11 Jumper when using 220 Vac
input (no jumper for 110 V) N/A N/A
J12 Jumper if using on-board VDDA
supply (no jumper for external
3.3 V bias)
N/A N/A

Si890x-PWR-EVB
6 Rev. 1.1
5. Hardware Setup and Demo
Safety Warning: Remove power from the board before proceeding!
Setting-up the Si890xPWR-EVB evaluation module requires configuring the jumper options, then connecting the
input and output cables with the ac line disconnected and the external dc power supply off. EVB setup and
configuration is as follows:
1. Remove the four screws from the bottom of the EVB plastic enclosure and remove the top cover.
2. The default factory EVB settings enable the Si8900 (UART). Verify the factory jumper option settings using
Table 1 (use Figure 3 to locate the configuration headers). If so desired, the Si8901 or Si8902 can be selected
instead of the Si8900 by following the instructions in Paragraph 3. Otherwise, skip to paragraph 4.
3. Configuring an Isolated ADC:
a.Choose the isolated ADC to be enabled (Note that only one ADC can be in service at a time).
b.Headers J2, J3 and J4 route the ac line-side VDD, AIN0, and AIN1 corresponding pins of the desired Si890x device (Input
AIN0 typically measures line input voltage, and AIN1 typically measures ac line current). For example, if the Si8902 is the
device to be used, insert shorting jumpers between pins 1 and 2 on headers J2, J3, and J4 as shown in the “Selecting
Si8902” drawing of Figure 4. Configurations for selecting the Si8900 and Si8901 are also shown in Figure 4.
Figure 4. Si890x Input Configuration Jumpers
SelectingSi8900
6
J4
J3
J2
Si8900
Si8901
Si8902
SelectingSi8901
J4
J3
J2
Si8900
Si8901
Si8902
SelectingSi8902
J4
J3
J2
Si8900
Si8901
Si8902
AIN0VDDAIN1
1
3
5
2
4
1
3
2
4
56
1
3
2
4
56
1
3
2
4
56
1
3
2
4
56
1
3
2
4
56
1
3
2
4
56
1
3
2
4
56
1
3
2
4
56
AIN0VDDAIN1
AIN0VDDAIN1

Si890x-PWR-EVB
Rev. 1.1 7
c.The serial port pins for the selected Si890x device are routed to output connector P1 by configuring headers J7 and J8 as
shown in Figure 5.
1. If using the Si8900, install shorting jumpers on pins 1 and 2 on both J7 and J8.
2. If using the Si8901, install shorting jumpers on pins 5 and 6 on both J7 and J8.
3. If using the Si8902, install shorting jumpers on pins 3 and 4 on both J7 and J8.
Figure 5. Configuring Output Connector P1
4. Locate the six-screw ac line terminal block (TB1) on the right side of the circuit board. With the ac line
disconnected from the outlet, loosen the screws on TB1 corresponding to AC_H and GNDA, as shown in
Figure 6. Strip 1/4 inch of insulation from the “hot side” of the ac wire and insert the wire through the enclosure
opening and into the AC_H terminal block opening. Be sure there is no bare wire exposed. Tighten the screw on
the terminal block to secure the AC_H wire. Repeat this procedure for the GNDA wire connection to TB1.
5. Locate the ac output (load) terminals AC_OUT and AC_H on TB1 as shown in Figure 6. With the ac line
disconnected from the outlet, loosen the screws on TB1 corresponding to AC_OUT and AC_H, as shown in
Figure 3. Strip 1/4 inch of insulation from the “hot side” of the ac wire and insert the wire through the enclosure
opening and into the AC_H terminal block opening. Be sure there is no bare wire exposed. Tighten the screw on
the terminal block to secure the AC_H wire. Repeat this procedure for the AC_OUT wire connection to TB1.
ConfiguringP1
J7
J8
Rx
1
3
5
2
4
6
SDO
SCL
ToP1
D0
Tx
SCLK
SDA
Example:Si8900Rxpinis
routedtotheD0pinof
P1,andTxisroutedto
theD1pinofP1when
connectedasshown.
ToP1
D1
3
5
4
6
12
12

Si890x-PWR-EVB
8 Rev. 1.1
Figure 6. AC Line and Load Connections to Barrier Strip TB1 (Top of Board View)
6. Connect the loose ends of the AC_OUT and AC_H wires from TB1 to the load (e.g. power resistor, lamp, etc.).
7. Replace the top cover of the enclosure and secure with four screws. Examine the ac line side of the enclosure
and verify that the ac lines external to the enclosure have no bare wire exposed.
8. Locate the male connector that mates to output side connector P1 (see Figure 5) and test fit to connector to P1.
Remove the connector from P1. Cut nine equal lengths of AWG28 wire, each one eight inches long. Strip 1/4
inch of insulation from each end of all eight wires. Solder one end of each wire to each wire to the male
connector. When soldering is complete, plug the male connector into P1.
9. Obtain an external adjustable power supply (bench or lab supply), but do not connect it to the Si890x EVB yet.
With no load attached, turn the power supply on and set the output to 3.3 V. Turn the power supply off and
discharge its outputs by shorting the positive and negative terminals together.
10.Connect the dc supply outputs to the VDDB and GNDB input pins of P1, as shown in Figure 7.
11.Turn the oscilloscope on and connect oscilloscope probes to the DAC0 and DAC1 output pins of P1, as shown
in Figure 7.
Figure 7. Low Voltage Connections to Output Connector P1
TB1
AC_OUT AC_H 3.3V AIN2 AC_H GNDA
ACLine
Output
Load
HotSide
Neutral
Nine‐PinConnector(EndView)
5
2
6
31
4
8 97
PCB
2GNDB
3D0
4D1
5SDI
6/EN
7DAC0
8DAC1
9NotUsed
1VDDB
PIN#FUNCTION

Si890x-PWR-EVB
Rev. 1.1 9
12.Turn on the oscilloscope and plug the ac input lines into a source of 110/220 Vac, then turn on the external dc
power supply. With the load engaged, the voltage (blue) and current (yellow) waveforms will appear on the
oscilloscope as shown in Figure 8. Vary the load to observe the changes in current.
13.To power the EVB down, first unplug the ac line connection then turn the external dc power supply off.
Figure 8. AC Voltage (Blue) and Current (Yellow) Waveform from Analog Output of the Master
Controller (C8051F007) as Displayed on the Oscilloscope

10 Rev. 1.1
Si890x-PWR-EVB
6. Schematics
Figure 9. Measurement Circuits
1
2
3
4
5
6
GNDA
AC_OUT
3.3 V
AC_H
AN2
TB1
AC_OUT
R15
0.01 R16
0.01 R17 0.01
GNDA
R18
2K
R19
2K
CURRENT SENSING
VOLTAGE SENSING
SP1
IC2
UART
R1
100 K
R2
100 K
R3
100 K
R4
100 K
R5
100 K
AC_H
+
_
+
_
+INPUT1
-INPUT1
+INPUT2
-INPUT2
VCC
OUTPUT1
OUTPUT2
VCC
GNDA
3
2
5
6
8
1
7
4
U6
MC33272AD
R22
10 K
TP1
TP2
TP3
GNDA
R21
10 K
C5
COG
100 PF
R20
33.2 K
GNDA
C6
X7R
0.1 PF
C7
X7R
0.1 PF
3.3 V
L5VREF
R24
100 C8
COG
100 PF
GNDA
R23
33.2 K
C15
COG
100 PF
GNDA
R11
10 K
3.3 V
10 K
R12
R10
4.99 K
1.5 VREF
GNDA
R6
4.02 K R7 4.02 K
R8
499 K
R9
499 K
J11
TP4
SHORTING JUMPER 1X2
J23
C1 C2 C3 C4
X75 X75 X75 X75
4.7 UF 4.7 UF 4.7 UF 4.7 UF
R26 R27
75 75
TP9
C24
X7R
1200 PF R13
499 K
R14
100
TP5
C16
COG
100 PF
GNDA
AN2 J5
J4
J3
J2
C13
X7R
1.0 UF
GNDA
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VDDA
NC
VREF
AIN0
AIN1
AIN2
GNDA
RST
GNDB
VDDB EN
SDI
SCLK
SDO
NC
VDDB
R39 2K SDO
SCLK
SDI C14
X7R
1.0 UF
GNDB
VDDB
U5
SI8902AD-AD0-GS
EN
16
15
14
13
12
11
10
9
VDDA
AIN0
AIN1
AIN2
GNDA
VREF
GNDB
VDDB
SDA
SCL
NC
NC
VDDB
U4
SI8901AD-AD0-GS
NC
1
2
3
4
5
6
7
8RST
RSDA
R36
R26 2K 4.99K
SCL
SDA
VDDB
C12
X7R
1.0 UF
GNDB
TP8
GNDA
C9
X7R
1.0 UF
3.3V GNDA
R37 2K
C9
X7R
1.0 UF
1
4
5
6
7
8
VDDA
AIN0
AIN1
AIN2
GNDA
VREF
GNDB
VDDB
TX
RX
NC
NC
VDDB
NC
RST
NC
16
15
14
13
12
11
10
9
2
3RX
TX
VDDB
GNDB
C11
X7R
1.0 UF
U3
SI8900AD-AD0-GS
1
2
U7
DIODE PLVA662A
A
NC
C
3
C25
X7R
100 UF C22
X5R
100 UF
2
A1 C
TP7
Z1
1N5B19HW-7-F
GNDA
R28
2K
12
D1
RED
1
2
3
VIN
GND
SHDIN BYPASS
VOUT
4
5
C26
NP0
470 PF
C23
X7S
100 UF
GNDA
U2
TC1014-2.7VCT713
TP6 3.3 V
J12 J22
SHORTING JUMPER 1X2
SHORTING JUMPER 1X2
SHORTING JUMPER 1X2 SHORTING JUMPER 1X2
SHORTING JUMPER 1X2
J9 J10
J19
J18

Si890x-PWR-EVB
Rev. 1.1 11
Figure 10. Master Controller Circuit
P1 – A1
P1 – A2
P1 – A3
VDDB
GND8
D0
P1 – B1
P1 – B2
P1 – B3
D1
SDI
EN
CONN-SSW-103-02-G-T-RA
P1 – C1
P1 – C2
P1 – C3
DAC0
DAC1
J7
D0
SCL
SD0
RX
SHORTING JUMPER 1X2
J13
SHORTING JUMPER 1X2
J14
SHORTING JUMPER 1X2
J15
J8
D1
SDA
SCLK
TX
CP0_
CP0+
VREF
AIN0
AIN1
AIN2
AIN3
AGND
1
2
3
4
5
6
7
8
C8051F007-GQ
U1
DGND
DGND
P0.3
P0.2
P0.1
VDD
VDD
P0.0
SD0
SCLK SCL
SDA
17
18
19
20
21
22
23
24
9
10 11 12 13 14 15 16
AV+
XTAL1
XTAL2
RST
TMS
TCK
TDI
TDO
31 30 29 28 27 26 25
32
DAC0
DAC1
TX
RX
SDI
VDDB
DAC0
DAC1
AGND
AV+
P0.7 P0.6
P0.5 P0.4
GNDB
GNDB
VDDB
R31
4.75 k R32
4.75 k
VDDB
VDDB
VDDB
VDDB
VDDB
GNDB
R33
2 k
GNDB
8
10
6
4
2
7
9
5
3
1
HDR2X5 SHROUDED
VDDB J1
DEBUG
R29
4.75 k
Y1
24.576 MHz
C19
X5R
33 pF
C20
COG
33 pF
GNDB
GNDB
C21
X7R
1.0 µF
J6
R40
10 k
C17
X5R
4.7 µF
C18
X7R
0.1 µF
12
02
RED
R30
100k
GNDB
J24
R36
100 k
R35
100 k
R34
100 k
SHORTING JUMPER 1X2
J25

12 Rev. 1.1
Si890x-PWR-EVB
7. Bill of Materials
Table 3. Si890xPWR Bill of Materials*
Item Quantity Reference Part Number Source Description
1 1 U1 C8051F007-GQ Silicon Labs MIXED SIGNAL 32 kB ISP FLASH, MCU,
LQFP32-7X7, RoHS
2 2 C6 C18 399-1282-1-ND CAP, 0.1 µF, X7R, CERAMIC, 0603, 25 V, ±5%, or
EQ, RoHS
3 8 C7,9-14,21 490-3899-1-ND CAP CERAMIC, 1.0 µF, X5R, 0603, 10 V, ±10%,
RoHS.
4 4 C5,8,15,16 478-1175-1-ND CAP, 100 pF, C0G, CERAMIC, 0603, 50 V, ±5%,
or EQ, RoHS.
5 2 C22 C25 445-1437-1-ND CAP, 100 µF, X5R, CERAMIC, 1210, 6.3 V ,
±20%, or EQ, RoHS.
6 1 C23 445-4536-1-ND CAP, 10 µF, X7S, CERAMIC, 1210, 100 V, ±10%,
RoHS.
7 1 C24 PCC122BNCT-ND CAP CERAMIC, 1200 pF, X7R, 0805, 50 V ,
±10%, or EQ, RoHS.
8 2 C19-20 PCC330CGCT-ND CAP, 33 pF, NPO,CERM, 0805, 50 V, ±5%, or EQ,
RoHS.
9 1 C17 PCC2318CT-ND CAP, 4.7 µF, X5R, CERAMIC, 0603, 6.3 V, ±20%,
or EQ, RoHS.
10 4 C1-4 445-5211-1-ND CAP, 4.7 µF, X7S, CERAMIC, 1812, 100 V,
±10%, RoHS.
11 1 C26 0603CG471G9B200-ND CAP, 470 pF, NP0, CERAMIC, 0603, 50 V, ±2%,
or EQ, RoHS.
12 1 P1 SSW-103-02-G-T-RA CONN, 3X3-RA, RoHS
13 1 Z1 1N5819HW-FDICT-ND DIODE SCHOTTKY, 40 V, 1A, SOD123, RoHS.
*Note: All components on this BOM are Lead Free.

Si890x-PWR-EVB
Rev. 1.1 13
14 1 U7 PLVA662A,215-ND DIODE ZENER 6.2 V 250 mW,
SOT-23, RoHS.
15 4 J6,11,12,24 S1011E-02-ND STAKE HEADER, 1X2, 0.1"CTR, GOLD, OR EQ,
RoHS.
16 6 J2-5 7-8 S2011E-03-ND STAKE HEADER, 2X3, 0.1"CTR, GOLD, OR EQ,
RoHS.
17 1 J1 MHC10K-ND HEADER, SHROUDED, 2X5, OR EQ, RoHS.
18 2 D1-2 350-1555-ND LED RED, T1, 3 mm, 2.0 V, DIFF DBL-FLANGE,
or EQ, RoHS.|
19 1 U6 MC33272ADR2GOSCT-
ND OPAMP, DUAL, HI SPEED, 8SOIC, RoHS.
20 3 R15-17 985-1197-1-ND RES, 0.01 , 1.0 W, 2010, 1%, SMD, or EQ,
RoHS.
21 2 R14 R24 P100ACT-ND RES, 100 , SMT, 0805,
1/8W, ±5%, or EQ, RoHS.
22 4 R30,34-36 P100KACT-ND RES, 100 k, SMT, 0805, 1/8W, ±5%, or EQ,
RoHS.
23 5 R1-5 541-100KUCT-ND RES, 100 k, SMT, 1206, 1/2W, ±1%, or EQ,
RoHS.
24 5 R11-12,21-22,40 P10.0KCCT-ND RES, 10.0 k, SMT, 0805, 1/8W, ±1%, or EQ,
RoHS.
25 7 R18-19,28,33,37-39 311-2.0kARCT-ND RES 2 k, SMT, 0805, 1/8W, ±5%, or EQ, RoHS.
26 2 R20 R23 RT0805FRE0733K2L-ND RES, 33.2 k, SMT, 0805, 1/8W, ±1%, or EQ,
RoHS.
Table 3. Si890xPWR Bill of Materials*
Item Quantity Reference Part Number Source Description
*Note: All components on this BOM are Lead Free.

14 Rev. 1.1
Si890x-PWR-EVB
27 2 R6-7 311-4.02KCRCT-ND RES, 3.85 k, SMT, 0805, |1/8W, ±1%, or EQ,
RoHS.
28 3 R29,31-32 P4.75KCTR-ND RES, 4.75 k, SMT, 0805, |1/8W, ±1%, or EQ,
RoHS.
29 1 R25 P4.99KCCT-ND RES, 4.99 k, SMT, 0805, 1/8W, ±1%, or EQ,
RoHS.|
30 4 R8-10 R13 P499KCCT-ND RES, 499 k, SMT, 0805, 1/8W, ±1%, or EQ,
RoHS.
31 2 R26-27 RHM75ERCT-ND RES, 75 , SMT, 1206, 1/4W, ±5%, OR EQ,
RoHS.
32 1 J9-10,13-15,18-19,
22-23,25 S9001-ND CONN, JUMPER SHORTING, TIN, OR EQ, RoHS. (INSERT AFTER TEST)
33 1 U3 Si8900AD-A00-GS Silicon Labs IC, ISOLATED MONITORING ADC, RoHS.|
34 1 U4 Si8901AD-A00-GS Silicon Labs IC, ISOLATED MONITORING ADC, RoHS.
35 1 U5 Si8902AD-A00-GS Silicon Labs IC, ISOLATED MONITORING ADC, RoHS.
36 1 U2 TC10143.3VCT713CT-ND IC, CMOS, LDO, 3.3 V, 50 MA, SOT23-5, RoHS.
37 9 TP1-9 NO POP TEST POINT, WIRE WRAP VIA, OR EQ, RoHS.
38 1 TB1 277-1251-ND TERM. BLOCK, 5.08 mm CTRS, 6 POS, RoHS.
39 1 Y1 CTX092-ND CRYSTAL, 24.576 MHz SERIES, RoHS.
Table 3. Si890xPWR Bill of Materials*
Item Quantity Reference Part Number Source Description
*Note: All components on this BOM are Lead Free.

Si890x-PWR-EVB
Rev. 1.1 15
8. Ordering Guide
Table 4. Product Ordering Information1,2,3
Part Number (OPN) Serial Port Package Isolation Rating Temp Range
Si8900B-A01-GS UART WB SOIC 2.5 kV –40 to +85 °C
Si8900D-A01-GS UART WB SOIC 5.0 kV –40 to +85 °C
Si8901B-A01-GS I2C/SMBus WB SOIC 2.5 kV –40 to +85 °C
Si8901D-A01-GS I2C/SMBus WB SOIC 5.0 kV –40 to +85 °C
Si8902B-A01-GS SPI Port WB SOIC 2.5 kV –40 to +85 °C
Si8902D-A01-GS SPI Port WB SOIC 5.0 kV –40 to +85 °C
Notes:
1. Add an “R” suffix to the part number to specify the tape and reel option. Example: “Si8900AB-A-ISR”.
2. All packages are RoHS-compliant.
3. Moisture sensitivity level is MSL3 for wide-body SOIC-16 package with peak reflow temperatures of 260 °C according
to the JEDEC industry standard classifications and peak solder temperatures.

Si890x-PWR-EVB
16 Rev. 1.1
DOCUMENT CHANGE LIST
Revision 1.0 to Revision 1.1
Updated Figure 7 on page 8.

Si890x-PWR-EVB
Rev. 1.1 17
NOTES:

Disclaimer
Silicon Laboratories intends to provide customers with the latest, accurate, and in-depth documentation of all peripherals and modules available for system and software implementers
using or intending to use the Silicon Laboratories products. Characterization data, available modules and peripherals, memory sizes and memory addresses refer to each specific
device, and "Typical" parameters provided can and do vary in different applications. Application examples described herein are for illustrative purposes only. Silicon Laboratories
reserves the right to make changes without further notice and limitation to product information, specifications, and descriptions herein, and does not give warranties as to the accuracy
or completeness of the included information. Silicon Laboratories shall have no liability for the consequences of use of the information supplied herein. This document does not imply
or express copyright licenses granted hereunder to design or fabricate any integrated circuits. The products must not be used within any Life Support System without the specific
written consent of Silicon Laboratories.A"Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected
to result in significant personal injury or death. Silicon Laboratories products are generally not intended for military applications. Silicon Laboratories products shall under no
circumstances be used in weapons of mass destruction including (but not limited to) nuclear, biological or chemical weapons, or missiles capable of delivering such weapons.
Trademark Information
Silicon Laboratories Inc., Silicon Laboratories, Silicon Labs, SiLabs and the Silicon Labs logo, CMEMS®, EFM, EFM32, EFR, Energy Micro, Energy Micro logo and combinations
thereof, "the world’s most energy friendly microcontrollers", Ember®, EZLink®, EZMac®, EZRadio®, EZRadioPRO®, DSPLL®, ISOmodem ®, Precision32®, ProSLIC®, SiPHY®,
USBXpress® and others are trademarks or registered trademarks of Silicon Laboratories Inc. ARM, CORTEX, Cortex-M3 and THUMB are trademarks or registered trademarks of
ARM Holdings. Keil is a registered trademark of ARM Limited. All other products or brand names mentioned herein are trademarks of their respective holders.
http://www.silabs.com
Silicon Laboratories Inc.
400 West Cesar Chavez
Austin, TX 78701
USA
Smart.
Connected.
Energy-Friendly
Products
www.silabs.com/products Quality www.silabs.com/quality Support and Community community.silabs.com
