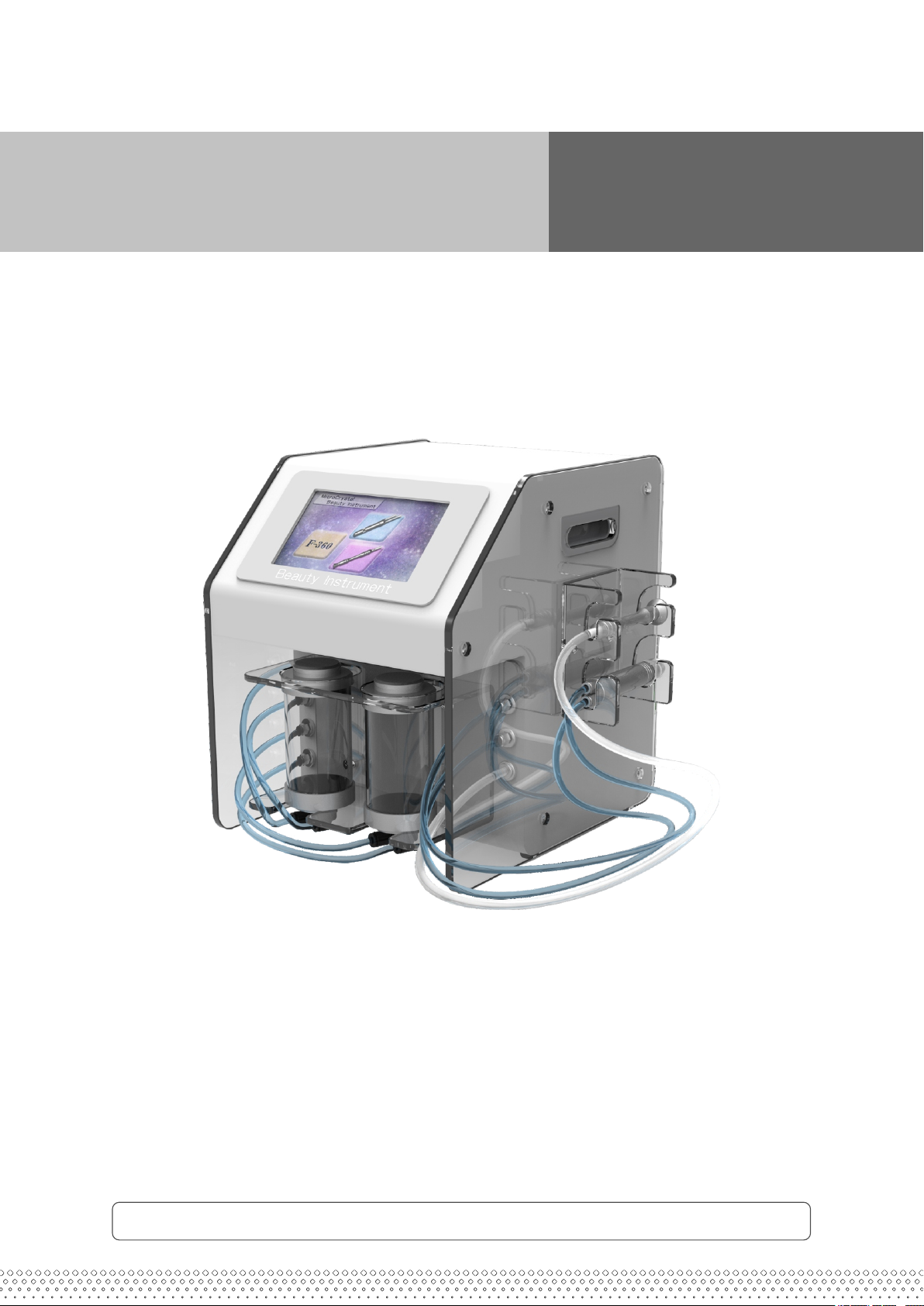

Silver Fox F-360 User manual

F-360 Microcrystal
beauty instrument
Please read the instruction carefully before using the product

1. Cut off the power supply when replacing electrical components or maintaining and cleaning the
machine.
2. Never leave machine unattended when power on .
3. It can only be used in accordance with the inherent use described in the instruction manual, and no
accessories applied without recommendation by the manufacturer.
4. When the power cord or plug is damaged, when the machine is abnormal or overturned, damaged,
or falls into the water, do not continue to use the machine, should be returned to the service center for
inspection and maintenance
5. Keep the power away from high temperature, and do not wrap the power cord around the machine
body. Do not work under direct sunlight for a long time, or it may cause a variety of unstable conditions of the
machine.
6. It is forbidden to put the machine in the environment with high humidity, such as the bathroom.
7. In case of any abnormality, please contact the dealer and call professional maintenance personnel
for inspection. Unauthorized disassembly of the main engine and any accessories thereof is prohibited.
8. Extended power cord should not be used.
9. This product is only available for professionals with qualifications.
F-360
01
Microcrystal beauty instrument is a combination of microcrystalline regeneration and diamond
microsculpture two major technology in one beauty instrument, multi-functional use.Simple operation, can
effectively improve a variety of skin problems, won the praise of the majority of consumers.
1. The microcrystal is mainly attracted by ultra-fine microcrystalline power through vacuum in one pipe
and sprayed on the skin surface at high speed to remove the dead skin precisely and accurately, and then
sucked away by another pipe, so as to promote rapid regeneration of new skin tissue, stimulate blood
circulation and accelerate metabolism.
2.Diamond Dermabrasion is a technique that thoroughly removes the aging cells in the outermost layer
of the epidermis and promotes the renewal of skin cells by using the micro-carving tube inlaid with particles,
combined with friction and vacuum suction technology.
1.Remove the aging cuticle, remove pore dirt and fade acne scars
2.Strength skin elasticity, reduce fine wrinkles, improve skin quality and make skin look younger.
3.Improve dullness, uneven complexion, pigmentation and other skin problems.
4.Fade tattoo pigment, fat lines, striae gravidarum.
100V-240V 50Hz/60Hz
145W
41.5×35.5×50cm
11.6Kg±5%
13.7Kg±5%
0℃～+45℃
-20℃～+60℃
30%RH～80%RH
30%RH～80%RH
1. Warning
2.Product description
3.Functional features
Items
Input power
Maximum input power
package size
N.W.:
G.W.:
Ambient temperature
Storage/transportation temperature
Ambient humidity
Storage/transportation humidity
Parameter
4. Product technical parameters

02
F-360
Note 1: one set of diamond miniature suction pen and grinding head includes: two suction pens, nine
diamond grinding heads (straight tube) 14.5*14.2, (big horn) 21.8*15.2, (small horn) 18.9*15.2, (big horn)
21.8*15.2, (small horn) 14.5*18.2, (straight tube) 14.7*14.2, (small horn) 18.9*15.2, (small horn) 14.5*20.1,
(straight tube) 14.5*14.2, Net for the filterφ11×0.15 (300 mesh）, Spongeφ12×15.
5. Packing list
Designation
Mainframe
Diamond Dermabrasion suction
pen and grinding head
Microcrystal grinding rod
The waste sand bottle
Net sand bottle
Microcrystalline sand
Open end spanner 7-10
The transparent natural color trachea
The transparent blue trachea
Air & water pipes
Air &water pipes
Silica gel tube
The filter
φ14.5×1.5 Seal ring
φ3.5×1.5 Seal ring
φ6×1.0 Seal ring
F336 Microcrystal spray cap
F336 Microcrystalline nozzle
Pneumatic quick coupling
Microcrystalline filter core
Sealing ring of micro-crystal end cover
Sealing ring of micro - crystal tank
Large flat head machine silk
Power cord
F360 Attachment frame
The instructions
Specification parameter
AC 100-240V
Note 1
200# Crystal
A3 blue zinc plated (ROHS compliant)
PU white Φ4×Φ6 , 1.5 meters length
6*4 1.5 meters length
6*4 length : 25cm
6*4 length : 22cm
Silicone natural color φ7×φ4 1.5 meter length
PC transparent plastic shell
Silicone natural color φ17.5×φ14.5×1.5
Silicone (Hardness:45 degree±5 degree) Natural color φ6.5×φ3.5×1.5
Silicone natural color φ8×φ6×1.0
Light tea color/φ21.1×32.8(PC)
Stainless steel 304 natural color φ9×27.7
Black M5 , connectφ6 straight
Sintering whiteφ20×25(PE)
Silicone natural colorφ36×1.5
Silicone natural colorφ60×3.5
4×12 (ROHS compliant),A3,Nickel plating
PMMA transparent 120*100*60 T=6mm
Quantity
1 piece
1 set
1 piece
1 piece
1 piece
1 pot
1 piece
1 PC
1 PC
2 PCS
2 PCS
2 PCS
3 PCS
5 PCS
5 PCS
5 PCS
10 PCS
1 PCS
1 PCS
5 PCS
2 PCS
4 PCS
2 PCS
1 PCS
1 PCS
1 PCS

03
F-360
1. As shown in the left picture, install
the attachment rack of the suction
pen to the right side of the mainframe
(with two M4*12 large flat head
machine wires)
2. As left picture shown, the
microcrystalline grinding rod and the
diamond micro-engraving brush are
respectively placed on the accessory
rack.
1
2
3
4
5
6
7 8 9 10 11
1
6
4
5
6.Installation instructions
1. As shown in photo 1, well connect the attachments of the mainframe
Photo 1
(6)Attachment frame for Hand pieces
(7) Power main switches
(8) AC power supply socket (containing fuse)
(9) Diamond Dermabrasion filter
(10) Microcrystal filter
(11) Microcrystalline condensated water filter
(1) Mainframe
(2) Microcrystal waste sand bottle
(3) Microcrystalline pure sand bottle
(4)Diamond Dermabrasion suction pen
(5) Microcrystal Grinding rod
2. Detailed installation diagram as follows

04
F-360
3. As left picture shown, the
microcrystalline waste sand bottle
and the microcrystalline clean sand
bottle are respectively placed on the
attachment rack.
4. As photos show, Diamond
Dermabrasion filter , Microcrystalline
filter and condensate water filter are
respectively installed on the back
board of the main engine in order;
5. As photo shown : connect each
windpipe according to the
corresponding label number.
①Microcrystal Dermabrasion
②Diamond Dermabrasion
(1) Press the button (1) once to enter the functional screen of
Microcrystal Dermabrasion, see photos 3.
(2)Press the button (2) once to enter the function screen of Diamond
Dermabrasion , see photo 4.
3. Microcrystal Dermabrasion function
1. Turn on the power switch and the whole machine power on.The buzzer
sounds once, the LCD screen lights on and enters the standby state.
2.Standby screen, see photo 2(the LCD screen is capacitive touch LCD
screen, which can be directly touched by fingers;If there is protective
film on the screen when you use it for the first time, please tear it
off to avoid affecting the use.
23
9 10 11
7. Introduction of instrument interface and key functions
Photo 2

05
F-360
① Button : return to standby screen: click once to return to standby screen
② Digital display for energy gears : digital display of the current energy gears, grears from 1 to 10, total 10
gears.
③Energy gear display bar: display the current energy gear in the form of graphics, a total of 10 gears.
④Energy decline button: each click, energy come down a gear.
⑤ Energy increasing button: each click, energy go up a gear.
⑥Timing : minutes display,the maximum time for 30 minutes, the minimum time for 1 minute.
⑦Time increasing button: each click, increased by 1 minutes, maximum is 30.
⑧ Time diminishing button: each click, decreased by 1 minutes , minimum is 1.
⑨Start /stop button:
Under stop state, click once to start the function of Microcrystal Dermabrasion;
Under working state, clicking once will exit Microcrystal Dermabrasion mode and automatically enter the
mode of "pipeline cleaning ".After working in the "clean pipe" mode for 20 seconds, it will automatically stop and
return to the stop state.Click the start/stop button again by "pipe clean" mode to exit and return to the stop state.
Note: From the working state to the stop state each time, the cooling fan of the host machine will keep
working for 5 minutes more before stopping.
⑩"Pipe cleaning " button:
Under the state of stop, click once to start " pipeline cleaning mode".
Under this mode, no more microcrystalline sand flows out from sand bottle, and the host machine
continues to recycle the remain microcrystalline sand in the pipe and the microcrystalline grinding rod.
At this time, microcrystalline grinding rod can be used to clean the remaining sand on the skin, or use the
silica gel plug to block the mouth of grinding rod to achieve the effect of remaining microcrystalline sand in the
pipe and the grinding rod, recycle work will hold 20 seconds then automatically exit the mode, you also click
once to start " pipeline cleaning mode" directly exit this mode.
① Return to standby
screen Key
②Digital display of
energy gear position
③Energy gears
display bar
④Energy decrease
key
⑤Energy increase
key
⑥Timing: minute
display
⑦Time increase key
⑧Time decrease key
⑨Start/stop buttons
⑩“Pipe cleaning”
Button
Photo 3
Microcrystal Dermabrasion

Diamond Dermabrasion
06
F-360
① Button :return to standby screen , click once to return to standby screen
② Energy increasing button: each click, energy go up a gear.
③ Energy decline button: each click, energy go down a gear.
④ energy Gears display bar: To show the current energy gear by the form of the graph , total 10 gears.
⑤ Digital display of energy gears: display the current energy gears in the form of Numbers, from 01 to
10, total 10 gears .
⑥ Timing : minutes display,the maximum time for 30 minutes, the minimum time for 1 minute.
⑦ Time increasing button: each click, increased by 1 minutes, maximum is 30.
⑧ Time diminishing button: each click, decreased by 1 minutes , minimum is 1.
⑨ Start/stop button:
Under stop state, click once to start the function of Diamond Dermabrasion;
Under working state, clicking once can exit Diamond Dermabrasion
1. Attention of treatment:
Before treatment, please analyze the properties of the customer's skin, then choose the diamond grinding
head, and adjust the appropriate air pressure.
After skin cleanness , only need to pat and dry the redundant moisture on the face then can start
operation, no need to use Astringent Lotion or latex.
When treament on the eyes, please take care that the air pressure should be adjusted to about 1~5, and
gently pass through twice .
T shape position cutin is thicker, can change thick grinding head to do local treatment , air pressure also
can increase appropriately.
After finishing the skin grinding, please use water to clean the face again, and then conduct nutrition
introgression.
Under working state ,Click once to exit the Diamond Dermabrasion.
2. Attentions after treatment:
Frequently use ice compress or live cell collagen products for regeneration and stabilization.
Be sure to protect yourself from the sun.
Please use makeup 4 hours later after the treatment. It is recommended to use pure mineral powder to
avoid crowding out.
Please try your best to wash your face with cold water.
Do not go to sauna or touch anything too hot for 10-15 days after the treatment.
Because of individual skin condition, vitality and depth of treatment place are different, pleases do the
next treatment at intervals
01
10
① Return to Standby
screen Key
②Energy increase
key
③Energy decrease
key
④Energy gears
display bar
⑤Digital display of
energy gears
⑥Timing :
Minute display
⑦Time increase
key
⑧Time decrease
key
⑨Start/stop
buttons
8. Attentions
Photo 4
4. Microcrystal Dermabrasion function

Deep treatment after 2~3 days , it will appear the itching peeling phenomenon , please do make good
hydration replenishment.
After skin grinding, please try to use mild maintenance products, not acid metabolites.
3. please u use microcrystalline sand is 180#~200# mesh. The recycled waste sand is not allowed to be
use again.
4. Before using the instrument every day, please check whether the filter behind the host machine needs
maintenance;
5、The water droplets generated by dehumidification are collected by the microcrystalline condensate
water filter during work, when volume collected reaches about 1CM high, the water shall be poured out in time
to prevent overflow risk .When not using the main engine for a long time or the main engine needs to be
transported, the water in the microcrystalline condensate filter must be poured out to prevent leakage and
damage of the instrument.
F-360
1. Disinfection method of diamond grinding head:
After using the diamond grinding head, please use distilled water or filtered water to clean the suction
head and the inner part of the suction head with a small brush, and clean it by scouring. After washing it, put it
in a container containing 75% alcohol and clear liquid for 15 minutes disinfection. After 15 minutes, take it out
and put it in the ultraviolet disinfection cabinet and standby for the next customer.
2. Microcrystalline grinding rod cleaning
Remove the plastic cap, rinse the inner and outer surfaces with tap water and detergent, then use
contten swab to dip 75% alcohol disinfectant to disinfect the inner and outer surfaces.(Do not use high
temperature or uv disinfector)
Please use a soft bristle brush to clean sand on and around the microcrystalline nozzle surface.
3. Daily use and maintenance for filters
1) Remove the filter
A) Pull the whole filter out of the instrument slowly and horizontally, as photo show .
B) After the filter pulled out, slowly pull the cup cover from the filter vertically downward.
07
9.Daily maintenance
Photo 5
Pull the entire filter to
the right out of the
instrument horizontally
Press upper part
into the cup
Install the bottom cup
with the upper part

08
F-360
1)Prepare a soft and exquisite brush ,See photo 7 .
2)Remove the waste sand bottle from the machine, see photo 8
3)Open the bottle cap with tracheal interface and remove the sealed silicone ring in the lid, see photo 9
2) Clean the filter
A) Pour out the water or impurities inside the cup cover of filter;If cleaning is needed, the filter can be
rinsed under the faucet. It is strictly prohibited to use corrosive liquid such as alcohol. Dry it after cleaning or
wipe it with dry soft cloth or dry paper towel.
3) Install the filter
A) Filter installation: install the cup cover below the filter, and ensure the integrity of the sealing ring
during installation, so as to avoid air leakage. Please refer to the picture below.
B) install the filter horizontally and back to the original position to ensure the tightness without leaving any
gaps.
C) See Photo 1. Remember not to install the filter with liquid on the microcrystalline filter or Diamon filter
If the white seal ring is lost and any air leakage cannot be used.
Photo 6
4. Waste sand bottle cleaning
Photo 7
Photo 8
Photo 9

09
F-360

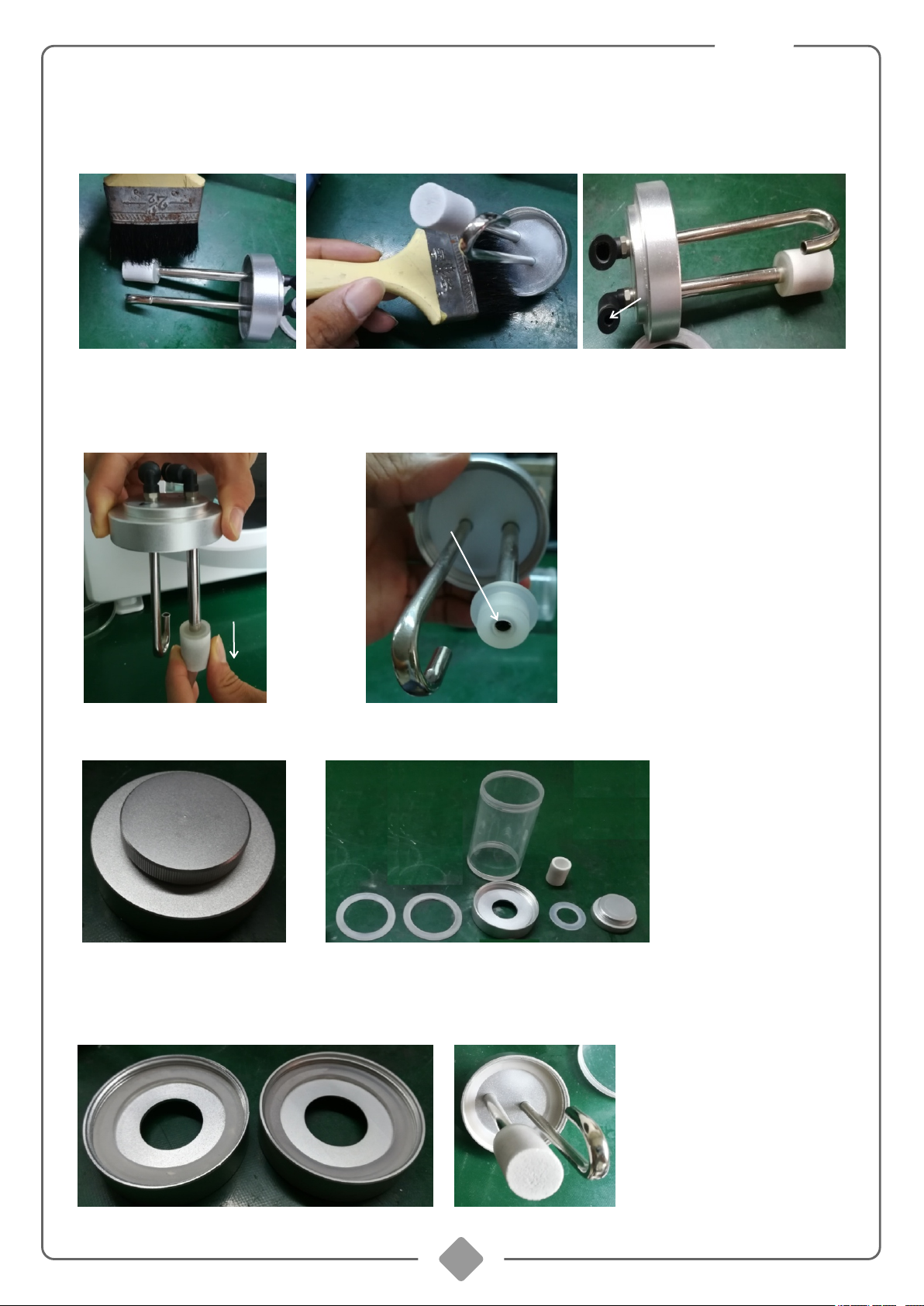

4)Clean the white microcrystalline filter core (Photo 10 & 11), outer surface of tube and inner surface of
bottle cap with a dry soft brush.(note: dust cannot be allowed to enter the trachea interface shown in photo 12
during the cleaning . The trachea cannot be washed with water. If make it wet carelessly , must wait for the
internal and external pipe dry before use
5) After brushing, sweep the bottle cap in the direction as photo 13, with the white microcrystalline filter
core facing down, pull out the microcrystalline filter core by hand, and then sweep the microcrystalline filter base
with a clean soft brush . Be careful not to let dust enter the hole of the microcrystalline filter base (Photo 14).
6) Dismantle the bottle cap (Photo 15) , scrub all the parts show Photo 16 with running water and soft
brush, and dry the cleaned parts with dry cotton towel.
7) When installing the bottle, please note that size of the two large silicone sealing rings photo 10 show
are the same. To distinguish the upper and lower surfaces, please refer to photo 17 and photo 18. The flat side
is upward.
Photo 10
Photo 11 Photo 12
White microcrystalline filter
Dust cannot be allowed to
enter the trachea interface
Photo 13 Photo 14
Photo 15
Photo 16
Pull out microcrystalline
filter core
Don't let dust enter the
hole of the microcrystalline
filter base.
Correct：Flat side is upward
Photo 17 Photo 18
Wrong：Convex upward
Correct：
Flat side is upward

4)Clean the outside surface of the copper sintered muffler, tube surface and inner surface of the bottle
cap (see photo 22) with a dry soft brush.(Note: The trachea cannot be washed with water. If make it wet
carelessly , must wait for the internal and external pipe dry before use.)
5) Brush all parts in photo 23 with running water and a soft brush. Dry the cleaned parts with a dry cotton
towel and let them dry.

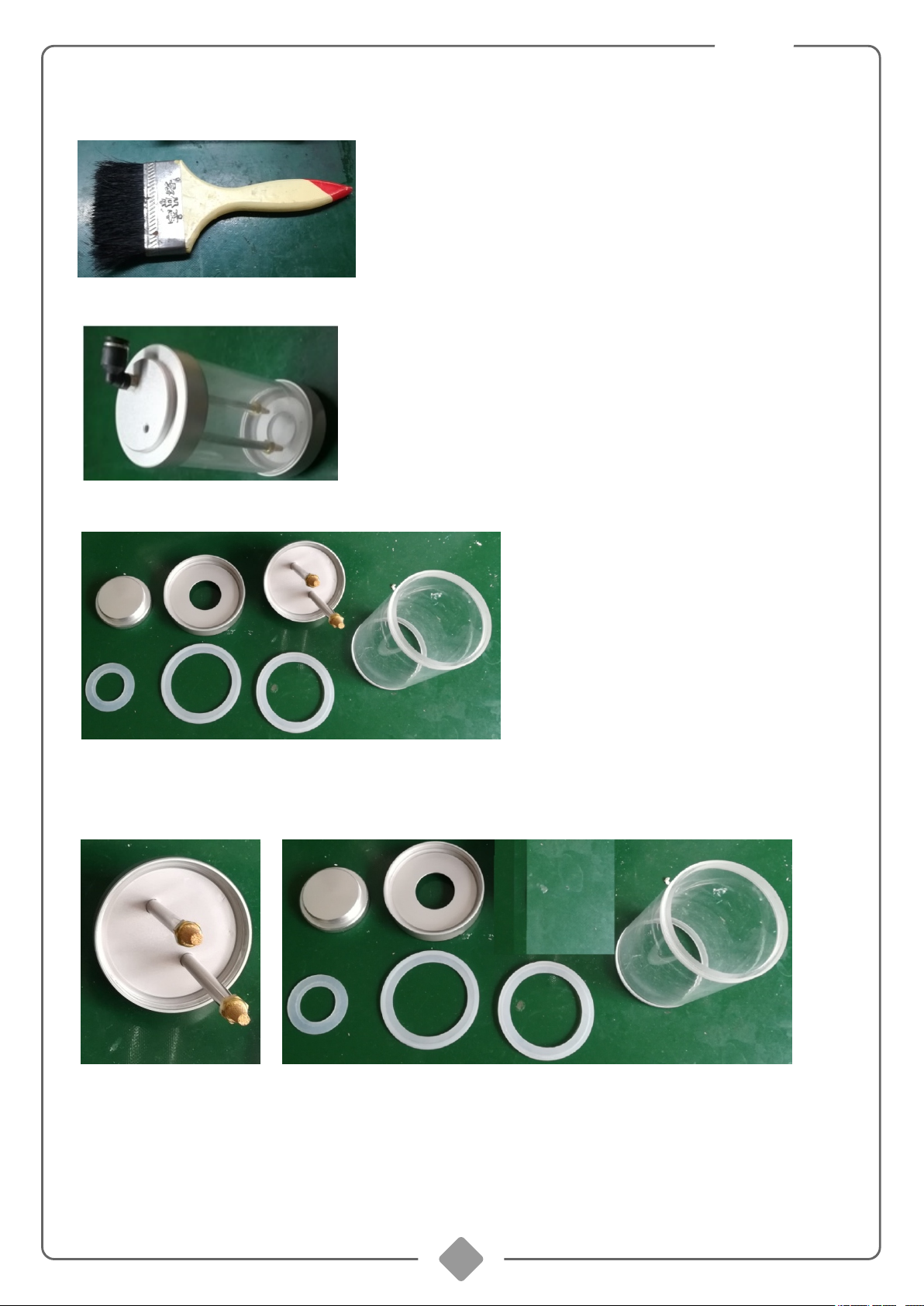

1)Prepare a soft and exquisite brush ,See photo 19.
2)Remove the clear sand bottle from the machine, See photo 20
3)Open the bottle caps at both ends and remove the sealed silicone ring inside the lid, see photo 21.
10
F-360
5. Cleaning of sand bottles : (method similar to waste sand bottles)
Photo 19
Photo 20
Photo 21
Photo 22 Photo 23

11
F-360
6) When installing the bottle, please note that the two large silicone sealing rings in photo 23 are the
same size . To distinguish the upper and lower surfaces, please refer to photo 24 and 25. The flat side is
upward.
1) check whether there is too little sand in the net sand bottle, or the
sand is seriously stacked on one side, or the sand is wet and
agglomerated, or the sand is mixed with solid aggregates.
2) Check whether the sand in the waste sand bottle is too full, which will
affect the sand recycling.
3) Check whether the air pump is working and whether the gear
adjustment is normal.
4) Check whether the connection of each trachea is correct by referring
to the label paper of sand bottle and microcrystal pen and the color
of trachea.
5) Check whether the filter is installed well, whether the sealing ring is
installed normally, and whether there are too many foreign bodies in
the filter.
6) Check whether lid of clean sand bottle and waste sand bottle (with
sealing ring inside the lid), quick interface anwo d air pipe
connection are well fastened;If found loose, please re-tighten.
7) Check whether the quick interface of the microchip pen and the air
pipe connection are well fastened;If found loose, please re-tighten.
Photo 24 Photo 25
Correct：Flat side is upward
Wrong：Convex upward
Correct：
Flat side is upward
10. Possible problems of the system and maintenance methods
Fault phenomenon
Power on but no display
No LCD display;Or the LCD
screen has a display, but all
the keys are invalid
The cooling fan is noisy
The effect of microcrystalline
grinding is worse or no effect
at all.
1) check whether the power cord is properly connected.
2) check whether the power switch is on and whether the switch
indicator is on.
3) check whether the input voltage conforms to the rated specification of
the product.
4) check whether the fuse is blown. If it is blown, please replace the fuse
of the same model. The power of the instrument must be
disconnected before replacement (The professionals are required to
replace it).
Troubleshooting methods
1) Please call professionals to open the case and check whether the
LCD screen is well connected with the host socket.
2) Contact agents or manufacturers for further analysis and processing.
1) Check whether there are foreign bodies blocking fan blades.
2) Professionals are required to replace the cooling fan with the same
model.

The grinding suction of
diamond Dermabrasion
becomes smaller or has
no suction at all.
12
F-360
1) Check whether the air pump is working and whether the gear
adjustment is normal.
2) Check whether the connection between the diamond Dermabrasion
suction pen and the air pipe , the host machine is good and whether
the air pipe is damaged.
3) Check whether all sections of the diamond Dermabrasion suction pen
are tightened and whether there are too many foreign bodies in the
filter net of the scution pen.
4) Check whether the filter is installed well, whether the sealing ring is
installed normally, and whether there are too many foreign bodies in
the filter.
5) Confirm if all the quick couplings are tight. If not, please tighten them
by spanner 7-10.
6) Contact agents or manufacturers for further analysis and processing.
8) Check whether the two sealing rings between the microcrystal plastic
cap and the micro-crystal pen are good.
9) Contact agents or manufacturers for further analysis and processing.
