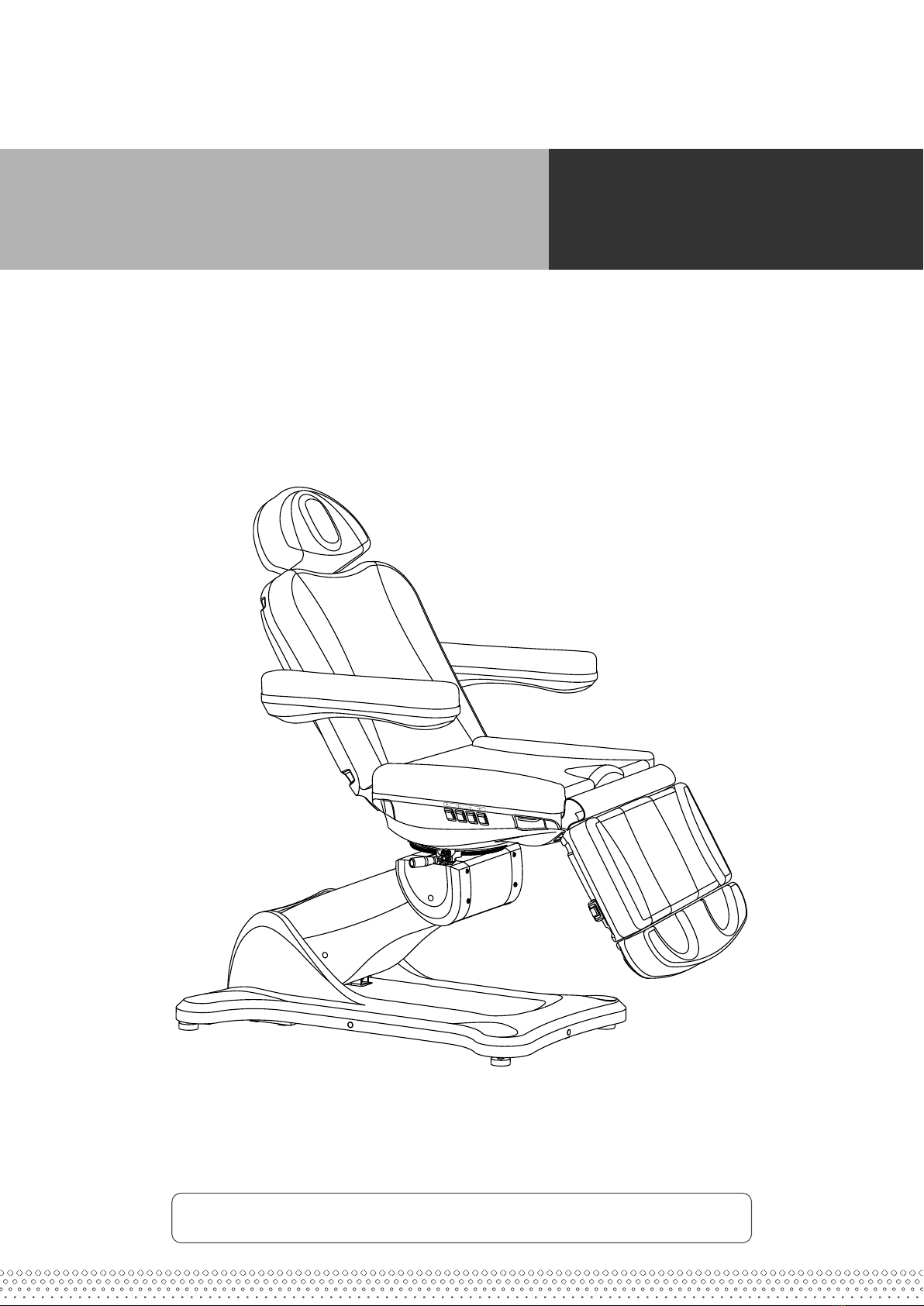

Silver Fox 2246B User manual

2246B
Electric Beauty Bed User Manual
R
Welcome to use our 2246B Beauty bed,
Before use the bed, please read the user manual carefully, thanks. A0

2246B
1.About This Manual
2.Warning
3. Precautions
This manual shall only be used for the reference of operation of this particular model. If the
manual is used for other purposes, SilverFox will not undertake any according consequences and
responsibility. All information of this manual shall be protected by copyright and shall not be
copied, copied and translated in any part of this specification without the written consent of our
company SILVERFOX.
Power supply must be cut off when changing electrical components or maintaining and cleaning
machines.
The plug must be plugged into an outlet that is properly installed and grounded, to prevent the risk
of fire and electric shock.
Do not stand on this equipment.
Do not allow children to play with and place the equipment in a place where children can avoid
touching; Please adjust the backrest back to the highest position when you leave.
Please do not place the equipment in damp places such as bathroom to avoid electric shock or
other failure; The remote control should also avoid contact with water.
Please do not place the equipment in places where painting/coating or oxygen providing during
operation.
Unless being monitored or instructed by personnel who can be responsible for their personal
safety, the people who have physical obstacles, tactile disorders, mental disorders, lacking of
experience, common sense or children, are not allow to use the equipment.
Please contact distributor, service center or related personal with appropriate skill and
experience for repairing if the plug is damaged, in case of any dangerous.
Please make sure there is no accessible thing within the stroke during any operation of the beds.
Maintenance should be processed by trained professionals.
Read this manual carefully before installation, operation and adjustment. And please keep it well.
This Electric beauty bed is equipped with a three-wire power cord. The power cord must be
plugged into an three-hole outlet which is properly installed and grounded. This is not only to
prevent the risk of electric shock, but also ensure bed work properly.
When adjusting the backrest, seat cushion, footrest or lifting of the whole bed by manual
controller or foot control switch, please keep your hands, feet and head away from the
position1.2.3.4.5.6.7 showed on below photo to avoid getting jammed.
While controlling the lifting of the whole bed, the button must be pressed continuously until the
bed be in a suitable position.
Please pay attention that the input frequency should be Ms × 6min/h when operating the motor.
Maintenance should be processed by trained professionals.
After each treatment, please use neutral reagent to clear the dust, stains on leather or on plastic
cover.

4.Structure of electric beauty bed
1.Angel adjustment of the backrest
3.Lifting adjustment of the whole bed 4.Angel adjustment of the footrest
R
R
2246B
1
2
3
4
5
6
7
This beauty bed consists of controller box, motor, hardware, plastic parts and leather. Among
them, the controller box is controlling the operation of four motors and the hand controller.
This beauty bed includes angel adjustment of the backrest, angel adjustment of the seat cushion,
angel adjustment of the footrest and lifting adjustment of the whole bed which is an overall and
integral structure. (Details as shown below)
1
2
3
4
2.Angel adjustment of the seat cushion

INPUT
HAND
CONTROL LER
FOOT
CONTROL LER
6.Installation
2246B
5.Serviceable range
This electric beauty bed is suitable for beauty and massage treatment.
1. Put the bed to a proper location, according to the overall layout, the daylighting or artificial
lightings and operation condition of the salon's or the home. And keep it in the clean, dry and cool
operating environment.
2. Open the Packing Carton to Check Open the packing carton, check if the bed is intact and
whether the accessories or spares are complete. Please contact distributor or us if there’s any
problem.
3. Installation
Place the bed to the proper position. Please note that it is unnecessary to install extra screw on
the floor to fasten the bed, because the original design has take the stability performance into
consideration. But please ensure the bed is placed on a firm and flat ground, so as to prevent any
accident. If the bed rotates or slant due to rough ground, you could adjust the four pieces of
plastic feet (M10×30) and nuts (M10) by hexagon open-end wrench, which are fasten on the
bottom panel, so as to ensure the bed is stable.
4. Power Input
Voltage and frequency input shall be AC 100-130, 50/60Hz or 220-240V, 50/60Hz. Plug the bed on
the power supply properly. (Details as shown below)
R
AirSwitch
Connection Box

7.Operation Instruction
3
1
2
4
5
1 2 3 4
2246B
Press the button, the backrest angle will automatically move
to the maximum, the cushion angle will automatically move to
the maximum, leg pad angle will automatically reduce to the
minimum, the height of the bed will automatically reach the
lowest position.
1
2
3
4
5
Operation
Description
Backrest motor button
Cushion angle motor button
The leg pad motor button
Whole bed motor button
One-key reset button
Backrest goes up (goes down) smoothly by pressing the button.
Angle of cushion increases (decreases) smoothly by pressing
the button.
Angle of leg pad increases (decreases) smoothly by pressing
the button.
The whole bed goes up (goes down )smoothly by pressing
the button.
1.Standard configuration (Rocket Switch )

2246B
2.Optional configuration
(Instruction of Hand Controller )12
34
56
78
910
15
16
17
18
13
14
11
12
1
2
3
4
5
6
7
8
9
10
11 The indicator light is on by pressing the button for 3 seconds,
then enter the memory position setting state.
12
The indicator light is on by pressing the button for 3 seconds, all the
buttons are locked; The indicator goes off by long pressing the
button for 3 seconds, all the buttons are unlocked.
Backrest motor
goes up
Backrest motor
goes down
Whole bed motor
goes up
Whole bed motor
goes down
Cushion angle
motor goes up
Cushion angle
motor goes down
The right leg pad
motor goes up
The right leg pad
motor goes down
The left leg pad
motor goes up
The left leg pad
motor goes down
Enter the memory
location setting
Button lock indication
Backrest goes up smoothly by pressing the button.
Backrest goes down smoothly by pressing the button.
The whole bed goes up smoothly by pressing the button.
The whole bed goes down smoothly by pressing the button.
Angle of cushion increases smoothly by pressing the button.
Angle of cushion decreases smoothly by pressing the button.
Angle of right leg pad increases smoothly by pressing the button.
Angle of right leg pad decreases smoothly by pressing the button.
Angle of left leg pad increases smoothly by pressing the button.
Angle of left leg pad decreases smoothly by pressing the button.
Operation
Description
13 Memory position
setting 1
1. After entering the memory position setting state, the memory
position setting indicator is on. Setting through the action which you
need, and pressing the button, the actions are set into memory.
Exiting the memory position setting state and the indicator goes off.
2. Press the button to move to the memory action state
automatically

2246B
Memory position
setting 2
1. After entering the memory position setting state, the memory
position setting indicator is on. Setting through the action which you
need, and pressing the button, the actions are set into memory.
Exiting the memory position setting state and the indicator goes off.
2. Press the button to move to the memory action state
automatically
14
Power indicator
15
16
18
17
Hand controller are connected with power supply properly, indicator
light s on. Otherwise, it does not light.
Pressing the button, the heating function works; press the button
agin, the heating function stops.
Pressing the button, the heating function works; press the button
agin, the heating function stops.
Press the button, the backrest angle will automatically move to
the maximum, the cushion angle will automatically move to the
maximum, leg pad angle will automatically reduce to the
minimum, the height of the bed will automatically reach the
lowest position.
H e a t i n g f u n c t i o n
indication (optional)
Motor reset
Heating (optional)
Notes:
The memory position setting is only available for the models with memory function.
The heating function is only available for the models with heating function.
3.Optional configuration (Foot Controller)
UP
DO WN
UP
DO WN
UP
DO WN
1
2
3
4
5
6
UP
DO WN
7
8
1
2
3
4
5
6
7
8
Backrest motor
goes up
Backrest motor
goes down
Whole bed motor
goes up
Whole bed motor
goes down
Foot mat angle motor
goes up
Cushion angle
motor goes down
Backrest goes up smoothly by pressing the button.
Backrest goes down smoothly by pressing the button.
The whole bed goes up smoothly by pressing the button.
The whole bed goes down smoothly by pressing the button.
Angle of cushion increases smoothly by pressing the button.
Angle of cushion decreases smoothly by pressing the button.
After pressing the button by foot, the angle of foot mat increases
smoothly.
Operation
Description
Cushion angle
motor goes up
Foot mat angle motor
goes up
After pressing the button by foot, the angle of footrest decreases
smoothly.

2246B
1860 ±10mm
580 ±10mm
880 ±10mm
560±10 mm
860 ±10mm
85°±2%
10°±2%
90°±2%
-120°~+120°±2%
Power
Maximum power
Environment temperature
Relative humidity
Lifting rated load
AC 100～120V ,50Hz/60Hz OR AC 220～240V,50Hz/60Hz
175 kg
300W
0℃～+40℃
30%～90%
1360×820×640mm（±10mm）
1860(L) ×860(W) ×580(880) (H) mm （±10mm）
Product size
The highest position
The lowest position
Package size
880±10mm
580±10mm
8.Technical Parameters
0°～+85°±2%
0°～+10°±2%
-90° ～ 0°±2%
-120°～+120°(±2%)
150mm
80.5 kg
93.5 kg
Angle adjustment of the
backrest
Angle adjustment of the
seat cushion
Rotation angle of left
and right
Angle adjustment of the
footrest
Length adjustment of the
footrest
Net weight
Gross weight

9.Maintenance
After every treatment, please use neutral reagent to clear the dust, stains on leather or the plastic
cover. This is to prevent premature aging of the leather and plastic cover.
Fourcontrol
programcontroller
Back angle motor
Whole bed lifting motor
Seat cushion angle motor
Leg pad angle motor
Heating system
(optional)
Air bag (optional)
Power
Rocket switch
Hand controller
(optional)
Foot controller
(optional)
10.Circuit system connection diagram
2246B
Please check and verify products specifications before use and this
manual is only used for reference. The product specifications will be
subject to change or update without further notice.
The fault phenomenon Reason Solution
1. Connect the power cord or plug
it well
2. Replace the manual control panel
Can't go up or
down normally
Abnormal sound
1. Add lubricating oil
2. Add lubricating oil
3. Replace the motor
3, If problem is still not solved after
replacing the manual controller or
foot control switch, please contact
maintenance center or supplier to
clear the trouble.
1.The power cord is unconnected
or not plugged well
2. Poor quality of the manual
controller
3. Poor quality of the foot control
switch
4. Poor quality of the controller
box
5. Rupture of motor tail
6. Motor detonation
1. The rotating parts lack of
lubricating oil
2, Rotating position (such as
hinge, P, O, M sets) Lack of
lubricating oil
3. Motor quality problems
11.Troubleshooting
