Silvercrest HG04735-US-TX User manual

3US-EN
Description of signal words....Page 5
Customer service..............................Page 6
Introduction.......................................... Page 7
Intended use...............................................Page 8
Parts and features ......................................Page 8
Contents...................................................... Page 11
Technical data............................................Page 12
Important safety notes...............Page 13
Assembly................................................Page 18
Preparing for use ............................Page 20
Installing receiver ...........................Page 20
Synchronizing transmitter/receiver..........Page 21
Setting the signal type................................Page 22
330151_silv_Funktuerklingel_content_US.indd 3 26.11.19 15:58

4 US-EN
Setting the volume...................................... Page 24
Selecting the chime....................................Page 24
Troubleshooting ...............................Page 25
Cleaning and maintenance.....Page 26
Disposal................................................... Page 26
Three year limited
warranty ................................................Page 27
330151_silv_Funktuerklingel_content_US.indd 4 26.11.19 15:58

5US-EN
DESCRIPTION OF
SIGNAL WORDS
WARNING indicates a
hazardous situation that,
if not avoided, could result
in death or serious injury.
CAUTION indicates a
hazardous situation that,
if not avoided, could result
in minor or moderate injury.
NOTICE indicates information
considered important, but not
hazard related (e.g. messages
related to property damage).
330151_silv_Funktuerklingel_content_US.indd 5 26.11.19 15:58

6 US-EN
CUSTOMER SERVICE
Call customer service at
1 [phone]
Visit the Website Customer
Service Platform at
www.lidl.com/contact-us
Visit a LIDL store for further assistance.
IAN 330151_1904 Please have your
IAN number ready.
330151_silv_Funktuerklingel_content_US.indd 6 26.11.19 15:58

7US-EN
Battery-Free Wireless Doorbell
Introduction
Congratulations on your purchase. You have selected
a quality product. The instructions for use are a part
of the product. They contain important information
about the safety, use and disposal of the product.
Before using the product, please learn about all the
safety information and usage instructions. Only use
the product as described and for the specified appli-
cations. If you lend the product to someone else,
please also give all the instructions.
330151_silv_Funktuerklingel_content_US.indd 7 26.11.19 15:58

8 US-EN
Intended use
This product is intended for the wireless transmission
of the doorbell signal. The product is not intended for
commercial use.
Parts and features
Receiver:
1Signal indicator
2Signal type selector button (acoustic , optical
, optical and acoustic signal)
3Volume/synchronization button
4Melody selection button
5Power plug
6Speaker
330151_silv_Funktuerklingel_content_US.indd 8 26.11.19 15:58

9US-EN
5
6
2
1 3 4
You need:
D 0.24in
(6mm)
330151_silv_Funktuerklingel_content_US.indd 9 26.11.19 15:58

10 US-EN

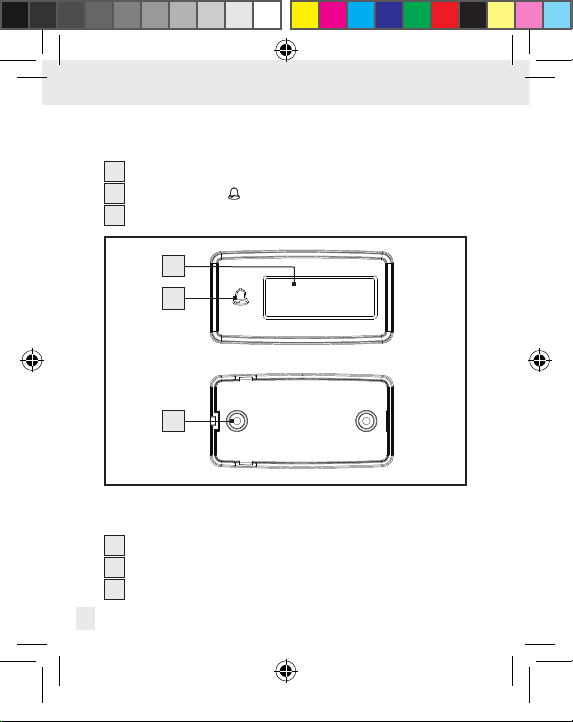

Transmitter:
7Name plate
8Chime button
9Holder (for wall mounting)
8
7
9
Mounting:
10 Dowel
11 Long screw
12 Short screw
330151_silv_Funktuerklingel_content_US.indd 10 26.11.19 15:58

11US-EN
10
11
12
Contents
1 Transmitter
1 Receiver
2 Screws (for transmitter mounting on a wall)
2 Dowels (for wall-mounting the transmitter)
330151_silv_Funktuerklingel_content_US.indd 11 26.11.19 15:58

12 US-EN
5 Name plates with 1 protective film
(for the transmitter)
1 Screw (for fixing transmitter cover)
1 Set of assembly instructions and instructions for use
1 Quick Start Guide
Technical data
Model No: HG04735-US-TX,
HG04735-US-RX
FCC ID: 2AJ9O-HG04735TX,
2AJ9O-HG04735RX
Receiver input: 120V∼ (alternating
current), 60Hz, 20mA
Receiver audible signal volume
(at maximum volume setting): 73dB (at a distance
of 3.2ft (1 m) from
the device)
330151_silv_Funktuerklingel_content_US.indd 12 26.11.19 15:58

13US-EN
Range: 328ft. (100 m)
(unobstructed area)
Transmission frequency: 433MHz
Transmission power: <10dBm
Ingress protection rating
of the transmitter: IPX4 (splash-proof)
IMPORTANT
SAFETY
NOTES
READ ALL INSTRUCTIONS. KEEP FOR FUTURE
REFERENCE. INCLUDE ALL DOCUMENTATION
WHEN PASSING THIS PRODUCT ON TO OTHERS.
330151_silv_Funktuerklingel_content_US.indd 13 26.11.19 15:58

14 US-EN
Failure to observe the
following warnings may result in death
or serious injuries.
This product is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities
or lacking experience and knowledge unless
supervised or instructed in safe product use by
a person responsible for their safety. Children
should be supervised to ensure they do not play
with the product.
Do not use the product if it is damaged.
Before using the product, verify that the available
line voltage matches the voltage required to
operate the product (120V∼, 60Hz).
Verify the product, the power supply and the cable
connection are undamaged before using this
product! Never use a damaged product!
The product must be plugged into an easily
accessible outlet so it can be easily unplugged
in the event of an emergency.
330151_silv_Funktuerklingel_content_US.indd 14 26.11.19 15:58

15US-EN
Changes or modifications to this product not
expressly approved by the party responsible
for compliance could void the user‘s authority
to operate the product.
Note: This product has been tested and complies
with the limits for a Class B digital device, pursu-
ant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This product generates, uses and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference in radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
product causes harmful interference in radio or
television reception, which can be determined
by turning the product off and on, the user is en-
couraged to try and correct the interference us-
ing one or more of the following measures:
330151_silv_Funktuerklingel_content_US.indd 15 26.11.19 15:58

16 US-EN
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment
and receiver.
• Connect the product with an outlet on a circuit
different from that to which the receiver is con-
nected.
• Consult the dealer or an experienced radio/
TV technician for help.
FCC RF Radiation Exposure Statement
To maintain compliance with the FCC’s RF
exposure guidelines, place the unit at least
20cm from nearby persons.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
330151_silv_Funktuerklingel_content_US.indd 16 26.11.19 15:58

17US-EN
received, including interference that may cause
undesired operation.
Do not expose the product to moisture or direct
sunlight.
This product does not contain any parts that
can be serviced by the user. The LEDs are not
replaceable.
To completely switch the product off, unplug the
product from the outlet.
Do not expose the product to an extremely high
electromagnetic field. This may impair the correct
functioning of the product.
Please note, the warranty does not cover dam-
age due to improper use, failure to observe the
instructions for use, or unauthorized product
modifications.
Note: Receiver for indoor use only.
330151_silv_Funktuerklingel_content_US.indd 17 26.11.19 15:58

18 US-EN
SAVE THESE
INSTRUCTIONS
Assembly
Note: You will need a screwdriver and a drill to
assemble the product.
Note: Only use the screws and dowels supplied for
the assembly of the product.
Mount the transmitter (see Fig.)
330151_silv_Funktuerklingel_content_US.indd 18 26.11.19 15:58

19US-EN
10
11
12
330151_silv_Funktuerklingel_content_US.indd 19 26.11.19 15:58

20 US-EN
Preparing for use
Note: Remove all packing materials before use.
For first time use, please remove the protective film
from the name plate 7of the transmitter and insert
your name plate 7into the recess on the transmitter.
Installing receiver
Connect the power plug 5with an appropriate
socket.
Note: The available voltage must correspond
to the operating voltage required for the power
supply (120V∼, 60Hz)!
330151_silv_Funktuerklingel_content_US.indd 20 26.11.19 15:58

21US-EN
Synchronizing
transmitter/receiver
The product works on 433MHz which is a quite
common frequency. To ensure that the function is
not impacted by doorbells in the neighborhood, the
transmitter and the receiver have to be synchronized
via encryption. Every transmitter functions with a dif-
ferent signal encryption.
Synchronize the transmitter and receiver as follows:
As soon as the receiver power plug 5is installed
in to main socket outlet, the receiver enters syn-
chronizing mode for 1 minute. In synchronizing
mode, the signal indicator 1steadily lights up
white.
You can also manually enter synchronizing
mode by holding the volume / synchronization
button 3for 3 seconds.
330151_silv_Funktuerklingel_content_US.indd 21 26.11.19 15:58

22 US-EN
The signal indicator 1on the receiver will
steadily light up for 1 minute, to indicate that
the receiver is in synchronizing mode.
Press the chime button 8of the transmitter,
while the receiver is in synchronizing mode. If
the receiver receives the signal, the steady white
light of the signal indicator 1flickers 3 times to
indicate that the synchronization is successful.
After 1 minute, the signal indicator 1will switch
off and the receiver is in normal operation mode.
Press the chime button 8to start using the
product.
Setting the signal type
The receiver can indicate the reception of a door
signal either both optically and acoustically ,
acoustically or optically .
330151_silv_Funktuerklingel_content_US.indd 22 26.11.19 15:58
