SilverStar SIT-200 User manual

Steam Generator
User's Manual
Model: SIT-200
* To use the product correctly, plese read this operation instruction carefully.
http://www.silverstar.co.kr

NO
♠ Before use
What is vapor generator - - - - - - - - - - - - - - - - -
- -
3
Names of parts of product - - - - - - - - - - - - - - - -
-
3
Product specification
- - - - - - - - - - - - - - - - - - - -
- - - - - -
4
Circuit diagram - - - - - - - - - - - - - - - - - - - - - - -
- - -
4
Product characteristics - - - - - - - - - - - - - - - - - -
- - - - - - - - - - -
5
Precautions of safety use - - - - - - - - - - - - - - - -
-
6∼10
♠ Use
Confirmation before use - - - - - - - - - - - - - - - -
- - - - - - - - -
11
Assembly and use - - - - - - - - - - - - - - - - - - - -
- -
11
Water feeding method - - - - - - - - - - - - - - - -
- - - -
12∼13
♠ After use
Cleaning method - - - - - - - - - - - - - - - - - - - - -
- - - -
13
♠ Others
Breakdown
drawing
- - - - - - - - - - - - - - - - - - - - -
- -
14
Breakdown
drawing
- - - - - - - - - - - - - - - - - - - - -
- -
15
Troubleshooting - - - - - - - - - - - - - - - - - - - - -
- -
16
2

What is vapor generator?
Vapor generator is composed of the vapour generated between pressure
containers that store water and generate vapours, and the iron that can
perform ironing work. Vapour generator owns basic functions of industrial
boiler. Miniaturized design is easy in installation and convenient for use.
It is the product that can improve work efficiency and save energy, can be
used safely and conveniently in common clothes factory, mall, supermarket,
tailor's shop, laundry etc..
3

Product specification
Product name Iron Table
Type SIT-200
Voltage 120/220V~,50/60㎐
Vapour generator power 1,500W
Electric iron power 120V/800W,220V/1,000W
Motor 120/220V~,120W
Vapour pressure 3.5bars
Product weight 34kg
Product dimension 1410×420×830h
Circuit diagram
P S/W : power switch
T.F : Fuser
KSD1,2 : Temperature controller
LED : Indicator
P : Pressure switch
H1 : Heater
SOL. V : Electromagnetic valve
S S/W : Vapour switch of electric iron
T. S : Temperature controller of
electric iron
H2 : iron Heater
4
P S/W
P S/W
T.F
LED
KSD1
H1
H2
T.S
SOL.V
S S/W
IRON
a.c 120v
KSD2
LED
P
a.c120/22
0V

Product characteristics
♣ This product satisfies relevant technical requirements for customer's safety.
♣ This product is energy saving product improving basic energy consumption
of boiler.
♣ This vapour generator has four major safety devices.
- automatic pressure cutting switch attached
- safety valve that can discharge pressure in the vapour container in case of
excessive pressure generated because of product abnormality
- two automatic temperature controllers preventing (over temperature attached) do
you mean of over heat?
- the fuser installed internally preventing (over temperature) (over heat) beause of
failure of thermolator
♣ There are two specifications of this vapour generator, 120V and 220V.
- Before it is connected to the socket for use, whether rated voltage is consistent
with voltage required by the product must be confirmed.
♣ When electromagnetic valve is started, 2.5 ~ 4.0 BAR vapour bursts out
through the iron. If the water in pressure container is used up, no vapour
is generated. (feed water 10 minutes after power-off.)
♣ The product must be used at plain platform without heat.
In case of operate on ironing table, the ironing table must have a wide
surface, and can bear weight of 10~15KG.
♣ This product includes accessories of hook, measuring cup, funnel,
measuring rod etc.
♣ Refer to Page 4 for other product specifications.
Refer to Operation Instructions of the product for precautions and use
method.
♣ In process of product use, if there is no water in the pressure container,
power switch will turn off automatically and the LED indicator will light up.
then water feeding should be executed according to water feeding method
(page 12).
Repair or disassembly of the product at will is not permitted!
The agent nearby must be contacted to repair!
5

Precautions of safe use
♣ The following is indication of precautions marked to prevent occurance of
accidents for correct, safe use of product.which is expected to be abided by.
♣ Precautions of safe use, such as unexpected hazard caused by inadequate
use,are classified by "Warning" and "Caution" according to hazard degree and
emergency situation of hazard.
Inadequate use may
Inadequate use may cause
Warning! cause severe injury, Caution light injuryor accident
even fatal accident. of product damage.
6
Warning!
Power
★ Wet hand is prohibited
from pulling or inserting
power plug
----------------------
To avoid electric shock.
★ In case of power connection,
the socket with earthing wire
must be used.
★ In case of pulling power
plug, the hand must grasp
the plug. Pulling plug in same
method as pulling power wire
with hand is prohibited.
----------------------
To avoid electric shock caused
by wire break.
★ Use of power wire knotted
is prohibited.
----------------------
To avoid electric shock caused
by wire break.

Precautions of Safe Use
7
★ Power wire can not be
extruded by heavy object or
product.
----------------------
-
Short circuit of power wire may
become the reason of electric
shock and fire.
★ It must be used on the
plug more than 120V/25A,
220V/15A individually.
----------------------
Many products used in the same
time, may become the reason of
overtemperature (over heat) and
fire.
★ The product must be used
on ironing table of wide area
that can bear 10~15 kg
weight and without
inclination.
----------------------
If vapour generator falls on the
ground, a damage or failure may
occur.
★ Vapour generator falling
down from iron table should
be prevented during the use
or in case of use stoppage.
----------------------
It may become the reason of
scald, product failure, product
damage.
Warning!
Power
Caution
Assem
bly
Caution
Use

Precautions of Safe Use
8
★ It should be used after
confirmation of rated voltage
conforming to required
voltage of product,
----------------------
Operation of abnormal current
may cause a fire.
★During use of product,
safety valve should not be
contacted or opened.
----------------------
To avoid scald.
★ Water feeding should be
operated after power plug is
pulled out,
----------------------
Creepage caused by water
leakage may cause electric
shock.
★ It should be paid special
attention to that use, or
contact by children should
be prevented.
----------------------
To avoid scald.
120/220V
Warning!
Use

Precautions of Safe Use
9
★ During product use, spraying
at human body or contacting
vapour is prohibited.
★ Except for iron clothes, it can
not be used for other purpose.
----------------------
-
The vapour of high pressure and
high temperature may cause
★ During product use, as
baseplate temperature is very
high, contact with any object
should be avoided, Attention
should be paid during use.
----------------------
To avoid scald.
★ In case of idleness for
long term, vapour generator
should be kept after all water
in it is cleaned and dried.
----------------------
Sediments may be caused in
vapour generator kept with
water.
★ After use, the cleaning
must be made after power
plug is pulled out.
★ Washing powder or
detergent can not be used
for cleaning.
----------------------
To avoid electric shock and
shortened service life of
product.
Caution
Use
Caution
Sweepi
ng and
keepin
g

Precaution of safe use

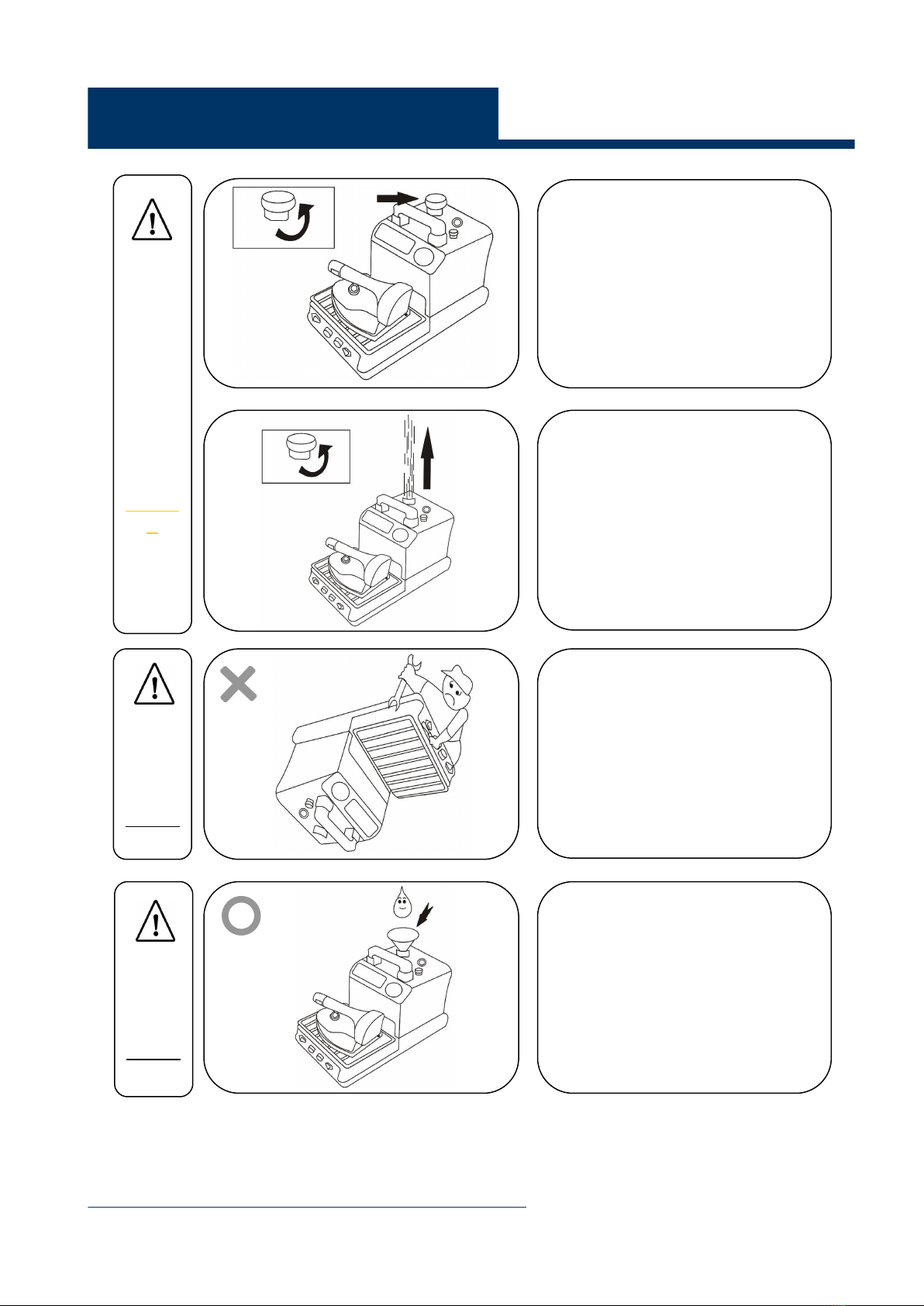

※ The water can not be used: special water for iron, chemical water preventing calcium,
perfume or mixture of perfume.
10
★ In case of water feeding,
safety valve can not be
opened completely once
only.
----------------------
Too high temerature in pressure
container may cause a scald.
★ When water is fed into vapour
generator, too high temperature in
pressure container may cause water
popping, to which should be paid
attention specially.(Read method of
water feeding in details) Water feeding
should be performed after pressure in
pressure container is relieved safely.
----------------------------
It may cause a scald.
★ Product disassembly or
prodcut transformation is
prohibited.
----------------------
It may cause product damage
and failure, electric shock.
★ Clean water without
foreign matters or mineral
substance shall be used.
----------------------
It can prolong service life of
product.
Caution
Cautio
n
Caution
Others
Warning!
Others

Confirmation before Use
1. Confirm the 2. Use in this kind
used voltage of place
● Check if the service ● Plain plateform,
voltage is same as surface, level plane
the product voltage without inclination
Assembly and Use
1. Setting of hook 2. Water feeding
● Install the hook Open safety valve,
according to the ● then use funnel and
drawing,hang power measuring cup to feed
wire and vapour water into pressure
tube on the hook. container Water amount
should not exceed SR-
5800/2.3ℓ,SR-5800L/3.5ℓ.
3. Confirmation of 4. Power connection
water level ● After confirmation
● Use measuring rod to
confirm
of the voltage insert
water amount in pressure container the plug, switch on
(less than SR-5800/2.3ℓ,SR-5800L/ power switch and iron
3.5ℓ)After confirmation of amount of switch.
water,safety valve should be closed.
5. Thermolator 6. Normal use
adjusted to high ● When the pointer
temperature of pressure meter
● Adjust the thermolator indicate 3.5 bar, LED
to the position of high indicator will light up.
temperature. Then vapour switch
can be pressed for
use.
11
3.5ba
r

Water Feeding Method
※ During use of product, if there is no water in pressure container, power switch
closes automatically.After LED indicator lights up, water can be fed according
to the following order.
12
★ Pull power plug out, close
power switch and press iron
switch.
----------------------
Electric shock and fire may be
caused.
★ When opening safety
valve, rotate 360° anti-
clockwisely to discharge the
vapour in pressure container
empty slowly.
----------------------
Opening safety valve once only
may cause a scald.
★ In case of water feeding,
don't open safety valve once
completely.
----------------------
Over heat in pressure container
may cause a scald.
★ After the pressure in pressure
container is released
completely,10 minutes later,
water can be fed with a funnel
and measuring cup. If water
feed exceeds SR-5800/2.3
ℓ,SR-5800L/3.5ℓ,it may cause
water bursting out during use.
Caution
Cautio
n
Caution
Others
Warning!
Others
360
O

Water Feeding Method
Cleaning method
13
★ After confirming the amount of
water with measuring rod, pls close
safety valve tightly.
When closing safety valve, if
excessive force is used, safety
valve damage may be caused, So
safety valve closing is subject to no
leakage of vapour.(SR-5800 /2.3ℓ
,SR-5800L/3.5ℓ)
★ Plug into power socket,
switch on power switch and
press iron switch.
After LED indicator of vapour
lights up, the product can be
used.
★ Open safety valve, feed in water about half of
pressure container capacity, shake it, then pour
it out. (repeat 2~3 times)
★ After repeated operation, power on and heat
for about 15 minutes, to eliminate moisture in
pressure container completely.(Safety valve
should be in open state right now)
★ Clean once a month.
★ Service life can be prolonged.
★When disassembling, the agent should be
contacted first to take any measures.
★ Vapour hole on press iron
baseplate may be blocked by
foreign matters, which requires
cleaning by prod often.
------------------------
Thus service life of press iron can
be prolonged.
L
3.5bar

Breakdown drawing(SIT-200)
14
Cloth frame
Ironing table bracket
Motor
Table
power cord
cable holder
steam pipe
pressure meter
iron
indicating light
switch

Troubleshooting
Common problems Cause Solution
●The indicating light in
●The power is cut off. ●Check if the socket is well
front of product is
OFF.
●The socket is not well connected.
connected. ●Check if there is any failure of
●Failure of socket. socket.
●The iron can't be ●The automatic thermoregulator ●Adjust the automatic thermoregulator
heated up. is set at lowest position. to necessary position.
●The temperature of base plate ●The base plate of iron is heating up,
of iron is too low. pls wait for completion.
●The switch in front of product ●When heating up is impossible with
is turned to
OFF.
above measures, pls contact your
agent for repair.
●The iron runs normally, ●There is no water in bucket. ●Add water to
bucket.
but steam amount is ●The steam boiler in front of ●Turn the switch to ON, waiting for
little or no steam is product is closed. lighting up of indicating light.
produced. ●The steam indicating light is ●Wait for steam indicating light to be
not ON. ON.
●The steam hole at base plate ●Contact your agent for repair when
of iron is blocked. no steam is produced after taking
above measures.
●Water jets out from ●Too much water in bucket. ●Observe the water volume in
base plate of iron. ●Auto thermoregulator is at low bucket,and pour it out when there
temperature position. is too much water
●The base plate of iron is at ●Adjust the automatic thermoregulator
middle positoin. to necessary position.
●Wait for heating completion of base
plate of iron.
●The hot water splashes ●It occurs when cool water is ●Refer to the use method on page
towards around when added during use and if the 10, 12.
heating water. bucket is heated.
●The steam ejects out ●Cut off power and connect the
continuously,the agent for repair.
solenoid valve can
not be closed.
●There is sufficient ●Cut off power and connect the
water in bucket, but agent for repair.
the steam indicating
light is not ON.
●The safety valve is ●Cut off power and connect the
closed, but there is agent for repair.
still air leakage.
●The pressure gauge ●Cut off power and connect the
points to over 4.5bar. agent for repair.
●During use, the steam ●No abnormality present, pls
indicating light is don't worry.
twinkling.
●During use, spot may ●The inappropriate liquid or ●Refer to page 10 for inappropriate
be left on clothes. unclean water is used. water. Tap water should be used.
16

HEAD OFFICE & FACTORY
104-5,Shinpyong-Ri,Shinbuk-Myoun,Pochun-Kun,Kyoungki-
Do,Korea
TEL:[phone]~6 FAX:[phone]
E-mail :
[email protected]
