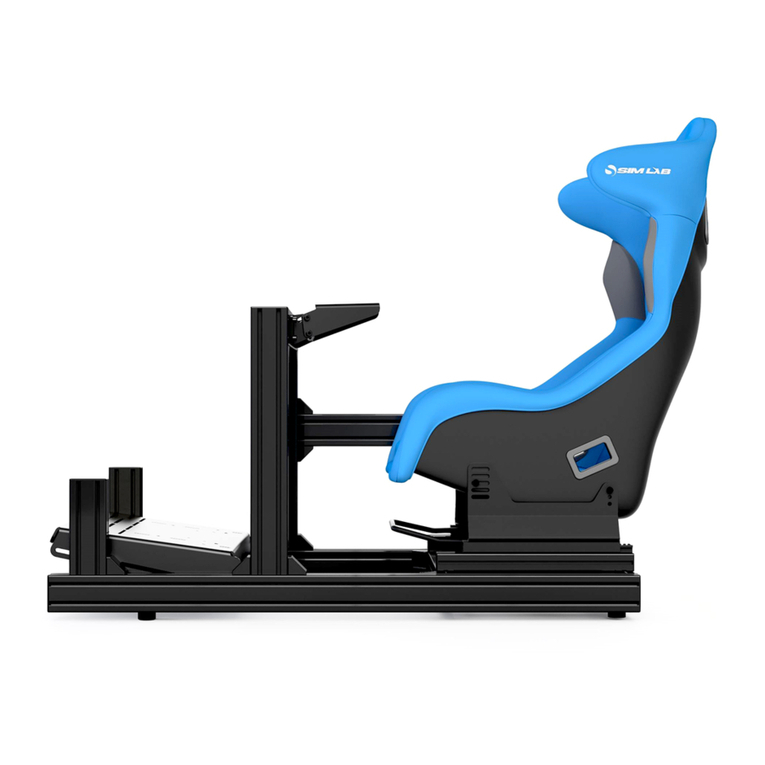

Sim-Lab GT1-EVO User manual

Copyright© 2021 - Sim-Lab Products | Revision 0.9
INSTRUCTION MANUAL
https://sim-lab.eu/shop/product/slc001-gt1-evo-sim-racing-cockpit-446
inf[email protected]
SKU: SLC001

Required tools:
2
Attach cross memer profiles to the base
Attach second base profile to the assembly
5/6 mm 11 mm
A3
A3
A5
B11
B22
B9
B6
2x

3
Once the base frame is assembled, attach the rubber feet to the ottom
Add seat rail profiles
A1
B7 B10 B13 B9

4
Attach the uprights
A6

5
Attach the wheeldeck holder profile
A5

6
Attach the wheeldeck to the profile
A ( 0,40 : 1 )
A
B2
B10 B14 B17 B9 B10 B18
B3
B4

7
Attach the pedal upright profiles
Attach the pedal deck bracket
A2
B1
B18

8
Attach the side mount
A4

Parts list
Profile kit
A1 Profile 40mm slot 8 (Black, 40x40L) - 500mm 2 Units
A2 Profile 40mm slot 8 (Black, 40x80L) - 195mm 2 Units
A3 Profile 40mm slot 8 (Black, 40x80L) - 1350mm 2 Units
A4 Profile 40mm slot 8 (Black, 40x80L) - 330mm 1 Units
A5 Profile 40mm slot 8 (Black, 40x80L) - 500mm 3 Units
A6 Profile 40mm slot 8 (Black, 40x80L) - 540mm 2 Units
Hardware kit
Part name Qty UoM Note
B1 GT1 EVO pedal deck 1 Units
B2 GT1 EVO wheeldeck pivot plate (LEFT) 1 Units
B3 GT1 EVO wheeldeck pivot plate (RIGHT) 1 Units
B4 GT1 EVO wheeldeck plate 1 Units
B5 End cap profile (40x40L) 4 Units
B6 End cap profile (40x80L) 9 Units
B7 Rubber feet 4 Units
B8 Slot 8 nut (M6) 10 Units
B9 Slot 8 nut (M8) 70 Units
B10 Washer (Black steel, M8, Plain black) 12 Units
B11 Bolt - DIN 912 (Galvanised, 16mm, M8) 60 Units
B12 Bolt - DIN 912 (Black steel, 12mm, M8) 4 Units
B13 Bolt - DIN 912 (Galvanised, 20mm, M6) 8 Units
B14 Nut (M8, DIN 985 locknut, Galvanised) 8 Units
B15 Nut (M6, DIN 985 locknut, Galvanised) 12 Units
B16 Nut (M5, DIN 985 locknut, Galvanised) 12 Units
B17 Bolt - DIN 912 (Black steel, 20mm, M8) 8 Units
B18 Bolt - DIN 912 (Black steel, 16mm, M8) 12 Units
B19 Bolt - DIN 912 (Black steel, 20mm, M6) 12 Units
B20 Bolt - DIN 912 (Black steel, 16mm, M6) 10 Units
B21 Bolt - DIN 912 (Black steel, 25mm, M5) 12 Units
B22 Corner Bracket + cover cap 28 Units
