SAFETY WARNINGS AND REGULATIONS
m
WARNINGS
– After having removed the packaging
make sure that the product supplied is
integral and complete in all its parts. If
this is not the case, please contact the
Dealer who sold the appliance.
– The appliance must be used as intend-
ed by
Sime who is not responsible for
any damage caused to persons, ani-
mals or things, improper installation,
adjustment, maintenance and improp-
er use of the appliance.
– In the event of water leaks, disconnect
the appliance from the mains pow-
er supply, close the water mains and
promptly inform professionally quali-
fied personnel.
– Periodically check that the operating
pressure of the water heating system
when cold is
1-1.2 bar . If this is not the
case, increase the pressure or contact
professionally qualified personnel.
– If the appliance is not used for a long
period of time, at least one of the fol-
lowing operations must be carried out:
-
set the main system switch to "OFF";
- close the gas and water valves for the
water heating system.
– In order to ensure optimal appliance
operations Sime recommends that
maintenance and checks are carried
out ONCE A YEAR .
m
WARNINGS
– It is recommended that all operators
read this manual carefully in order to
use the appliance in a safe and rational
manner.
–
This manual is an integral part of the
appliance. It must therefore be kept
for future reference and must always
accompany the appliance in the event
the appliance is transferred or sold to
another Owner or User or is installed
on another system.
–
Installation and maintenance of this
appliance must be carried out by a
qualified company or by a profession-
ally qualified technician in accordance
with the instructions contained in the
manual. Once the work is complete,
the company or technician will issue a
declaration of conformity with national
and local technical standards and leg-
islation in force in the country where
the appliance will be used.
–
Any repairs on the appliance must be
carried out solely by professional-
ly qualified personnel, using original
spare parts only. Failure to comply with
these instructions can jeopardise the
appliance’s safety and void the warran-
ty with immediate effect.
–
Fonderie SIME S.p.A. reserves the right
to make improvements to its prod-
ucts at any time without prior notice,
without compromising their essential
characteristics. The graphic illustra-
tions and/or images in this document
may show optional accessories that
vary according to the country in which
the appliance is used.

3
EN
RESTRICTIONS
d
IT IS FORBIDDEN
– To allow children under the age of 8 to
use the appliance. The appliance can
be used by children no younger than
8 years old, by people with physical
or cognitive disabilities, and by people
lacking experience or the necessary
knowledge, provided that they are su-
pervised or have been instructed on
how to use the appliance safely and
that they understand the risks associ-
ated with it.
– To allow children to play with the ap-
pliance.
–To allow unsupervised children to per-
form user maintenance and cleaning.
–To use electrical devices or appliances
such as switches, electrical appliances
etc if you can smell fuel. If this should
happen:
-
open the doors and windows to air the
room;
- close the gas isolation device;
- promptly call for professional assis-
tance.
– To touch the appliance with bare feet or
with any wet part of the body.
– Do not carry out any technical inter-
vention or cleaning operation unless
the appliance has been disconnected
from the mains power by setting the
system to “OFF”, and before shutting
off the supply of fuel and of water from
the hydraulic circuit.
d
IT IS FORBIDDEN
– To modify the safety or adjustment
devices without authorization and in-
structions from the manufacturer.
– To block the condensate drain (if pres-
ent).
–To pull, detach or twist the electrical
cables coming out of the appliance
even if the appliance is disconnected
from the mains power supply.
– To block or reduce the size of the venti-
lation openings of the room where the
appliance is installed, if present.
– Remove the mains power and gas sup-
ply from the appliance if the external
temperature could fall below ZERO
(risk of freezing).
– To leave containers with flammable
substances in the room where the ap-
pliance is installed.
–To dispose of the packaging material
irresponsibly as it could be danger-
ous. Packaging must be disposed of as
specified by the legislation in force in
the country where the appliance will be
used.
– To use the appliance with diesel con-
taining a mixture of biofuel greater
than 10%.

4
EN
Dear Customer,
Thank you for purchasing a
Sime ESTELLE B4 e B5 INOX ErP BE
boiler, a new-generation low-temperature modulating device
possessing technical and performance characteristics capable
of satisfying your space heating and domestic hot water require-
ments when combined with a storage tank, with the utmost
safety and with limited running costs.
RANGE
MODEL CODE
ESTELLE B4 INOX ErP BE 8104411
ESTELLE B5 INOX ErP BE 8104511
COMPLIANCE
Our company declares that ESTELLE B4 e B5 INOX ErP BE boilers
comply with the following directives:
– Low Voltage Directive 2014/35/EU
– Electromagnetic Compatibility Directive 2014/30/EU
– Ecodesign Directive 2009/125/EC
– Regulation (EU) No. 811/2013 - 813/2013
– Boiler Efficiency Directive 92/42/EEC
SPECIFIC WARRANTY
ESTELLE B4 e B5 INOX ErP BE boilers are covered by a LEGAL
WARRANTY and by a possible WARRANTY EXTENSION, which
will be proposed by the Technical Support Service in your area
and will take effect from the date on which the Service itself
validates it.
SYMBOLS
a
WARNING
To indicate actions which, if not carried out correctly,
can result in injury of a general nature or may damage
or cause the appliance to malfunction; these actions
therefore require particular caution and adequate
preparation.
f
ELECTRICAL HAZARD
To indicate actions which, if not carried out correct-
ly, could lead to injury of an electrical nature; these
actions therefore require particular caution and ade-
quate preparation.
d
IT IS FORBIDDEN
To indicate actions which MUST NOT BE carried out.
m
CAUTION
To indicate particularly important and useful informa-
tion.
MANUAL STRUCTURE
This manual is organized as follows.
USER INSTRUCTIONS
TABLE OF CONTENTS 5
DESCRIPTION OF THE APPLIANCE
TABLE OF CONTENTS 11
INSTALLATION AND SERVICING
INSTRUCTIONS
TABLE OF CONTENTS 21

5
EN
USER INSTRUCTIONS
TABLE OF CONTENTS
1 WORKING WITH THE BOILERS ESTELLE B4 E B5 INOX E r P BE 6
1.1 Control panel ...................................6
1.2 Preliminary checks ..............................6
1.3 Ignition ........................................6
1.4 Adjusting the heating temperature .................7
1.5 Adjusting the hot water temperature................7
1.6 Possible faults ..................................7
1.6.1 Safety thermostat ...................... 7
1.6.2 Burner lock-out ....................... 7
1.6.3 System low pressure (replenishment)...... 8
1.6.4 Faulty calorifier pump .................. 8
2 SHUTDOWN 8
2.1 Temporary shutdown.............................8
2.2 Shutting down for long periods ....................8
3 MAINTENANCE 9
3.1 Adjustments....................................9
3.2 External cleaning................................9
3.2.1 Cleaning the cladding................... 9
4 DISPOSAL 9
4.1 Disposal of the equipment (European Directive
2012/19/EU) ....................................9

6
EN
1 WORKING WITH THE BOILERS ESTELLE B4 E B5 INOX E r P BE
1.1 Control panel
The control panel enables all operators to make the necessary
adjustments for managing the
Sime ESTELLE B4 e B5 INOX ErP
BE
boiler and the systems connected to it.
1
6 7 8
2 3 54
9
Fig. 1
1 Orange signalling LED ; system low pressure
2 Thermometer
3 Green signalling LED ; power supply
4 Calorifier thermostat (min 30°C - max 60°C)
5 Heating thermostat (min 45°C - max 85°C)
6 Safety thermostat reset
7 Limit thermostat (calibration not modifiable)
8 Main switch
9 Summer/Winter switch
1.2 Preliminary checks
The initial start-up of the ESTELLE B4 e B5 INOX ErP BE boiler
must be carried out by professionally qualified personnel, after
which the appliance can function automatically. It may be neces-
sary for the user to restart the appliance autonomously, without
contacting the technician; for example, after a holiday. In this
case, the following checks and operations must be carried out:
– check that the fuel and water circuit shut-off valves are open
Fig. 2
a
WARNING
Sime ESTELLE B4 e B5 INOX ErP BE boilers are NOT
equipped with a system filling device. The system
must be fitted with a pressure gauge (A), to check that
the (cold) water pressure is between 1 and 1.2 bar
(98–117.6 kPa) and a loading/filling valve (B).
– check on the pressure gauge (A) that the pressure of the heat-
ing system, when cold, is
1–1.2 bar . If not, open the filling valve
(B) and refill the heating system until the pressure gauge (A)
shows a reading of
1–1.2 bar
– close the filling valve (B).
AB
04
13
2
bar
Fig. 3
1.3 Ignition
After completing the preliminary checks, to start up the boiler:
– adjust the room thermostat to the desired temperature (~
20°C)
– set the main system switch to "ON"
ON
Fig. 4
– adjust the calorifier thermostat (4) to roughly 3/4 of the ad-
justment range (corresponding to roughly 50°C)
–adjust the heating thermostat (5) to roughly 3/4 of the adjust-
ment range (corresponding to roughly 75°C)
–press the main switch (8) on the control panel and verify that
the green LED switches on (3)
5
8
3 4
1 0
Fig. 5
The burner will pre-heat the fuel (for burners equipped with fuel
pre-heaters) and perform the pre-ventilation cycle; it will then
ignite the flame and operate at maximum power until the tem-
perature set on the calorifier thermostat is reached.
Once the domestic hot water calorifier has heated up, the boiler
will switch to heating mode.
The thermometer will show the temperature value of the water
in the appliance, measured at that time.

7
EN
1.4 Adjusting the heating temperature
If the heating temperature must be increased or decreased,
turn the knob (5) until the desired value is reached. The temper-
ature can be set to between 45 and 85°C.
a
WARNING
To ensure constantly optimal performance of the gen-
erator, we suggest
NOT to adjust the heating thermostat
to below the 60°C working temperature
.
5
60÷75°C
Fig. 6
1.5 Adjusting the hot water temperature
If the domestic hot water (DHW) temperature must be in-
creased or decreased, turn the knob (4) until the desired value
is reached. The temperature can be set to between 30 and 60°C.
m
CAUTION
For the boiler to be able to produce domestic water,
the air contained in the calorifier coil must first be
purged upon the initial start-up.
To facilitate this operation, before starting up the appliance,
position the slot of the screw that releases the check valve (1)
horizontally. After purging all the air, put the screw back into its
original position.
1
Fig. 7
a
WARNING
If the domestic hot water storage tank has not been
used for a period of four weeks, sanitise the calori-
fier and the domestic hot water expansion vessel. To
perform this operation, exclusively contact the Sime
Technical Support Service or professionally qualified
personnel.
1.6 Possible faults
1.6.1 Safety thermostat
The manual-reset safety thermostat intervenes by triggering
the immediate lock-out of the burner, when the temperature
exceeds 100°C. The intervention of the safety thermostat is not
signalled but can be detected by the boiler thermostat (T>100°
C). To reactivate the appliance, wait until the temperature in-
dicated by the thermostat falls to roughly 75° C then unscrew
the protective cap and press the underlying shaft. Wait for the
completion of the fuel pre-heating and start-up phases until the
flame appears.
Fig. 8
a
WARNING
If the reactivation fails, DO NOT REPEAT it and wait for
qualified technical personnel to intervene.
1.6.2 Burner lock-out
If any ignition or operating anomalies occur, the boiler will run
a “LOCK-OUT” and the
PSB button will light up red. To reset the
burner ignition conditions, press the burner unlock button (PSB)
until the flame appears. This operation can be repeated 2–3
times at the most and, should it fail, wait for qualified technical
personnel to intervene.
PSB
Fig. 9
a
WARNING
Check that there is enough fuel in the tank and that the
shut-off valves are open. Once the tank has been filled, it
is advisable to interrupt the boiler’s operation for roughly
one hour.

8
EN
1.6.3 System low pressure (replenishment)
Sime ESTELLE B4 e B5 INOX ErP BE boilers are NOT equipped
with a system filling device. The system must be fitted with a
pressure gauge (A), to check that the (cold) water pressure is
between
1 and 1.2 bar (98–117.6 kPa) and a loading/filling valve
(B).
When the system water pressure indicated on the pressure
gauge (A) falls below
1 bar (98 kPa) , the unit must be filled.
To do this:
– open the filling valve (B) to raise the pressure until it reaches
the correct value, between
1 and 1.2 bar (98–117.6 kPa)
– close the valve (B)
04
13
2
bar A B
Fig. 10
1.6.4 Faulty calorifier pump
LED (D) : The LED will signal the pump status on the basis of its
colour when lit, as shown below.
–
Lit green : normal operation
–
Off : request professionally qualified personnel to intervene
–
Flashing red/green : request professionally qualified personnel
to intervene
–
Flashing red : request professionally qualified personnel to in-
tervene
–
Lit red : press the (E) button for 5 seconds to activate the man-
ual reset. If the pump fails to start, request the intervention of
professionally qualified personnel.
D
E
Fig. 11
NOTE: For the “Possible faults and solutions” refer to the specif-
ic paragraph at the end of the manual.
2 SHUTDOWN
2.1 Temporary shutdown
If the user is away temporarily, for a weekend, short trip etc and
if the outside temperature is at ZERO:
– press the main switch (8) to switch off the boiler
8
1 0
Fig. 12
– close the fuel and water circuit shut-off valves.
Fig. 13
2.2 Shutting down for long periods
If the boiler is to be left unused for a long period, the following
operations need to be carried out:
– press the main switch (8) to switch off the boiler
– close the fuel and water circuit shut-off valves
– set the main system switch to "OFF"
OFF
Fig. 14
m
CAUTION
In case of difficulties in completing the described pro-
cedure, contact professionally qualified personnel.

9
EN
3 MAINTENANCE
3.1 Adjustments
For the appliance to operate correctly and efficiently it is recom-
mended that the User calls upon the services of a Professionally
Qualified Technician to carry out
ANNUAL maintenance.
m
CAUTION
Maintenance must ONLY be carried out by qualified
professionals who follow the indications provided in
the INSTALLATION AND MAINTENANCE INSTRUC-
TIONS.
3.2 External cleaning
3.2.1 Cleaning the cladding
When cleaning the cladding, use a cloth dampened with soap
and water or alcohol for stubborn marks.
d
IT IS FORBIDDEN
to use abrasive products.
a
WARNING
– Should it be necessary to access the zones in the
rear part of the appliance, make sure that the sys-
tem’s components or pipes are not too hot (risk of
burns).
–Before performing any maintenance, put on protec-
tive gloves.
4 DISPOSAL
4.1 Disposal of the equipment (European Di-
rective 2012/19/EU)
At the end of their life span, the appliance
and electrical and electronic devices coming
from households or classifiable as household
waste must be delivered to appropriate waste
collection systems, in accordance with the law
and with Directive 2012/19/EU. This product
was designed and manufactured for minimis-
ing its impact on the environment and on hu-
man health, but it contains components that
could be detrimental if managed improperly.
The symbol (crossed-out wheelie bin) depict-
ed here and also appearing on your appliance
means that the appliance at the end of its life
must be managed in accordance with the law
and treated as electrical and electronic waste.
Before delivering the appliance for its disposal,
consult the applicable provisions of the laws in
force in the country where the appliance is used
and get information on the authorised waste
disposal facilities by contacting the relevant lo-
cal offices.

10
EN

11
EN
DESCRIPTION OF THE APPLIANCE
TABLE OF CONTENTS
5 DESCRIPTION OF THE APPLIANCE 12
5.1 Characteristics ................................12
5.2 Operation .....................................12
5.3 Check and safety devices ........................13
5.4 Identification ..................................13
5.5 Structure .....................................14
5.6 Technical features ..............................15
5.7 Burner adjustments ............................16
5.8 Main hydraulic circuits ..........................16
5.9 Combinable burners ............................17
5.10 Combustion chamber dimensions .................17
5.11 Fastening the burner............................17
5.12 High-efficiency pumps ..........................17
5.13 Setting the circulation pump .....................18
5.13.1 Selecting the operating mode and the
characteristic curve ................... 18
5.13.2 Choosing the adjustments .............. 18
5.14 Additional functions of the pump’s command button ....18
5.14.1 Bleeding the pump . . . . . . . . . . . . . . . . . . . . 18
5.14.2 Manual restart ....................... 18
5.14.3 Locking/unlocking the button ........... 19
5.14.4 Activating factory settings .............. 19
5.14.5 Manual restart ....................... 19
5.15 Boiler head losses..............................19
5.16 Wiring diagram ................................20
5.16.1 Boiler ............................... 20

12
EN
5 DESCRIPTION OF THE APPLIANCE
5.1 Characteristics
Sime ESTELLE B4 e B5 INOX ErP BE cast iron boilers are configured for operating with diesel blown-air Low NOx burners. They are spe-
cially designed for users who privilege high performances, silent operation and compact dimensions.
ESTELLE B4 e B5 INOX ErP BE boilers are the versions for space heating and for domestic hot water production with a stainless steel cal-
orifier that stores up to 110 litres. They can be
TYPE B23P (open) devices, when the burner draws combustion air from the environment
in which they are installed, therefore the room MUST include adequate vents sized according to the laws in force in the country where
the appliance is used. They can be converted into
TYPE C23P (sealed) devices, using the available accessories kits (refer to the para-
graph
6.1.1 Optional accessories ) which allow the appliance to draw combustion air directly from outside the room where it is installed.
The broad heat exchange surface of the cast iron body allows to obtain high performances that ensure considerable savings in terms
of running costs.
5.2 Operation
Prior to starting up the boiler, we suggest setting the calorifier
thermostat (4) and the heating thermostat (5) to roughly 3/4 of
the adjustment range (respectively around 50 and 75°C), shift-
ing the switch (9) to Winter mode and then activating the general
and main switches (8) to power the appliance electrically. The
green signalling LED (3) will light up to signal that the system
is powered.
When a heat request arrives, with the room thermostat or the
calorifier thermostat in request mode, the fuel will start heating
(for burners equipped with fuel pre-heaters) for a few minutes
with the burner stationary, then burner pre-ventilation will start
followed by the subsequent ignition of the flame and the starting
up of the system pump and/or calorifier.
The flame will remain on until the temperature set through
thermostats (4) and (5) of the control panel has been reached,
while the system pump continues to operate in order to use the
heat generated (available). The burner will then switch on and
off in an alternating manner until the temperature requested by
the room thermostat requesting heat is reached.
The temperature of the water contained in the cast iron body will
appear on the thermometer (2).
m
CAUTION
The diagram of the operating sequences/phases is
shown in the documentation supplied with the burner
installed.
If there is a domestic hot water request, during heating mode
operation, the boiler will automatically switch the operating
mode to satisfy the current request.
8
2 3 54
9
Fig. 15

13
EN
5.3 Check and safety devices
ESTELLE B4 e B5 INOX ErP BE appliances are equipped with the
following control and command devices:
– thermal safety thermostat 100°C
– 3 bar relief valve
– heating thermostat (min 45°C - max 85°C)
– calorifier thermostat (min 30°C - max 60°C)
– water pressure switch
– minimum-temperature thermostat
– temperature-limit thermostat.
d
IT IS FORBIDDEN
To commission the appliance with safety devices
which do not work or which have been tampered with.
a
WARNING
Safety device may only be replaced by professional
qualified personnel using
Sime original spare parts.
5.4 Identification
The ESTELLE B4 e B5 INOX ErP BE boilers can be identified by means of:
1 Packaging label: located on the outside of the packaging, it includes the code and serial number of the boiler in addition to the
barcode.
2 Technical data plate: it is located on the right-hand side of the boiler and includes the technical data, appliance performance data
and any other information required by law in the country where the appliance will be used.
2
1
Fig. 16
Technical Data Plate
NAME
SERIAL NUMBER
NOx CLASS
YEAR OF MANUFACTURE
WATER CONTENT IN BOILER
MAX HEAT INPUT
MAX HEAT INPUT
MAX HEAT OUTPUT (80-60°C)
MAX OPERATING PRESSURE
MAX OPERATING PRESSURE
D.H.W. CONTENT
FLOW RATE
MAX OPERATING TEMPERATURE
MAX D.H.W. TEMPERATURE
ELECTRICAL PROTECTION DEGREE
ELECTRICAL SUPPLY
MAXIMUM ABSORBED POWER
APPLIANCE TYPE
NOx VALUE
CODE
N° PIN
Fig. 17
m
CAUTION
Tampering with, removing or failing to display the identification plate or carrying out any other operation which does not
allow safe identification of the product or which may hinder installation and maintenance operations.

14
EN

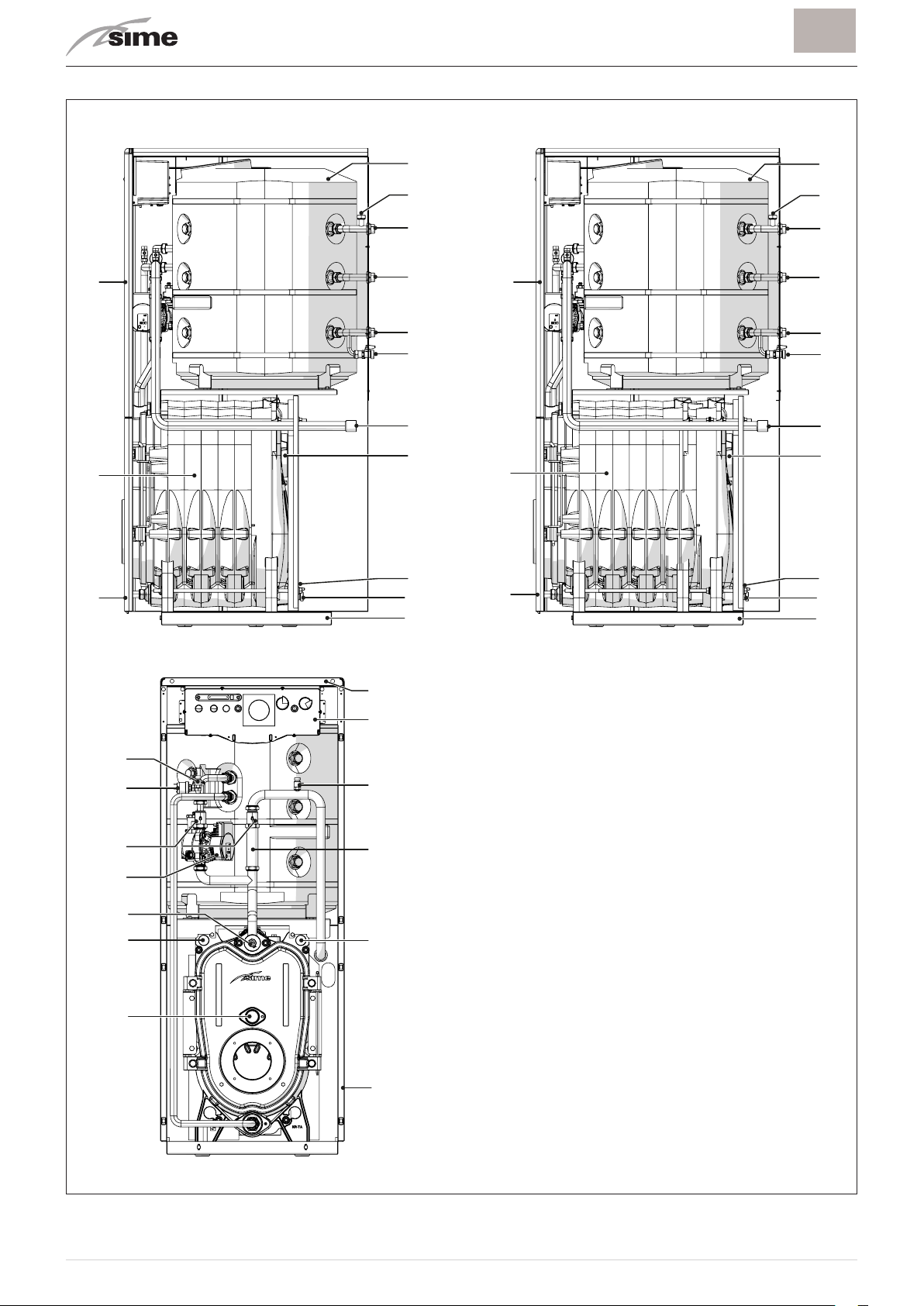

5.5 Structure
ESTELLE B4 INOX ErP BE ESTELLE B5 INOX ErP BE
1
2
3
4
5
6
7
9
10
11
12
13
1
2
3
4
5
6
7
9
8 8
10
11
12
12
12
13
15
16
17
19
20
21
17
22
23
14
19
24
18
ESTELLE B4 e B5 INOX ErP BE
1
Stainless steel calorifier (110 litri)
2 Fitting for calorifier safety valve (VS)
3 Domestic hot water output (U)
4 Recirculation (RC)
5 Domestic hot water inlet (E)
6 Hot water tank drain valve (SB)
7 System delivery (M)
8 System return (R)
9 Smoke outlet fitting
10 System discharge valve (SI)
11 Appliance support frame
12 Front panel
13 Cast iron body
14 Thermowell
15 Top panel
16 Control panel
17 Manual relief valve
18 G1" stub pipe (to be replaced with a system
pump if necessary)
19 Holes for handling
20 Side panel
21 Water pressure switch
22 Check valve (VR)
23 Storage tank pump
24 Flame viewing window
Fig. 18

15
EN
5.6 Technical features
DESCRIPTION
ESTELLE
B4 INOX ErP BE B5 INOX ErP BE
CERTIFICATIONS
Country of intended installation IT – ES – EN – FR – NL- EL - DE - SL
Fuel Diesel
PIN number 1312CR192R
Appliance classification B23P - C23P
DHW rated heat input (Qnw max) 26,8 32,9
Class NO
x (*) 3
HEATING PERFORMANCE
HEAT INPUT (**)
Nominal flow (Q
n max) kW 26,8 32,9
HEAT OUTPUT
Rated useful power (80-60°C) (P
n max) kW 25,2 31
ENERGY PERFORMANCE
Heating seasonal energy efficiency class % B
Heating seasonal energy efficiency 86
Domestic hot water energy efficiency %73 70
Stated domestic hot water profile load XL
ELECTRICAL SPECIFICATIONS
Power supply voltage V230
Frequency Hz 50
Electrical protection degree IP IPX2
COMBUSTION DATA
Cast iron elements n° 4 5
Fume temperature (80-60°C) °C 160
CO
2 %12,5
TEMPERATURE  PRESSURE
Max operating temperature (T max) °C 95
Heating adjustment range °C 45÷85
Max operating pressure bar 4
kPa 392
Water content in boiler l20,3 24,3
Head loss fume side (****) mbar 0,16 0,21
kPa 0,016 0,021
Combustion chamber pressure (****) mbar 0,2
kPa 0,02
Recommended negative pressure at flue mbar 0,3
kPa 0,03
PRODUCING DOMESTIC HOT WATER
Domestic hot water adjustment range °C 30÷60
Specific DHW flow rate (EN 13203) l/min 21
Continuous DHW flow rate (∆T 30°C) l/min 12 14,8
Max calorifier operating pressure (PMW) bar 7
kPa 686
Calorifier capacity l110
(*) NOx Class as per EN 267:2009
(**) Heat input calculated using the lower heat output (Hi)
(****) Data measured with flue draught of 0 mbar

16
EN
5.7 Burner adjustments
The suggested adjustments for the operation of the combinable burners installed at sea level are shown in the table.
Description Model Code
Nozzle Pulverisation
angle
Pump
pressure
(bar)
NOx
class
Absorbed
electrical
power (*)
(W)
Type GPH
ESTELLE B4 INOX ErP BE
SIME FUEL 25 EV
(Vers. std) 8118500
DANFOSS
0,55
60°H 12 3
201
ESTELLE B5 INOX ErP BE
SIME FUEL 35 EV
(Vers. std) 8118501 0,65 190
(**) Values obtained during operation
When the burner is installed at altitudes up to maximum 1300 m.a.s.l., due to the lower air density, the factory adjustments for the
burner must be modified as follows:
– Keep the nozzle mounted in the factory
– Do not vary the position of the combustion head
– Gradually reduce the pump pressure to reduce the fuel flow rate
– Adjust the air shutter by taking the following readings:
- CO
2 (%)
- CO (ppm) (as per the regulations in force)
- Bacharach index (≤ 0,5)
- Flue gas temperature.
5.8 Main hydraulic circuits
E
RC
U
M
7
11 8
2
12
12
66
3
5
1
10
9
4
R
KEY:
1 Boiler body
2 Water pressure switch
3 Automatic bleed valve
4 Stub pipe G1" (to be replaced with a
system pump if necessary)
5 Calorifier circulator pump
6 Check valve (VR)
7 Fitting for calorifier safety valve (VS)
8 Magnesium anode
9 Hot water tank drain valve (SB)
10 System discharge valve (SI)
11 Storage tank
12 Manual relief valve
M System delivery
R System return
U Domestic hot water output
E Domestic hot water inlet
RC Recirculation
Fig. 19

17
EN
5.9 Combinable burners
The burners that can be combined with ESTELLE B4 e B5 INOX
ErP BE
boilers are:
Burners ESTELLE
MODEL CODE B4 INOX ErP BE B5 INOX ErP BE
SIME FUEL 25 EV
(Standard version) 8118500 X
SIME FUEL 35 EV
(Standard version) 8118501 X
m
CAUTION
– The burners shown in the table can be purchased
separately from the boiler.
– It is possible to install a burner that the customer
already has, provided that it has the
“CE marking”
and fulfils the performance requirements applica-
ble to the boiler with which it will be paired.
–Blown-air burners for diesel fuel must comply with
the EN 267 standard.
m
CAUTION
– When choosing the burner, pay special attention to
the maximum power absorbed at 30% for the load
and in the burner stand-by mode, while checking
that the values are equal to or below those shown
in ANNEX AA.1
m
CAUTION
– For the burner installation, wiring diagrams, fuel
supply and warnings, refer to the specific manual
supplied with the burner.
– All the operations must be carried out exclusively by
the
Sime Technical Service or by professionally quali-
fied personnel
.
–
Fonderie SIME S.p.A. declines all liability for any
harm to people or animals and damage to objects
caused by failure to observe the warnings and op-
erating procedures described in this instruction
manual.
5.10 Combustion chamber dimensions
The combustion chamber is a direct-passage type chamber and
conforms to the EN 303-3 standard Annex E. Its dimensions are
shown in the figure. An appropriate protective panel is applied
to the inner wall of the rear head on all models.
270
280
L 70
Fig. 20
Description U/M
ESTELLE
B4 INOX ErP BE B5 INOX ErP BE
Lmm 405 505
Volume dm
3
24,0 30,5
5.11 Fastening the burner
The boiler door is designed to receive the flange for mounting
and fastening the burner.
R 75
ø 110
M8
Fig. 21
5.12 High-efficiency pumps
The calorifier pump is a high-efficiency device equipped with
signalling LEDs (1), (2), (3) and with the control button (4).
1 2
34
Fig. 22
1 Pump status signalling LED based on the colours shown in
the table below
LED colour Status Troubleshooting
Green On Normal operation
None Off No electrical power
Red/Green Flashing Anomaly in progress (*)
Red Flashing Anomaly in progress (*)
Red On Permanent safety shutdown
(*) For the details, consult the chapter “Possible faults and
solutions”
NOTE: In case of anomalies, the pump will stop and attempt to
restart; if the anomaly is resolved, the pump will restart automat-
ically. Otherwise, the pump will perform a permanent lock-out.
2 LED indicating the selected regulation mode:
- constant number of rotations
- variable differential pressure (∆p-v)
- constant differential pressure (∆p-c)
3 LED indicating the selected characteristic curve: I, II, III
within the specific regulation mode
4 Command button for setting the pump. The button can only
be used by the installer or by authorised personnel:
- when pressed once or more, for roughly 1 s, it allows for se-
lecting the pump’s operating mode and the preferred char-
acteristic curve (for the details, consult the next paragraph)
- when pressed and held for 3s it automatically bleeds the pump
- when pressed and held for 5s in unlocks the pump after pro-
longed periods of inactivity
-when pressed and held once for 8s it stops all actions that
can be executed through button (4). When pressed a second
time for 8s it activates the button’s functions again (4).

18
EN
5.13 Setting the circulation pump
5.13.1 Selecting the operating mode and the charac-
teristic curve
The adjustment mode and the corresponding characteristic
curves are selected in the following way:
– press, once or several times, for roughly 1s the command button
(4) to select the adjustment mode and the corresponding charac-
teristic curve (LEDs 2 and 3 will signal the relevant operations).
m
CAUTION
The table shown below summarises the relationship
between the number of presses of the (4) button, the
signals emitted by LEDs (2) and (3) and the corre-
sponding characteristic curve.
No. of times
the command
button (4) is
pressed
LEDs Settings mode Characteristic
curve
1Constant speed II
2Constant speed I
3
Variable
differential
pressure ∆p-v
III
4
Variable
differential
pressure ∆p-v
II
5
Variable
differential
pressure ∆p-v
I
6
Constant
differential
pressure ∆p-c
III
7
Constant
differential
pressure ∆p-c
II
8
Constant
differential
pressure ∆p-c
I
9Constant speed III
m
CAUTION
Press the command button 9 (4) times to restore the
original settings (constant speed/ characteristic curve
III).
5.13.2 Choosing the adjustments
Chose the adjustment mode on the basis of the most suitable
characteristics indicated below.
Constant speed (I, II, III)
I
III
II
Q/m
3
/h
H/m
Recommended for systems with stable
resistance that require a constant flow
rate.
The heat pump functions in three stag-
es, corresponding to the number of pre-
set fixed revolutions (I, II, III).
Variable differential pressure ∆p-v (I, II, III)
II
III
I
Q/m
3
/h
H/m
Recommended in case of heating sys-
tems with double delivery and radiators,
for the reduction of flow noises on the
thermostatic valves. The pump halves
the head in case of a reduction of the
flow rate in the piping network. Elec-
tricity can be saved since the head is ad-
justed on the basis of the required flow
rate and the lower flow speeds.
Three pre-defined characteristic curves
(I, II, III) from which to choose.
Constant differential pressure ∆p-c (I, II, III)
III
I
II
Q/m
3
/h
H/m
Recommended with radiant panels or
large-size pipes and for all applications
that lack variable characteristic curves
for the system (such as, for example,
calorifier charge pumps) and single-de-
livery heating systems with radiators.
The adjustment preserves the set head
regardless of the conveyed flow rate.
Three pre-defined characteristic curves
(I, II, III) from which to choose.
5.14 Additional functions of the pump’s com-
mand button
1 2
34
Fig. 23
5.14.1 Bleeding the pump
The pump bleed function can be activated by pressing the com-
mand button 3 for at least (4) seconds; the pump will bleed au-
tomatically.
This function is used to bleed the pump ONLY and not the heat-
ing system.
5.14.2 Manual restart
The manual restart can be activated by pressing for at least 5
seconds the command button (4), which unlocks the pump after
extended periods of inactivity (e.g. after a summer shutdown) or
following a pump lock-out.

19
EN
5.14.3 Locking/unlocking the button
The keypad lock is activated by long pressing (8 seconds) the
command button (4) and it blocks the pump settings. The key-
pad lock protects the pump against involuntary/unauthorised
changes to the pump.
5.14.4 Activating factory settings
The factory setting can be activated by pressing and holding the
command button (4) until the LED (1) switches off. After restart-
ing the pump, the latter will operate with the factory setting (its
condition on delivery).
5.14.5 Manual restart
When a block is detected, the pump attempts to restart auto-
matically.
If the pump does not restart automatically:
– press the command button (4) for 5 seconds then release it
– the restart function activates for a maximum of 10 minutes
– LEDs (2) and (3) will flash one after the other clockwise.
After the restart, LEDs (2) and (3) will indicate the settings be-
fore the lock-out.
m
CAUTION
To interrupt the pump’s operation, press the com-
mand button (4) for 5 seconds.
a
WARNING
If the fault persists, please contact the Technical As-
sistance Centre.
d
IT IS FORBIDDEN
to operate the pumps without water.
5.15 Boiler head losses
RESIDUAL HEAD (mbar)
220
200
180
160
140
120
100
80
40
20
60
0
1000 1500 2500 30002000500
ESTELLE B4 INOX ErP BE
ESTELLE B5 INOX ErP BE
WATER FLOW RATE (l/h)
Fig. 24
NOTE: The head losses in the diagram were obtained with ∆t
10°C.

20
EN

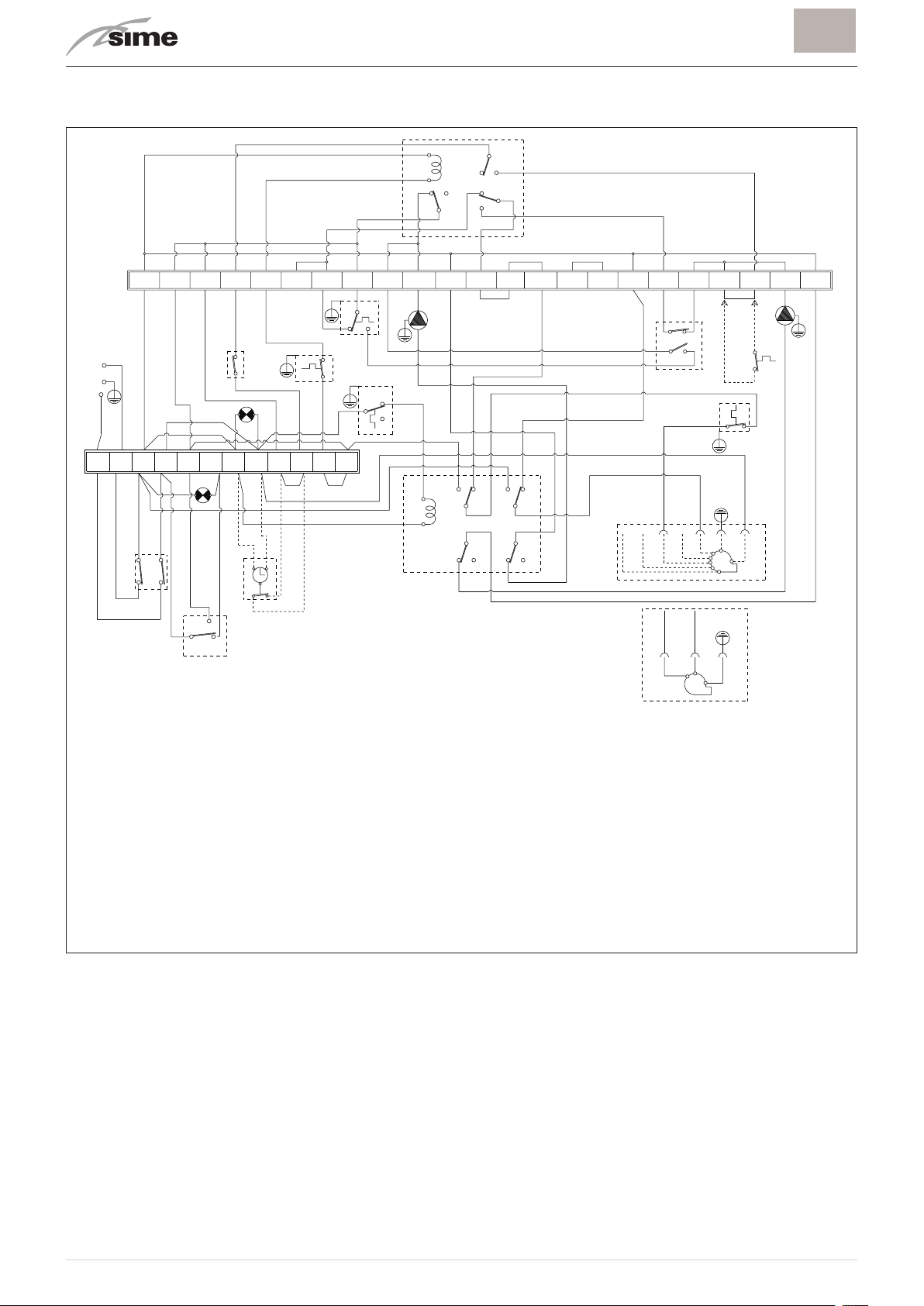

5.16 Wiring diagram
5.16.1 Boiler
L N 24 25 26 27 28 29 30 31 32 33
MIQ2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
MIQ1
12
5 3
13
14
5 6
1 2
9 10
3 4
11 12
7 8
11 12
21 24
C
2
1
10
2
11
8
34
1
76
5
N
L
230 V
50 Hz
PI
TC
TS
PB
TL
TB
E/I TMIN
TA
KA1
KA2
PAC
CTP
IG
SA
GR
BL
R
BK
BR
NA
C NC
SPAC
BR
BR
BL
B
B1
B4 S3 T2 T1 N L1
N
L
L Line
N Neutral
TS Safety thermostat
E/I Summer / winter switch
TA Room thermostat
TB Hot water tank thermostat
TC Boiler thermostat
TL Temperature-limit thermostat
IG Main switch
PB High-efficiency calorifier pump
PI System pump
B Burner with direct supply
B1 Burner with permanent supply
(e.g. SIME FUEL 25/35 EV)
KA1-KA2 Relè
TB Hot water tank thermostat
SA Voltage indicator light
SPAC Water pressure switch activa-
tion indicator light
PAC Water pressure switch
CTP Timer-controlled programmer
thermostat (optional)
TMIN Minimum-temperature ther-
mostat
BL Blue
BR Brown
BK Black
GR Grey
R Red
– To connect the room thermostat (TA), remove the jumper between terminals 20-21.
– To connect the programmer timer-controlled thermostat (CTP), remove the jumper between terminals 30-31.
– For the burner’s electrical connections, consult the documentation supplied with the installed appliance.
Fig. 25
m
CAUTION
Users must:
– To mount an omnipolar residual-current circuit
breaker conforming to EN standards
that allows for
completely disconnecting the system in overvoltage
category III conditions (that is, with a gap of at least 3
mm between the open contacts)
.
– Respect the connections L (Live) - N (Neutral).
– Ensure that the special power cable is only replaced
with a cable ordered as a spare part and connected
by professionally qualified personnel.
m
CAUTION
Users must:
– Connect the earth wire to an effective earthing sys-
tem.
The manufacturer is not responsible for any dam-
age caused by failure to earth the appliance or failure
to observe the information provided in the wiring dia-
grams
.
a
WARNING
The grey cable (GR), when not used, MUST be removed
from the terminal block MIQ
.
d
IT IS FORBIDDEN
To use water pipes for earthing the appliance.
