Sime PLANET DEWY 30 BF User manual

INSTALLER INSTRUCTIONS
CONTENTS
1 DESCRIPTION OF THE BOILER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 88
2 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 91
3 CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 101
4 USE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 104
IMPORTANT
When carrying out commissioning of the boiler, you are highly recommended to perform the following checks:
Make sure that there are no liquids or inflammable materials in the immediate vicinity of the boiler.
Make sure that the electrical connections have been made correctly and that the earth wire is connected to a
good earthing system.
Open the gas tap and check the soundness of the connections, including that of the burner.
Make sure that the boiler is set for operation for the type of gas supplied.
Check that the flue pipe for the outlet of the products of the combustion is unobstructed and has been properly
installed.
Make sure that any shutoff valves are open.
Make sure that the system is charged with water and is thoroughly vented.
Check that the circulating pump is not locked (CAUTION: Remember to release the pump coupled with the control
panel, if necessary, to protect the electronic control card).
Purge the system, bleeding off the air present in the gas pipe by operating the pressure relief valve on the gas
valve inlet.
Check that the syphened drip is fully filled with water. If necessary, fill it via the special opening.
FONDERIE SIME S.p.A. of Via Garbo 27 - Legnago (VR) - Italy declares that its hot water boilers, which bear the CE
mark under Gas Directive 90/396/CEE and are fitted with a safety thermostat calibrated to a maximum of 110°C,
are not s bject to application of PED Directive 97/23/CEE as they meet the requirements of article 1 paragraph
3.6 of the Directive.
PLANET DEWY 30/50 BF - ENGLISH

88
IT
ES
PT
GB
1.1 INTRODUCTION
“PLANET DEWY 30/50 BF” with stainless
steel hot water tank, boilers are premix con-
densation thermal appliances which use
microprocessor technology for function
control and management. They comply with
the european directives 90/396/CEE,
89/336/CEE, 73/23/CEE, 92/42/CEE
and with the european specification EN 483
- EN 625. They may be fuelled by natural gas
(methane gas) or propane (G31).
The instructions given in this manual are
provided to ensure proper installation and
perfect operation of the appliance.
1 DESCRIPTION OF THE BOILER

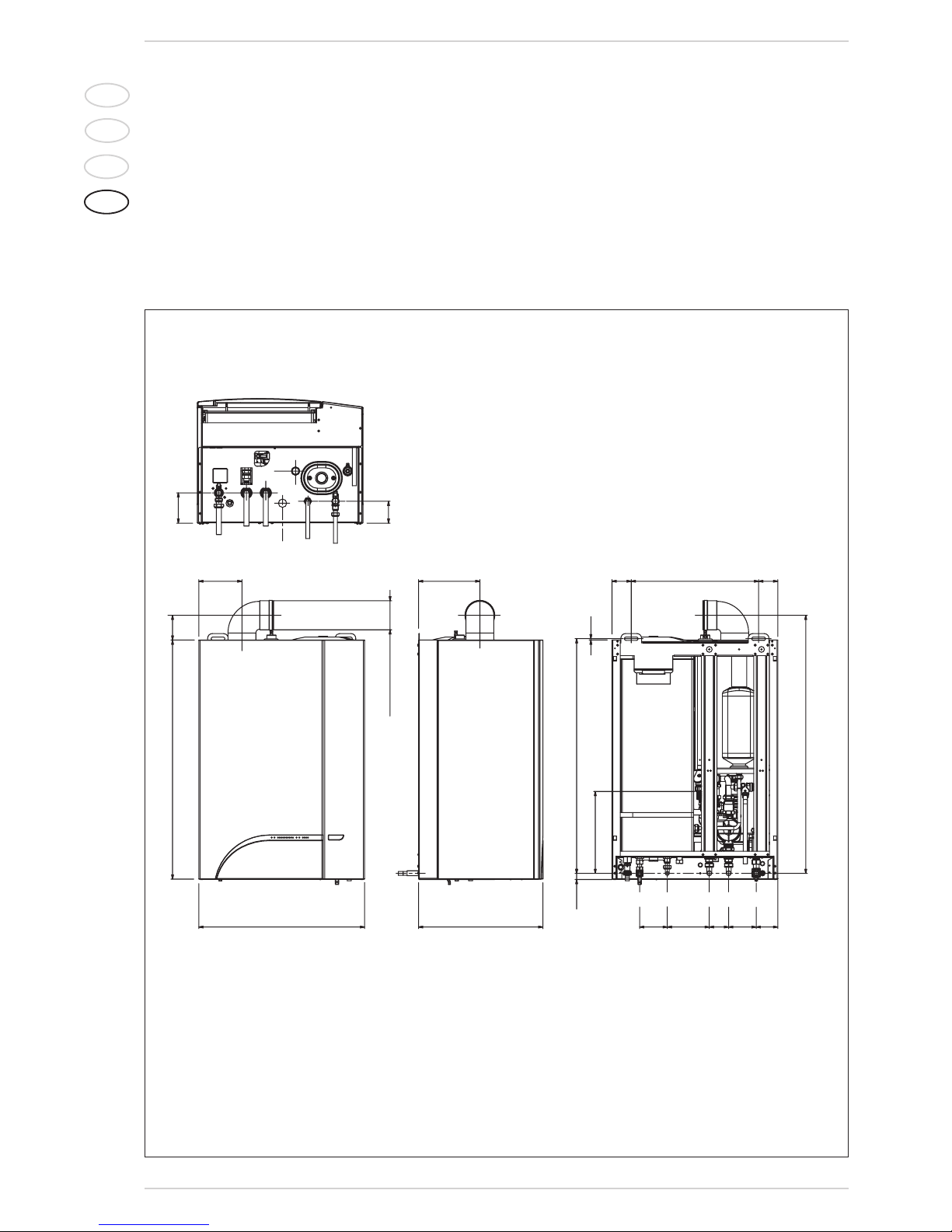

1.2 DIMENSIONS
100 15 2 70100 78
E U M R G
110
79
S3
C
15 6
90
865
600
ø 60/100
222
450
460
==
934
297
22 850 5
Fig. 1
CONNECTIONS
R C.H. return G 3/4” (UNI-ISO 228/1)
M C.H. flow G 3/4” (UNI-ISO 228/1)
G Gas connection G 3/4” (UNI-ISO 228/1)
E D.H.W. inlet G 1/2” (UNI-ISO 228/1)
U D.H.W. outlet G 1/2” (UNI-ISO 228/1)
C Ricirculation G 1/2” (UNI-ISO 228/1)
S3 Condensation outlet ø 25

89
IT
ES
PT
GB
1.3 TECHNICAL FEATURES
30 BF
Heat output nominal (80-60°C) kW (kcal/h) 29.2 (25,112)
Heat output nominal (50-30°C) kW (kcal/h) 32.2 (27,690)
Heat output minimum (80-60°C) kW (kcal/h) 7.6 (6,540)
Heat output minimum(50-30°C) kW (kcal/h) 8.4 (7,220)
Nominal heat output kW (kcal/h) 30.0 (25,800)
Minimum heat output kW (kcal/h) 8.0 (6,880)
Efficiency nominal/minimum output (80-60°C) % 94.5 - 97.2
Efficiency nominal/minimum output (50-30°C) % 104.9 - 107.2
30% yield (50-30°C) % 106.7
Termal efficiency (CEE 92/42 directive) ★★★★
Class NOx 5
Smokes temperature maximum (80-60°C) °C 68
Smokes temperature minimum(80-60°C) °C 69
Smokes temperature maximum (50-30°C) °C 47.3
Smokes temperature minimum (50-30°C) °C 46.9
Smokes flow kg/h 50.2
CO2maximum/minimum G20 % 9.1/9.1
CO2maximum/minimum G31 % 10.0/10.0
Adsorbed power consumption W 160
Electrical protection grade IP X4D
CE certification n° 1312BP4098
Category II2H3P
Type B23-53/C13-33-43-53-83
C.H.
Maximum water head bar 3
Maximum temperature °C 85
Water content boiler l 10.0
C.H. setting range °C 20/80
Expansion vessel capacity l 10
Expansion vessel pressure bar 1
Gas consumption nominal/minimum G20 m3/h 3.17/0.84
Gas consumption nominal/minimum G31 kg/h 2.33/0.62
D.H.W.
Maximum pressure bar 7.0
D.H.W. flow rate (EN 625) l/min 16.0
Continuous D.H.W. flow rate ∆t 30°C l/min 14.1
Hot water tank contents l 50
Tempo di riscaldamento acqua nell’accumulo da 25 a 55 °C min 3’ 45”
D.H.W. setting range °C 30/60
Capacity of hot water expansion tank l 2
Gas consumption nominal/minimum G20 m3/h 3.17/0.84
Gas consumption nominal/minimum G31 kg/h 2.33/0.62
GAS PRESSURE END NOZZLES
Gas supply pressure G20 mbar 20
Gas supply pressure G31 mbar 37
Nozzles quantity n° 1
Nozzles diameter G20 ø 7.0
Nozzles diameter G31 ø 5.0
WEIGHT kg 70.1

90
IT
ES
PT
GB
13
12
11
10
9
8
7
6
5
4
3
2
1
14
15
16
17
18
19
20
21
22
1.5 MAIN COMPONENTS
Fig. 3
1.4 FUNCTIONAL DIAGRAM
Fig. 2
LEGEND
1 Fan
2 Air/gas mixer
3 Primary exchanger
4 Gas valve
5 50 litre hot water tank
6 Heating probe (SM)
7 100°C safety thermostat
8 Air bleed valve
9 Heating system circulator
10 Hot water circulator
11 Heating expansion tank
12 Hot water safety valve
13 Heating system safety valve
14 Boiler drain
15 Water pressure transducer
16 Automatic bypass
17 Hot water expansion tank
18 Gas cock (optional)
19 Heating system return cock (optional)
20 Heating system delivery cock (optional)
21 Incoming tap water cock
22 Hot water tank drain cock
23 Hot water probe (SB)
24 Limit thermostat 85°C
25 Magnesium anode
26 Assembly template (optional)
27 Manual filling unit
28 One-way valve
29 Condensation drain trap
30 Flow switch
31 Air bleed valve
LEGEND
1 Control panel
2 Heating system circulator
3 Hot water circulator
4 One-way valve
5 Heating system safety valve
6 Water pressure transducer
7 Positive pressure intake
8 Fan
9 Detection electrode
10 Primary exchanger
11 Ignition electrode
12 Ignition transformer
13 Flue gas thermostat
14 Automatic bleed
15 85°C limit thermostat
16 50 litre hot water tank
17 Hot water safety valve
18 Heating expansion tank
19 100°C safety thermostat
20 Condensation drain trap
21 Heating probe (SM)
22 Flow switch

The boiler must be installed in a fixed loca-
tion and only by specialized and qualified
firms in compliance with all instructions
contained in this manual.
Furthermore, the installation must be in
accordance with current standards and
regulations.
2.1 BOILER ROOM
The boilers can be installed in any domestic
environment without any location restric-
tions or comburent air requirements.

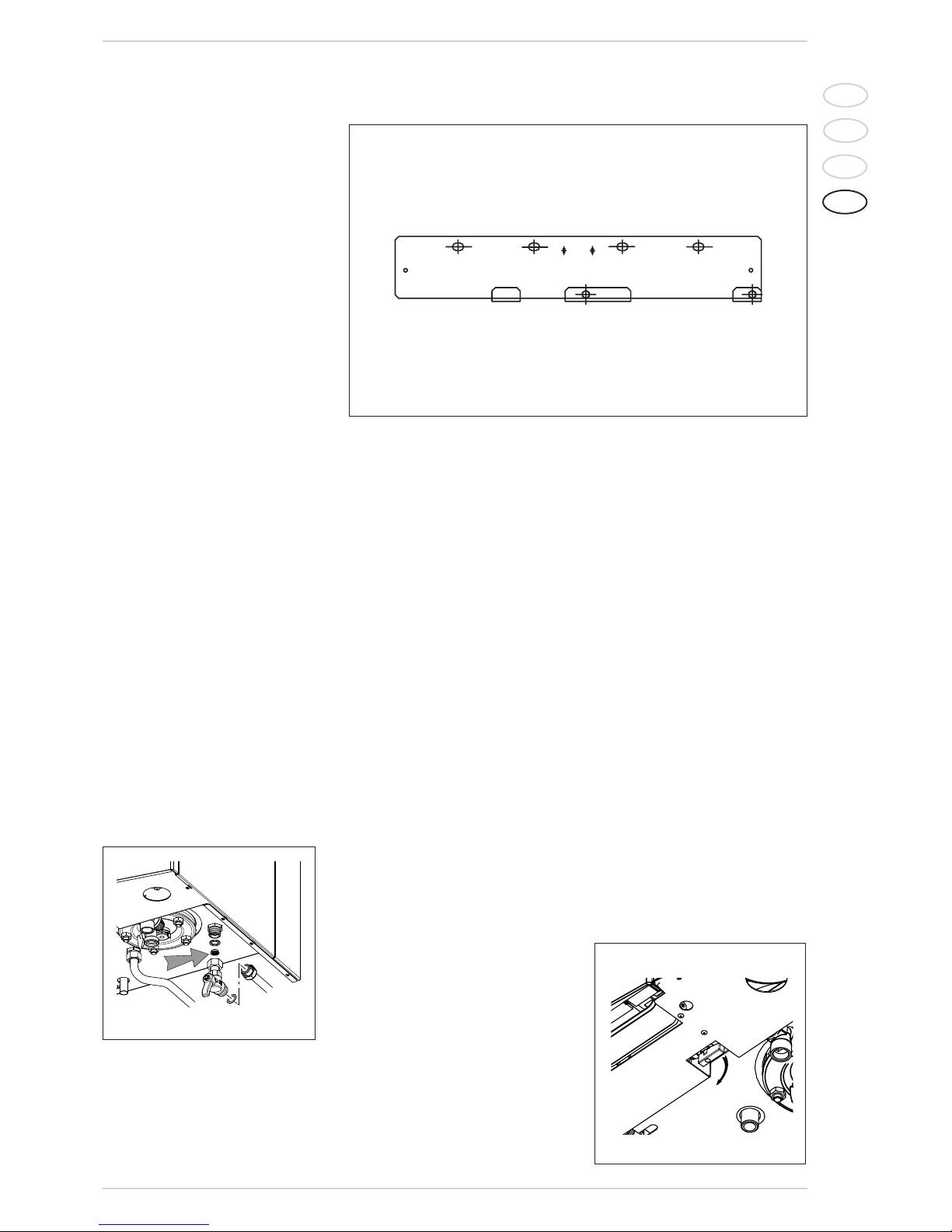

2.3 BOILER SUPPORT BRACKET
For the mounting of the support bracket of
the boiler, which is supplied, observe the fol-
lowing instructions (fig. 4):
Fix the bracket to the wall with appro-
priate dowels.
Check with a spirit level that it is perfec-
tly in horizontal plane.
2.3.1 Installation plate (optional)
The installation plate code 8081216 is sup-
plied with an instruction sheet for the fixing.
2.3.2 System connection nions
The following optional accessories are avail-
able to facilitate water and gas connection
of the boiler with the heating system:
curve kit, code 8075423
cock kit, code 8091809
Detailed instructions for assembly of the
unions are provided with the kits.
2.3.3 Flow reg lator
At the inlet of the hot water a flow regula-
tor brown is installed, from 12 l/ min (fig.
5).
2.4 CONNECTING UP SYSTEM
To protect the heat system from damaging
corrosion, incrustation or deposits, after
installation it is extremely important to
clean the system using suitable products
such as, for example, Sentinel X300 or
X400.
Complete instructions are provided with
the products but, for further information,
you may directly contact GE Betz.
For long-term protection agains corrosion
and deposits, the use of inhibitors such as
Sentinel X100 is recommended after clea-
ning the system.
It is important to check the concentration
of the inhibitor after each system modifica-
tion and during maintenance following the
manufacturer’s instructions (specific tests
are available at your dealer).
The safety valve drain must be connected
to a collection funnel to collect any dischar-
ge during interventions.
If the heating
system is on a higher floor than the boiler,
install the on/off taps supplied in kit code
8091809 on the heating system
delivery/return pipes.
WARNING:
Fail re to clean the heat system or add
an adeq ate inhibitor invalidates the devi-
ce’s warranty.
Gas connections must be made in accor-
dance with current standards and regula-
tions. When dimensioning gas pipes from
the meter to the module, both capacity
volume (consumption) in m3/h and gas
density must be taken into account.
The sections of the piping making up the
system must be such as to guarantee a
supply of gas sufficient to cover the maxi-
mum demand, limiting pressure loss
between the gas meter and any apparatus
being used to not greater than:
1.0 mbar for family II gases (natural gas);
2.0 mbar for family III gases (butane or
propane).
An adhesive data plate is sticked inside the
front panel; it contains all the technical data
identifying the boiler and the type of gas for
which the boiler is arranged.
2.4.1 Connection of condensation
water trap
The drip board and its water trap must be
connected to a civil drain through a pipe
with a slope of at least 5 mm per metre to
ensure drainage of condensation water.
The plastic pipes normally sed for civil
drains are the only type of pipe which is
appropriate for conveying condensation
to the b ilding’s sewer pipes.
2.4.2 Filter on the gas pipe
The gas valve is supplied ex factory with an
inlet filter, which, however, is not adequate to
entrap all the impurities in the gas or in gas
main pipes. To prevent malfunctioning of the
valve, or in certain cases even to cut out the
safety device with which the valve is equip-
ped, install an adequate filter on the gas pipe.
2.5 SYSTEM FILLING
The boiler and the heating system are filled
with water using the fill cock (fig. 6).
The charge pressure, with the system cold,
must be 1 bar.
Filling must be done slowly so as to allow
any air bubbles to be bled off through the air
valves.
2 INSTALLATION
Fig. 4
Fig. 5
CLOSE
Fig. 6
91
IT
ES
PT
GB

92
IT
ES
PT
GB
When yo have finished filling the system
close the fill cock.
2.6 COAXIAL DUCT ø 60/100
The air inlet-smoke outlet assembly, code
8096250, is included in the standard sup-
ply of the appliance complete with mounting
instructions.
2.6.1 Coaxial d ct
accessories
The accessories to be used for this type of
installation and some of the connecting
systems that may be adopted are illustred
in fig. 7.
With the pipe bend incl ded in the kit, the
maxim m length of the piping sho ld not
exceed 4.6 meter.
When the vertical extension code
8086950 is used, the terminal part of the
pipe must always come out horizontally.
2.6.2 Coaxial d ct o tlet
on the roof
The accessories to be used for this type of
installation and some of the connecting
systems that may be adopted are illustra-
ted in fig. 8.
It is possible to insert p to a maxim m of
three extensions and reach a maxim m
rectilinear distance of 7 meter.
Sho ld it be necessary to make two chan-
ges of direction in the pipe development,
the maxim m length of the pipe m st not
exceed 4.5 meter.
2.7 SEPARATE PIPES ø 80
A special kit may be used to separate the
flue gas outlet from the fresh air intake.
The intake may be installed to the right or
left of the flue gas outlet.
Both ducts may be oriented in any direction.
Refer to fig. 9 for positioning.
The maxim m overall length of the intake
and exha st d cts depends on the head
losses of the single fittings installed
(excl ding the do blers) and m st not be
greater than 13 mm H2O.
For head losses in the fittings, refer to
Table 2.
Fig. 7
KEY
1a-b Coaxial duct kit code 8096250
2a Extension L. 1000 code 8096150
2b Extension L. 500 code 8096151
3 Vertical extension L. 140 with take-off point code 8086950
4a 90° additional bend code 8095850
4b 45° additional bend code 8095950
IMPORTANT:
Each additional 90° c rve installed red ces the available length by 0.90 metres.
Each additional 45° c rve installed red ces the available length by 0.45 metres.
max 4,6 m
Fig. 9
156,5
133
246
63,5 134
CS
CA CA
118 Ø 80
Ø 80
166
KEY
CA Inlet
CS Outlet
Fig. 8
KEY
1 Vertical extension L. 140
with take-off points code 8086950
2a Extension L. 1000 code 8096150
2b Extension L. 500 code 8096151
3 Tile with articulation joint code 8091300
4 Roof outlet terminal L. 1285 code 8091205
5 Supplementary 90° elbow code 8095850
6 Supplementary 45° elbow code 8095950
max 7 m
NOTE
Before connecting
accessories, it is always
advisable to l bricate
the internal part of the
gaskets with silicon pro-
d cts. Avoid sing oils
and greases.
NOTE
Before connecting accessories, it is
always advisable to l bricate the
internal part of the gaskets with
silicon prod cts. Avoid sing oils
and greases.

93
IT
ES
PT
GB
2.7.1 Separate pipe accessories
Kit code 8089911 is supplied for this pur-
pose (fig. 10).
A complete range of accessories to meet all
installation requirements is shown in fig. 11.
2.7.2 Connection with
existing fl es
The ø 80 flue gas pipe may be connected to
an existing flue.
When the boiler is running at a low tempe-
rature, a regular flue may be used under
the following conditions:
No other boiler must be using the flue.
The flue interior must be shielded
from direct contact with condensation
from the boiler.
The products of combustion must be
conveyed through a flexible or rigid pla-
stic pipe around 100 to 150 mm in dia-
meter, and condensation must be sipho-
ned off at the foot of the pipe.
The usable height of the water trap must
be at least 150 mm.
Example of allowable installation calculation in that the sum of the head losses of the
single fittings is less than 12,5 mm H2O:
Inlet O tlet
7 m horizontal pipe ø 80 x 0,20 1,40
7 m horizontal pipe ø 80 x 0,40 2,80
n° 2 90° elbows ø 80 x 0,30 0,60
n° 2 90° elbows ø 80 x 0,50 1,00
N° 1 terminal ø 80 0,10 0,40
Total head loss 2,10 + 4,20 = 6,3 mm H2O
TABLE 2
Accessories ø 80 Total head loss ( mm H2O)
“PLANET DEWY 30/50 BF” model
Inlet Outlet Roof outlet
90° elbow MF 0,30 0,50
45° elbow MF 0,20 0,40
Extension L. 1000 (horizontal) 0,20 0,40
Extension L. 1000 (vertical) 0,30 0,30
Outlet terminal 0,40
Inlet terminal 0,10
Doubler fitting 0,30
Roof outlet terminal L. 1381 0,60
1
23
453
Fig. 10
Fig. 11
KEY
1 Blind flange
2 Flue gas duct flange
3 Fixing screw
4 Gasket ø 125/95
5 Intake duct collar
KEY
1 Separate pipes kit code 8089911
2 90° elbow MF (6 pz.) code 8077450
3 90° elbow MF
with take-off points code 8077452
4a Extension L. 1000 (6 pz.) code 8077351
4b Extension L. 500 (6 pz.) code 8077350
5 Outlet terminal code 8089501
6 Int.-est. ring kit code 8091500
7 Inlet terminal code 8089500
8 45° elbow MF (6 pz.) code 8077451
NOTE
Before connecting accessories, it is always
advisable to l bricate the internal part of the
gaskets with silicon prod cts. Avoid sing
oils and greases.

94
IT
ES
PT
GB
2.7.3 Separate-pipes roof o tlet
The accessories to be used for this type of
installation and some of the connecting
systems that may be adopted are illustra-
ted in fig. 12.
There is the possibility of doubling the air-
intake and smoke-outlet pipes and then brin-
ging them back together again so as to
obtain a concentric discharge by using the
doubler fitting (9 fig. 12).
For this type of discharge the s m of the
maxim m rectilinear development
allowed for the pipes m st not exceed
13 mm H2O.
When calculating the lengths of pipe, take
into account the parameters given in the
Table 2.
Fig. 12
KEY
1 Separate pipes kit code 8089911
2 90° elbow MF (6 pz.) code 8077450
3 90° elbow MF with take-off points code 8077452
4 a Extension L. 1000 (6 pz.) code 8077351
4 b Extension L. 500 (6 pz.) code 8077350
6 Int.-est. ring kit code 8091500
7 Inlet terminal code 8089500
9 Doubler fitting code 8091400
10 Tile with articulated joint code 8091300
11 Roof outlet terminal L. 1381 code 8091204
NOTE
Before connecting accessories, it is
always advisable to l bricate the internal
part of the gaskets with silicon prod cts.
Avoid sing oils and greases.

2.8 POSITIONING THE
OUTLET TERMINALS
The outlet terminals for forced-draught
appliances may be located in the external
perimeter walls of the building.
To provide some indications of possible solu-
tions, Table 1 gives the minimum distances
to be observed, with reference to the type
of building shown in fig. 13.
2.10 ELECTRICAL CONNECTION
The boiler is supplied with an electric cable.
Should this require replacement, it must be
purchased exclusively from SIME.
The electric power supply to the boiler must
be 230V - 50Hz single-phase through a
fused main switch, with at least 3 mm spa-
cing between contacts.
Respect the L and N polarities and the
earth connection.
NOTE: SIME declines all responsibility for
inj ry or damage to persons, animals or
95
IT
ES
PT
GB
TABLE 1
Siting of terminal Appliances from 7 to 35 kW
(distances in mm)
A - below openable window 600
B - below ventilation opening 600
C - below eaves 300
D - below balcony (1) 300
E - from adjacent window 400
F - from adjacent ventilation opening 600
G - from horizontal or vertical soil or drain pipes (2) 300
H - from corner of building 300
I - from recess in building 300
L - from ground level or other treadable surface 2500
M - between two terminals set vertically 1500
N - between two terminals set horizontally 1000
O - from a surface facing without openings or terminals 2000
P - as above but with openings and terminals 3000
1) Terminals below a practicable balcony must be located in such a way that
the total path of the smoke from its outlet point from the terminal to its
outlet point from the external perimeter of the balcony, including the hei-
ght of possible railings, is not less than 2000 mm.
2) When siting terminals, where materials that may be subject to the
action of the combustion products are present in the vicinity, e.g., eaves,
gutters and downspouts painted or made of plastic material, projecting
timberwork, etc., distances of not less than 1500 mm must be adopted,
unless adequate shielding is provided to guard these materials.
Fig. 13

96
IT
ES
PT
GB
things, res lting from the fail re to provi-
de for proper earthing of the appliance.
2.10.1 Room stat connection
(fig. 15 pos. A)
To gain access to the electronic board con-
nector (3), remove the control panel cover
and connect the room stat to the terminals
TA after having removed the jumper.
The thermostat or timer-thermostat,
recommended for better room temperatu-
re control, must be class II as specified by
standard EN 60730.1 (clean contact).
WARNING: Applying mains voltage to the
terminals of conector (3) will irreparably
damage the control board. Make s re
that any connections to be made are not
carrying mains voltage.
2.10.2 “Logica Remote Control”
connection (fig. 15 pos. B)
The electrical plant must comply with local
standards and all cables must comply with
low safety voltage requirements of EN
60730.
For lengths up to 25 m, use cables of sec-
tion 0.25 mm2, for longer lengths up to 50
m use cables of section 0.5 mm2.
First of all, assemble and wire the socket
(2), then insert the equipment which will
start-up as soon as it receives current.
To gain access to connector (3) remove the
control panel cover and connect the climate
regulator to terminals CR (6-7).
WARNING:
External voltage m st not be connected to
terminals 1-2-3-4 of the "Logica Remote
Control".
A telephone remote switch with a zero
potential contact or a window contact can
be connected to terminals 3-4.
Eq ipment for the checking of civil plants
via a telephone line incl des the model
TEL 30.4 LANDIS & STAEFA.
2.10.3 External temperat re
sensor connection
(fig. 15 pos. C)
The cables must comply with low safety vol-
tage requirements of EN 60730.
For lengths up to 25 m, use cables of sec-
tion 0.25 mm2, for longer lengths up to 50
m use cables of section 0.5 mm2.
To gain access to boiler connector (3) remo-
ve the control panel cover and connect the
external temperature sensor to terminals
SE (9-10).
3
TERMOSTATO
AMBIENTE
LOGICA REMOTE
CONTROL
LOGICA REMOTE
CONTROL
SONDA
ESTERNA
1
2
A
B
C

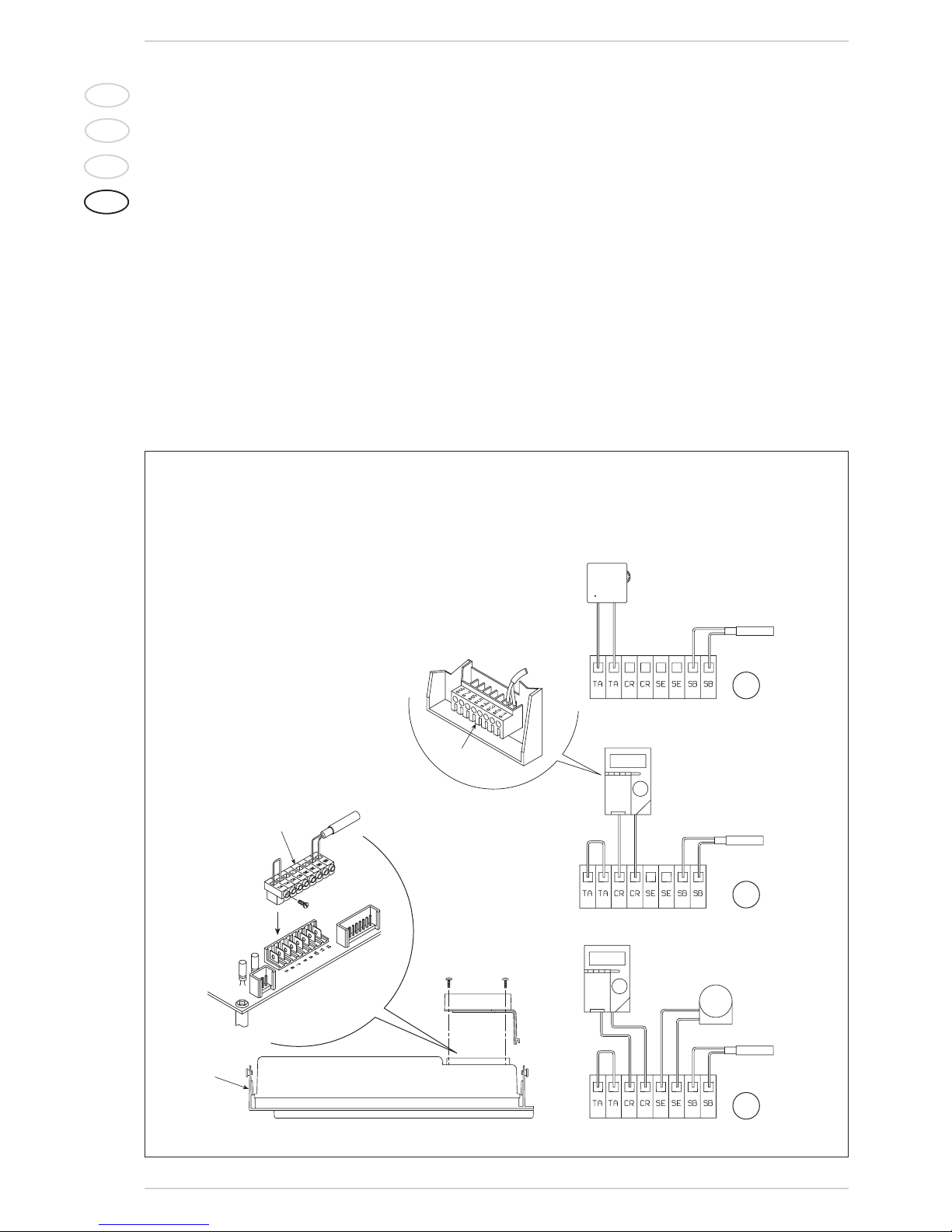

Fig. 15
KEY
1 Control panel
2 “Logica Remote Control” socket
3 Conector (J2)
TA Room stat (not supplied)
CR Logica Remote Control (optional)
SE External temperature sensor (optional)
SB D.H.W. sensor
EXTERNAL
SENSOR
ROOM STAT

97
IT
ES
PT
GB
J7 J5 J4
J3
J2
2.10.4 Wiring diagram
Fig. 16
KEY
EV1 Gas valve coil
EV2 Gas valve coil
EA Ignition electrode
ER Sensing electrode
TS 100°C safety stat
VFan
TPA Water pressure transducer
PI Heating system pump
SE External sensor (optional cod. 8094100)
TA Room stat
SM C.H. sensor
TL Limit stat
TRA Ignition transformer
TR Transformer 230 - 24V
FL Flowmeter
SB D.H.W. sensor
CR Logica Remote Control (optional cod. 8092204)
SV Ventilator board
OP Time programmer
TF Smoke stat
PB Heating system pump
Note: The room stat (TA) m st be connected to the
terminals 5-6
CONNECTOR SPARE PART CODES:
J2 code 6278613
J3 code 6278660
J4 code 6278659
J5 code 6278658
J7 code 6278636

98
IT
ES
PT
GB
2.11 LOGICA REMOTE CONTROL
All the boiler's functions can be managed
by a optional digital multifunctional device
code 8092204 for the remote of the boi-
ler itself and for regulating room climatic
conditions with an operational reserve of
12 hours.
The heating circuit is controlled by the room
temperature sensor built-in the equipment
or by the atmospheric conditions, with or
without environmental inflow, if the boiler is
connected to an external sensor.
Characteristics:
Ergonomic control unit divided according
to function (control levels)).
Clear division of basic functions:
•operating regime, correction of set
value and presence button are directly
accessible;
•Different real current values are
accessible through the "info" button;
•other functions can be programmed
after the cover has been opened;
•special service level with protected
access;
Each setting or modification is displayed
and confirmed.
Tome setting (special line for changing
BST/CET).
Heating programme with max. 3 heating
periods per day, individually selectable.
Copy function for easy transfer of hea-
ting programme to the next or pre-
vious day.
Holiday programme: the programme is
interrupted for the holiday period and
automatically restarted on returning
home.
Option to return the heating program to
default values.
Programming lock (child safety).
F nctions:
Delivery temperature control guided by
the atmospheric conditions, taking into
account the dynamics of the building.
Delivery temperature control guided by
atmospheric conditions with influence of
ambient temperature.
Ambient temperature control only.
Adjustable influence of ambient tempera-
ture shift .
Switch-on and switch-off optimisation.
Rapid lowering.
ECO functions (daily heating limiter, auto-
matic summer/winter switch-over).
Controllable maximum delivery tempera-
ture limit (specifically for floor plants).
Limitation of increase in pre-set delivery
temperature.
Anti-freeze protection for buildings.
Hourly programming of the tank unit
temperature on two levels: comfort and
reduced.
Domestic hot water control with nominal
value requirement and enable.
Connection to room sensor or switching
of operating regime through the telepho-
ne system with external contact or
through a window contact.
Anti-bacterial.
2.10.1 Installation
The unit must be installed in the main living
room. For installation, follow the assembly
instructions inserted in the package. At this
point, with the selector knob on ( ), the
installer can adjust the basic parameters set-
tings according to the individual needs (point
2.10.2). If there is a thermostatic radiator
valve fitted, this m st be set to maxim m.
2.10.2 Installation settings
The settings for the basic operating para-
meters for individual needs are reported in
the instruction leaflet supplied with the
"Logica Remote Control" and in the section
reserved for the user in this manual.
For further adjustments which can be car-
ried out by the installer, the "Logica Remote
Control" offers a level of service and para-
meterising which can only be accessed
through a special combination of buttons.
To activate this level of service or parame-
terising press buttons and least 5
seconds. This will activate the parameteri-
sing level. Then use the same arrow buttons
to select the individual input lines and adjust
the values with or .
Antifreeze protection
"Pre-set ambient
temperat re val e"
S mmer/Winter switch-over
temperat re
Type of control:
0 = with ambient infl ence
1 = witho t ambient infl ence
Infl ence of ambient temperat re
Heating takes place up to this pre-set value if the plant is activated in standby
(e.g. holidays).
In this way, the building antifreeze function is active, preventing an excessive
lowering of the ambient.
This parameter regulates the temperature of the automatic summer/win-
ter switch-over.
This parameter de-activates the ambient influence and as a result all the
optimisations and adaptations.
If a valid external temperature is not transmitted , the controller switches to
the pure ambient control guide variable.
If the ambient controller is used only as a remote control (placed in the refe-
rence room and without an external sensor connected), the value must be
set at 0 (zero).
If the change in ambient temperature from the pre-set value remains high
during the entire day, the influence must be increased. If the ambient tem-
perature is around the pre-set value (control oscillation), the influence must
be reduced.
Note: If the ambient temperat re infl ence constant is set at 0, the adap-
tation of the heating c rve is deactivated. In this case, parameter 57 will
have no effect at all.
54
HEATING CIRCUIT SETTINGS
52
53
51

99
IT
ES
PT
GB
DOMESTIC HOT WATER SETTINGS
Red ced domestic hot
water pre-set val e
Domestic hot water load
The reduced pre-set value of the temperature of the domestic hot water allow
the required water temperature to be obtained outside the programmed
usage times (daily programme 8).
0= 24 hours/ day - Hot water is always available at the temperature set
with user parameter n°3.
1= standard - Hot water according to the daily heating programme.
In the comfort areas of heating the temperature of the boiler unit is regu-
lated to the value set with user parameter n° 3.
In the reduced areas of heating the temperature of the boiler unit is
regulated to the value set with parameter n° 61 of the service level.
2= service disconnected
3= second daily programme (8) - Every day of the week the temperature of
the hot water is set according to programme 8. In this case there is a
single programming for all the days of the week and three time zones are
available. In the time spans set the temperature of the boiler unit is regu-
lated according to that set in parameter n°3. In the remaining hours the
boiler unit is controlled to the temperature set with parameter n° 61 the
of service level.
62
61
Maxim m limit of delivery
temperat re
Variation of the maxim m speed of the
delivery temperat re
Activation of adaptation
Optimisation of
switch-on time
Heating gradient
Presetting switch-off
time (00 = off)
The delivery temperature is limited to the maximum set value.
The increase per minute of the prescribed delivery temperature value sent
in °C is limited to the imposed value.
With the activation of the adaptation, the pre-set value transmitted to the
boiler regulator is adapted to the effective heat need.
The adaptation functions with both the atmospheric guide with ambient
influence and with pure ambient control.
If the "Logica Remote Control" is set as a remote control only, the adaptation
must be is deactivated.
If the switch-on time optimisation is active, the "Logica Remote Control" modi-
fies the heating gradient until it finds the optimum heating point
0 = off 1 = on
The "Logica Remote Control" selects the switch-on time such that the set
value has more or less been reached at the start of the usage time.
The more severe the night-time cooling, the earlier the heating time starts.
Example: Current ambient temperature 18.5°C
Nominal ambient temperature 20°C
Heating gradient 30 min/K
Presetting of switch-on time:
1.5 K x 30 min/K = 45 minutes
00 means that the switch-o time has not been pre-set (function disabled).
If the switch-off time optimisation is active (value > 0), the "Logica Remote
Control" modifies the pre-set time until it finds the optimum switch-off time..
55
56
57
58
59
60
Final ser level 2
programming block
This block (1) can be activated to display all the parameters without
modifying them. Pressing buttons or displays “OFF”.
WARNING:
The activation block can be deactivated temporarily by pressing buttons
and simultaneously; a confirmation sign appears on the display.
At this point press simultaneously the buttons and for at least 5
seconds.
To permanently remove the activation block, set parameter 63 on 0.
63
SERVICE VALUES

100
IT
ES
PT
GB
Inp t f nction terminal 3-4
The freely programmable input (terminals 3-4) allows three different functions
to be activated. The parameter has the following significance:
1= If an external sensor is connected, the display will show the temperature
of the external sensor ( _ _ = no sensor connected, function disabled).
2= With an external contact, it is possible to switch-over to "reduced pre-
set value of the ambient temperature".
3= With an external contact, it is possible to switch-over to "reduced pre-
set value of the antifreeze ambient temperature" (short circuit 0 0 0 or
interruption _ _ _ ). The display shows the current status of the external
contact.
64
Modo de acção do contacto externo
Infl xo das sondas
ambiente + externa
Anti-bacterial f nction
(with storage capacity boiler nit)
Se a entrada (bornes 3 e 4 do ropadé) está ligada a um contacto externo de
potencial zero (parâmetro 64 = 2 ou 3), pode ser determinado o modo de
acção do contacto (tele-interruptor do telefone ou contacto janela). O modo de
acção especifica o estado de contacto no qual a função desejada está activa.
Display: modo de acção fechado (curto-circuito) 0 0 0
modo de acção aberto (interrupção) _ _ _
Determina o coeficiente de mistura entre a sonda ambiente interna e exter-
na, quando o parâmetro 64 = 1.
0 % = activa só a sonda interna (0% externa - 100% interna)
50 % = valor médio da sonda externa + interna
100 % = activa só a sonda externa
Para a regulação ambiente e a visualização, é utilizada a mistura programa-
da. Se a sonda externa apresenta um curto-circuito ou uma interrupção
prossegue-se com a sonda interna.
This function allows the hot water to be brought to a high temperature once
a week in order to eliminate eventual pathogenic agents.
It is active every Monday for a maximum duration of 2.5 hours at a delivery
temperature of 65°C.
0 = not active 1 = active
65
66
69
2.11.3 Gradient of the characteristic
heating c rve
The gradient of the characteristic heating
curve is imposed on the current value “15”
of Logica. Increasing the gradient as shown
in the drawing of fig. 17, the delivery tempe-
rature increases in correspondence to the
outside temperature.
2.12 EXTERNAL TEMPERATURE
SENSOR
The "Logica Remote Control" can be connec-
ted to an external temperature sensor availa-
ble a an optional extra (code 8094100). This
configuration ensures and maintains the
required temperature constant in the room.
The ambient temperature is, in fact, indicted
and evaluated as the calculated mean of the
value measured inside and outside the dwel-
ling. For installation, follow the assembly
instructions inserted in the package.
Fig. 17
Example: Choosing a gra-
dient of 15 with an outsi-
de temperature of 10°C
we shall have a delivery
temperature of 60°C.

101
IT
ES
PT
GB

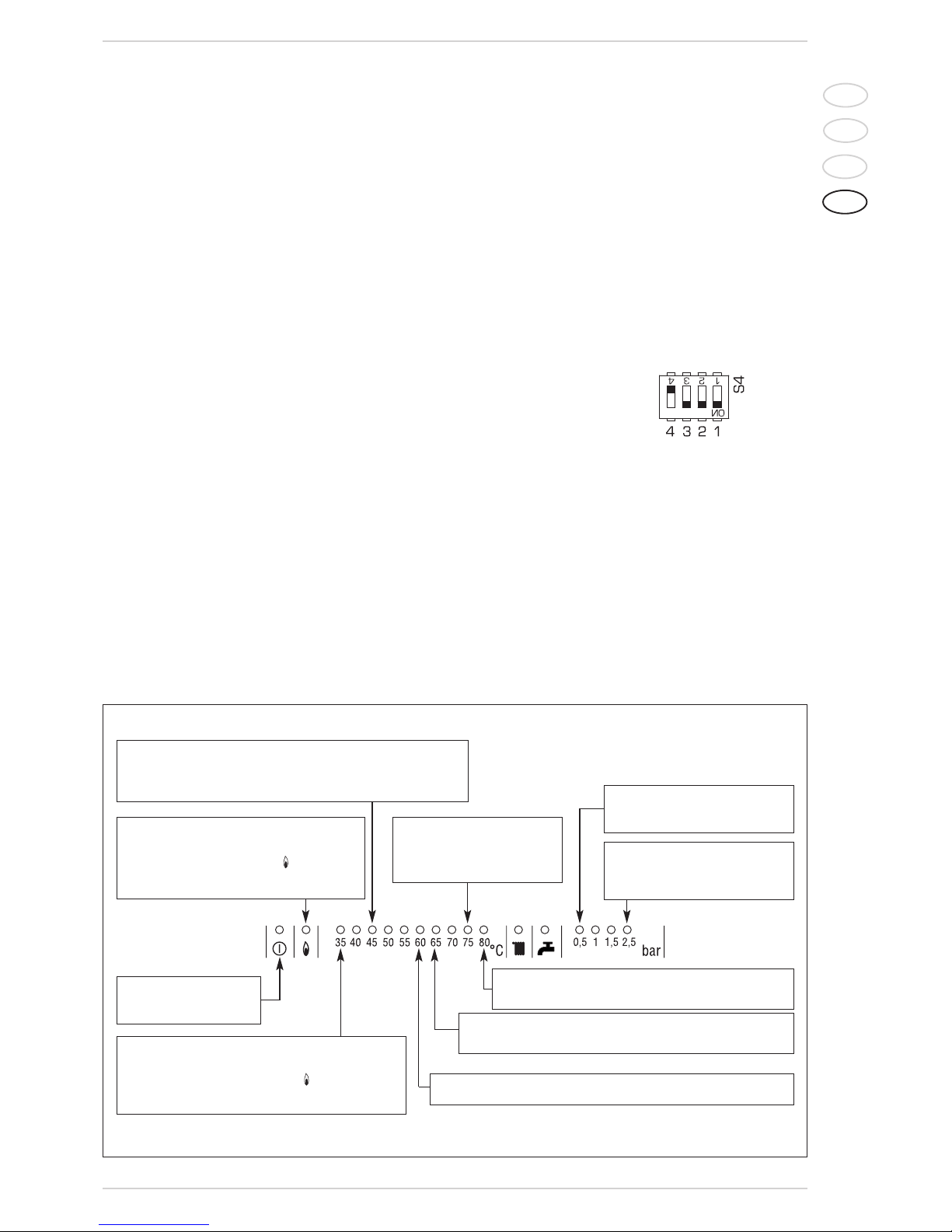

Flashing red led,
communication fault
with “Logica Remote Control”
Green led off if
power is cut-off
Flashing red led, water
pressure is too low (*)
Flashing red led, heating sensor fault (SM)
Flashing red led,
plant safety
valve tripped (*)
Red led on, ignition blocked:
rotate selector CR/OFF/EST/INV/RESET
to release position ()
to restore operation
Flashing red led, safety stat tripped.
Rotate selector CR/OFF/EST/INV/RESET
to release position ()
to restore operation
Flashing red led, fan.
30 minutes after the fan has switched off,
the board will attempt a restart
(*) When all 0.5 to 2.5 bar leds are off, check the water pres-
sure transducer connection.
Fig. 18
A flashing red Led indicates an anomaly on the D.H.W. sensor (SB)
Flashing red led, flame detection circuit fault
3.1 ELECTRONIC BOARD
The electronic boards are manufactured in
compliance with the EEC 73/23 low-voltage
directives. They are supplied with 230V and,
through a built-in transformer, send a volta-
ge of 24V to the following components: gas
valve, safety stat, C.H. and D.H.W. sensor,
external temperature sensor (optional),
modulator, flow switch safety valve, water
pressure transducer, flue gas thermostat,
room stat or “Logica Remote Control”.
An automatic and continuous modulation
system enables the boiler to adjust the heat
output to the various system requirements
or the User’s needs. The electronic compo-
nents are guaranteed against a temperatu-
re range of 0 to +60°C.
3.1.1 Fa lt finding
The indicator leds signalling irregular
and/or incorrect operation of the equip-
ment are indicated in fig. 18.
3.1.2 Devices
The electronic board is equipped with the
following devices:
“POT. RISC.” trimmer (10 fig. 19)
Sets the maximum heating power value.
To increase the value turn the trimmer
clockwise; to reduce the value turn the
trimmer anticlockwise.
“POT. ACC.” trimmer (6 fig. 19)
Trimmer to vary the pressure level upon
ignition (STEP), of the gas valve.
According to the type of gas for which
the boiler is equipped, the trimmer must
be regulated so as to obtain a pressure
of approx. 3 mbar at the burner for
methane gas and 7 mbar for propane
gas (G31). To increase pressure, turn
the trimmer clockwise; to reduce pres-
sure, turn the trimmer counterclockwi-
se. The slow ignition pressure level can
be set during the first 3 seconds fol-
lowing burner ignition.
After setting the press re level pon
ignition (STEP) according to the type of
gas, check that the press re for hea-
ting is still at the val e previo sly set.
“MET-GPL” connector (7 fig. 19)
When the connector is not connected
up the boiler is ready to operate on
NATURAL GAS. With connector installed
for PROPANE fuelled operation.
“ANN. RIT.” connector (5 fig. 19)
In the heating phase, the electronic board
is programmed to include a burner tech-
nical delay interval of approx. 90 seconds,
which occurs both at system cold star-
ting and at subsequent re-ignitions. The
aim is to overcome the problem of repea-
ted ignitions and turning off with very
short time intervals between. This could
occur in particular in systems presenting
high head losses. At each restart after
the period of slow ignition, the boiler will
set itself for about 1 minute at the mini-
mum modulation pressure, and will then
move to the heating pressure value set.
When the connecting link is inserted,
both the programmed technical pause
and the period of operation at minimum
pressure in the startup phase will be can-
celled. In this case, the times elapsing
between turning off and subsequent re-
ignition will depend on a temperature dif-
ference of 5°C detected by the SM sen-
sor (heating flow sensor).
DIP SWITCH (13 fig. 19)
Check that the cordless plugs are inser-
ted in the position indicated:
“Mod reg Sel.” connector (14 fig. 19)
W ith the bridge disconnected the boiler
is predisposed to function with the SIT
gas valve, and with the bridge connected
it is predisposed to function with the
HONEYWELL gas valve.
“Albatros” connector (15 fig. 19)
The bridge must always be disconnected.
It is connected only when multiple boilers
are installed in a sequence/cascade.
ATTENTION: It is essential that the opera-
tions described above be carried o t by
a thorized technical staff.
3 CHARACTERISTICS

102
IT
ES
PT
GB
3.2 TEMPERATURE SENSOR
AND WATER PRESSURE
TRANSDUCER
Tables 3 - 3/a show the resistance values
(Ω) that are obtained on the sensor as the
temperature varies and the transducer
values obtained as the pressure varies.
When sensor (SM) is interr pted, neither
of the boiler's heating services will f nc-
tion. With D.H.W. (SB) sensor interr p-
ted, the boiler will only work in heating
mode.
3.3 ELECTRONIC
IGNITION
Ignition and flame detection is controlled
by two electrodes located on the burner.
These guarantee maximum safety with
intervention times, for accidental swit-
ching off or gas failure, of within one
second.
3.3.1 Operating cycle
Rotate the selector knob to summer or win-
ter, and verify that green led ( ) lights up to
confirm the presence of voltage.
The boiler is now ready to start working
upon demand for heating or drawing off
of D.H.W.; a discharge current is sent to
the ignition electrode through the pro-
grammer, and the gas valve opens at the
same time.
The burner must be ignited
within 10 seconds.
However, it is possible
for ignition failures to occur, with conse-
quent activation of signal indicating that the
control box has “locked out”.
Gas fail re
The control box runs through the cycle
normally sending electric power to the
ignition electrode. The electrode conti-
nues spark discharge for a maximum of
10 sec.If the burner does not light, the
lock-out indicator will light up.
15 13
1
3
5
7
8
910 11
12
14 6
610
Fig. 19
TABLE 3 (Sensors)
Temperature (°C) Resistance (Ω)
20 12.090
30 8.313
40 5.828
50 4.161
60 3.021
70 2.229
80 1.669
TABLE 3/a (Transd cer)
Pressure Resistance (Ω)
(bar) mín máx
0 297 320
0,5 260 269
1 222 228
1,5 195 200
2167173
2,5 137 143
3108113
3,5 90 94
KEY
1 Ignition electrode earth faston
3 Fuse (1,6 AT)
4 Fuse(0,16 AT)
5 “ANN. RIT.” connector
6 “POT. ACC.” trimmer
7 Conector “MET-GPL”
8 D.H.W. potentiometer
9 Detector electrode faston
10 “POT. RISC.” trimmer
11 C.H. potentiometer
12 Selector CR/OFF/EST/INV/RESET
13 DIP SWITCH
14 Connector “Modureg Sel.”
15 Connector “Albatros”
NOTE: To gain access to trimmers (6) and
(10), nscrew the central heating potentiome-
ter knob.

103
IT
ES
PT
GB
This may occur upon first ignition or
after long periods of boiler lay-off when
there is air in the pipes. It may be caused
by the gas cock being closed or by one of
the valve coils having a break in the win-
ding, so that the valve cannot open.
Ignition electrode fails to spark
In the boiler, only the gas to the burner
is seen to open. After 10 sec. the war-
ning light indicating equipment “lock-
out” lights up.
This may be due to a break in the wire of
the electrode or to the wire not properly
fastened to the electric terminal of the
control box;
No detection of flame
The continuous spark discharge of the
electrode is noted starting from ignition
even though the burner is lit.
After 10 seconds have elapsed, the
sparks cease, the burner goes out, and
the warning light indicating equipment
“lock-out” lights up.
There could have a break in the wire of
the sensing electrode or the electrode
itself is touching earth: the electrode is
worn out and needs replacing. The con-
trol box is defective.
When there is a sudden voltage failure, the
burner shuts out immediately; when power
supply returns, the boiler will start up again
automatically.

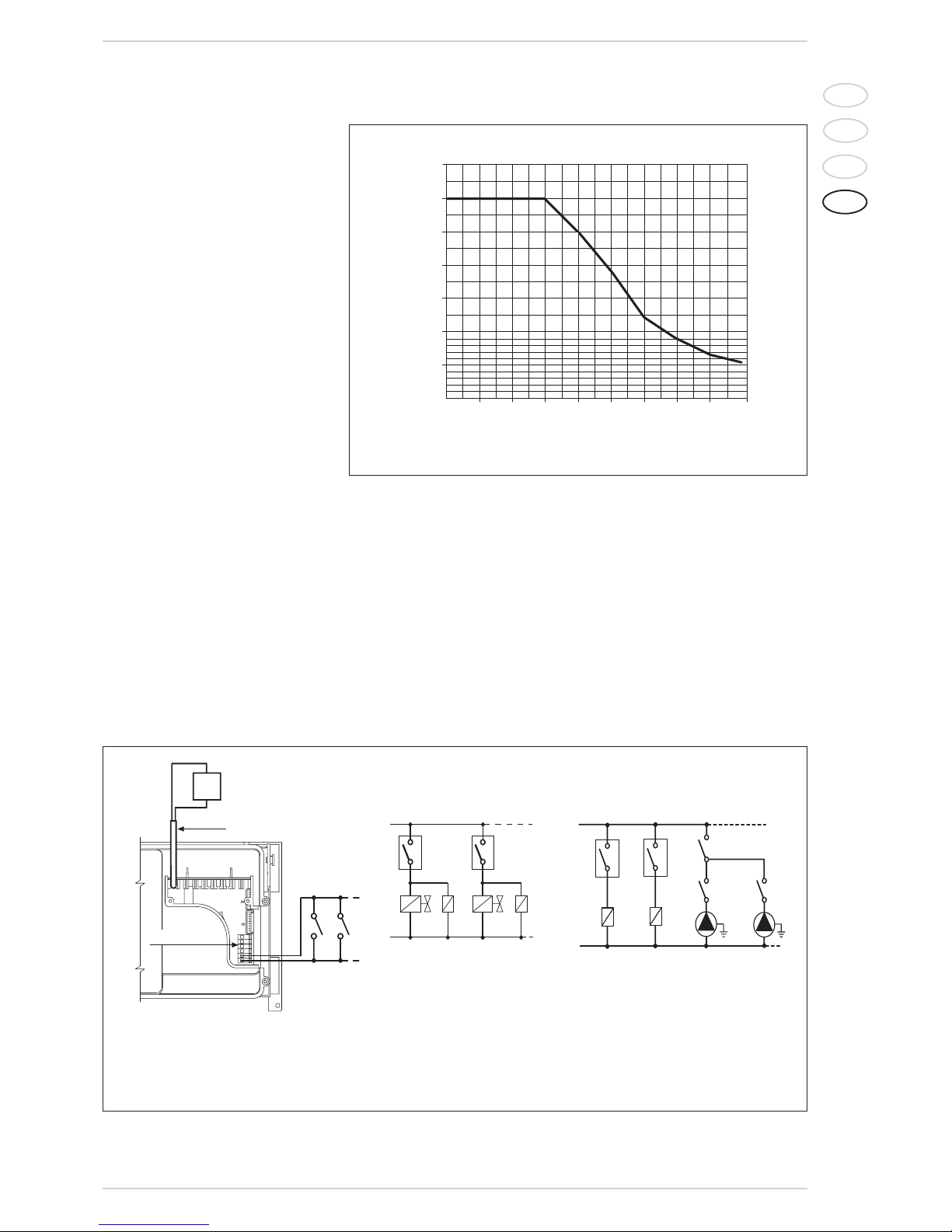

3.4 SYSTEM AVAILABLE HEAD
The head available for the heating plant is
shown as a function of the flow in graph in
fig. 20.
3.5 FLOW SWITCH SAFETY VALVE
A flow switch safety valve intervenes,
blocking the operation of the burner if the
boiler is without water due to the formation
of an air lock in the heat exchanger or if the
circulator is not working, or because the
“Aqua Guard” filter is obstructed with impu-
rities.
NOTE: If replacing the flow switch valve,
make s re that the arrow stamped on the
valve points in the same direction as the
flow of water.
3.6 MAINS
ELECTRICITY
CONNECTION
Use a separate electricity supply to con-
nect the room stats and relative zone val-
ves.
The micro or relay contact connection is
made to TA-CR-SE (J2) connector of the cir-
cuit board after having removed the jum-
per (fig. 21).
0
390
100 800 700600500400300200
PORTATA (l/h)
PREVALENZA RESIDUA (mbar)
380
370
300
350
360
Planet Dewy 30/50
900
400
Fig. 20
FLOW RATE (l/h)
RESIDUAL HEAD (mbar)
CR1
CR
TA
TA
Connettore J2
CIRCUITO CON POMPE DI ZONA
NOTA: Sostituire la pompa impianto della
caldaia con il tronchetto optional cod. 8094001.
Collegare il cavo della pompa impianto ad un
relè di potenza (RL).
L
N
TA1 CRL
R1 P
TA
RP1
CR CR1
RL Cavo
pompa
impianto
CIRCUITO CON VALVOLE DI ZONA
L
N
TA TA
1
VZ RVZ
1
R 1
NOTA: I relé vengono impiegati solo
nel caso le valvole di zona siano
prive di micro.
Fig. 21
KEY
TA-TA1 Zone room stat
VZ-VZ1 Zone valve
R-R1 Zone relay
CR-CR1 Relay contact or
micro zone valve
P-P1 Zone pump
RL Power relay
CRL Power relay contact
J2 connector
Pump cable
1. CIRCUIT WITH ZONE VALVES 2. CIRCUIT WITH ZONE PUMPS
NOTE: Relays are used only if
the area valves have no
microswitches. NOTE: Replace the heating pump with the
optional stub pipe, code 8094001. Connect
the pump cable to a power relay (RL).

104
IT
ES
PT
GB
4.1 D.H.W. PRODUCTION
The preparation of hot water is guaranteed
by the glass storage tank unit with magne-
sium anode for the protection of the boiler
unit and inspection flange for its control and
cleaning.
The magnesi m anode m st be checked
ann ally and s bstit ted when it is worn.
It is advisable to place a sluice gate at the
entrance of the D.H.W. tank unit which,
apart from the total closure, allows the reg-
ulation of the supply capacity.
If the boiler does not prod ce hot water,
make s re that the air has been released
by pressing on the man al vents after hav-
ing switched off the main switch.
4.2 GAS VALVE
The boiler, is equipped standard with the
SIT 848 SIGMA gas valve (fig. 22).
4.3 ADJUSTMENT OF HEAT
OUTPUT FOR HEATING
To adjust boiler heat output for heating pur-
poses, i.e., modifying the setting made at the
factory which is approximately 17 kW, use a
screwdriver to adjust the heating heat out-
put trimmer (8 fig. 23).
To increase working pressure, turn the trim-
mer clockwise; to reduce pressure, turn the
trimmer counterclockwise.
To determine boiler heat output setting,
check energy consumption by observing the
meter and then compare with the values
shown in Table 4; or checked with a digital
pressure gauge connected (segno +) alla
presa (7 fig. 23). Compare values with
those shown in Table 4.
4 USE AND MAINTENANCE
TABLE 4
* The gas consumptions refer to the calorific value at standard conditions at 15°C - 1013 mbar.
Fig. 23
Fig. 22
7
B
1
2
3
45
6
Pressure Variable heat output Gas consumption* Gas consumption*
mbar (80-60°C) (50-30°C) G20 G31
kW kW m3/h kg/h
9,18 29,2 32,2 3,17 2,33
6,37 24,1 26,7 2,64 1,94
4,08 19,2 21,2 2,12 1,55
2,30 14,3 15,8 1,59 1,17
1,11 9,5 10,5 1,06 0,78
0,80 7,6 8,4 0,85 0,62
KEY
1 Upstream pressure intake
2 Intermediate pressure intake
3 Air signal inlet (VENT)
4 Downstream pressure intake
5 Capacity step
6 OFF-SET

Adj stment and control operations m st be performed with the heater in operation while heating is nderway
AIR CALIBRATION
Electrically disconnect the hea-
ting probe (SM) and connect
the wires to another similar
free probe. Turn the heating
potentiometer knob to the
maximum setting, remove the
knob and connect the differen-
tial manometer (+ sign) to the
air pressure intake [7 - Drawing
1].
Seq ence of operations:
1) Turn the heating power trim-
mer anticlockwise to the
bottom of the scale [B -
Drawing 2].
2) Calibrate the air signal using
the minimum fan power
adjustment trimmer [MIN. -
Drawing 3] to obtain the
figure in mmH2O shown in
the table:
3) Turn on a hot water tap to
bring the boiler up to maxi-
mum hot water power.
4) Calibrate the air signal using
the maximum fan power
adjustment trimmer [MAX. -
Drawing 3] to obtain the
figure in mmH2O shown in
the table:
GAS CALIBRATION
Connect the differential mano-
meter (+ sign) with decimal
scale in mm or Pascal to the
gas intake [4 - Drawing 4].
Seq ence of operations:
1) Turn the heating power adju-
stment trimmer anticlockwi-
se to the bottom of the
scale [B - Drawing 5].
2) Open the gas capacity step
all the way [5 - Drawing 6].
3) Calibrate minimum gas
pressure using the OFF-SET
adjustment screw [6 -
Drawing 6] to obtain the
figure in mmH2O shown in
the table:
4) Close the gas capacity step
[5 - Drawing 6] to obtain the
value in mmH2O shown in
the table:
5) Turn on a hot water tap to
bring the boiler up to maxi-
mum hot water power.
6) Calibrate the maximum gas
pressure using the gas
capacity step [5 - Drawing
6] to obtain the figure in
mmH2O shown in the table:
After completion of calibration operations, check CO2values using a combustion analyser. If discrepancies are found with respect to the
values appearing in the tables, correct as necessary:
Use the OFFSET screw (
6 Drawing 6 ) to correct CO2at “MIN” output.
Use the capacity step to correct CO2at “MAX” output (
5 Drawing 6 ).
30/50 BF
G20 7,6/8,0
G31 7,3/7,6
“Planet Dewy 30/50 BF”
CO2(Methane) CO2(Propane)
“MIN” power 9,0 ±0,3 10,0 ±0,2
“MAX” power 9,0 ±0,3 10,0 ±0,2
7
Drawing 1
B
Drawing 2
30/50 BF
G20 85/95
G31 89/101
30/50 BF
G20 7,2/7,5
G31 7,3/7,6
30/50 BF
G20 77/87
G31 86/96
30/50 BF
G20 6,9/7,2
G31 7,2/7,5
Drawing 3
4
Drawing 4
B
Drawing 5
5
6
Drawing 6
GAS CONVERSION
Close the gas cock.
Replace the injector (pos. 30)
and the relevant gasket (pos.
45).
Cut the specified resistance on
the fan control board.
Test for soundness all the gas
connections using soapy water
or appropriate products.
DO NOT USE NAKED FLAMES.
Stick onto the casing panel the
plate showing the relevant fee-
ding gas.
Proceed with air and gas cali-
bration as described below.
28 106
16 14
28
34
35
64
65
45
57
30
29
4.4 BOILER CALIBRATION
Fig. 24
105
IT
ES
PT
GB

106
IT
ES
PT
GB
4.5 DISASSEMBLY OF
EXPANSION VESSEL
To disassemble the expansion vessel, pro-
ceed as follows:
Make sure that the water has been emp-
tied out of the boiler.
Unscrew the connection and the locknut.
Remove the expansion vessel.
Before refilling the system, using a pressu-
re gauge attached to the valve make sure
that the expansion vessel is preloaded at a
pressure of 0.8 to 1 bar.
4.6 CLEANING AND
MAINTENANCE
Preventive maintenance and checking of
efficient operation of equipment and safety
devices must be carried out exclusively by
authorized technical personnel.
4.6.1 Chimney sweep f nction
To carry out the verification of combustion
in the boiler, turn the selector and stop on
the position ( ) until the orange led ( )
starts to flash intermittently (fig. 25).
From that moment the boiler will start func-
tioning in heating mode at the maximum
power, with switching off at 80°C and
restarting at 70°C.
Before activating the chimney sweep f nc-
tion make s re that the radiator valves or
event al zone valves are open.
The test may be carried out also during hot
water functioning. To do so it is enough,
after having activated the chimney sweep
function, to take some hot water from one
or more taps; after a few minutes the
request of the hot-water service feeler is
activated and it automatically switches on
the led ( ). Even in this condition the boil-
er functions at the maximum temperature
always with the primary controlled between
80°C and 70°C. During the entire duration
of the testing the hot water taps must
remain open. After verifying the combustion
the boiler should be switched off by placing
the selector on the (OFF) position; then
return the selector to the desired function.
ATTENTION: After abo t 15 min tes the
chimney sweep f nction a tomatically
deactivates.
SPIA GIALLA INTERMITTENTE
Fig. 25
FLASHING YELLOW LED
