Sime MURELLE EV HE 30 User manual

MURELLE ELITE
HE 30-35-35 T
USER INSTRUCTIONS
ENSURE THAT THESE
INSTRUCTIONS ARE LEFT
FOR THE USER AFTER
COMPLETION OF THE
BENCHMARK SECTION
PLEASE READ THE
IMPORTANT NOTICE
WITHIN THIS GUIDE
REGARDING YOUR BOILER
WARRANTY
UK Cod. 6322737A - 07/2019
199839

All descriptions and illustrations provided in this manual have been carefully prepared but we reserve the right to make
changes and improvements in our products that may affect the accuracy of the information contained in this manual.
IMPORTANT NOTICE
For the first year all of our appliances are protected by our manufacturer’s guarantee which covers both
parts and labour.
As you would expect from Sime Ltd, it is our aim to provide our valued customers with the best in after sales
and service.
To take advantage of any extended warranty offered, all you have to do is to adhere to these 3 simple condi-
tions:
• The installation must be carried out to Manufacturers/Benchmark Standards by a Gas Safe Registered
Engineer, and recorded in the installation manual.
• The appliance must be registered with both Sime Ltd and Gas Safe within 30 days of installation.
• The appliance must be serviced annually, by either Sime Ltd or a Gas Safe registered engineer- ensuring
that the Benchmark service record in the installation manual is completed.
Failure to comply with the above will result in only the 12 month warranty being offered.
In the absence of any proof of purchase, the 12 month warranty period will commence from the date of manu-
facture of the boiler as shown on the appliance data plate.

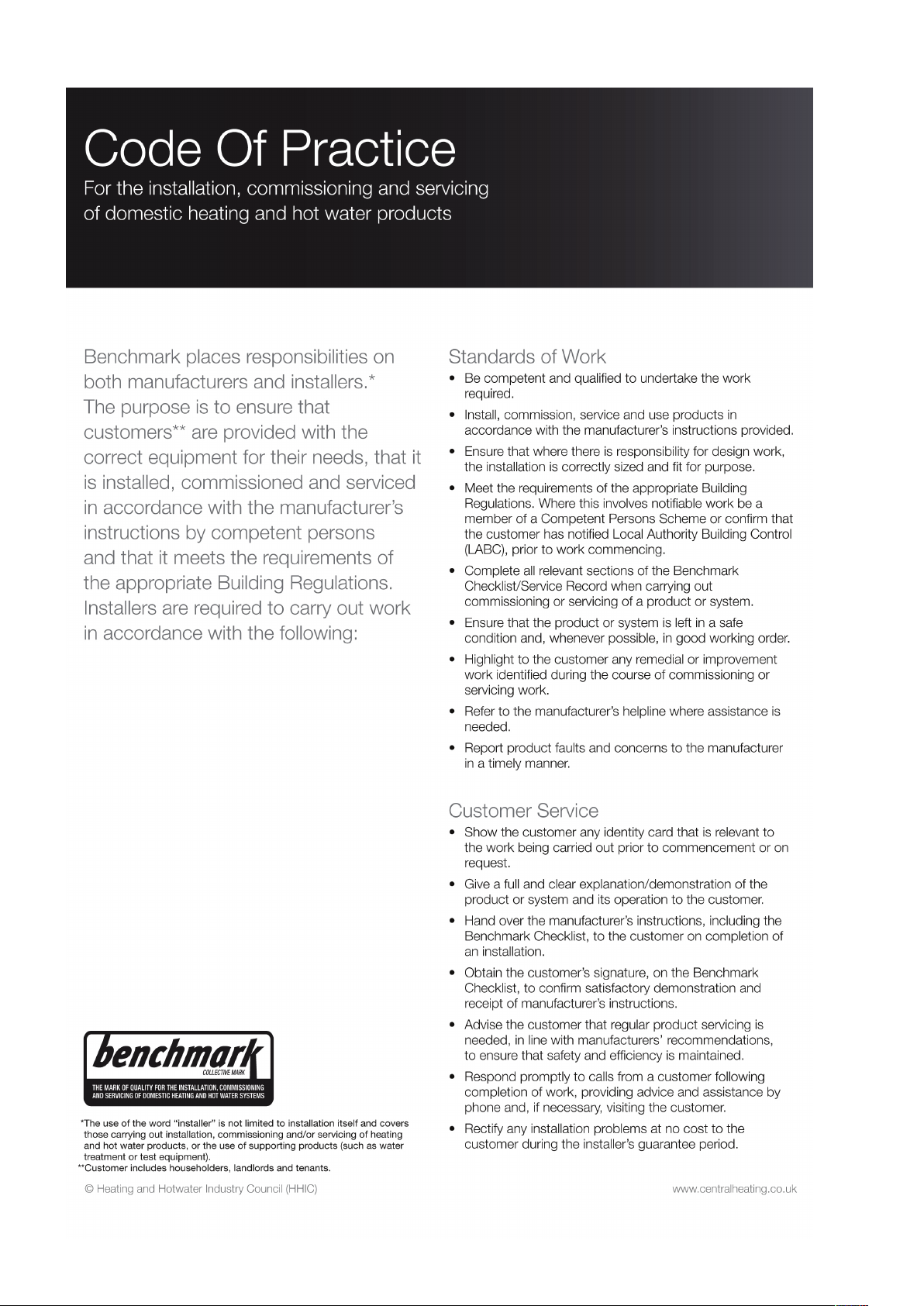

The Benchmark Scheme
Sime Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of instal-
lation and commissioning of domestic heating and hot water systems in the UK and to encourage regular
servicing to optimise safety, efficiency and performance.
Benchmark is managed and promoted by the Heating and Hotwater Industry Council.
For more information visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist in the use and maintenance
section of the installation instructions supplied with the product and that you have signed it to say that you
have received a full and clear explanation of its operation.
The installer is legally required to complete a commissioning checklist as a means of complyng with the
appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent
Persons Scheme.
A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt,
write the Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance.
The service engineer should complete the relevant Service Record on the Benchmark Checklist after each
service.
The Benchmark Checklist may be required in the event of any warranty work and as supporting documen-
tation relating to home improvements in the optional documents section of the Home Information Pack.

OPERATING INSTRUCTIONS FOR THE USER
1.1 INTRODUCTION ...................................................................................................................................... 6
1.2 APPLIANCE OPERATION
1.3 OPERATING INSTRUCTIONS
1.4 ERRORS AND SOLUTIONS ..................................................................................................................... 8
1.5 MINIMUM CLEARANCES
1.6 ROUTINE SERVICING
1.7 ELECTRICAL SUPPLY ............................................................................................................................. 9
1.8 VENTILATION
1.9 SAFETY

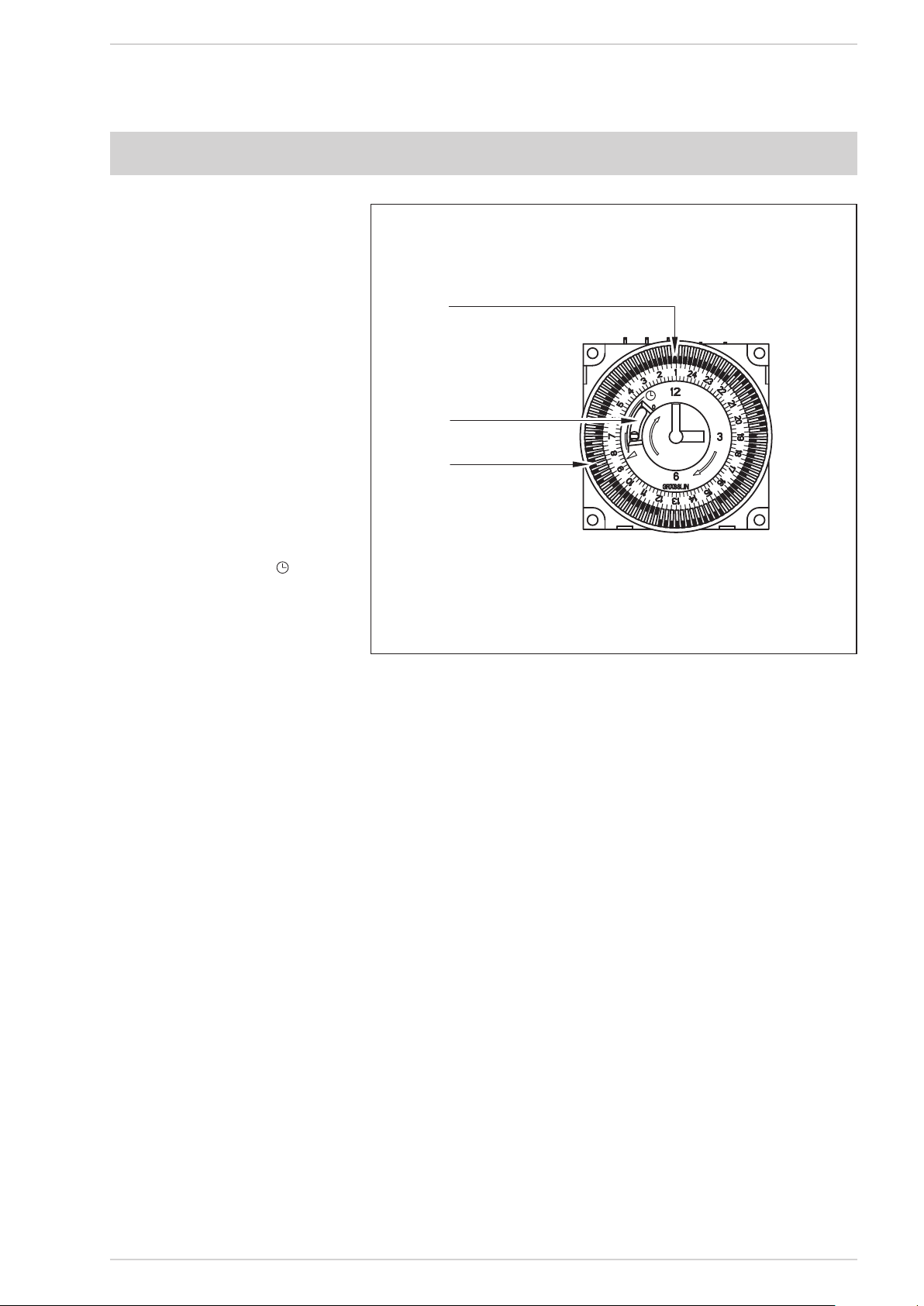

MECHANICAL TIME CLOCK (CODE 8092228)................................................................................................... 10

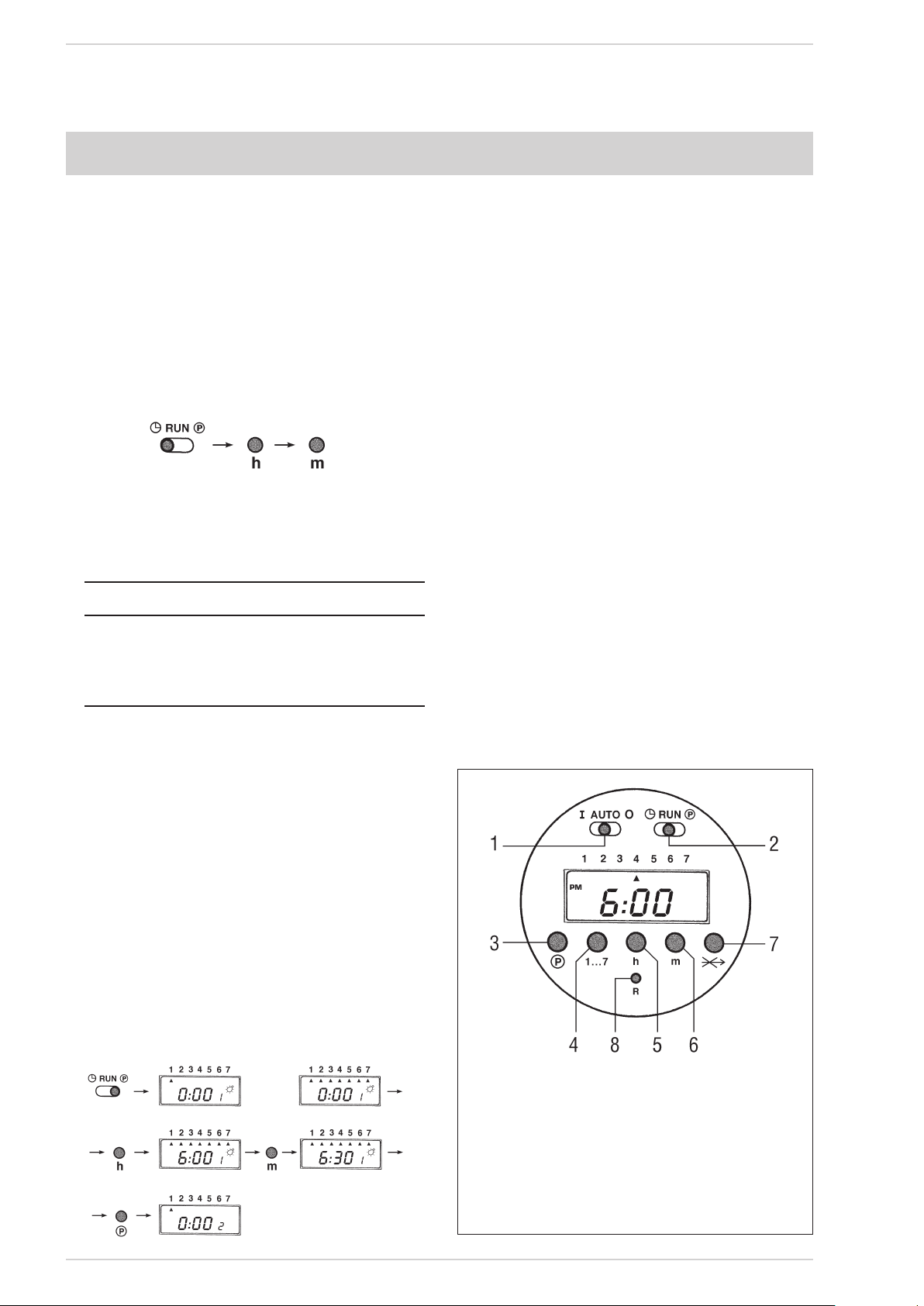

DIGITAL TIME CLOCK (CODE 8092229) ............................................................................................................ 11

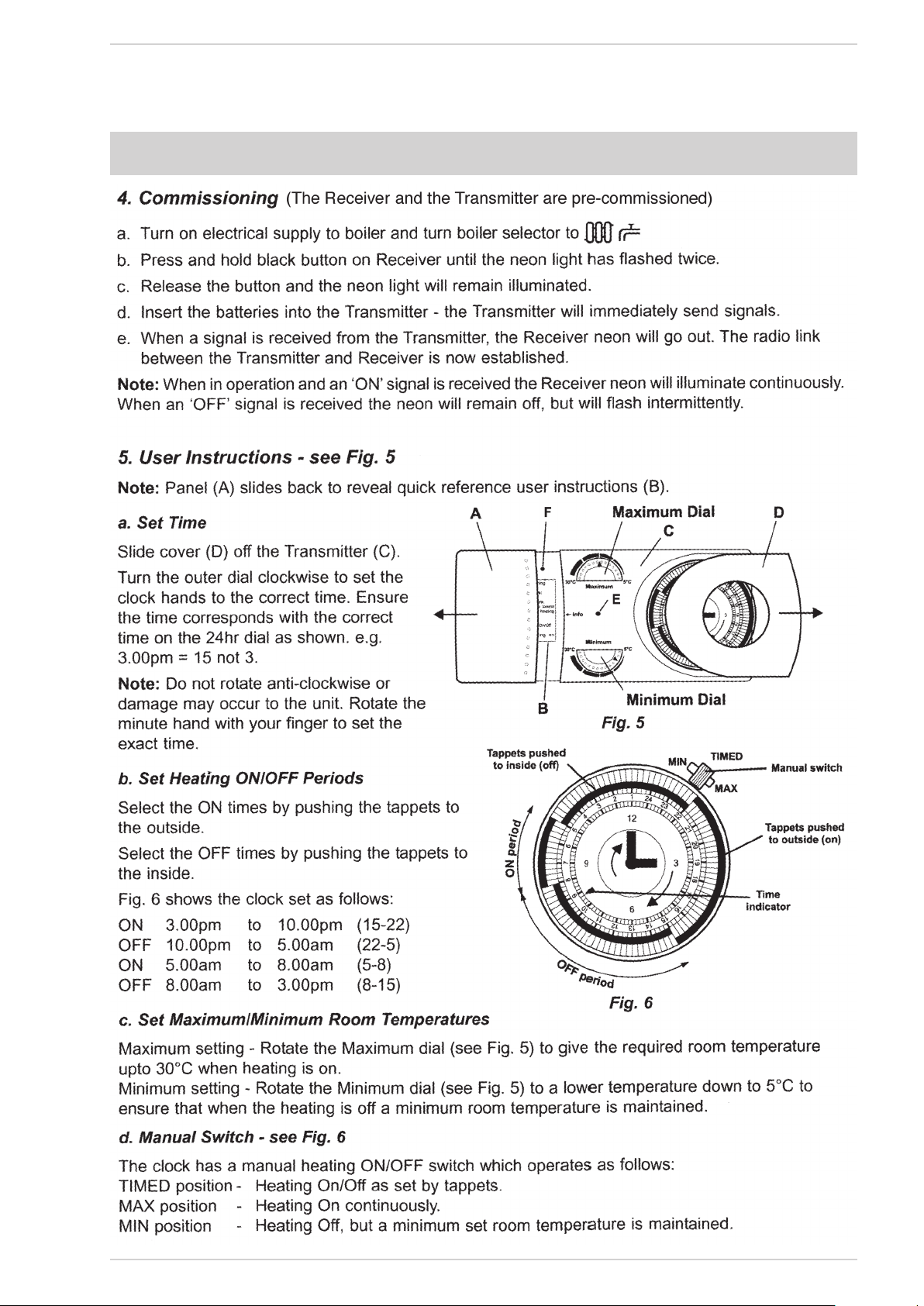

ANALOGIC RF TIME PROGRAMMER (CODE 8092231) ..................................................................................... 12

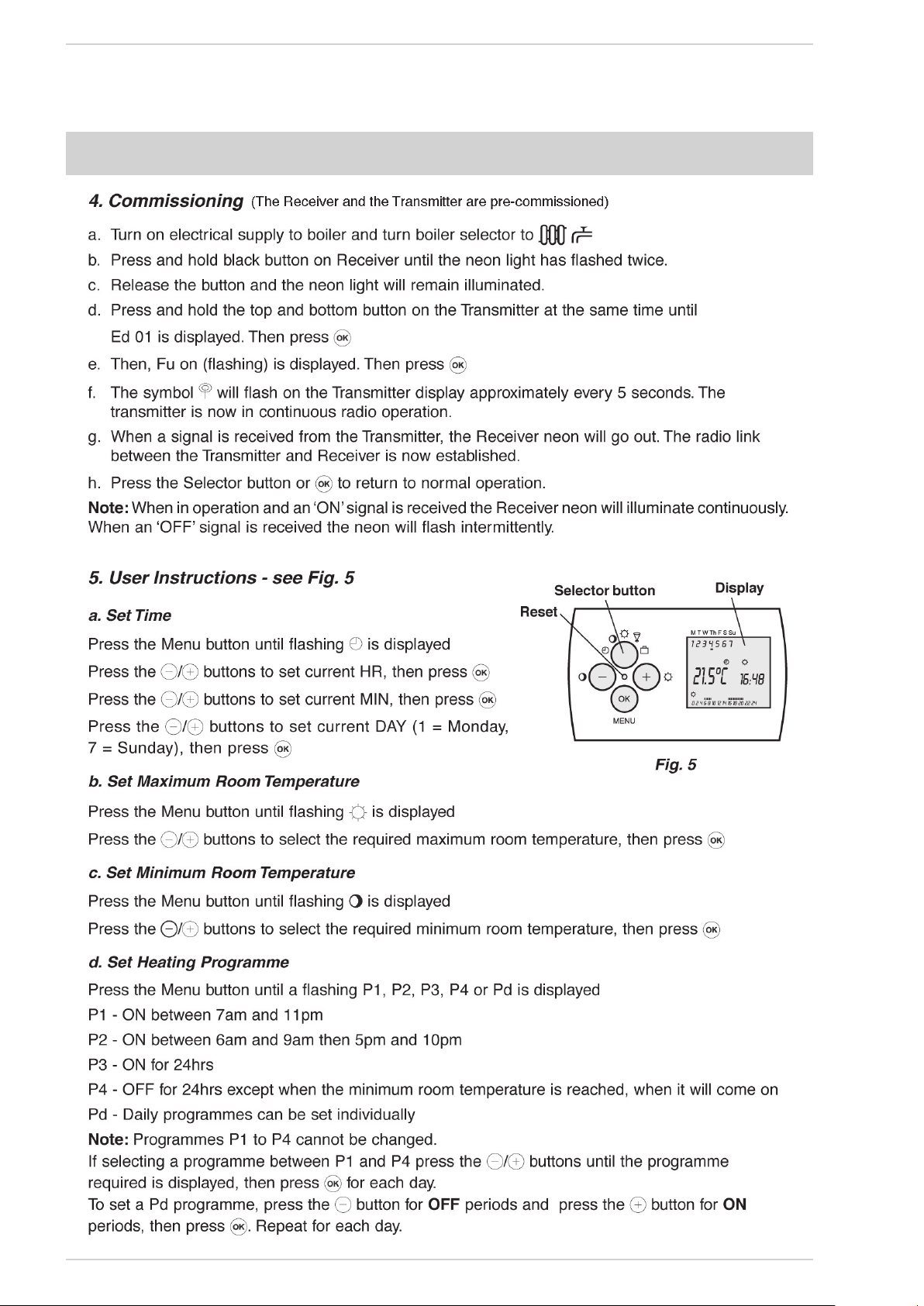

DIGITAL RF TIME PROGRAMMER (CODE 8092232) ......................................................................................... 13
CONTENTS
VERY IMPORTANT!
PLEASE MAKE SURE YOUR BENCHMARK CHECKLIST IN THE
INSTALLATION GUIDE, IS FILLED IN CORRECTLY.
ALL GAS SAFE REGISTER INSTALLERS CARRY A ID CARD.
THE REGISTRATION NUMBER SHOULD BE
RECORDED ON THE CHECK LIST.
YOU CAN CHECK YOUR INSTALLER IS GAS SAFE
REGISTERED BY CALLING ON 0800 408 5577
These appliances comply with the S.E.D.B.U.K. scheme, band “A”
Murelle ELITE HE 30: Gas Council number 47-283-55
Murelle ELITE HE 35: Gas Council number 47-283-56
Murelle ELITE HE 35 T: Gas Council number 41-283-43

6
OPERATING INSTRUCTIONS FOR THE USER
THE GAS SAFETY (INSTALLATION AND
USE) REGULATIONS 1996.
It is the law that all gas appliances
are installed by a registered person, in
accordance with the above regulations.
Failure to install appliances correctly
could lead to prosecution. It is in your
own interest, and that of safety, to ensure
that the law is complied with.
It is essential that the appliance is cor-
rectly earthed. An electricity supply of
240 V - 50 Hz fused at 3 A is required.
Read these instructions carefully before
attempting to operate the appliance.
1.1 INTRODUCTION
The Sime “MURELLE ELITE HE 30-35”
family are fully automatic, wall mounted,
room sealed, fan assisted range of com-
bination boilers.
When operating in winter mode, the
appliance provides central heating as
required and produces instantaneous hot
water upon demand. When operating in
summer mode, the central heating is
not operational however the appliance
continues to supply hot water whenever
it is required.
The Sime “MURELLE ELITE HE 35 T”
family is a fully automatic, wall mounted,
room sealed, fan assisted system boilers.
The boiler is fitted with a divertor valve
which enables the boiler to be directly
connected to a hot water cylinder.
1.2 APPLIANCE OPERATION
“MURELLE ELITE HE” - a demand of hot
water will be sensed by the appliance
detecting water flow (providing that the
flow rate is above 2 l/m - 0.5 gal/min).
The fan will start and the burner will
light at full output. If the draw off rate is
near the maximum design flow rate the
appliance will run continuously at full
output until a tap is either turned off or
the flow rate is reduced in which case
the heat output will reduce accordingly
to maintain a steady temperature.
Hot water is made available almost
immediately at the appliance outlet, but
the final temperature and time taken
for the hot water to reach a tap depends
upon the potentiometer setting, the rate
at which water is drawn off, and the
length of the pipe between the boiler and
the tap.
When the tap is turned off, the appliance
will revert to C.H. mode (if set on winter
position) otherwise the burner will be
extinguished pending the next demand
for hot water.
“MURELLE ELITE HE 30-35” &
“MURELLE ELITE HE 35 T” - a demand
for heating will be sensed by the boiler,
The pump will start, and provide suffi-
cient circulation is detected, the fan will
start and the burner will light. The heat
output will be controlled by the heating
sensor and the user interface control.
1.3 OPERATING
INSTRUCTIONS
1.3.1 Boiler ignition (fig. 24)
The first ignition of the boiler must be
carried out by qualified technical per-
sonnel. Successively, if it is necessary to
start up the boiler again, adhere strictly
to the following instructions: open the
gas tap to allow the flow of the fuel.
Move the main switch of the system to
“ON”. When fuel is fed to the boiler, a se-
quence of checks will be carried out and
the display shows the normal condition
of the functioning, always indicating the
pressure of the system. If the blue lumi-
nous bar is on, this indicates the presen-
ce of voltage.
N.B.: The first press of any key (2) act
only to illuminate the display, succes-
sive presses will be recognised to alter
the mode or value.
Winter
Press the key
5
3
1
2
4
of the controls (pos. 2)
to activate the winter mode functioning
(heating and D.H.W.). The display will be
as shown in the figure.
Summer
Press the key
5
3
1
2
4
of the controls (pos. 2)
to activate the summer mode functioning
(only the production D.H.W.).
The display will be as shown in the figure.
Fig. 24
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)

7

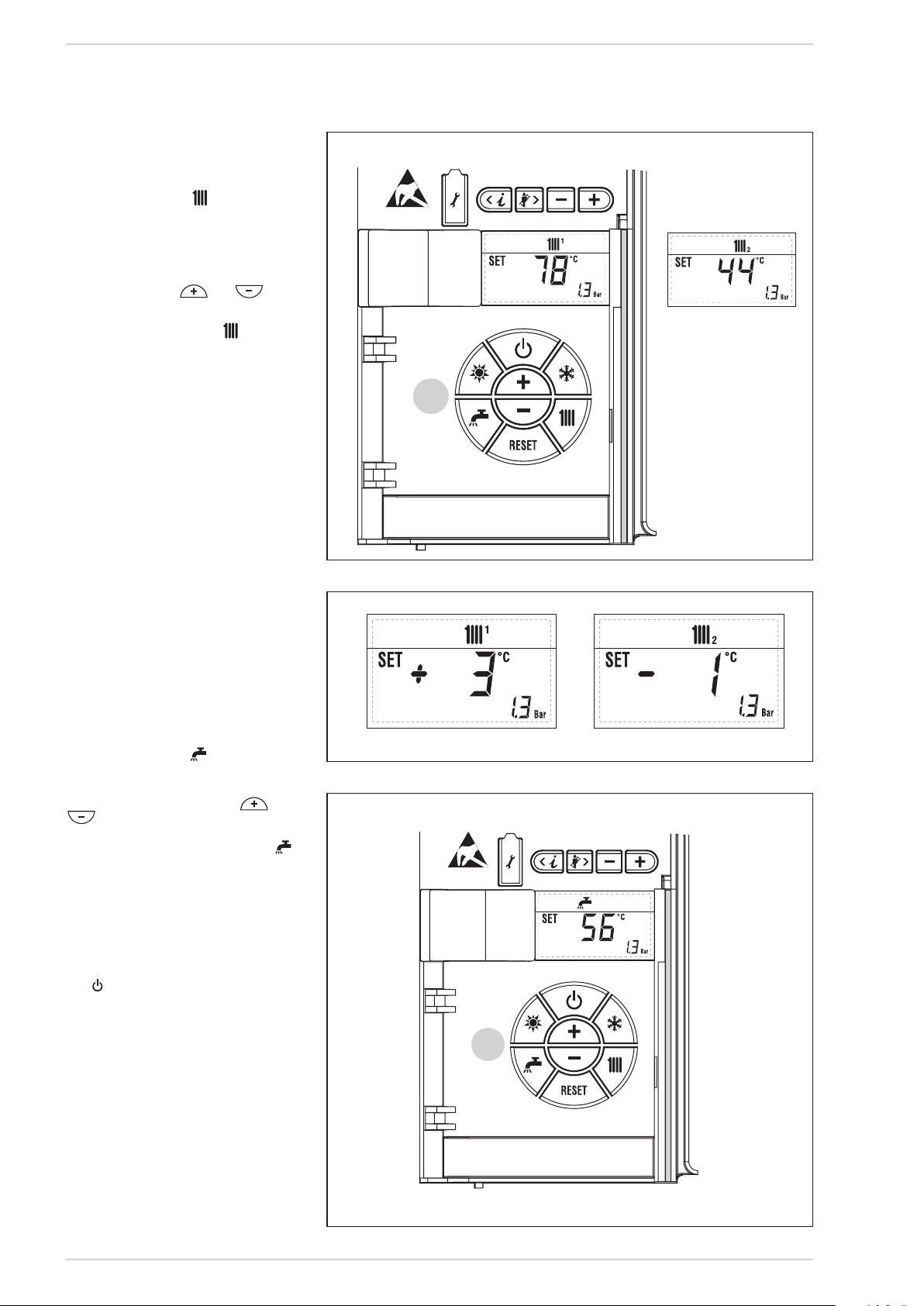

1.3.2 Regulation
C.H. temperature (fig. 25)
To set the temperature of the water for
heating, press the key of the controls
(2). The first time the key is pressed, the
SET of heating circuit 1 is selected. The
second time it is pressed, the SET if se-
cond zone fitted is selected. The display
will be as shown in the figure. Change the
values with the key
5
3
1
2
4
and
5
3
1
2
4
.
Standard visualisation will return to the
display by pressing the key again, or
after 10 seconds if no key is pressed.
Regulation of the external
sensor (fig. 25/a)
If an external sensor is installed, the
value of the output temperature is au-
tomatically chosen by the system, which
quickly adjusts the environmental tem-
perature on the basis of the external
temperature.
If you wish to change the value of the
temperature, increasing or decreasing
that calculated automatically by the elec-
tronic card, proceed as indicated in the
preceding paragraph.
The level of various correction of a value
of temperature proportional calculated.
The display will be as shown in fig. 25/a.
1.3.3 Regulation D.H.W.
temperature (fig. 26)
To set the desired temperature of the
D.H.W., press the key of the controls
(pos. 2). The display will be as shown in
the figure.
Change the values with the key
5
3
1
2
4
and
5
3
1
2
4
.
The display will return to the standard
visualisation by pressing the key
again, or after 10 seconds if no key is
pressed.
1.3.4 To switch off the boiler
(fig. 24)
In the case of a short absence, press the
key
5
3
1
2
4
of the controls (pos. 2).
The display will be as shown in the fig. 24.
In this way, leaving the electricity and
the fuel supply connected, the boiler is
protected from frost and from the pump
becoming jammed.
If the boiler is not used for a prolonged
period, it is advisable to disconnect the
electricity supply, by switching off the
main switch of the system, and to clo-
se the gas tap and, if low temperatures
are expected, to completely empty the
hydraulic circuits to avoid pipes being
broken by the formation of ice in the pi-
pes.
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 25
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 26
Fig. 25/a
Heating circuit 2

8
1.4 ERRORS AND SOLUTIONS
When there is a functioning error, the di-
splay shows an alarm and the blue lumi-
nous bar becomes red.
Descriptions of the errors with the relati-
ve alarms and solutions are given below:
– ALL 01 (fig. 27)
Seek help and advice from a qualified
engineer.
– ALL 02 (fig. 27/a)
If the system pressure detected is lo-
wer than 0.5 bar, the boiler will stop
and the display will show “ALL 02”. To
proceed increase the system pressure
to between 1 and 1.5 bar using the fil-
ling loop.
– ALL 03
The system pressure detected is
more than 2.8 bar. Ensure that the
filling loop is turned off and the pipe
detatched. Lower the system pressu-
re by draining from a radiator.
If problem persists seek help from a
qualified engineer.
– ALL 04
Seek help and advice from a qualified
engineer.
– ALL 05
Seek help and advice from a qualified
engineer.
– ALL 06 (fig. 27/c)
Press the key
5
3
1
2
4
of the controls (2)
to re-start the boiler.
If the error persists seek help and
advice from a qualified engineer.
– ALL 07 (fig. 27/d)
Press the key
5
3
1
2
4
of the controls (2)
to re-start the boiler.
If the error persists seek help and
advice from a qualified engineer.
– ALL 08
Seek help and advice from a qualified
engineer.
– ALL 09
If the boiler detects inadequate sy-
stem water circulation, the boiler will
stop and display AL 09. Ensure that
at least one radiator is turned on and
that all isolation valves are open.
If problem persists it could be due to
a blocked filter within the boiler, seek
help and advice from a qualified engi-
neer.
– ALL 10
Seek help and advice from a qualified
engineer.
– ALL 13 (fig. 27/e)
Press the key
5
3
1
2
4
of the controls (2)
to re-start the boiler.
If the error persists seek help and
advice from a qualified engineer.
– ALL 14
Seek help and advice from a qualified
engineer.
– ALL 15
Seek help and advice from a qualified
engineer.
– From “ALL 20” to “ALL 29”
Request assistance from qualified
technical personnel.
1.5 MINIMUM CLEARANCES
The following MINIMUM CLEARANCES
must be available for servicing the appli-
ance:
1.6 ROUTINE
SERVICING
To ensure continued efficient operation
of the appliance, and as a condition of
the warranty, the boiler must be serviced
annually.
It is the law that any service work must
be carried out by a Gas Safe Register
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 27
Fig. 27/a
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 27/d
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 27/e
OPEN Filling loop
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 27/c
For servicing
ABOVE THE
APPLIANCE CASING 200 mm
AT THE R.H.S. 15 mm
AT THE L.H.S. 15 mm
BELOW THE
APPLIANCE CASING 200 mm
IN FRONT OF THE
APPLIANCE 500 mm

9
registered engineer.
Ensure that the service is recorded in the
installation guide use and maintenance
section.
1.7 ELECTRICAL SUPPLY
THIS APPLIANCE MUST BE EARTHED.
The mains supply must be fused at 3
amp.
1.8 VENTILATION
If the appliance is installed in a cabinet,
it MUST NOT be used for storage pur-
poses. Any ventilation provided for the
appliance during installation MUST NOT
be blocked and a periodic check must be
made to ensure that the vents are free
from obstructions.
1.8.1 Cleaning
Use only a damp cloth and mild deter-
gent to clean the appliance outer casing.
DO NOT use abrasive cleaners.
1.9 SAFETY
It is essential that the instructions in
this booklet are strictly followed for the
safe and economical operation of this
appliance. The appliance functions as a
fan assisted balanced flue unit.
The flue terminal
MUST NOT BE OBSTRUCTED under any
circumstances. If damaged, turn off the
appliance and consult the installer, ser-
vice engineer, or gas supplier.
If it is known or suspected that a fault
exists on the appliance it MUST NOT be
used until the fault has been rectified by
a competent person.
WARNING:
IF A GAS LEAK IS SUSPECTED OR
EXISTS, TURN OFF THE GAS SUPPLY TO
THE APPLIANCE AT THE GAS SERVICE
COCK.
DO NOT OPERATE ANY ELECTRICAL
SWITCHES.
DO NOT OPERATE ANY ELECTRICAL
APPLIANCE.
OPEN ALL WINDOWS AND DOORS. DO
NOT SMOKE.
EXTINGUISH ALL NAKED LIGHTS.
CONTACT THE NATIONAL GAS
EMERGENCY SERVICE IMMEDIATLEY
ON 0800111999.

10
Setting the time
The time of day can be set by grasp-
ing the outer edge of the black dial
and turning it in a clockwise direc-
tion until the correct time is in line
with the white pointer.
Setting the “switching time”
The “ON” periods are set by sliding
the blue tappets, adjacent to the
time periods required, to the outer
edge of the dial.
The tappets that remain at the cen-
tre of the dial will be the “OFF”
periods.
N.B.: The smallest switching time
(ON or OFF) is 15 minutes.
– To select “Timed” mode move the
selector switch in the middle of
the clock face to the “ ” posi-
tion.
– To select “Constant” mode move
the selector switch in the middle
of the clock face to the “I” posi-
tion.
– To select “OFF” mode move the
selector switch in the middle of
the clock face to the “O” position.
MECHANICAL TIME CLOCK - Code 8092228
MECHANICAL 24 hr VERSION
Slide blue tappets
OUT for ON period
Slide blue tappets IN for OFF period
Mode selector switch
DIGITAL 7 DAY VERSION
Selects da
y
or da
y
groups for real time and programme time
Selects ON/OFF permanently when in real time (advance)
Reset
Selects programming
mode
Selects mode for
setting real time of day
Winter/Summer time
± 1 hr selector
Selects hours/minutes
for time of day
and programme times
Boiler ON (I)
PROGRAMMED
Boiler
Boiler OFF (O)
I
O

When the selector is in the “AUTO” position, boiler
functioning is automatically controlled on the basis
of the temperature levels and time periods set. The
second selector must be in the “RUN” position to
start. The programming procedure is described
below:
– Setting the time
Set the selector to the “CLOCK“ position. Press
“h” to change the hour on the display, or “m” to
change the minutes. To set the day, press the
“1…7” button until the arrow is pointing to the
correct day (1 = Monday… 7 = Sunday).
– Setting the program
The time clock has 8 on times and 8 off times. To
make it easier to use, the time clock is supplied
with 3 on times and 3 off times already set for
each day of the week, as shown below:
To select programmes other than those already
set, move the selector to position “P”; “0:001” will
appear on the display, in which the first three digits
indicate the hour and minutes, while the fourth
digit identifies the program number. Odd-numbered
programs identify requests for operation (day tem-
perature), in which case the light bulb symbol will
appear on the display, while even-numbered pro-
grams identify drops in temperature (night). Use the
“1…7” key to select the day of the week (from 1 to
7) or days (1 ÷ 5, 6 - 7; 1 ÷ 6 or every day if the pro-
gram is to be repeated every day of the week). Set
the hour and minutes with the “h” and “m” buttons.
Press “P” to store the operation in memory and go
on to the next program. Repeat the same procedure
to set the remaining programs.
When finished programming, set the selector to
“RUN” position.
– Deleting one or more programs
The on and off time must be deleted for each pro-
gram to be deleted.
Set selector (2) to position “P”. Select the desired
program with button (3), then press button (4) to
delete the day setting (the triangular symbols for
the days should go away). If part of the program
is deleted, when you set selector (2) back to the
“RUN” position an error will appear in the clock
display, referring to the program which is incor-
rect.
To delete all programs, put the selector in posi-
tion “P” and press buttons (3) and (5) at the same
time.
– Setting the SKIP function
The SKIP function deactivates programs for the
next day and resumes regular programming 24
hours later.
This function is useful if you will be out all day
and don’t need heating.
To start this function, press button (7), which is
active only when selector (2) is in “RUN” position.
Once you have selected the SKIP function, it will
go into effect at 0:00 of the next day for 24 hours.
You cannot turn it off once it has started, so regu-
lar programming will not resume until 24 hours
have passed.
DIGITAL TIME CLOCK - Code 8092229
Program Time
1 06,00
2 09,00
3 12,00
4 14,00
5 18,00
6 22,00
NOTE: No program is set from 7 through 17.
or 1 Manual/automatic operation selector
2 Program/schedule setting selector
3 Program button
4 Day of the week button
5 Hour button
6 Minute button
7 SKIP button
8 Reset button
11

12
ANALOGIC RF TIME PROGRAMMER - Code 8092231

13
DIGITAL RF TIME PROGRAMMER - Code 8092232

14
NOTES

Sime Ltd
1a Blue Ridge Park
Thunderhead Ridge
Glasshoughton, Castleford, WF10 4UA
Phone: [phone]
Fax: [phone]
www.sime.co.uk
Email: [email protected]
